The correct command in Revit used to map (assign or browse to) a Keynote Table file is Keynoting Settings.

In Revit, keynotes are driven by an external keynote table, typically a tab‑delimited TXT file that must be assigned (mapped) in the project so keynote tags can read values correctly. The official Autodesk Revit MEP documentation clearly identifies that the Keynoting Settings dialog is where this mapping is performed.

From the documentation:

To access the Keynoting Settings dialog, the instructions state:“click Annotate tab ➤ Tag panel drop‑down ➤ (Keynoting Settings).”

Regarding keynote table file location mapping:“Keynote Table — Full Path displays the entire path of the keynote file… Saved Path displays the file name of the keynote file that is loaded.”

It goes further to explain file path types:“Absolute identifies a specific folder… Relative finds the keynote file where the project file… is located… At Library Locations finds the keynote file where the stand‑alone installation or network deployment specified.”

The command is explicitly referenced again when fixing a missing mapping:“Unable to Load Keynote data. Check keynote table locations in Keynoting Settings.”“To specify the location of the keynote text file… click (Keynoting Settings).”

Other listed options do not perform keynote file mapping:

Keynote Manager does not exist as a command in native Revit.

Element Keynote is a tagging method.

Keynote Legend only displays already‑mapped keynote information.

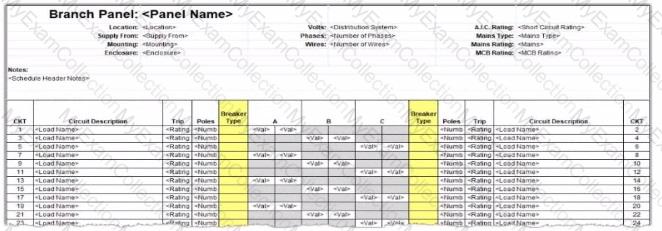

In Autodesk Revit Electrical Design, panel schedules display data that originates from the Electrical Circuits category, not directly from the Electrical Equipment or Electrical Fixtures families. Each circuit in a panel schedule represents an instance of an Electrical Circuit object within Revit’s system-based MEP structure. Therefore, to add an additional field like Breaker Type, the parameter must be created and assigned specifically to the Electrical Circuits category.

According to the Revit MEP User’s Guide – Chapter 50 “Electrical Systems and Panel Schedules”:

“Panel schedules display parameters that are associated with electrical circuits, including load names, rating, poles, and breaker information. To include additional circuit information in a panel schedule, create a Project Parameter assigned to the Electrical Circuits category.”

This means the designer should:

1️⃣ Open Manage → Project Parameters → Add

2️⃣ Create a Project Parameter named Breaker Type

3️⃣ Assign it to the Electrical Circuits category

4️⃣ Set it to appear in schedules and tags, ensuring it becomes available for use in the panel schedule template

As noted in the Smithsonian Facilities Revit Template User’s Guide:

“Custom circuit data fields such as ‘Breaker Type’ or ‘Wire Tag’ are defined as project parameters applied to the Electrical Circuits category so they can be displayed in panel schedule templates.”

Incorrect options:

A. Shared Parameter in Electrical Equipment — Electrical Equipment holds overall panel data (e.g., Mains Rating, Voltage) but not per-circuit data.

B. Shared Parameter in Electrical Fixture families — Fixtures are individual load devices, not part of the circuit’s breaker assignment.

D. Project Parameter assigned to Electrical Equipment — would apply to the panelboard as a whole, not to individual breakers in circuits.

Thus, the correct answer is C. Project Parameter assigned to Electrical Circuits, ensuring each breaker in the panel schedule can display its type individually and dynamically.

The warning message — “Can’t create this kind of element in this view in the current mode” — appears when an electrical designer attempts to place a Generic Annotation family inside a model family (e.g., a data device or electrical fixture) that is not configured to host annotation elements.

According to the Revit Electrical Design documentation, Generic Annotation families are 2D annotation elements, and therefore, cannot be created or viewed in 3D model views unless configured as “Shared.” The official guide clarifies:

“You can create generic annotation families and nest them inside host model families so that the annotations display in the project.”

However, this only functions correctly if the annotation is enabled to act independently within the host:

“To allow a nested annotation to be visible and editable when placed in a host model family, the nested annotation must be set to Shared before loading it into the host.”

If the nested annotation is not set to Shared, Revit cannot create or display it in the host’s model view, triggering this exact warning.

Thus, the correct workflow is:

Open the Generic Annotation family in the Family Editor.

Go to Family Category and Parameters.

Check the box “Shared” under Family Parameters.

Save and reload the family into the host electrical device family.

Other options—changing view level, detail level, or annotation orientation—do not resolve this placement restriction.
