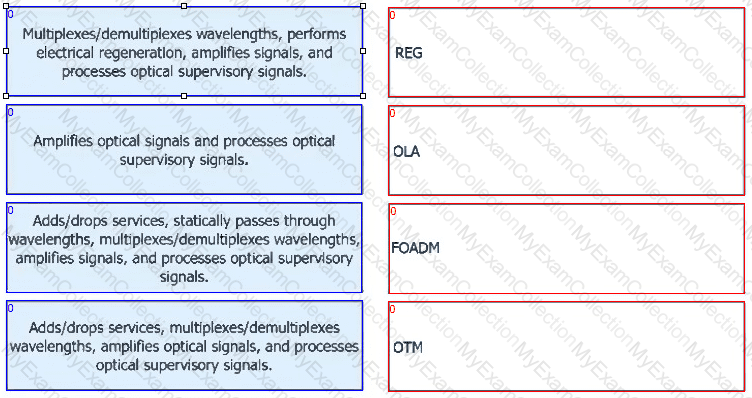

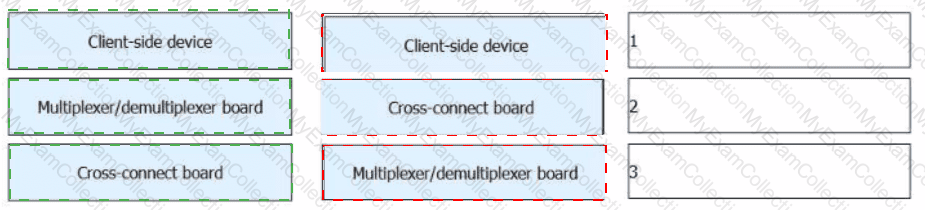

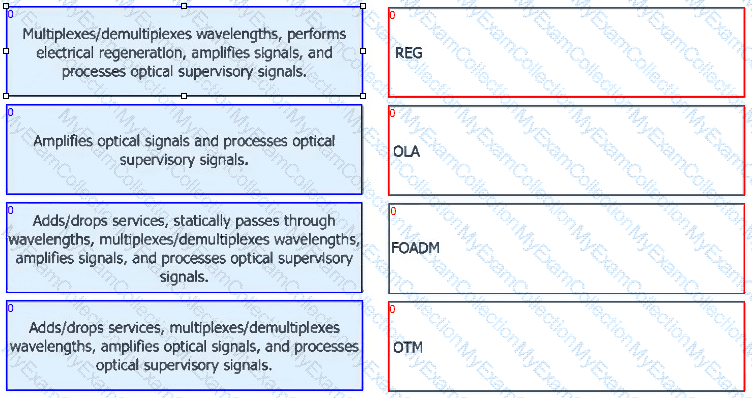

H31-341_V2.5 HCIP-Transmission V2.5 Question and Answers

The statement that the OA gain can be reduced when expanding 100G channels in a 10G system to meet incident optical power requirements is false. In fact, the single wavelength incident optical power of a 100G system is higher than that of a 10G system, and gain adjustment needs to ensure the 100G channels meet their power requirements without degradation. Reducing OA gain indiscriminately could cause insufficient amplification for 100G signals, impairing performance. HCIP-Transmission specifies careful power management and gain setting to balance multi-rate systems during hybrid transmission expansion.

ESC (Enhanced Supervision Channel) uses Fixed frame structure DCC and Embedded DCC types to transmit supervisory and management information within the optical channel.

Data dumping on Network Management Systems (NMS) can occur in several types: (A) Periodic dumping, where data is saved at set intervals for monitoring and analysis; (C) Overflow dumping, triggered when buffer capacity is exceeded; and (D) Manual dumping, initiated by user commands. (B) Automatic dumping is not a standard term here or is often encompassed within periodic or overflow dumping mechanisms. HCIP-Transmission references these types as part of NMS data handling and fault diagnosis strategies, enabling efficient network performance management and troubleshooting.

Optical layer overhead alarm detection is implemented via the Optical Layer Overhead Out Of Service (OOS) mechanism. Alarms like R_LOS (Loss of Signal) and MUT_LOS (Multiple Loss of Signal) belong to the optical layer and are reported based on OOS detection. This approach helps isolate physical layer faults and informs higher layers for protection switching or maintenance. HCIP-Transmission emphasizes that OOS-based alarm detection is crucial for rapid fault localization and efficient network operation in optical transmission systems.

The nominal rate of OTU4 signals is precisely 111,809,973.568 kbit/s, which is generally rounded to 112 Gbit/s for practical purposes. This nominal rate corresponds to the standardized high-speed optical transport designed to support extremely high-capacity networks. The rounding simplifies communication and equipment specifications without losing significant accuracy. HCIP-Transmission references this value when discussing OTN signal rates and the design of optical transmission systems to handle next-generation bandwidth demands.

The statement that the value of FAS (Frame Alignment Signal) changes dynamically with different signals is false. The FAS is a fixed sequence placed at the start of the OTN frame structure to enable frame synchronization. It does not change dynamically, as its fixed pattern is crucial for reliable frame alignment and error detection. OTUk_LOF (Loss of Frame) alarms are generated when FAS framing fails, indicating synchronization loss. HCIP-Transmission stresses the fixed nature of FAS for consistent framing and alignment across the OTN network layers.

Alarms prefixed with “SM” (Section Monitoring) - OTUk_SM_DEG and OTUk_SM_BDI - are specific to the OTUk section‐monitoring layer.

Ensuring the downstream OA’s input is within the specified range by first reducing upstream EVOA attenuation is the standard first step when output power falls short at minimum gain.

If adjusting the EVOA does not bring the OA’s output into spec, increasing the OA’s gain is the next appropriate action.

When the OA meets output requirements at its minimum gain setting, the preceding fiber’s incident power must be at or above the lower limit defined by the incident-power specifications.

Alarm handling differs between OTN and SDH encapsulation processes, so they are not processed in the same way when GE services are mapped into OTN versus SDH signals.

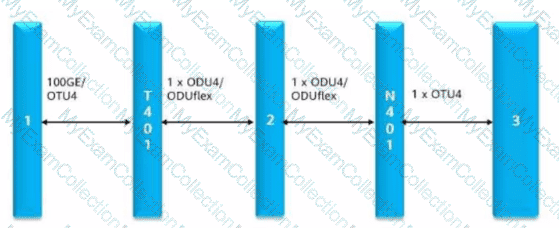

ODUflex is a flexible OTN (Optical Transport Network) container designed to improve bandwidth utilization by allowing users to configure capacity based on actual service volume (A). Unlike fixed containers, ODUflex’s rate is adjustable to fit various service rates, improving efficiency and reducing waste. However, the ODUflex rate is defined as N × 1.25 Gbit/s where N is variable, but this option was not listed as correct here. Importantly, the TOA board does support ODUflex, contradicting option D. The key benefits of ODUflex include flexible capacity and improved bandwidth utilization (C), making these the correct points as per HCIP-Transmission standards.

FDI (Forward Defect Indication) and BDI (Backward Defect Indication) are specifically defined to suppress alarms at the far end when a defect is detected, preventing redundant alarm cascades. CC and AIS do not perform alarm suppression.

OTN overhead (ODUk/OTUk) belongs to the OTN layer, not the optical layer, so OOS overheads do not include OTN overhead.

Lower ground resistance indicates better grounding performance because it allows current to be conducted to the ground more quickly and efficiently. Good grounding is essential for equipment protection, system stability, and safety in transmission networks. A low resistance path reduces the risk of electrical shock, equipment damage, and signal interference. HCIP-Transmission underscores the importance of grounding quality as part of overall network infrastructure integrity and reliability, making low ground resistance a key objective in grounding design.

External faults (e.g., fiber cuts, connector issues) should be ruled out before investigating internal equipment faults.

Broader network-level checks (e.g., path continuity, OLP status) come before per-device NE diagnostics.

Isolate faults on individual wavelengths before examining the aggregated multi-wavelength transport.

In Link Aggregation Group (LAG) settings, port priority determines which ports carry traffic preferentially. (A) If a primary port is configured to preferentially carry services, it must have a higher priority than other ports to ensure it is selected first. Port priority is numerically represented, and (D) a lower value of “port priority” means higher priority, which can be counterintuitive but is standard in networking. For manual aggregation groups that don’t run LACP, priority settings typically do not apply. This priority mechanism helps optimize link utilization and failover in aggregated links, as detailed in HCIP-Transmission documentation on Ethernet and service aggregation.

Avalanche photodiode (APD) receivers are commonly used on OTU boards due to their high sensitivity. The input optical power range typically lies between -4 dBm (maximum) and around -28 dBm (minimum). Among the options, -4 dBm is within the acceptable input power range, ensuring the APD operates without saturation or damage. Optical powers too high can saturate the receiver, while too low powers cause poor signal-to-noise ratio. HCIP-Transmission specifies these ranges to ensure optimal receiver performance and avoid optical overload or underpower conditions.

The OTUk_LOM (Loss of Multiframe) alarm indicates a framing alignment issue and is generated when the Out Of Multiframe (OOM) state persists for at least 3 milliseconds. This rapid alarm triggering helps detect synchronization failures quickly, allowing prompt response to maintain network stability. HCIP-Transmission details this alarm behavior within OTN frame monitoring functions, highlighting the critical role of frame alignment in maintaining signal integrity across optical networks.

The RDU9 board is used for demultiplexing optical signals; however, it cannot dynamically demultiplex any wavelength to any port. Dynamic demultiplexing requires advanced ROADMs or wavelength selective switches capable of flexible mapping. The RDU9 has limited fixed demultiplexing functions and does not support arbitrary wavelength-to-port assignments. Therefore, the statement that it can dynamically demultiplex any wavelength to any port is false. This aligns with HCIP-Transmission technical references highlighting the capabilities and limitations of different demultiplexing hardware modules.

ODUk_PM_BDI refers to the ODUk PM backward defect indication. It is a monitoring signal used in OTN to indicate that a defect has been detected downstream (toward the transmitter side). When this indication is received, it informs the upstream node of the presence of defects or faults, allowing timely protection switching or troubleshooting. This mechanism supports fault propagation awareness across network segments, essential in maintaining service integrity. HCIP-Transmission details this indicator as part of ODUk performance monitoring (PM) overhead functions to enhance network reliability and fault management.

The DWSS20 board does not support grooming of 20-degree optical signals; it is designed for other signal types or degrees.

For the TMK1TDC board, intra-board electrical cross-connections must be configured to properly route signals within the board for correct service processing.

The term “Directioned” in WDM systems means that the wavelength carrying local services can be transmitted in a specific direction. This contrasts with directionless systems, where wavelengths can propagate in either direction without restriction. Directioned capability allows more controlled and secure wavelength routing, especially in ring or mesh networks where traffic flows need clear paths. Colorless refers to wavelength independence (a device can handle any wavelength), while colored means the device or port is assigned to a fixed wavelength. Thus, directioned accurately describes the wavelength propagation direction property as per HCIP-Transmission explanations on optical network design and wavelength routing.

Static LAGs use manual configuration and do not require LACP; LACP is only needed for dynamic link aggregation groups.

An abnormal TTI in the SM layer triggers a Trail Identifier Mismatch (TIM) alarm. AIS signals loss of signal, not a TTI mismatch.

The formula to calculate the OTUk frame rate is: OTUk frame rate = 255 / (239 - k) × STM-N frame rate. Here, "k" represents the OTUk version index, and STM-N is the synchronous transport module rate. This formula derives from the OTN standard, adjusting the frame rate according to the version and allows synchronization with underlying SDH/SONET rates. HCIP-Transmission materials provide this formula for engineers to correctly understand and calculate transmission rates for different OTN layers.

A VOA (Variable Optical Attenuator) is configured on each wavelength path of a WSS (Wavelength Selective Switch) board to adjust the power of optical signals. This power adjustment is crucial to achieve flatness across channels by compensating for varying signal intensities. Without such adjustment, some wavelengths may overpower others, causing nonlinear effects and signal degradation. The VOA ensures that all wavelength channels have balanced power levels, improving signal quality and network reliability. This principle is fundamental in dense WDM networks and is emphasized in HCIP-Transmission studies focusing on optical layer signal integrity and amplification management.

In hybrid transmission scenarios involving both 100G-and-beyond and 10G signals, it is recommended that the optical power of 100G signals be higher than that of 10G signals but not exceed the single-wavelength nominal value of the OA board. This ensures the 100G signals, which typically have stricter OSNR and power requirements, maintain adequate quality without causing nonlinear effects or saturation. Proper power balancing between different signal rates prevents performance degradation and interference. HCIP-Transmission guidelines emphasize this approach for hybrid system stability and optimized performance.

An IP subnet mask of 27 bits means 32 - 27 = 5 bits are left for host addresses. The number of hosts per subnet is 2^5 - 2 = 30. The subtraction of 2 accounts for the network address and broadcast address, which cannot be assigned to hosts. This calculation is fundamental in IP subnetting and is widely used in network design to allocate IP address ranges efficiently. HCIP-Transmission materials include these principles as part of the networking fundamentals necessary for transmission network engineers.

The TMB1AST2 board is a specialized optical module used in transmission equipment. According to HCIP-Transmission references, all the statements about this board are correct. (A) The TM1 optical port must be connected to the TMI1 optical port for proper operation. (B) It supports IEEE 1588v2 clock processing, essential for precise time synchronization, and includes OTDR (Optical Time Domain Reflectometer) functions for fiber fault detection and maintenance. (C) When working with DFIU03/DFIU04 boards, the OSC optical port requires an optical module that supports the 1511 nm wavelength to ensure wavelength compatibility. (D) Similarly, when working with DSFIU01/DSFIU02 boards, the TM1/RM1 and TM2/RM2 ports must use optical modules supporting 1511 nm and 1491 nm wavelengths respectively, ensuring correct wavelength assignment for WDM channels. This detailed configuration ensures interoperability and proper system functionality.

The TNG2M60V board is not a 60-channel multiplexer with VOA for the Super C band; this description is incorrect for that board model.

PWE3 tunnels can carry multiple pseudowires; they are not restricted to a single PW per tunnel.
