D-ISM-FN-01 Dell Information Storage and Management Foundations v2 Exam Question and Answers

FCIP (Fibre Channel over IP)is used totunnel Fibre Channel traffic over IP networks. Its primary use case:

Connecting local FC SANs to remote FC SANsfor disaster recovery and remote data replication.

Itencapsulates FC framesinto IP packets, transporting them over existing IP infrastructure.

Option B/C/D:iSCSI is not directly involved in FCIP’s primary function.

A screenshot of a computer AI-generated content may be incorrect.

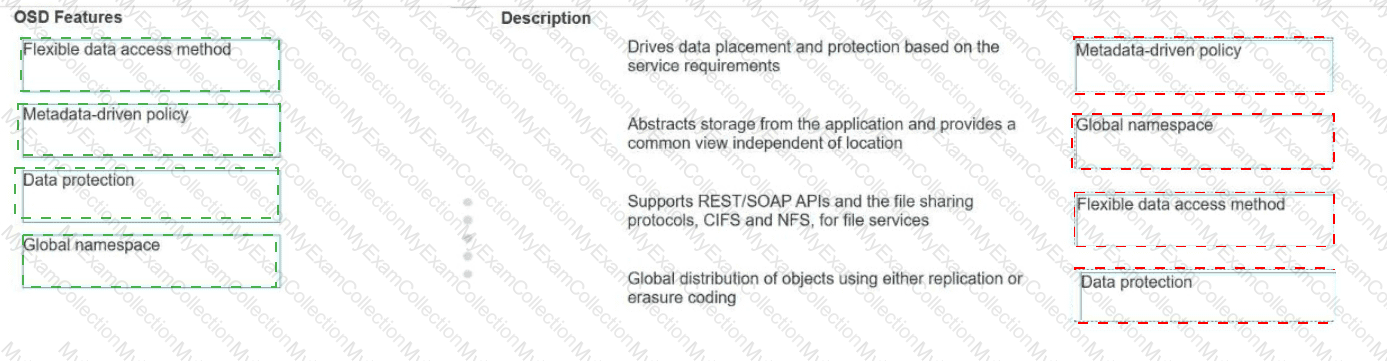

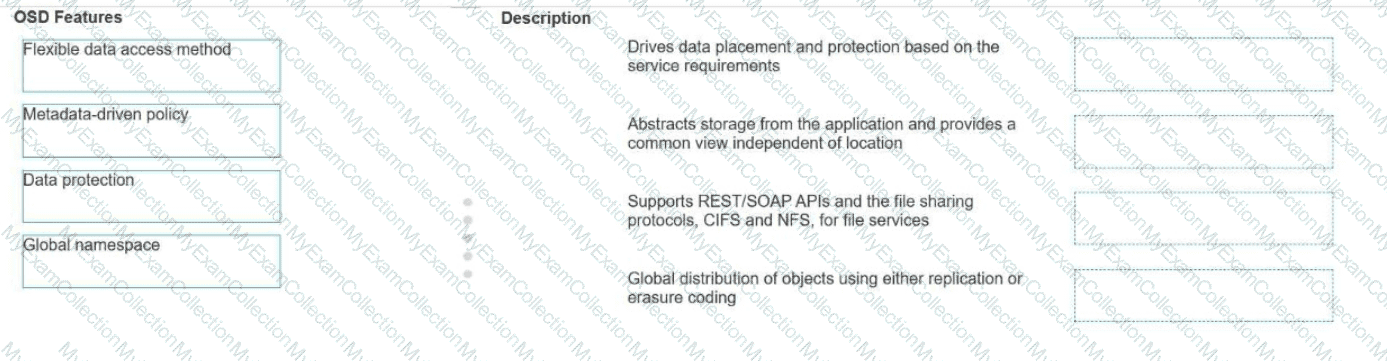

✅Flexible data access method:Object storage can offer multiple ways to access and interact with stored data, such as REST/SOAP APIs (for object-based access) and file-sharing protocols (CIFS, NFS) for file-level access.

✅Metadata-driven policy:Object storage uses rich metadata to define how objects are placed, protected, and managed, driven by policies that respond to service-level requirements.

✅Data protection:Object storage systems implement data protection at a global scale through replication or erasure coding to ensure data durability and availability.

✅Global namespace:Object storage abstracts physical locations, providing a single namespace (a unified view) so that applications can seamlessly access data regardless of where it physically resides.

The orchestration layer in a modern data center architecture is responsible for automating and coordinating complex tasks and workflows. It enables the integration and management of various services and resources to perform business operations efficiently.

Physical infrastructure:Comprises the hardware components.

Virtual infrastructure:Includes virtualized resources like VMs.

Services:Deliver specific functionalities to end-users.

In Ethernet networking, VLANs (Virtual Local Area Networks) are identified using a 12-bit VLAN ID field in the IEEE 802.1Q standard. Since 12 bits can represent 2¹² = 4096 unique values, the maximum number of VLANs that can be supported is 4096.

1024 and 2048: These values are less than the maximum and represent subsets of possible VLANs.

8192: This exceeds the 12-bit limit and is not supported by the standard.

RAID 5provides acost-effective balancebetween:

Data protection(single parity, can tolerate one disk failure).

Performance(especially read-heavy environments).

Cost(uses fewer drives than RAID 1 or 6 for the same capacity).

RAID 1 (B): Best for read-heavy workloads but doubles the storage needed (mirroring).

RAID 0 (C): No protection against disk failure.

RAID 6 (D): More protection (dual parity), but more write penalty and more disks needed.

RAID 1isdisk mirroring. It writes identical copies of data to two disks simultaneously, providing redundancy.

Minimum of 2 disks (no parity, no striping).

Excellent read performance, write performance equivalent to a single disk.

Providesfault tolerancebecause data is duplicated.

Storage Class Memory (SCM) bridges the gap between DRAM and NAND flash memory. It offers faster access times than flash memory but is still slower than DRAM. SCM provides non-volatile storage with performance characteristics closer to DRAM, making it suitable for applications requiring high-speed data access.

Rapid elasticity is a cloud computing characteristic that allows resources to be scaled up or down quickly and automatically, depending on demand. In the scenario of a sudden traffic surge, rapid elasticity enables the infrastructure to handle increased loads without manual intervention.

Measured service:Refers to monitoring and billing based on resource usage.

On-demand self-service:Allows users to provision resources as needed.

Resource pooling:Involves sharing resources among multiple users.

In traditional storage provisioning, the RAID configuration significantly impacts the storage system's characteristics:

RAID Level: Determines data redundancy and fault tolerance. For example, RAID 1 mirrors data, providing high availability, while RAID 5 uses parity, balancing performance and redundancy.

Number of Drives: Affects both capacity and performance. More drives can increase total storage capacity and improve performance through parallel data access.

Make of Drives: While drive quality matters, it's less influential than RAID configuration in determining overall system characteristics.

Capacity of Drives: Impacts total storage size but doesn't directly influence performance or availability as significantly as RAID level and drive count.

FCIP(Fibre Channel over IP) encapsulatesFibre Channel framesinto IP packets and tunnels them over IP networks. This enables remote SAN connectivity across IP-based WANs while preserving FC protocols.

Over Ethernetis inaccurate because FCIP uses IP-level transport (Layer 3), not just Layer 2.

Splitting LAN and FC SAN datais irrelevant to the tunneling mechanism.

Separating LAN/SAN dataalso misses the encapsulation focus.

Storage Class Memory (SCM) represents a new class of storage technology that bridges the gap between traditional DRAM and NAND flash memory. SCM offers significantly lower latency and higher endurance compared to NAND flash, making it the highest-performing storage medium currently available. Due to its advanced technology and performance characteristics, SCM is also the most expensive among the listed options.

FC (Fibre Channel):A network protocol used for high-speed data transfer, not a type of disk device.

SATA (Serial ATA):Commonly used in consumer-grade storage; offers lower performance and cost.

SAS (Serial Attached SCSI):Offers better performance than SATA but still lags behind SSDs and SCM.

SSD (Solid State Drive):Provides faster data access than HDDs but is outperformed by SCM.

SCM (Storage Class Memory):Combines the speed of DRAM with the persistence of NAND, offering unparalleled performance.

5Grepresents the fifth generation of mobile networks and offers several significant advantages over 4G, 3G, and earlier generations:

Increased speed:5G delivers data speeds up to 100 times faster than 4G LTE.

Enhanced capacity:Supports more devices per square kilometer, crucial for IoT and smart cities.

Low latency:Reduces delay in data transmission, enabling real-time applications like remote surgeries or autonomous vehicles.

Increased bandwidth(Option B) is part of the overall increased capacity.

Reduced distance(Option C) is incorrect; 5G uses shorter wavelengths, meaning shorter range.

Lower cost(Option D) is not a key advantage of 5G technology itself.

Infrastructure as a Service (IaaS) is a cloud computing model that provides virtualized computing resources over the internet. It offers fundamental infrastructure services such as compute, storage, and networking, which users can provision and manage through a self-service portal. This model allows organizations to scale resources as needed and pay only for what they use.

Astub fileis a small placeholder file that remains on primary storage after data has been archived or moved to secondary storage.

Itcontains a pointer or addressof the archived data’s location.

When accessed, the data is transparently retrieved from the archive.

Address of the source fileand other options do not accurately describe a stub file’s purpose.

Log files record events and messages related to the operations of a virtual machine. They provide detailed information about the VM's behavior, errors, and system messages, which are crucial for troubleshooting.
