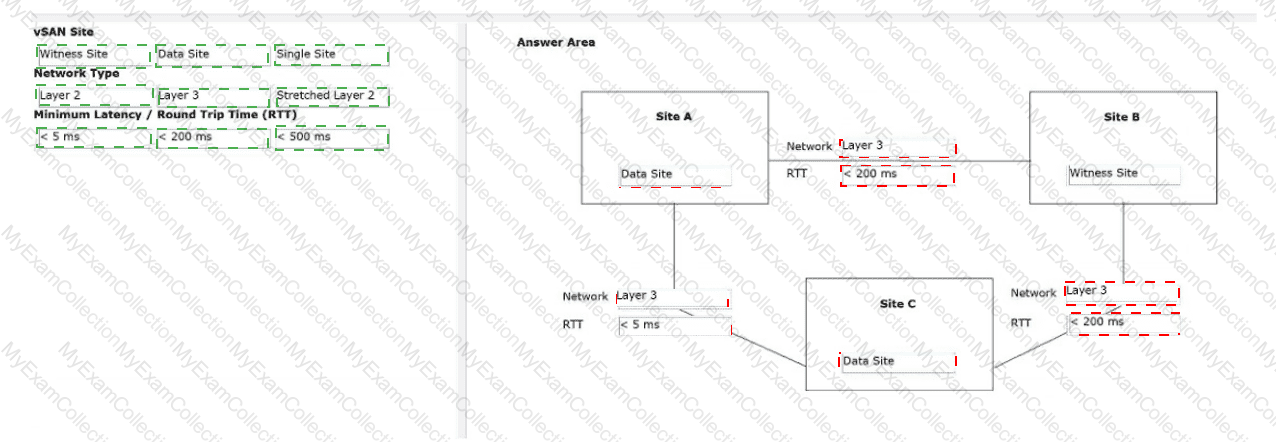

Site A = Data Site; Site B = Witness Site; Site C = Data Site; Site A ↔ Site C = Layer 3, RTT < 5 ms; Site A ↔ Site B = Layer 3, RTT < 200 ms; Site B ↔ Site C = Layer 3, RTT < 200 ms

Site A and Site C should be the data sites because Site A hosts production services and Site C has been commissioned to replace the capacity-constrained Site B. Site B should be used as the witness site because it has no space for additional physical hosts, and a vSAN witness appliance does not run workload VMs. A vSAN Stretched Cluster requires two availability zones for data nodes and a third site for the witness appliance. The data-site-to-data-site connection carries synchronous vSAN data traffic and must meet less than 5 ms RTT. The witness site carries metadata traffic only, so the data-site-to-witness links support higher latency, with less than 200 ms RTT for up to 10 hosts per site. Because the requirement specifically calls out minimizing disruption from STP, Layer 3 is the preferred network type between sites. VMware states that Layer 3 helps avoid STP redirecting traffic across undesirable links, such as constrained witness links. Reference topics: vSAN Stretched Cluster Network Design, Data Site and Witness Site Placement, Layer 3 Recommendation, RTT Requirements.

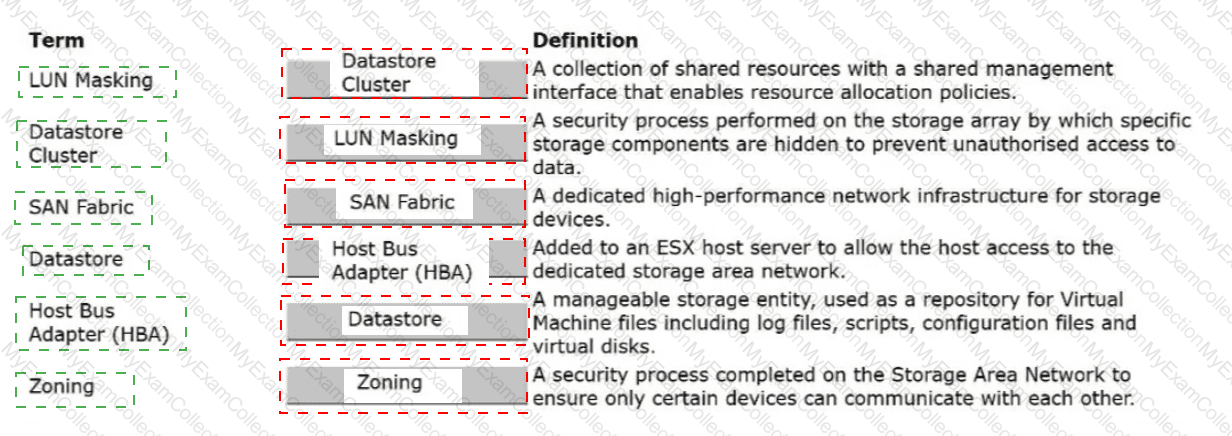

LUN Masking = A security process performed on the storage array by which specific storage components are hidden to prevent unauthorized access to data;

Datastore Cluster = A collection of shared resources with a shared management interface that enables resource allocation policies;

SAN Fabric = A dedicated high-performance network infrastructure for storage devices;

Datastore = A manageable storage entity used as a repository for Virtual Machine files including log files, scripts, configuration files and virtual disks;

Host Bus Adapter (HBA) = Added to an ESX host server to allow the host access to the dedicated storage area network;

Zoning = A security process completed on the Storage Area Network to ensure only certain devices can communicate with each other.

These definitions describe the core components of a Fibre Channel SAN design in a VCF Workload Domain. LUN masking is performed on the storage array and controls which hosts can see specific LUNs, preventing unauthorized access to storage. A datastore cluster is a collection of datastores managed as a shared resource pool, allowing placement and balancing policies through Storage DRS. A SAN fabric is the dedicated high-performance network that interconnects ESX hosts, Fibre Channel switches, and storage arrays. A datastore is the vSphere logical storage container where VM configuration files, virtual disks, logs, and related files reside. A Host Bus Adapter is the physical or virtual adapter in the ESX host that connects the host to the Fibre Channel storage area network. Zoning is performed on the Fibre Channel fabric and controls which initiators and targets can communicate. Together, zoning and LUN masking provide layered access control, while datastores and datastore clusters provide the vSphere consumption model. Reference topics: Fibre Channel SAN Concepts, SAN Fabric, Zoning, LUN Masking, VMFS Datastores, Datastore Clusters.

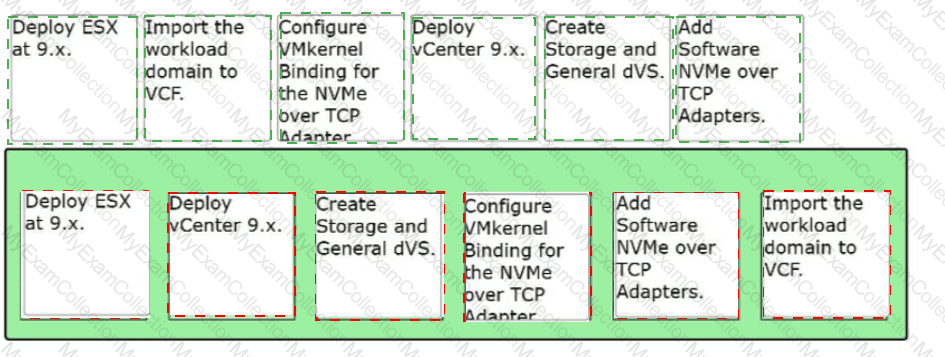

Deploy ESX at 9.x

Deploy vCenter 9.x

Create Storage and General dvS

Configure VMkernel Binding for the NVMe over TCP Adapter

Add Software NVMe over TCP Adapters

Import the workload domain to VCF

The correct sequence starts by preparing the vSphere environment that will later be imported into VMware Cloud Foundation. ESX 9.x must be deployed first on the six blade hosts because the hosts provide the compute foundation for the workload domain. After the hosts are available, vCenter 9.x is deployed to manage the cluster and provide the required vSphere inventory. The two distributed switches are then created: one for storage isolation and one for general host and workload traffic. Because the external array supports NVMe/TCP only and multipathing is required, VMkernel binding must be configured for the NVMe over TCP adapter before the software NVMe over TCP adapters are added. This ensures the NVMe/TCP storage paths are correctly associated with the intended storage network. After the software NVMe over TCP adapters are created and the hosts can access the external storage, the prepared workload domain can be imported into the existing VCF environment. Reference topics: NVMe over TCP Configuration, VMkernel Binding, Software NVMe/TCP Adapters, Existing vCenter Import, VCF Workload Domain Import.
