VNX301 Versa Certified SD-WAN Specialist (VNX300) Question and Answers

The correct answer is A . In Versa Secure SD-WAN onboarding, the branch moves through three staging phases before becoming fully operational. Versa documentation states that in Stage 3 , Versa Director pushes the stage-three configuration to the branch device over the IKE session and reboots the branch. After this stage, the branch becomes fully operational and is part of the customer SD-WAN network. At this point, IKE and IPsec sessions are created between the branch and Controller , and VXLAN and ESP sessions are created between branch to branch .

This distinction is important because the Controller connection is used for SD-WAN control-plane functions, while branch-to-branch overlay communication uses tunnel encapsulation for data forwarding. The documentation also notes that branch-to-branch ESP is maintained using a lightweight DH key-pair proprietary protocol.

Options B, C, and D are incorrect. HTTPS to Director alone does not represent the complete SD-WAN operational tunnel state. BGP to Analytics is not the required operational tunnel set. GRE-only tunnels without IPsec do not match the Versa Stage 3 SD-WAN tunnel behavior described in the staging documentation.

The correct answer is A . Versa’s handy CLI command reference lists show interfaces brief as the command used to view a list of interfaces along with their MAC addresses, operational and administrative status, tenant ID, VRF, and IP addresses. This is one of the first commands administrators run when validating device bring-up, staging interface assignment, WAN/LAN mapping, or whether a template applied interface addressing as expected.

For deeper interface troubleshooting, show interfaces detail provides additional information such as interface index, host interface, MTU, speed and duplex settings, RX/TX errors, and bridge information. However, for a quick overview of state and addressing across interfaces, show interfaces brief is the correct choice.

show system package-info identifies the running VOS software package. show system storage reports system storage resources. show coredumps shows generated core files. These are valuable operational commands, but they do not provide the requested interface status and addressing summary.

Symmetric Forwarding is the correct Versa SD-WAN feature for ensuring that return traffic between SD-WAN branches follows the same SD-WAN path on which the forward traffic was received. Versa documentation for SD-WAN traffic steering describes Symmetric forwarding as the option that specifies the path for reverse-direction traffic, meaning whether traffic returning from the destination branch to the originating branch should be sent on the same path on which it arrived. It further states that enabling symmetric traffic forwarding determines the reverse path for traffic returning from the destination branch to the originating branch.

This is different from Symmetric Routing, which is a routing design goal or behavior, not the Versa SD-WAN forwarding-profile feature named in the product documentation. Equal-Cost Multipath can distribute flows across equal-cost routes, but it does not specifically guarantee that both directions of the same SD-WAN session use the same path. Packet Striping is used to split or distribute packets across multiple links for performance, not to enforce bidirectional path symmetry. Therefore, the verified Versa feature to enable is Symmetric Forwarding.

Comprehensive and Detailed 150 to 250 words of Explanation From Versa Networks SDWAN Topics:

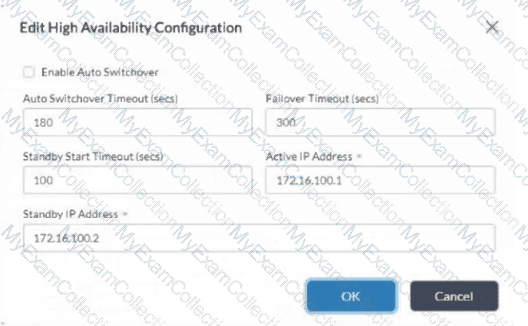

The correct answers are B and D . In the exhibit, Enable Auto Switchover is not selected. However, the Failover Timeout value is configured as 300 seconds . Versa Director HA documentation states that the Failover Timeout is the timeout period before the standby Director node can promote itself to become the active Director node. Therefore, if the active or primary Director fails, the backup Director can automatically assume the active role after the failover condition and timeout are met.

The important distinction is that Auto Switchover controls revertive behavior after recovery, not the initial standby takeover during failure. Versa documentation explains that Director HA is non-revertive by default. This means that when the designated master or primary Director comes back online after recovery, it is not automatically promoted back to active unless automatic switchover is enabled. To make the designated active Director automatically reclaim the active state after recovery, Enable Auto Switchover must be selected and the Auto Switchover Timeout must expire.

The correct answer is A . Versa CGNAT troubleshooting documentation includes per-pool and resource counters that show allocation behavior and failures. The counters include values such as bindings allocated, bindings freed, allocation failures, out-of-address errors, and out-of-ports errors. It also shows that CGNAT source-port resources are divided and distributed to worker threads by Versa RFD/RFM, and that allocated source-port ranges can be viewed using show rfm table src-port allocated.

If out-of-ports errors increase while out-of-address errors remain zero, the pool still has usable translated IP addresses, but the available port resource for NAT bindings is exhausted. This commonly occurs when too many concurrent sessions share a limited public IP or source-port range. The corrective action would be to expand the NAT resource, add more public translated IPs, adjust port allocation, or reduce excessive session usage.

A missing NAT IP pool would more likely produce out-of-address problems. A wrong zone match might prevent translation entirely, and OSPF in the LAN VR is unrelated to CGNAT port-resource exhaustion.

The correct answer is LOCAL_PREF . In BGP, the Local Preference attribute is used inside an autonomous system to influence which exit path is preferred for outbound traffic. In this scenario, the Versa Secure SD-WAN CPE receives routes from two upstream service providers, SP1 and SP2. To prefer routes learned from AS 64515 over routes learned from AS 64519, you would apply a BGP import or route policy that assigns a higher local preference to routes received from SP1. Versa SD-WAN design guidance shows this exact routing concept: an import policy can manipulate the Local-Pref attribute to prefer one advertised route path over another. The Versa output examples also display “Local Preference” as a BGP route attribute used in route selection.

MULTI_EXIT_DISC, or MED, is generally used to influence how a neighboring AS enters your AS, not how your CPE prefers routes learned from different upstreams. ORIGIN is part of BGP best-path selection but is not normally the administrative tool used to prefer one provider. NEXT_HOP identifies the next-hop address and does not directly define route preference.

The correct answer is B . Versa documentation describes checking for asymmetrical SD-WAN paths when troubleshooting bandwidth and throughput issues. It gives the example of traffic being transmitted on one transport network and returning on another transport network that has different bandwidth. To check whether traffic is traversing an asymmetrical SD-WAN path, Versa recommends using show orgs org organization-name sessions sdwan brief.

In that output, the key fields are RX WAN CKT and TX WAN CKT . If the SD-WAN paths are symmetrical, the circuits shown in the RX and TX WAN circuit fields must be the same on the local and remote sites. If traffic goes out over Internet and returns over MPLS, throughput may differ depending on the bandwidth and quality of each circuit.

Source and destination zones are security-policy concepts, while BGP local preference and MED are routing attributes. Tenant ID and VSN ID identify context, but they do not directly prove directional WAN-circuit asymmetry.

The correct answer is A . Versa data-path troubleshooting documentation gives a specific VSM control-plane workflow for checking SD-WAN tunnel objects. After connecting to the VSM daemon, administrators can use show vsm p2mp local-tunnel-sites 0 to inspect local site objects. To check whether remote site objects were learned from BGP or from configuration , Versa instructs administrators to issue show vsm p2mp tunnel-remote-endpoint tenant < tenant-id > on the VSM control plane.

This command is highly relevant when local WAN interfaces are operational, but overlay tunnel formation is incomplete. It shows remote endpoints such as Controllers, hubs, or branches, along with site type, site name, branch ID, tenant ID, remote WAN link information, and tunnel state-related fields.

show interfaces brief confirms interface state and IP addresses, but it does not show learned remote SD-WAN endpoint objects. CGNAT summary is unrelated to tunnel endpoint learning. System storage is useful for disk checks, but not for SD-WAN overlay endpoint troubleshooting.

The correct answer is A . Versa’s handy troubleshooting CLI command reference lists show system package-info as the command used to view information about the VOS software image running on the CPE .

This command is useful before upgrade planning because it confirms the installed software package and helps validate whether the device is on the expected release. Administrators can compare the running version against the target upgrade image, verify upgrade prerequisites, and ensure that branch and Controller releases are compatible with required features such as internet speed testing, SD-WAN policy behavior, or security services.

show system uptime only tells how long the system has been running. show interfaces brief provides operational and administrative interface status, MAC address, tenant, VRF, and IP address information. show class-of-services interfaces brief helps troubleshoot QoS or shaping behavior. None of those commands directly identifies the VOS software package. Therefore, for checking the running image before an upgrade, the correct command is show system package-info.

The correct answers are A and D . Versa stateful firewall service includes classic firewall functions that track sessions and enforce traffic policy, and it can work with DoS policy enforcement. Versa’s CLI guide includes Configuring DoS policies under the security configuration area, where DoS rules can match on source, destination, services, applications, URL category, IP version, DSCP, TTL, EtherType, and other packet or session attributes, and can then apply aggregate or classified DoS profiles. This validates DoS protection as a stateful firewall/security service capability.

Application-Level Gateways, or ALGs , are also associated with stateful firewall/NAT behavior because they inspect and assist protocol handling for applications that embed addressing or dynamic port information inside the payload or control channel. This is part of traditional stateful firewall service behavior rather than UTM content inspection.

The correct answer is A . Versa troubleshooting documentation states that after a branch device successfully establishes an IPsec connection to the Controller node, the Controller sends a notification to the Director node. To display the details of this notification, the documentation instructs administrators to issue the show alarms CLI command. It also provides examples using show alarms | match branchd | match br101 to view branch-connect and branch-disconnect events.

These alarm entries are valuable during onboarding because they show whether the branch reached the Controller, whether staging progressed, and whether the branch later disconnected. For example, branch lifecycle notifications include factory-default connection, staged connection, Stage 3 connection with WAN IP addresses, and branch disconnect events.

show system storage is useful for disk usage, show interfaces detail helps with link state, speed, duplex, and interface counters, and show cgnat acl info is used for CGNAT matching. None of those commands directly confirms branch lifecycle notifications between Controller and Director.

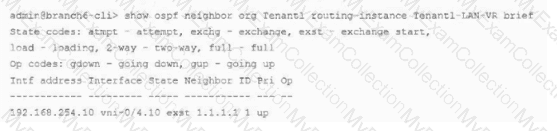

The correct answer is B . The exhibit shows the OSPF neighbor in the exst state, which means Exchange Start . Versa documentation lists the OSPF neighbor state codes and identifies exst as “exchange start,” followed by exchange, loading, and full. In normal OSPF adjacency formation, neighbors progress through initialization and two-way communication before they negotiate database exchange. If the neighbor becomes stuck in ExStart or Exchange, a common and highly probable cause is an MTU mismatch between the two OSPF peers. During database description packet negotiation, the peers must agree on parameters that allow LSDB exchange; an MTU mismatch can prevent the adjacency from advancing to Full.

Option A is less likely because an area mismatch usually prevents the neighbor relationship from forming correctly rather than leaving it stuck in ExStart. Option C is also incorrect because the neighbor has already progressed beyond early states, which indicates that bidirectional communication has occurred. Option D is not the best answer because dropping OSPF multicast 224.0.0.5 would typically prevent discovery or keep the adjacency in an earlier state, not specifically in ExStart. Therefore, the probable cause is an interface MTU mismatch.

The correct answers are A, B, and D . For large-scale Versa Secure SD-WAN onboarding, common configuration is reusable through templates and grouping. A device template , also known as a post-staging template, provides the common base configuration that is applied to multiple VOS branch appliances. Versa documentation repeatedly shows configuration tasks being performed under Templates > Device Templates , where an organization is selected and the post-staging template is opened in Appliance view for common configuration.

A device group is also shared by multiple appliances because it groups devices that should receive the same template associations and common service behavior. This is the proper way to profile many branches with similar deployment requirements. Service templates are also shared objects. They are used to apply service-specific configurations, such as SD-WAN traffic steering, application steering, QoS, security, or other common services, across devices. Versa SD-WAN design documentation explains that application-steering templates automate business-intent policies and simplify management by combining application classification, forwarding-class mapping, and SD-WAN policy logic in a reusable template.

A workflow device is device-specific, and device bind data contains site-specific values such as interface addressing, gateways, VLANs, and other per-branch parameters. Therefore, those are not the shared configuration objects.

The correct answer is A . Versa template-based provisioning is designed to separate common configuration from site-specific values. A device template can define common interface, service, routing, and SD-WAN behavior, while variables and device bind data provide unique values for each appliance. This allows the same template to be reused across many branches while assigning different WAN IP addresses, gateways, VLAN IDs, circuit names, or other per-site parameters during onboarding.

In this scenario, Branch-A and Branch-B use the same template but receive different WAN VLAN IDs from bind data. That is normal and expected in a scalable SD-WAN deployment. Without variables, administrators would need to create a separate template for every site, which would be operationally inefficient and increase configuration drift.

The Controller does not automatically rewrite VLAN IDs after IPsec comes up; VLAN IDs must be part of the generated device configuration. It is also not required to duplicate the device template for each branch. The correct Versa design is reusable templates plus unique bind-data values.

The correct answers are A and C . If the onboarding VPN tunnel from the branch device to the Controller is up, the branch has reached at least the initial staging/control connectivity stage. Versa troubleshooting documentation explains that after a branch establishes IPsec connectivity to the Controller, the Controller sends a branch-connect notification to Versa Director. In response, Director pushes staging configuration and continues the onboarding lifecycle. If the expected later notification is not seen, the branch has not completed staging and further onboarding/debug steps are required.

The Tasks list in Versa Director is useful because device deployment and onboarding actions are executed as Director tasks. If template commit, workflow deployment, device claiming, or configuration push fails, the task output can show the error. The Unknown Devices dashboard is also relevant because a device that reaches the Controller but cannot be matched or fully associated with an expected workflow/appliance record may appear as an unknown device awaiting administrative review. The Monitor dashboard is not the best choice because the device is missing from the Appliances list and has not completed onboarding. Resource Pool is related to connector resources, not branch onboarding completion.
