SPI Sonography Principles and Instrumentation Question and Answers

Comprehensive and Detailed Explanation From Exact Extract:

Low PRF reduces the Nyquist limit, making the system more susceptible to aliasing when Doppler shift frequencies exceed this limit.

Principles and Instrumentation state:

"Aliasing occurs when Doppler shifts exceed half the PRF (Nyquist limit). Lowering PRF increases aliasing susceptibility."

Spectral broadening (A) results from turbulence or poor angle.

Range ambiguity (B) occurs at high PRF.

Dropout (D) refers to signal loss, not aliasing.

Therefore, the correct answer is C: Aliasing.

—

The frame rate in ultrasound imaging is influenced by several factors, including the number of focal zones. Each focal zone requires additional transmission and reception cycles, thus decreasing the frame rate. By decreasing the number of focal zones, the system requires fewer cycles per frame, which increases the frame rate. This enhances the temporal resolution, making it easier to capture fast-moving structures in real-time imaging.

A high wall filter is used in Doppler ultrasound to eliminate low-frequency signals that may be attributed to vessel wall motion or other low-velocity flows. However, if the wall filter is set too high, it can inadvertently eliminate desired low-frequency Doppler signals that represent real blood flow, particularly in smaller vessels or those with slower flow velocities. This results in a loss of valuable diagnostic information.

Write magnification, or pre-processing zoom, involves rescanning the region of interest (ROI) with more scan lines, thus acquiring new data for that specific area. This process increases the spatial resolution of the image in the magnified area because it gathers more detailed data by adjusting the scan parameters, resulting in improved image quality. This is different from read magnification (post-processing zoom), which simply enlarges the existing image data without increasing resolution.

Color flow Doppler imaging displays the mean Doppler frequency shift, which represents the average velocity of blood flow within a sample volume. The ultrasound system uses autocorrelation to process Doppler signals and compute the mean frequency shift. This provides a color-coded map of blood flow velocities, allowing for visualization of flow direction and speed. The mean Doppler frequency is displayed as different colors, with each color representing a range of velocities.

Comprehensive and Detailed Explanation From Exact Extract:

Write magnification acquires new data over the smaller field of view with a higher number of scan lines, improving spatial resolution.

Principles and Instrumentation state:

"Write magnification rescans the selected region with new data acquisition, increasing the number of pixels and improving resolution."

Post-processing (A) applies to read magnification.

Larger pixel size (C) would decrease resolution.

Write magnification improves, not decreases (D), spatial resolution.

Therefore, the correct answer is B: New data acquisition.

—

Acoustic Shadowing: This artifact occurs when a structure absorbs or reflects most of the ultrasound waves, causing a shadow behind the structure. It does not cause improper positioning of a reflector on the display.

Speckle: This is a form of noise in ultrasound imaging that appears as granular texture. It can affect image quality but does not lead to improper positioning of reflectors.

Enhancement: This artifact occurs when the area behind a weakly attenuating structure appears brighter. It affects the brightness of the image but does not affect the position of reflectors.

Range Ambiguity: This occurs when an echo is received after the next pulse has been sent out, causing the reflector to be placed at an incorrect depth on the display. This is because the system assumes the echo came from the most recent pulse.

Enhancement artifact occurs when an anechoic (or low-attenuation) structure, such as a cyst or fluid-filled structure, allows the ultrasound beam to pass through it with minimal attenuation. As a result, the tissues located distal to this anechoic structure appear brighter (increased echo amplitude) on the ultrasound image because the sound waves are less attenuated by the anechoic structure, leading to higher intensity echoes returning from the distal tissue. This increased brightness beyond the anechoic area is known as enhancement.

ARDMS Sonography Principles and Instrumentation guidelines

Kremkau, F. W. (2015). Diagnostic Ultrasound: Principles and Instruments. Elsevier.

The placement of an echo on an ultrasound image is dependent on the assumption that the speed of sound in soft tissue is 1540 m/s. If the speed of sound in the medium is less than this assumed speed, the ultrasound system will interpret the returning echo as taking longer to return than it actually does. This causes the system to place the echo deeper in the image than its actual position. Therefore, the echo will be displayed "too deep" in the image.

The ALARA principle stands for "As Low As Reasonably Achievable" and aims to minimize patient exposure to ultrasound energy. Decreasing the output power reduces the intensity of the ultrasound waves, thereby reducing the potential for tissue heating and mechanical effects, which aligns with the ALARA principle of minimizing exposure while still obtaining necessary diagnostic information.

ARDMS Sonography Principles and Instrumentation guidelines

Hangiandreou, N. J. (2003). "Physics Tutorial for Residents: Topics in US: B-Mode US: Basic Concepts and New Technology." Radiographics.

Overall gain controls the amplification of all the received ultrasound signals uniformly. This adjustment affects the brightness of the entire image by increasing or decreasing the amplification of the echoes returning from all depths. It is a primary control for adjusting image brightness. The overall gain should be set to an appropriate level to ensure that the ultrasound image is neither too bright (over-gained) nor too dark (under-gained), allowing for optimal visualization of the anatomical structures.

American Registry for Diagnostic Medical Sonography (ARDMS). Sonography Principles and Instrumentation (SPI) Examination Review Guide.

Comprehensive and Detailed Explanation From Exact Extract:

Power Doppler detects the strength (amplitude) of returning Doppler signals, which reflects the presence of flow regardless of direction or velocity. It is more sensitive to low-velocity flow and is less angle-dependent than conventional color Doppler.

Principles and Instrumentation state:

"Power Doppler displays the amplitude of Doppler shifts, representing the presence of flow. It does not display direction or velocity."

Laminar flow (A) and velocity (C) are not specifically measured by power Doppler.

Viscosity (D) cannot be assessed by Doppler ultrasound.

Therefore, the correct answer is B: Presence of flow.

—

Comprehensive and Detailed Explanation From Exact Extract:

Spectral Doppler aliasing occurs when the Doppler frequency shift exceeds the Nyquist limit. The Doppler shift is proportional to the cosine of the Doppler angle. Increasing the Doppler angle (moving closer to 90 degrees) reduces the cosine value, thus reducing the Doppler shift frequency and helping to avoid aliasing.

According to sonography instrumentation reference:

“Increasing the Doppler angle reduces the Doppler shift frequency, thus decreasing the likelihood of aliasing in spectral Doppler.”

Therefore, the correct answer is A: Increase Doppler angle.

—

Attenuation refers to the reduction in the intensity of the ultrasound beam as it travels through tissue. Higher frequency ultrasound beams experience more attenuation because they are absorbed and scattered more than lower frequency beams. This is due to the fact that higher frequency waves have shorter wavelengths and interact more with the small particles in tissues, causing greater energy loss.

Comprehensive and Detailed Explanation From Exact Extract:

The primary advantage of pulsed-wave Doppler is its ability to provide range resolution. This means the operator can select a specific depth (sample volume) from which Doppler signals are acquired, allowing precise localization of blood flow velocities.

According to sonography instrumentation reference:

“Pulsed-wave Doppler allows for range resolution, enabling velocity measurements at a specific depth along the ultrasound beam path.”

Continuous-wave Doppler does not have range resolution, as it measures velocities along the entire beam path.

Therefore, the correct answer is C: Range resolution.

—

Focusing improves lateral resolution in ultrasound imaging. Lateral resolution refers to the system's ability to distinguish between two points that are side by side (perpendicular to the sound beam's path). By focusing the ultrasound beam, the width of the beam is narrowed at the focal point, enhancing the system's ability to resolve structures that are close together in the lateral plane. This results in clearer, more detailed images of the anatomical structures.

American Registry for Diagnostic Medical Sonography (ARDMS) Sonography Principles and Instrumentation study materials.

Diagnostic Ultrasound: Principles and Instruments by Kremkau, F. W. (latest edition).

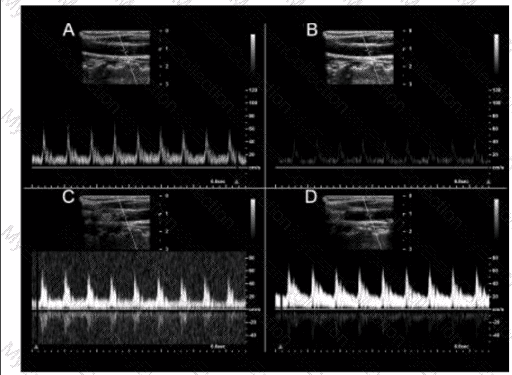

Option B demonstrates appropriate spectral Doppler gain. Appropriate gain settings ensure that the Doppler signal is adequately amplified without introducing excessive noise or artifacts. In Option B, the spectral waveform is clearly visible with distinct borders, and the background noise is minimal. In contrast, other options might show either under-gained (too little signal) or over-gained (excessive noise and signal) images, making it difficult to accurately interpret the spectral Doppler information.References:

ARDMS Sonography Principles and Instrumentation guidelines

"Understanding Ultrasound Physics" by Sidney K. Edelman

Lateral resolution refers to the ability of the ultrasound system to distinguish two structures that are side by side, perpendicular to the direction of the sound beam. This resolution is primarily improved by reducing the beamwidth. A narrower beamwidth allows for better differentiation between adjacent structures, enhancing the lateral resolution. Higher frequency transducers can also help achieve a narrower beamwidth, but beamwidth is the primary factor.

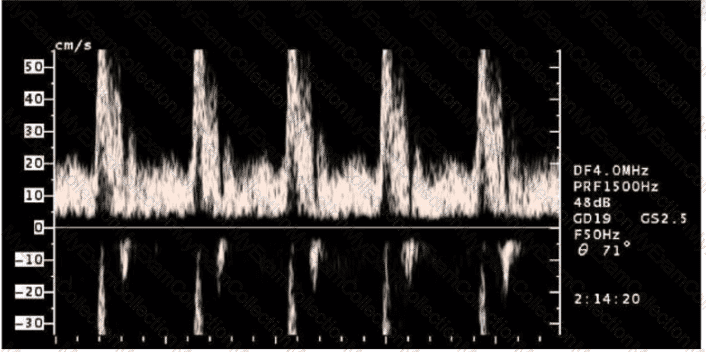

In the provided image, data below the baseline represents blood flow moving away from the transducer, which can indicate retrograde flow. When using spectral Doppler, the baseline separates flows towards and away from the transducer. Aliasing occurs when the velocity of blood flow exceeds the Nyquist limit, causing the display to wrap around and appear on the opposite side of the baseline. This phenomenon is common in high-velocity flow situations and results in part of the flow being displayed below the baseline. Retrograde flow further supports this, as it shows blood moving in the opposite direction to the expected flow.

Comprehensive and Detailed Explanation From Exact Extract:

Acoustic speed error occurs when ultrasound travels through tissues with a speed different from the assumed average propagation speed (1540 m/s). If the actual speed is faster, the system assumes the reflector is closer (shallower) than its true location.

According to sonography instrumentation reference:

“When sound travels through tissue at a speed faster than 1540 m/s, the reflector is displayed closer to the transducer than it actually is. This results in a depth placement error known as acoustic speed error.”

Therefore, the correct answer is B: Acoustic speed error.

—

Comprehensive and Detailed Explanation From Exact Extract:

The Doppler equation demonstrates that the Doppler shift frequency is directly proportional to the velocity of the moving reflector (typically red blood cells).

The Doppler shift formula is:

Doppler shift = (2 × transducer frequency × reflector velocity × cos θ) / propagation speed

According to sonography instrumentation references:

“The Doppler shift frequency increases as the velocity of the moving reflector increases. This relationship is linear when all other factors remain constant.”

Therefore, the correct answer is D: Velocity of the moving reflector.

—

Comprehensive and Detailed Explanation From Exact Extract:

Lateral resolution is determined by the beam width perpendicular to the ultrasound beam’s axis. As depth increases, the beam width changes due to beam divergence after the focal point. Narrower beams (better focusing) provide improved lateral resolution at specific depths.

According to sonography instrumentation reference:

“Lateral resolution depends on the width of the ultrasound beam. The narrower the beam at a particular depth, the better the lateral resolution.”

Therefore, the correct answer is A: Beam width.

—

Aliasing in color Doppler occurs when the velocity of blood flow exceeds the Nyquist limit, which is half the PRF. To reduce aliasing, the PRF must be increased. This raises the Nyquist limit, allowing higher velocities to be measured without wrapping around the baseline. Increasing PRF reduces the occurrence of aliasing artifacts by expanding the range of detectable velocities before aliasing occurs.

Incorrect color Doppler gain settings can cause the artifact known as bleed or blossoming. When the color Doppler gain is set too high, it can cause the color signal to "bleed" outside the actual boundaries of the blood vessel, leading to an overestimation of the area of flow. This artifact makes it appear as though the blood flow extends beyond the true vessel walls, which can obscure the accurate interpretation of the Doppler image.

References

ARDMS Sonography Principles and Instrumentation (SPI) Exam Study Guide

"Diagnostic Ultrasound: Principles and Instruments" by Frederick W. Kremkau

Comprehensive and Detailed Explanation From Exact Extract:

In color Doppler imaging, the default color map assigns red and blue to represent flow direction relative to the transducer (usually red toward, blue away). The color invert control reverses this assignment.

According to sonography Principles and Instrumentation:

"The color invert control reverses the baseline of the color map, swapping red and blue assignments for flow direction."

Color priority adjusts the overlay of color vs grayscale.

Color gain controls amplification of the Doppler signal.

Color threshold sets minimum amplitude to display color.

Therefore, the correct answer is D: Color invert.

—

The aperture of a transducer is the active area that emits and receives the ultrasound waves. In a linear array transducer, increasing the aperture (using more elements for transmission and reception) results in a deeper focus because the beam is more tightly focused over a longer distance. This improves lateral resolution at greater depths, as the ultrasound beam maintains a narrower width for a longer distance. It allows for better imaging of deeper structures without sacrificing resolution.

American Registry for Diagnostic Medical Sonography (ARDMS). Sonography Principles and Instrumentation (SPI) Examination Review Guide.

Refraction is the change in direction of a sound wave as it crosses a boundary between two different tissues at an oblique angle, where there is a difference in propagation speeds between the tissues. This bending of the sound wave path occurs due to the change in speed, causing the wave to change direction according to Snell's law. Refraction can result in artifacts such as edge shadowing and displacement of structures in an ultrasound image.

Comprehensive and Detailed Explanation From Exact Extract:

The matching layer is placed between the transducer’s piezoelectric element and the patient’s skin. Its primary function is to improve the transmission of sound energy into the body by reducing the acoustic impedance mismatch between the crystal and tissue, minimizing reflection at the transducer surface.

According to sonography instrumentation reference:

“The matching layer improves transmission of ultrasound energy by reducing impedance mismatch between the transducer and soft tissue, thus increasing the efficiency of sound energy transfer.”

Therefore, the correct answer is D: Increase sound transmission.

—

Increased Transmit Frequency: This would generally improve the resolution of the image but does not directly correlate to the changes seen in the provided image link.

Increased Scale: Adjusting the scale changes the velocity range displayed but does not directly affect the speckle or noise reduction.

Decreased Color Gain: Reducing the color gain can decrease the amount of color noise, making the blood flow regions more defined, which aligns with the change observed from image A to image B.

Decreased Acoustic Power: This reduces the overall intensity of the ultrasound beam, affecting penetration depth and overall brightness but is less likely to result in the specific improvements seen.

Dynamic range in ultrasound imaging refers to the range of signal amplitudes that the system can display. Increasing the dynamic range allows the ultrasound system to display a broader range of echo amplitudes, which enhances the contrast resolution and helps to visualize subtle differences in tissue texture and borders of anatomical structures. When the dynamic range is increased, more shades of gray are used, making the image appear softer and less contrasty, which is beneficial for delineating the borders of anatomical structures more clearly.

American Registry for Diagnostic Medical Sonography (ARDMS). Sonography Principles and Instrumentation (SPI) Examination Review Guide.

Comprehensive and Detailed Explanation From Exact Extract:

Persistence is a post-processing technique that averages multiple consecutive image frames to reduce random noise and improve image smoothness. This is especially useful for reducing speckle and enhancing the clarity of stationary or slow-moving structures.

According to official sonography Principles and Instrumentation documentation:

"Persistence uses frame averaging, combining data from several sequential frames to reduce noise, enhance image quality, and stabilize the appearance of stationary structures."

Demodulation (A) is part of signal processing that extracts the Doppler frequency shift.

Compression (C) alters the dynamic range of the image but does not reduce noise through frame averaging.

Time gain compensation (D) adjusts amplification at various depths to equalize brightness but does not perform frame averaging.

Therefore, the correct answer is B: Persistence.

QUESTION NO12

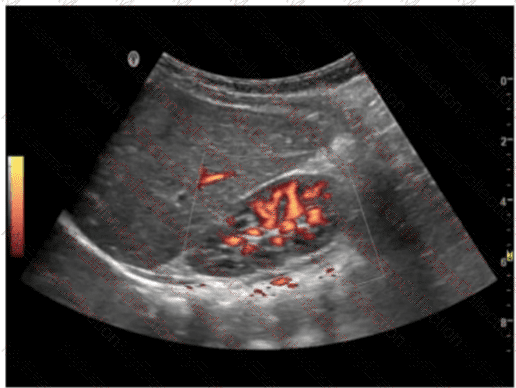

What does this image demonstrate?

A ultrasound of a fetus Description automatically generated

A. Presence of flow

B. Direction of flow

C. Color aliasing

D. Color inversion

Answer: C

Comprehensive and Detailed Explanation From Exact Extract:

In the provided image, the color Doppler display shows a mixture of colors (typically red, yellow, and shades shifting abruptly), indicating that velocities have exceeded the Nyquist limit — the maximum detectable Doppler shift for the given pulse repetition frequency (PRF). This creates a color aliasing artifact.

According to the official sonography Principles and Instrumentation documentation:

"Color aliasing occurs when flow velocities exceed the Nyquist limit, causing a wrap-around of the color scale. This results in abrupt changes in color hue that do not accurately represent flow direction or velocity."

Presence of flow (A) is correct but too general.

Direction of flow (B) refers to color assignment but not to the artifact seen.

Color inversion (D) inverts the color map but does not cause the abrupt color changes seen here.

The alternating, banded colors are classic for color aliasing, confirming that the correct answer is C: Color aliasing.

M-mode (Motion mode) is used in ultrasound to measure and display the movement of structures over time.

This mode is particularly useful in cardiac imaging to assess the motion of heart walls and valves.

M-mode provides a one-dimensional view of the motion of tissues and is often used in conjunction with 2D imaging for a comprehensive assessment.

It is essential in evaluating the dynamic function of organs, especially in cardiology, where precise measurements of cardiac structures' movement are crucial.References:

ARDMS Sonography Principles and Instrumentation guidelines on modes of ultrasound imaging and their clinical applications.

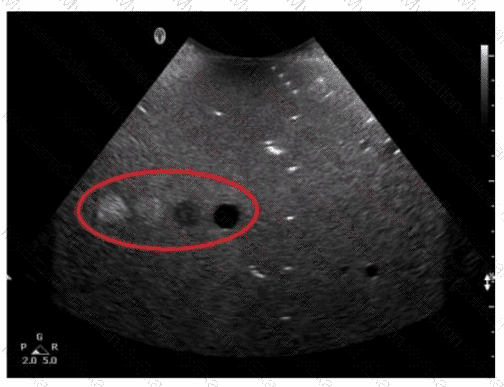

The tissue-equivalent phantom image with the red oval indicates an area where axial resolution can be evaluated. Axial resolution refers to the ability to distinguish between two structures that are close together along the axis of the ultrasound beam. It is determined by the spatial pulse length (SPL) of the ultrasound wave. In phantoms, this is typically tested by observing the ability to separate closely spaced targets along the beam's path.

Compression in ultrasound imaging adjusts the range of grayscale displayed, affecting the contrast resolution.

This function allows sonographers to enhance the differentiation between structures of varying echogenicities.

By modifying the contrast resolution, sonographers can better visualize subtle differences in tissue composition and improve the diagnostic quality of the images.

Increasing contrast resolution is particularly important in differentiating between fluid-filled cysts and solid masses.References:

ARDMS Sonography Principles and Instrumentation guidelines on image processing and contrast resolution.

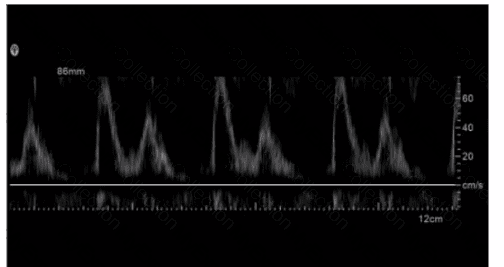

The waveform in the image shows spectral Doppler signals that are pushed against the upper limit of the display, indicating that the baseline is too high. Lowering the baseline allows for a better visual representation of the entire Doppler signal within the available display range. This adjustment prevents the waveform from being cut off and helps in accurately interpreting the blood flow characteristics.

Comprehensive and Detailed Explanation From Exact Extract:

Higher frequency transducers provide better axial resolution due to their shorter wavelengths and spatial pulse lengths. This allows finer detail when imaging superficial structures where penetration is not a concern.

According to sonography instrumentation reference:

“Higher frequencies result in shorter pulse lengths, improving axial resolution and making them ideal for superficial imaging.”

Therefore, the correct answer is D: Improved axial resolution.

—

High-Frequency Transducer: These provide better resolution but do not directly cause posterior enhancement.

Low-Frequency Transducer: These provide better penetration but are not the cause of posterior enhancement.

Strongly Attenuating Structure: This would cause acoustic shadowing rather than enhancement.

Weakly Attenuating Structure: Structures that attenuate the ultrasound beam less than the surrounding tissues allow more sound waves to pass through, resulting in increased brightness or "enhancement" behind the structure.

Comprehensive and Detailed Explanation From Exact Extract:

An anechoic structure (such as a cyst or fluid-filled space) allows ultrasound waves to pass through with minimal attenuation. As a result, more sound energy reaches tissues distal to the structure, producing a bright area known as posterior acoustic enhancement or increased echogenicity.

The sonography Principles and Instrumentation documents state:

"Posterior acoustic enhancement occurs distal to fluid-filled structures due to reduced attenuation through the anechoic medium, allowing increased beam intensity to reach deeper tissues."

Reduced penetration (A) and increased attenuation (B or C) would not produce enhancement.

Reduced attenuation (D) is the correct mechanism.

Therefore, the correct answer is D: Reduced attenuation through the structure.

—

Enhancement is an artifact that results from decreased attenuation. When an ultrasound wave travels through a medium with lower attenuation compared to surrounding tissues, it loses less energy. Consequently, the structures located deeper than the low-attenuation medium appear brighter on the ultrasound image. This artifact is commonly observed behind fluid-filled structures, such as cysts or the urinary bladder, where the sound waves encounter minimal resistance and thus less attenuation.References:

ARDMS Sonography Principles and Instrumentation guidelines

"Diagnostic Ultrasound: Principles and Instruments" by Frederick W. Kremkau

Overall gain in ultrasound refers to the amplification of all the received echo signals. Increasing the overall gain amplifies the signals, making the entire image brighter. Conversely, decreasing the overall gain reduces the signal amplification, resulting in a darker image. Overall gain adjustment affects the entire image uniformly, unlike time gain compensation (TGC), which adjusts the gain at different depths independently.

References

ARDMS Sonography Principles and Instrumentation (SPI) Exam Study Guide

"Diagnostic Ultrasound: Principles and Instruments" by Frederick W. Kremkau

A wall filter in Doppler ultrasound is designed to remove low-frequency signals that are often caused by tissue motion, vessel wall movement, or other forms of motion artifact. These low-frequency signals can clutter the Doppler spectrum, making it difficult to accurately interpret blood flow velocities. By filtering out these unwanted low-frequency signals, the wall filter helps to enhance the clarity of the Doppler signal, allowing for more accurate measurements of blood flow velocities.

American Registry for Diagnostic Medical Sonography (ARDMS). Sonography Principles and Instrumentation (SPI) Examination Review Guide.

Comprehensive and Detailed Explanation From Exact Extract:

Reflection is maximized when the ultrasound beam strikes a tissue interface at 90 degrees (perpendicular). This angle provides optimal return of echoes for imaging.

According to sonography instrumentation reference:

“Maximal reflection occurs when the sound beam strikes a boundary at 90 degrees.”

Therefore, the correct answer is D: Reflection.

—

Ensemble length, also known as packet size or Doppler packet, refers to the number of pulses used to calculate each Doppler measurement. Increasing the number of pulses in an ensemble length improves the accuracy of velocity measurements by providing more data points for the Doppler shift analysis. This leads to better estimation of mean velocities and reduces the variability of the measurements, although it may slightly decrease temporal resolution due to the longer time required to acquire the data.

ARDMS Sonography Principles and Instrumentation guidelines

Edelman, S. K. (2017). Understanding Ultrasound Physics.

Axial resolution refers to the ability to distinguish two structures that are close to each other along the direction of the sound beam. It is determined by the spatial pulse length (SPL), which is the product of the number of cycles in a pulse and the wavelength. Shorter SPL means shorter pulse duration, which leads to better axial resolution. This is because shorter pulses allow for better separation of echoes from closely spaced structures.

ARDMS Sonography Principles and Instrumentation guidelines

Kremkau, F. W. (2015). Diagnostic Ultrasound: Principles and Instruments.

When the depth of imaging is increased, the time it takes for the ultrasound pulses to travel to and from the deeper structures also increases, which can reduce the frame rate. To maintain the same frame rate, one effective adjustment is to decrease the image width. Narrowing the image width reduces the number of scan lines required to create each frame, allowing the system to maintain a higher frame rate despite the increased depth.

ARDMS Sonography Principles and Instrumentation guidelines

Kremkau, F. W. (2015). Diagnostic Ultrasound: Principles and Instruments.

Comprehensive and Detailed Explanation From Exact Extract:

A tissue-mimicking phantom contains small targets at known separations to evaluate the system’s axial resolution, lateral resolution, depth calibration, and more.

Principles and Instrumentation state:

"Tissue-mimicking phantoms assess spatial resolution (axial, lateral), depth accuracy, and penetration performance."

Hydrophones (B) measure acoustic pressure.

Beam profilers (C) assess beam characteristics.

Doppler phantoms (D) test Doppler function.

Therefore, the correct answer is A: Tissue-mimicking phantom.

—

Comprehensive and Detailed Explanation From Exact Extract:

The matching layer is placed in front of the piezoelectric element and serves to reduce the difference in acoustic impedance between the transducer and human tissue, thereby improving sound transmission and minimizing reflection at the interface.

According to sonography instrumentation reference:

“The matching layer minimizes impedance mismatch between the transducer and soft tissue, allowing more efficient transmission of ultrasound energy into the patient.”

Therefore, the correct answer is D: Matching Layer.

—

Comprehensive and Detailed Explanation From Exact Extract:

A weakly attenuating structure allows ultrasound waves to pass through with minimal loss of energy. Because of this, structures located posterior to the weakly attenuating region appear brighter than expected — this is known as distal (posterior) enhancement. This artifact is most commonly observed when scanning fluid-filled structures such as cysts, the bladder, or the gallbladder.

Official sonography instrumentation reference states:

“When sound waves encounter a structure that attenuates sound minimally (low attenuation), more sound energy reaches deeper tissues. This results in increased echo amplitude from structures located distal to the weak attenuating structure, creating the appearance of distal enhancement.”

Therefore, the correct answer is D: Distal enhancement.

—

The fundamental frequency of a pulsed wave transducer is primarily determined by the thickness of the piezoelectric element. The frequency is inversely proportional to the thickness of the element – thinner elements produce higher frequencies, while thicker elements produce lower frequencies. This relationship is derived from the formula𝑓=𝑣2𝑑f=2dv​, where𝑓fis the frequency,𝑣vis the propagation speed of sound in the piezoelectric material, and𝑑dis the thickness of the element.

Range ambiguity artifact occurs when echoes from one pulse are received after the next pulse has been emitted, leading to the incorrect placement of echoes at shallower depths than their true location. This artifact typically happens when the PRF is set too high, causing the ultrasound system to interpret delayed echoes as coming from the current pulse rather than the previous one. This results in reflectors appearing closer to the transducer than they actually are.

Comprehensive and Detailed Explanation From Exact Extract:

A larger sample volume collects Doppler signals from a wider region, which can include multiple velocities and noise. This leads to a broader spectrum (spectral broadening) and may introduce additional noise into the signal.

According to sonography instrumentation reference:

“Increasing the sample volume size increases the likelihood of including multiple velocity components and noise, resulting in spectral broadening and reduced spectral clarity.”

Therefore, the correct answer is B: Increased noise.

—

The Mechanical Index (MI) is related to the likelihood of cavitation, which is the formation of gas bubbles in a liquid due to the low-pressure regions of the ultrasound wave. MI is a parameter that predicts the potential for mechanical bioeffects, including cavitation. A higher MI indicates a greater likelihood of cavitation occurring. It is calculated based on the peak negative pressure and the frequency of the ultrasound wave.

ARDMS Sonography Principles and Instrumentation guidelines

Kremkau, F. W. (2015). Diagnostic Ultrasound: Principles and Instruments.

Comprehensive and Detailed Explanation From Exact Extract:

The key advantage of pulsed wave Doppler is range resolution, meaning the operator can select a specific depth (sample volume) for measuring velocities. Continuous wave Doppler does not provide this capability, as it samples velocities along the entire beam path.

According to sonography instrumentation reference:

“Pulsed wave Doppler allows selection of sample volume depth, providing range resolution which continuous wave Doppler lacks.”

Therefore, the correct answer is B: Ability to select sample depth.

105

What adjustment is needed to optimize the image below?

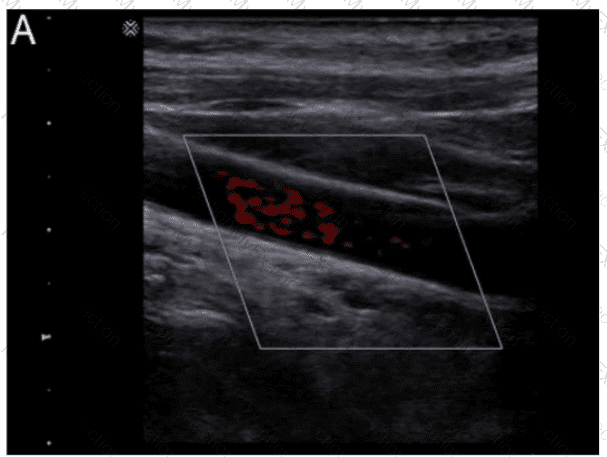

A close-up of a medical scan Description automatically generated

A. Increase wall filter

B. Steer the box

C. Decrease scale

D. Raise focal zone

Answer: B

Comprehensive and Detailed Explanation From Exact Extract:

In the displayed image, the color box is not aligned parallel to the direction of blood flow in the vessel. Color Doppler is angle-dependent; when the color box is not properly steered to align with flow, the Doppler shift is reduced, and less color filling occurs. Steer the box to align the ultrasound beam more parallel to flow to maximize Doppler shift and improve color filling.

According to sonography instrumentation reference:

“Steering the color box aligns the Doppler beam with blood flow direction, optimizing the Doppler angle and improving flow visualization.”

Therefore, the correct answer is B: Steer the box.

—

—
