RCWA RUCKUS Certified Wi-Fi Associate Exam Question and Answers

Partner Domains are associated with the high-scale SmartZone architecture and are supported by Virtual SmartZone High Scale, or vSZ-H. They provide hierarchical multi-tenant administration so that service providers or large organizations can separate customers, administrators, zones, WLANs, and resources within a single scalable management platform. Administrators belonging to Partner Domains can be assigned permissions and resources independently, while a system-level administrator retains overall control. RUCKUS SmartZone documentation specifically discusses Partner Domain configuration and migration functionality in the vSZ-H/SZ300 architecture. vSZ-Essentials is targeted at smaller deployments and does not provide the same Partner Domain multi-tenancy model. Unleashed provides controller-less AP management, while ZoneDirector is an older controller platform. Consequently, the correct answer is vSZ-High Scale. rcw 3 Ruckus Wireless Documentation

================

An Unleashed backup file (e.g., RUCKUS-Unleashed_db_082719_ll_07.bak) contains a comprehensive snapshot of the Unleashed network configuration , including SSIDs, WLAN policies, AP settings, and network parameters. According to the RUCKUS One Online Help – Backup and Restore section, administrators can use this file to:

Restore all configuration settings (A), re-establishing the network’s operational state.

Restore only WLAN settings (B), providing flexibility when preserving SSID configurations while leaving system details unchanged.

Restore all configuration except the system name and IP address (E), allowing recovery to a new system without IP conflicts.

The backup file cannot display the configuration as cleartext , as it is encrypted for security. It also cannot restore SmartZone controller configurations or ICX switch settings directly—those require separate management mechanisms.

Thus, the valid operations are A , B , and E .

The Client Isolation feature on RUCKUS access points and controllers prevents wireless clients connected to the same SSID from communicating directly with each other within the same subnet. This is particularly important for guest or public networks to enhance security and privacy. However, administrators may sometimes need to allow access to specific network services or devices—such as printers, gateways, or media servers—within that same subnet.

RUCKUS systems address this need through the Isolation Whitelist capability. As described in the RUCKUS One Online Help and RUCKUS Cloud documentation , the Isolation Whitelist allows administrators to specify destination IP or MAC addresses that are exempt from client isolation rules. This enables controlled access without fully disabling client isolation across the network.

Other options like directed multicast or access control list (ACL) manage traffic types or filtering policies but are not specific to client-to-client communication exceptions. Therefore, the Isolation Whitelist is the correct answer.

RUCKUS Wi-Fi Planner (Wi-R Planner) is a predictive design tool that helps plan AP placement and coverage before physical deployment. It relies on environmental and hardware data to simulate accurate RF propagation.

According to RUCKUS One Online Help – Wi-Fi Planner Configuration , essential inputs include:

AP model selection (A): Determines transmit power, antenna gain, and coverage pattern.

Building wall materials (C): Define RF attenuation and signal propagation characteristics.

Parameters like DHCP/DNS settings or controller cluster size are not required for predictive modeling—they’re part of post-deployment configuration.

SmartZone uses a configuration hierarchy in which an AP Group can override the WLAN Group assigned at the Zone level separately for each radio. Therefore, adding a new SSID to the Zone ' s default WLAN Group does not guarantee that every AP in that Zone will advertise it. If the test AP belongs to an AP Group whose 2.4 GHz and 5 GHz radios override the Zone configuration with another WLAN Group, only WLANs contained in that overridden group will be broadcast. RUCKUS training documentation specifically instructs administrators to enable the AP Group ' s Override zone configuration option and select the required WLAN Group for each radio. Tunnel Mode and DHCP Option 43 do not determine whether the configured SSID is advertised, and routine WLAN Group changes do not require a manual AP reboot. Ruckus Training

================

The Wireless Intrusion Prevention System (WIPS) in SmartZone continuously monitors the RF environment to detect and mitigate rogue or malicious behavior.

According to RUCKUS One Online Help – WIPS Policy Configuration , available rule types include:

(B) High RSSI: Detects potential rogue APs or clients broadcasting at unusually strong signal levels that suggest proximity or spoofing attempts.

(C) NAV Abuse: Identifies devices misusing the Network Allocation Vector field to monopolize airtime, degrading performance for other users.

(E) SSID Spoofing: Detects devices broadcasting identical SSIDs to legitimate WLANs, often used in man-in-the-middle or phishing attacks.

Other listed options, such as Short GI (Guard Interval) and Same Network , are PHY or configuration settings, not WIPS rules. Excessive Power detection is handled indirectly via High RSSI thresholds.

dBi is a relative logarithmic measurement used to express antenna gain compared with an ideal isotropic radiator. The “i” explicitly identifies the isotropic antenna as the reference. For example, an antenna specified with 4 dBi gain concentrates RF energy so that its effective gain is 4 dB above that theoretical isotropic reference. By comparison, dBm is an absolute logarithmic power measurement referenced to 1 milliwatt: 0 dBm equals 1 mW. Milliwatts and watts are also absolute units of power. RUCKUS product specifications clearly distinguish these measurements, typically listing antenna gain in dBi while transmitter power and receiver sensitivity are specified in dBm. This distinction is important when calculating link budgets and EIRP because antenna gain and radio output power represent different RF quantities. Therefore, option A, dBi, is the relative measurement. RUCKUS Networks

================

In this SmartZone 5.2 onboarding scenario:

San Mateo (200.7.10.202.121): These APs are running Unleashed firmware , which cannot directly join a SmartZone controller. According to the RUCKUS One Online Help – AP Firmware Migration , Unleashed APs must first be converted to Standalone (Solo) mode using CLI (set director ip < SZ_IP > or set scg ip) before they can connect. Thus, D (San Mateo devices can use ap-mode commands to onboard) is correct.

Toronto (102.0.0.0.5): This firmware version represents ZoneDirector (ZD) code. APs on ZD firmware communicate using LWAPP , and to migrate them, administrators must perform a firmware conversion process (using set scg ip) for SmartZone compatibility. Therefore, E (Toronto devices will use LWAPP to communicate to SmartZone) is correct.

Mexico City (5.2.0.0.1412): These APs already match the SmartZone firmware family (5.2.x), meaning they are currently or can immediately be managed by this SmartZone cluster. Therefore, F is correct.

The SmartZone CLI command get scg provides detailed information about an AP’s connection to its controller.

From the output provided:

The “State: RUN_STATE” line confirms the AP is fully connected, accepted, and managed by the controller ( E ). If the AP were pending, it would display “JOIN_STATE” or “CFG_STATE.”

The presence of two controller IPs and an SSH tunnel connection to 10.1.1.245 indicates a control-plane tunnel established via NAT traversal, meaning the controller is behind a control NAT IP ( D ).

The “Controller Cert Validation: disable” line shows certificate validation is off, but it doesn’t affect operational state. The Server List confirms static IP discovery rather than DNS-based assignment.

Thus, the AP is active and managed by the controller, with communication handled through an SSH-based control tunnel.

A solid red power LED on traditional RUCKUS AP models indicates that the AP is in its boot-up process. During startup, the power LED remains red while the system initializes its hardware and firmware. After the AP firmware successfully boots, the LED state changes as networking and operational services become available. A routable IP address is normally associated with a successful operational power-state indication rather than solid red. Controller connectivity is represented separately through controller or system-status indicators depending on the AP generation, and inserting a USB device is not represented by the solid-red power state. RUCKUS troubleshooting documentation uses LED behavior as a quick method for determining AP startup, IP acquisition, controller connectivity, and radio status. Therefore, option A is the appropriate interpretation. rcw 3 RUCKUS Networks Community

================

Indoor WLAN coverage is influenced by multiple RF and physical parameters that determine how effectively a signal propagates and maintains connectivity quality.

According to RUCKUS One Online Help – RF Design Fundamentals and RUCKUS AI Documentation – Coverage Optimization , the three most impactful factors are:

AP Transmit Power (A): Directly affects signal reach; excessive power can cause co-channel interference, while low power results in coverage holes.

AP Orientation (C): Affects signal radiation direction—wall-mounted, ceiling-mounted, or tilted deployments impact pattern uniformity and coverage overlap.

Antenna Pattern (D): Defines gain and directional behavior; omnidirectional antennas provide uniform coverage, while directional models concentrate energy for targeted areas.

Antenna diversity and spatial multiplexing improve throughput and reliability, but do not primarily determine raw coverage boundaries. “Earth bulge” is irrelevant for indoor deployments.

The Backup Management feature in SmartZone enables administrators to schedule automatic configuration backups at regular intervals. These backups can include cluster, zone, and AP configuration data.

As detailed in RUCKUS One Online Help – Backup and Restore Procedures , this feature supports manual and scheduled backups with options for secure off-box storage.

The RUCKUS Analytics 3.5 User Guide – Backup Compliance Monitoring notes that this ensures disaster recovery readiness and simplifies configuration rollback.

System Snapshot and Cluster Maintenance features track versioning and updates but are not used for configuration backup automation.

The Rule of 10s and 3s provides a fast approximation for converting logarithmic dBm values into absolute power in milliwatts. A 10 dB increase multiplies power by ten, while a 3 dB increase approximately doubles it. Start with the standard reference of 20 dBm = 100 mW. Because 17 dBm is 3 dB below 20 dBm, the power is approximately halved: 100 mW ÷ 2 = 50 mW. Therefore, 17 dBm corresponds to approximately 50 mW. The exact mathematical value is about 50.1 mW, so option C is also accurate beyond the quick approximation. RUCKUS technical specifications routinely express transmit and receive power in dBm while antenna gain is specified separately in dBi, making these conversions fundamental to RF planning and troubleshooting. RUCKUS Networks

================

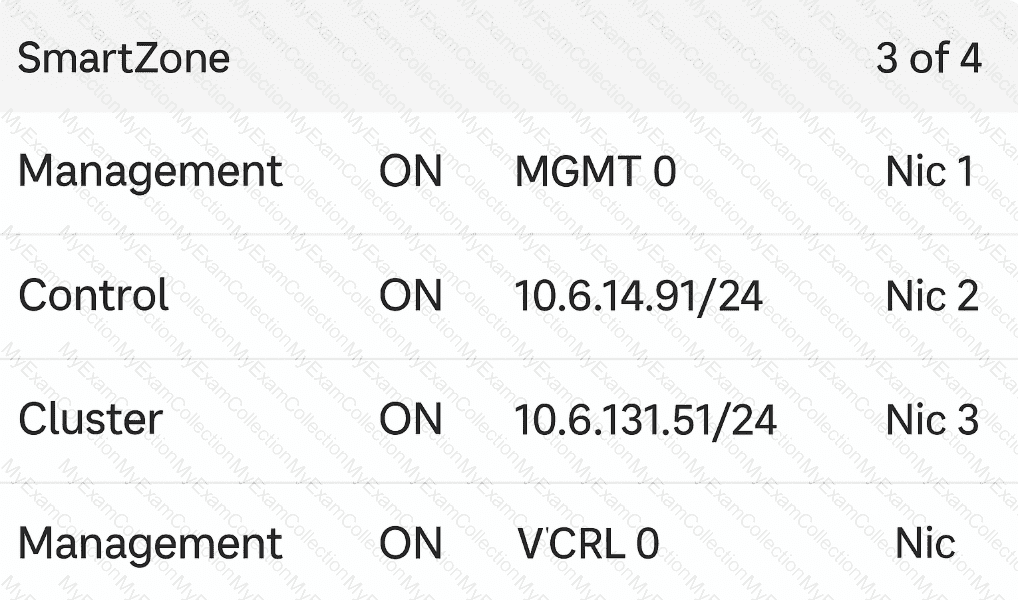

The exhibit shows a virtual SmartZone (vSZ) configuration running in a VMware environment with three separate virtual NICs (vNICs) , each mapped to a different port group: Management , Control , and Cluster .

According to RUCKUS One Online Help – SmartZone Interface Configuration and RUCKUS AI Documentation – SmartZone High-Scale Architecture , this design is specific to vSZ-H (High-Scale) deployments, which require three distinct network interfaces for distributed control, management, and cluster synchronization.

The three NIC mappings confirm physical or virtual separation of traffic for scalability and redundancy ( A and E ). vSZ-E (Essentials) requires only two interfaces (Management and Control) and does not use a dedicated cluster interface, distinguishing it from vSZ-H ( D ).

There is no indication of a four-node cluster in the exhibit, and SmartZone appliances typically show node counts under the Cluster Dashboard, not at the NIC configuration stage.

Thus, based on the configuration, this is a vSZ-H system with three NICs and three port groups , each serving a dedicated function.

AI Anomaly Detection in RUCKUS Analytics uses machine learning to detect, classify, and correlate service-impacting events such as authentication failures, RF interference, and backhaul latency.

According to RUCKUS Analytics 3.5 User Guide – AI-Driven Insights , this feature correlates telemetry across APs, clients, and switches to isolate root causes automatically. It identifies deviations from normal baselines and links related issues under unified incident reports.

RUCKUS One Online Help – Anomaly Detection and Correlation Engine confirms this system dramatically reduces troubleshooting time by surfacing the exact source of network degradation.

Other tools like Event Timeline Viewer and Health Dashboard visualize events but do not perform automatic RCA (Root Cause Analysis).

In SmartZone Active-Active cluster redundancy, one active cluster acts as the configuration source while the other active clusters operate as target clusters. The source cluster periodically creates and pushes configuration backups to the target clusters so that configuration remains synchronized across the redundancy topology. Unlike Active-Standby operation, every Active-Active cluster remains operational rather than placing target clusters into a read-only state. RUCKUS documentation specifies that only one cluster can enable scheduled configuration synchronization, and administrators are advised to make configuration changes primarily on that source cluster. Target clusters periodically receive and restore the synchronized configuration. Therefore, the source cluster ' s defining role is to distribute and synchronize configuration data to its target clusters, making option C correct. Ruckus Wireless Documentation

================

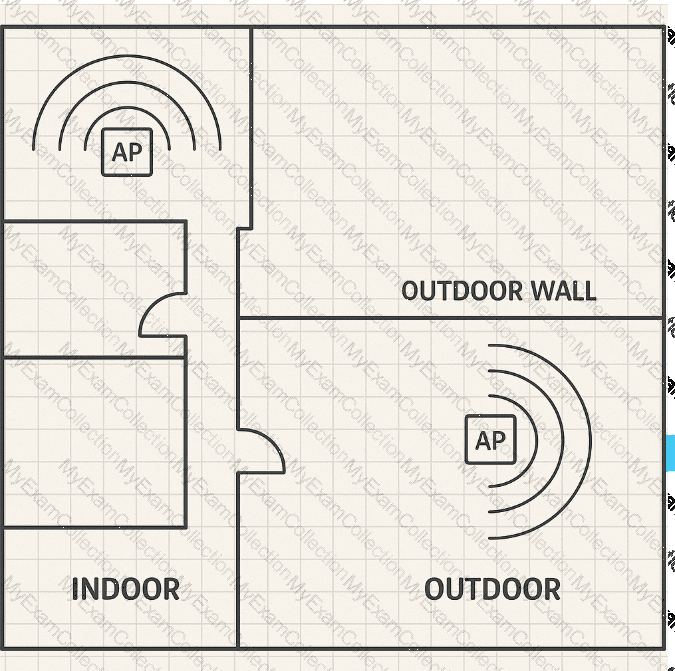

In this layout, the indoor APs are centrally mounted to provide even signal distribution in all directions, while outdoor APs are wall-mounted facing the exterior coverage zone.

According to RUCKUS One Online Help – Antenna Selection and Deployment and RUCKUS AI Documentation – RF Design Guidelines , the best configuration for complete coverage is:

Indoor space: Use Omni-Directional antennas , which radiate uniformly in 360° for even indoor coverage and minimal dead zones.

Outdoor space: Use Patch antennas , which are semi-directional with a 60°–90° beamwidth ideal for covering patios, courtyards, or building perimeters without wasting signal behind the AP.

Yagi antennas are highly directional and suited for long-distance point-to-point links, not area coverage. Semi-directional indoor antennas are unnecessary unless indoor partitioning or wall density requires focused energy.

This combination— Omni indoors and Patch outdoors —provides optimal performance for mixed indoor-outdoor designs and aligns with RUCKUS high-density deployment best practices .

SmartCast is RUCKUS ' s application-aware wireless Quality of Service technology designed to improve performance for latency-sensitive traffic such as voice and video. SmartCast classifies traffic at the AP and gives appropriate priority to delay-sensitive applications instead of depending entirely on client-side QoS markings. This reduces latency and jitter and provides more consistent voice calls, video conferencing, streaming, and similar real-time applications. SmartCast also incorporates techniques such as airtime fairness and optimized multicast handling to improve spectrum utilization. BeamFlex optimizes adaptive antenna patterns, SmartMesh provides wireless AP backhaul, and ChannelFly optimizes channel selection based on channel performance. Those technologies can improve overall WLAN performance, but they are not the RUCKUS QoS mechanism specifically responsible for addressing application delay and jitter. Therefore, SmartCast is the correct answer. RUCKUS Networks

================

RUCKUS Analytics is a cloud-based network intelligence platform integrated with RUCKUS One that provides service-level assurance (SLA) and end-user experience visibility across multiple sites and networks.

According to the RUCKUS Analytics 3.5 User Guide , it leverages AI-driven baselines and telemetry data from access points and switches to:

Detect anomalies

Measure Wi-Fi performance against SLAs

Generate detailed client experience reports

SmartZone Essentials handles local management, ZoneDirector is legacy controller software, and SmartMesh is a wireless backhaul technology—not a management analytics system.

The Wi-Fi Alliance (WFA) is the global organization responsible for testing and certifying interoperability of wireless LAN products based on the IEEE 802.11 standards. While the IEEE develops and maintains the technical specifications (e.g., 802.11a/b/g/n/ac/ax), it does not perform certification or compliance testing. Instead, the Wi-Fi Alliance ensures that certified devices from different manufacturers operate together seamlessly under the “Wi-Fi CERTIFIED™” program.

According to RUCKUS One Online Help and the RUCKUS AI documentation , RUCKUS access points and controllers undergo Wi-Fi Alliance certification to ensure compatibility with a wide range of client devices, including those using WPA3, Wi-Fi 6 (802.11ax), and Wi-Fi 6E technologies. This certification is critical for enterprise environments where heterogeneous client ecosystems exist.

The IETF focuses on internet protocols (e.g., IP, TCP), and the ISO handles broader international standards, not wireless interoperability. Therefore, the Wi-Fi Alliance is the correct organization ensuring cross-vendor interoperability for Wi-Fi.

RUCKUS APs running Unleashed firmware cannot be onboarded directly into a SmartZone-managed deployment. They must first be converted from Unleashed firmware to supported standalone, or Solo, firmware before the APs can discover and register with SmartZone. After conversion, SmartZone discovery mechanisms and appropriate controller configuration can be used to complete onboarding. ZoneDirector deployments are different because SmartZone provides migration functionality for supported ZoneDirector APs; therefore, saying that ZoneDirector APs cannot connect is incorrect. SmartZone 7.1 also exposes ZoneDirector migration functionality rather than an equivalent direct Unleashed migration mechanism. Consequently, the required action for the Unleashed site is conversion to Solo firmware before SmartZone onboarding, making option D correct. rcw 3 Ruckus Wireless Documentation

================

The H Series and T Series both contain RUCKUS AP models with Power over Ethernet output capability. In the H Series, the H550 wall-mounted hospitality AP includes multiple Ethernet access ports and supports PoE output on one port, allowing devices such as IP phones, cameras, or other Ethernet equipment to receive power through the AP. In the outdoor T Series, the T750 includes a 1 GbE PoE output port and is explicitly designed to power another device, such as an IP camera or another AP. RUCKUS currently lists both the H550 and T750 in its wireless AP portfolio. Therefore, the correct family-level selections are H Series and T Series. The presence of PoE output is model-specific within these families and should not be interpreted as meaning every H-Series or T-Series AP provides that capability. RUCKUS Networks

================

For the RCW/RCWA-era material represented by this question, the supported answer is 128 APs. RUCKUS ' s official Unleashed deployment guidance documented support for up to 128 APs and 2,048 Wi-Fi clients in a single Unleashed network, with traffic locally bridged rather than tunneled through a centralized controller. This makes option B the intended answer for the supplied question. There is an important version consideration: later RUCKUS product documentation increased the stated Unleashed platform limit to as many as 150 APs. Because 150 is not one of the supplied answer choices, this question reflects the earlier RCW platform specification rather than the newest platform maximum. For the certification question exactly as supplied and its available options, 128 APs remains the correct answer selection

High-density stadium Wi-Fi design requires creating smaller RF cells so that very large numbers of clients are not competing within the same collision domain. RUCKUS ' s RCWA design material specifically describes using many small APs mounted in protected enclosures under seats, supplemented by APs mounted on walls or poles. This approach creates localized coverage areas and breaks large contention domains into smaller segments, improving frequency reuse and available airtime. Mounting most APs high on the roof tends to create larger overlapping cells and makes it more difficult to contain RF energy within individual seating sections. Stadium design must also consider the substantial RF attenuation created by dense crowds because human bodies absorb RF energy. Therefore, an under-seat design supplemented with strategically positioned wall- or pole-mounted APs is the recommended high-density approach. Ruckus Training

================

When configuring an 802.1X-secured WLAN , RUCKUS systems such as SmartZone , RUCKUS One , or RUCKUS Cloud typically rely on an external RADIUS server for user authentication. However, in the event of a controller failure or connectivity loss to the RADIUS server , RUCKUS APs can continue to authenticate users locally if the local user database is enabled and configured.

The Local Authentication Database allows APs or controllers to store a limited set of credentials that can be used when external AAA services are unavailable. This ensures continued access and redundancy for critical WLANs without requiring external dependency. According to RUCKUS One Online Help – WLAN Configuration and AAA Settings , enabling the Local Authentication Database provides fallback authentication for 802.1X clients during system or connectivity failures.

In contrast, the proxy and non-proxy modes define how authentication requests are relayed to the RADIUS server, while Dynamic PSK (DPSK) is a separate authentication method that replaces 802.1X with per-user keys.

Band Steering is a RUCKUS feature designed to guide dual-band capable clients toward the 5 GHz band , which generally provides better performance and less interference than 2.4 GHz.

As described in RUCKUS One Online Help – Band Steering Configuration and RUCKUS AI Documentation – Client Connectivity Optimization , when a client attempts to connect, the AP temporarily delays responses to 2.4 GHz probes, encouraging the client to associate on 5 GHz.

This feature enhances airtime efficiency and reduces congestion in dense environments. Band Balancing distributes clients between APs, while SmartCast and ChannelFly manage QoS and channel optimization, respectively.

The virtual SmartZone Essentials (vSZ-E) controller provides centralized management for up to 10,000 APs and 1,000 switches , making it ideal for large distributed enterprises that prefer self-hosted or cloud-based control.

According to RUCKUS One Online Help – SmartZone Essentials Overview , vSZ-E offers:

(B) Scalability to meet medium-to-large enterprise requirements (well above 3,000 employees).

(C) Centralized management for Wi-Fi and wired networks, including policy enforcement and firmware control.

(D) Cloud-hosted deployment capability, including operation in environments such as AWS , Azure , or VMware .

Unlike vSZ-H , vSZ-E does not support multi-tenancy or Partner/Administrative Domains , and it does not natively tunnel user data back to the cloud; data is locally bridged unless configured via GRE or VPN.

In SmartZone , Generic Routing Encapsulation (GRE) tunnels are used to encapsulate client traffic and forward it to a remote gateway, typically for security or centralized routing.

As described in RUCKUS One Online Help – GRE Tunneling Configuration , a tunnel profile becomes available for WLAN association only when it is explicitly linked to an AP Zone . This ensures that all APs in the zone can apply the correct tunnel endpoint and keying parameters.

If a GRE profile is not mapped to a zone, it will not appear in the WLAN configuration dropdown , even if successfully created.

Other options are incorrect because SmartZone supports GRE for WLANs by design, split-tunnel profiles are optional, and tunnel count limitations are far higher than typical enterprise use.

BeamFlex+ is RUCKUS ' s adaptive antenna technology and combines sophisticated software algorithms with an antenna array rather than relying solely on conventional radio-based beamforming. RUCKUS states that BeamFlex can provide up to approximately 6 dBi of additional signal gain by dynamically selecting optimized antenna patterns for each client. BeamFlex+ also incorporates adaptive polarization diversity through PD-MRC, enabling the AP to adapt to horizontal and vertical client orientations and improve reception from mobile devices. In addition, it can select patterns that direct RF energy away from interference sources, providing significant interference mitigation. BeamFlex+ does not require an 802.11ac-capable client because its antenna adaptation occurs on the AP and remains client independent. It is useful across many deployment densities rather than being intended specifically for sparse environments. Therefore, B, E, and F are correct.

In non-proxy RADIUS mode , the SmartZone controller does not act as an intermediary for authentication requests. Instead, each access point (AP) communicates directly with the RADIUS server for client authentication.

According to RUCKUS One Online Help – WLAN Authentication Modes (Proxy vs Non-Proxy) , the key requirement is that each AP must be defined as a RADIUS client in the RADIUS server configuration. If not, authentication requests from the APs are rejected because the server does not recognize their source IPs or shared secrets.

This behavior differs from proxy mode , where only the SmartZone controller needs to be added as a RADIUS client. Port numbers (1812/1813) and encryption types remain standard, and both 802.1X and MAC authentication are supported.

Therefore, authentication failure in this scenario occurs because each AP must be authorized individually in the RADIUS server when non-proxy mode is used.
