PL-400 Microsoft Power Platform Developer Question and Answers

https://docs.microsoft.com/en-us/powerapps/developer/model-driven-apps/clientapi/reference/xrm-webapi/updaterecord

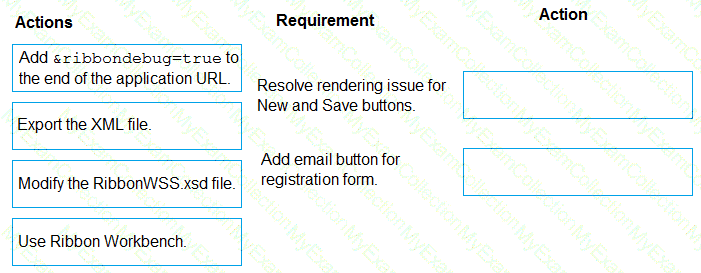

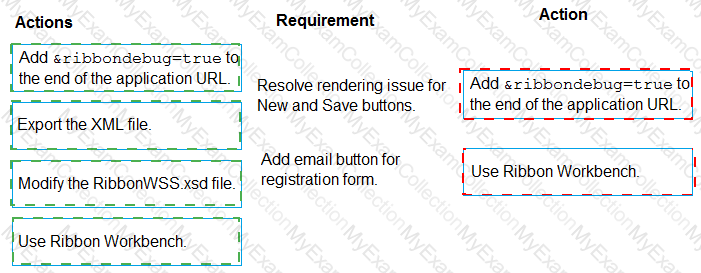

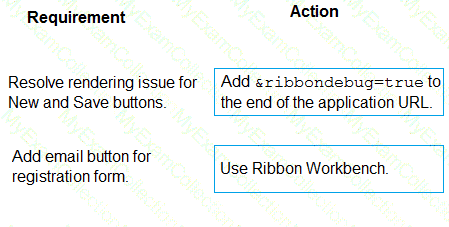

Box 1: Add & ribbondebug=true to the end of the application URL.

Scenario: The captions for the New and Save buttons do not render properly on the form.

You can use the an in-app tool called the Command Checker to inspect the ribbon component definitions to help us determine why the button is not rendered correctly.

To enable the Command Checker, you must append a parameter & ribbondebug=true to your D365 application URL. For example: https://yourorgname.crm.dynamics.com/main.aspx?appid=9ab590fc-d25e-ea11-a81d-000d3ac2b3e6 & ribbondebug=true

Box 2: Use the Ribbon Workbench

Adding Buttons to Ribbons

Download and install Ribbon Workbench.

Select a suitable ICON for your button.

Create a solution.

Edit the button in Ribbon Workbench.

Publish and test.

Scenario: Information about upcoming tournaments must be pre-located into the registration form when the registration form loads.

addOnLoad adds event handlers to the Subgrid OnLoad event event.

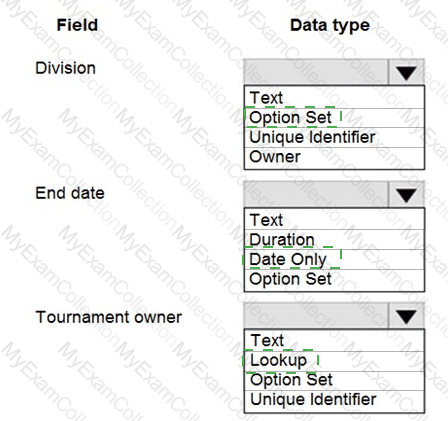

Box 1: Option Set

Box 2: Date only

When team members create tournament records they must enter the start date for a tournament. The end date of the tournament must be automatically calculated.

Box 3: Lookup

Customer information is stored in the Accounts entity. Each tournament record must list the associated sales representative as the tournament owner.

Note: When you create a new lookup column you are creating a new Many-to-One (N:1) table relationship between the table you’re working with and the Target Row Type defined for the lookup. There are additional configuration options for this relationship that are described in Create and edit relationships between tables. But all custom lookups can only allow for a reference to a single row for a single target row type.

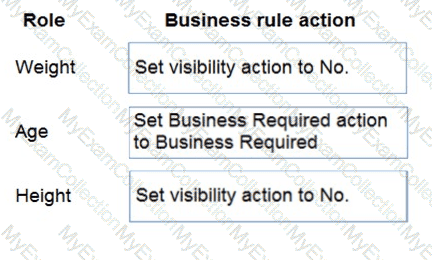

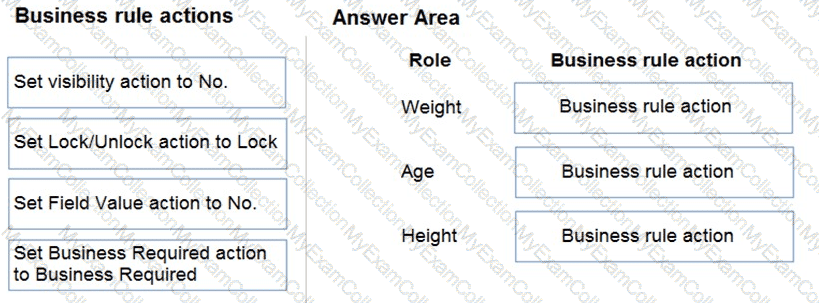

Scenario:

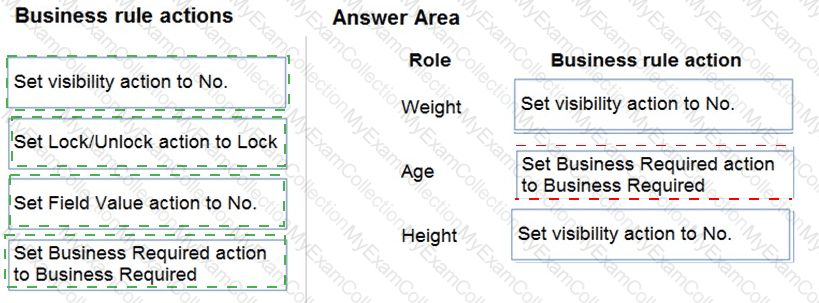

Weight: Set visibility action to No.

Age: Set Business Required action to Business required

Height: Set visibility action to No.

Xrm.WebApi.online.executeMultiple executes a collection of action, function, or CRUD operations.

Xrm.WebApi.online.execute executes a single action, function, or CRUD operation.

https://docs.microsoft.com/en-us/dotnet/api/system.io.filesystemwatcher https://docs.microsoft.com/en-us/power-automate/

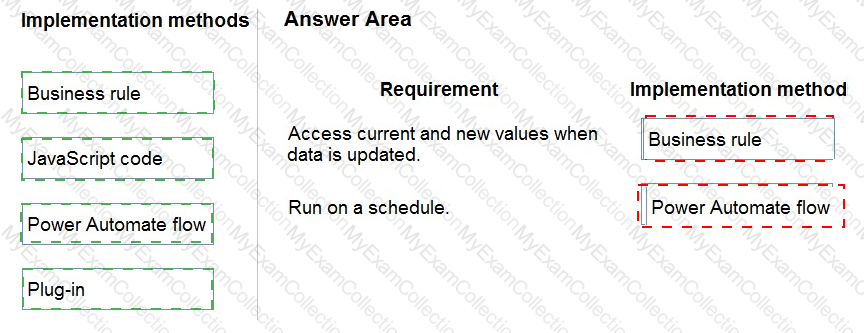

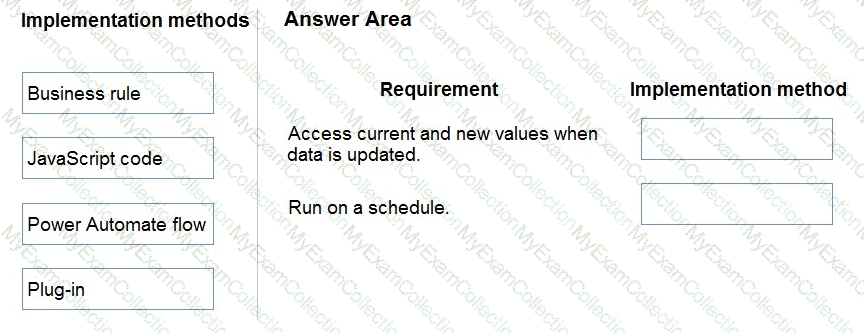

Box 1: Business rule

You can create business rules and recommendations to apply logic and validations without writing code or creating plug-ins. Business rules provide a simple interface to implement and maintain fast-changing and commonly used rules.

By combining conditions and actions, you can do any of the following with business rules:

Set column values

Clear column values

Set column requirement levels

Show or hide columns

Enable or disable columns

Validate data and show error messages

Create business recommendations based on business intelligence.

Box 2: Power Automate flow

You can create a cloud flow that performs one or more tasks (such as sending a report in email):

Once a day, an hour, or a minute

On a date that you specify

After a number of days, hours, or minutes that you specify

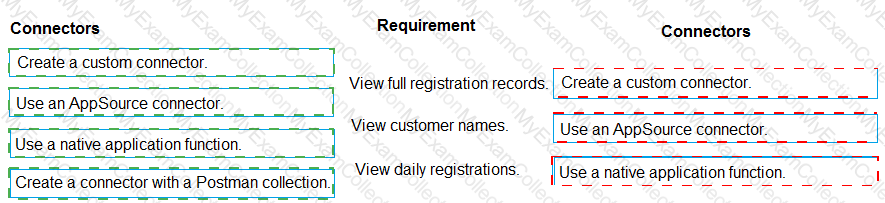

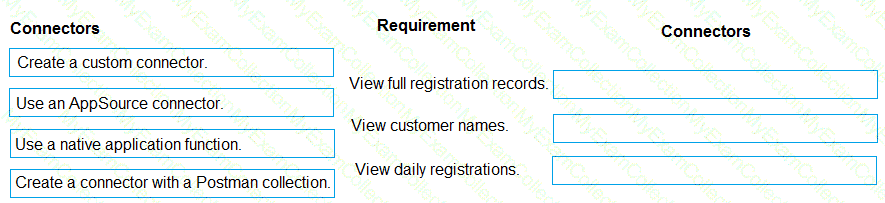

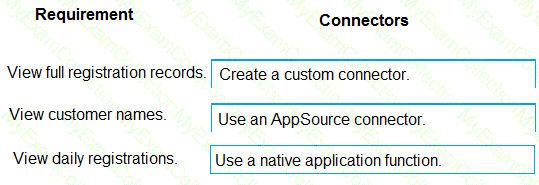

Box 1: Create a custom connector

A custom connector is a wrapper around a REST API (Logic Apps also supports SOAP APIs) that allows Logic Apps, Power Automate, or Power Apps to communicate with that REST or SOAP API.

Box 2: Use an AppSource connector

You can only retrieve the Customer, UnifiedActivity, and Segments entities through the Power Apps connector. Other entities are shown because the underlying connector supports them through triggers in Power Automate.

Scenario: Customer information is stored in the Accounts entity.

Box 3: Use a native application function

You must produce a report that details the number of registrations for a day and send the report as a PDF to the management team.

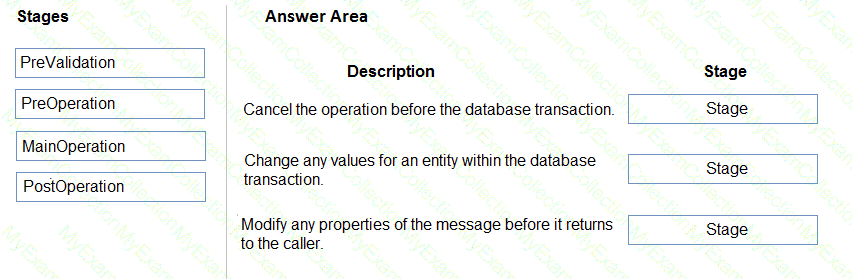

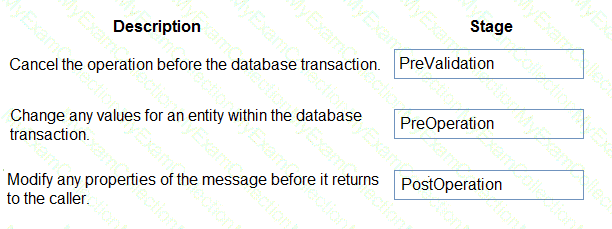

The event pipeline allows you to configure when in the event the plug-in code will execute. The event pipeline is divided into the following events and stages:

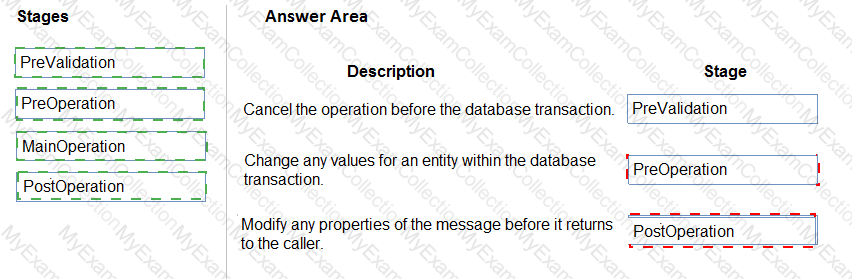

Box 1: PreValidation

Pre-event/Pre-Validation

This stage executes before anything else, even before basic validation if the triggering action is even allowed based on security. Therefore, it would be possible to trigger the plug-in code even without actually having permission to do so and great consideration must be used when writing a pre-validation plug-in. Also, execution in this stage might not be part of the database transaction.

Examples:- security checks being performed to verify the calling or logged on user has the correct permissions to perform the intended operation.

Box 2: PreOperation

Pre-event/Pre-Operation

This stage executes after validation, but before the changes has been committed to database. This is one of the most commonly used stages.

Example uses:

If and “update” plug-in should update the same record, it is best practice to use the pre-operation stage and modify the properties. That way the plug-in update is done within same DB transaction without needing additional web service update call.

Box 3: PostOperation

Plug-ins which are to execute after the main operation. Plug-ins registered in this stage are executed within the database transaction.

This stage executed after changes have been committed to database. This is one of the most used stages.

Example uses:

Most of the “Create” plugins are post-event. This allows access to the created GUID and creation of relationships to newly created record.

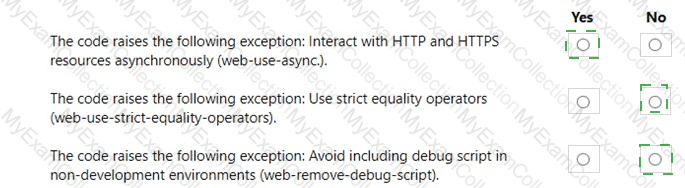

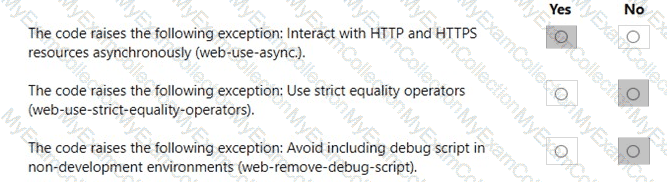

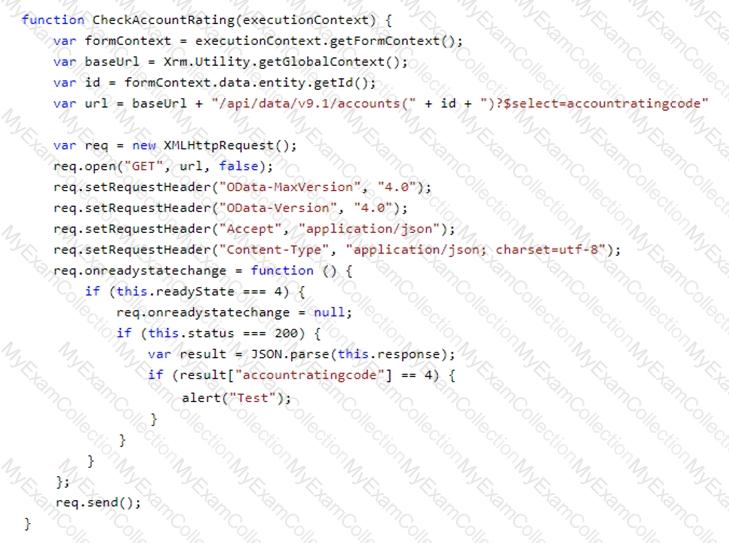

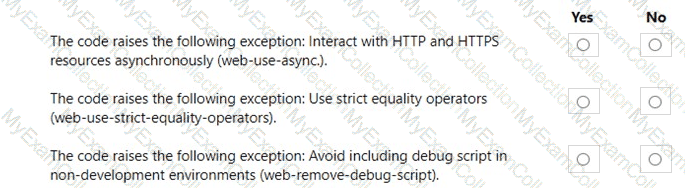

Box 1: Yes

Problem patterns: Web-use-async

There are multiple ways to interact with the server or request resources. Common approaches that allow for synchronous communications include the following (These scenarios should be avoided.):

Usage of the XMLHttpRequest object passing in false for the value of the async parameter for the open function call

var requestXhr = new XMLHttpRequest();

// Explicitly setting the async parameter to false or supplying a variable with a value of false will force this as a synchronous call.

requestXhr.open( ' GET ' , ' /test/test.txt ' , false);

Box 2: No

=== - Strict Equality Comparison is already used in the code.

Box 3: No

No debugger statement in the code, so web-remove-debug-script (avoid including debug script in non-development environments) does not apply.

If all the entities in external data source have an associated GUID primary key then we can implement the virtual entities for sure. For Reference: https://learn. microsoft.com/en-us/dynamics365/cu stomerengagement/on-premises/developer/virtual-entities/get-started-ve?view=op-9-1

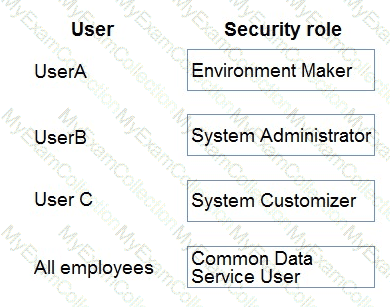

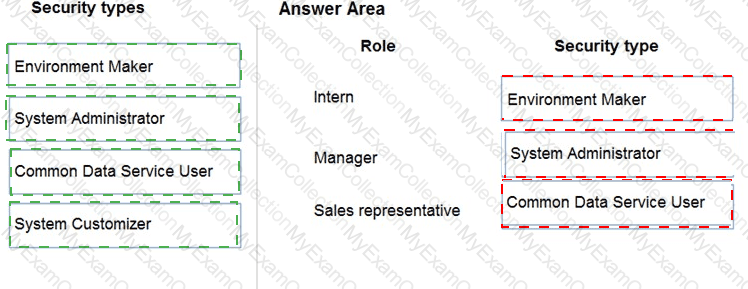

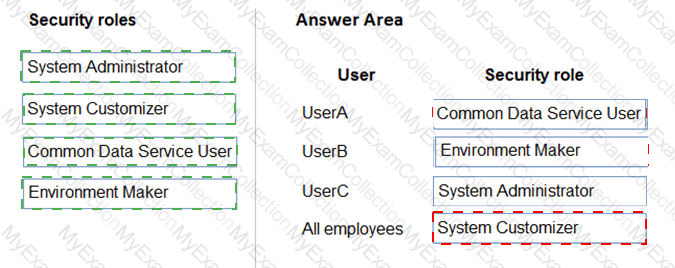

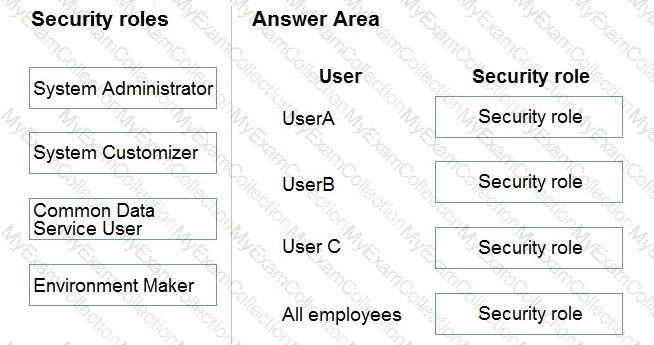

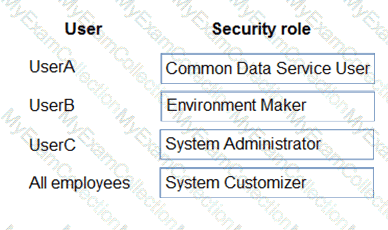

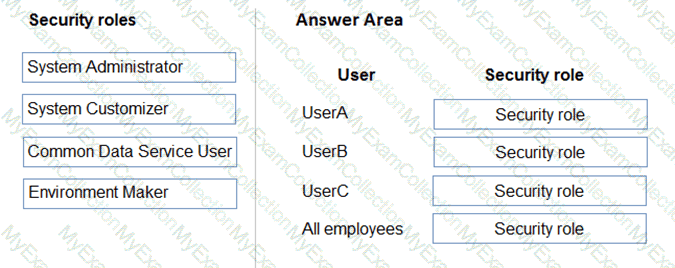

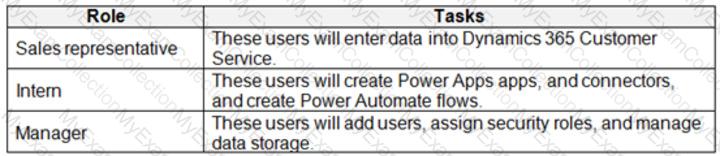

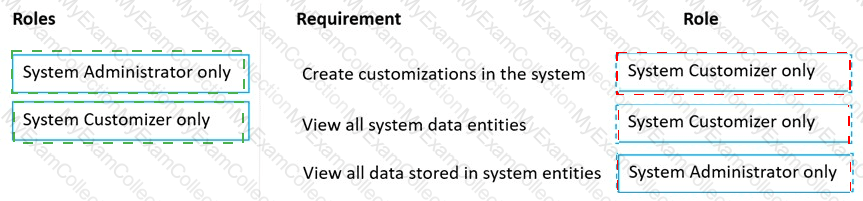

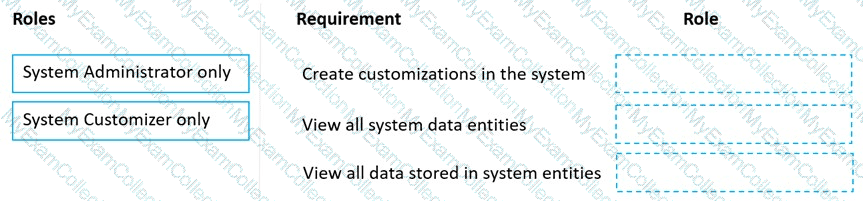

Customizer, customizer, admin

System Administrator has Organization level access to all system (Out Of Box) entities while System Customizer has only User level access to all system entities. While both System Administrator and System Customizer have Organization level access to all custom entities.

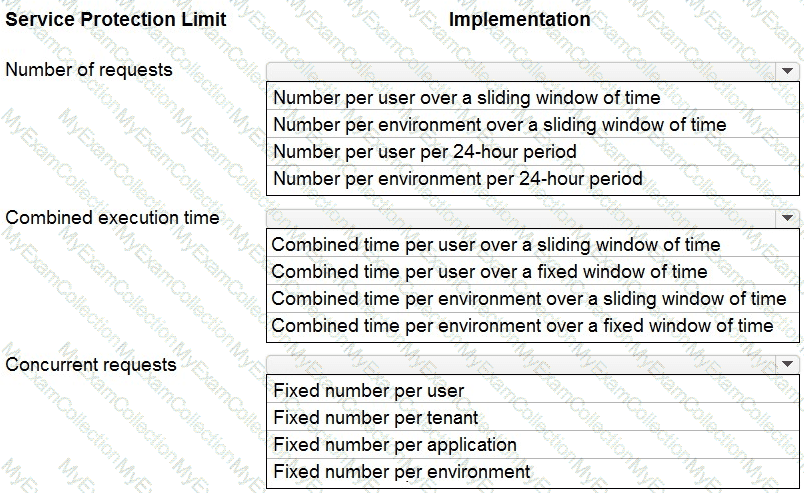

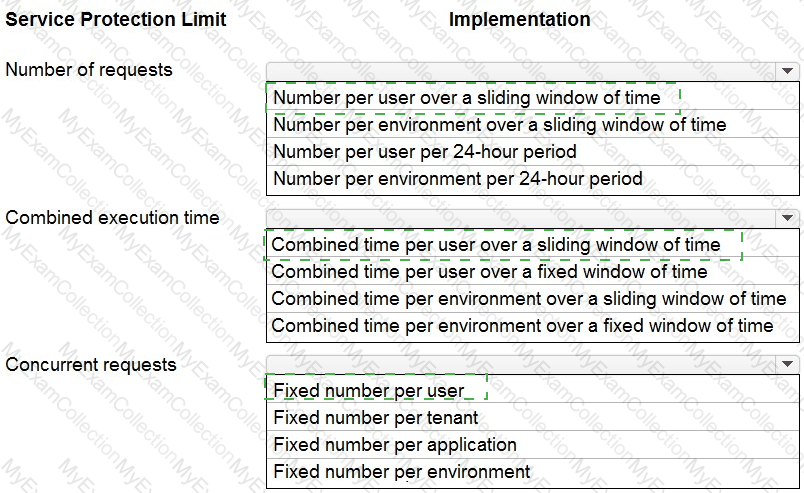

Box 1: Number per user over a sliding window of time

Service protection API limits are enforced based on three facets:

The number of requests sent by a user.

The combined execution time required to process requests sent by a user.

The number of concurrent requests sent by a user.

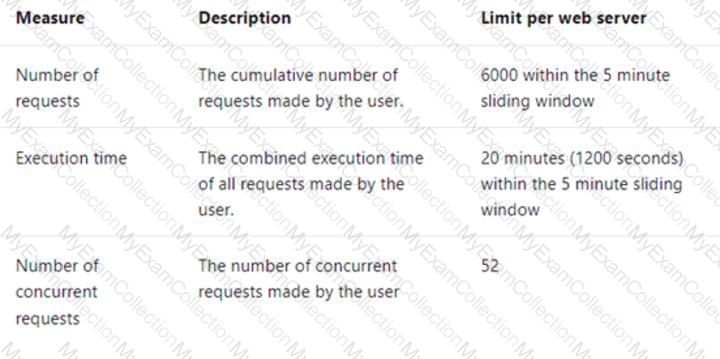

The following table describes the default service protection API limits enforced per web server:

Box 2: Combined time per user over a sliding window of time

Box 3: Fixed number per user

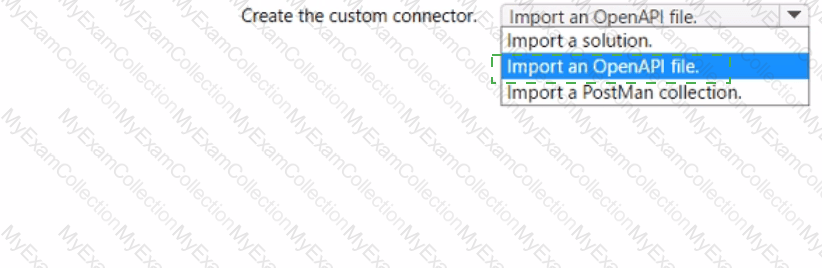

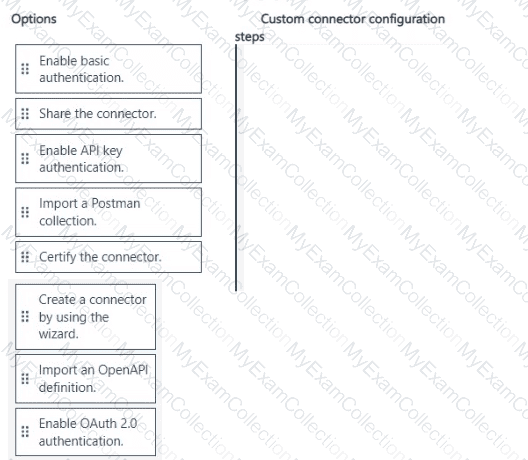

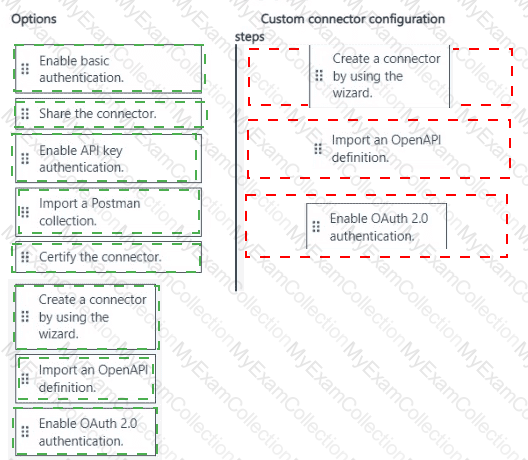

E: Before exporting an API, you must describe the API using an OpenAPI definition.

B: This OpenAPI definition contains information about what operations are available in an API and how the request and response data for the API should be structured. PowerApps and Microsoft Flow can create custom connectors for any OpenAPI 2.0 definition.

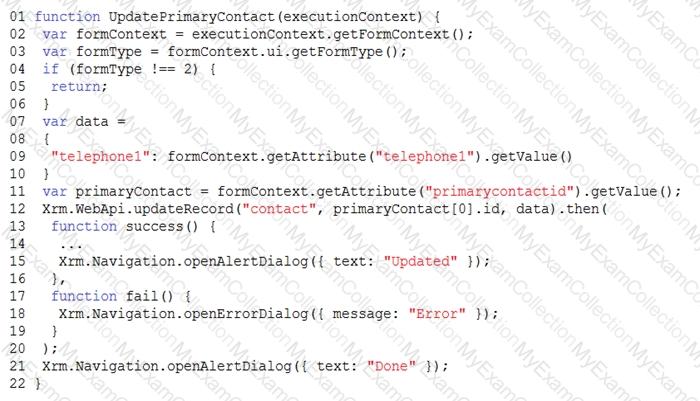

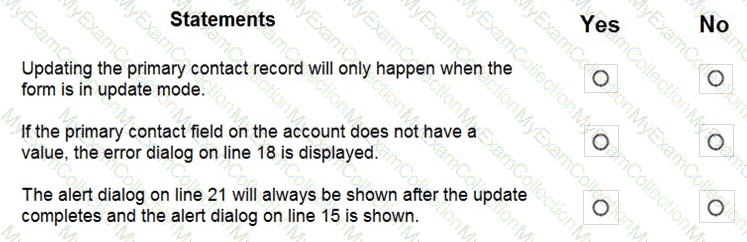

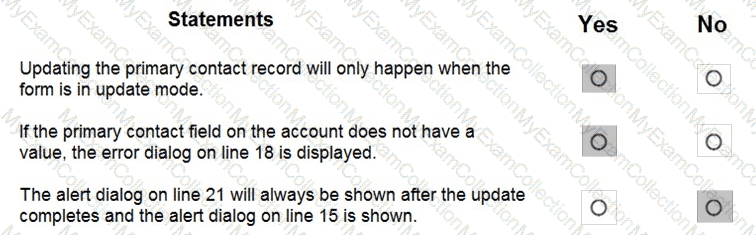

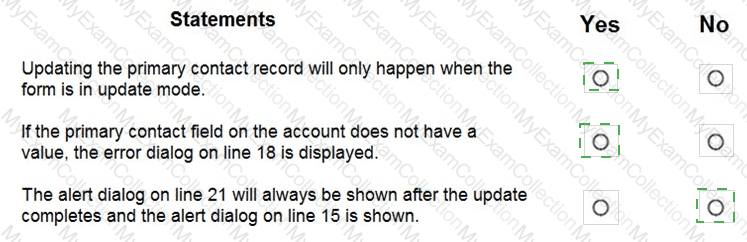

Box 1: Yes

getFormTyp gets the form type for the record.

Form type 2 is Update.

Note: Syntax: formContext.ui.getFormType();

Return Value

Type: Number

Description: Form type. Returns one of the following values

RETURN VALUE

Value Form type

0 Undefined

1 Create

2 Update

3 Read Only

4 Disabled

6 Bulk Edit

Box 2: Yes

Xrm.WebApi.updateRecord Return Value: On success, returns a promise object containing the values specified earlier in the description of the successCallback parameter.

Note:

Syntax: Xrm.WebApi.updateRecord(entityLogicalName, id, data).then(successCallback, errorCallback);

Where errorCallback: A function to call when the operation fails. An object with the following properties will be passed:

errorCode: Number. The error code.

message: String. An error message describing the issue.

Box 3: No

It will displayed even if the update fails.

Use LoadData and SaveData for basic data storage while offline.

Note:

When building mobile apps, one of the most common scenarios app makers face is how to enable their users be productive in situations where there is limited or no connectivity at all. This has been one of the most requested features for PowerApps to allow running apps while being disconnected and to provide some support for offline data caching. In this release of PowerApps, we are delivering the first set of improvements for app makers to achieve that by enabling:

Launching the PowerApps mobile player app offline

Running apps while being offline

Determine when your app is online or offline or in a metered connection by using the Connection signal object.

Leverage existing formulas such as LoadData and SaveData for basic data storage while offline.

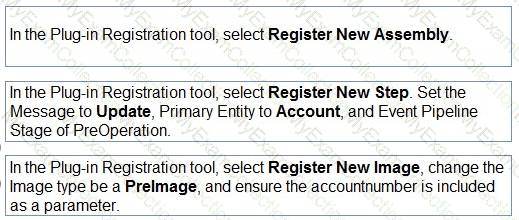

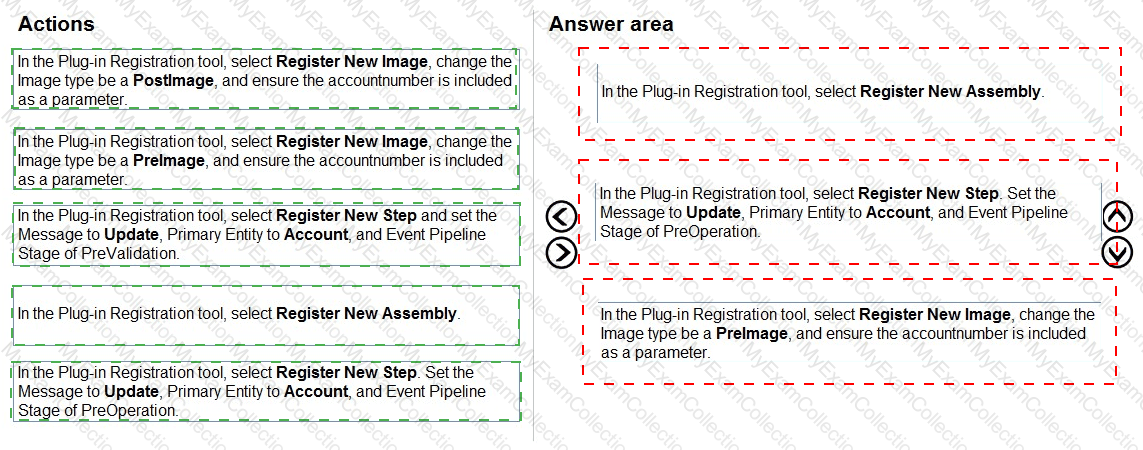

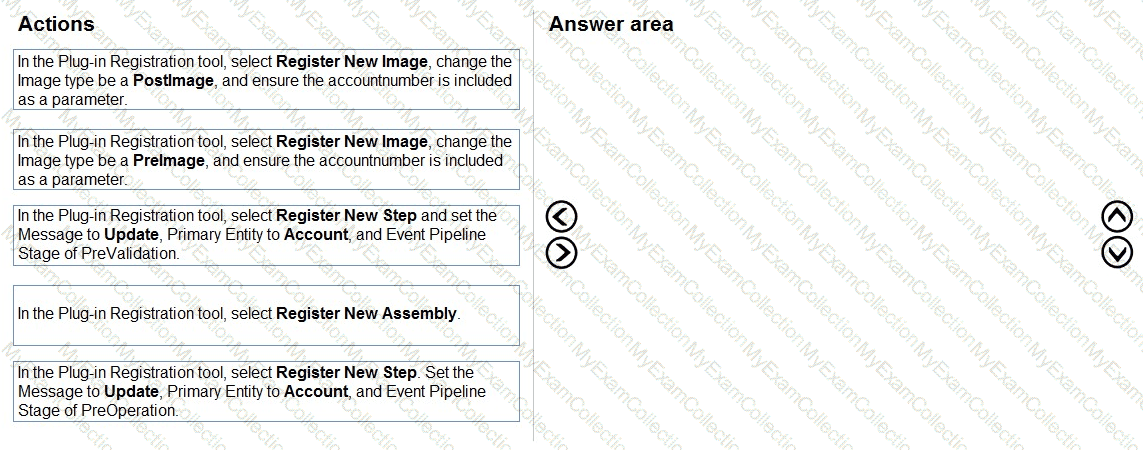

Step 1: In the Plug-in Registration tool, select Register New Assembly.

You use the Plug-in Registration tool (PRT) to register your plug-in assemblies and steps.

Registering an assembly is the process of uploading the assembly to the Dataverse database.

Step 2: In the Plug-in Registration tool, Select Register New Step,..PreOperation

PreOperation occurs before the main system operation and within the database transaction.

If you want to change any values for an entity included in the message, you should do it here.

Step 3: In the Plug-in Registration tool, Select Register New Image, change the Image type to be a PreImage, and..

If your plug-in step is registered in the PreValidation or PreOperation stages of the execution pipeline, you could use the Organization service to retrieve the current value of the property, but this is not a good practice for performance. A better practice is to define a pre-entity image with your plug-in step registration.

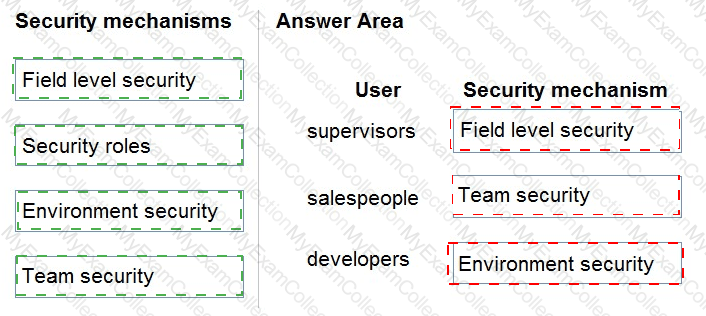

Access Team template

The privileges assigned to the access team through Access Team Templates. Access Team template allows you to create a template for the entities on which “Access Teams” option is enabled. You can grant or restrict access to the entity records through “Access Rights”. Essentially, this is like a record-based security model on an entity record for specific users.

Once the access team template is created and added to the entity form, you can start adding users. For example, on an opportunity record add a new user in the Access Team Template sub-grid.

Scenario: Warehouse counting is performed manually by using a counting journal. All warehouse boxes and items are barcoded.

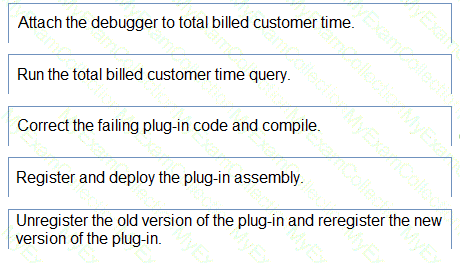

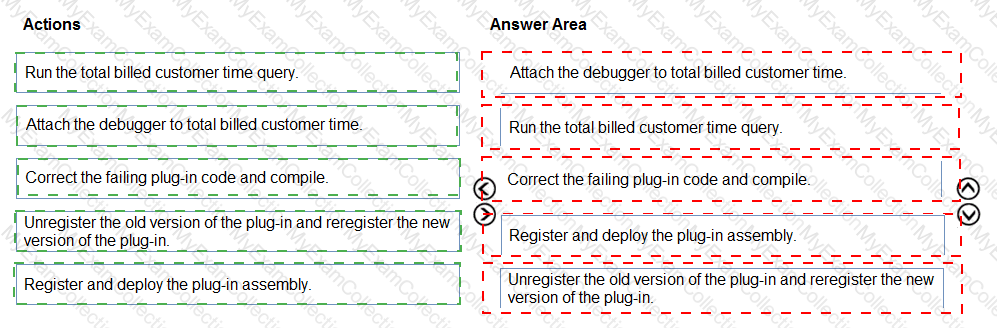

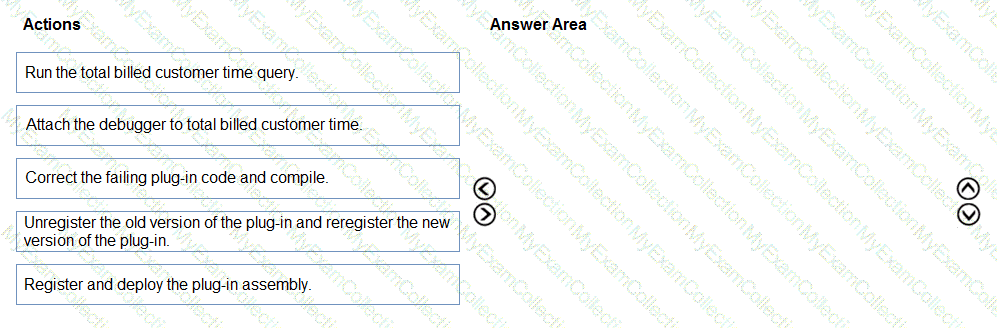

Scenario: User1 reports that performance is slow when viewing total billed customer time.

A plug-in for Dynamics 365 Sales automatically calculates the total billed time from all activities on a particular customer account, including sales representatives ' visits, phone calls, email correspondence, and repair time compared with hours spent.

Scenario: CustomerC requested additional information from the parts department through the customer survey and has not received a response one week later.

Scenario: Warehouse counting is performed manually by using a counting journal. All warehouse boxes and items are barcoded.

Barcode scanner control for canvas apps: Scans barcodes, QR codes, and data-matrix codes on an Android or iOS device.

Description

The control opens a native scanner on an Android or iOS device. The scanner automatically detects a barcode, a QR code, or a data-matrix code when in view.

Scenario:

Customers report that the response time from the information email listed on the Adventure Works Cycles website is greater than five days.

Microsoft Teams is used for all collaboration.

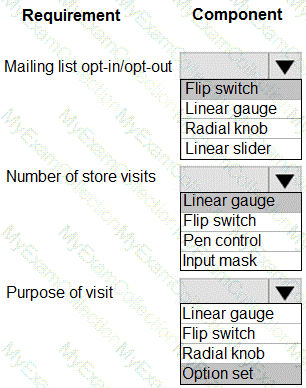

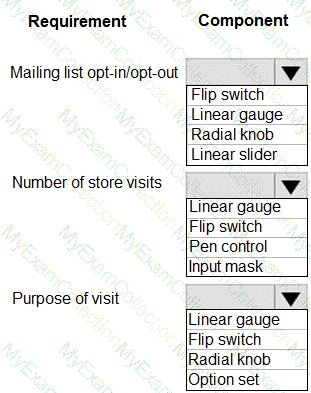

Box 1: Flip switch

The Field Type to use Flip Switch would be ‘Two options’.

If you go by UI perspective, Flip switch control- Yes/No (Boolean) options would give the nice field look in the web, mobile app and Tablet. Instead of using check boxes and radio buttons, this control adds a visual effect like the On/Off switch way.

Box 2: Linear gauge

Box 3: Option Set

Option sets are the ideal choice for offering users a list of defined options for a field selection.

CustomerB reports that the check-in app returned only one search result for their last name, which is not the correct name.

The Filter function finds records in a table that satisfy a formula. Use Filter to find a set of records that match one or more criteria and to discard those that don ' t.

The LookUp function finds the first record in a table that satisfies a formula. Use LookUp to find a single record that matches one or more criteria.

The Search function finds records in a table that contain a string in one of their columns.

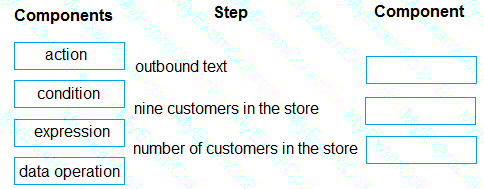

Scenario: A text alert must be sent to employees scheduled to assist in the repair area of the retail store if the number of repair check-ins exceeds eight.

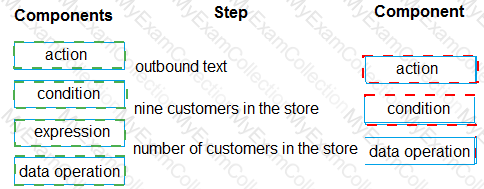

Box 1: action

Box 2: condition

Box 3: data operation

Scenario:

Customers report that the response time from the information email listed on the Adventure Works Cycles

website is greater than five days.

Microsoft Teams is used for all collaboration.

Microsoft teams support email notifications.

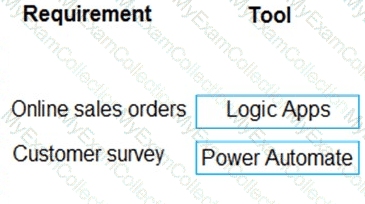

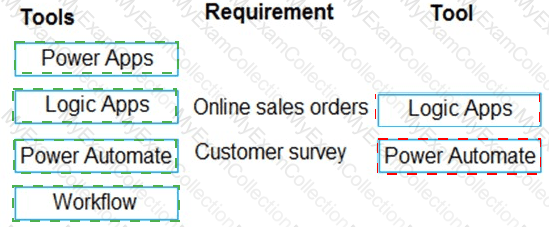

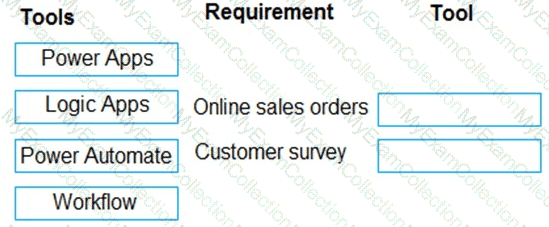

Box 1: Logic Apps

Scenario: Ecommerce sales orders must be integrated into Dynamics 365 Finance and then exported to Azure every night.

For integration with Dynamics 365 Logic Apps can be used. It also supports scheduled actions.

For integration with Azure use Logic Apps, instead of Power Automate.

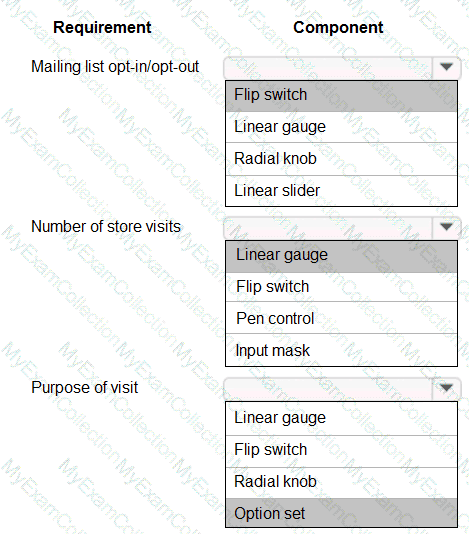

Scenario: Customer satisfaction surveys are recorded with Microsoft Forms Pro.

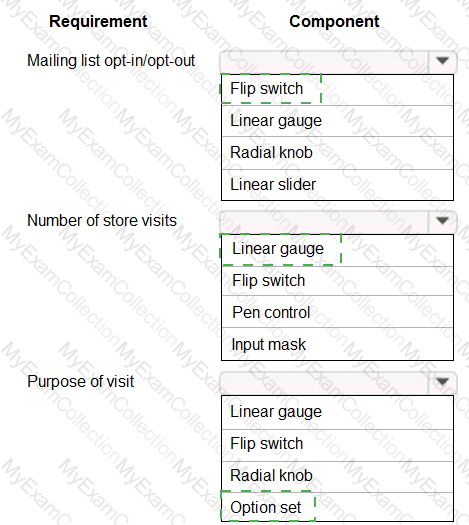

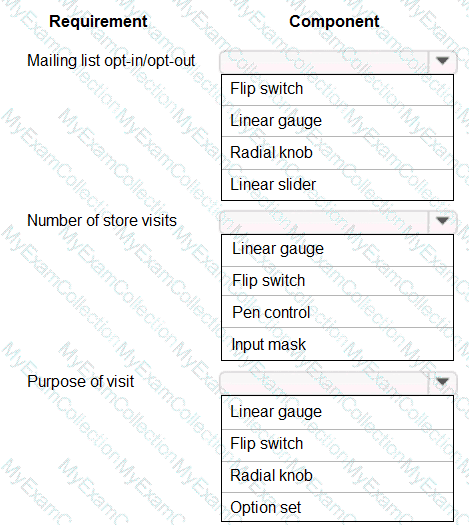

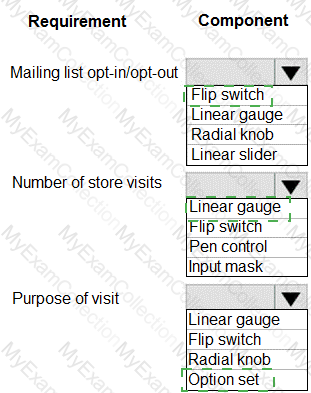

Box 1: Flip switch

The flip switch is like an on/off switch, providing a choice between two values.

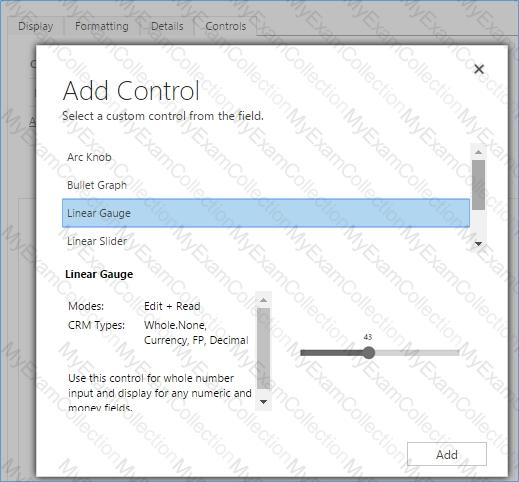

Box 2: Linear gauge

The linear gauge lets your users input numerical values by dragging a slider instead of typing in the exact quantity. The slider provides whole number input and display only. Use this control for any numerical and money columns.

Box 3: Option set

The choice control presents a set of options for your users to choose from when entering data.

You can customize forms (main, quick create, and quick view) and email templates by adding multi-select columns that are called Choices. When you add a choices column, you can specify multiple values that will be available for users to select. When users fill out the form they can select one, multiple, or all the values displayed in a drop-down list.

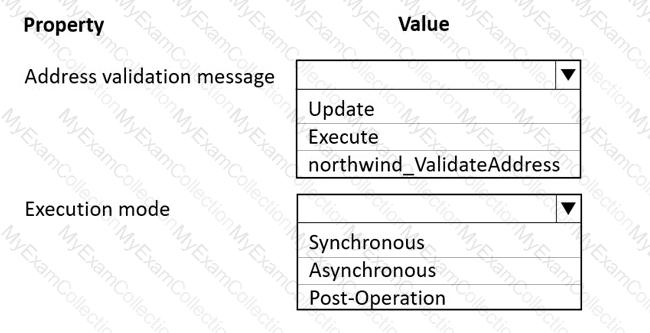

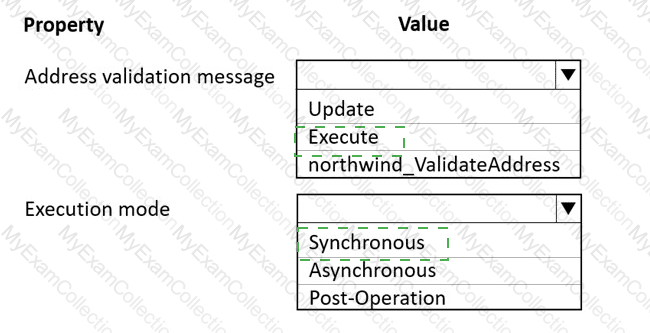

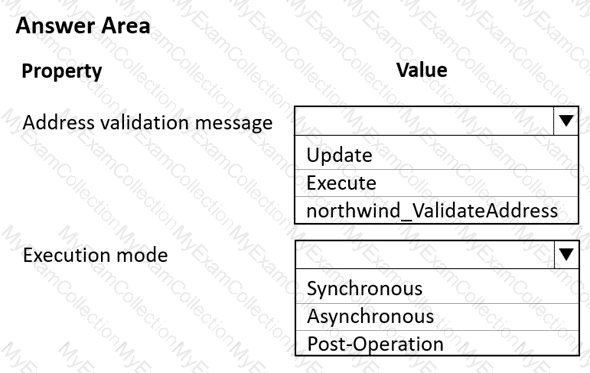

User5 receives the error message: ‘Endpoint unavailable’ during a test of the technician dispatch ISV solution.

When you choose to use a synchronous execution mode any failure will be reported back to the user of the application with an Endpoint unavailable error dialog informing the user that the webhook service endpoint may be configured incorrectly or is not available.

Scenario: CustomerC requested additional information from the parts department through the customer survey and has not received a response one week later.

Imagine having a process where you want to give someone a couple of days to reply to an approval. If that someone doesn ' t respond in time, you want to assign a new approval to another person or group of people. To achieve this you can set the timeout in the action settings.

Scenario: The Adventure Works Cycles retail location performs bicycle inspections and performance tune-ups. Technicians use paper forms to document the bicycle inspection performed before a tune-up and any additional work performed on the bicycle.

By using a Dynamics 365 connector, you can create flows that initiate when an event occurs in Dynamics 365, or some other service, which then performs an action in Dynamics 365, or some other service.

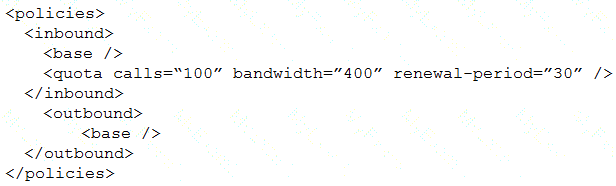

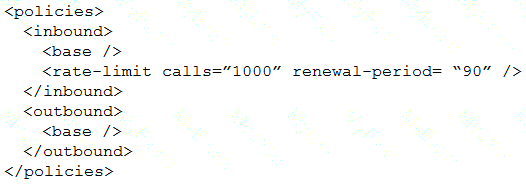

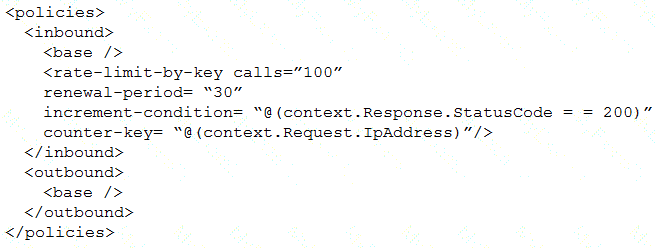

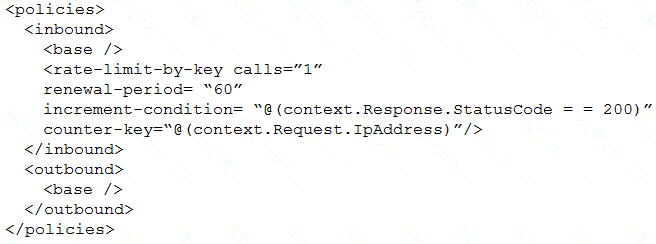

Scenario: User2 reports that Azure consumption for API calls has increased significantly to 100 calls per minute in the last month.

Example:

In the following example, the rate limit of 10 calls per 60 seconds is keyed by the caller IP address. After each

policy execution, the remaining calls allowed in the time period are stored in the variable remainingCallsPerIP.

< policies >

< inbound >

< base / >

< rate-limit-by-key calls= " 10 "

renewal-period= " 60 "

increment-condition= " @(context.Response.StatusCode == 200) "

counter-key= " @(context.Request.IpAddress) "

remaining-calls-variable-name= " remainingCallsPerIP " / >

< /inbound >

< outbound >

< base / >

< /outbound >

< /policies >

Note: The rate-limit-by-key policy prevents API usage spikes on a per key basis by limiting the call rate to a

specified number per a specified time period. The key can have an arbitrary string value and is typically

provided using a policy expression. Optional increment condition can be added to specify which requests

should be counted towards the limit. When this call rate is exceeded, the caller receives a 429 Too Many

Requests response status code.

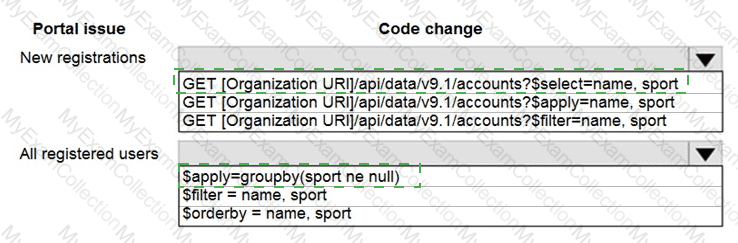

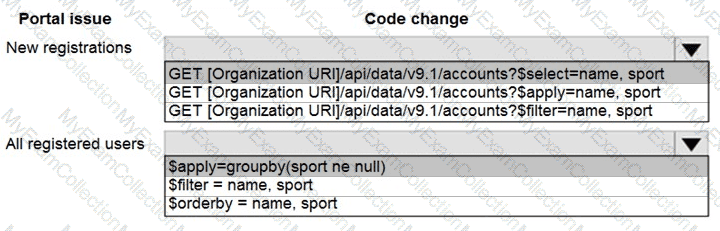

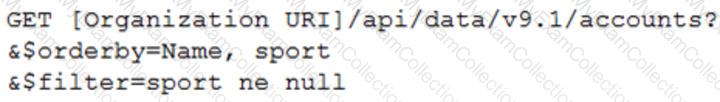

Scenario: The query for all registered users must return the data categorized by division. Queries must return only the Name and Sport fields. Queries return all fields. The query is as follows:

Box 1: GET ..$select=name, sport

Use select to return only the Name and Sport fields.

Box 2: $apply(groupby(sport ne null)

Categorize by division, that is to sports.

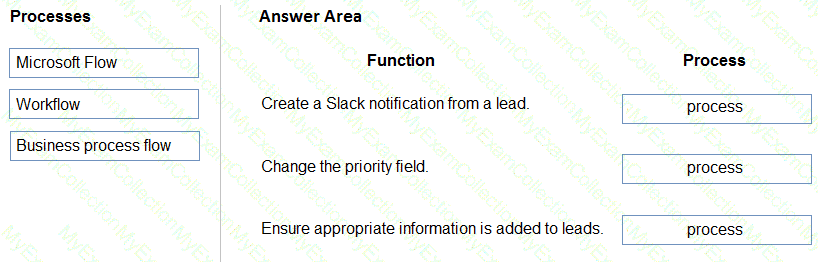

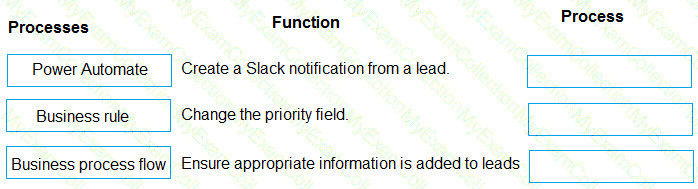

Box 1: Power Automate

Ensure that notifications are sent to the sales team when a lead is added by using Slack

Power Automate is a service that helps you create automated workflows between your favorite apps and services to synchronize files, get notifications, collect data, and more.

Box 2: Business rule

A trigger must be created that changes the Priority field to 1 in the Account record 10 days after an account record is created.

A field named Priority_Trigger must be created to trigger the Priority field.

Business rules provide a simple interface to implement and maintain fast-changing and commonly used rules.

Box 3: Business process flow

Ensure that leads have a review stage added to the sales process.

Use business process flows to define a set of steps for people to follow to take them to a desired outcome. These steps provide a visual indicator that tells people where they are in the business process.

Pharmacy orders must be displayed in four graphs as follows:

Annual revenue over $100,000

Annual revenues under $100,000

Research facilities

Hospitals

The graphs must be interactive, and users must be able to drill down on any dimension.

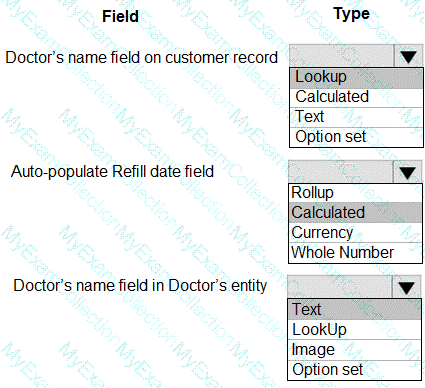

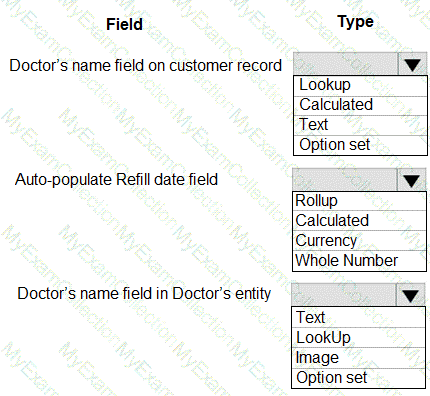

Box 1: Lookup

Fields for the doctor’s name and phone number must be displayed in the customer record.

Lookup: A field that allows setting a reference to a single record of a specific type of entity.

Box 2: Calculated

Refill dates for customer prescriptions should be automatically determined and a notification should be sent to the customer.

Calculated field: Contains calculations that use fields from the current entity or related parent entities.

Box 3: Text

Field data type: Single Line of Text:

This field can contain up to 4,000 text characters. You can set the maximum length to be less than this. This field has several format options that will change the presentation of the text. These options are Email, Text, Text Area, URL, Ticker Symbol, and Phone.

When the account is entered into the system, extra fields must appear if the referral customer box is selected. If the box is not selected, the extra fields must not appear.

Note: By combining conditions and actions, you can do any of the following with business rules:

Set column values

Clear column values

Set column requirement levels

Show or hide columns

Enable or disable columns

Validate data and show error messages

Create business recommendations based on business intelligence.

Answer: D QUESTION NO: 54

You need to configure that the mobile app meets the requirements for phone entries.

Which expression should you use?

A. PlainText

B. IsMatch

C. IsType

D. IsNumeric

Answer: D

When a pharmacy is added by using the mobile app, the phone number must be validated to be all digits.

Note: The IsNumeric function tests whether a value is numeric. Other kinds of values include Boolean, string, table, and record.

The return value is a Boolean true or false.

A trigger must be created that changes the Priority field to 1 in the Account record 10 days after an Account record is created.

Note:

Date.AddWeeks returns the date, datetime, or datetimezone result from adding numberOfWeeks weeks to the datetime value dateTime.

CreatedOn gets the value to store in the history table indicating when this entry was created.

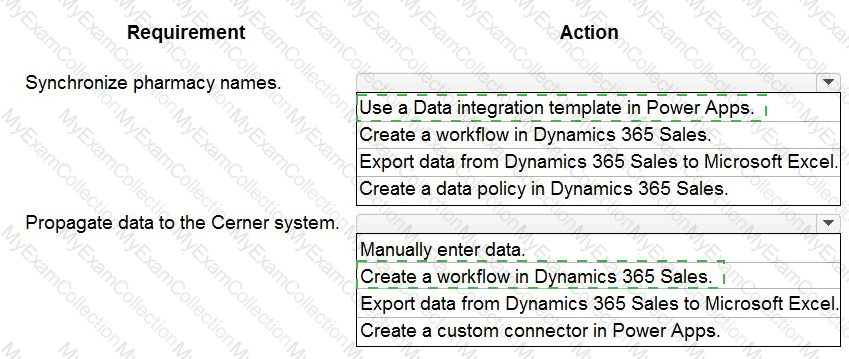

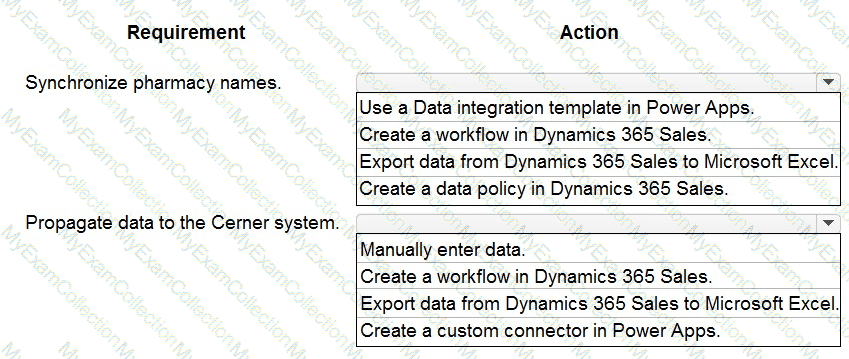

Box 1: Use a Data Integration template in Power Apps.

Ensure that the names of the pharmacies are synced between the accounting and the customer management systems.

Note: The Data Integrator (for Admins) is a point-to-point integration service used to integrate data into Dataverse. It supports integrating data between Finance and Operations apps and Dataverse. It also supports integrating data into Finance and Operations apps and Dynamics 365 Sales.

The Data Integrator (for Admins) consists of the Data Integration platform, out-of-the-box templates provided by our application teams (for example, Finance and Operations apps and Dynamics 365 Sales) and custom templates created by our customers and partners.

Box 2: Create a workflow in Dynamics 365 Sales.

Account numbers should be entered automatically into the pharmaceutical system that is in a Cerner database and kept in sync.

Note: Start When: Use the options in this section to specify when a workflow should start automatically. You can configure a real-time workflow to be run before certain events. This is a very powerful capability because the workflow can stop the action before it occurs. The options are:

Record is created

Record status changes

Record is assigned

Record fields change

Record is deleted

Box 1: Common Data Service User

UserA must be able to create and publish PowerApps apps.

Common Data Service directly against your core business data already used within Dynamics 365 without the need for integration.

Build Apps against your Dynamics 365 Data

Manage reusable Business logic and rules

Reusable skills across Dynamics 365 and Power Apps

Box 2: Environment Maker

UserB must be the owner of all the systems and be able to provide permissions and create all new environments.

The Environment Maker role can create resources within an environment including apps, connections, custom connectors, gateways, and flows using Power Automate.

Box 3: System Administrator

UserC must be able to create apps connected to the systems and update the security roles and entities.

System Administrator is the highest level role which encompasses all the privileges and has over-riding rights. The System Administrator has the authority to allow and remove access of other users and define the extent of their rights. For example, the System Administrator and the System Customizer are given access to custom entities by default while all other users need to be given access. This is the only role that cannot be edited.

Box 4: System Customizer

End users must have minimum access to the required systems.

Sales users must only have access to their own records.

The System Customizer role is similar to the System Administrator role which enables non-system administrators to customize Dynamics 365. A Customizer is a user who customizes entities, attributes and relationships.

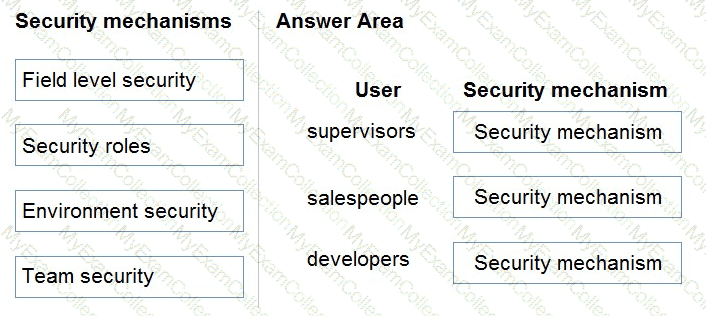

Box 1: Field level security

Only supervisors must be able to view phone numbers in the Accounts form.

You use field security tables to apply field-level security, which restricts field access to specified users and teams. The scope of field-level security is global, which means that it applies to all records within the organization, regardless of the business unit hierarchical level to which the record or the user belongs. Field security works in all Microsoft Dataverse clients, including the Web client, Dynamics 365 for Outlook, and Dynamics. It applies to all components, such as the Dataverse web services, reports, search, offline, filtered views, auditing, and duplicate detection.

Box 2: Team Security

Sales users must only have access to their own records.

Owner team: An owner team owns records and has security roles assigned to the team. A user ' s privileges can come from their individual security roles, those of the teams that they ' re part of or the ones they inherit. A team has full access rights on the records that the team owns. Team members are added manually to the owner team.

Box 3: Environment security

Developers must be able to create new apps for all users.

Environment maker: Can create new resources associated with an environment, including apps, connections, custom APIs, gateways, and flows using Microsoft Power Automate. However, this role doesn ' t have any privileges to access data within an environment.

Box 1: Microsoft flow

Using Microsoft Flow, you can automatically post to Slack when an event happens in Dynamics 365, enabling similar functionality that is available with the Microsoft Yammer integration with third-party collaboration tools.

Box 2: Workflow

Box 3: Business process flow

A business process flow is composed of Stages, and within each stage there are Steps to complete which are fields. In the business process flow heading, a user can see which stage they are at in the process, and which steps they need to complete before they proceed in the process.

Business process flows enable you to require users to complete certain steps before completing the process and if needed you can also allow users to jump stages.

The LookUp function finds the first record in a table that satisfies a formula. Use LookUp to find a single record that matches one or more criteria.

Scenario: When the account is entered into the system, extra fields must appear if the referral customer box is selected. If the box is not selected, the extra fields must not appear.

When you export a managed solution, it contains all the changes that have been applied for that solution into a file that you can then import into a different Dataverse environment.

Box 1: Environment Maker

UserA must be able to create and publish Power Apps apps.

The Environment Maker role can create resources within an environment including apps, connections, custom connectors, gateways, and flows using Power Automate.

Box 2: System Administrator

UserB must be the owner of all the systems and be able to provide permissions and create all new environments.

The System Administrator has full permission to customize the system. Can view all data in the system.

Box 3: System Customizer

UserC must be able to create apps connected to the systems and update the security roles and entities.

The System Customizer has full permission to customize the system. Can only view rows for system tables that they create.

The difference between the System Administrator and System Customizer security roles is that a system administrator has read privileges on most rows in the system and can see everything. Assign the System Customizer role to someone who needs to perform customization tasks but shouldn’t see any data in the system tables.

Box 4: Common Data Service User

To stay consistent with our product rebranding effort, the security role Common Data Service User is being changed to Basic User.

The Basic User security role primarily contains Basic privileges for core entities where the user can write, update, and delete records that they created or owned.

Scenario: A trigger must be created that changes the Priority field to 1 in the Account record 10 days after an Account record is created.

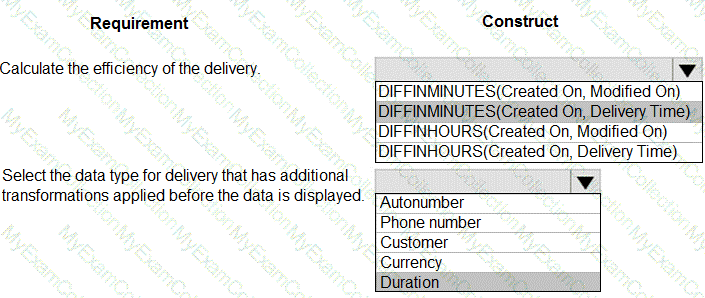

DIFFINDAYS (date and time, date and time): Returns the difference in days between two Date and Time fields. If both dates and times fall on the same day, the difference is zero.

Note: Whenever we talk about history, the bone of contention are the below four fields:

CreatedOn

ModifiedOn

CreatedBy

ModifiedBy
