NSE7_SSE_AD-25 Fortinet NSE 7 - FortiSASE 25 Enterprise Administrator Question and Answers

FortiSASE utilizes Security Assertion Markup Language (SAML) to provide a seamless Single Sign-On (SSO) experience for remote users connecting to the cloud infrastructure.

Role Identification: In a SAML exchange, FortiSASE functions as the Service Provider (SP). It relies on an external Identity Provider (IdP)—such as Microsoft Entra ID (formerly Azure AD), Okta, or FortiAuthenticator—to authenticate the user's identity and provide security assertions.2

SAML Group Matching: One of the core features of the FortiSASE SAML implementation is the ability to perform group matching. During the authentication process, the IdP sends a SAML assertion that typically includes an "Attribute Statement" containing the user's group memberships.3 FortiSASE captures this attribute and matches it against locally defined SAML user groups.

Policy Enforcement: This group matching capability is critical because it allows administrators to apply different Security Internet Access (SIA) or Secure Private Access (SPA) policies based on the user's role (e.g., "Marketing" vs. "Finance") rather than managing individual users manually.

Analysis of Incorrect Options: * Options C and D are incorrect because FortiSASE does not natively act as a SAML IdP; it is designed to consume assertions from professional identity management platforms.

Option B is incorrect because FortiSASE fully supports and relies upon group matching for enterprise-scale policy management.

FortiSASE is designed as a unified, single-vendor solution that specifically targets the convergence of networking and security to address the modern challenges of a distributed enterprise.2

Multicloud and SaaS Adoption: FortiSASE addresses the surge in cloud-first strategies by providing Next-Generation Dual-Mode CASB (Cloud Access Security Broker).3 This feature uses both inline and API-based inspection to provide comprehensive visibility into sanctioned and unsanctioned SaaS applications (Shadow IT), ensuring that data is protected regardless of whether it resides in AWS, Azure, Google Cloud, or SaaS platforms like Microsoft 365.

Hybrid Workforce: To support a workforce that moves between the home, the office, and public spaces, FortiSASE delivers consistent security posture.5 It replaces the inconsistent experience of legacy VPNs with a geographically dispersed network of over 150 Points of Presence (PoPs), ensuring low-latency access to applications while maintaining high-performance SSL inspection and threat detection for all remote users.

Zero Trust Integration: Central to the FortiSASE architecture is Universal ZTNA (Zero Trust Network Access).7 Unlike traditional VPNs that grant broad network access, ZTNA applies the principle of "never trust, always verify". It grants access on a per-session, per-application basis, continuously verifying the device posture and user identity before and during application access.9 This shift from implicit to explicit trust significantly reduces the internal attack surface and mitigates the risk of lateral movement by attackers.

By integrating these components into a single operating system (FortiOS) and managed via a single console, FortiSASE simplifies IT operations while delivering the visibility and control required for today's multicloud and hybrid environments.

To enable the Managed Security Service Provider (MSSP) feature on FortiSASE, the administrative framework must be established outside of the local SASE instance within the broader FortiCloud ecosystem.

FortiCloud IAM Integration: The FortiSASE MSSP portal relies on FortiCloud Identity & Access Management (IAM) to define the scope of management for internal teams. Administrators do not create local "MSSP users" within the SASE portal itself; instead, they must use the FortiCloud IAM portal to assign specific Role-Based Access Control (RBAC) to IAM users.

Permissions and Scope: These RBAC settings determine which customer tenants (Organizational Units or OUs) an MSSP administrator can view, configure, or monitor. Without the proper role assignment in the IAM portal, the MSSP portal and its multi-tenant viewing capabilities will not be accessible to the user, even if the account has the necessary licenses.

Hierarchical Management: Once RBAC is correctly assigned, the MSSP administrator can leverage the FortiCloud Organizations service to manage multiple customer accounts from a single pane of glass. This centralized approach ensures that security policies and configurations can be standardized across the entire customer base while maintaining strict data isolation between tenants.

According to the FortiSASE 25 Multitenant Deployment Guide, configuring the IAM portal is the primary prerequisite that grants an MSSP internal team the permissions necessary to perform operations on customer FortiSASE tenants.

The exhibit indicates that the URL https://www.bbc.com/ is being blocked due to containing a banned word ("fight"). To allow access to this specific URL, you need to adjust the URL filter settings on FortiSASE.

URL Filtering:

URL filtering allows administrators to define policies that block or allow access to specific URLs or URL patterns.

In this case, the URL filter is set to block any URL containing the word "fight."

Modifying URL Filter:

Navigate to the Web Filter configuration in FortiSASE.

Locate the URL filter settings.

Add an exception for the URL https://www.bbc.com/ to allow access, even if it contains a banned word.

Alternatively, remove or adjust the banned word list to exclude the word "fight" if it's not critical to the security policy.

According to the NSE7 SASE Enterprise Guide (Pages 46 & 61), deploying Secure Private Access (SPA) with SD-WAN provides advanced security and networking capabilities by routing traffic through global Points of Presence (PoPs).

Inline Security Inspection (D): A major advantage of this approach is that traffic is routed through FortiSASE PoPs before it reaches private applications. This enables inline security inspection, providing robust protection against threats by applying the full SASE security stack—including antivirus, intrusion prevention, and deep packet inspection—to private access traffic.

Support for TCP and UDP (B): Organizations with existing FortiGate SD-WAN deployments benefit from broader and seamless access to privately hosted applications. The SD-WAN SPA use case explicitly supports both TCP- and UDP-based applications, ensuring that legacy or specialized services that rely on UDP function correctly over the secure tunnel.

SD-WAN Optimization: This method leverages the benefits of SD-WAN to optimize traffic flow between the SASE PoP and the corporate SD-WAN hub or data center FortiGate. It is particularly useful for mission-critical applications that require an extra layer of security combined with path optimization.

Architecture: In this configuration, the FortiSASE Security PoPs act as spokes in the organization’s SD-WAN network, relying on IPsec VPN overlays and BGP for secure dynamic routing.

While ZTNA posture checks are a feature of the broader ecosystem, the NSE7 Guide specifically highlights inline inspection and application support (TCP/UDP) as primary advantages of the SD-WAN integrated SPA approach.

Onboarding a Secure Web Gateway (SWG) endpoint involves several components to ensure secure and effective integration with FortiSASE. Two key components are the FortiSASE CA certificate and the proxy auto-configuration (PAC) file.

FortiSASE CA Certificate:

The FortiSASE CA certificate is essential for establishing trust between the endpoint and the FortiSASE infrastructure.

It ensures that the endpoint can securely communicate with FortiSASE services and inspect SSL/TLS traffic.

Proxy Auto-Configuration (PAC) File:

The PAC file is used to configure the endpoint to direct web traffic through the FortiSASE proxy.

It provides instructions on how to route traffic, ensuring that all web requests are properly inspected and filtered by FortiSASE.

Based on the provided exhibits, the reason why the Win7-Pro endpoint can no longer access the internet through FortiSASE is due to exceeding the total vulnerability detected threshold. This threshold is used to determine if a device is compliant with the security requirements to access the network.

Endpoint Compliance:

FortiSASE monitors endpoint compliance by assessing various security parameters, including the number of vulnerabilities detected on the device.

The compliance status is indicated by the ZTNA tags and the vulnerabilities detected.

Vulnerability Threshold:

The exhibit shows that Win7-Pro has 176 vulnerabilities detected, whereas Win10-Pro has 140 vulnerabilities.

If the endpoint exceeds a predefined vulnerability threshold, it may be restricted from accessing the network to ensure overall network security.

Impact on Network Access:

Since Win7-Pro has exceeded the vulnerability threshold, it is marked as non-compliant and subsequently loses internet access through FortiSASE.

The FortiSASE endpoint profile enforces this compliance check to prevent potentially vulnerable devices from accessing the internet.

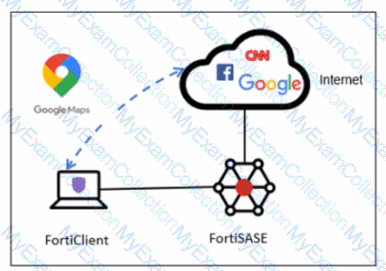

To meet the requirement of inspecting all endpoint internet traffic on FortiSASE while excluding Google Maps traffic from the FortiSASE VPN tunnel and redirecting it to the endpoint's physical interface, you should configure split tunneling. Split tunneling allows specific traffic to bypass the VPN tunnel and be routed directly through the endpoint's local interface.

Split Tunneling Configuration:

Split tunneling enables selective traffic to be routed outside the VPN tunnel.

By configuring the Google Maps Fully Qualified Domain Name (FQDN) as a split tunneling destination, you ensure that traffic to Google Maps bypasses the VPN tunnel and uses the endpoint's local interface instead.

Implementation Steps:

Access the FortiSASE endpoint profile configuration.

Add the Google Maps FQDN to the split tunneling destinations list.

This configuration directs traffic intended for Google Maps to bypass the VPN tunnel and be routed directly through the endpoint's physical network interface.

Zero-trust tags are critical in implementing zero-trust network access (ZTNA) policies. Here are the two key advantages of using zero-trust tags:

Access Control (Allow or Deny):

Zero-trust tags can be used to define policies that either allow or deny access to specific network resources based on the tag associated with the user or device.

This granular control ensures that only authorized users or devices with the appropriate tags can access sensitive resources, thereby enhancing security.

Determining Security Posture:

Zero-trust tags can be utilized to assess and determine the security posture of an endpoint.

Based on the assigned tags, FortiSASE can evaluate the device's compliance with security policies, such as antivirus status, patch levels, and configuration settings.

Devices that do not meet the required security posture can be restricted from accessing the network or given limited access.

Based on the provided exhibits and the logic of FortiSASE On/off-net detection, the endpoint's behavior is determined by its network environment relative to the configured rules.

Subnet Matching and Detection: The On-net rule set (named "On-Premises") is configured to identify a trusted location when the endpoint "Connects from a known local subnet". The administrator has defined the known subnet as $192.168.13.0/24$. Since the endpoint's IP address is $192.168.13.101$, it falls within this range. Consequently, FortiClient detects the endpoint as being on-net (on-fabric).

Action Logic (Exemption): In a FortiSASE Endpoint Profile, when On/off-net detection is enabled and an endpoint matches an "On-net" rule, the standard behavior is to exempt the endpoint from auto-connecting to the FortiSASE VPN tunnel. This design assumes the endpoint is already in a secured office environment where the corporate firewall (FortiGate) provides the necessary protection, making the SASE tunnel redundant.

Comparison of Other Options: * Option B: Incorrect, because the IP matches the defined "known local subnet" rule for on-net detection.

Option D: Incorrect, as auto-connect only triggers when the endpoint is detected as off-net to ensure remote security.

In a FortiSASE deployment, Digital Experience Monitoring (DEM) is the primary diagnostic tool used to troubleshoot connectivity and performance issues specifically for a single user or endpoint.

End-to-End Visibility: DEM provides real-time, end-to-end visibility into the network path between the end-user's device and the application they are trying to reach. This is critical when only one user reports an issue, as it allows administrators to pinpoint whether the problem resides on the local device, the local ISP, the SASE backbone, or the destination application.

Performance Metrics: The DEM agent (often integrated with the FortiMonitor agent on the endpoint) collects granular performance metrics such as latency, jitter, packet loss, and RTT (Round Trip Time). It also provides device-specific health data, including CPU and memory usage, to determine if the connectivity issue is actually caused by the remote computer's performance.

Hop-by-Hop Analysis: Unlike standard monitoring, DEM offers End-to-End Continuous Hop Analytics. This path monitoring visualizes every "hop" in the traffic route and highlights exactly where degraded service is occurring. For a single user experiencing issues while everyone else is fine, this tool immediately triangulates if a specific "problem hop" in their unique connection path is the cause.

Operational Comparison: * MDM (A) is used for managing device configurations and software distribution, not for real-time network performance troubleshooting.

Forensics (C) is a security-focused service used for investigating malware incidents or data breaches, not for measuring network latency.

SOCaaS (D) is a managed security service for threat monitoring and event triage; while it handles "security" connectivity issues (like a blocked IP), it is not a tool for performance metric evaluation.

SSL deep inspection (DPI) is a critical security function that allows FortiSASE to decrypt and inspect the actual payload of encrypted traffic (such as HTTPS, SMTPS, and FTPS) to identify and block hidden threats.

The Role of the CA: For this process to occur, FortiSASE must act as a "man-in-the-middle" by intercepting the SSL session, decrypting it for inspection, and then re-encrypting it before sending it to the endpoint.2 To re-encrypt the traffic, FortiSASE acts as a Certificate Authority (CA) and signs a new certificate for the destination website on the fly.

Certificate Types: This CA role can be fulfilled using the default self-signed certificate provided by Fortinet (typically Fortinet_CA_SSL) or a certificate issued by an organization's internal/private CA. Publicly trusted third-party CAs (like DigiCert or Let's Encrypt) do not sell CA-capable certificates that can be used for this type of inspection.

Client Machine Requirement: Because the endpoint’s browser or operating system will not natively trust a certificate signed by a private or self-signed CA, the root CA certificate must be imported into the Trusted Root Certification Authorities store on all managed client machines. Failure to do so results in persistent certificate warnings or blocked connections for the end user.

Supported Features: Once enabled, SSL deep inspection provides the necessary visibility for high-level security features to function, including Antivirus, Web Filtering, Data Loss Prevention (DLP), File Filter, and Application Control.

The unified FortiClient component of FortiSASE facilitates the always-on security measure required for ensuring that all remote user endpoints are always connected and protected.

Unified FortiClient:

FortiClient is a comprehensive endpoint security solution that integrates with FortiSASE to provide continuous protection for remote user endpoints.

It ensures that endpoints are always connected to the FortiSASE infrastructure, even when users are off the corporate network.

Always-On Security:

The unified FortiClient maintains a persistent connection to FortiSASE, enforcing security policies and protecting endpoints against threats at all times.

This ensures compliance with the cybersecurity policy requiring constant connectivity and protection for remote users.

FortiSASE Secure Private Access (SPA) offers two distinct architectural methods for connecting remote users to private applications: SD-WAN-based SPA and ZTNA-based SPA. Each utilizes a different traffic flow to balance security and performance requirements.

SD-WAN Private Access (Hub-and-Spoke): In this model, the FortiSASE Security Points of Presence (PoPs) act as spokes in a traditional hub-and-spoke VPN topology. When a remote user attempts to access a private network, the traffic is first steered to the closest FortiSASE PoP. The PoP then routes that traffic over a persistent IPsec tunnel to the corporate FortiGate hub (or SPA hub). This ensures that all traffic, regardless of protocol (TCP/UDP), can be inspected by the SASE security stack before entering the private network.

Zero Trust Network Access (ZTNA): Unlike the SD-WAN approach, ZTNA is designed for a "shortest path" connection. While FortiSASE manages the endpoint's posture and issues certificates, the actual application traffic (the data plane) bypasses the FortiSASE PoP. Instead, the FortiClient agent on the endpoint establishes a direct HTTPS or TCP-forwarding connection to the ZTNA Access Proxy configured on the corporate FortiGate. This significantly reduces latency and is ideal for high-performance TCP-based applications.

According to the FortiSASE 25 Secure Internet Access Architecture Guide, "In FortiSASE, ZTNA refers to traffic that is destined directly to private resources using the FortiGate ZTNA access proxy traffic flow," whereas for SD-WAN SPA, the PoPs "rely on IPsec overlays... to secure and route traffic between PoPs and the networks behind an organization’s SD-WAN hubs."

In the FortiSASE architecture, Network Lockdown is a security feature designed to prevent off-net (off-fabric) endpoints from accessing the internet or local network without the protection of the SASE security stack.

Triggering Lockdown: When an endpoint is determined to be "off-net"—meaning it does not satisfy the on-net rule sets defined in its endpoint profile—a timer starts for a configurable grace period.

Function of the Grace Period: During this period, the endpoint maintains full access to the LAN and the internet.4 The specific purpose of this grace period is to provide the user with a window of time to attempt a connection to the FortiSASE VPN tunnel or an alternate corporate tunnel.5 This ensures that users can authenticate and regain a secure "on-net" status before any connectivity restrictions are enforced.

Enforcement: If the grace period expires and the endpoint has failed to establish a VPN connection, FortiClient enforces a strict lockdown.7 In this state, the device cannot reach the LAN or the internet, except for specifically defined "Exempt Destinations" (such as captive portal login pages or the FortiSASE portal itself).

Resetting the Timer: Any attempt to connect to the tunnel during the grace period resets the timer, providing additional opportunities for the user to remediate their connection status.8

According to the FortiSASE 25 Administrator Study Guide, the grace period is an essential user-experience setting that balances strict "zero-trust" security with the practical need for users to access the network briefly to establish their secure tunnel.

For a customer looking to upgrade their legacy on-premises proxy to a cloud-based proxy for a hybrid network, the combination of Secure Web Gateway (SWG) and Inline Cloud Access Security Broker (CASB) features in FortiSASE will provide the necessary capabilities.

Secure Web Gateway (SWG):

SWG provides comprehensive web security by inspecting and filtering web traffic to protect against web-based threats.

It ensures that all web traffic, whether originating from on-premises or remote locations, is inspected and secured by the cloud-based proxy.

Inline Cloud Access Security Broker (CASB):

CASB enhances security by providing visibility and control over cloud applications and services.

Inline CASB integrates with SWG to enforce security policies for cloud application usage, preventing unauthorized access and data leakage.

In FortiSASE Secure Private Access (SPA) deployments, establishing a stable connection between the FortiSASE PoPs and the corporate FortiGate hub relies on two primary layers: the IPsec Tunnel and the BGP Peering.

Exhibit Analysis: The exhibit (image_577e17.jpg) shows the status of several Security PoPs (Singapore, Tokyo, Frankfurt, and San Jose) connected to an "FGT-Hub".

Tunnel Status vs. BGP Status: For all listed PoPs, the Health Check IP Status and Tunnel status are both shown with a green "Up" icon. This confirms that the underlying IPsec connectivity and the physical path between the SASE cloud and the hub are functioning correctly.

Identifying the Failure: The BGP Peering State is reported as Active. In BGP terminology, the "Active" state specifically indicates that the router is attempting to initiate a TCP connection with its peer but has not yet received a response. A fully functional and successful BGP connection must reach the Established state.

Root Cause Determination: Since the tunnel is up (eliminating Gateway or Authentication Method issues as the primary suspects) but the BGP state remains stuck in "Active," the most likely cause is a mismatch or misconfiguration in the BGP Peer IP or BGP neighbor settings. This prevents the exchange of routing information necessary for users to access private applications.

To resolve the connectivity problem, the administrator must ensure that the BGP neighbor IPs configured on the FortiGate hub match those assigned by the FortiSASE orchestration and that firewall policies on the hub allow BGP traffic (TCP port 179) across the tunnel.

FortiSASE hides user information when viewing and analyzing logs by hashing data using salt. This approach ensures that sensitive user information is obfuscated, enhancing privacy and security.

Hashing Data with Salt:

Hashing data involves converting it into a fixed-size string of characters, which is typically a hash value.

Salting adds random data to the input of the hash function, ensuring that even identical inputs produce different hash values.

This method provides enhanced security by making it more difficult to reverse-engineer the original data from the hash value.

Security and Privacy:

Using salted hashes ensures that user information remains secure and private when stored or analyzed in logs.

This technique is widely used in security systems to protect sensitive data from unauthorized access.

FortiSASE brings the following advantages to businesses with multiple branch offices:

Centralized Management for Simplified Administration:

FortiSASE provides a centralized management platform that allows administrators to manage security policies, configurations, and monitoring from a single interface.

This simplifies the administration and reduces the complexity of managing multiple branch offices.

Eliminates the Need for On-Premises Firewalls:

FortiSASE enables secure access to the internet and cloud applications without requiring dedicated on-premises firewalls at each branch office.

This reduces hardware costs and simplifies network architecture, as security functions are handled by the cloud-based FortiSASE solution.

If the daily summary report generated by FortiSASE contains very little data, one possible explanation is that the "Log allowed traffic" setting is configured to log only "Security Events" for all policies. This configuration limits the amount of data logged, as it only includes security events and excludes normal allowed traffic.

Log Allowed Traffic Setting:

The "Log allowed traffic" setting determines which types of traffic are logged.

When set to "Security Events," only traffic that triggers a security event (such as a threat detection or policy violation) is logged.

Impact on Report Data:

If the log setting excludes regular allowed traffic, the amount of data captured and reported is significantly reduced.

This results in reports with minimal data, as only security-related events are included.

IP Address Management (IPAM) in FortiSASE is responsible for automatically allocating subnets to various services, including VPN tunnels and Edge devices. When an administrator modifies the default IPAM configuration, they must adhere to specific architectural scaling requirements.

Subnet Requirements per PoP: FortiSASE architecture requires a minimum amount of address space to be available for each provisioned Security Point of Presence (PoP) to handle internal routing and endpoint assignments. For the IPAM engine to function correctly and distribute unique subnets across the global infrastructure, the pool must provide at least one /20 subnet per security PoP. If the available space is smaller than this per-PoP requirement, the allocation logic may fail or produce unpredictable routing behavior.

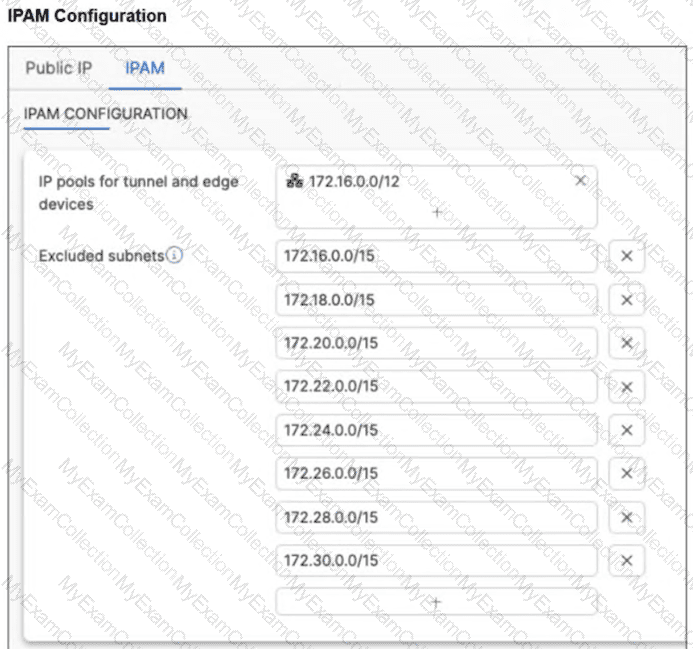

Impact of Excessive Exclusions: In the exhibit (image_578940.png), the customer has defined a large summary pool of 172.16.0.0/12. However, they have configured eight separate /15 excluded subnets: 172.16.0.0/15, 172.18.0.0/15, 172.20.0.0/15, 172.22.0.0/15, 172.24.0.0/15, 172.26.0.0/15, 172.28.0.0/15, and 172.30.0.0/15.

Calculating the Exhaustion: A /12 network contains exactly eight /15 blocks. By excluding all eight /15 ranges listed in the exhibit, the customer has effectively excluded 100% of the available addresses from the primary 172.16.0.0/12 pool.

Connectivity Problems: When the IPAM pool is exhausted or overly restricted, FortiSASE cannot assign valid, non-overlapping subnets to the PoPs. This leads to connectivity problems for remote users and can cause the system to "fall back" to ranges it believes are available, even if they were intended to be excluded, or simply fail to establish tunnels entirely.

To resolve this, the administrator must ensure that the excluded subnets do not consume the entire pool and that the remaining unexcluded space is large enough to provide a /20 block for every active PoP in their subscription.
