NSE6_OTS_AR-7.6 Fortinet NSE 6 - OT Security 7.6 Architect Question and Answers

The correct answer is C. EtherCAT .

The study guide states that for industrial Ethernet protocols, “such as Ethernet/IP and Modbus/TCP, you can use VLANs to segment your physical LAN into multiple logical LANs.” This directly confirms that Ethernet/IP and Modbus/TCP support VLAN-based segmentation in the OT context.

By contrast, the guide explains that “EtherCAT skips layers 3 to 6 to deliver real-time communication” and describes it as an “Open-Software Modified-Ethernet” approach. Because it does not operate like the standard Ethernet/IP model used for normal VLAN-based segmentation, EtherCAT is the protocol identified here as not supporting VLANs in the way Ethernet/IP and Modbus/TCP do.

So, based on the study guide comparison, the verified answer is EtherCAT .

The correct answer is C. The output of the CLI command get rule otvp status . In the Virtual Patching section, the study guide shows the workflow where FortiGate queries FortiGuard for device-specific vulnerabilities, receives OT virtual patching signatures, maps them to the device MAC address, and then explicitly displays the CLI verification command get rule otvp status together with fields such as Rule-name , Vuln_type , and Cve . This is the direct confirmation mechanism shown in the guide for checking whether OT devices have virtual patching rules associated with them.

The other options are less accurate for confirmation. The OT View page is for Purdue-level visualization, and the Asset Identity List page shows device and asset information, but neither is presented in the guide as the command or control used to verify virtual patching status. The study guide specifically uses get rule otvp status as the status check tied to virtual patching behavior.

According to the OT Security 7.6 Architect study guide regarding IEC 62443 Security Levels :

Security Level 4 (SL 4) Definition : This level provides " Protection against intentional violation using sophisticated means with extended resources, specific skills, and high motivation " .

Real-World Application : The study guide specifically notes: " If you are facing a syndicate of cyber extortionists with extensive resources and capabilities, then you should strive for security level 4 " .

Comparison to other levels :

SL 1 : Protection against " casual or unintentional system violation " .

SL 2 : Protection against " intentional violation using simple means with low resources " .

SL 3 : Protection against " intentional violation using sophisticated means with moderate resources " .

The correct answer is B. A firewall policy has a Virtual Patching security profile applied to it .

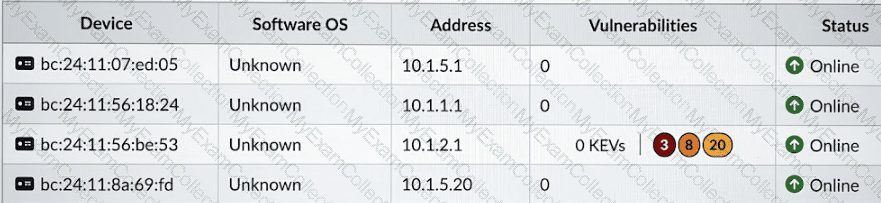

The decisive clue in the exhibit is the Vulnerabilities column showing KEVs and device-specific vulnerability counts. The study guide explains the virtual patching workflow in this exact way: “FortiGate performs a lookup for device-specific vulnerabilities and mitigation rules in FortiGuard,” then “FortiGuard returns specific OT virtual patching signatures,” and “FortiGate caches the signatures and mitigation rules that apply to each device.” That is the same behavior reflected by the Asset Identity List showing vulnerability information per detected device.

The guide then states that “When traffic related to the vulnerable device reaches FortiGate, the firewall policy with the virtual patching profile applies.” It also says “A virtual patching profile can be applied to firewall policies in any direction, protecting traffic from or to the vulnerable OT device.” This directly links the per-device vulnerability visibility to a Virtual Patching profile enforced through firewall policy.

The other options do not match the exhibit. Antivirus is not described in the study guide as building a device-by-device vulnerability list, Application Control is used for OT protocol and message visibility, and IPS focuses on exploit detection and prevention. The Vulnerabilities/KEVs display is the indicator that FortiGate is using Virtual Patching logic for those OT devices.

The correct answers are B and D .

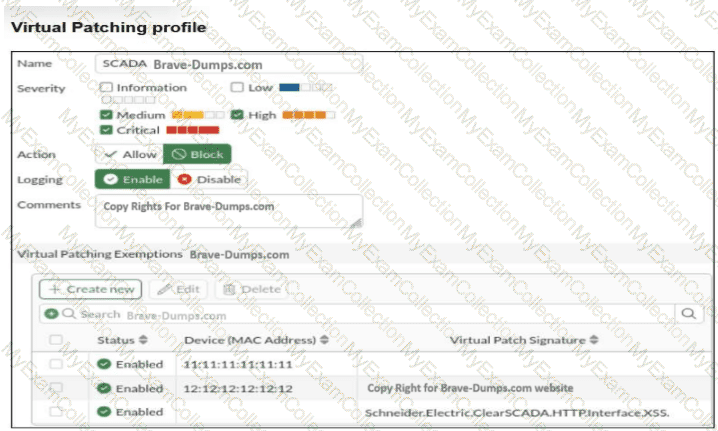

Option B is correct because the profile has Medium , High , and Critical selected, while Low severity is not selected. That means low-severity virtual patching signatures are not enforced by this profile. So for the device with MAC address 12:12:12:12:12 , low-severity signatures are not blocked. The study guide explains virtual patching as device-specific protection where “FortiGate caches the signatures and mitigation rules that apply to each device” and applies them when the related traffic matches the firewall policy.

Option D is correct because the Virtual Patching Exemptions table shows a row with the MAC address 11:11:11:11:11 and no specific signature listed. The study guide states that in the Virtual Patching profile you can “Exempt a specific device with the MAC address or a specific signature.” A MAC-only exemption means that specific device is excluded from virtual patching enforcement, so in practical terms it is treated as having no applicable vulnerabilities in this profile.

Option C is incorrect because the profile does not block critical signatures for all devices. The exemptions list proves that at least one device can be excluded by MAC address, and a specific signature can also be exempted. Therefore, enforcement is not universal across all devices.

Option A is incorrect because the entry Schneider.Electric.ClearSCADA.HTTP.Interface.XSS appears as a specific signature exemption , not as the only remaining vulnerability. The profile display is showing exemptions, not a statement that only one vulnerability is still present.

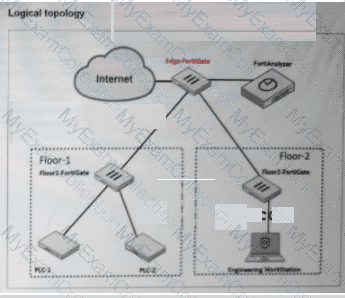

The correct answers are A and D . The study guide provides a direct use case called Attack Detection and Automated Alert . It states: “A downstream FortiGate detects an attack and sends logs to FortiAnalyzer. FortiAnalyzer parses the logs and notifies the root FortiGate. The root FortiGate triggers the action, which in this case, is a notification to the administrator.” The same slide also explicitly shows “Stitches configured on root FortiGate.” This confirms that to send the automated alert, you must configure the automation stitch on the root FortiGate .

The second required configuration is an event handler on FortiAnalyzer . The guide explains that “Event handlers generate events” and that “FortiAnalyzer uses event handlers to filter all incoming logs. If logs match the conditions configured in an event handler, FortiAnalyzer generates an event.” Since FortiAnalyzer must detect the attack from the received logs before notifying the root FortiGate, an event handler is required on FortiAnalyzer.

Option B is incorrect because the study guide does not identify a LOCALHOST task as the required configuration for this attack-alert flow. Option C is also incorrect because the question asks what must be configured to enable the automated alert workflow . An IPS profile may detect some attacks, but the required automation path in the study guide is specifically event handler on FortiAnalyzer + stitch on the root FortiGate .

The correct answer is A. Fortinet Single-Sign On (FSSO) . The study guide states under Active and Passive Authentication that for passive authentication, “User does not receive a login prompt from FortiGate” , “Credentials are determined automatically” , and specifically “FSSO, RSSO, and NTLM can be used.” It then explains that passive authentication occurs with the single sign-on method and explicitly identifies Fortinet SSO (FSSO) as one of those methods.

The guide also says: “For passive authentication, you can implement FSSO. FSSO allows users who have already authenticated on the network through another system to be transparently identified. After initial login to any system on the network, users can access allowed resources without being prompted for credentials.” That is exactly what the question asks for: improving access control in a large OT network using passive authentication .

The other options do not match passive authentication. Local users are part of local authentication, two-factor authentication adds an extra security factor but still uses active authentication, and FortiAuthenticator as a remote server supports centralized authentication for mid-to-large networks, but by itself it is not the specific passive-authentication method being asked here. The study guide is explicit that the FortiGate configuration for passive authentication is FSSO .

The correct answers are C and D .

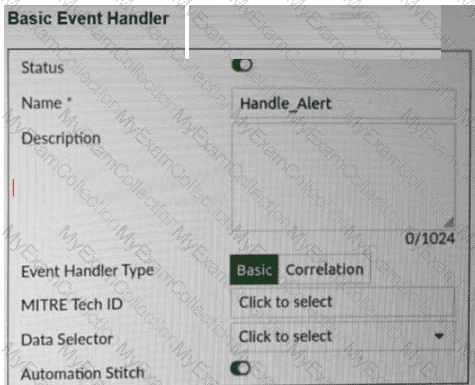

Option D is correct because the study guide states that the configuration of an event handler can include “Rules” and explains that “Rules are granular conditions” and “Event handlers can have one or more rules.” It further states that “FortiAnalyzer uses event handlers to filter all incoming logs” and “If logs match the conditions configured in an event handler, FortiAnalyzer generates an event.” Therefore, to use the automation stitch, you must define the rules on FortiAnalyzer so the event handler can actually generate the event that starts the automation flow.

Option C is also correct. The study guide explains that “When a handler generates an event with the automation stitch option enabled, FortiAnalyzer sends a notification” to the FortiGate side, and in the attack-detection example it says “FortiAnalyzer parses the logs and notifies the root FortiGate” and then “The root FortiGate triggers the action.” It also explicitly shows “Stitches configured on root FortiGate.” This means the FortiGate must have the corresponding automation trigger configured for the FortiAnalyzer event handler notification.

Option A is incorrect because the study guide does not describe configuring an Action on FortiAnalyzer as the required step for this FortiAnalyzer-to-FortiGate automation-stitch flow. Option B is also incorrect because playbooks are a different FortiAnalyzer automation mechanism; the question specifically refers to using the Automation Stitch option in the event handler.

According to the OT Security 7.6 Architect study guide section on Asset Management , specifically regarding FortiNAC Visibility :

Layer 2 Polling Data : Because each physical address is unique, FortiNAC identifies hosts as they connect to the network. The information gathered during this process fills in the physical address and location information in the database.

Visibility Components : The guide states that the physical address learned , the time it was learned , and where it was learned from provide the foundation of endpoint visibility in the form of " what, where, and when " information. This confirms that Where it was learned (Option A) and The time it was learned (Option D) are correct.

Exclusions :

Layer 3 Polling : The MAC-to-IP correlation (Option B) is explicitly defined as a function of Layer 3 polling , where the correlated IP address is added to the database record for the corresponding MAC address.

DHCP Fingerprinting : The host name or system name (Option C) and the operating system are gathered via DHCP fingerprinting , not layer 2 polling.

The correct answers are C and D .

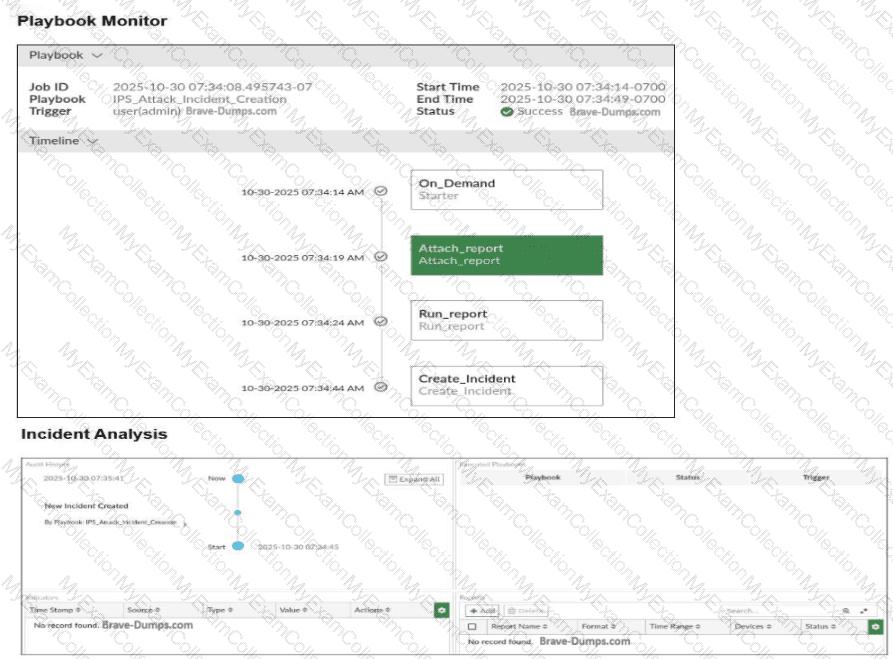

Option D is correct because the Playbook Monitor clearly shows the starter as On_Demand and the trigger as user(admin) . The study guide states that “ON_DEMAND: The playbook runs when an administrator manually starts it” and also notes that to run it manually, you select the playbook and click Run . This exactly matches the exhibit, so the playbook was manually triggered.

Option C is also correct. The study guide explains that “tasks run one after another” and that “if needed, the output of one task can be used by the tasks that follow it.” It also gives an example where workflow logic matters, such as creating an incident and then attaching details to it. In the exhibit, the sequence shown is Attach_report , then Run_report , then Create_Incident , while the incident analysis shows no report attached . Since the report must exist and the incident must already be available before it can be attached properly, the task order is wrong and must be reordered.

Option B is incorrect because the monitor shows multiple tasks completed successfully, not only Create_Incident . Option A is not the best answer because the main problem demonstrated by the exhibits is not simply waiting time, but the incorrect workflow order. The playbook completed successfully, yet the report is still not attached, which indicates a design issue in the task sequence rather than just a delay.
