NSE5_FSW_AD-7.6 Fortinet NSE 5 - FortiSwitch 7.6 Administrator Question and Answers

According to theFortiSwitchOS 7.6 Administration Guideand theFortiLink 7.6 Study Guide, DHCP snooping is a security feature that prevents rogue DHCP servers from distributing incorrect IP addresses on a network. Once enabled for a specific VLAN, the switch differentiates betweentrustedanduntrustedports to regulate DHCP traffic.

Trusted Ports and DHCP Replies (Option A):In a managed FortiSwitch environment, all ports areuntrusted by default. To allow a DHCP server (such as a FortiGate or an external server) to provide IP addresses, the administrator must explicitly set the connecting port astrusted. DHCP snooping validates incoming packets; it allowsDHCP server messages(such as DHCPOFFER and DHCPACK) only on these trusted ports. Any DHCP server reply arriving on an untrusted port is identified as coming from a potentially rogue source and is discarded by the switch.

Option 82 Data Insertion (Option C):FortiSwitch supportsDHCP Option 82(also known as the Relay Information Option), which provides additional security by appending location-specific information (such as the Circuit ID and Remote ID) toDHCP request packets. When DHCP snooping is active, the switch can be configured to insert this data into client requests as they enter untrusted ports. This allows the upstream DHCP server to identify the specific physical port or VLAN from which the request originated, even if the server is located in a different subnet.

Regarding the incorrect options:Option Bis false as DHCP snooping only inspects and filters DHCP-specific traffic, not general unicast data.Option Dis incorrect because DHCP requests (client-to-server) are generally permitted on all ports to ensure clients can find a server, though some configurations allow dropping requests from untrusted sources if they do not meet specific security criteria.

To cause endpoints to exchange PoE information and negotiate power with the managed FortiSwitch via LLDP, you should configure the LLDP profile to include power management in the advertised LLDP-MED TLVs. Here are the steps:

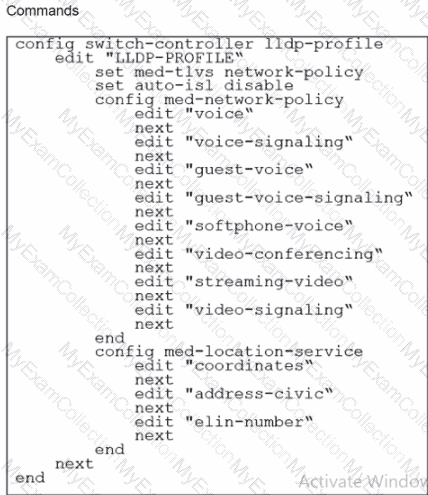

Access the LLDP Profile Configuration:Start by entering the LLDP profile configuration mode with the command:

config switch-controller lldp-profile

edit " LLDP-PROFILE "

Enable MED-TLVs:Ensure that MED-TLVs (Media Endpoint Discovery TLVs) are enabled. These TLVs are used for extended discovery relating to network policies, including PoE, and are essential for PoE negotiation. They include power management which is crucial for the negotiation of PoE parameters between devices. The command to ensure network policies are set might look like:

set med-tlvs network-policy

Add Power Management TLV:Specifically add or ensure the power management TLV is part of the configuration. This will advertise the PoE capabilities and requirements, enabling dynamic power allocation between the FortiSwitch and the connected devices (like VoIP phones or wireless access points). This can typically be done within the network-policy settings:

config med-network-policy

edit < policy_index >

set poe-capability

next

end

Save and Apply Changes:Exit the configuration blocks properly ensuring changes are saved:

End

Verify Configuration:It’s always good practice to verify that your configurations have been applied correctly. Use the appropriateshoworgetcommands to review the LLDP profile settings.

By adding the power management as part of LLDP-MED TLVs, the FortiSwitch will be able to communicate its power requirements and capabilities to the endpoints, thereby facilitating a dynamic power negotiation that is crucial for efficient PoE utilization.

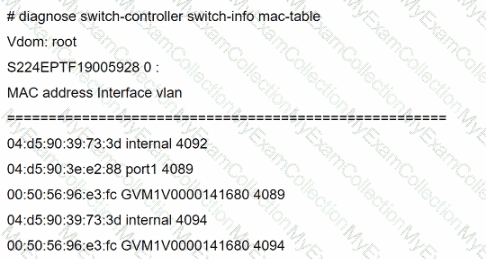

The MAC address " 00:50:56:96:e3:fc " appearing in two different VLANs (4089 and 4094) in the diagnostic output indicates it is a MAC address associated with a device that supports traffic from multiple VLANs. Such a behavior is typical of network infrastructure devices like switches or routers, which are configured to allow traffic from various VLANs to pass through a single physical or logical interface. This is essential in network designs that utilize VLANs to segregate network traffic for different departments or use cases while using the same physical infrastructure.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, Dynamic ARP Inspection (DAI) is a security feature used to intercept, log, and discard ARP packets with invalid IP-to-MAC address bindings. DAI is primarily used to prevent " Man-in-the-Middle " attacks, such as ARP spoofing or ARP cache poisoning.

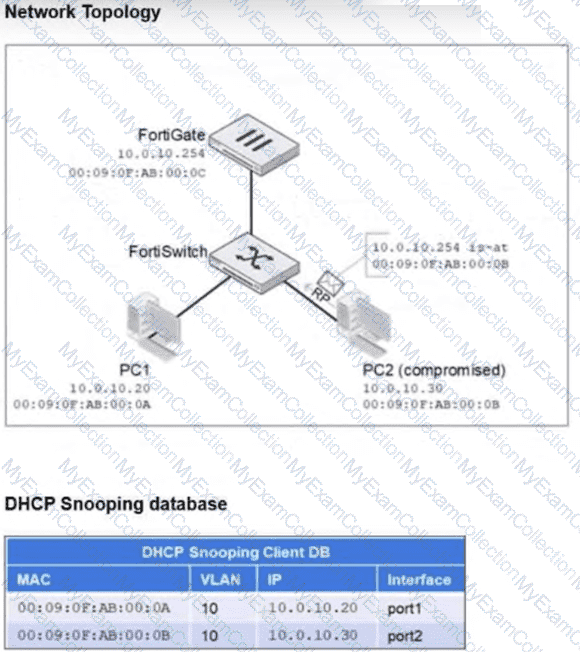

In this scenario, DAI is active on VLAN 10. When DAI is enabled, the FortiSwitch intercepts all ARP packets on untrusted ports and validates them against a trusted source—most commonly theDHCP snooping database. As shown in the " DHCP Snooping database " exhibit, PC2 is correctly mapped to IP 10.0.10.30 and MAC 00:09:0F:AB:00:0B.

When PC2 attempts to send a forged ARP reply claiming that IP 10.0.10.254 (the FortiGate ' s IP) is located at its own MAC address (00:09:0F:AB:00:0B), the FortiSwitch ' s DAI engine inspects the packet. It checks the DHCP snooping database for a binding that matches IP 10.0.10.254 to MAC 00:09:0F:AB:00:0B. Finding no such valid entry (because the database correctly identifies the MAC 00:09:0F:AB:00:0B as belonging to IP 10.0.10.30), the switch identifies the ARP packet as illegitimate.

Consequently, the FortiSwitch willdrop the ARP repliesbecause they fail the DAI validation check against the established DHCP snooping bindings. Option A is incorrect as DAI functions independently of IPSG once the database is populated. Option B is incorrect because " accepting " the spoofed packet is the opposite of DAI ' s purpose. Option C is incorrect because DAI is specifically designed to run on untrusted ports to protect the network from client-side attacks.

According to theFortiSwitchOS 7.6 Administration Guide(specificallyPage 178) and theFortiSwitch 7.6 Study Guide, the Spanning Tree Protocol (STP) is the fundamental protocol used to manage redundant paths in a Layer 2 network. In the scenario described, where every FortiSwitch connects to every other FortiSwitch, afull Layer 2 meshis created. This architecture inherently produces multiple physical switching loops that, if left unmanaged, would cause catastrophic broadcast storms.

STP is responsible for detecting these loops by exchangingBridge Protocol Data Units (BPDUs). It then mathematically calculates a loop-free logical topology by placing redundant ports into ablocking (discarding)state while keeping primary paths in aforwardingstate. WhileMCLAG (Option A)provides node-level redundancy and eliminates STP delays by allowing two switches to appear as one, it is not a standalone solution for a global full-mesh topology. In fact, Fortinet MCLAG explicitly relies on STP through the mclag-stp-aware feature to detect and prevent loops caused by connections outside the Inter-Chassis Link (ICL).

Therefore, although MCLAG and LAG increase bandwidth and availability,STPremains the required underlying mechanism to maintain network stability in any highly redundant mesh environment. " Full mesh HA " (Option C) is not a defined feature in FortiSwitchOS 7.6.

According to theFortiSwitchOS 7.6 Administration Guideregarding the " Discovery and Management " lifecycle, a FortiSwitch is designed with a specific boot-up and discovery sequence to determine its management mode. By default, a factory-reset FortiSwitch or a new unit out of the box is configured to search for a management entity. This process typically involves looking for aFortiGateviaFortiLink(using DHCP options or LLDP) or attempting to connect toFortiEdge Cloud(formerly FortiLAN Cloud) if cloud management is enabled.

The documentation states that if the FortiSwitch is unable to establish a connection with a FortiGate (FortiLink mode) or successfully register and authenticate with the FortiEdge Cloud, the device does not enter a " failed " state requiring hardware intervention. Instead, itremains in local management mode. In this state, the switch operates as a standalone Layer 2/3 switch. The administrator can access the device ' s local Graphical User Interface (GUI) or Command Line Interface (CLI) directly using the default credentials.

While in local management mode, the switch retains its ability to be manually configured for all standard switching features, such as VLAN tagging, Spanning Tree Protocol (STP), and link aggregation. If a management controller (FortiGate or Cloud) becomes available later, the switch can be transitioned into managed mode, which typically involves the controller pushing a new configuration and potentially overwriting local settings. Therefore, the failure to discover a controller simply results in the switch defaulting to its standalone, locally managed operational state.

The correct statement about the quarantine VLAN on FortiSwitch is:

B. Users who fail 802.1X authentication can be placed on the quarantine VLAN.This feature allows network administrators to isolate devices that do not meet the network’s security criteria as determined through 802.1X authentication. Placing these devices in a quarantine VLAN restricts their network access, thereby protecting the network from potential security threats posed by unauthorized or compromised devices.

Option A is incorrect as the presence of a DHCP server in a quarantine VLAN depends on specific network configurations. Option C is incorrect without more context regarding global settings, and option D misstates the functionality of quarantine VLANs, as their primary use is to restrict, not block, devices without additional VLAN configuration changes.

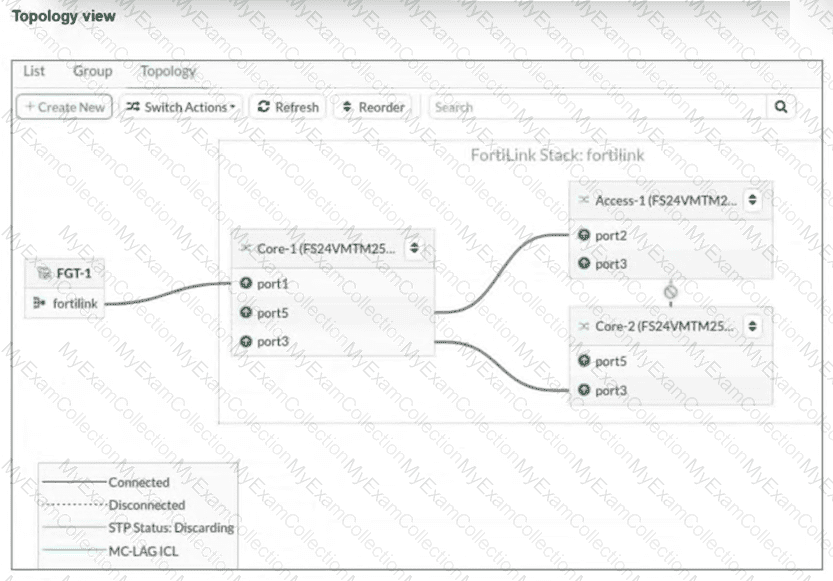

According to theFortiSwitchOS 7.6 Administration Guideand theFortiLink 7.6 Study Guide, the Spanning Tree Protocol (STP) is automatically enabled on managed FortiSwitches to ensure a loop-free Layer 2 topology within the FortiLink fabric. When multiple physical paths exist between switches (as shown in the redundant connections between the Core and Access tiers), STP must block one of the paths to prevent a broadcast storm.

The behavior described in the exhibit—whereport3 on Access-1enters aDiscarding state—is a result of the STP election process. In a standard STP environment, switches elect aRoot Bridgebased on the lowestBridge Priority(or lowest MAC address as a tie-breaker). Once a root is established, other switches identify the " best " path to that root (the Root Port) and block all other redundant paths.

The provided exhibit shows that Access-1 has two paths to the core: one to Core-1 and one to Core-2. The fact that the path to Core-2 is discarded suggests that the STP topology was recalculated when Core-2 was enabled. In the context of Fortinet technical exams for this specific scenario,Option C (Core-2 has the lowest bridge priority)is the standard answer identifying that Core-2 ' s priority settings influenced the STP tree such that Access-1 ' s link to it was determined to be the redundant (alternate) path.

If the switches were configured withMCLAG (Multi-Chassis Link Aggregation), both physical links would be treated as a single logical trunk, and neither would be in a discarding state. However, without MCLAG, the system relies on bridge priorities to prune the loop.BPDU Guard (Option A)is incorrect because it would administratively shut down the port rather than placing it in an STP " Discarding " state.Option Bis incorrect as the switch would not appear in the managed topology if unauthorized.

Switch-controller-dhcp-snooping-verify-mac verifies the destination MAC address to protect against DHCP exhaustion attacks (B): This feature of DHCP snooping helps prevent DHCP exhaustion attacks by ensuring that the destination MAC addresses in DHCP packets match the MAC addresses learned by the switch. This check helps prevent attackers from overwhelming the DHCP server with requests from spoofed MAC addresses.

Settings related to DHCP option 82 are only configurable through the CLI (D): DHCP Option 82 is used for " agent information, " and it ' s typically used in network environments where additional information between DHCP clients and servers is necessary for policy and billing purposes. Configuration of these settings in FortiSwitch is only available through the Command Line Interface (CLI), not the Graphical User Interface (GUI).

While FortiSwitch can collect all the listed LLDP-MED TLVs (Network Policy, Power Management, Location, and Inventory Management), the primary focus for tracking and identifying network devices is on theInventory ManagementTLV.

This TLV carries critical details such as:

Manufacturer

Model

Hardware/Firmware versions

Serial/Asset numbers

This information provides a granular understanding of the devices on your network.

In FortiSwitchOS 7.6,Dynamic ARP Inspection (DAI)is tightly integrated withDHCP snoopingto provide Layer 2 protection against ARP spoofing and man-in-the-middle attacks. DAI relies on theDHCP snooping binding table, which contains trusted IP-to-MAC-to-port mappings learned from legitimate DHCP transactions. Because of this dependency, the trust model for DAI is directly inherited from DHCP snooping.

According to the FortiSwitchOS 7.6 Administrator Guide, when a switch port is configured astrusted for DHCP snooping, that same port isautomatically treated as trusted by DAI. No additional configuration is required. This implicit trust relationship exists because trusted DHCP snooping ports are assumed to be connected to legitimate infrastructure devices such as DHCP servers, routers, or upstream network devices that must be allowed to send valid ARP replies.

On untrusted ports, DAI inspects ARP packets and validates them against the DHCP snooping database. If an ARP packet does not match an existing binding, it is dropped. On trusted ports, ARP packets bypass DAI inspection to ensure normal network operation and to avoid blocking valid infrastructure traffic.

The other options are incorrect. There is no separate CLI command required to trust a port for DAI (Option A). IP Source Guard (Option C) is another Layer 2 security feature that also depends on DHCP snooping but is not required to establish DAI trust. Static MAC learning (Option D) is unrelated to DAI trust behavior.

Therefore, once a port is configured as trusted for DHCP snooping,DAI implicitly trusts the port, makingOption Bthe correct and fully verified answer based on FortiSwitchOS 7.6 documentation.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the interaction between a managed switch and a connected endpoint depends on whether the endpoint can participate in the 802.1X authentication process. When a security policy is applied to a port, the switch sends EAP (Extensible Authentication Protocol) requests to the device to initiate the login.

The FortiSwitch handles two primary failure scenarios differently:

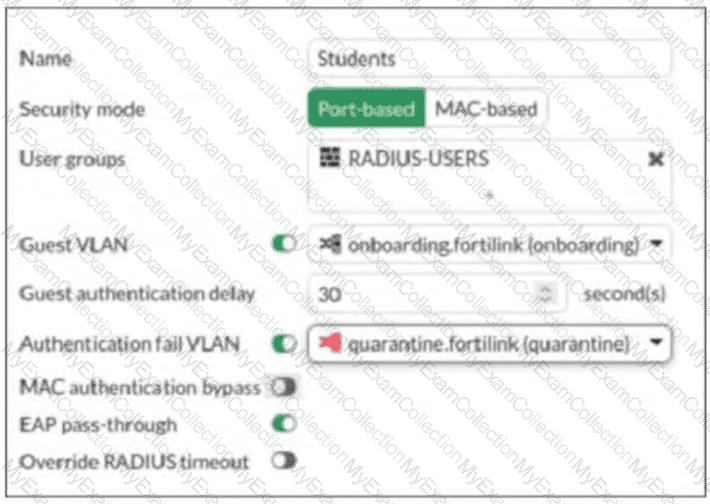

Non-supplicant (No 802.1X Support):If a device, such as a legacy PC or a basic printer, does not have an 802.1X supplicant, it will not respond to the switch ' s EAP requests. In this case, the switch waits for the duration specified in theGuest authentication delayfield (30 seconds in the exhibit). Once this timer expires without a response, the switch places the device into theGuest VLAN. As shown in the exhibit, the Guest VLAN is explicitly set to " onboarding.fortilink (onboarding) " .

Authentication Failure:If a devicedoessupport 802.1X but the user provides incorrect credentials, the RADIUS server returns an Access-Reject message. In this scenario, the device is moved to theAuthentication fail VLAN, which the exhibit identifies as " quarantine.fortilink (quarantine) " .

Note:BecauseMAC authentication bypass (MAB)is disabled in the exhibit, the switch will not attempt to authenticate the device ' s MAC address against the RADIUS server before defaulting to the Guest VLAN. Therefore, for any device lacking an 802.1X supplicant, the result is placement into theonboardingVLAN.

When FortiGate exports configuration settings to a managed FortiSwitch stack with sampling mode set to " perimeter is true, " the behavior is:

B. FortiGate configures FortiSwitch to perform ingress sampling on all switch interfaces, except ICL and ISL interfaces.This setting ensures that all incoming traffic on normal operational ports is sampled for monitoring and analysis purposes, but it excludes the inter-chassis link (ICL) and inter-switch link (ISL) interfaces from sampling. These exclusions are typically made to prevent the duplication of sampled data and to reduce unnecessary load on the monitoring system, as these links often carry traffic already monitored at other points.

Options A and D are incorrect because they either generalize the sampling across all interfaces without exceptions or incorrectly specify egress sampling on management interfaces. Option C is also incorrect as FortiGate can modify existing sampling settings to fit the perimeter-based configuration requirement.

According to theFortiOS 7.6 Study Guideand theFortiSwitch 7.6 FortiLink Guide, the automatic discovery and subsequent management of a FortiSwitch by a FortiGate controller is primarily facilitated by theLink Layer Discovery Protocol (LLDP). LLDP is an industry-standard, layer-2 protocol that allows network devices to advertise their identities and capabilities to neighbors on the same physical link.

When a factory-default FortiSwitch is connected to a FortiGate port (specifically one configured as a FortiLink interface), the switch automatically sends outLLDP advertisements. These advertisements include specificOrganizationally Specific TLVs (Type-Length-Values)that identify the device as a FortiSwitch and provide its management MAC address and current state. The FortiGate " listens " for these LLDP frames; once it receives a frame from a compatible FortiSwitch, it automatically lists the switch in theManaged FortiSwitchinventory as a " discovered " device awaiting authorization.

WhileZero-touch deployment (Option A)describes the overall goal of deploying a switch without manual CLI configuration, it is the underlyingLLDPprotocol that provides the technical mechanism for the initial detection. Once the switch is discovered via LLDP and authorized, the FortiGate uses a DHCP server on the FortiLink interface to assign an IP address to the switch and establishes a secureCAPWAP(Control and Provisioning of Wireless Access Points) tunnel for management. TheFortiLink heartbeat (Option D)is a secondary mechanism usedafterthe connection is established to monitor the health and status of the link, rather than for the initial detection of the device.

In FortiSwitchOS 7.6, achieving link-level redundancy and active-active uplink utilization acrosstwo separate FortiSwitch unitsrequires a technology that operates independently of Spanning Tree Protocol (STP). This requirement is fulfilled byMultichassis Link Aggregation Group (MCLAG).

MCLAG allows two FortiSwitch devices to operate as alogical aggregation peer, presenting themselves as a single logical switch to an upstream device such as a FortiGate. With MCLAG, FortiGate can form a singleLACP-based aggregated interfacethat spans both FortiSwitches. This enablessimultaneous use of uplinks on both switches, providing full bandwidth utilization and redundancy without blocking links, which is a fundamental limitation of STP-based designs.

According to the FortiSwitchOS 7.6 Administrator Guide, MCLAG synchronizes control-plane information between the two FortiSwitch peers using inter-switch links (ISLs) and dedicated keepalive mechanisms. This ensures consistent forwarding behavior and loop-free topology while allowing all member links to remain active. If one FortiSwitch fails, traffic continues to flow through the remaining switch with minimal disruption.

The other options do not meet the stated requirement. A standard LAG (Option D) operates only within asingle switchand cannot span multiple FortiSwitch units. Multi-tier topology (Option A) and full mesh HA (Option C) describe architectural layouts or FortiGate HA concepts but do not provide link-level aggregation across switches.

Therefore, the only configuration that allows FortiGate to use uplinks on both FortiSwitches simultaneouslywithout relying on STPisMultichassis Link Aggregation Group (MCLAG), makingOption Bthe correct and fully verified answer.

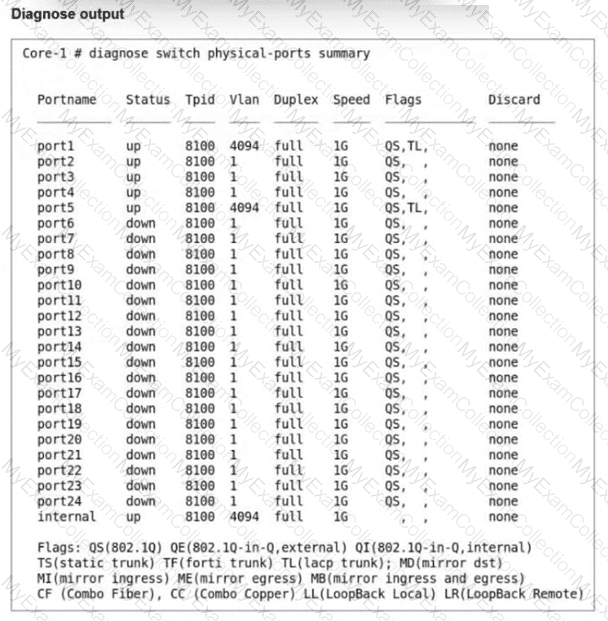

The output of the diagnose switch physical-ports summary command provides critical insight into how a FortiSwitch is being managed by examiningVLAN assignments,tag protocol identifiers (TPID), andinternal port behavior. In the provided exhibit, several ports—includingport1,port5, and theinternalport—are assigned toVLAN 4094.

According to the FortiSwitchOS 7.6 Administrator Guide,VLAN 4094 is reserved for FortiLink management trafficwhen a FortiSwitch is managed by a FortiGate. FortiLink uses this dedicated VLAN to carry control-plane traffic such as configuration synchronization, monitoring data, LLDP-based discovery, and keepalive messages between the FortiGate and FortiSwitch. The presence of VLAN 4094 on physical interfaces is a strong and explicit indicator ofFortiGate-managed mode.

In standalone or local management mode, FortiSwitch ports typically default toVLAN 1or administrator-defined VLANs, andVLAN 4094 is not automatically assigned. Similarly, FortiSwitch Cloud–managed devices do not use VLAN 4094 in this manner, as cloud management relies on IP connectivity to FortiEdge Cloud rather than FortiLink encapsulation.

Additionally, the internal port showing VLAN 4094 further confirms FortiLink operation, as this internal interface is used by the switch ASIC to communicate with the FortiGate over the FortiLink tunnel. This behavior is documented in FortiOS 7.6 and FortiSwitchOS 7.6 design guides as characteristic of FortiGate-managed FortiSwitch deployments.

Therefore, based on the VLAN assignments shown—specifically the use ofVLAN 4094—the most accurate and fully verified conclusion is thatthe FortiSwitch is managed by FortiGate, makingOption Bthe correct answer.

In a multi-tenancy setup on FortiGate, you can assign a FortiSwitch port to a VDOM in two primary ways:

Switch the FortiLink Interface to the Target VDOM (A): This method involves configuring the FortiLink interface, which is the dedicated interface used to manage FortiSwitch units from FortiGate, to operate within a specific VDOM. This effectively assigns all ports on the FortiSwitch, managed through that FortiLink interface, to the designated VDOM.

Create a Virtual Port Pool on the FortiGate CLI (C): Virtual port pools are created on FortiGate and allow ports from FortiSwitch to be grouped and assigned to a VDOM. This method is more granular and flexible, as it allows specific ports on the FortiSwitch to be dedicated to different VDOMs without requiring the entire switch or FortiLink interface to be dedicated to a single VDOM.

All hosts behind an authenticated port are allowed access after a successful authentication (A): Once a device on a port successfully authenticates using 802.1X, all other devices connected behind that port also gain network access. This is typical in scenarios where a switch is behind an authenticated port and not each device individually authenticates.

All devices connecting to FortiSwitch must support 802.1X authentication (D): For a network secured with 802.1X, all devices attempting to connect through the FortiSwitch must support and participate in 802.1X authentication to gain access. This ensures that all devices on the network are authenticated before they are allowed to communicate on the network.

Tail-drop mode is a congestion management technique used in network devices, including FortiSwitches, to handle congestion on network ports:

Tail-Drop Mode (A):

Behavior:When a queue reaches its maximum capacity on a congested port, tail-drop mode simply drops any incoming packets that arrive after the buffer is full. This continues until the congestion is alleviated and there is space in the queue to accommodate new packets.

Application:This is a straightforward approach used when the device’s buffer allocated to the port becomes full due to sustained high traffic, preventing buffer overflow and maintaining system stability.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, Private VLANs (PVLANs) provide a mechanism to partition a regular VLAN (the Primary VLAN) into sub-VLANs to control Layer 2 traffic flow within the same broadcast domain.

In a multi-tenant environment requiring strict security, anIsolated VLAN (Option C)is the correct choice to prevent lateral communication between servers. The documentation specifies that ports within an Isolated VLAN are completely blocked from communicating with any other ports in the same Isolated VLAN or any Community VLANs. This effectively eliminates the risk of " east-west " traffic or lateral movement between tenant servers, even if they reside in the same physical switch and logical subnet.

However, the architecture of PVLANs ensures that these isolated ports can still communicate withPromiscuous ports. In this scenario, the shared FortiGate firewall would be connected to a Promiscuous port within thePrimary VLAN (Option D). This allows all tenant servers in the Isolated VLAN to send and receive traffic to the FortiGate for internet access and centralized security filtering, while remaining invisible to one another at the hardware layer.

Community VLANs (Option B)would be inappropriate for this specific requirement because ports within a Community VLANcancommunicate with each other, which violates the requirement for complete isolation between all servers. Therefore, the combination of an Isolated VLAN for the servers and a Promiscuous port for the firewall is the standard design for multi-tenant isolation in FortiSwitchOS 7.6.

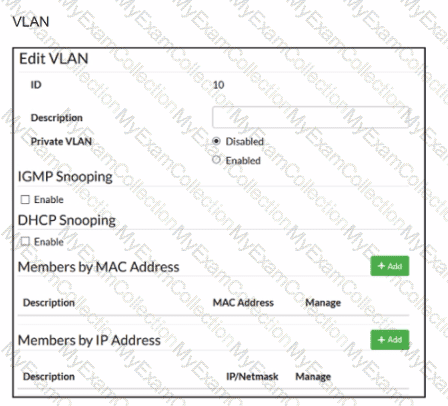

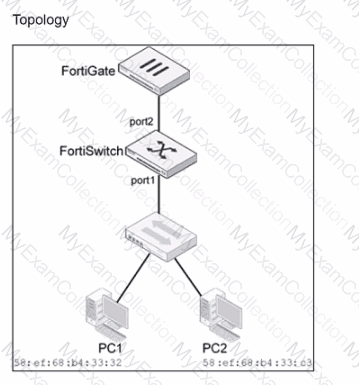

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the way a FortiSwitch handles VLAN tags on egress (outgoing) traffic is governed by the port ' sNative VLANand itsUntagged VLAN list. When traffic for VLAN 10 arrives at port2 (the uplink) and is forwarded to port1, the switch must determine whether to strip the 802.1Q tag before transmission.

Untagged VLAN List (Option B):The documentation explicitly states that the " untagged VLAN list " specifies VLANs for which the port will transmit frameswithout the VLAN tag. By adding VLAN ID 10 to the untagged VLANs on port1, any traffic belonging to VLAN 10 will have its tag stripped at the egress point, ensuring PC1 receives a standard untagged frame.

Configuration Logic (Option C):In FortiSwitch management, moving a VLAN from the " Allowed " list (which typically implies tagged delivery) to the " Untagged " list on a specific interface forces the switch to perform the tag-stripping action. This effectively converts the port from a trunked behavior for that VLAN to an " access " or untagged behavior.

Regarding the incorrect options:Option A (MAC-based assignment)is used primarily foringress classification. While it can assign a device to a VLAN when it sends trafficintothe switch, the documentation notes that by default, egress packets for MAC-based VLANs still include the tag unless the untagged list is configured.Option D(Private VLANs) is a security feature for isolating traffic between ports within the same VLAN and does not address the physical tagging requirements of the endpoint.

According to theFortiOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, multi-tenancy in a FortiLink-managed environment allows a central FortiGate to partition a managed FortiSwitch fabric so that different ports can belong to different Virtual Domains (VDOMs). This is essential for Managed Service Providers (MSPs) who need to isolate client traffic at the hardware layer.

The documentation identifies two primary methods for achieving this assignment:

Assign to a VLAN and Perform VDOM Mapping (Option A):This is the most common method. The administrator creates a VLAN on the FortiLink interface and assigns it to a specific VDOM on the FortiGate. By assigning a physical FortiSwitch port to that specific VLAN, the port ' s traffic is logically terminated within the target VDOM. TheVDOM mappingensures that the switch-controller identifies which VDOM " owns " the traffic originating from that specific port/VLAN combination.

Create a Virtual Port Pool (Option B):For more advanced multi-tenancy, administrators can use the FortiGate CLI to create aVirtual Port Pool. This feature allows the FortiGate to " pool " physical switch ports and present them as logical resources that can be distributed across various VDOMs. This method provides greater flexibility in resource allocation without requiring the entire FortiLink interface to be moved.

Regarding the incorrect options:Option Cis incorrect because in a managed environment, the FortiSwitch CLI is not used for VDOM assignments; all orchestration must happen from the FortiGate.Option Dis incorrect because while you can move a FortiLink interface to a VDOM, this would move theentireswitch management and all its ports to that VDOM, which does not support a multi-tenant setup where different ports need to reside in different VDOMs.

FortiSwitchOS 7.6 provides two primary mechanisms for packet capture: thesniffer commandand thesniffer profile. While both are used for traffic analysis and troubleshooting, the FortiSwitchOS 7.6 Administrator Guide clearly identifies a key advantage of using asniffer profileover the CLI-based sniffer command.

According to the documentation (Page 438), a sniffer profile allows administrators tocapture packets from all switch ports simultaneously, without being constrained to a single interface or requiring repeated command execution. This capability makes sniffer profiles particularly effective for broad troubleshooting scenarios, such as identifying intermittent issues, unknown traffic sources, or network-wide anomalies across multiple ports and VLANs.

In contrast, the diagnose sniffer packet command is executed manually and typically focuses on a specific interface or traffic flow, requiring administrators to explicitly define capture parameters each time. This makes it less efficient when comprehensive visibility across the switch is required.

Sniffer profiles are also designed to bepersistent and reusable, meaning they can remain configured and enabled as needed without continuous CLI interaction. This is especially beneficial in production environments where consistent monitoring across all ports is necessary while minimizing administrative overhead.

The other answer choices are incorrect because sniffer profiles do not eliminate the need for ACLs or port mirroring, do not inherently filter traffic automatically, and do not provide SSL/TLS decryption, which is outside the functional scope of FortiSwitch.

Therefore, based on FortiSwitchOS 7.6 Administrator Guide (Page 438), the correct and fully verified answer isA. It allows packet capture on all switch ports without limitations.

Time synchronization between FortiGate and its managed FortiSwitch devices is essential for several reasons:

A. FortiSwitch does not retain its time after a reboot, which gets reset after each reboot.This characteristic of FortiSwitch underlines the importance of time synchronization with FortiGate. Since FortiSwitch loses its time settings upon reboot, synchronizing with FortiGate ensures that its system clock is accurate, which is vital for logging, troubleshooting, and security timestamping.

C. FortiSwitch cannot complete the DTLS handshake used in the CAPWAP tunnel.Accurate time synchronization is crucial for security protocols such as DTLS, which rely on timestamped certificates for establishing a secure connection. If the time on FortiSwitch is not synchronized with FortiGate, the DTLS handshake used in the CAPWAP tunnel for secure communication may fail due to time discrepancies, impacting the management and operation of the switch.

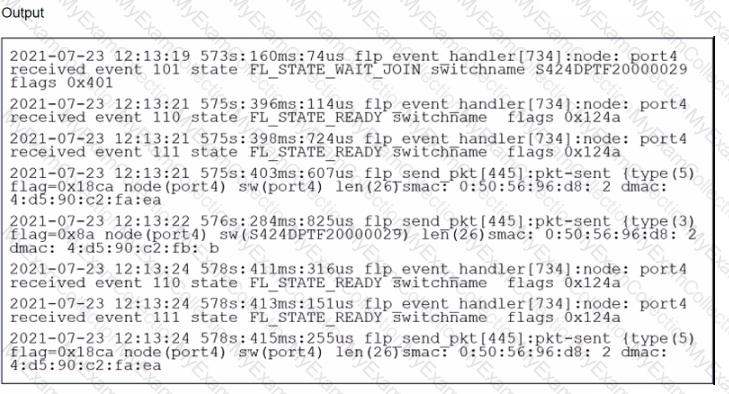

The provided debug output indicates that the FortiSwitch is sending FortiLink heartbeats to the FortiGate and is currently waiting to join the stack group. Here ' s a breakdown of the relevant lines:

Line 1:Shows the date, time, elapsed time since boot, and process ID for the FortiLink event handler.

573s:160ms: 74ustranslates to roughly 573 seconds, 160 milliseconds, and 74 microseconds since uptime.

Event 101:This indicates the FortiSwitch is in a " wait join " state (FL_STATE_WAIT_JOIN). This means it ' s discovered by the FortiGate and is awaiting further instructions to join the FortiLink stack group.

switchname S424DPTF20000029:This displays the serial number of the FortiSwitch.

flags 0x401:The specific flag meaning might depend on the FortiSwitch model and version, but it likely indicates general communication between the switch and FortiGate.

Lines 2 and onward:These lines show subsequent events with similar timestamps, suggesting a regular heartbeat interval. There are also instances of the FortiSwitch sending packets to the FortiGate (indicated bypkt-sent).

Why the Other Options Are Less Likely:

C. FortiSwitch is discovered and authorized by FortiGate.While discovery might have happened before these lines, the " wait join " state suggests authorization hasn ' t necessarily completed yet.

D. FortiSwitch is ready to push its new hostname to FortiGate.There ' s no explicit indication of hostname changes in this excerpt.The focus is on joining the stack group.

In Summary:

The key point is the " FL_STATE_WAIT_JOIN " state, which signifies the FortiSwitch is ready to be fully integrated but is waiting for further commands from the FortiGate to complete the process.

The FortiLink authorization process is an integral part of setting up FortiSwitch to be managed by FortiGate. The correct statements regarding the FortiLink authorization process are:

C.A FortiLink frame is sent by FortiGate to FortiSwitch to complete the authorization.This is a part of the FortiLink protocol, where FortiGate communicates with the connected FortiSwitch to establish management and control. This frame initiates the configuration and management process, allowing FortiGate to effectively control the switch.

D.FortiLink authorization sets the FortiSwitch management mode to FortiLink.Once authorized, the management mode of FortiSwitch is set to FortiLink, indicating that it is being managed via a FortiLink connection from a FortiGate appliance. This changes the operational mode of the switch to be under the control of the FortiGate for centralized management and policy application.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, DHCP snooping is a security feature that acts as a firewall between untrusted hosts and trusted DHCP servers. It validates DHCP messages from untrusted sources and filters out invalid messages.

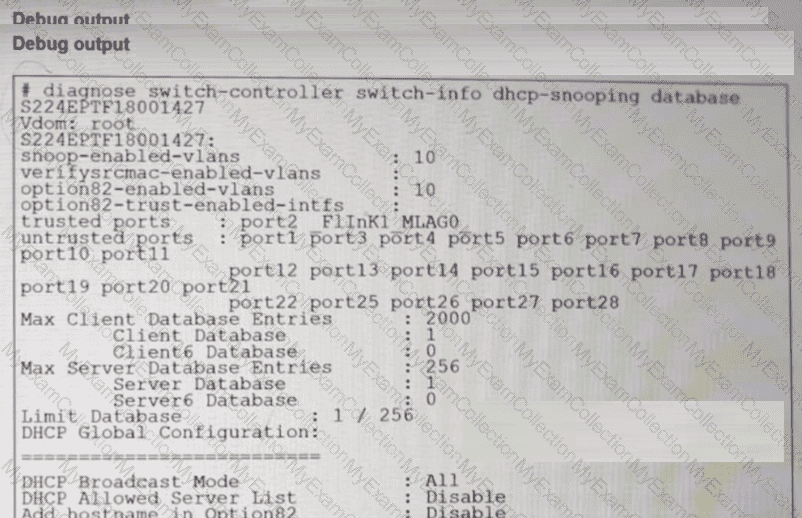

The provided debug output reveals specific configuration details that support the correct answers:

Option 82 Support (Option C):The output line option82-enabled-vlans : 10 explicitly indicates that DHCP Option 82 is active for that specific VLAN. When Option 82 is enabled on a VLAN, the FortiSwitch (acting as a relay agent or snooping device) inserts information about the physical port and VLAN into the DHCP request packet before it is forwarded to the server. This allows the server to apply location-based IP address allocation policies.

Broadcast Traffic Handling (Option D):In the " DHCP Global Configuration " section, theDHCP Broadcast Modeis set toAll. In FortiSwitchOS 7.6, the default behavior for DHCP snooping is to forward DHCP broadcast traffic to all ports in the VLAN unless explicitly restricted. Setting the mode to " All " means the switch does not limit the propagation of DHCP broadcast packets solely to trusted interfaces; instead, they are flooded to both trusted and untrusted ports within the broadcast domain. To restrict broadcasts, the mode would need to be changed to " Trusted-Only " .

Regarding the incorrect options:Option Ais false because the output shows snoop-enabled-vlans : 10, confirming it is active.Option Bis incorrect because the trusted ports list includes port2, FlInK1, and MLAG0, meaning multiple interfaces are trusted, not just port2.

In FortiSwitchOS 7.6,DHCP snoopingis a Layer 2 security feature that validates DHCP traffic and protects the LAN from rogue DHCP servers. The feature enforces atrust modelon switch ports: ports connected toward legitimate DHCP server infrastructure must be markedtrusted, while edge/access ports facing clients are typicallyuntrusted. When DHCP snooping is enabled on a VLAN (in this case,Student), FortiSwitch inspects DHCP messages and applies filtering rules based on port trust status.

From the exhibit, bothport1(connected to the Linux-Server DHCP server) andport4(connected to the Linux-Client) showDHCP Snooping: Untrusted. In this configuration, the switch treats the DHCP server-facing port as untrusted and, by design, willblock DHCP server-originated messages(such as DHCPOFFER/DHCPACK) arriving on that interface. This prevents the DHCP handshake from completing and effectively stops DHCP from functioning across that VLAN segment. Operationally, this is commonly observed as “no DHCP traffic” at the server/application layer because the exchange cannot progress normally when the server side is not trusted.

Option C is incorrect because the client-facing port is expected to be untrusted. Options A and D do not align with the exhibit: the ports are already placed in the Student VLAN as native VLAN, so the primary issue is the DHCP snooping trust role.

Therefore, the most likely cause is thatport1 is configured as an untrusted port(it must be trusted for a DHCP server), makingBthe correct answer.

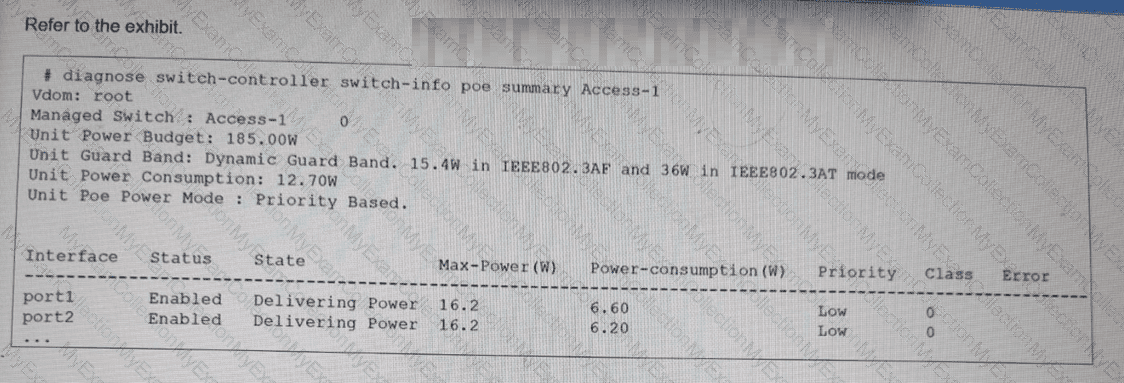

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the primary physical constraint when deploying PoE devices is the total power capacity of the switch ' s internal power supply unit (PSU). The provided exhibit shows the PoE status forAccess-1, highlighting three critical metrics: theUnit Power Budget (185.00W), the currentUnit Power Consumption (12.70W), and theUnit Guard Band.

TheUnit Power Budgetrepresents the maximum amount of power the switch can provide to all connected Powered Devices (PDs) simultaneously. As more devices (such as access points, VoIP phones, or cameras) are connected, the cumulative power draw increases. The most important consideration is ensuring that thetotal PoE consumption does not exceed this budget. If the budget is exceeded, the switch will stop providing power to new devices or, depending on the configuration, may shut down lower-priority ports to protect the system hardware.

In this specific exhibit, theUnit Poe Power Modeis set toPriority Based. This means that if the power consumption approaches the budget limit, the switch will use the configured port priorities (seen as " Low " for port1 and port2) to decide which devices to keep powered. TheGuard Band(set to a dynamic value) also plays a role by reserving a small amount of power to handle spikes when devices initialize, further emphasizing that the power budget is a hard limit that must be actively managed by the administrator.

" Classification: FortiSwitch maps packets with a given CoS or DSCP marking to an egress queue. There are eight egress queues on each port: queues 0 to 7. "

In Quality of Service (QoS) mechanisms, the process of mapping packets with specific CoS (Class of Service) or DSCP (Differentiated Services Code Point) markings to an egress queue involves two key steps:classificationandqueuing.

Classification: This occurs on the ingress side (incoming traffic). The switch examines the packet headers (e.g., CoS or DSCP values) to determine how the traffic should be treated. Based on this classification, the switch assigns the packet to a specific priority level or queue.

Queuing: Once the packet is classified, it is mapped to an egress queue based on its priority level. The egress queues are used to manage how traffic is transmitted out of the switch.

Option A (Queuing for egress traffic)refers to managing how packets leave the switch, but it does not involve the initial mapping of CoS/DSCP values to a queue.

Option C (Rate limiting for egress traffic)is about controlling the rate of outgoing traffic, which is unrelated to CoS/DSCP mapping.

Option D (Marking for ingress traffic)involves modifying the CoS or DSCP values of packets as they enter the switch, but it does not map them to an egress queue.

Thus,classification for ingress trafficis the mechanism that identifies and maps packets with specific CoS or DSCP markings to an appropriate egress queue.
