NS0-522 NetApp Implementation Engineer - SAN ONTAP Exam Question and Answers

Based on the output of the command lun igroup show -instance, which lists the protocol as fcp and the initiator as server1.netapp.com, the initiator type is WWPN (World Wide Port Name). In Fibre Channel Protocol (FCP) environments, WWPNs are used to uniquely identify Fibre Channel devices. This contrasts with IQNs used in iSCSI, and NQNs used in NVMe over Fabrics.

For more details, refer to:

NetApp Documentation on Initiators

To concurrently serve a namespace over NVMe/FC, a LUN over FCP, a LUN over iSCSI, and an NFS export, only one data SVM (Storage Virtual Machine) is required. NetApp ONTAP allows a single SVM to support multiple SAN and NAS protocols simultaneously, enabling efficient and consolidated management of storage resources.

For more information, refer to:

NetApp Documentation on SVM Configuration

NetApp SVM Best Practices

A controlled storage takeover and giveback is the appropriate method for validating HA behavior without deliberately creating uncontrolled infrastructure failures. NetApp recommends testing an HA pair after configuration to verify uninterrupted access to storage during takeover and giveback. During takeover, the surviving HA partner assumes responsibility for the affected node ' s storage and continues serving its data. Host multipathing redirects SAN I/O through surviving paths. Giveback subsequently returns storage ownership and processing to the home node. Pulling cluster-interconnect cables, removing rack power, or disabling backend connectivity introduces unnecessary failure conditions and can affect more infrastructure than required for a controlled validation. Therefore, performing takeover and giveback on the nodes verifies both storage-controller failover and the host ' s redundant SAN path configuration.

To migrate data from a LUN on an existing third-party SAN storage system to a new NetApp AFF A400 all-flash MetroCluster system, the supported methods include:

Foreign LUN Import in online mode: This method allows for data migration without significant downtime, enabling the system to continue serving data while the migration process is ongoing.

Foreign LUN Import in offline mode: This method involves taking the LUN offline during the migration process, which may be necessary in certain scenarios to ensure data integrity.

For more details, refer to:

NetApp Documentation on Foreign LUN Import

NetApp Community on LUN Import Methods

When using Foreign LUN Import (FLI) for migrating LUNs from third-party SAN arrays to a NetApp ONTAP system, one of the requirements is to have at least one Fibre Channel (FC) port configured in target mode on the destination NetApp ONTAP cluster. This configuration is necessary to facilitate the migration process as the target mode port will accept and manage incoming data from the source SAN arrays.

For additional details, refer to:

NetApp Documentation on FLI

To configure an SVM to use NVMe/FC, the following steps are necessary:

Add the FC protocol: This step involves enabling the Fibre Channel protocol on the SVM, which is required to support NVMe over Fibre Channel.

Create an NVMe/FC LIF: Logical Interfaces (LIFs) must be created to handle NVMe traffic over the Fibre Channel network. These LIFs enable the NVMe namespace access to the host systems.

These steps ensure that the SVM is correctly set up to use NVMe/FC, allowing for efficient and high-performance access to NVMe storage.

For more information, refer to:

NetApp NVMe/FC Configuration

To verify the cabling of a four-node NetApp ONTAP SAN cluster after installation, the recommended tool is Active IQ Config Advisor. This tool provides detailed checks for proper configuration, including cabling verification, and helps ensure that best practices are followed for optimal performance and reliability.

For further details, see:

NetApp Active IQ Config Advisor

To move SAN LIFs to new nodes that are members of a portset during maintenance of a NetApp AFF ONTAP cluster, you should take the following steps:

Remove the LIF from the portset: This ensures that the LIF is no longer associated with the current node, preparing it for the move to the new node.

Take the SAN LIF offline: This step is necessary to make configuration changes without causing disruption to the SAN hosts. Once offline, the LIF can be moved to the new node and reconfigured as needed.

These actions help maintain the integrity and performance of the SAN environment during the migration of LIFs.

For more details, see:

NetApp Documentation on Moving SAN LIFs

NetApp Community on Moving LIFs

The correct tool for designing an FC SAN solution consisting of a NetApp ONTAP system, Broadcom switches, and servers is the " NetApp Verified Architecture " (NVA). The NetApp Verified Architecture provides comprehensive blueprints and detailed implementation references. These blueprints are thoroughly tested, prescriptive in nature, and designed to minimize deployment risks and accelerate time to market. They are specifically designed to help ensure that the architecture meets the high standards required for enterprise environments.

NVA documents include design guides, best practices, and detailed configuration steps, making them invaluable for planning and deploying complex solutions like the one described.

For more information, you can refer to the official NetApp documentation on NetApp Verified Architectures:

NetApp Verified Architecture Program Summary

NetApp Verified Architecture Overview

These resources provide detailed insights into the architecture, including technology requirements, deployment procedures, and additional references for further reading.

To ensure the best performance in an iSCSI SAN implementation:

Connect host and storage ports to the same switches: This minimizes latency and maximizes the efficiency of data paths by ensuring direct connections within the same network segment.

Configure Jumbo frames in the entire data path: Setting a larger Maximum Transmission Unit (MTU) size reduces the overhead for processing each packet, thus improving overall network performance. Ensuring Jumbo frames are configured end-to-end in the data path is crucial for optimal performance.

For further details, check:

NetApp Best Practices for iSCSI

NetApp Community Discussion on iSCSI Performance

To ensure that Snapshot copies of database files across multiple FCP LUNs are taken at the same point in time, the following configurations can be used:

Create a consistency group that uses FlexVol volumes: This setup ensures that snapshots of all volumes in the consistency group are taken simultaneously.

Create each LUN within the same FlexGroup volume: This configuration allows for a unified snapshot across multiple LUNs within the FlexGroup, ensuring data consistency.

For more details, see:

NetApp Documentation on Consistency Groups

NetApp FlexGroup Overview

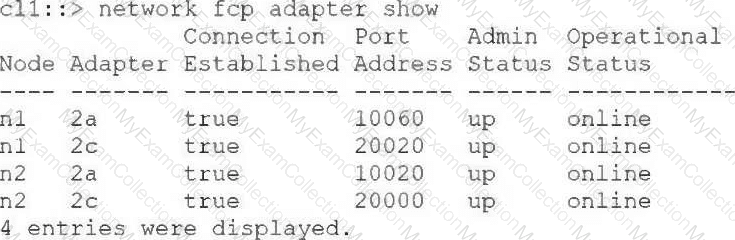

The port address shown for node n2, adapter 2a is 10020. ONTAP reports the FC host port address as a hexadecimal fabric address. Fibre Channel port addresses are interpreted as a 24-bit FC address; when the displayed value is zero-padded to six hexadecimal digits, 10020 becomes 010020. The high-order byte is therefore 01, identifying switch domain ID 1. NetApp’s network fcp adapter show command reference confirms that the command reports the Host Port Address and also exposes a domain-id field for the connected fabric. The other choices do not match the domain portion of this FC address. Therefore, the V9.02 supplied answer of D is incorrect for the displayed output. Relevant SAN ONTAP topics are FCP adapter diagnostics, FC port addresses, domain IDs, and fabric connectivity.

To restrict access to a newly created LUN to specific hosts, the administrator should configure the igroup (initiator group). An igroup is used to control which initiators (hosts) are allowed to access specific LUNs. This ensures that only authorized hosts can access the storage, enhancing security and access control.

For more details, refer to:

NetApp Documentation on iGroups​ ( NetApp )​.

Separate VLANs are a recommended design practice for IP-based SAN traffic because they provide logical network segmentation and enable independent broadcast domains. ONTAP VLANs can separate storage traffic by function or network path even when the underlying physical switching infrastructure is shared. For SAN redundancy, NetApp also recommends separate Ethernet networks and multiple paths so that failure of one network does not eliminate storage connectivity. VLAN separation additionally limits unnecessary broadcast-domain exposure and provides clearer operational boundaries for iSCSI or NVMe/TCP traffic. An MTU of 1500 is supported but does not inherently provide the requested security and reliability improvement, while simply using routed networking is not the relevant SAN best practice. Therefore, separate VLANs provide the appropriate segmentation and path-isolation characteristics for an AFF ASA IP SAN design.

DH-HMAC-CHAP is the ONTAP mechanism for secure in-band NVMe authentication. NetApp documents that ONTAP supports both unidirectional and bidirectional authentication for NVMe/TCP and NVMe/FC by using DH-HMAC-CHAP. For bidirectional mode, a host secret and a controller secret are configured so that the controller authenticates the NVMe host and the host also authenticates the controller. The authentication configuration is associated with the NVMe subsystem host by its NQN. SAML, Kerberos, and an Active Directory domain tunnel are not NVMe transport authentication mechanisms and therefore do not satisfy this requirement. In current ONTAP releases, DH-HMAC-CHAP can be configured through System Manager or the CLI, depending on release. Relevant SAN ONTAP topics are NVMe subsystem host configuration, secure in-band authentication, host/controller secrets, and NVMe/TCP security.

To clone a LUN from a SnapMirror destination volume for testing purposes, the volume clone create command should be used. This command creates a FlexClone volume from the SnapMirror destination, making the LUN within it accessible for testing without disrupting the original volume.

For more details, refer to:

NetApp Documentation on Volume Clone Create

NetApp Community Discussion on LUN Cloning

ONTAP provides dedicated FCP connectivity tests for validating communication between host initiators and FC LIFs. The vserver fcp ping-igroup show command performs a connectivity check between FCP initiators contained in an igroup and the FCP LIFs through which those initiators are configured to connect. The vserver fcp ping-initiator show command performs the equivalent validation for an individual FC initiator. These commands are therefore appropriate after zoning a new FCP SVM to SQL hosts. cluster ping-cluster validates ONTAP ' s internal cluster network and is unrelated to host-to-storage FC connectivity. network fcp zone show displays discovered FC zoning information but is not the specific FCP initiator connectivity test requested. Relevant SAN ONTAP topics include FC zoning validation, igroups, WWPN connectivity, FCP LIFs, and SAN troubleshooting commands.

To configure Foreign LUN Import (FLI) on a NetApp HA pair to migrate over FCP LUNs from a third-party array while serving other LUNs, the following actions are required:

Create zoning from the third-party array to the cluster: Proper zoning ensures that the NetApp cluster can communicate with the third-party storage array.

Convert a single FC port on each controller to an FC initiator port: This is necessary for the NetApp system to initiate the connection and access the LUNs on the third-party array.

For more information, refer to:

NetApp Documentation on Foreign LUN Import

In a traditional AFF or FAS SAN configuration using ALUA, paths through the controller that owns the LUN are reported as Active/Optimized. Paths entering through another controller can be Active/Non-Optimized. When I/O arrives through an active, non-optimized path, ONTAP must forward that I/O internally to the node servicing the LUN. This indirect data path uses the ONTAP cluster interconnect, represented in the choices as the cluster network, and therefore introduces additional latency compared with a direct optimized path. The external FC fabric transports traffic only as far as the target LIF; the HA interconnect is associated primarily with HA-pair storage failover functions, and the peering network is used for intercluster communications and replication. Relevant SAN ONTAP topics include ALUA, optimized versus non-optimized paths, cluster interconnect forwarding, SLM, and FCP multipathing.

ONTAP supports iSCSI LIF migration between nodes specifically on All-Flash SAN Array (ASA) platforms running ONTAP 9.11.1 or later. The migration is restricted to ports on the LIF’s home node or its HA partner, and the applicable CLI operation is network interface migrate. Standard AFF and FAS configurations do not provide the same cross-node iSCSI LIF migration capability described in this scenario. For those systems, an iSCSI LIF normally must be created on the required destination node rather than migrated between nodes. The ucadmin modify command changes unified adapter personality and is unrelated to LIF migration. Therefore, option D correctly combines the supported ASA platform with the appropriate ONTAP command. Relevant topics include ASA SAN networking, iSCSI LIF mobility, HA partners, LIF migration, and nondisruptive SAN operations.

ONTAP manages the MTU consistently across ports belonging to the same broadcast domain. To transition the storage network from the standard 1500-byte MTU to jumbo frames, the administrator modifies the MTU of the appropriate broadcast domain. The applicable operation is network port broadcast-domain modify, represented by broadcast-domain modify in the answer choices. NetApp documents 9000 bytes as a typical jumbo-frame MTU and notes that changing a broadcast-domain MTU changes the MTU for all ports contained in that domain. The surrounding Ethernet path—including host NICs and switch interfaces—must also support the configured MTU end to end. Changing an individual LIF, subnet, or unrelated port property does not provide the correct broadcast-domain-wide MTU configuration. Therefore, option C is the correct ONTAP configuration operation.

When using Fibre Channel Protocol (FCP), the minimum number of FC switches needed to redundantly attach three ESXi hosts is 2. This setup ensures that each host has multiple paths to the storage, providing high availability and fault tolerance. Each ESXi host should be connected to both switches, allowing for continuous operation even if one switch fails.

For more information, refer to:

NetApp Documentation on FC Switch Configurations

NetApp Community Discussion on Redundant FC Setup

To manage space automatically for a volume containing a LUN with fast-growing data, enabling automatic resizing on the volume is recommended. This feature allows the volume to grow dynamically as needed, accommodating the fluctuating data size without manual intervention. This helps in managing storage efficiently and ensures that the application has the required space.

For further details, refer to:

NetApp Documentation on Volume Management

NetApp Community Discussion on Automatic Resizing

To configure a Snapshot copy of all LUNs simultaneously as a single unit in an application with multiple LUNs spread across several volumes, the command vserver consistency-group create should be used. This command creates a consistency group that allows for coordinated snapshot creation across multiple volumes, ensuring that the snapshots are consistent with each other.

For more information, you can refer to:

NetApp ONTAP Consistency Group Documentation

NetApp Community Discussions on Consistency Groups

In a traditional FAS SAN configuration, ONTAP uses ALUA to distinguish optimized paths from non-optimized paths. Active/Optimized paths are serviced by the controller associated with the aggregate and LUN being accessed. These paths provide the preferred I/O route because data does not need to be forwarded through another controller. Paths through the HA partner remain available but are normally Active/Non-Optimized and are used when optimized paths become unavailable. NetApp host configuration guidance explicitly describes AFF and FAS systems as having higher-priority Active/Optimized paths serviced by the controller where the aggregate resides and lower-priority non-optimized paths served through another controller. Round-robin is a host multipathing policy and does not define ALUA path state. Relevant topics include ALUA, Active/Optimized paths, Active/Non-Optimized paths, FAS multipathing, and HA architecture.

To verify compatibility in an iSCSI storage environment before a NetApp ONTAP software upgrade, the following tools are recommended:

Interoperability Matrix Tool (IMT): This tool helps verify the compatibility of different components, including network switches, hosts, and storage systems, ensuring that the planned upgrade will be supported.

Active IQ OneCollect: This tool collects comprehensive configuration and performance data from the storage environment, which can be used to assess the current setup and identify any compatibility issues before the upgrade.

For further details, refer to:

NetApp Interoperability Matrix Tool

Active IQ OneCollect Documentation

In a multitenant environment where a user needs access only to perform replication within a specific SVM to another cluster, the default role vsadmin-backup is appropriate. This role provides the necessary permissions to manage backup and replication tasks without granting broader administrative rights.

For more details, see:

NetApp Documentation on User Roles

NetApp Community Discussion on Roles

The recommended setting for using the NetApp ONTAP LUN fractional reserve is to set the space guarantee to " volume " . This setting ensures that the required space for overwrites in the volume is reserved, preventing potential write failures when snapshot copies are created. This setup helps in maintaining the performance and reliability of the storage system by ensuring there is always enough space allocated for the LUN.

For further details, you can refer to:

NetApp Community Discussion on Fractional Reserve

NetApp Documentation on Space Management

Fibre Channel zoning is configured and maintained within the FC switching fabric. ONTAP hosts and storage LIFs provide WWPN identities, but the switch configuration determines which initiator and target ports are permitted to communicate. NetApp’s FC zoning guidance instructs administrators to log in to the FC switch administration interface, create zones containing host initiator WWPNs and ONTAP FC LIF WWPNs, save the zones, and activate the resulting zone configuration. Cisco environments use zones and zonesets, while comparable constructs exist on Broadcom/Brocade fabrics. Neither the host HBA nor the ONTAP storage system stores the authoritative fabric zoning configuration. Therefore, the FC switches are the correct location. Relevant SAN ONTAP topics include FC fabric design, WWPN zoning, zonesets, dual-fabric configurations, and SAN connectivity.
