NS0-194 NetApp Certified Support Engineer (NCSE) Question and Answers

The problem is that there are no FC adapters with a max-speed of 32 Gbps. NVMe/FC support depends on platform, adapter, and speed capability. The exhibit shows FC adapters, but their max-speed is 16 Gbps, which does not satisfy the requirement being tested. The issue is not that the physical protocol is already set to NVMe; FC adapters are configured and then used for FC or FC-NVMe services according to supported capabilities. Media type is not NVMe, because NVMe is a storage protocol, not an optical media type. The wording 'cannot enable the protocol' requires checking whether installed adapters meet the hardware support requirements. A support engineer should verify adapter model, max speed, port mode, firmware, and ONTAP support matrix before attempting to configure NVMe. In this exhibit, the absence of 32 Gb-capable FC adapters is the blocking condition. References/topics: ONTAP NVMe/FC adapter requirements, FC adapter max-speed, protocol enablement, SAN hardware support, and port capability validation.

Cloud Manager is the supported tool for upgrading the ONTAP version of a Cloud Volumes ONTAP instance. Cloud Volumes ONTAP is managed through the NetApp cloud management plane, so lifecycle operations such as software upgrades are performed from Cloud Manager/BlueXP rather than directly through traditional on-premises tools. Cloud Insights is an observability and monitoring service, not the upgrade mechanism. Active IQ Unified Manager manages and monitors ONTAP environments but is not the supported CVO upgrade tool in this scenario. ONTAP System Manager is used for ONTAP cluster administration, but Cloud Volumes ONTAP version upgrades are controlled through the cloud working environment in Cloud Manager. The support engineer must distinguish on-premises ONTAP administration from CVO lifecycle management. When the question says supported method for upgrading a CVO instance, the answer is Cloud Manager. References/topics: Cloud Volumes ONTAP lifecycle management, Cloud Manager/BlueXP, CVO software upgrade workflow, and NetApp cloud data services.

CRC errors on a network port usually indicate a physical-layer problem, so the first components to reseat or replace are the SFP and the cable. CRC errors are frame-check failures caused by corrupted frames reaching the interface. The most common support causes are dirty or failing optics, marginal fiber/copper cabling, bad seating, bend radius problems, or a faulty physical link component. Before replacing the controller port, the engineer should eliminate the replaceable path components that are cheaper, more common, and easier to validate. Cluster interconnect switches or upstream switches may eventually be involved if errors persist on multiple links or follow a switch port, but the question asks what to consider before taking action on the physical port where errors are reported from the node. Therefore, reseating or replacing the SFP and cable is the correct initial response. References/topics: ONTAP network port CRC errors, physical-layer troubleshooting, SFP optics, cabling validation, and network link diagnostics.

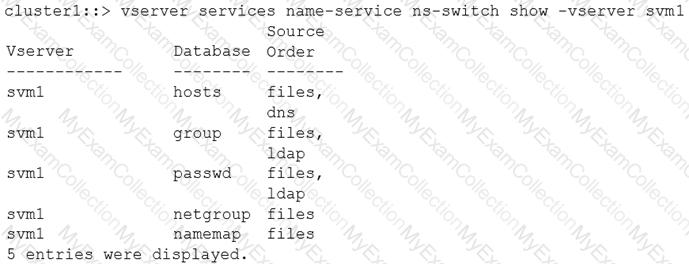

The UNIX user prof1 is looked up in files first because the name-service switch output shows the passwd database source order as files, then ldap. ONTAP follows the configured source order for the relevant database. Since a UNIX user lookup uses the passwd database, ONTAP checks the local files source before contacting LDAP. DNS is associated with host name resolution, not UNIX user identity lookup. NIS is not listed in the passwd source order shown in the exhibit, so it cannot be the first lookup source. LDAP is listed, but it is second after files. This question tests the engineer's ability to read ns-switch output and apply it to the correct identity database. For NAS access issues, source order directly affects user mapping, UID/GID resolution, group membership, and permission decisions. References/topics: ONTAP name service switch, passwd database lookup, UNIX identity resolution, files versus LDAP source order, and NAS authentication troubleshooting.

The correct conclusion is that the CIFS SVM is not using DNS. A hardened Windows group policy commonly reduces insecure name resolution and authentication fallback behavior. SMB access to a CIFS server should use proper DNS name resolution so that clients can locate the server, validate identity, and use Kerberos or the intended domain authentication path. If users previously connected through weak or non-DNS mechanisms, a new security policy can break access even though the SVM itself is still online. SMBv1/SMBv2 configuration is not the best answer because the scenario points to a domain security policy change rather than protocol version negotiation alone. NFSv3 is irrelevant to Windows CIFS access, and a wrong domain would not normally appear suddenly after a group policy push if access worked the day before. References/topics: ONTAP SMB access, DNS dependency, Kerberos authentication, Windows security policy effects, and CIFS client troubleshooting.

A service account access key and intercluster LIFs are required for an ONTAP FabricPool connection to Google Cloud Storage. ONTAP must authenticate to the object store, which requires cloud access credentials associated with an account that has access to the bucket. ONTAP also needs intercluster LIFs because FabricPool cloud-tier traffic uses intercluster networking to reach remote object storage from the nodes hosting tiered data. A Certificate Authority certificate may be relevant in some object-store SSL validation scenarios, but the core required components in this question are credentials and ONTAP network reachability. ExpressRoute is an Azure private connectivity service and is not a Google Cloud Storage requirement. The support engineer should separate cloud-provider authentication from ONTAP pathing: both must be present for FabricPool to attach and communicate with the cloud tier. References/topics: FabricPool with Google Cloud Storage, service account access keys, intercluster LIFs, object-store authentication, and cloud-tier networking.

The supported NetApp HCI compute-node cabling methods are the 2-cable and 6-cable configurations. The 2-cable design is a simplified topology that reduces cabling while still supporting required network connectivity. The 6-cable configuration provides greater physical separation and bandwidth for management, storage, vMotion, and VM traffic depending on the validated design. A 1-cable configuration does not provide the required redundancy and traffic separation for supported HCI compute-node deployment. A 4-cable configuration is not one of the supported compute-node cabling methods in this exam context. NetApp HCI cabling must follow validated architecture because incorrect port use or switch design can prevent the NetApp Deployment Engine from validating the environment and can create performance or availability issues. The engineer should always compare the physical cabling with the deployment guide before running or rerunning the NetApp Deployment Engine. References/topics: NetApp HCI compute-node cabling, deployment prerequisites, 2-cable topology, 6-cable topology, and validated HCI network design.

If a Cloud Volumes ONTAP instance loses connectivity to Cloud Manager for four or more days, the instance is stopped. Cloud Volumes ONTAP depends on the management plane for licensing, control, and operational management. Temporary communication interruptions do not immediately remove the working environment from inventory or require manual re-adding, but extended loss of connectivity has enforcement consequences. Sending an AutoSupport message alone would not be the consequence described by the scenario. Removing the instance from Cloud Manager inventory would be a management-plane display action, not the operational enforcement behavior of the instance. For support engineers, this is a cloud-control dependency question: Cloud Volumes ONTAP is ONTAP software running in cloud infrastructure, but it is managed and licensed through NetApp cloud services. When connectivity is lost beyond the permitted window, the instance is stopped to prevent unsupported operation. References/topics: Cloud Volumes ONTAP management, Cloud Manager/BlueXP connectivity, licensing enforcement, and cloud data services operational requirements.

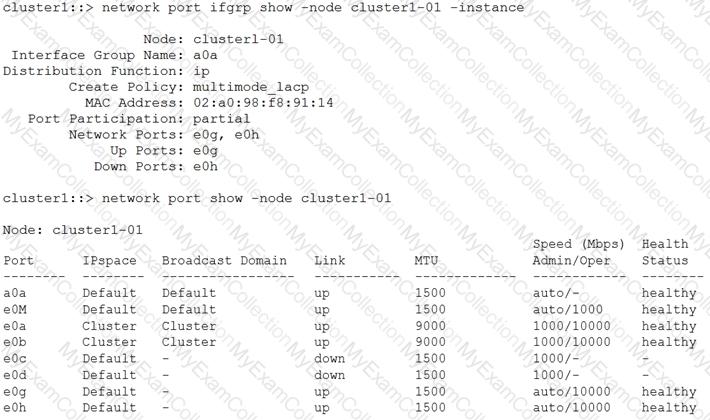

One physical interface is mis-cabled. The interface group output shows that the ifgrp expects specific member ports and that one member is not participating as expected after the network card replacement. The physical port listing shows link state information, but the ifgrp/LACP state indicates the port is not correctly associated with the intended switch-side aggregation. If a port were simply uncabled, the physical link would be down. If the interface were broken, the issue would follow the port regardless of switch-side configuration and would not primarily appear as a membership mismatch. The ifgrp is not configured in single mode; it uses multimode LACP, so switch cabling and LACP membership must match exactly. In support practice, a replacement NIC can lead to cables being swapped into the wrong switch ports or LAG groups. The engineer should verify cabling against the switch LACP configuration and NetApp port membership. References/topics: ONTAP ifgrp troubleshooting, LACP port membership, NIC replacement validation, physical cabling checks, and network port show interpretation.

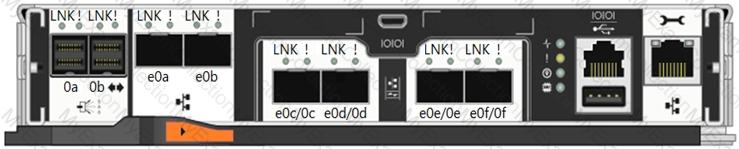

The e0c/0c port is the CNA port in the AFF A200 exhibit. A converged network adapter can operate in Ethernet mode, where it is labeled with an e-prefix, or in Fibre Channel target/initiator mode, where the corresponding identity may appear with a numeric port naming convention. On the AFF A200, the shared port labeling such as e0c/0c indicates a converged adapter identity. The option showing only e0a is a standard Ethernet-style port designation, and 0a is a Fibre Channel-style designation without the combined CNA label shown in the diagram. The visual clue is the dual-purpose label that combines Ethernet and FC naming in one port callout. For NCSE hardware questions, port nomenclature matters because replacement, cabling, protocol personality, and adapter configuration all depend on identifying the port type correctly. References/topics: AFF A200 onboard ports, CNA port labeling, Ethernet/FC personality, platform cabling, and controller port identification.

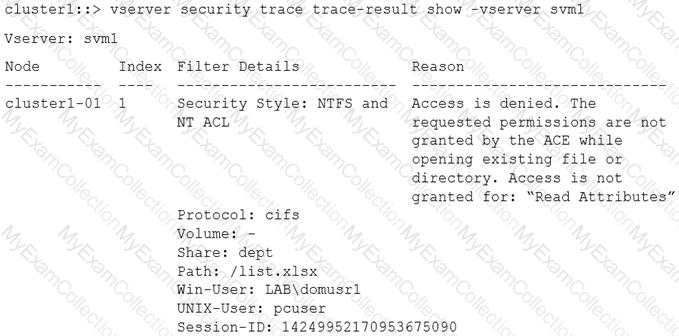

The user must be granted Read Attributes access to the path. The security trace result states that access is denied because the requested permissions are not granted by the ACE while opening the existing file or directory, and it specifically identifies Read Attributes as the missing permission. Adding the user to BUILTIN groups would be a broad and imprecise change that may not match the file's intended NTFS ACL model. Granting Execute access does not solve the reported missing permission unless the access mask also includes the required attribute-read right, and the trace does not identify Execute as the failed permission. ONTAP security trace is designed to point directly to the permission, user mapping, security style, and access decision involved in a failed NAS request. The support engineer should remediate the exact ACL deficiency shown by the trace rather than guess at group membership. References/topics: ONTAP security trace results, NTFS ACE evaluation, Read Attributes permission, CIFS access denial troubleshooting, and NAS ACL remediation.

ONTAP writes data from memory to disk during consistency point processing, and two triggers in this answer set are NVLog pressure and Snapshot creation. When client writes arrive, ONTAP acknowledges them after they are safely logged in NVRAM/NVLog and mirrored as needed, while data is later written efficiently to disk during a consistency point. If the NVRAM/NVLog fills, ONTAP must force data to disk to free protected log space. Snapshot creation also requires a consistent on-disk image, so pending writes are flushed to establish a stable point-in-time view. A user pressing Save on an application does not directly force ONTAP to write memory contents to disk; it produces client I/O that ONTAP processes according to WAFL behavior. Drive capacity becoming available is unrelated to the consistency point trigger mechanism. References/topics: WAFL consistency points, NVRAM/NVLog protection, Snapshot copy creation, write acknowledgement, and ONTAP write-path behavior.

NetApp Volume Encryption uses a KMIP server when encryption keys must be stored separately from encrypted data. KMIP is the Key Management Interoperability Protocol and is the standard method ONTAP uses to communicate with external key managers. RADIUS is an authentication protocol and does not store encryption keys for NVE. TLS secures communications but is not itself a key management server. TKIP is an older wireless encryption mechanism and is unrelated to ONTAP volume encryption. Separating keys from encrypted data is a core security control because compromise of storage media or data blocks should not also expose the keys required to decrypt them. In ONTAP environments, external key management provides centralized lifecycle control, auditing, and recovery considerations for encrypted volumes. Support engineers must also verify key-manager reachability before enabling encryption because inaccessible keys can prevent encrypted volumes from being brought online. References/topics: NetApp Volume Encryption, external key management, KMIP server configuration, encryption key separation, and ONTAP security architecture.

The correct security trace filter uses protocol cifs, the Windows name LAB\tester, and trace-allow yes. The purpose is to determine why this specific user can perform an operation while other HR users cannot. Because the successful operation is part of the investigation, ONTAP must trace allowed access events, not only denied events. The NFS options are wrong because the access path is a CIFS share and the identity is a Windows domain user. The trace-allow no option would trace only denied access, which would not capture the reason that LAB\tester succeeds. Security trace is used to diagnose permissions across share permissions, NTFS ACLs, UNIX identities, name mapping, and security style behavior. In this case, the engineer needs a targeted trace for the known working user to compare the granted access path against failing users. References/topics: ONTAP SMB security trace, vserver security trace filter create, CIFS identity tracing, trace-allow behavior, and NAS permissions troubleshooting.

Active IQ Cluster Viewer details can be downloaded in PDF, CSV, and XLS formats. These formats support the common operational needs of support and account teams: PDF for fixed presentation and case documentation, CSV for raw data extraction and analysis, and XLS for spreadsheet-based review or customer reporting. DOC is not a standard export format for structured cluster inventory or health data, and HTML is a display format rather than one of the listed downloadable detail formats in this context. Active IQ is used to analyze AutoSupport telemetry, identify risks, display system health, and provide support-relevant inventory and recommendations. Export formats matter because engineers frequently attach evidence to cases, share inventory with customers, or perform offline review. The correct selections are the formats that preserve report data in portable or analyzable files. References/topics: Active IQ Cluster Viewer, report export, PDF/CSV/XLS downloads, AutoSupport telemetry review, and support documentation.
