MB-820 Microsoft Dynamics 365 Business Central Developer Question and Answers

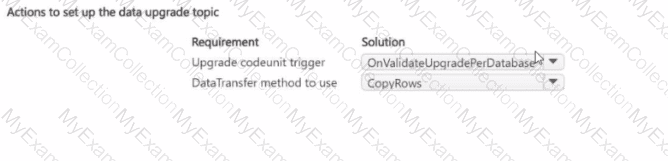

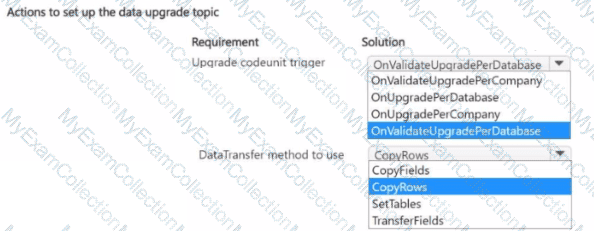

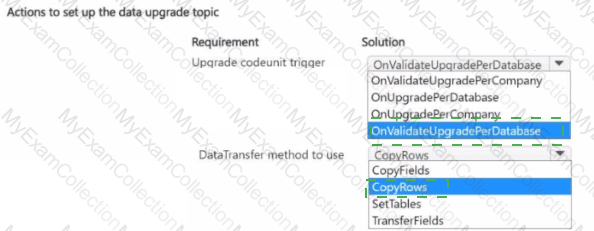

ï‚· Upgrade codeunit trigger: OnValidateUpgradePerDatabase

Since the question specifies that you are handling data upgrades, and you need to use validation before upgrading at the database level, the correct choice is OnValidateUpgradePerDatabase. This method ensures that the upgrade process is validated before applying to the entire database, making it more efficient when data affects multiple companies or structures.

ï‚· DataTransfer method to use: CopyRows

CopyRows is the appropriate method when you are handling large data transfers between tables, especially in an upgrade scenario where you are migrating or transferring data from one table to another. It copies entire rows of data and is optimal for bulk data operations during upgrades.

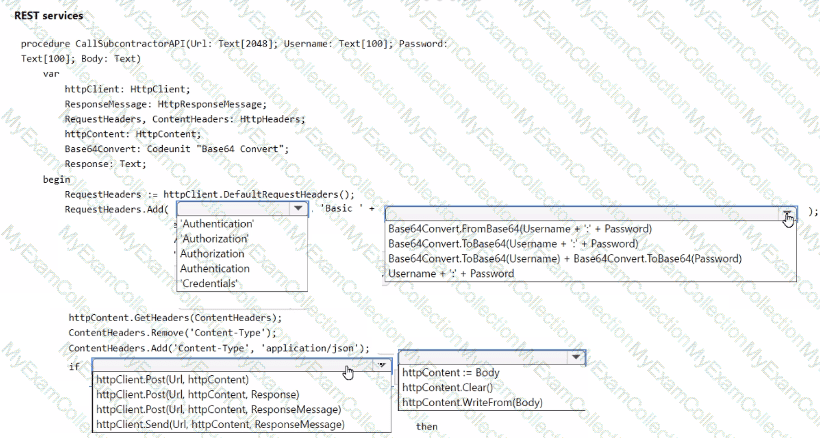

To correctly write the code to call the subcontractor's REST API, you would need to set the Authorization header with the base64 encoded username and password for basic authentication. The code segment indicates the use of the Base64Convert codeunit to convert the username and password to base64 format, which is then prefixed with "Basic " to form the proper Authorization header value.

The correct method to add the Authorization header to the RequestHeaders would be:

RequestHeaders.Add('Authorization', 'Basic ' + Base64Convert.ToBase64(Username + ':' + Password));

And the correct method to set the httpContent with the body of the request would be:

httpContent.WriteFrom(Body);

These are the necessary steps to form a well-structured HTTP request for basic authentication and to include the body of the request in the API call.

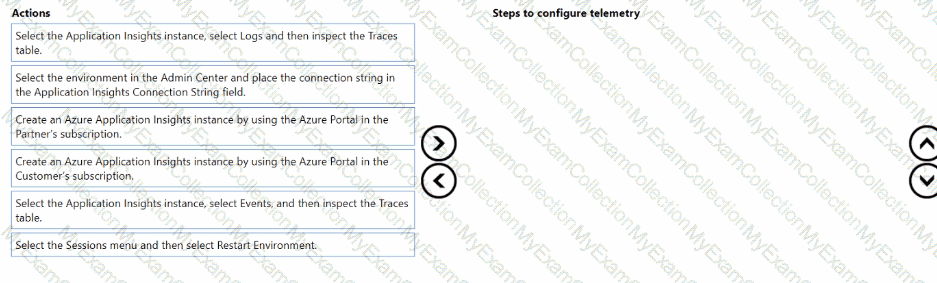

The correct sequence of actions to configure telemetry for the SaaS tenant and test whether the ingested signals are displayed would be:

Create an Azure Application Insights instance by using the Azure Portal in the Customer's subscription.

Select the environment in the Admin Center and place the connection string in the Application Insights Connection String field.

Select the Application Insights instance, select Logs and then inspect the Traces table.

To set up telemetry for a SaaS tenant using Azure Application Insights, you need to follow these steps:

Create an Azure Application Insights instance: This is the first step where you create an instance in Azure that will collect the telemetry data. This should be done in the customer's Azure subscription because it's their data that you're monitoring.

Configure the SaaS tenant to use the created Application Insights instance: This involves entering the correct connection string in the Business Central Admin Center so that telemetry data from the tenant is sent to the Application Insights instance.

Verify that telemetry is being collected: After configuring, you would check if the telemetry is arriving as expected by inspecting the Traces table in the Azure Application Insights instance. The 'Traces' table holds the telemetry data, which you can query to verify that the correct signals are being ingested.

ou plan to call a web service using HttpClient from a Business Central AL extension. The web service must authenticate using a certificate that includes a password, and the password must be hidden during debugging.

Options Explanation:

The question asks for the correct implementation where the certificate and password are provided and where the password is hidden when debugging.

SecretText is a special data type in Business Central that hides sensitive data (like passwords) during debugging.

In the context of cleaning up sandbox environments for a company where data needs to be cleared each time an extension is published, the schemaUpdateMode property in the launch.json file should be set to Recreate (D). Setting this property to Recreate ensures that every time the extension is published, the existing tables and data are dropped, and then the tables are recreated based on the current extension's schema. This mode is particularly useful in development and testing environments where you need a clean slate for testing each version of the extension without the remnants of previous data affecting the outcomes. It's important to use this setting cautiously, as it results in the loss of all existing data in the tables defined by the extension, which is suitable for a sandbox environment but not for production environments.

SaveAsCsv is the correct function to export the query data to a CSV (Comma-Separated Values) file, which is a commonly used text format for data exports.

SaveAsExcel would export to an Excel file, SaveAsWord to a Word document, and SaveAsHtml to an HTML file, but since the requirement is to export to a file and the question doesn't specify any particular file format other than what fits standard data exports, CSV is the most fitting and efficient format for this scenario.

For more information, see the Query Object Functions in Business Central.

Based on the PowerShell script snippet you've provided and the scenario described, you need to configure Docker sandbox environments for a company with specific requirements for Test Toolkit installations.

For SandboxA, since it is configured without the Test Toolkit installed, you would typically use the PowerShell cmdlet Install-TestToolkitToBcContainer to install the Test Toolkit into the Business Central Docker container.

For SandboxB, which must be configured from scratch with the Test Toolkit installed during configuration, you would include the Test Toolkit as part of the New-BcContainer script block that creates the container.

The relevant cmdlets and parameters for SandboxB would include:

-includeTestToolkit: This parameter ensures that the Test Toolkit is included during the creation of the new container.

Given the limited context from the image, here's how you should complete the cmdlets for SandboxB:

Add -includeTestToolkit in the New-BcContainer script to ensure the Test Toolkit is installed when creating SandboxB.

Since you are setting up SandboxB from scratch, you don't need to run Install-TestToolkitToBcContainer separately as the toolkit will be included at the time of container creation with the -includeTestToolkit parameter.

For the New-BcContainer cmdlet, you would fill in the placeholders with the appropriate values for artifactUrl, imageName, and licenseFile if they are required for your specific setup.

To roll back changes to a test method after run time, you should:

Set the TransactionModel attribute to AutoRollback.

To run an approve action on a test page named TestPageA, you should:

Configure TestPageA.Approve.Invoke().

In Business Central's testing framework, the TransactionModel attribute can be set to AutoRollback. This ensures that any changes made during the test are rolled back after the test is complete, leaving the database in its original state.

For running an action on a test page, you would use the 'Invoke' method on the action you wish to perform. In this case, to run an approve action on TestPageA, you would use TestPageA.Approve.Invoke() within your test codeunit. This simulates the user action of approving something on the page.

These actions ensure that the testing environment is properly set up to test specific functionalities without persisting test data and to invoke actions as part of the test scenarios.

The property InherentPermissions is used to automatically grant permissions to the table object it is applied to, but setting it to Rl (which seems to be a typo and should likely be 'RL' for Read and Insert permissions) is not sufficient in this scenario. The issues reported by the users suggest that they need more than just read and insert permissions on MyTable. Since users are unable to post sales orders, they likely need Modify, Delete, or Execute permissions on certain tables or objects related to the sales order process. Additionally, the inability to access the list page created in MyTable could be due to lacking Read permissions on other related objects or pages. Therefore, merely setting InherentPermissions = RL on MyTable does not comprehensively address the users' permission issues, especially when considering the principle of least privilege. A more tailored approach to permissions, potentially involving adjustments to the app's code or configuration to ensure proper permissions are applied where necessary, would be needed.

ï‚· The Part Time Shop Supervisor profile will be applied only to users with "Register Time" = true on User Setup: No

ï‚· Variables, procedures, and triggers cannot be added on page customization objects: Yes

ï‚· Line 10 should use extends instead of customizes: No

ï‚· In line 18, "Unit Cost" will be moved after "Costing Method": Yes

ï‚· The Part Time Shop Supervisor profile will be applied only to users with "Register Time" = true on User Setup.

No

The code doesn't contain any reference to the User Setup table or the Register Time field, so this is not correct. Profiles are not applied conditionally based on fields like this.

ï‚· Variables, procedures, and triggers cannot be added on page customization objects.

Yes

Page customization objects are meant for UI modifications, such as moving or hiding fields. You cannot add variables, procedures, or triggers in a page customization object.

ï‚· Line 10 should use extends instead of customizes.

No

In AL, when customizing a page within a profile, you use customizes rather than extends. Extends is used when modifying base application objects, but customizes is used to customize pages within a profile.

ï‚· In line 18, "Unit Cost" will be moved after "Costing Method".

Yes

The code in line 18 is correct. The moveafter directive will move the "Unit Cost" field after the "Costing Method" field on the page layout.

To properly apply the No. Series Design Pattern in the OnInsert() trigger, the correct sequence of actions should be as follows:

ContosoSetup.Get();

First, retrieve the Contoso Setup record using the Get method. This ensures that the necessary setup information is available, including the No. Series.

if "No." = '' then begin

Next, check if the No. field is empty. If it is, a new number from the No. Series should be assigned.

NoSeriesManagement.InitSeries(ContosoSetup."Vendor Nos.", "No. Series", 0D, "No.", "No. Series");

Call the InitSeries function to assign a new number from the No. Series. This initializes the No. Series for the Vendor Nos. field.

ContosoSetup.TestField("Vendor Nos.");

Lastly, ensure that the Vendor Nos. field is populated and valid by calling TestField.

Correct Order for Code Segments:

ContosoSetup.Get();

if "No." = '' then begin

NoSeriesManagement.InitSeries(ContosoSetup."Vendor Nos.", "No. Series", 0D, "No.", "No. Series");

ContosoSetup.TestField("Vendor Nos.");

Here is the most logical sequence of actions for implementing the Issue Management module in Business Central and exposing the PostIssue method:

Correct Order:

Create a codeunit named "Issue Management Impl." and set the value of Access property to Internal.

This is the first step because Issue Management Impl. is the implementation layer where the actual business logic resides, and setting it to Internal ensures that it is only accessible from within the module, following best practices in encapsulation.

Create a local procedure named PostIssueImpl in the "Issue Management Impl." codeunit.

This step adds the actual PostIssueImpl method, which contains the core logic of posting an issue.

Create a codeunit named "Issue Management" and set the value of Access property to Public.

After defining the implementation logic, you need to create a public-facing Issue Management codeunit to expose the service externally.

Create a PostIssue procedure in the "Issue Management" codeunit, and in it call the PostIssueImpl method.

Lastly, expose the PostIssue method in the Issue Management codeunit, which will internally call the PostIssueImpl method, completing the chain.

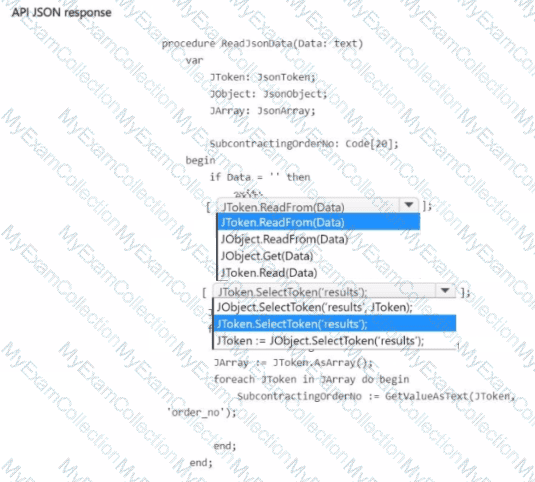

Code Segment Analysis:

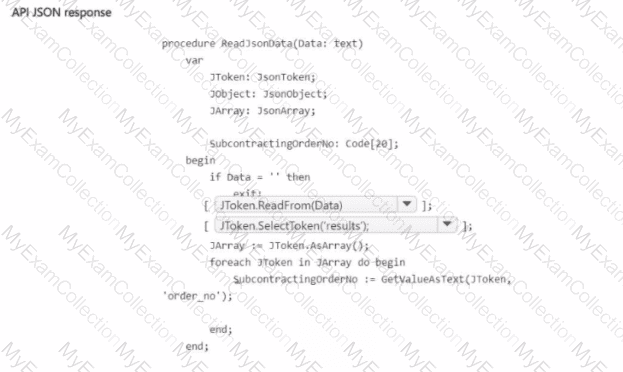

The AL code is trying to read JSON data from a response and process it to extract subcontracting order numbers. It uses JsonToken, JsonObject, and JsonArray to work with the JSON data.

JToken.ReadFrom(Data): This line reads the incoming JSON data and converts it into a token. It processes the full JSON body so you can start working with it.

JToken.SelectToken("results"): This line selects the part of the JSON containing the results array. The key "results" is where the JSON response data is expected to be found.

JsonArray: Once the results are extracted, they are stored as an array, and each element in the array (which is expected to contain subcontracting order numbers) is processed.

SubcontractingOrderNo: The extracted order_no from the JSON is stored in this variable.

Breakdown of Steps:

JToken.ReadFrom(Data): This step reads the entire JSON response.

JToken.SelectToken("results"): This step selects the results array from the JSON response.

JArray.AsArray(): This step converts the selected results token into a JSON array that can be iterated over.

GetValueAsText(JToken, 'order_no'): This step retrieves the order_no from each element in the array.

Correct Code Completion:

JToken.ReadFrom(Data): This is the correct method to read the incoming JSON response, as it will convert the string into a JsonToken that can be further processed.

JToken.SelectToken("results"): This is the correct method to extract the results array from the token. This method looks for the key "results" in the JSON and retrieves the relevant array.

Final Code Segment:

al

Copy code

procedure ReadJsonData(Data: text)

var

JToken: JsonToken;

JObject: JsonObject;

JArray: JsonArray;

SubcontractingOrderNo: Code[20];

begin

if Data = '' then

exit;

JToken := JToken.ReadFrom(Data); // Step 1: Read the JSON response data.

JToken := JToken.SelectToken('results'); // Step 2: Select the "results" array.

JArray := JToken.AsArray(); // Convert the token into a JSON array.

foreach JToken in JArray do begin

SubcontractingOrderNo := GetValueAsText(JToken, 'order_no'); // Retrieve the order number.

end;

end;

JToken.ReadFrom(Data): This reads the raw JSON data string and converts it into a JSON token that can be processed.

JToken.SelectToken("results"): This extracts the results array from the JSON data.

JArray.AsArray(): Converts the token into an array so we can iterate over it.

GetValueAsText(JToken, 'order_no'): Extracts the order_no value from each item in the array.

In Business Central development using AL (the language for Business Central extensions), the use of access modifiers defines how variables and procedures are accessed within and outside of an object or codeunit.

Access Modifiers in AL:

Public: A public variable can be accessed from any object or codeunit within the same module or extension.

Protected: This restricts access to the current object and objects that inherit from the current object. However, in AL (at least in versions used for Business Central), the Protected access modifier is used with methods but not variables.

Internal: This modifier restricts the visibility to the current extension. This means that variables or methods declared as internal can only be accessed from within the same extension. This is appropriate when you want to provide functionality that is shared within the extension but not exposed externally.

Local: This restricts the variable or method to the current object or method where it is declared. It cannot be accessed from anywhere else, even within the same extension.

Scenario Justification:

In the scenario for Contoso, Ltd., IssueTotal is a global variable in the ISSUE BASE extension, and the ISSUE EXT extension needs to access it. Therefore, the variable cannot be declared as Local, because this would restrict access to just the current object (or method).

Using Public would expose the variable outside of the extension, which is unnecessary because you only want other parts of the extension (specifically the ISSUE EXT extension) to have access.

The best choice in this case is Internal because it restricts access to the variable to within the same extension, which includes the base extension and any dependent extensions like ISSUE EXT. It strikes the right balance between visibility and encapsulation.

Microsoft Dynamics 365 Business Central Developer References:

Access Modifiers in AL: Microsoft's documentation on AL provides the details on access modifiers, where it is specified that internal variables can be accessed within the extension, and the public variable is accessible across all extensions【source: Microsoft Learn on AL Programming】.

Best Practices for AL Development: Business Central development best practices suggest keeping variables internal unless they need to be accessed outside of the current extension【source: Microsoft Learn on AL development guidelines】.

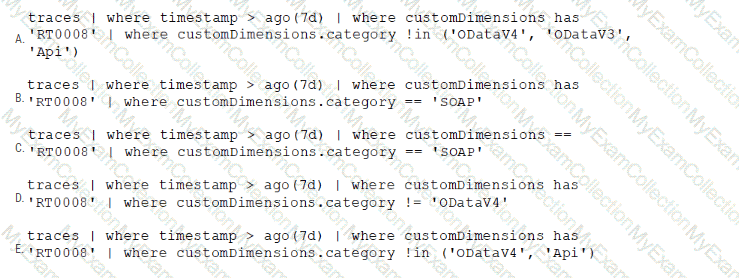

The task is to identify unwanted incoming web service calls during the last seven days. To do this, we need to look at KQL (Kusto Query Language) queries that would filter out web service calls based on the timestamp (to ensure the calls are within the last seven days) and by certain characteristics that would indicate they are unwanted, such as the wrong type of protocol (SOAP in this case, as Contoso Ltd. plans to dismiss using it).

Looking at the options:

Option A: This query selects all traces where the timestamp is within the last 7 days and where the custom dimension has a value of 'RT0008', and where the category is either 'ODataV4', 'ODataV3', or 'Api'. This query would show all API calls except SOAP, so it does not directly answer the question about unwanted calls.

Option B: This query filters for traces with a timestamp within the last 7 days, where 'RT0008' is present, and specifically looks for the category 'SOAP'. This query is correct because it directly targets SOAP calls, which are the unwanted calls according to Contoso Ltd.'s plans.

Option C: Similar to option B, this query filters for traces within the last 7 days and looks for 'RT0008' but uses the equality operator for the category 'SOAP'. This would also correctly return the unwanted SOAP calls.

Option D: This query also filters for traces within the last 7 days, but it excludes the 'ODataV4' category, which doesn't necessarily target the unwanted SOAP calls.

Option E: This query selects traces where the timestamp is within the last 7 days and the custom dimension has 'RT0008'. However, it filters out categories 'ODataV4' and 'Api', which does not directly help in identifying the unwanted SOAP calls.

Therefore, the queries that should be used to determine if there are unwanted incoming web service calls (SOAP calls) in the tenant during the last seven days are Options B and C. These queries are specific to identifying SOAP protocol usage, which is what Contoso Ltd. considers unwanted.

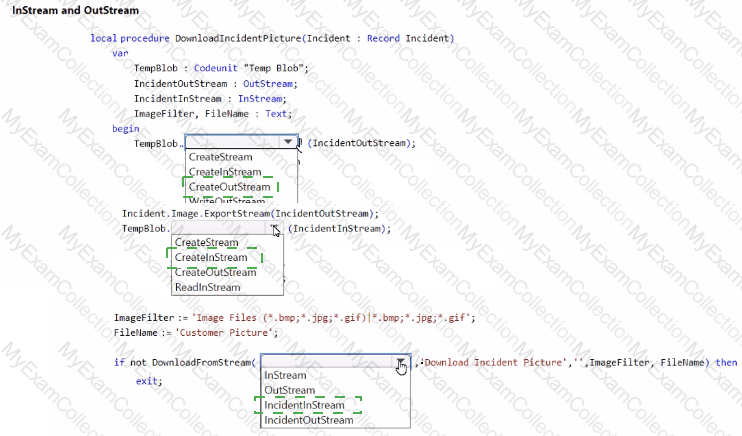

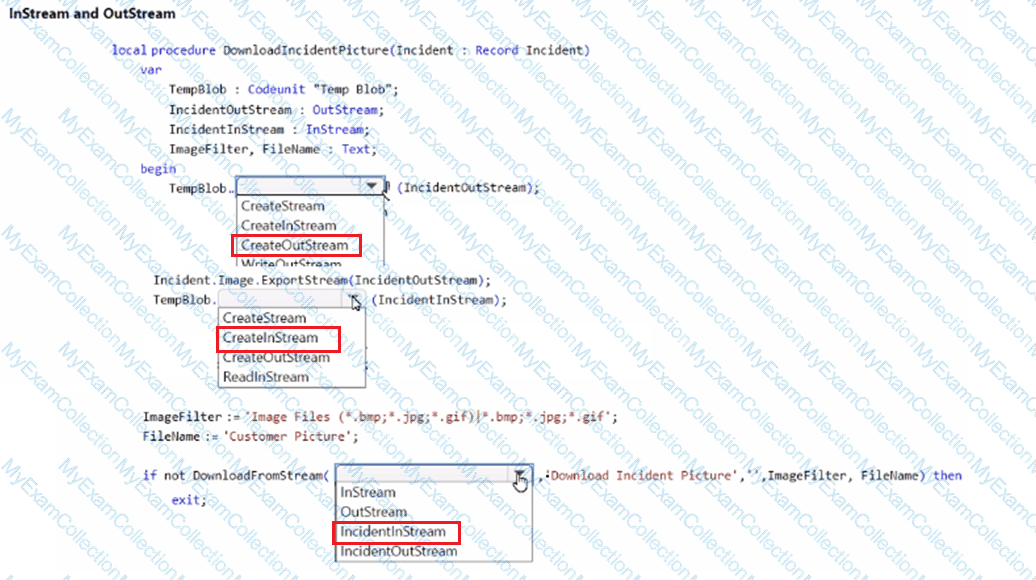

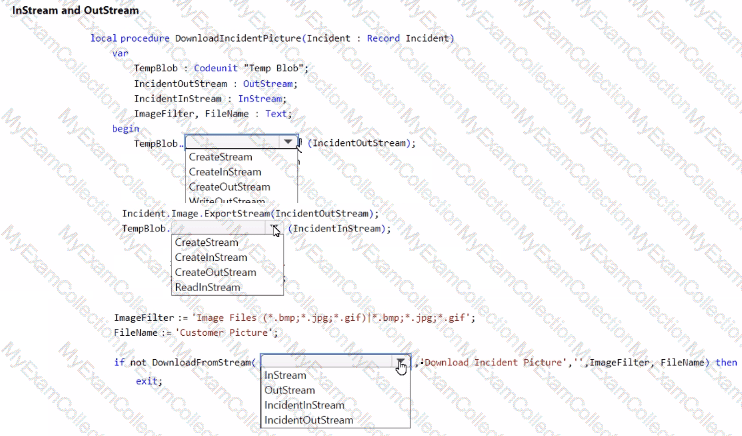

var

TempBlob: Codeunit "Temp Blob";

IncidentOutStream: OutStream;

IncidentInStream: InStream;

ImageFilter, FileName: Text;

begin

// Initialize the TempBlob and streams

TempBlob.CreateOutStream(IncidentOutStream);

Rec.Image.ExportStream(IncidentOutStream); // 'Rec' refers to the current Room Incident record

TempBlob.CreateInStream(IncidentInStream);

// Set the filters and filename for the image

ImageFilter := 'Image Files (*.bmp,*.jpg,*.jpeg,*.gif)|*.bmp;*.jpg;*.jpeg;*.gif';

FileName := 'Customer Picture';

// Prompt the user to download the image

if not DownloadFromStream(IncidentInStream, '', 'Download Incident Picture', '', ImageFilter, FileName) then

Error('Unable to download the image.');

end;

Read Scale-Out:

Read scale-out is a feature in Business Central that allows you to improve performance by distributing read-only queries (such as the ones from the ticketAPI) across multiple read replicas in the cloud database. This reduces the load on the primary database and helps improve the response time for read-intensive operations, like analyzing POS data through the ticketAPI.

Data Access Intent - ReadOnly:

When enabling read scale-out, you can configure the DataAccessIntent property of APIs to be ReadOnly. This directs the system to use read replicas to handle read-only queries, which enhances performance by offloading such queries from the primary database.

Why Not Other Options?

Option A (ODataReadonlyGetEnabled): This parameter is unrelated to read scale-out and primarily affects OData services behavior, not API performance tuning.

Option B (AccessByPermission): Setting the permission to Read does not directly affect the performance. It only controls access based on user permissions.

Option D (DataAccessIntent ReadOnly): While setting this property to ReadOnly helps in read-only operations, enabling read scale-out (option C) ensures the underlying infrastructure is optimized to handle such read operations, which is the fundamental action required.

Reference Documentation:

Read Scale-Out in Business Central

Data Access Intent in AL

In Business Central, fields in tables are assigned specific data types that determine the kind of data they can store. For the Non-conformity table mentioned in the case study, the following data types should be used:

Date for the Non-Conformity Date field: This is because the Non-conformity Date field is required to store only the date when the non-conformity was recorded. The Date data type is appropriate for storing dates without times.

Code for the Non-Conformity Number field: The Non-conformity Number field is described to use alphanumeric values with a format that includes "NC" and the year, like "NC24-001". In Business Central, the Code data type is used for fields that store alphanumeric keys. It is a text field with a limited length, which makes it suitable for number series that contain letters and numbers.

Other options are not suitable:

A. Integer for the Non-conformity Number field: This would not be appropriate because the Non-conformity Number includes alphanumeric characters and not just integers.

B. DateTime for the Non-Conformity Date field: This is not correct because there is no requirement to store the time alongside the date.

C. Char for the Non-Conformity Number field: Char data type is not typically used in Business Central for number series or identifiers. The Code data type is preferred for this purpose.

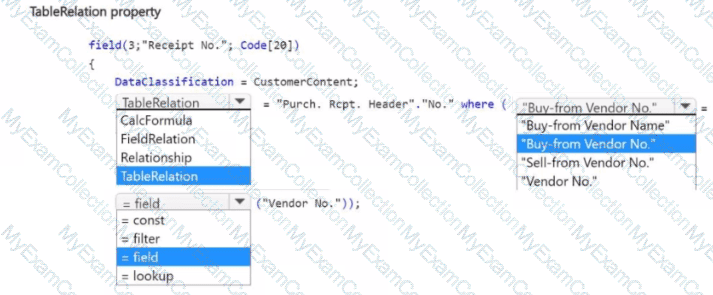

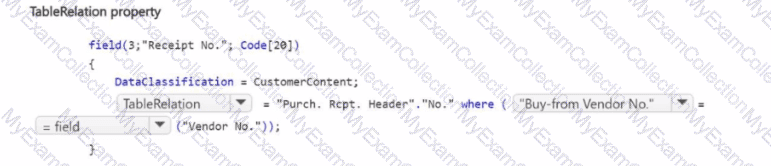

field(3; "Receipt No."; Code[20])

{

DataClassification = CustomerContent;

TableRelation = "Purch. Rcpt. Header"."No." where ("Buy-from Vendor No." = field("Vendor No."));

}

Field Declaration:

The field(3; "Receipt No."; Code[20]) part defines the field in the table with ID 3 and type Code with a length of 20. This field will hold the receipt number.

DataClassification:

CustomerContent is selected for the DataClassification property, which categorizes the data for privacy and compliance management. This aligns with Business Central's recommendations for handling sensitive data in customer-related tables.

TableRelation Property:

The TableRelation property links the "Receipt No." field to another table, which in this case is the "Purch. Rcpt. Header" table. This ensures that only valid receipt numbers from the Purchase Receipt Header table can be selected or entered in this field.

Relation Filter:

The filter condition is applied using the where clause. It ensures that the Receipt No. is only from the Purchase Receipt Header records where the "Buy-from Vendor No." matches the "Vendor No." of the current record.

The condition field("Vendor No.") is selected from the drop-down as shown in the image. This links the vendor information in the non-conformity table to the receipt in the Purchase Receipt Header table.

By linking the "Vendor No." fields, you ensure that only receipt numbers from the correct vendor are available, which improves data consistency and reduces errors during data entry.

References to AL Language:

The TableRelation property is frequently used to create references between tables in Business Central. In this case, the correct relationship between the "Purch. Rcpt. Header" and the Non-conformity table is established using the TableRelation and filter.

Reference Documentation:

AL TableRelation Property

AL Field Syntax

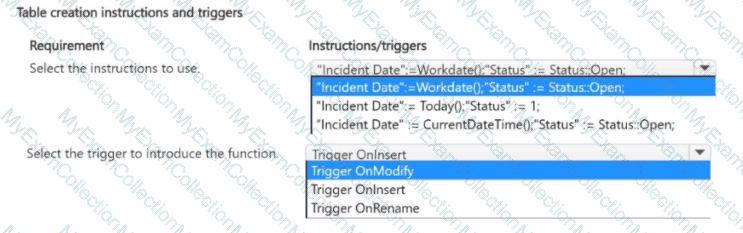

Instructions to use for Incident Date and Status fields:

The correct instruction is "Incident Date" := Workdate(); "Status" := Status::Open;. This ensures that when a new record is created, the Incident Date is set to the current work date, and the Status field is initialized to 'Open'. This is essential for ensuring that the incident data is always timestamped and correctly marked upon creation.

Trigger to introduce the function:

The correct trigger is Trigger OnModify. This trigger ensures that when a record is modified, such as when an update to the status is made (e.g., from Open to Closed), the necessary logic will be executed to handle the update of fields like Incident Date and Status.

Step-by-Step References:

Workdate Function in AL

Triggers in AL

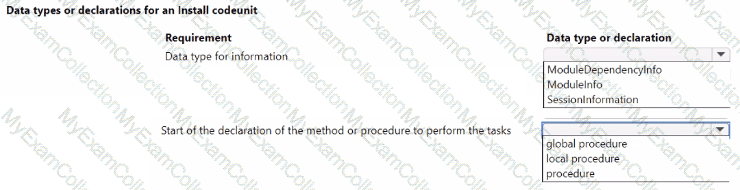

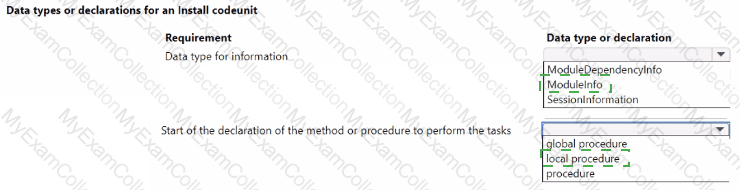

For the Install codeunit required for the extension used for installing or updating the Housekeeping app, you should use the following data type and declaration:

Data type for information: ModuleInfo

Start of the declaration of the method or procedure to perform the tasks: local procedure

In AL language, which is used for developing extensions in Business Central, an Install codeunit is a special type of codeunit that is used to handle installation or upgrade logic for an extension.

ModuleInfo is a data type that contains information about the current extension, such as its version. It is typically used within the OnInstallAppPerCompany or OnUpgradePerCompany triggers of an Install codeunit to determine if the app is being installed for the first time or upgraded.

A local procedure within an Install codeunit is a method that is only accessible within the codeunit itself. It is not visible to other objects or extensions. This is suitable for tasks that are internal to the installation process and should not be exposed globally.

These selections align with the requirements of handling installation and update procedures in a controlled and encapsulated manner within Business Central extensions.

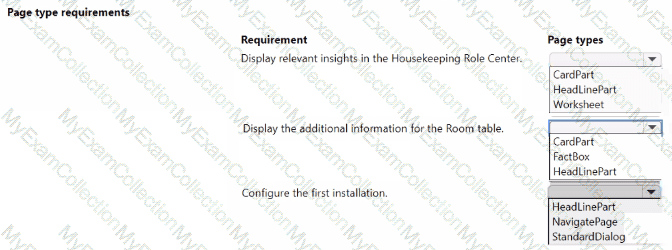

For the requirements provided, the appropriate page types should be selected as follows:

Display relevant insights in the Housekeeping Role Center: HeadlinePart

Display the additional information for the Room table: FactBox

Configure the first installation: StandardDialog

Comprehensive Detailed ExplanationIn the context of Microsoft Dynamics 365 Business Central, page types are crucial for determining how information is presented to the user.

HeadlinePart: This page type is designed to display key data and insights in a concise and visually appealing manner, often used in Role Centers to highlight important information. It is suitable for the Housekeeping Role Center to display relevant insights.

FactBox: This page type is used to display supplementary information related to a selected record in the main part of the page. It's often used to show additional details about a record in a list, card, or document page. In this scenario, it is suitable for showing additional information about a specific Room when viewing the Room table.

StandardDialog: This is a page type that provides a modal dialog for user interaction, commonly used for setup wizards, confirmations, and input forms that require user action before proceeding. This is appropriate for configuring the first installation, where a step-by-step guided interaction is necessary.

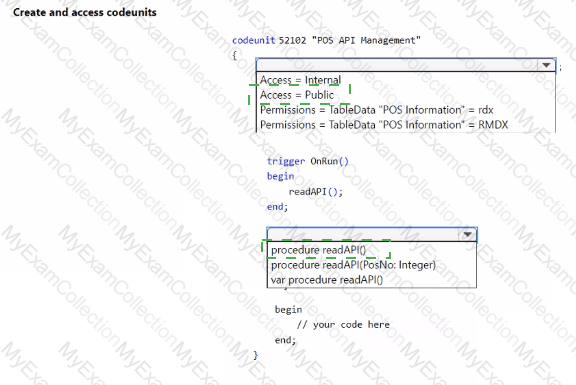

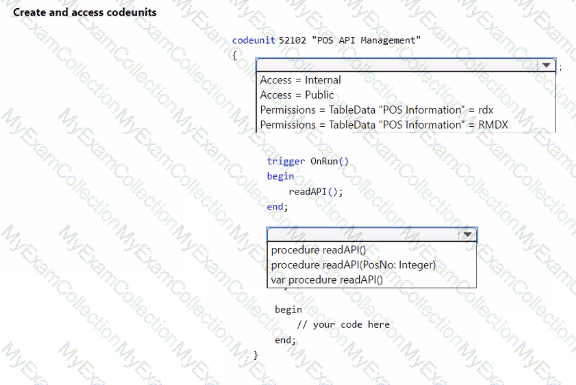

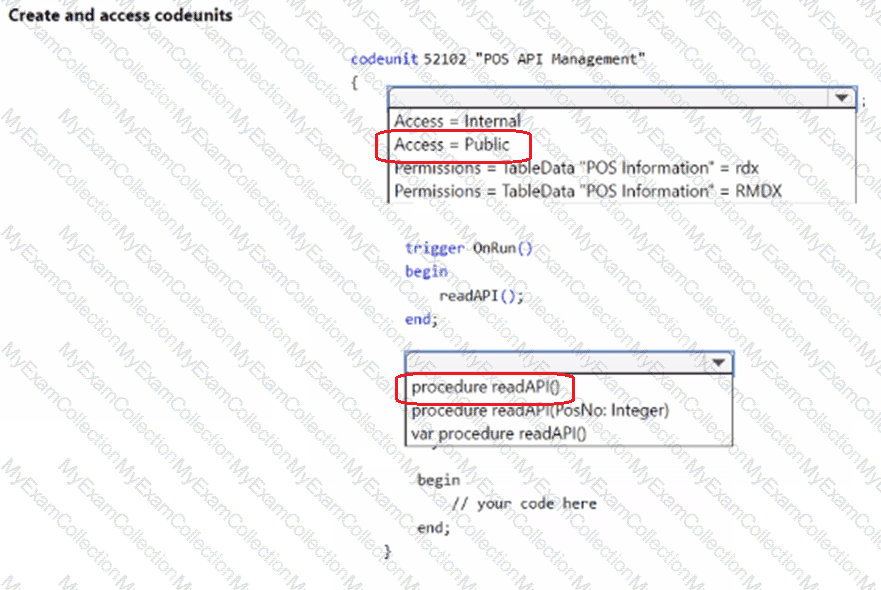

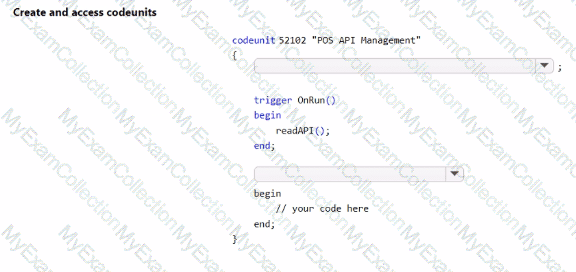

codeunit 52102 "POS API Management"

{

Access = Public;

Permissions = TableData "POS Information" = rwdx;

trigger OnRun()

begin

readAPI();

end;

procedure readAPI()

begin

// Your code here to read from the POS API

end;

}
