JN0-683 Data Center Professional (JNCIP-DC) Exam Question and Answers

DHCP Behavior in Factory-Default Configuration:

Option B:In the factory-default configuration, Juniper switches are designed to send DHCP requests on all operational interfaces. This behavior ensures that the switch can obtain an IP address for management and further configuration from any available DHCP server.

Option D:The DHCP server can provide additional configuration parameters, including the required Junos version. This allows for automated provisioning and ensures that the switch is running the correct software version.

Conclusion:

Option B:Correct—The switch will use any operational interface to request an IP address via DHCP.

Option D:Correct—The DHCP server can specify Junos version requirements, enabling automated software management.

Zero Touch Provisioning (ZTP):

ZTP allows for the automated configuration of network devices, like QFX Series switches, without manual intervention. During ZTP, a switch will obtain its configuration from a DHCP server and then download the required software and configuration files from a specified server (e.g., FTP, HTTP).

DHCP Server Configuration:

Option B:The DHCP server needs to know theMAC address for each QFX5120to provide a specific configuration based on the device identity. By mapping the MAC address to a particular configuration, the DHCP server can ensure that each switch gets the correct configuration.

Option D:Themanagement IP address for each QFX5120must also be assigned by the DHCP server. This IP address allows the device to communicate on the network and access the configuration files and other required resources during the ZTP process.

Conclusion:

Option B:Correct—MAC addresses allow the DHCP server to identify each QFX5120 and assign the appropriate configuration.

Option D:Correct—Management IP addresses are essential for network communication during ZTP.

Understanding EBGP in an IP Fabric:

EBGP (External Border Gateway Protocol) is commonly used in IP fabrics to establish peering between routers, such as leaf and spine nodes, without relying on an Interior Gateway Protocol (IGP) like OSPF or IS-IS.

IGP Requirement for EBGP:

Option B:EBGP peering does not require an IGP for adjacency establishment. This is because EBGP peers are typically directly connected, and BGP establishes its own sessions without needing an underlying IGP.

Leaf-to-Spine Peering:

Option C:In a typical IP fabric, each leaf node establishes an EBGP session with every spine node. This ensures full connectivity between leaves and spines, facilitating efficient routing and forwarding within the fabric.

Conclusion:

Option B:Correct—EBGP does not require an IGP for establishing peering sessions.

Option C:Correct—Each leaf node peers with every spine node, which is a standard practice in IP fabrics to ensure connectivity and redundancy.

VXLAN Traffic Verification:

To ensure VXLAN traffic from the xe-0/0/12 interface is correctly encapsulated by the logical vtep.32770 and sent to a remote leaf device, it is essential to monitor the relevant interface statistics.

The command show interfaces terse vtep.32770 statistics provides a concise overview of the traffic statistics for the specific VTEP interface, which can help verify whether traffic is being correctly encapsulated and transmitted.

Explanation:

This command is particularly useful for quickly checking the traffic counters and identifying any potential issues with VXLAN encapsulation or transmission.

It allows you to confirm that traffic is flowing as expected, by checking the transmitted and received packet counters.

Data Center References:

Monitoring interface statistics is a crucial step in troubleshooting and validating network traffic, particularly in complex overlay environments like EVPN-VXLAN.

BGP in IP Fabric:

In an IP fabric, Border Gateway Protocol (BGP) is used to manage the routing between leaf and spine devices. Each device can have the same or different Autonomous System (AS) numbers depending on the network design.

Multipath Multiple-AS:

Option B:If every device in the fabric has a different AS number, then enabling Equal-Cost Multi-Path (ECMP) routing requires the multipath multiple-as statement. This configuration allows BGP to consider multiple paths across different AS numbers as equal cost, enabling efficient load balancing across the network.

Same AS Number Configuration:

Option A:It's possible for all leaf devices to use the same AS number in an IP fabric, which simplifies the configuration. EBGP (External BGP) will still function correctly in this setup because BGP considers the peering relationship rather than strictly enforcing different AS numbers in this specific use case.

Conclusion:

Option B:Correct—This statement is essential for enabling ECMP in a multi-AS environment.

Option A:Correct—Leaf devices can share the same AS number without needing special EBGP configuration.

ERB Architecture in EVPN-VXLAN:

ERB (Edge Routed Bridging) architecture is commonly used in data center networks where routing decisions are made at the network edge (leaf or border devices), while bridging (Layer 2 forwarding) is extended across the fabric. This architecture allows for efficient L3 routing while still enabling L2 services like VLANs to span across multiple locations.

VLAN and VNI Configuration:

The scenario specifies that a server on the Red VLAN needs to communicate with a server on the Green VLAN. Since these VLANs are in different data centers (DC and DC2), and given the use of EVPN-VXLAN, the communication between these VLANs will require atransit VNI(Virtual Network Identifier). This transit VNI will allow traffic to traverse the VXLAN tunnel across the DCI (Data Center Interconnect).

Interconnect between SRX Series Devices:

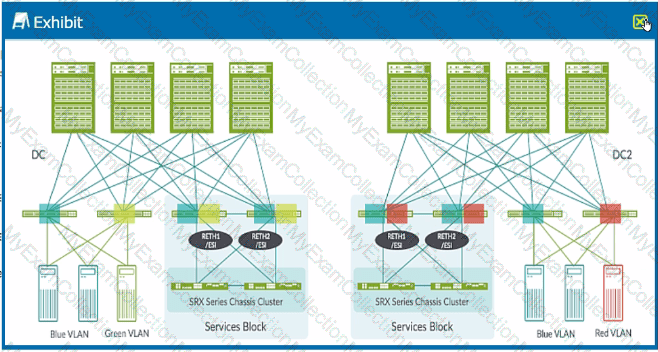

The exhibit shows SRX Series Chassis Clusters used as service devices (likely for firewalling or other security services). These devices need to be interconnected between the two data centers to ensure that VLANs can communicate effectively. The Blue VLAN needs to be stretched between DC and DC2 to maintain the same Layer 2 domain across both data centers.

Conclusion:

Option B:Correct—Interconnecting the SRX Series devices will ensure the necessary service chaining, while stretching the Blue VLAN and adding a transit VNI for the Red and Green VLANs will enable the required communication across the data centers.

Understanding Seamless Stitching:

Seamless stitching is used in EVPN to interconnect two data centers, allowing for consistent Layer 2 and Layer 3 connectivity across them. This is often achieved by translating VNIs (Virtual Network Identifiers) between the data centers.

Translation-VNI:

Option B:The translation VNI must be different in each data center to ensure that traffic can be correctly routed and distinguished as it crosses between the data centers. This differentiation helps to maintain the integrity of the traffic flows and prevents any potential overlap or conflict in VNIs.

Ethernet Segment Identifier (ESI):

Option D:The ESI must match in both data centers to ensure that the same Ethernet segment (which could be multihomed) is recognized consistently across the datacenters. Matching ESIs are crucial for maintaining a unified view of the Ethernet segment across the interconnected fabric.

Conclusion:

Option B:Correct—Translation VNIs must be unique to each data center for proper traffic distinction.

Option D:Correct—Matching ESIs are necessary to maintain consistent Ethernet segment identification across both data centers.

Understanding sFlow Monitoring:

sFlow is a packet sampling technology used to monitor traffic in a network. It sends sampled packet data and interface counters to an sFlow collector, which analyzes the traffic patterns.

Information Included in sFlow Datagram:

Option A:The datagram sent to the sFlow collector includes information about the interface through which the packets entered the agent (the switch or router). This is crucial for understanding where in the network the traffic was captured.

Option D:sFlow datagrams also include the source and destination VLAN for the sampled packets. This allows for detailed analysis of the traffic flow within different VLANs.

Conclusion:

Option A:Correct—The ingress interface is included in the sFlow datagram.

Option D:Correct—The source and destination VLANs are also included, providing context for the sampled traffic.

Controlling Traffic Within a Tenant's Network:

The requirement is to limit access to specific traffic types within a tenant’s network without routing all tenant traffic through a firewall. This requires a selective method that can direct specific types of traffic to different paths based on the nature of the traffic.

Filter-Based Forwarding (FBF):

FBF is a technique that allows for routing decisions based on filters applied to the traffic, such as matching on source IP addresses, destination IP addresses, or even specific application types (like HTTP or FTP). This allows specific types of traffic to be forwarded to a specific next hop (e.g., a firewall) without affecting the entire traffic flow within the tenant's network.

Conclusion:

Option B:Correct—Filter-based forwarding allows for granular control of traffic, ensuring that only specific types of traffic within the tenant's network are redirected through a firewall, satisfying the requirement.

ï‚· Understanding the Problem:

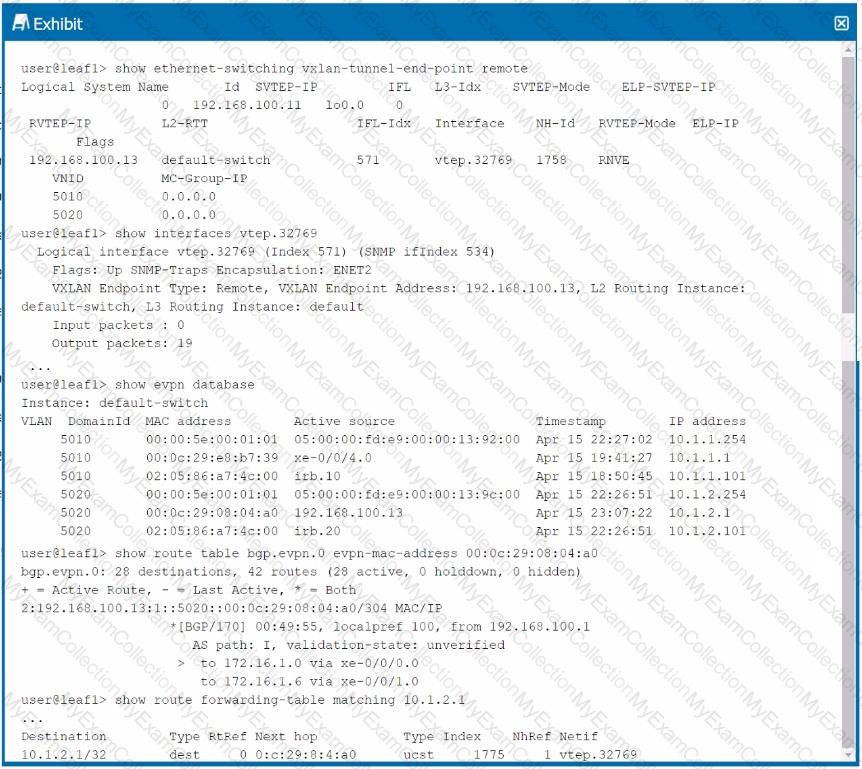

Host1 (10.1.1.1) is failing to communicate with Host2 (10.1.2.1) within an EVPN-VXLAN environment using ERB architecture.

ï‚· Analysis of the Exhibit:

The provided output includes information from the show route forwarding-table matching command for IP 10.1.2.1. The next hop is shown as vtep.32769, which indicates that the traffic destined for 10.1.2.1 is being forwarded into the VXLAN tunnel with the correct VTEP (VXLAN Tunnel Endpoint).

ï‚· Conclusion:

Option B:Correct—The traffic from Host1 is entering the VXLAN tunnel, as evidenced by the next hop pointing to a VTEP. However, the issue could lie elsewhere, possibly with the remote VTEP, routing configurations, or the receiving leaf/spine devices.

Understanding Pure IP Fabric:

A pure IP fabric is a network design where all devices operate at Layer 3, meaning that each device in the fabric is a router that makes forwarding decisions based on IP addresses.

Layer 2 Support:

In a pure IP fabric, traditional Layer 2 protocols such as Spanning Tree Protocol (STP) or VLANs are not supported. Instead, the network relies entirely on Layer 3 routing protocols to manage traffic between devices.

Routing Functionality:

Since devices in an IP fabric operate as Layer 3 routers, they handle IP routing and provide network services based on IP addresses, not on MAC addresses or Layer 2 switching.

Conclusion:

Option A:Correct—Devices in an IP fabric function as Layer 3 routers.

Option D:Correct—A pure IP fabric does not support traditional Layer 2 protocols, making it a purely routed environment.

Step 1: Understand the Configuration in the Exhibit

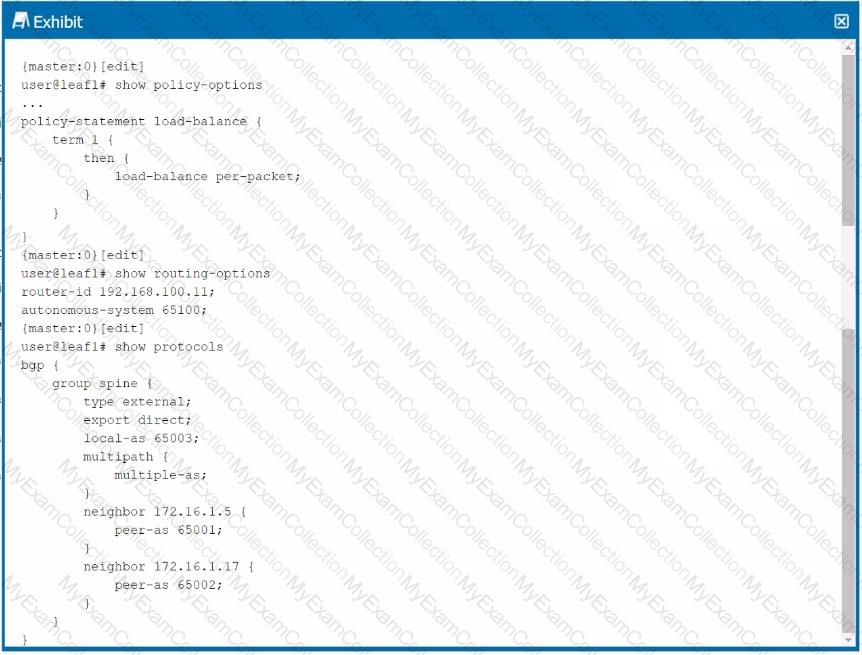

The exhibit provides three configuration snippets from a leaf device (user@leaf#):

Policy Options:

user@leaf# show policy-options

policy-statement load-balance {

term 1 {

then {

load-balance per-packet;

}

}

}

A policy named load-balance is defined, which applies the load-balance per-packet action. In Juniper terminology, per-packet actually means per-flow load balancing (a common point of confusion). This policy is intended to enable load balancing across multiple paths.

Routing Options:

user@leaf# show routing-options

router-id 192.168.100.11;

autonomous-system 65100;

The router ID is set to 192.168.100.11, and the autonomous system (AS) number is 65100. There’s no mention of applying the load-balance policy here, which is a clue to the issue.

BGP Configuration:

user@leaf# show protocols

bgp {

group spine {

type external;

export direct;

local-as 65003;

multipath {

multiple-as;

}

neighbor 172.16.1.5 {

peer-as 65001;

}

neighbor 172.16.1.17 {

peer-as 65002;

}

}

}

BGP is configured with an external group spine, where the leaf device (local AS 65003) peers with spine devices (AS 65001 and 65002).

The multipath multiple-as statement is enabled, which allows BGP to install multiple paths for the same prefix in the routing table, even if the paths come from different AS numbers. This is a prerequisite for load balancing in a multi-AS environment like an IP fabric.

The export direct policy is applied, which likely exports directly connected routes to the spine devices.

Step 2: Identify the Problem

The issue is that traffic from the leaf to the spine devices is not being load-balanced, despite the presence of a load-balance policy and BGP multipath. For load balancing to work in this scenario:

BGP multipath ensures multiple paths are installed in the routing table.

The load-balance per-packet policy is meant to distribute traffic across those paths.

However, the load-balance policy is defined but not applied anywhere in the configuration shown. For load balancing to take effect, the policy must be applied in the correct context.

Step 3: Evaluate the Options

Let’s go through each option to determine the correct solution:

A. The load-balance policy must be applied to the forwarding table under the routing-options hierarchy.

In Junos, to enable load balancing across multiple paths for forwarding, the load-balance policy must be applied at the forwarding table level. This is done under the routing-options hierarchy using the forwarding-table export statement. For example:

set routing-options forwarding-table export load-balance

This ensures that the load-balancing policy is applied to the forwarding table, allowing traffic to be distributed across multiple equal-cost paths installed by BGP.

B. The multipath multiple-as configuration must be configured for each peer in the BGP spine group.

The multipath multiple-as statement is already configured under the spine group, and it applies to all neighbors in that group (172.16.1.5 and 172.16.1.17). There’s no need to configure it per peer, as the group-level configuration is sufficient. This option is incorrect because the required setting is already in place.

C. The load-balance policy must be applied as an export policy to your BGP.

Applying the load-balance policy as a BGP export policy (e.g., export load-balance under the BGP group) would affect the routes advertised to the spine devices. However, the load-balance per-packet action is a forwarding action, not a route advertisement action. Applying it as a BGP export policy would not achieve the desired load balancing for traffic forwarding and is incorrect.

D. The load-balance policy must have a from statement that matches on protocol bgp.

The load-balance policy currently applies the load-balance per-packet action unconditionally (no from statement). Adding a from protocol bgp condition would make the policy apply only to BGP routes, but this is unnecessary in this context. The policy needs to be applied to the forwarding table to affect traffic, not modified with a from statement. This option doesn’t address the core issue of applying the policy.

Step 4: Determine the Correct Answer

The key issue is that the load-balance policy is defined but not applied. For load balancing to work, it must be applied to the forwarding table under routing-options. This matchesOption A:

A. The load-balance policy must be applied to the forwarding table under the routing-options hierarchy.

Step 5: Provide Official Juniper Documentation Reference

Since I don’t have direct access to Juniper’s proprietary documents, I can provide an explanation based on standard Junos documentation practices and publicly available resources, such as the Juniper TechLibrary, which is the official source for Junos configuration guides.

In Juniper’s official documentation, specifically in theJunos OS Routing Protocols and Policies Configuration Guide, the process for enabling load balancing is described as follows:

Load Balancing in Junos: To enable per-flow load balancing across multiple paths, you must define a policy with the load-balance per-packet action and apply it to the forwarding table. The relevant configuration hierarchy is:

routing-options {

forwarding-table {

export ;

}

}

Explanation from Documentation: The load-balance per-packet action (which performs per-flow balancing) requires the policy to be applied at the forwarding-table level to influence how traffic is distributed across multiple paths in the forwarding table. Without this, even if BGP installs multiple paths (via multipath), the forwarding engine will not load-balance traffic.

This aligns with the JNCIP-DC exam objectives, which include understanding how to configure and troubleshoot load balancing in an IP fabric, such as applying policies for traffic distribution.

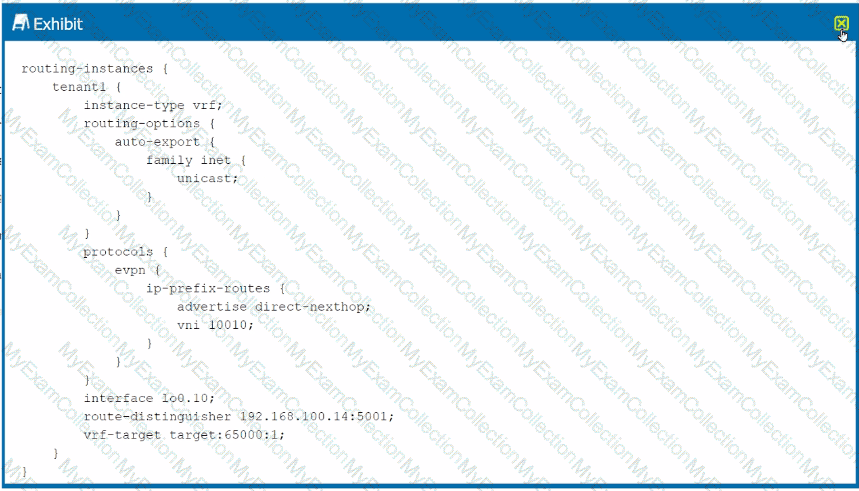

In this scenario, you want the border leaf device to advertise Type 5 EVPN routes to another border leaf in a different data center. Type 5 routes in EVPN are used to advertise IP prefixes, which means that for proper route advertisement, you need to configure the correct settings within the evpn hierarchy.

Step-by-Step Analysis:

Understanding EVPN Type 5 Routes:

EVPN Type 5 routes are used to advertise IP prefixes across EVPN instances, which allow different data centers or networks to exchange routing information effectively.

VRF Target Setting:

The vrf-target configuration is crucial because it defines the export and import policies for the VRF within the EVPN instance. For EVPN Type 5 routes to be advertised to other border leaf devices, the vrf-target needs to be correctly configured under the evpn hierarchy, not just within the routing instance.

Command to solve this:

move vrf-target target:65000:1 to evpn

Other Options:

Option B:Adding a VLAN configuration would not address the requirement to advertise Type 5 routes.

Option C:Adding VXLAN encapsulation may be necessary for other scenarios but does not directly address the Type 5 route advertisement.

Option D:Changing the route-distinguisher will differentiate routes but does not impact the advertisement of Type 5 routes to other data centers.

By moving the vrf-target to the evpn hierarchy, you enable the proper route advertisement, ensuring that the Type 5 routes for local networks are shared with other data center border leaf devices. This is aligned with best practices for multi-data center EVPN implementations, which emphasize the correct placement of routing policies within the EVPN configuration.

Understanding the Scenario:

EVPN-VXLAN deployments often involve scenarios where multiple tenants or applications require overlapping VLAN IDs, which can be managed using the mac-vrf routing instance type. This allows you to segregate traffic within the same VLAN ID across different tenants.

Host-facing Interface Configuration:

A. Host-facing interfaces must be configured using a service-provider style configuration:This is correct. In mac-vrf configurations, host-facing interfaces (those connecting end devices) typically follow a service-provider style configuration, where each customer or tenant's traffic is isolated even if overlapping VLAN IDs are used.

B. Host-facing interfaces must be configured using enterprise-style configuration:This is incorrect for mac-vrf instances because enterprise-style configurations are more common in simpler, less segmented networks.

Routing Instance Service Type:

D. The routing-instance service type can be VLAN-based:This is correct. The service type in mac-vrf can indeed be VLAN-based, which is particularly useful in scenarios where VLAN ID overlap is needed between different tenants or services.

Data Center References:

The mac-vrf instance type is powerful for handling complex multi-tenant environments in EVPN-VXLAN, especially when dealing with overlapping VLAN IDs across different segments of the network.

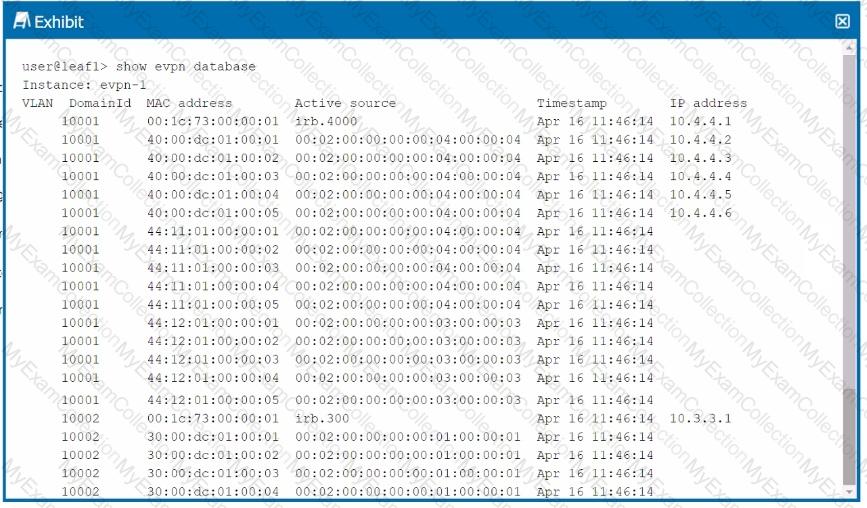

Understanding the Output:

The show evpn database command output shows the MAC address, VLAN, active source, timestamp, and IP address associated with various hosts in the EVPN instance.

Analysis of the MAC Address:

Option A:The MAC address 40:00:dc:01:00:04 is associated with the IP address 10.4.4.5, as indicated by the output in the IP address column. This confirms that this host has been assigned the IP 10.4.4.5.

Option D:The active source for the MAC address 40:00:dc:01:00:04 is listed as 00:02:00:00:00:04:00:04:00:00:04:00:04, which indicates that the host is connected via an ESI (Ethernet Segment Identifier) LAG (Link Aggregation Group). This setup is typicallyused in multi-homing scenarios to provide redundancy and load balancing across multiple physical links.

Conclusion:

Option A:Correct—The host with MAC 40:00:dc:01:00:04 is assigned IP 10.4.4.5.

Option D:Correct—The host is originating from an ESI LAG, as indicated by the active source value.

Load Balancing in VXLAN:

VXLAN uses UDP encapsulation to transport Layer 2 frames over an IP network. For load balancing across Equal-Cost Multi-Path (ECMP) links, various fields in the packet can be used to ensure even distribution of traffic.

Key Load Balancing Fields:

C. The source port in the UDP header is used to load balance VXLAN traffic:This is correct. The source UDP port in the VXLAN packet is typically calculated based on a hash of the inner packet's fields. This makes the source port vary between packets, enabling effective load balancing across multiple paths.

D. The inner packet fields are used in the hash for load balancing:This is also correct. Fields such as the source and destination IP addresses, source and destination MAC addresses, and possibly even higher-layer protocol information from the inner packet can be used to generate the hash that determines the ECMP path.

Incorrect Statements:

A. The inner packet fields are not used in the hash for load balancing:This is incorrect as the inner packet fields are indeed critical for generating the hash used in load balancing.

B. The destination port in the UDP header is used to load balance VXLAN traffic:This is incorrect because the destination UDP port in VXLAN packets is typically fixed (e.g., port 4789 for VXLAN), and therefore cannot be used for effective load balancing.

Data Center References:

Effective load balancing in VXLAN is crucial for ensuring high throughput and avoiding congestion on specific links. By using a combination of the source UDP port and inner packet fields, the network can distribute traffic evenly across available paths.
