JN0-232 Security, Associate (JNCIA-SEC) Question and Answers

Intra-zone traffic: On SRX devices, traffic between interfaces in the same security zone is allowed without requiring a security policy (Option C is correct). Policies are only evaluated for inter-zone traffic.

Junos-host functional zone: This zone is a predefined functional zone that allows administrators to apply policies controlling access to the SRX firewall itself, such as SSH, HTTP, or SNMP traffic (Option D is correct).

Null zone: This zone is a predefined discard zone. Interfaces placed in the null zone drop all traffic. It does not allow policy logging of dropped control plane traffic (Option A is incorrect).

Management functional zone: This is used to define management interfaces, not the “functional zone” as stated in Option B (incorrect wording).

Correct Statements: C and D

The Packet Forwarding Engine is the forwarding-plane component responsible for high-speed packet handling. Juniper documentation states that the PFE performs Layer 2 and Layer 3 packet switching, route lookups, and packet forwarding. This makes option A correct because transit traffic is forwarded by the PFE rather than by the control plane. The Routing Engine manages and programs the PFE by building routing information and copying the forwarding table to the PFE, making option B correct. Option C reverses the relationship and is therefore incorrect. Option D is also incorrect because routing tables are created and maintained by the Routing Engine and routing protocol processes; the resulting forwarding information is then installed into the PFE for packet forwarding.

SRX devices operate on a default deny-all policy if no explicit match is found:

If a packet does not match any configured zone-based or global policy, it is implicitly denied.

The traffic is discarded silently by the default security policy (Option A).

Option B: No predefined “safe zone” exists.

Option C: Logging occurs only if explicitly configured; default deny does not automatically log traffic.

Option D: Incorrect, since the firewall defaults to deny, not permit.

Correct Behavior: Traffic is discarded by the default security policy.

Functional zones (e.g., junos-host, management, null) are not used for forwarding transit traffic. They are used to manage traffic destined to or from the SRX device itself.

Option A: Correct. If traffic enters through a functional zone interface, it is meant for the SRX, not for transit, so it cannot exit another interface.

Option D: Correct. Transit interfaces handle forwarding traffic, but they cannot send that traffic out through a functional zone interface.

Option B and C: Incorrect, because functional zones are strictly control-plane, not transit forwarding zones.

Correct Statements: A and D

The incoming packet shown in the exhibit uses destination port 80, which represents HTTP traffic. The policy table contains entries for FTP, SSH, HTTPS, and ping before the final policy. Because the packet does not match FTP, SSH, HTTPS, or ping, it continues down the ordered policy list until it reaches the final any-any-any deny rule. Junos security policies are evaluated in order, and the first matching policy determines the action for the traffic. This makes option D correct. Since the final matching rule denies the packet, option C is also correct. The packet is not permitted by HTTPS because HTTPS uses TCP destination port 443, not port 80.

RFC 1918 defines three private IPv4 blocks:

10.0.0.0/8

172.16.0.0/12

192.168.0.0/16

Option A exactly matches these ranges in a single source NAT rule, replacing numerous per-subnet entries.

Options B and C contain invalid/non-RFC1918 networks (e.g., 192.16.0.0/12, 172.168.0.0/16).

Option D incorrectly adds documentation network 192.0.2.0/24 , which is not RFC1918.

The correct command is show security utm web-filtering status. This operational mode command verifies whether the web-filtering service connection is up. For NGWF, the SRX sends URL or destination IP information to the Juniper NGWF cloud, where the URL is categorized and reputation information is returned to the device. Because NGWF depends on cloud connectivity, checking web-filtering status is the appropriate troubleshooting and verification step. The anti-spam and anti-virus status commands verify different Content Security services, and content-filtering statistics show content-filter counters rather than cloud web-filtering connectivity. Juniper documentation also notes that this command can confirm whether web filtering is down because of a missing license or service condition.

Unified security policies integrate traditional zone-based policies with application-based policies . Their characteristics include:

Zone-based or global (Option B): Unified policies can be applied as either zone-specific or global policies.

AppID engine (Option C): They leverage the AppID engine for application identification, enabling fine-grained control at the application layer.

Policy matching (Option A): Policies are evaluated sequentially like standard security policies; applications are not matched before policy processing.

Multiple matches (Option D): If multiple policies could match, the first match applies (sequential order), not the “most restrictive.”

Correct Statements: B and C

The Juniper SRX antispam feature checks messages in a specific order when both local lists and the SBL server are used.

The processing order is:

Local allowlist is checked first. If there is a match, the message is allowed, and no further antispam checking is performed.

Local blocklist is checked second. If there is a match, the configured spam action is applied.

Spam Block List (SBL) server is checked last. If the sender is not found in the local allowlist or blocklist, the SRX queries the SBL server.

Therefore, the correct processing order is:

allowlist → blocklist → Spam Block List (SBL) server

Junos OS is the core operating system used across Juniper routing, switching, and security platforms, including SRX Series Firewalls. It is not a separate network management system; management platforms such as Security Director are used for centralized security administration. Juniper describes Junos OS as the single operating system powering a broad portfolio of physical and virtual networking and security products. Therefore, option A is correct because Junos OS is a network operating system, and option B is correct because Juniper supports it across physical platforms and virtualized deployments. Options C and D are incorrect because they narrow Junos OS to management or IoT-only use cases, which does not match Juniper’s architecture.

To verify and demonstrate the effectiveness of content filtering on an SRX firewall, administrators use operational mode commands that display UTM statistics.

The command show security utm content-filtering statistics provides detailed counters showing how many connections were inspected, how many were blocked, and other related metrics.

This is the correct way to measure and demonstrate filtering effectiveness.

Commands in options A, B, and C provide status information for antispam, antivirus, and web filtering features, but they do not provide content filter effectiveness statistics.

Unified security policies (USPs) provide integrated application-aware controls using AppID and extend traditional zone-based policy enforcement.

Option A: Correct. If traffic matches a unified security policy, it is not re-evaluated by traditional security policies. Unified policies take precedence for matched flows.

Option B: Incorrect. Traditional policies rely on Layer 3/4 attributes. Unified policies go deeper by leveraging AppID, which inspects traffic up to Layer 7.

Option C: Incorrect. Traffic matching a traditional policy is unaffected by unified policy unless unified mode is explicitly configured for those flows.

Option D: Correct. Dynamic application recognition in unified policies uses Layer 7 (application-layer) inspection via AppID.

Correct Statements: A and D

The management functional zone on SRX devices is a special predefined zone with unique characteristics:

It is automatically created (Option C) and cannot be deleted.

It is used specifically for management-related traffic (Option A), such as SSH, Telnet, web management (J-Web), SNMP, and other control-plane services.

It does not contain revenue (data) interfaces (Option B is incorrect). Interfaces must be explicitly configured into user-defined zones.

The management zone can be referenced in policies if inter-zone communication involving management traffic is needed (Option D is incorrect).

Correct Statements: A and C

Option B: Correct. Interfaces in the same security zone must belong to the same routing instance; zones cannot span multiple routing instances.

Option D: Correct. A security zone can contain multiple interfaces, allowing grouping of similar trust levels (e.g., multiple LAN subnets in a trust zone).

Option A: Incorrect. An interface can belong to only one zone at a time.

Option C: Incorrect. Interfaces within the same zone cannot be split across routing instances.

Correct Statements: Interfaces in the same zone must share the same routing instance, and a zone can contain multiple interfaces.

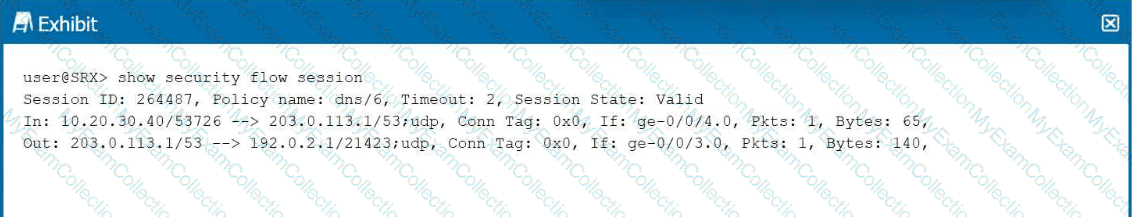

The session output shows the original flow entering with source address 10.20.30.40 and destination address 203.0.113.1. The return or translated side shows the source address represented as 192.0.2.1 while the destination address remains 203.0.113.1. This indicates source NAT behavior because the original source IP address is translated to a new source IP address. There is no destination NAT in the exhibit because the destination IP address does not change. In Junos source NAT, the firewall translates the source address, commonly to an interface address or address pool, while preserving the destination address unless another NAT type is also configured. Therefore, the correct statements are that the destination remains unchanged and the source address is translated.

Zone-based security policies are configured in a context that includes both a source zone and a destination zone. Juniper describes this policy context as from-zone to to-zone, and traffic is classified by matching source zone, destination zone, source address, destination address, and application. Option B is therefore correct. Screens are applied earlier in flow processing than policy evaluation, so option A is incorrect. Security policy lookup is part of first path processing when a session is created; once the session exists, fast path traffic normally follows the established session rather than re-evaluating policy for every packet. Option D is also incorrect because zone-based policies can apply to both intra-zone and inter-zone traffic, depending on the configured context.

Avira Antivirus is an on-device antivirus scan engine used by Juniper Content Security on supported SRX Series Firewalls. Juniper documentation states that you must install and activate the Avira Antivirus scan engine and verify that you have an Avira antivirus license before using it. The documentation also states that after configuring Avira as the antivirus type, the device must be rebooted for the new scan engine to take effect. Therefore, a license is required and a reboot is required. Options B and D are incorrect because they contradict Juniper’s Avira Antivirus configuration requirements. After Avira is enabled, Content Security policies and antivirus profiles can be applied to security policies for protocol traffic inspection.

When traffic enters an SRX Series Firewall, the ingress interface determines the source security zone because that interface is already bound to a zone. The route lookup is then used to determine where the packet should leave the device. Juniper documentation explains that the packet’s outgoing zone is determined by the forwarding lookup, and together the incoming zone and outgoing zone determine which security policy context is used. Therefore, the route lookup determines the egress interface and, indirectly through the egress interface’s zone membership, the egress security zone. It does not determine the ingress interface because the packet has already arrived on that interface. It also does not determine a DNS name; DNS resolution is unrelated to SRX route lookup and security zone selection.

The highlighted portion in the exhibit is:

then {

permit;

}

In Junos OS security policy configuration, the then statement defines the policy action . The action tells the SRX Series Firewall what to do with traffic after it matches the policy conditions.

A security policy normally contains these major components:

Zone context: from-zone Trust to-zone Untrust

Policy name: policy Permit-HTTP

Match criteria: source address, destination address, and application

Policy action: then permit, then deny, or then reject

In the exhibit, the highlighted section is not the zone context, policy name, or match criteria. It is the action section that permits the matched HTTP traffic.

SRX Series devices provide content security features that rely on advanced identification mechanisms. File identification is not based merely on file extensions (which can be easily spoofed), but instead on deep inspection techniques :

AppID (Application Identification): AppID is part of the AppSecure suite, allowing the device to classify applications and content regardless of port or protocol. This enables the SRX to detect applications and their related content for enforcement.

Protocol-based file type identification: The SRX can recognize and identify file types embedded within HTTP, FTP, and e-mail (SMTP, IMAP, POP3) protocols . This provides accurate content inspection and filtering, independent of file naming conventions.

Why not the others?

File extensions (Option A) are not reliable for content security, so SRX does not use them.

ALGs (Option D) are used for protocol handling, such as SIP or FTP control channels, not for content identification.

Application sets are used to group multiple predefined or custom applications under one named object. Juniper documentation states that an application or application set can be referenced by security policies as match criteria for session-initiating packets. This allows administrators to simplify policy configuration by matching one application-set object instead of listing many individual applications. It also improves operational flexibility: if several policies reference the same application set, you can change the applications in that set without directly editing every policy rule. Application sets do not organize addresses; address sets perform that role. They also do not directly open dynamic ports during a session; that behavior is associated with application-level gateways and protocol handling, not the purpose of an application set.

When source NAT uses a pool of addresses from the same subnet as the egress interface , the firewall must respond to ARP requests for those NAT pool IPs. Without this, upstream devices would not know how to forward traffic destined for those IPs.

Proxy ARP is required (Option D). It enables the SRX to answer ARP requests on behalf of the NAT pool addresses.

Static NAT (Option A) is unrelated and maps one-to-one, not required here.

Dynamic DNS (Option B) has no relation to NAT pools.

Destination NAT (Option C) applies to inbound translations, not outbound source NAT pools.

Correct Feature: Proxy ARP

Juniper security address objects are defined in address books and are used by features such as security policies and NAT. A global address object is valid because Junos supports a global address book that is available across security zones without attaching it to a specific zone. A prefix address object is also valid because Juniper allows addresses to be specified in network prefix format, such as 203.0.113.0/24. Routing address object is not a standard Junos security address-book object type. MAC address object is not the normal address object used for SRX security policy address matching, which primarily uses IPv4, IPv6, DNS, wildcard, and address-range entries.

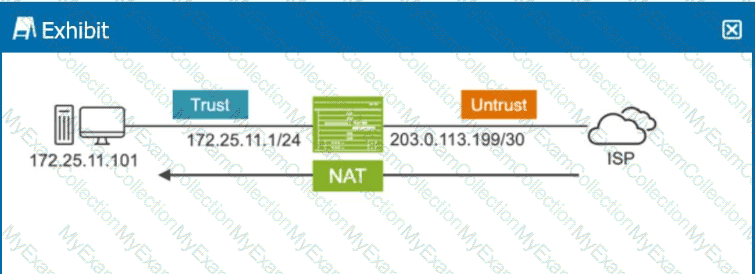

From the exhibit:

The internal host (172.25.11.101) is located in the Trust zone .

The external address (203.0.113.199/30) is used for communication with the ISP.

The requirement is that sessions can only be initiated from the external device (the ISP or untrust side) toward the internal host.

This requirement matches the behavior of Destination NAT :

Destination NAT only (Option A): Maps the external/public IP (203.0.113.199) to the internal/private IP (172.25.11.101). This allows inbound connections to be translated and sent to the internal host. The internal host cannot initiate outbound sessions, since the translation only applies to inbound traffic.

Source NAT only (Option B): Used for outbound sessions from internal private IPs to the Internet. This does not meet the requirement.

Static PAT (Option C): Maps a single port of a public IP to a private IP/port. The exhibit does not indicate a port-based translation.

Static NAT and source NAT (Option D): Would provide bidirectional communication, allowing sessions to be initiated in both directions. This contradicts the requirement.

Correct NAT Type: Destination NAT only

Static NAT creates a fixed one-to-one mapping between real and mapped addresses. Juniper documentation describes static NAT as mapping one IP subnet to another IP subnet and states that translation is limited to one-to-one mappings or address blocks of the same size. This makes option A correct. Juniper also states that no address pools are necessary for static NAT, which makes option C correct. Address pools are commonly associated with source NAT or destination NAT pool configurations, not the basic static NAT mapping model. Static NAT can support static port mapping in specific configurations, but the general static NAT behavior tested here is one-to-one address translation, not dynamic PAT. Therefore, the correct answers are A and C.

To enable Juniper NextGen Web Filtering, the SRX must have the required NGWF license and the web-filtering type must be configured for NGWF. Juniper documentation states that Enhanced Web Filtering and NGWF require separate licenses and that NGWF can use the wf_key_ng_juniper license key. Juniper also documents NGWF as a configurable web- filtering type, including ng-juniper, and notes that administrators can confirm missing license conditions using the web-filtering status command. A public IP address on the loopback interface is not a general NGWF requirement. SSL host inbound traffic on the untrust zone is also not required for enabling NGWF; SSL proxy or SNI behavior may affect HTTPS inspection, but it is not the base enablement step.

Static NAT: Provides a one-to-one bidirectional mapping between internal and external IP addresses. When configured, the translation automatically applies in both directions (Option A is correct). It does not use Port Address Translation (Option C is incorrect).

Destination NAT: Allows external clients to access internal resources by translating the destination address. It supports port forwarding so specific services (e.g., HTTP on port 80) can be forwarded to an internal host (Option D is correct). It does not require equal-sized address ranges (Option B is incorrect).

Correct Characteristics: Static NAT is bidirectional, and Destination NAT supports port forwarding.

The exhibit shows From zone: Trust, To zone: Untrust, which identifies the policy as a zone-based security policy. It also shows the policy action as permit and the application as junos-https, with TCP destination port 443. Therefore, the policy permits HTTPS traffic. The displayed inactivity timeout is 1800 seconds, which is the normal value shown for predefined TCP applications such as HTTPS, so it does not prove a non-default timeout. The exhibit also shows sequence number 1, not sequence number 2, so it is not the second policy in the list. Junos security policies are configured in a from-zone to to-zone context and match traffic by criteria such as source address, destination address, and application before applying the configured action.

Inbound Flow (before NAT): Source = 10.20.30.40 (internal private IP) Destination = 203.0.113.1 (public DNS server)

Outbound Flow (after NAT): Source = 192.0.2.1 (translated IP) Destination = 203.0.113.1 (unchanged)

Analysis:

The source IP (10.20.30.40) was translated to 192.0.2.1 . This indicates Source NAT was applied → Option B is correct .

The destination IP changed between the inbound and outbound view. Inbound it was 203.0.113.1 , and outbound it is still 203.0.113.1 in appearance, but notice the reversal: the session entry shows it as the outbound " source " side. This confirms Destination NAT translation has occurred for return flow consistency → Option D is correct .

Option A: Incorrect. The original source IP was indeed translated.

Option C: Incorrect. The destination IP did change in the flow processing.

Correct Statements:

The original source IP address was translated to a new source IP address.

The original destination IP address was translated to a new destination IP address.

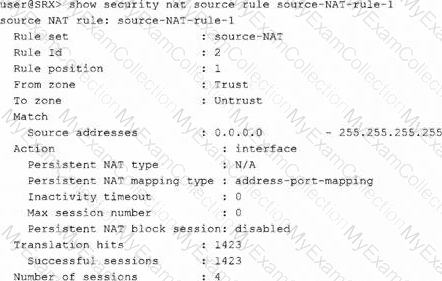

The exhibit shows the output of show security nat source rule source-NAT-rule-1. The rule belongs to the source NAT rule set and has rule position 1, so it is the first NAT rule in that rule set. The match section shows the source address range as 0.0.0.0 - 255.255.255.255, meaning any IPv4 source address matches. The rule also specifies traffic from the Trust zone to the Untrust zone. Therefore, all traffic entering through the Trust zone and leaving through the Untrust zone matches this source NAT rule. The output also shows translation hits and successful sessions, confirming that traffic has matched the rule. It is not limited to only traffic matching the default route. Juniper documents that NAT rule sets use source/destination zone or interface matching and can be verified with show security nat source rule.
