HPE7-A08 HPE Aruba Networking Certified Professional - Switching Question and Answers

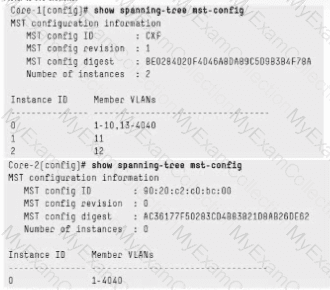

If both switches are configured with default spanning-tree priorities and both appear as primary root bridges, to have a single spanning tree domain, matching MST configuration (Multiple Spanning Tree) must be created on Core-2 to align with Core-1.

Setting priority to 1 on one switch can help but matching MST configurations is the recommended approach for multiple VLANs.

Creating MST instances on only one switch will not ensure consistency.

Matching MST configurations ensures consistent root bridge election and stable spanning tree.

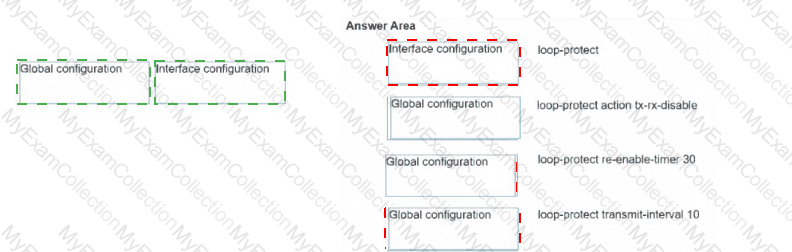

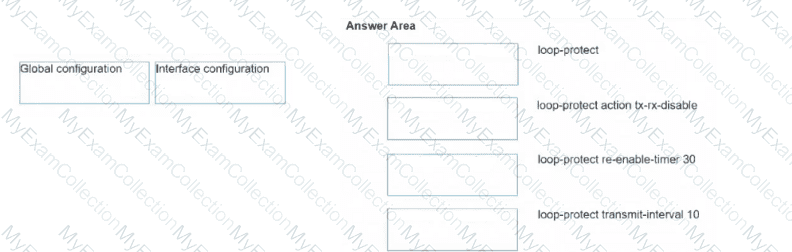

Interface configuration: loop-protect

Global configuration: loop-protect action tx-rx-disable

Global configuration: loop-protect re-enable-timer 30

Global configuration: loop-protect transmit-interval 10

In the AOS-CX operating system, configuration for Loop Protection follows a " Global Parameter, Local Execution " model. This distinguishes it from STP, which often has more per-interface tunable parameters.

Enabling the Feature (Interface configuration): The command loop-protect is entered within the interface context (e.g., interface 1/1/1). This command acts as a " trigger " or toggle that tells the switch to start sending and listening for loop-protection probe packets on that specific physical port or LAG.

Defining the Behavior (Global configuration): The specific way the loop protection " engine " behaves is defined once for the entire switch in the global configuration context .

loop-protect action tx-rx-disable: This sets the universal response if a loop is detected. The switch can be told to simply log the event, or physically disable the port (either just the transmitter, or both transmitter and receiver).

loop-protect re-enable-timer 30: If a port is disabled due to a loop, this global timer defines how many seconds the switch waits before automatically attempting to bring the port back online to see if the loop has been physically removed.

loop-protect transmit-interval 10: This defines how frequently the switch generates the proprietary loop protection packets.

Why this structure exists: This model simplifies administration. You can change the sensitivity (interval) or the severity (action) for the entire switch in one place, while still having the granular control to only enable the feature on " risky " ports where unmanaged switches or hubs might be connected.

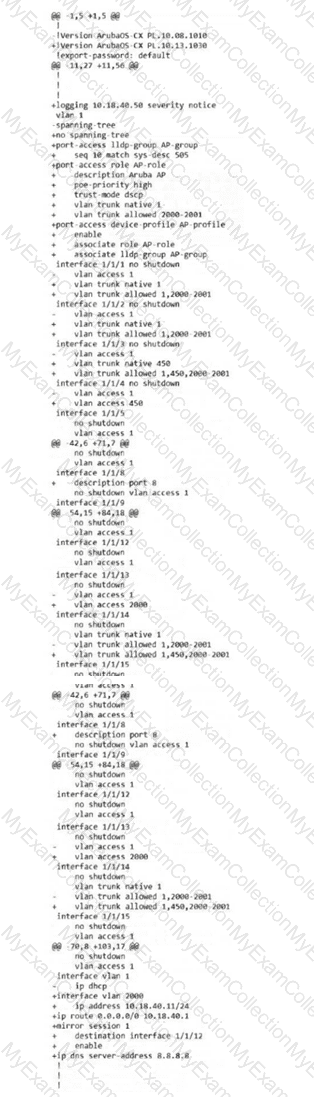

The output shown in the exhibit is a unified diff (indicated by the + and - signs and the @@ headers), which is the standard format AOS-CX uses to display differences between two configuration states.

AOS-CX Checkpoints: ArubaOS-CX switches use " checkpoints " to save snapshots of the configuration. These can be created manually by a user or automatically by the system (e.g., when a configuration change is pushed from Central or NetEdit).

The checkpoint diff Command: The command checkpoint diff < NAME1 > < NAME2 > is used to perform a line-by-line comparison. One of these names can be the running-config .

Lines with a -: These are present in the first configuration (the older checkpoint) but missing in the second (the newer config).

Lines with a +: These are present in the second configuration but were not in the first.

Analyzing the Exhibit: The output shows a comparison between a switch running version 10.08.1010 (the - line) and version 10.13.1030 (the + line), along with several configuration changes like adding an lldp-group, a port-access role, and IP addressing on vlan 2000.

Differentiating Command Syntax: * In the AOS-CX CLI, checkpoint diff is an " action " command used specifically for this analytical comparison.

While many diagnostic commands start with show, the diff utility is executed directly as checkpoint diff.

Terms like " saved-config revisions " are not standard AOS-CX terminology; the system uses " checkpoints " exclusively for this purpose.

In an AOS-CX VSX environment, LACP is the standard for forming Multi-Chassis Link Aggregation Groups (MC-LAGs). However, LACP has a " chicken and egg " problem during certain boot processes.

The LACP Dilemma: LACP requires a software driver or " actor " on the client device to exchange BPDUs with the switch. During a Preboot Execution Environment (PXE) Boot , a server or workstation does not yet have its OS or LACP drivers loaded. Consequently, the switch receives no LACP packets, and by default, it keeps the LAG ports in a " blocked " or " waiting " state to prevent loops.

LACP Fallback Function: The lacp fallback command allows the VSX members to temporarily treat the LAG ports as non-bonded individual interfaces if no LACP partner is detected. This allows the device to communicate over a single physical link during the PXE process to download its OS image.

The Transition: Once the OS is loaded and the LACP driver starts sending BPDUs, the switch automatically transitions the ports back into a fully functional, bonded LAG.

Why other options are incorrect:

Option A: LACP mode (Active vs. Passive) is handled by the lacp mode command, not fallback.

Option D: While fallback results in a single interface operating, the intent and design requirement is to facilitate the pre-OS boot process, not simply to limit the partner to one interface.

Colorless ports allow network devices to move or replace endpoints without changing port-level configurations, typically by automatically assigning network policies dynamically to any port.

HPE Aruba’s solution for colorless ports is the VNBT (Virtual Network Boundary Tagging) feature. VNBT allows dynamic segmentation of traffic, so ports can automatically take on the policies assigned to devices regardless of physical port location.

VRRP is a first-hop redundancy protocol and unrelated to port colorlessness.

VSF (Virtual Switching Framework) is for switch stacking.

VRF (Virtual Routing and Forwarding) is for traffic segmentation.

Thus, VNBT is the correct feature to meet colorless port requirements.

To determine which sites would benefit most from upgrading from 6200 to more powerful 6300 switches in Aruba Central, the best report to run is the Switch Capacity Planning report. It analyzes resource utilization and capacity to identify bottlenecks and potential upgrade candidates.

Infra Inventory lists devices but not capacity usage.

Resource Utilization gives raw usage but not in planning context.

Network report focuses on topology and status.

Hence, Switch Capacity Planning is the most relevant report for upgrade planning.

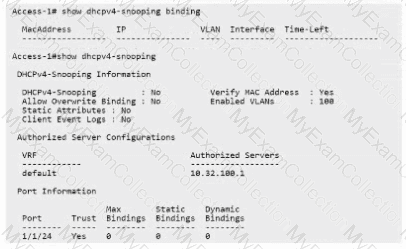

Dynamic ARP Protection (DAP) is a security feature used to intercept and validate ARP packets in a network to prevent " man-in-the-middle " attacks like ARP spoofing.

Validation Source: For the switch to know if an ARP packet is legitimate, it must check the sender ' s IP and MAC address against a trusted database.

Dynamic vs. Static: * In most modern environments, the switch builds this database automatically by using DHCP Snooping . When a client gets an IP from a DHCP server, the switch records the binding.

Static Environments (The Solution): If you have servers or devices with static IP addresses (no DHCP server), DHCP snooping will have no record of them. To prevent these legitimate devices from being blocked by ARP protection, you must manually configure Static IP-to-MAC bindings .

Why Option D is Correct: It correctly identifies that the feature is flexible enough to support non-DHCP environments through manual configuration.

Why others are incorrect: * Option A: While highly recommended, a DHCP server is not strictly required because of the static binding fallback.

Option C: Simply enabling the features isn ' t enough; you must also consider untrusted vs. trusted ports. Furthermore, " full information " is a bit of an overstatement, as static devices still need manual intervention.

When establishing eBGP peering between devices that are not directly connected, the TTL (Time To Live) value of the BGP packets must be increased to allow them to traverse multiple hops. This is achieved by configuring ebgp-multihop, which increases the TTL beyond the default value of 1.

next-hop-self changes the BGP next-hop attribute but is not required for multihop eBGP.

route-reflector is a BGP design feature unrelated to multihop.

address-family ipv4 external is not a standard command on Aruba CX switches.

Therefore, to successfully peer eBGP sessions across multiple hops, ebgp-multihop must be configured.

When configuring OSPF on a point-to-point network type (typically a direct link between two routers), OSPF treats the link as a broadcast-less point-to-point segment.

This reduces unnecessary OSPF overhead by eliminating the need for:

DR/BDR elections (which generate LSA Type 2 advertisements for broadcast multi-access networks).

Thus, changing network type to point-to-point reduces the number of LSA Type-2 advertisements, which are used to describe the network segment in multi-access environments.

No impact on number of routes (LSA Type-3 is about inter-area routes).

The default is usually broadcast or point-to-multipoint depending on interface.

Downloadable User Roles (DUR) are a key component of Aruba ' s Dynamic Segmentation. Instead of manually defining roles on every switch, the switch downloads the role definition (VLAN, ACLs, QoS) dynamically from Aruba ClearPass via HTTPS .

The HTTPS Connection: When a user authenticates, ClearPass sends a RADIUS attribute containing the role name. The switch then initiates an HTTPS connection to the ClearPass server to fetch the full details of that role.

Certificate Trust: Because this download happens over HTTPS, the AOS-CX switch acts as an HTTPS Client . For the connection to be established, the switch must trust the SSL/TLS certificate presented by ClearPass.

Validation Requirement: If the switch does not have the correct CA Certificate installed, or if the HTTPS client certificate configuration is missing or incorrect, the TLS handshake will fail. The switch will be unable to download the role, and the user will typically be placed in a " denyall " or " initial " role. Therefore, verifying the HTTPS/TLS certificate configuration on the switch is a primary troubleshooting step for DUR.

Why other options are incorrect:

Option B: DUR does not use the REST API of the switch; it uses a standard HTTPS GET request to ClearPass.

Option C: SNMP is for monitoring and is not involved in the real-time delivery of user roles.

Option D: While the user-role name must match, the reason a DUR fails to load is almost always the transport mechanism (RADIUS or HTTPS), not the role name configuration itself.

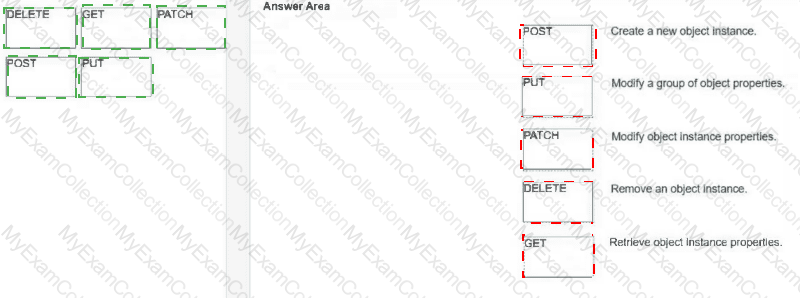

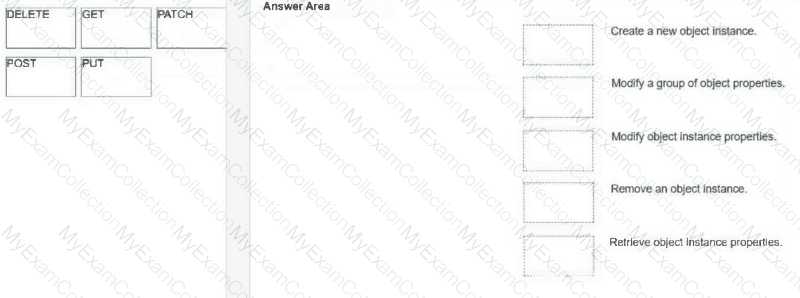

POST: Create a new object instance.

PUT: Modify a group of object properties.

PATCH: Modify object instance properties.

DELETE: Remove an object instance.

GET: Retrieve object instance properties.

AOS-CX is built with a REST-first architecture, where the Web UI and CLI both interact with the same internal database via an API. Understanding these standard HTTP methods is essential for network automation.

POST (Create): Used to create a new resource. For example, creating a new VLAN entry in the database.

GET (Read/Retrieve): Used to fetch information about a resource. It is a " read-only " operation used to check the status of a port or the contents of the routing table.

PUT (Replace/Modify Group): In the Aruba API context, PUT is used for a " complete update. " It essentially replaces the current object with a new set of properties. If you omit properties in a PUT request, they may return to default values.

PATCH (Partial Update/Modify Instance): PATCH is used for incremental changes. It allows you to modify only a specific subset of an object ' s properties (like changing only the description of a port) without having to resend the entire object configuration.

DELETE (Remove): Used to remove a specific resource instance from the switch database (e.g., deleting a VLAN or a static route).

The exhibit shows a configuration for a standard Stub Area (area 1 stub). To meet the customer requirement of having only a default route, we must understand how OSPF area types filter Link State Advertisements (LSAs).

Stub Area (Current Config): Blocks Type 5 (External) LSAs. The Area Border Router (ABR) injects a Type 3 LSA default route. However, Type 3 LSAs (Inter-Area routes from other parts of the OSPF network) are still allowed in. This explains why the user still sees other OSPF routes in the table.

Totally Stubby Area (The Solution): This area type is a Cisco/Aruba enhancement to the OSPF standard. It blocks both Type 5 (External) and Type 3 (Inter-Area) LSAs. The ABR replaces all of these with a single Type 3 default route . This is the most efficient configuration for a small branch switch with limited memory and a single exit point.

AOS-CX Configuration: To convert the current " Stub " to a " Totally Stubby " area, you would add the no-summary keyword on the ABR:

Bash

router ospf 1

area 1 stub no-summary

Why other options are incorrect:

Option A and D: NSSA (Not-So-Stubby Areas) are used when you need to redistribute external routes from the branch into the rest of the OSPF network. The prompt doesn ' t mention a local external source.

Option B: This is what is currently configured and is explicitly described as not meeting the requirement.

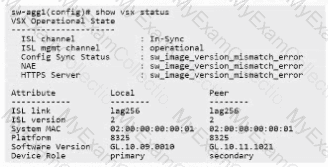

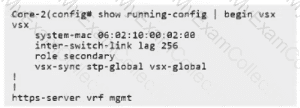

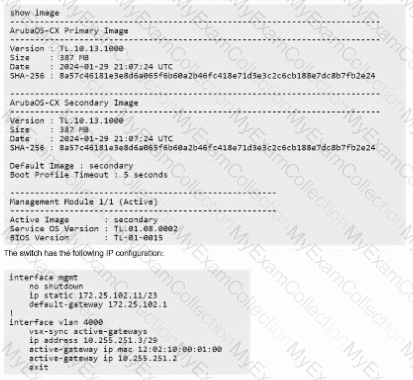

In HPE Aruba CX VSX, the hardware replacement of a single switch is non-disruptive for Layer 2 configurations because the system MAC address in the ServiceOS can be changed to the original system MAC address. This ensures consistent MAC address usage, avoiding disruptions in Layer 2 forwarding and preventing MAC flapping in the network.

Options involving VSX-sync or reserved system MAC ranges do not specifically address hardware replacement scenarios as effectively.

Changing the ServiceOS system MAC to match the original maintains Layer 2 stability during switch replacement.

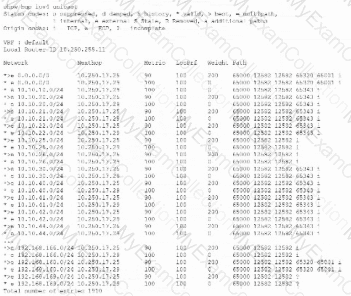

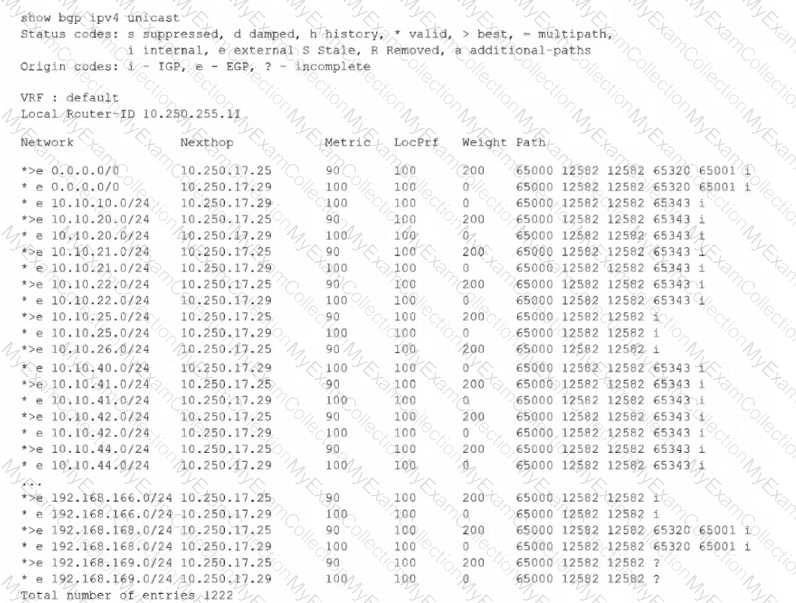

To keep the BGP routing table size manageable and below a specified threshold, the customer should consider enforcing routing policies with aggregation. Route aggregation reduces the number of individual routes advertised and stored by combining multiple routes into a summarized one.

Setting route metrics equal or advertising only a primary path does not reduce the number of routes as effectively.

Importing only the default route (0.0.0.0/0) is impractical for normal operations.

Thus, route aggregation is the best practice for controlling routing table size in merged BGP environments.

Colorless Ports is a foundational concept in Aruba’s Dynamic Segmentation strategy. It refers to a switch configuration where all access ports are configured identically, and the network identity of the port changes dynamically based on the device that plugs into it.

Role of 802.1X: To achieve a colorless port, the switch must first identify the device or user. 802.1X (Port-based Network Access Control) is the industry-standard method for providing this identification. When a device connects, the switch challenges it for credentials. Based on the response, the RADIUS server tells the switch which " User Role " to apply, which then sets the VLAN, QoS, and ACLs.

Complementary Methods: While 802.1X is the primary answer here, colorless ports also frequently utilize MAC Authentication for devices that do not support 802.1X (like printers).

Evaluating Other Options:

Option A: 802.1Q is the standard for VLAN tagging. While colorless ports use VLANs, 802.1Q is a static trunking/tagging protocol and does not provide the " dynamic " intelligence required for a colorless environment.

Option C: 802.11X is a common " trick " option on exams. 802.11 is the standard for Wireless (Wi-Fi), and there is no specific " 802.11X " protocol used for wired switch port security.

Option D: 802.1AD refers to " QinQ " or double-tagging, used primarily in service provider environments to tunnel customer VLANs. It has no relevance to the colorless port security model.

In AOS-CX architecture, management services (such as SSH, HTTPS, and SNMP) are VRF-aware. This is a security hardening feature designed to separate management traffic from data traffic.

Default Behavior: By default, AOS-CX switches enable the HTTPS server only on the mgmt VRF (the Out-of-Band Management port). This means the Web UI and REST API are only accessible through the dedicated physical management port.

In-Band Management: When you create an SVI (Switch Virtual Interface) like SVI 100, that interface resides in the default VRF (unless you manually assign it to a custom VRF). To manage the switch " in-band " through this SVI using a web browser, you must explicitly instruct the AOS-CX operating system to listen for HTTPS requests on that specific VRF.

The Command: The command https-server vrf default tells the switch to start the web server process for the default VRF. Without this command, any attempt to access the switch ' s IP address on SVI 100 via port 443 will be dropped by the switch ' s internal control plane protection, as the service is not active for that network context.

Verification of Options:

Option A: This command is typically already part of the factory default configuration to allow OOBM access; it does nothing for an SVI in the default VRF.

Option B: Incorrect, as HTTPS is restricted to the mgmt VRF out of the box for security.

Option C: This is a true statement regarding the default state , but it describes the problem rather than providing the solution to the requirement.

Option D: This is the correct administrative action to enable the service for the data plane (where SVI 100 lives).

In a Virtual Switching Framework (VSF) stack, high availability and control plane redundancy depend on the designation of specific roles among the stack members.

Conductor and Secondary Roles:

Conductor: The " brain " of the stack that manages the control plane and synchronization. By default, the first switch configured (Member 1) becomes the Conductor.

Secondary: This is the " Standby Conductor. " It maintains a synchronized state of the management and control planes. If the Conductor fails, the Secondary immediately takes over the Conductor role to keep the stack operational.

Analyzing the Exhibit:

Looking at the output of show vsf, the Secondary field is currently empty (blank).

While Member 2 is seen as a " Member, " it has not been officially promoted to the Secondary role.

In the current state, if Member 1 (the Conductor) fails, there is no designated standby to take over. The stack would lose its control plane, and Member 2 would not be able to function as a standalone manager for the stack configuration.

The Solution: To ensure the stack survives a failure of either member, you must explicitly configure a secondary member. On a 2-member 6300 stack, the command vsf secondary-member 2 is used to designate Member 2 as the standby. This populates the " Secondary " field seen in the exhibit and enables redundancy.

Evaluating Other Options:

Option A: Split-detection is a separate mechanism used to prevent " split-brain " scenarios (where both members think they are the conductor after a link failure), but it requires a secondary member to be defined first to even function as a redundant pair.

Option B: Auto-stacking is a deployment method used to automatically number and link members during initial setup; it does not configure high-availability roles.

Option D: There is no command vsf conductor-member 2. The conductor role is assigned dynamically or via the secondary role promotion.

The error message " Invalid input: interface " typically appears if the switch is managed by HPE Aruba Central, which restricts CLI interface configuration to prevent configuration drift. When managed externally, certain commands are disabled or locked.

Password recovery mode or authorization enabled would not cause this error.

Manager context is not a concept in Aruba CX CLI.

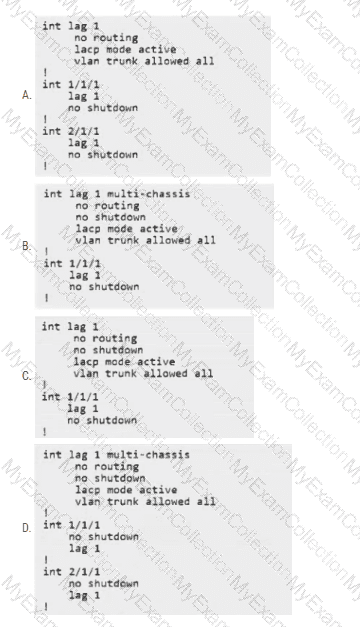

To answer this correctly, it is vital to distinguish between VSF (Virtual Switching Framework) and VSX (Virtual Switching Extension) .

VSF (Virtual Switching Framework) Logic: The CX 6200 and 6300 series use VSF to form a " stack. " In a VSF stack, multiple physical switches operate as a single logical device with a single control plane and a single configuration file.

LAG Configuration in VSF: Because a VSF stack is a single logical entity, creating a Link Aggregation Group (LAG) that spans multiple members is handled exactly like a standard LAG on a single switch. You simply create the interface lag X and then assign physical ports from different members (e.g., member 1 and member 2) to that same LAG ID.

The " multi-chassis " Keyword: The keyword multi-chassis (seen in Options B and D) is specific to VSX , which is used on high-end switches like the CX 6400 and 8000 series. VSX involves two separate control planes that synchronize information. In VSX, you must use the multi-chassis command to let the switches know the LAG is split across two different chassis. In VSF, this keyword is not used and would result in a syntax error on a 6200 switch.

Analyzing the Options:

Option A (Correct): It uses standard interface lag 1 syntax. It assigns port 1/1/1 (from member 1) and port 2/1/1 (from member 2) to the same LAG. This perfectly fulfills the requirement for redundant ports from both switches in a VSF stack.

Option B: Incorrect because it uses the multi-chassis keyword (VSX only).

Option C: Incorrect because it only configures a port from one switch (1/1/1), failing the requirement for redundancy across both switches.

Option D: Incorrect because it uses the multi-chassis keyword (VSX only).

Key Takeaway for the ACP-S Exam: * VSF (6200/6300) = Standard LAG configuration across members.

VSX (6400/8000) = Requires multi-chassis keyword under the LAG interface.

In network environments where users might connect unauthorized, " dumb " (unmanaged) switches or hubs, standard Spanning Tree Protocol (STP) may not be sufficient to prevent loops.

The Limitation of STP and BPDU Guard: BPDU Guard is an excellent feature that disables a port if it receives a Bridge Protocol Data Unit (BPDU). However, many unmanaged switches do not participate in STP and therefore do not originate BPDUs. Some may simply forward BPDUs or drop them entirely. If a loop is created through an unmanaged switch that doesn ' t send BPDUs, BPDU Guard will never trigger.

How Loop Protection Works: AOS-CX Loop Protection is specifically designed for this scenario. The switch sends out proprietary Loop Protection packets at a configured interval. If the switch receives its own Loop Protection packet back on the same port (or a different port in the same VLAN), it knows a loop exists.

Action on Detection: Upon detecting the loop, the switch can be configured to send an SNMP trap and, more importantly, disable the port to stop the broadcast storm and prevent a network outage.

Best Practice: Loop protection is commonly recommended for " Access " or " Colorless " ports where end-user devices connect, as it provides a safety net against loops caused by non-STP aware devices.

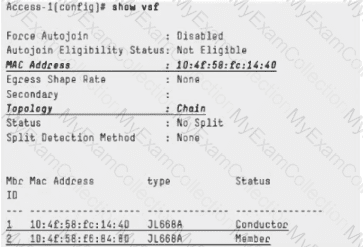

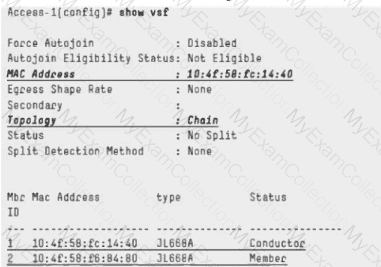

The exhibit shows the output of the show vsf command on a two-member Virtual Switching Framework (VSF) stack. To determine the outcome of a failover, we must look at the assigned roles and the secondary member configuration.

Analyzing the Roles: * Member 1 is the Conductor (the master controller).

Member 2 is a Member (a subordinate switch).

The Secondary Member Requirement: In VSF, high availability is not automatic just by having two switches. You must explicitly designate a Secondary member to act as the " Standby " for the Conductor. In the exhibit, the line Secondary : is blank .

Failure Scenario: * If Member 1 (Conductor) fails, Member 2 will look to see if it is the designated Secondary.

Since no Secondary is configured , Member 2 has no authority to take over the control plane or management functions of the stack.

Member 2 will remain in the " Member " state . Because the Conductor is gone and there is no Standby to promote, the logical stack effectively collapses; Member 2 will likely reboot or lose its configuration context because it has no Conductor to sync with. It certainly will not become the Conductor.

Best Practice Correction: To fix this, an administrator should have run the command vsf secondary-member 2. This would have changed Member 2 ' s status from " Member " to " Standby " (or Secondary), allowing it to transition to " Conductor " if Member 1 failed.

Bidirectional Forwarding Detection (BFD) is used in conjunction with OSPF to provide sub-second failure detection. However, running standard BFD (Control Mode) for many neighbors can place a significant load on the switch ' s Control Plane CPU , as the CPU must process every BFD control packet.

Control Mode vs. Echo Mode:

Control Mode: Both peers exchange BFD packets that are processed by their respective CPUs. This ensures the BFD state machine is synchronized but is CPU-intensive.

Echo Mode: The switch sends a BFD Echo packet to its neighbor. The neighbor simply " reflects " the packet back in the data plane (ASIC) without sending it to its own CPU. The originating switch then processes the returned packet.

Efficiency of Echo Mode: In the Aruba AOS-CX architecture, BFD Echo Mode is highly efficient because it offloads the " heartbeat " processing from the CPU to the hardware (ASIC) on supported platforms. By enabling echo mode, the frequency of control packets reaching the CPU is reduced, which effectively resolves high CPU utilization issues while maintaining fast failover.

Evaluating Other Options:

Option A: ICMP is not part of the BFD mechanism for OSPF adjacency tracking.

Option B: OSPF does not form adjacencies on passive interfaces, so BFD would not run there and would not contribute to CPU usage.

Option D: ICMP redirects are unrelated to the BFD protocol ' s internal processing logic.

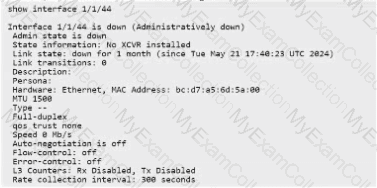

The question relates to configuring port 1/1/44 on an Aruba CX 8325 switch to connect to a 2930F switch (Aruba 2930F series). The key factor is interoperability between these two devices, especially regarding link aggregation and port channel settings.

The Aruba 2930F typically uses static or LACP link aggregation with standard settings. To connect an Aruba CX 8325 port to a 2930F port, the CX configuration must align with the 2930F settings, particularly regarding:

Enabling LACP (Link Aggregation Control Protocol) on the port.

Correct VLAN tagging or trunk mode.

Matching speed and duplex settings.

From the options given, answer A corresponds to enabling LACP with appropriate trunk configuration that matches the 2930F. The other options either have mismatches in aggregation or trunking mode or missing LACP.

HPE Aruba Networking AOS-CX is a cloud-native, database-driven operating system designed to move away from traditional, " brittle " management methods toward Network Automation and AIOps .

REST API (Option A): In AOS-CX, the entire system state is stored in a database ( ASDB ). The switch provides a 100% " REST-ful " API, meaning every single feature, configuration, and statistical counter that can be accessed via the CLI can also be accessed programmatically via REST. This allows for modern automation, integration with custom dashboards, and DevOps workflows.

NAE (Network Analytics Engine) (Option D): This is a hallmark " modern " feature of AOS-CX. NAE provides a built-in framework for monitoring and troubleshooting. It uses Python-based agents to monitor the local database for specific events (like a spike in CPU or an OSPF state change) and can take automated actions (like capturing a packet trace or generating a log). It provides a graphical representation of network health directly in the Web UI.

Why other options are incorrect:

Option C (SNMP): While supported, SNMP is considered a legacy protocol. It is relatively slow, lacks security (in v1/v2c), and is typically used for monitoring only, rather than the " modern management " and automation logic found in REST or NAE.

Options B and E: YAML and XML are data serialization formats . While they are used by modern management tools (like Ansible using YAML or NETCONF using XML), they are not management " approaches " or native switch features in the same way that a REST API or an Analytics Engine is.

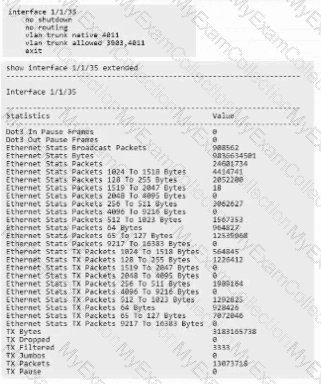

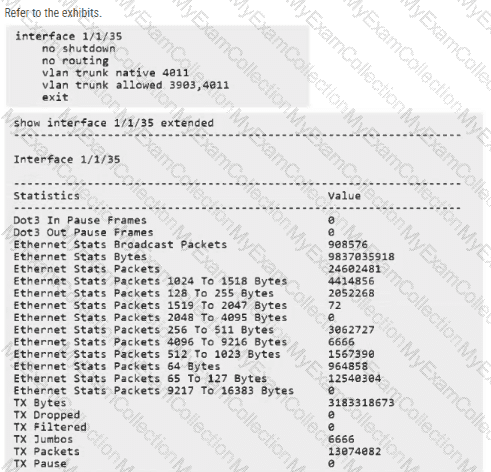

The issue is VMware vMotion traffic on VLAN 3903 failing, while other VLANs work normally. vMotion traffic requires support for larger frame sizes (jumbo frames) because vMotion packets are large and benefit from increased MTU to improve performance and reduce fragmentation.

Configuring jumbo frames on VLAN 3903 ensures that frames on this VLAN can use an MTU larger than the default 1500 bytes.

Configuring jumbo on the interface alone may not be sufficient if the VLAN itself is not set to support jumbo frames.

Setting MTU on VLAN or interface might not work unless jumbo frames are enabled.

To resolve this QoS mapping issue on AOS-CX , you must understand the hierarchy of Trust Levels and how they interact with Link Aggregation Groups (LAGs) .

Trust Hierarchy: AOS-CX switches use a " top-down " approach for QoS.

Global Trust: Setting qos trust dscp globally means that, by default, every port on the switch will look at the Layer 3 DSCP markings to determine queue priority.

Interface Override: You can override the global setting on a per-interface basis. If a specific device or service (like the video streaming service in this prompt) relies solely on Layer 2 CoS (802.1p) markings rather than DSCP, the switch will ignore those CoS markings under the global DSCP policy and place the traffic in a default (best-effort) queue.

LAG Configuration Logic: In the AOS-CX architecture, a LAG is a logical interface (interface lag 20).

Configuration parameters for the bundle (such as VLANs, ACLs, and QoS trust) should be applied to the logical LAG interface , not the individual physical member ports (1/1/20 and 2/1/20).

Once applied to the LAG, the settings are automatically inherited by all physical members.

Analyzing the Options:

Option D (Correct): By entering the interface lag 20 context and applying qos trust cos, you are instructing the switch to ignore the global DSCP setting for this specific bundle and instead trust the Layer 2 priority bits. This allows the video service to once again map correctly to the intended priority queues.

Option A: This is unnecessarily complex. Setting the physical member ports to qos trust none and then the LAG to cos is redundant because the LAG configuration overrides the physical port settings in this context.

Option B: qos trust dscp, cos is not a valid AOS-CX command. Unlike the older AOS-S (ProCurve) software which allowed a combined dscp-cos trust, AOS-CX requires you to choose a single trust type (DSCP, CoS, or None) per interface.

Option C: This applies the configuration to the physical ports only. In an AOS-CX VSF/LAG environment, this is considered a configuration error or " best practice " violation, as the logical LAG interface should hold the configuration.

Comprehensive Detailed Explanation:

To prevent man-in-the-middle attacks based on Layer 2 (Ethernet) addressing, enabling ARP inspection in the VLAN context is recommended. ARP inspection validates ARP packets and ensures only legitimate ARP responses are forwarded.

Enabling ARP inspection at VLAN level allows granular control.

Interface-level or global context is less typical or supported for ARP inspection on Aruba CX switches.

To resolve vMotion connectivity issues on an Aruba AOS-CX 8320 , we must ensure the network infrastructure supports Jumbo Frames end-to-end.

MTU and vMotion Requirements: VMware vMotion is highly sensitive to the Maximum Transmission Unit (MTU). For optimal performance and reliability, a 9000-byte MTU is standard. If any switch port in the path is left at the default 1500-byte MTU , vMotion operations will typically time out or fail, even if standard small-packet traffic (like a basic ping) works.

AOS-CX Configuration Syntax: In the AOS-CX operating system, Jumbo frame support is enabled by modifying the MTU at the interface level.

The standard command is mtu 9198.

The value 9198 is used because it accounts for the 9000-byte payload plus L2 headers and tagging overhead.

Unlike the older AOS-S (ProCurve) software, AOS-CX does not use the jumbo command; it uses the mtu command under the physical interface context.

Analyzing the Exhibits:

The Configuration: The exhibit for interface 1/1/35 shows a standard trunk configuration but no MTU command . This confirms the port is operating at the default 1500-byte limit.

The Statistics: The show interface extended output shows TX Jumbos: 6666. This indicates that jumbo packets have been sent, but in a troubleshooting context, this may represent previous stats or the switch counting oversized frames before dropping them or failing to receive them from the server.

Why Option B is the Correct Fix: Even if " large " pings (e.g., 2000 bytes) work due to fragmentation or " baby giant " tolerances, the specific high-throughput requirements of vMotion necessitate that the physical transport layer (interface 1/1/35) be explicitly configured to handle the full 9000-byte frame size using the mtu 9198 command.

Addressing the SVI (Option A): While an SVI (interface vlan 3903) also has an MTU, the physical port is the primary gatekeeper for Layer 2 traffic. If the physical port is set to 1500, no jumbo frame will ever reach the SVI or be switched to another port on that VLAN.

The LACP fallback command in Aruba VSX configurations allows the system to continue forwarding traffic even if LACP negotiation fails or is not established. This is useful when provisioning a gateway or link that does not support LACP, ensuring that the port remains operational in a static manner.

It is not specifically for backward compatibility with LACP v1.

It does not relate to operation with a single partner interface.

It also is not about active/passive LACP modes per se.

Therefore, LACP fallback is configured to support provisioning a gateway without LACP.

In the context of the HPE Aruba Networking troubleshooting framework, selecting a methodology depends heavily on the trigger event.

The Trigger: A physical change occurred (relocating an AP). In networking, physical changes are synonymous with Layer 1 (Physical Layer) of the OSI model.

Bottom-Up Approach: The " Bottom-up " methodology starts at the Physical Layer and works upward through the Data Link, Network, and Transport layers. Since a technician recently touched the cabling and moved the hardware, starting with the physical layer is the most efficient path. You would first verify the cable integrity, PoE power delivery from the switch, and the physical environment (RF interference in the new location).

Top-Down Approach: Alternatively, starting at the application layer (the video call software) is also a valid " starting point " when the user reports an application-specific failure. Together, the Top-down/Bottom-up model provides a structured way to isolate whether the issue is the physical move or a software configuration that coincided with it.

Why others are less suitable here:

Option B (Divide and conquer): This usually starts at Layer 3 (IP connectivity) to see if you can ping. While useful, it might skip the most likely culprit in a physical relocation: a bad cable or poor signal.

Option C: This is a remediation step, not a diagnostic methodology.

Option D (Follow the path): This is better for complex routing issues where packets are getting lost across multiple hops; it is overkill for a local boardroom connectivity issue.

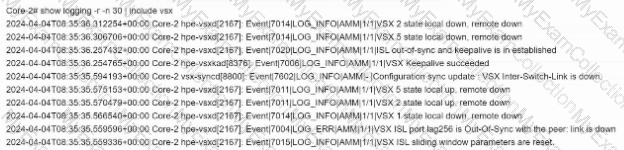

If the ISL between two VSX core switches is down and logs indicate that Core-2 has disabled its VSX LAG interfaces, it means Core-2 has disabled its VSX LAG interfaces, likely as a protective or failover mechanism.

Keepalive packets being dropped (Option B) may cause issues but logs specifically state interface disablement.

Both switches forwarding traffic (Option C) is unlikely if ISL is down.

Downstream switches inability to forward traffic (Option D) is a consequence, not the cause.

For a 1 Gbps link between two Aruba CX switches, the appropriate SFP port type is an SFP (Small Form-factor Pluggable). SFP+ and SFP28 are used for higher speeds such as 10 Gbps and 25 Gbps, respectively. QSFP+ is for even higher speeds (40 Gbps).

SFP supports 1 Gbps (1000BASE-X)

SFP+ supports 10 Gbps

SFP28 supports 25 Gbps and above

QSFP+ supports 40 Gbps and above

Therefore, the correct port type for a 1 Gbps link is SFP.

To implement Dynamic User Roles (DUR) with Aruba ClearPass, an HTTPS certificate must be configured. This certificate enables secure communication between ClearPass and the Aruba CX switches for role downloading and authentication.

RadSec service enables secure RADIUS but is unrelated to DUR certificates.

Admin user roles and RADIUS dictionary attributes are necessary but secondary to certificate requirements.

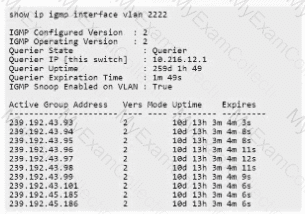

In the world of IP Multicast, the address range is strictly categorized by the IANA. Understanding these boundaries is a core requirement for the ACP-S switching exam.

Link-Local Multicast (224.0.0.0/24): The address used in the scenario, 224.0.0.100 , falls within the " Local Network Control Block " (224.0.0.0 to 224.0.0.255). These addresses are reserved for protocol traffic that is intended to stay within a single broadcast domain (Layer 2). Examples include OSPF (224.0.0.5) and RIPv2 (224.0.0.9).

The Routing Restriction: By design and industry standard, Layer 3 switches and routers do not forward traffic addressed to the 224.0.0.0/24 range. This is a hard-coded behavior to prevent control plane protocols from leaking into other parts of the network. Even if you enable PIM (Protocol Independent Multicast) and IGMP on all SVIs, the switch will drop these packets at the Layer 3 boundary.

The Solution: To route multicast traffic between VLAN 100 and VLANs 200/300, the application must use a group address from the administratively scoped or globally scoped ranges (e.g., 239.0.0.0/8 or 224.0.1.0 and above).

Why Option D is insufficient: While enabling IGMP and PIM on the SVIs is a necessary step for routable multicast, it will not overcome the fundamental architectural block placed on the 224.0.0.0/24 link-local range.

When a VSX primary switch is powered off, it loses connectivity with management systems such as HPE Aruba Central. This causes the management system to trigger a " Switch Disconnected " alert because the switch is no longer reachable.

" Switch Reboot " alerts would indicate a restart, not power off.

" Switch Stack Conductor Change " refers to stack leadership changes, not VSX primary down.

" Switch STP Root Change " relates to Spanning Tree Protocol root bridge changes.

Hence, powering off the VSX primary causes a " Switch Disconnected " alert.

In an AOS-CX Virtual Switching Extension (VSX) environment, the Configuration Synchronization (vsx-sync) feature simplifies management by allowing the Primary switch to automatically push configuration settings to the Secondary switch.

Primary-Only Configuration: A fundamental rule of vsx-sync is that all synchronization commands must be configured on the Primary VSX node . The Secondary node simply receives and applies the configuration; it does not initiate the sync.

The time Synchronization Module: In AOS-CX, the command used to synchronize all time-related parameters—including NTP servers , authentication keys, and time zone settings—is vsx-sync time.

Command Logic: By adding vsx-sync time under the vsx context on the Primary switch, the NTP configuration currently present on the Primary will be replicated to the Secondary switch ' s running configuration.

Why other options are incorrect:

Options B and C: These are incorrect because they suggest configuring the sync on the Secondary switch.

Option A: While it specifies the Primary switch, vsx-sync ntp is not the correct command syntax in AOS-CX; the feature is consolidated under the broader vsx-sync time module.

In an end-to-end Quality of Service (QoS) design, the goal is to maintain the priority of traffic as it transitions from the wireless medium (WMM) to the wired infrastructure (Ethernet).

WMM to DSCP Mapping: Aruba APs map Wireless MultiMedia (WMM) Access Categories (like Voice or Video) to specific DSCP (Differentiated Services Code Point) values in the IP header before forwarding the frames onto the wired network.

The Concept of " Trust " : By default, many switches operate in a " trusted " or " untrusted " mode. If a port is untrusted, the switch will strip or ignore any DSCP markings on incoming packets and remark them to 0 (Best Effort). To prevent this, the AOS-CX switch must be configured to trust the incoming DSCP markings.

Applying Trust via Interface (Option B): On the physical ports where APs are connected, you must apply the command qos trust dscp. This ensures that as the AP sends traffic into the switch, the switch honors the DSCP values assigned by the AP.

Applying Trust via User-Role (Option A): In modern Aruba " Colorless Port " architectures, switches often use User-Based Tunneling (UBT) or local roles assigned via ClearPass. If the AP itself is assigned a " User-Role " upon connection, that role can include a QoS policy that specifies DSCP trust. This is the preferred method for dynamic environments because the security and QoS policies follow the device regardless of which physical port it uses.

Why other options are incorrect:

Option C: LLDP-MED is used to negotiate parameters (like Voice VLAN), but it doesn ' t provide the granular " trust " mechanism required for WMM-to-DSCP mapping.

Option D: Colorless ports are a deployment method for roles, but " Colorless ports " is not a configuration command that handles QoS prioritization itself.

Option E: AOS-CX does not typically utilize a " global " trust command; trust is applied at the ingress point (interface or role) to maintain security and control.
