HPE7-A03 HPE Aruba Networking Certified Network Architect - Campus Access Question and Answers

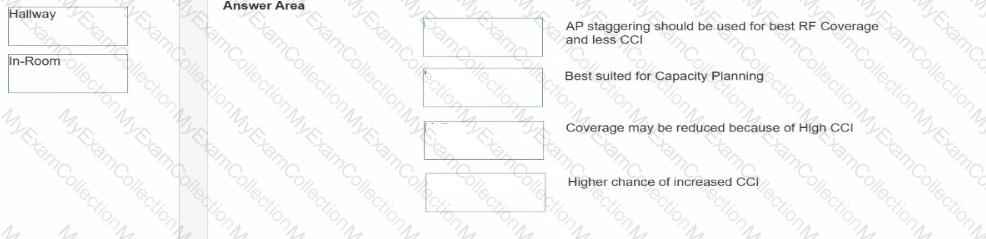

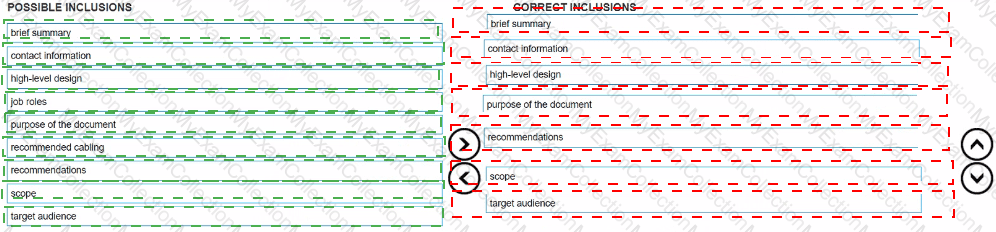

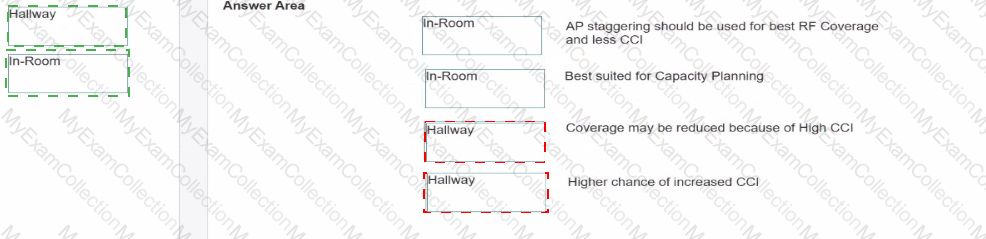

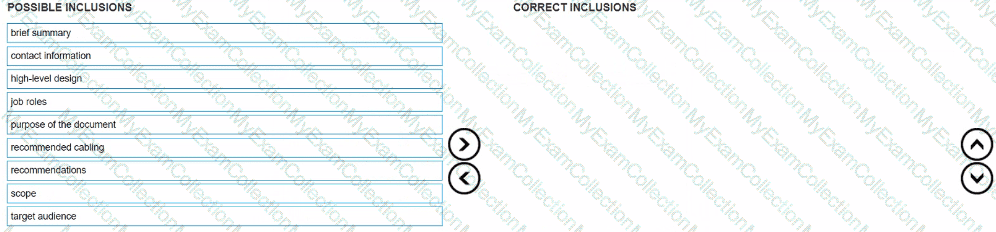

What should be Included in an Executive Summary? (Place the correct Items into the let at the right Order is no: Important Not all cottons win be used)

A large multinational financial institution has contracted you to design a new full-stack wired and wireless network for their new 6-story regional office building. The bottom two floors of this facility will be retail space for a large banking branch. The upper floors will be carpeted office space for corporate users, each floor being approximately 100.000 sq ft (9290 sqm). Data centers are all off site and will be out of scope for this project. The customer is underserved by its existing L2-based network infrastructure and would like to take advantage of modern best practices in the new design. The network should be fully resilient and fault-tolerant, with dynamic segmentation at the edge.

The retail space will include public guest Wi-Fi access. Retail associates will have corporate tablets for customer service, and there will be a mix of wired and wireless devices throughout the retail floors. The corporate users will primarily use wireless for connectivity, but several wired clients, printers, and hard VoIP phones will be in use.

The customer is also planning on renovating the corporate office space in order to take advantage of "smart office' technology. These improvements will drive blue-dot wayfinding. presence analytics, and other location-based services

The client decided that they would like to manage two wiring closets as a single stack with a total of 10 switches and a minimum transport speed or 25Gbps over OM4 MM fiber They would also like to keep the stacking cabling cost to a minimum.

Which stacking components would be required to meet the customer's requirements in the most cost-effective way if the closets were 190 m (620 ft) apart? (Select two.)

The customer recently found out that Aruba OS-CX switches are capable of Application Recognition. What requirements should be fulfilled in order to do this? (Select two.)

A global cruise line company needs to refresh its current fleet. They will refresh the 'insides' of the ship to be cost-effective and increase their sustainability. They will replace the complete WLAN/LAN hardware of the ship. In this refresh, the company will not refresh its current security requirements. The CIO also wants to limit the number of unused ports in the switches. Future expansion will always mean a refresh of hardware. They start with the smallest ship with a maximum of 800 guests.

Each ship has a LAN infrastructure consisting of two core switches, up to 10 redundant distribution switches, and up to 500 access switches (400 cabins, 100 technical rooms). The core switches are located in the MDF of the ship and the distribution switches are located in the IDFs of the ship. Each cabin and technical room gets one single access switch.

The cabling structure of the ship will not be refreshed. Each IDF is connected to the MDF by single-mode fiber (SMF), of which two pairs are available for the interconnect between the core and distribution. The length of SM fiber between MDF and IDF is less than 300 meters (980 ft), type used is OS1. Each cabin is connected by a single OM2 pair to the IDF, maximum length 60 m (200 ft). Each technical room is connected by a single OM2 pair to the IDF, with lengths 100–150 m (320–500 ft).

For each cabin/technical room the customer is looking to replace their current fan-less 2530/2540 without changing the requirements, except they need to upgrade the uplink to distribution switch to 10 GbE to handle the increased network traffic, and the technical rooms need redundant power.

The WLAN infrastructure will be 1:1 refreshed without new cabling or new AP locations. Their WLAN infrastructure is based on the 200/300 series indoor and outdoor APs running InstantOS (less than 300 APs), the customer has no change in WLAN requirements.

The cruise line company will replace its current Internet connection before the LAN/WLAN refresh. The new Internet connection will provide a 99.8% uptime, which is needed to ensure the paid guest Wi-Fi is always operational. With this new Internet connection, the CIO of the cruise line wants to base the design on the ESP architecture from Aruba because the Internet connection is guaranteed.

A week after the presentation of your design to the CIO of the cruise line company, the CIO calls you to discuss increasing the security of the wired network infrastructure. Since one of their competitors had one of their cruise ships cyber hacked, the CSO of the cruise line has mandated increased security on the wired network. They have heard about dynamic segmentation and central and decentral overlay networks. For their POS (Point of Sale) systems, they need a low-latency network connection between the POS system and the PCS server in the data center on the ship. Also, the CSO wants to enhance the WLAN security as well by tunneling all user traffic.

What solution fits the customer’s requirements?

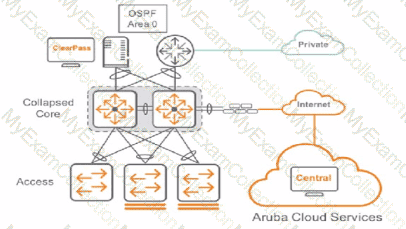

You are delivering a replacement collapsed core network proposal to the customer where the core switches will have the switched virtual interlaces (SVl) configured. The customer is not sure that a USX pair of switches will Be able to act as I tie spanning tree root in their environment.

Which options are true about spanning tiee and VSX that will help assure the customer that a VSX pair of switches are appropriate for a collapsed core? (Select two.)

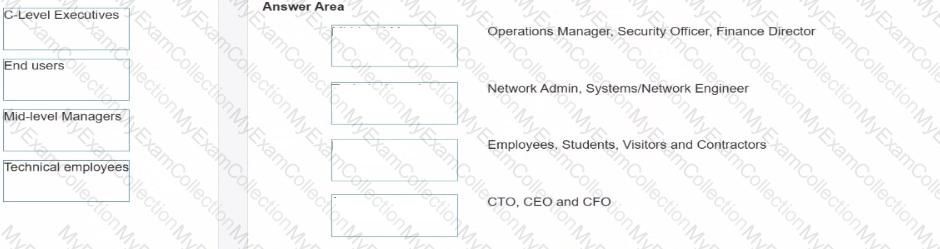

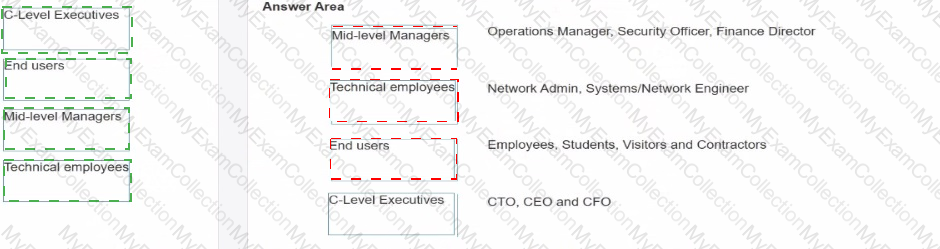

You hired a junior engineer to assist you with a large-scale network infrastructure project. The engineer has never worked on such a complex project before and wants to better understand the role that each stakeholder will play in the project.

What is the role of the Network Designer/Architect in this project?

What are the considerations when using existing MMF and upgrading to equipment capable of 10 GbE speeds? (Select two)

What is the difference between 0M4 and 0M5 cabling? (Select two)

You are designing a solution with Aruba OS10-based access points and redundant gateways and these are the requirements:

• W1-F16E based access points

• support for tunneled traffic

• application visibility

• rogue APs

• live upgrades

• Air Slice

• Cloud Guest Authentication

• Ai insights

Which licenses are needed? (Select two.)

XYZ Regional Hospital is an integrated healthcare system of Hospitals, neighborhood health centers, and small doctor offices. XYZ Regional Hospital has recently merged with 1x neighborhood health centers and 1Z5 doctor branch offices. The wireless, wired access, and AAA solutions are outdated and need to be replaced.

XYZ Regional Hospital is looking to future-proof and improve efficiency across all sites by enhancing wired and wireless access and migrating to a centralized and unified wired/wireless and policy management that can provide uninterrupted availability of all systems.

Locations:

- XYZ Regional Hospital Is located In New York City

- Dila Health Center Is located in City A

- Mount Health Center is located In City B

- Rock Health Center is located in City C

- Branch clinics are located at different locations across the United States

Requirements:

- Provide, via management software, one single pane of glass to manage wired and wireless LANs, and VPNs across campus, branch, and remote via web/cloud architecture providing near real-time insight, troubleshooting tools, and service Level performance reporting.

- Seamless integration across wired, wireless. WAN, S0-8ranch. loT

• Provide secure wireless access to all the employees of (he Regional Hospital and partners, as well as provide wireless Internet access to medical citizens when they visit our facilities.

- All-access points must support the following features and specifications: 802.1 lax (WI-FI 6E Certified)

- Security options Including WPZ/WPA3. 80Z.1 X with Radius secure authentication

- Identify and authenticate every wireless and wired device

- End-to-end role-based security

- Seamless mobility across the hospital tor medical teams, patients, and visitors

- Cuts Wi-Fi deployment times from days to hours and enables Zero-Touch deployments across the site

- Establishes a resilient, future-ready network infrastructure with the intelligence, scalability, and intuitive toolsets to meet emerging needs

- Fully redundant branch solution with dynamic path selection to the hospital

XYZ Regional Hospital is looking tor an NAC solution to address its security challenges-Requirements:

- fully redundant NAC solution for management and authentication

- wireless and wired authentication for the main hospital will be handled locally

- wireless and wired authentication for the health centers will be handled locally

- wireless and wired authentication tor the clinics will be authenticated against the main hospital NAC

- staff ustrs/devices should able to visit any site and haw the same experience

- support 35k devices

Locations:

- XYZ Regional Hospital is located in City 1 - 15k devices

- Dila Health center is located in City 2 - 8k devices

- Mount Health Center is located in City 3 - 5k devices

- Rock Health Center is located in City 4 - 4k devices

-125 branch clinics are located at different locations across the US - 2k devices

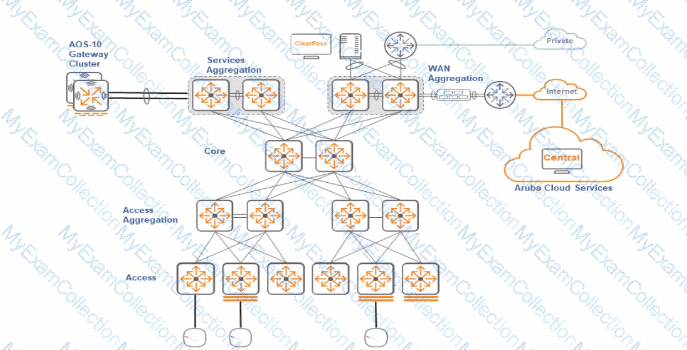

Which solution meets the customer's requirements?

A)

B)

C)

D)

A large multinational financial institution has contracted you to design a new full-stack wired and wireless network for their new 6-story regional office building. The bottom two floors of this facility will be retail space for a large banking branch. The upper floors will be carpeted office space for corporate users, each floor being approximately 100.000 sq ft (9290 sqm). Data centers are all off site and will be out of scope for this project. The customer is underserved by its existing L2-based network infrastructure and would like to take advantage of modern best practices in the new design. The network should be fully resilient and fault-tolerant, with dynamic segmentation at the edge.

The retail space will include public guest Wi-Fi access. Retail associates will have corporate tablets for customer service, and there will be a mix of wired and wireless devices throughout the retail floors. The corporate users will primarily use wireless for connectivity, but several wired clients, printers, and hard VoIP phones will be in use.

The customer is also planning on renovating the corporate office space in order to take advantage of "smart office' technology. These improvements will drive blue-dot wayfinding. presence analytics, and other location-based services

The client would like to ensure full wireless coverage in its 40 m x 40 m i 130 ft x 130 ft) auditorium during company functions while maintaining the fewest APs for aesthetic purposes WI-FI6 APs are a minimum requirement.

Which AP series would you use In the auditorium's 1.000 seats with a maximum take rate of 80%?

A large multinational financial institution has contracted you to design a new full-stack wired and wireless network for their new 6-story regional office building. The bottom two floors of this facility will be retail space for a large banking branch. The upper floors will be carpeted office space for corporate users, each floor being approximately 100.000 sq ft (9290 sqm). Data centers are all off site and will be out of scope for this project. The customer is underserved by its existing L2-based network infrastructure and would like to take advantage of modern best practices in the new design. The network should be fully resilient and fault-tolerant, with dynamic segmentation at the edge.

The retail space will include public guest Wi-Fi access. Retail associates will have corporate tablets for customer service, and there will be a mix of wired and wireless devices throughout the retail floors. The corporate users will primarily use wireless for connectivity, but several wired clients, printers, and hard VoIP phones will be in use.

The customer is also planning on renovating the corporate office space in order to take advantage of "smart office' technology. These improvements will drive blue-dot wayfinding. presence analytics, and other location-based services

The client decided that wired headless devices would be authenticated using Mac Authentication and would have RADIUS attributes sent back to the NAD to assign VLAN and port access parameters to the authentication session on the switch port.

What would be critical in making this a successful deployment? {Select two.)

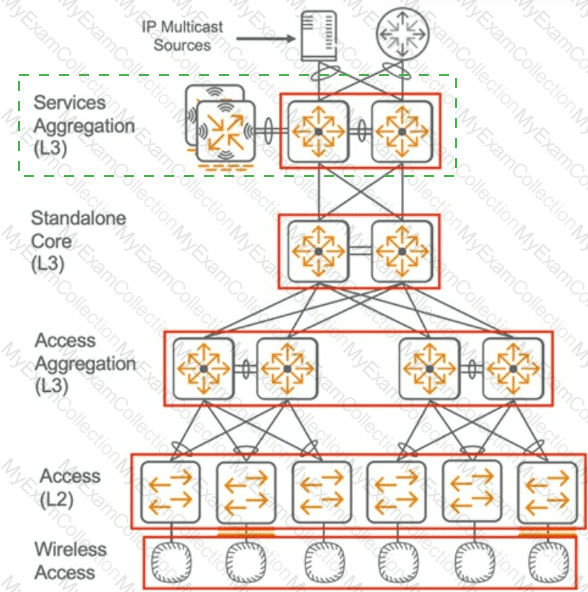

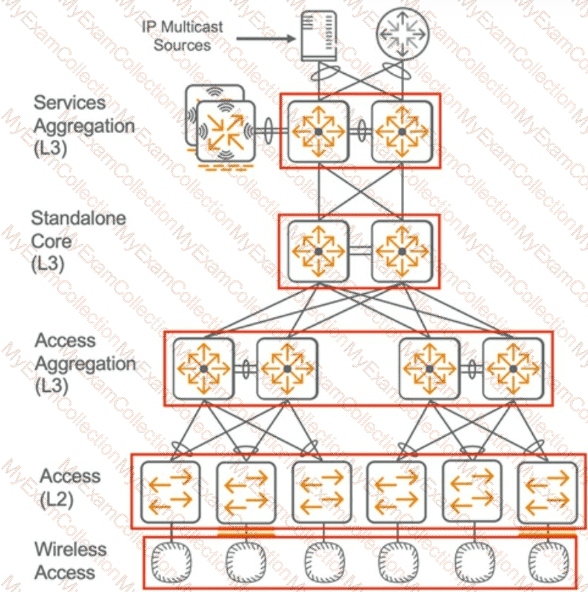

Based on this campus design, click on the layer that is the most appropriate to be designed as a Stub Persona, considering an EVPN VXLAN Fabric?

A global cruise line company needs to refresh its current fleet. They win refresh the insides' of the ship to be cost-effective and increase their sustain ability. They Mill replace the complete WLAN/LAN hardware of the ship. In this refresh, the company will not refresh Us current security requirements. The CIO also wants to limit the number of unused ports in the switches. Future expansion will always mean a refresh of hardware. They start with the smallest ship with a maximum of 800 guests

Each ship has a LAN infrastructure consisting of two core switches, up to 10 redundant distribution switches, and up to 500 access switches (400 cabins. 100 technical rooms). The Core switches are located in the MDF of the ship and the distribution switches are located in the IDFs of the ship. Each cabin and technical room gets one single access switch.

The cabling structure of the ship will not be refreshed. Each IDF is connected to the MDF by SMF. of which two pairs are available for the interconnect between the core and distribution. The length of SM fiber between MDF and IDF is less than 300 meters (930 ft) and the type used is 0S1. Each cabin is connected by a single 0M2 pair to the IDF. the maximum length is 60 meters (200 ft). Each technical room is connected by a single 0M2 pail to the IDF. with lengths between 100 and 150 meters (320 and 500 ft).

For each cabin/technical room the customer is looking to replace their current fan-less 2530/2540 without changing the requirements, except they need to upgrade the uplink to distribution switch to 10GbEto handle the increased network traffic, and the technical rooms need redundant power.

The WLAN infrastructure will be 1:1 refreshed without new cabling or new AP locations. Their WLAN Infrastructure is based on the 200/300 series Indoor and outdoor APs running instantOS (less than 300 APs). the customer has no change in WLAN requirements.

The cruise line company will replace its current Internet connection before the LAN/WLAN refresh. The new Internet connection will provide a 99.8% uptime, which is needed to ensure the paid guest Wi-Fi is always operational. With this new internet connection, the CIO of the cruise line wants to base the design on the ESP architecture from Aruba because Internet connection is guaranteed.

Based on the best practices, what should you recommend as the correct optic type for the connection between the IDF and the cabins?

A customer wants to have the ability to show network usage. Which product would allow them to have this visibility?

Which licenses are needed in order to use the UXl Client on Zebra (Devices? (Select two.)

'Don't Buy at Us' is a US-based retail company that is expanding Into Europe. They are expanding into EMEA with a regional headquarters called HQ2 inside The Netherlands.

Their US-based headquarters HQ1 was refreshed last year based on the Aruba ESP architecture. You have treated the design for HQ? based on the same design as HQ1. a two-tier architecture. The high level is shown below.

Switch BOM for this project based on Two Tier:

Collapsed Core: 2 x Aruba 8360-16Y2C in VSX (ISL 2» ICOG0E DAC)

Access Slack: 10 x Slack of Aruba 6200F 48G Class4 PoE 4SFP- 740W each stack has A members. VSF

with 10GbE VSF links) 12 x 10GbE uplink pet stack)

During the presentation of your design to the CTO of "Don't Buy at Us" you were informed about the changes they want you to incorporate into the updated design

1. HQ2 will include the EMEA regional distribution center (EMEA-OISTR) next to the HQ2.

2. Only two pairs of 0S1 are available between HQ2 and EMEA-DlSTR.

3. The uplinks from all access stacks need to increase to 2 x 25GbE. the fiber in HQ2 and EMEA-DI5TRI is certified for 25GbE.

4. EMEA-DlSTR needs at least 7 x stack of Aruba 48 ports switches (each stack has 4 members).

Which answer based on best practice is presenting the correct Switch BOM tor the updated design?

A)

B)

C)

D)

A global cruise line company needs to refresh its current fleet. They will refresh the “insides” of the ship to be cost-effective and increase their sustainability. They will replace the complete WLAN/LAN hardware of the ship. In this refresh, the company will not refresh its current security requirements. The CIO also wants to limit the number of unused ports in the switches. Future expansion will always mean a refresh of hardware. They start with the smallest ship with a maximum of 800 guests.

Each ship has a LAN infrastructure consisting of two core switches, up to 10 redundant distribution switches, and up to 500 access switches (400 cabins, 100 technical rooms). The core switches are located in the MDF of the ship and the distribution switches are located in the IDFs of the ship. Each cabin and technical room gets one single access switch.

The cabling structure of the ship will not be refreshed. Each IDF is connected to the MDF by SMF, of which two pairs are available for the interconnect between the core and distribution. The length of SM fiber between MDF and IDF is less than 300 meters (980 ft), type used is OS1. Each cabin is connected by a single OM2 pair to the IDF, the maximum length is 60 meters (200 ft). Each technical room is connected by a single OM2 pair to the IDF, with lengths between 100 and 150 meters (320 and 500 ft).

For each cabin/technical room the customer is looking to replace their current fan-less 2530/2540 without changing the requirements, except they need to upgrade the uplink to distribution switch to 10 GbE to handle the increased network traffic, and the technical rooms need redundant power.

The WLAN infrastructure will be 1:1 refreshed without new cabling or new AP locations. Their WLAN infrastructure is based on the 200/300 series indoor and outdoor APs running InstantOS (less than 300 APs). The customer has no change in WLAN requirements.

The cruise line company will replace its current Internet connection before the LAN/WLAN refresh. The new Internet connection will provide a 99.8% uptime, which is needed to ensure the paid guest Wi-Fi is always operational. With this new Internet connection, the CIO of the cruise line wants to base the design on the ESP architecture from Aruba because Internet connection is guaranteed.

The week after the presentation of your design to the CIO of the cruise line company, the CIO calls you to discuss increasing the security on the wired network infrastructure. Since one of their competitors had one of their cruise ships cyber hacked, the CSO of the cruise line has mandated increased security on the wired network. They have heard about dynamic segmentation and central and decentral overlay networks. For their POS systems, they need a low-latency connection between the POS system and the POS server in the onboard data center.

What solution fits the customer’s requirements?
