HPE0-S59 HPE Compute Solutions Question and Answers

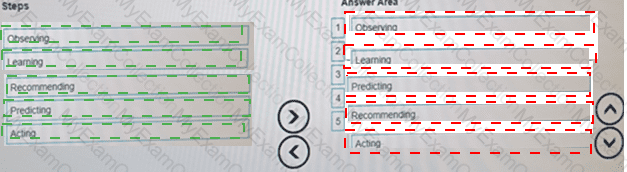

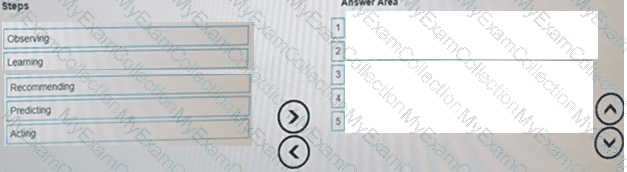

(observing, learning, predicting, recommending, acting)

Observing: The first step involves collecting and monitoring data from the infrastructure. HPE InfoSight continuously gathers telemetry data from various components, including storage, compute, and networking devices.

Learning: In this step, the collected data is analyzed to identify patterns and trends. Machine learning algorithms process the data to understand the normal behavior of the system and detect anomalies.

Predicting: Based on the learned patterns, HPE InfoSight can predict potential issues before they occur. This predictive analysis helps in identifying areas that might cause problems in the future.

Recommending: After predicting potential issues, HPE InfoSight provides actionable recommendations to prevent or resolve these issues. These recommendations are based on best practices and the vast amount of data analyzed by InfoSight.

Acting: Finally, the recommendations are implemented to optimize the performance and reliability of the infrastructure. This step may involve configuring settings, applying updates, or other actions to maintain the health of the system.

The issue of seeing multiple instances of an FC boot volume in Disk Management, with one online and three offline, is typically caused by the lack of Multi-Path I/O (MPIO) configuration. Installing and configuring MPIO on the Windows system will enable the operating system to recognize multiple paths to the same storage volume and manage them correctly, presenting only one online instance of the volume.

When updating HPE OneView to version 6.1, it is necessary to first update to version 6.0, which is a milestone edition. Milestone editions include significant architectural changes and updates that are prerequisites for subsequent versions. This step ensures that the system is properly prepared and compatible with the new features and improvements introduced in version 6.1.

HPE Tech Care is the operational support experience for HPE hardware and software. It was designed to go beyond traditional " break-fix " support by integrating advanced digital tools and direct access to expertise.

Digital Experience and Insights: A core component of the HPE Tech Care experience is the personalized digital dashboard accessible via the HPE Support Center. Within this portal, customers have access to My Insights Dashboards , which include a specific Software Dashboard .

Software Dashboard Functionality: This dashboard provides a centralized view of all the customer ' s covered HPE products. It automatically identifies the currently installed software and firmware versions and compares them against the latest available versions released by HPE. This allows IT teams to proactively identify systems that are out of date, reducing security risks and ensuring they are running on the most stable code.

Proactive vs. Reactive: While traditional support (like HPE Foundation Care) focused on reacting to failures, the Software Dashboard in Tech Care helps customers stay ahead of issues by providing " actionable intelligence " regarding their software and firmware lifecycle.

Comparison to Other Options:

Option A: HPE OpsRamp is an IT Operations Management (ITOM) platform that is typically bundled with HPE Complete Care (formerly Pointnext Complete Care) or available as a standalone subscription, but it is not a standard benefit of the base Tech Care service.

Option B: Multivendor support is a hallmark of HPE Complete Care , which provides a single point of contact for the entire data center environment, including non-HPE hardware. Tech Care is primarily focused on the support of HPE products.

Option D: An assigned or dedicated account team (personalized support) is a feature of HPE Complete Care . HPE Tech Care offers " Direct access to product-specific specialists " (expert-to-expert) rather than a dedicated, named account team that manages the customer ' s specific environment profile.

The HPE Compute Ops Management (COM) service is a cloud-native management platform delivered through HPE GreenLake . To manage a physical server directly from the cloud using the activation key method , the following architectural hierarchy must be followed:

HPE GreenLake Inventory: Before a server can be successfully " activated " or managed by a specific service like COM, the HPE GreenLake platform must first recognize the hardware. This is achieved by adding the server ' s Serial Number (SN) and Product ID (PID) to the workspace ' s Device Inventory . This step " claims " the device for that specific customer workspace and proves ownership.

Activation Key Generation: Once the workspace is established, an administrator generates an Activation Key from within the Compute Ops Management console. This key is often associated with specific settings like server groups, locations, or subscription tiers.

iLO Integration: The activation key is then entered into the server ' s iLO (HPE Integrated Lights-Out) web interface (specifically iLO 5 v3.09+, iLO 6 v1.64+, or iLO 7). When the iLO initiates an outbound connection to the HPE GreenLake cloud, it presents its unique hardware identity (SN/PID) and the activation key. If the SN/PID matches an entry in the GreenLake inventory for that workspace, the onboarding process is finalized, and the server appears as " Connected " in COM.

Network Flexibility: While iLO requires internet access to reach the cloud endpoints, it can use either the Dedicated iLO Network Port or the Shared Network Port (LOM/FlexibleLOM). There is no requirement to use only the dedicated port, making Option B incorrect.

OS Independence: One of the primary benefits of COM is that it operates at the " out-of-band " management level. It does not require an operating system to be installed or even for the server to be powered on (as long as auxiliary power is available to the iLO), making Option A incorrect.

Key Technical Takeaway:

The HPE GreenLake Inventory serves as the foundational " Source of Truth " for all cloud-managed hardware. Without the serial number and product ID being registered in the inventory, the cloud gateway will reject the activation attempt from the iLO for security and multi-tenancy reasons.

Storm control is a feature in HPE Virtual Connect that allows administrators to suppress excessive inbound multicast, broadcast, and destination lookup failure (DLF) packets. This feature helps to mitigate the negative impact of network storms, which can degrade network performance and availability. By configuring storm control, administrators can set thresholds to limit the rate of such packets entering the network, ensuring a stable and reliable network environment.

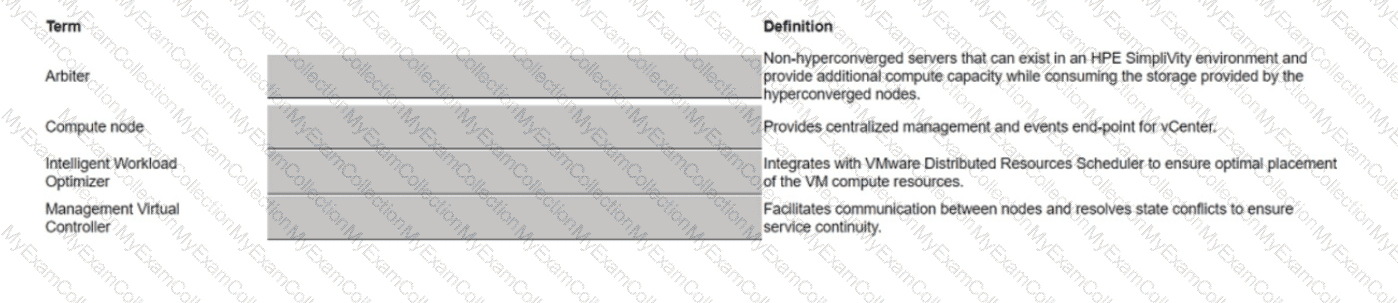

Here are the correct matches for each HPE SimpliVity term with their respective definitions:

Arbiter Definition: Facilitates communication between nodes and resolves state conflicts to ensure service continuity.

Compute node Definition: Non-hyperconverged servers that can exist in an HPE SimpliVity environment and provide additional compute capacity while consuming the storage provided by the hyperconverged nodes.

Intelligent Workload Optimizer Definition: Integrates with VMware Distributed Resources Scheduler to ensure optimal placement of the VM compute resources.

Management Virtual Controller Definition: Provides centralized management and events end-point for vCenter.

Arbiter: The Arbiter in an HPE SimpliVity environment is responsible for ensuring communication between nodes and resolving any state conflicts, which is crucial for maintaining service continuity.

Compute node: In an HPE SimpliVity environment, a compute node refers to non-hyperconverged servers that provide additional compute capacity while utilizing the storage from hyperconverged nodes.

Intelligent Workload Optimizer: This component integrates with VMware ' s Distributed Resources Scheduler (DRS) to optimize the placement of virtual machine (VM) compute resources, ensuring they are efficiently distributed across the environment.

Management Virtual Controller: This controller provides centralized management and serves as the events end-point for vCenter, allowing for streamlined management and monitoring of the SimpliVity environment.

In the lifecycle of HPE OneView software updates, a Milestone Release is a specific version of the appliance firmware that acts as a mandatory " stepping stone " or checkpoint in the upgrade path.

Prerequisite for Updates: Because HPE OneView undergoes significant architectural changes over time (such as database schema migrations, changes to the underlying operating system, or shifts in the container orchestration layer), you cannot always jump from a very old version directly to the latest version. A milestone release contains the necessary logic to transform the existing data and environment into a format that the subsequent versions require.

Update Path Enforcement: The HPE OneView update logic is designed to prevent administrators from skipping these critical versions. If an appliance is at a version significantly older than the target version, the update will fail or be blocked until the required milestone release is installed first.

Examples of Milestones: Historically, versions like HPE OneView 4.2, 5.2, 6.6, and 8.0 have served as milestones. For instance, an administrator on version 5.0 might be required to update to 5.2 (the milestone) before they are permitted to move to version 6.0 or higher.

Update Readiness Checker: HPE highly recommends using the Update Readiness Checker specifically when approaching a milestone release to ensure the appliance ' s internal health is sufficient to handle the intensive data migrations that typically occur during these transitions.

Why other options are incorrect:

Option A: This describes a " Beta " or " Early Access " program, not a milestone release.

Option B: While specific OneView versions are required for specific Service Packs for Synergy (SSP) , the term " milestone " refers specifically to the appliance ' s internal update architecture and pathing, not its external hardware compatibility matrices.

Option C: While new hardware support is often included in major or minor releases, the primary definition of a milestone is its role as a prerequisite in the software update sequence.

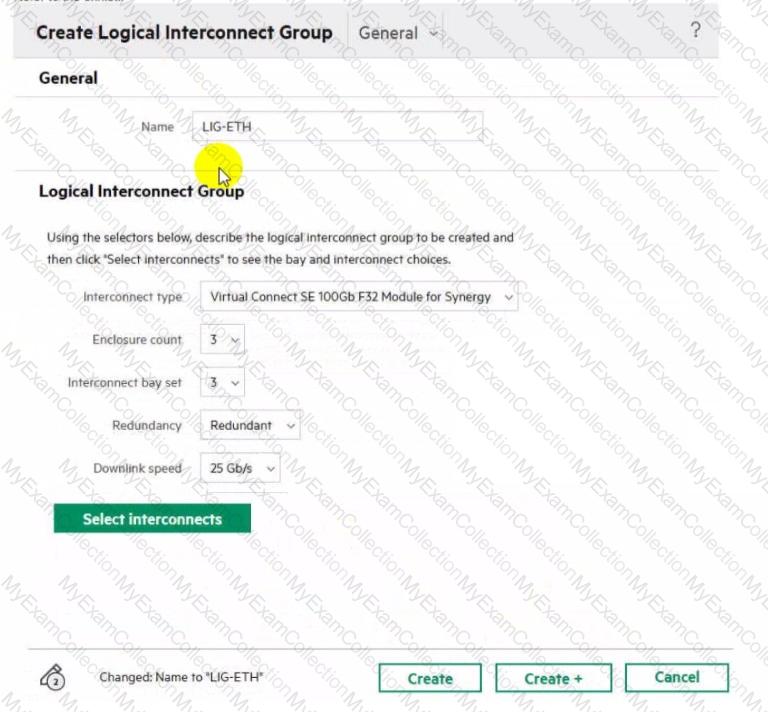

The exhibit shows the creation of a Logical Interconnect Group (LIG) using HPE Virtual Connect SE 100Gb F32 Modules . Here is the breakdown of why Option C is correct and why the others are not:

Master Module Placement (Option C): In a redundant HPE Synergy configuration, the two " Master " (or Primary) interconnect modules must be installed in the same frame (referred to as the Master Frame). These modules are placed in the redundant bays of the chosen bay set (e.g., Bay 3 and Bay 6). The other frames in the logical enclosure (Enclosure count: 3) will house Interconnect Link Modules (ILMs) , which act as satellite modules to extend the fabric from the masters. This architecture ensures a single management point and a unified control plane for the entire multi-frame fabric.

Bay Set Mapping (Option A): The exhibit explicitly shows the Interconnect bay set is set to 3 . In the HPE Synergy 12000 Frame, bay sets map to specific bays:

Bay Set 1: Bays 1 and 4

Bay Set 2: Bays 2 and 5

Bay Set 3: Bays 3 and 6 Since the LIG is configured for bay set 3, the master modules will be in bays 3 and 6 , making Option A incorrect.

Frame Scalability (Option B): The HPE Virtual Connect SE 100Gb F32 Module supports a master/satellite architecture that can scale up to five (5) frames in a single fabric (1 Master Frame + 4 Satellite Frames). The exhibit shows an enclosure count of 3 , which is well within the supported limit and not the maximum for a 25 Gb/s downlink configuration.

Compute Node Form Factor (Option D): Both half-height (e.g., Synergy 480) and full-height (e.g., Synergy 660) compute modules can use interconnect bay set 3. Half-height modules have three mezzanine slots, where slot 3 connects to bay set 3. Full-height modules have six mezzanine slots, where slot 3 and slot 6 can connect to these fabrics. There is no requirement that nodes must be half-height to utilize this fabric.

HPE Compute Ops Management (COM) integrates deeply with the iLO 6 Security Dashboard to provide centralized security posture monitoring for a fleet of servers.

Security Risk Monitoring: COM monitors specific configuration parameters on the iLO management processor that are considered " risky " by modern security standards. One of the primary risks identified is the use of legacy, insecure protocols for management and alerting.

SNMPv1 Risk (Option A): SNMPv1 is an inherently insecure protocol because it sends community strings (passwords) in cleartext across the network. In the iLO 6 Security Dashboard, if the setting " SNMPv1 Request " is set to Enabled , iLO will flag this as an " At risk " security status. HPE Compute Ops Management surfaces these alerts in its cloud console, allowing administrators to identify servers where insecure management protocols are active.

Scope of Management: COM focuses on hardware, firmware, and management-level security . It evaluates settings such as:

Minimum Password Length and complexity.

Secure Boot status.

Authentication requirements for host-based tools.

Global Component Integrity (via SPDM).

Protocol status (disabling IPMI/DCMI or SNMPv1).

Why other options are incorrect:

Option B: Monitoring for varying traffic patterns is typically a function of Network Detection and Response (NDR) or Intrusion Detection Systems (IDS) , such as those found in the Aruba networking portfolio. COM does not perform deep packet inspection or behavioral analysis of production network traffic.

Option C: Antivirus software is an Operating System (OS) level application. Since iLO and COM operate at the " below-the-OS " management layer, they do not have visibility into which software packages (like antivirus or EDR) are installed or running within the server ' s OS.

Option D: While iLO can manage Self-Encrypting Drives (SEDs) and display their encryption status, the presence of " unencrypted data " on a standard drive is an OS/Filesystem-level attribute. The security risks reported by the COM dashboard specifically target the management interface ' s vulnerabilities rather than the data residency state of the local storage.

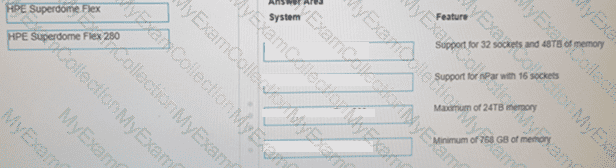

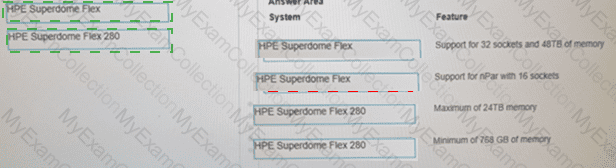

Here are the correct matches for each HPE Superdome Flex system with its respective feature:

HPE Superdome Flex

Support for 32 sockets and 48TB of memory

Support for nPar with 16 sockets

HPE Superdome Flex 280

Maximum of 24TB memory

Minimum of 768 GB of memory

HPE Superdome Flex:

Support for 32 sockets and 48TB of memory: The HPE Superdome Flex system is designed for extremely large-scale workloads and can support configurations with up to 32 CPU sockets and 48TB of memory.

Support for nPar with 16 sockets: This system supports nPartitions (nPars) with configurations that can include up to 16 CPU sockets, providing flexible partitioning and resource allocation.

HPE Superdome Flex 280:

Maximum of 24TB memory: The HPE Superdome Flex 280 supports a maximum memory capacity of 24TB, suitable for large but not as massive workloads compared to the full Superdome Flex.

Minimum of 768 GB of memory: The minimum memory configuration for the HPE Superdome Flex 280 is 768 GB, ensuring a base level of performance and capacity for smaller deployments.

For VMware vSAN deployments, it is recommended that all drives in the D3940 storage modules be SSD drives to ensure optimal performance and efficiency. SSDs provide the necessary speed and reliability required by vSAN for handling storage-intensive operations and maintaining high performance.

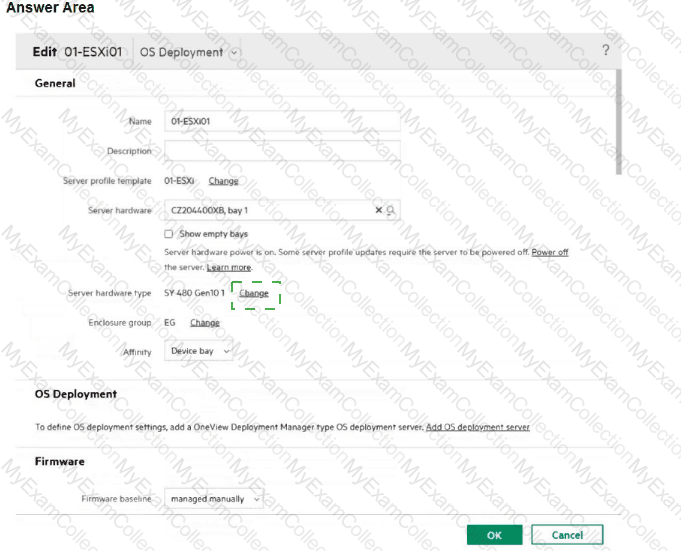

Click the Change link located next to Server hardware type .

In HPE OneView, a Server Profile is a logical software-defined representation of a server. A key component of its definition is the Server Hardware Type , which acts as a " schema " describing the physical characteristics of the server (such as the number of processors, drive bays, and mezzanine slots).

Hardware Incompatibility: Because the HPE Synergy 480 and Synergy 660 have different physical architectures, they are classified as different Server Hardware Types. You cannot simply assign a profile created for a 480 directly to a 660 blade; the " Server hardware " dropdown would show the 660 blades as incompatible.

The Migration Path: To perform this migration, the profile must first be unassigned from its current physical hardware. Once unassigned, clicking the Change link next to Server hardware type allows the administrator to select the hardware type that matches the Synergy 660.

Identity Preservation: By changing the hardware type within the existing profile rather than creating a new one, the profile retains its Virtual Identities (WWNs, MAC addresses, and Serial Number). This is critical in environments with manual storage zoning or strict network security, as it ensures the " new " physical server is recognized by the fabric as the " old " logical server.

Validation: After changing the type, HPE OneView performs a validation check to ensure the existing settings (like Mezzanine card mappings) are compatible with the new hardware layout before allowing the profile to be assigned to the new 660 compute module.

HPE Synergy management rings have a maximum capacity for the number of frames they can manage. With 18 frames already managed in 6 logical enclosures, adding 5 more frames would exceed this capacity. Therefore, the customer needs to create a new management ring for the new logical enclosure to ensure proper management and operation.

To enable dedicated Fibre Channel (FC) connectivity in an HPE Synergy frame, if using Brocade switches, it is necessary to create a logical interconnect group in HPE OneView. This group defines the configuration and management of FC connectivity for the compute modules. Properly configuring and managing this logical interconnect group ensures that the compute modules can establish dedicated FC connections.

When you configure a vVol datastore using the HPE Storage Integration Pack for VMware vCenter, the storage object to check in SSMC (HPE StoreServ Management Console) is the Storage Container. The Storage Container is a logical storage entity that houses virtual volumes (vVols) and represents the vVol datastore in the storage system. Verifying the Storage Container ensures that the vVol datastore is properly configured and managed.

When encountering an error while growing a VMware cluster using HPE OneView for VMware vCenter Server, it is crucial to verify that the server profile template is properly imported and registered in HPE OneView. This ensures that the necessary configurations and settings are correctly applied to the new compute nodes being added to the cluster.

To configure a RoCE (RDMA over Converged Ethernet) network for HPE J2000 Flash Enclosure support, you need interconnects that support high-bandwidth, low-latency Ethernet connections. The HPE Virtual Connect SE 40Gb F8 Module and the HPE Virtual Connect SE 100Gb F32 Module for HPE Synergy are suitable choices, as they provide the necessary capabilities for RoCE and lossless networking.

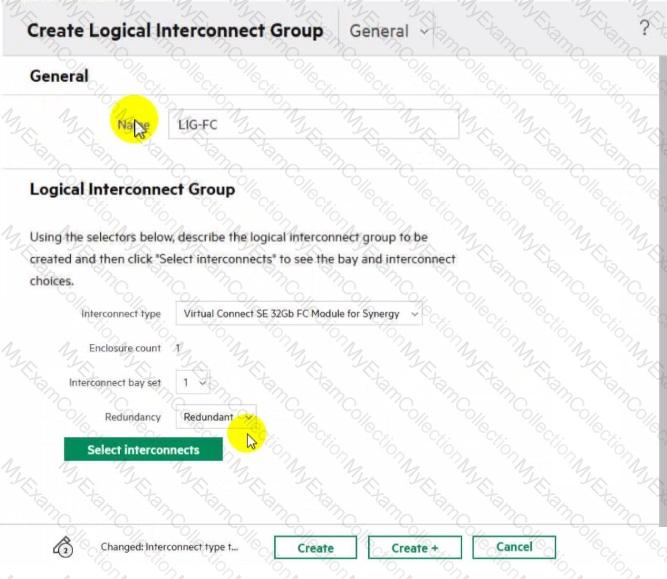

In the HPE Synergy setup shown in the exhibit, the interconnect type is Virtual Connect SE 32Gb FC Module for Synergy with an enclosure count of 1 and interconnect bay set 1. Typically, in such configurations, the interconnect modules are installed in bays 1 and 4 for redundancy. This placement ensures high availability and failover capabilities.

To expand an existing logical enclosure based on a single HPE Synergy frame to include a second frame and ensure a highly available master setup, the following steps should be performed:

Modify an existing logical interconnect to include the second HPE Synergy frame: This step involves updating the logical interconnect configuration to encompass the new frame, ensuring network connectivity and consistency across both frames.

Move one of the master modules to the appropriate interconnect bay in the second frame: To achieve a highly available master setup, one of the master modules should be relocated to the second frame, providing redundancy and high availability for the management components.

When troubleshooting a server profile in HPE OneView that is in a critical state due to a Link Aggregation Group (LAG), it is important to check if both FlexNICs are configured with the same speed. Inconsistent speeds can cause issues with link aggregation, leading to network instability and performance degradation.

vSAN licenses and vSphere licenses are separate entities. While vSAN licenses cover the storage virtualization aspect of VMware ' s hyper-converged infrastructure, vSphere licenses are required for the actual hypervisor operations. Therefore, the customer must ensure they have the appropriate vSphere licenses in addition to vSAN licenses for their compute nodes.

HPE MSA 2062 Storage Array is not supported in HPE OneView: HPE OneView does not provide management capabilities for the HPE MSA series, which includes the MSA 2062. These arrays must be managed using their dedicated management tools.

HPE Primera 650 can be managed using HPE OneView: HPE OneView supports the management of HPE Primera storage arrays, including the Primera 650, allowing for integrated management and monitoring within the OneView environment.

The HPE Superdome Flex architecture is built on a modular " building block " design where multiple chassis are interconnected to form a single, massive " complex. " The firmware management for this system is centralized through the Rack Management Controller (RMC) .

Complex Firmware Model: Unlike standard rack servers where BIOS and BMC firmware are updated independently, Superdome Flex utilizes a complex firmware bundle . This bundle contains synchronized versions of the BIOS, BMC, and RMC firmware to ensure all parts of the scale-up system work in harmony.

Simultaneous Updates: When an administrator initiates a firmware update via the RMC CLI (using the update firmware command), the RMC orchestrates the deployment of the firmware to all chassis and components within the complex simultaneously . This ensures that the entire system remains on a consistent version, which is critical for the stability and cache coherency of mission-critical workloads.

Terminology Note: In HPE training and documentation context, " multiple HPE Superdome systems " in this question refers to the individual chassis/modular units that comprise a larger Superdome Flex complex.

Why other options are incorrect:

Options B & D: HPE Persistent Memory (Intel Optane) firmware can be updated via the RMC CLI as part of the complex update, but it can also be updated using HPE Smart Update Manager (SUM) through specific components. Therefore, neither is the " only " tool.

Option C: While HPE OneView is a powerful management tool, it is not the only way to perform I/O updates. In fact, HPE SUM is the primary tool for performing both online and offline I/O firmware and driver updates for Superdome Flex.

Manual orchestration during a firmware update allows administrators to control the update process more precisely. Specifically, it enables the selection and update of one side of the interconnect topology at a time. This capability is particularly useful in maintaining network availability and minimizing downtime during the update process, as one side can be updated and verified before proceeding to the other side.

An HPE OneView support dump includes various diagnostic information, and by default, it contains a logical enclosure support dump. This comprehensive dump helps in troubleshooting by providing detailed logs and configuration data from the appliance and the logical enclosures it manages, enabling effective diagnosis of issues within the managed environment.

In the context of HPE OneView and Virtual Connect , a Private Network is a specific security configuration designed to restrict Layer 2 communication between server blades (downlinks) that are connected to the same internal network.

Traffic Isolation: When a network is marked as " Private, " communication between server ports assigned to that network is prohibited. This means that Server A cannot talk to Server B, even if they are in the same frame and on the same VLAN.

Uplink Only Communication: Traffic originating from a server port on a Private Network can only travel to the uplink ports . This ensures that all traffic must exit the Virtual Connect environment to a top-of-rack (ToR) switch or a firewall before it can potentially be routed back to another server.

Use Case - Security and Multi-Tenancy: This feature is primarily used to enhance network security . It prevents " lateral movement " between servers in a shared environment. For example, in a multi-tenant service provider environment, you may want to ensure that one customer ' s virtual machines or bare-metal servers cannot intercept or interfere with another customer ' s traffic, even if they accidentally end up on the same network segment.

Comparison to PVLANs: This is functionally equivalent to the concept of Private VLANs (PVLANs) in traditional networking, specifically the " Isolated " port type where the ports cannot communicate with each other but can communicate with the " Promiscuous " port (the uplink).

Why other options are incorrect:

Option A: Port speed (100 Gb/s) is determined by the hardware capabilities of the Interconnect Modules (such as the F32) and the transceivers used, not by the " Private " attribute of a logical network.

Option C: While a heartbeat network for a cluster requires low latency, it actually requires the nodes to talk to each other. Enabling a " Private Network " would break a heartbeat network because it prevents the nodes from communicating directly.

Option D: A dedicated network for a single node is achieved by creating a unique VLAN/Network and assigning it only to one Server Profile. The " Private " setting is specifically about how multiple nodes on the same network interact with each other.

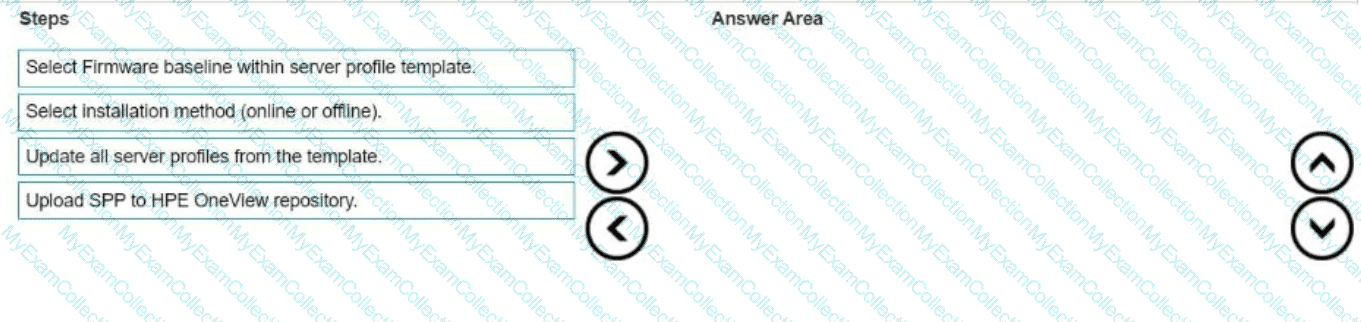

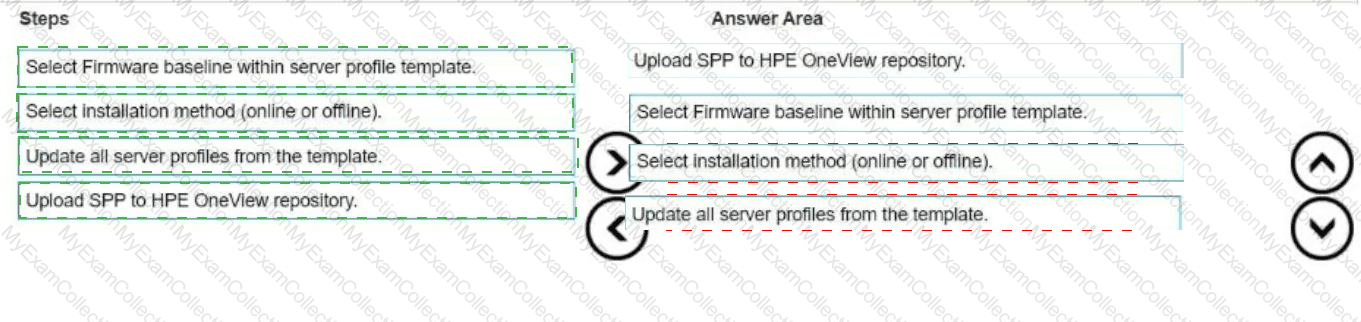

To update the firmware for the HPE Synergy 480 Gen 10 compute modules with a server profile assigned from a server profile template, the steps should be performed in the following order:

Upload SPP to HPE OneView repository. (First, the Service Pack for ProLiant (SPP) containing the firmware updates must be uploaded to the HPE OneView repository.)

Select Firmware baseline within server profile template. (Next, you need to select the desired firmware baseline in the server profile template.)

Select installation method (online or offline). (Choose whether the firmware updates will be installed online or offline.)

Update all server profiles from the template. (Finally, update all server profiles from the modified template to apply the firmware updates to the compute modules.)
