H13-629_V3.0 HCIE-Storage V3.0 Question and Answers

The mandatory network planes are the backup network and the management network.

Huawei defines the management network plane as the network used for web-console login, service configuration, and alarm reporting. Without it, administrators cannot perform the fundamental control and administration functions required by the appliance. Huawei defines the backup network plane as the network used for backup data and in-band signaling transmission, making it essential for the appliance ' s core data-protection function.

The replication network, by contrast, is needed when backup copies must be replicated to another data-protection appliance. If remote replication is not part of the deployment, this plane is not mandatory. Similarly, an archive network is optional because the backup network can be reused for archiving under supported configurations.

An internal communication network becomes relevant to multi-node architectures where separate nodes must communicate internally. The question explicitly specifies a single-node system, so this separate internal plane is not mandatory.

Therefore, the baseline single-node OceanProtect networking requirement is C and D.

Study Guide Topics: Data Protection Solution → OceanProtect Appliance → Network Planning → Management Network → Backup Network → Replication Network.

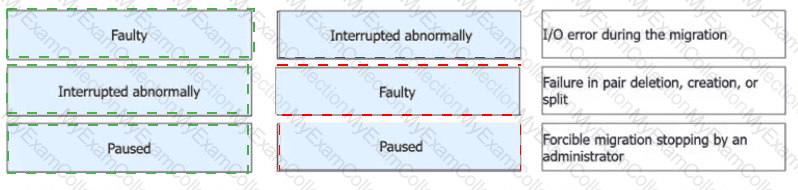

Interrupted abnormally → I/O error during the migration; Faulty → Failure in pair deletion, creation, or split; Paused → Forcible migration stopping by an administrator

The course states that “SmartMigration migrates services on a source LUN completely to a target LUN without interrupting host services.” It also explains that source-to-target synchronization uses dual-write and DCL technologies to maintain data consistency while services continue running.

The three states distinguish the cause of migration interruption. Interrupted abnormally corresponds to an I/O-related interruption occurring while migration is actually processing data. This differs from Faulty, which indicates that the SmartMigration relationship itself cannot successfully complete a control-plane operation such as pair creation, deletion, or splitting. Paused is an administrative state: migration is intentionally stopped rather than failing because of an underlying I/O or object-management error.

This distinction is consistent with SmartMigration ' s architecture. Data synchronization is a running data-plane process, while creation, splitting, and deletion are pair-management operations. An administrator-triggered stop does not imply that either of those mechanisms has failed.

The course also describes SmartMigration as Huawei ' s online LUN migration function.

Study Guide Topics: Data Migration Solution → SmartMigration → Migration Pair → Data Synchronization → Migration States and Exception Handling.

Huawei explains that a file-system snapshot is a point-in-time copy. When source data changes, ROW writes the new data to another location while the snapshot continues to reference the original data, thereby preserving the source file system ' s state at snapshot creation time.

The statement is TRUE. Snapshot rollback changes the active file-system data state back to the selected protection point. Active NAS clients must therefore not continue issuing file operations against the source file system while that authoritative state is being replaced. The host share is unmounted before rollback so that active client I/O cannot conflict with restoration of snapshot metadata and data mappings.

The HCIE materials also show the same operational consistency principle in rollback workflows: upper-layer service access is stopped before storage state is reverted. In the Lab Guide ' s rollback procedure, the first action is to stop upper-layer service access and unmount the relevant file system before storage mappings are changed.

This ensures that the post-rollback file system presents one internally consistent point-in-time image when service access resumes.

Study Guide Topics: Data Storage Technology Presentation → HyperSnap → File System Snapshot → ROW → Snapshot Rollback → NAS Data Consistency.

The HCIE training material describes LAN-free networking with a SAN between the CNA nodes, production storage, eBackup server, and backup infrastructure. It explicitly states that when virtualized SAN storage is used and LAN-free networking is required for backup and recovery, storage LUNs must be mapped to the eBackup server.

Therefore, the correct answer is B. SAN storage.

LAN-free backup is designed to move backup and recovery traffic over the storage network instead of the production Ethernet LAN. Huawei states that this approach is particularly suitable when the data volume is large and the backup window is strict because backup and recovery do not consume Ethernet resources.

For FusionCompute, the production LUNs can be directly exposed through the storage path to the eBackup backup server/proxy. This differs from LAN-based backup, where the backup system obtains data through the CNA node over the LAN. The direct SAN path is the technical condition that produces the “only LAN-free backup and restoration” behavior described in the scenario.

Study Guide Topics: Data Protection Solution → OceanStor BCManager eBackup → FusionCompute Backup → LAN-Free Networking → SAN Storage.

The correct security layer is the Network layer.

Huawei defines SFTP as Secure File Transfer Protocol and SSH as Secure Shell in the course terminology. Both protocols protect communications carried between systems over the network rather than implementing application-data protection or storage-resource access logic.

The BCManager eReplication architecture also shows communication among the eReplication Server, Agents, browsers, storage systems, virtualization platforms, and DR management systems through network protocols such as HTTPS, REST, SOAP, and storage-management interfaces.

Using SSH replaces insecure remote terminal access with encrypted secure-shell communication, while SFTP protects file transfer through a secure channel. Their purpose in this context is therefore protection of management communication while information crosses the network.

Consequently, this control belongs to network-layer security, rather than the application, management-function, or operating-system layers.

The retrieved Training Materials define SSH/SFTP and the eReplication communications architecture, although the four-choice security-layer taxonomy itself is not reproduced as a separate table in the parsed material.

Study Guide Topics: Data Protection Solution → BCManager eReplication → Security → Secure Communications → SSH/SFTP → Network Layer.

Huawei states: “SmartEqualizer calculates the load based on the configured load policy and returns the IP address of a proper node to the client so that the client can access the storage system using the standard protocol.”

This directly supports C. SmartEqualizer performs access-layer load balancing when clients resolve and access storage services. It does not rely on all cluster nodes continuously pushing their load information to one designated “primary SmartEqualizer node” in the manner described in A; therefore A is incorrect.

The SmartEqualizer service integrates with DNS-based client access. Huawei supports two DNS deployment approaches: client-side DNS can forward the required OceanStor Pacific domain-resolution request to the storage system ' s DNS service, or a client can use the OceanStor Pacific DNS address directly. These operating approaches correspond to B and D.

This DNS-based mechanism is important because the IP returned to a new client is selected according to the configured balancing policy, allowing new access sessions to be distributed across suitable nodes instead of concentrating service traffic on one storage node.

Study Guide Topics: Data Storage Technology Presentation → OceanStor Pacific → SmartEqualizer → Intelligent Load Balancing → Access-Layer Load Balancing → DNS.

Huawei defines the DR-drill procedure as: stop the production application and unmap hosts/LUNs → synchronize incremental data → switch the replication relationship → map a LUN → start DR applications → test whether applications start successfully.

Therefore, A, B, and D are the required operations.

Incremental synchronization ensures that the DR copy has the latest protected changes before the service transition. The replication relationship is then switched so the DR-side storage resources can assume the required service role. After the target LUNs are mapped, DR applications are started and tested to confirm that the recovery environment can actually carry the business workload.

Option C is different. A recovery plan must already be defined as part of BCManager DR configuration and orchestration; formulating the recovery plan is not an execution step performed every time a DR drill runs. The course separately describes eReplication configuration as creating protection groups and recovery plans before recovery operations are executed.

A DR drill therefore validates an existing DR design and recovery plan rather than redesigning that plan during each test.

Study Guide Topics: Data Protection Solution → OceanStor BCManager eReplication → DR Management → Recovery Plan → DR Drill → Planned Service Migration.

Huawei identifies MigrationDirector for SAN as the dedicated migration tool for SAN storage migration. Before migration execution, the migration environment must be defined: the source storage must be identified, the relevant service host must be known, and the target storage/resources must be prepared.

The Lab Guide ' s workflow places Creating a Service Host, Configuring the Source Storage, and Preparing the Target Storage before the actual Data Migration phase. A SmartVirtualization migration lab follows the same structure: production/service-host preparation and target-storage preparation precede takeover and data migration.

This makes A, B, and C configuration/preparation activities.

Option D belongs later in migration execution. Huawei ' s migration delivery sequence explicitly places target-storage configuration and migration preparation before stopping services, taking over the source storage, recovering applications, and migrating data.

Therefore, service takeover is an implementation/cutover activity rather than information entered during migration-task configuration.

Study Guide Topics: Data Migration Solution → MigrationDirector for SAN → Migration Task Configuration → Source Storage → Service Host → Target Storage Planning → Cutover.

The SmartQoS section explicitly states that upper-limit control can “limit the IOPS, bandwidth, and latency.” Therefore, A, C, and D are correct.

IOPS controls the number of I/O operations that a workload can issue within a given period. Bandwidth controls the quantity of data transferred per unit of time. Latency control provides an I/O response-time objective so that resource contention can be managed while protecting service quality.

For OceanStor Pacific block services, Huawei implements distributed SmartQoS with volume I/O queues and token buckets. The course explains that when IOPS is restricted, one I/O consumes one token; when bandwidth is restricted, one byte consumes one token. The token rate is coordinated among VBS nodes to enforce the overall performance objective of a volume.

Option B, OPS, is not identified as one of the SmartQoS performance-control indicators in this section. The defined indicators are IOPS, bandwidth, and latency.

Study Guide Topics: Data Storage Technology Presentation → OceanStor Pacific → SmartQoS → Block Service → Distributed Traffic Control → IOPS/Bandwidth/Latency.

The SmartMulti-Tenant section explicitly lists the three components of service isolation between tenants as “Service configuration isolation,” “Service access isolation,” and “Service data isolation.”

Therefore, A, C, and D are correct. Service configuration isolation prevents one vStore administrator or tenant environment from changing the service configuration belonging to another tenant. Service access isolation restricts access so that a tenant reaches only the resources allocated to that vStore. Service data isolation ensures that the data belonging to separate tenants remains logically segregated.

Option B is deliberately different. The course describes network isolation between tenants separately from service isolation. It states that a client can use a specified LIF to access only the file systems and snapshots belonging to the corresponding tenant. Therefore, network isolation is indeed part of the broader SmartMulti-Tenant architecture, but it is not one of the three items classified specifically as service isolation.

Study Guide Topics: Flash Storage Technology Presentation → Flash Storage Features → SmartMulti-Tenant → vStore → Tenant Service Isolation.

Huawei states that database backup “supports full backup, incremental backup, differential backup, and log backup.” It further specifies: “By using log backup, production data can be recovered to any time point in the past,” and that the solution supports “data encryption, backup data transmission encryption, and storage encryption” as well as “traffic control.”

Therefore, A, C, and D are correct.

Point-in-time recovery is enabled by combining database backup copies with transaction/archive log backup. Instead of being restricted to a full or incremental backup timestamp, the restore workflow can replay the required logs until the requested recovery time, thereby reducing the effective RPO.

Encryption is supported across multiple stages: backup data itself can be encrypted, backup-data transmission can be protected, and the underlying storage can use encryption. Traffic control is also supported so that backup activity does not consume excessive network or storage bandwidth and interfere with production services.

Data cleaning, option B, is not listed among the database backup capabilities described in this course section.

Study Guide Topics: Data Protection Solution → OceanProtect Database Backup → Log Backup → Point-in-Time Recovery → Encryption → Traffic Control.

Huawei defines To be recovered as the state entered after the fault causing an interruption is rectified when manual recovery is required. The state reminds the administrator that manual synchronization is needed to restore the pair. Therefore, D is correct.

A manually split pair enters Split, meaning replication is suspended; the replication relationship itself is not deleted. An ordinary link or LUN failure causes Interrupted, whereas Invalid is used when the properties of the primary or secondary resource change and the configurations become inconsistent. This makes A and C incorrect.

For file systems, Huawei states that HyperReplication(A) replicates at the file-system object layer and synchronizes all file-system contents and changes to the secondary file system. The WORM section separately documents that file expiration is governed by the WORM regulatory clock.

The retrieved course text documents these two mechanisms separately rather than giving one sentence explicitly naming both WORM fields during replication.

Study Guide Topics: Data Protection Solution → HyperReplication(A) for File Systems → Pair Status → WORM → Recovery and Synchronization.

The O & M training material defines the diagnostic information available through DeviceManager. It states that DHA runtime logs are disks ' daily running logs, including disk-health statistics, I/O statistics, and service-life information. It also states that HSSD logs contain S.M.A.R.T. information and disk running logs. The same section states that DeviceManager provides Download Recent Log or All Logs for configuration, event, and debugging information, as well as Download DHA Runtime Log or HSSD Log for disk runtime, I/O, service-life, and S.M.A.R.T. information. In a multi-controller Huawei storage system, diagnostic information is distributed among controllers. The log-download operation therefore performs the collection stage before producing the controller-associated downloadable packages. This design ensures that the final log set reflects information from the relevant controllers rather than only the management controller.

The Training Materials explicitly document the available log categories and DeviceManager collection mechanisms; the controller-by-controller collection progress is part of the operational log-download workflow.

Study Guide Topics: Data Storage Management and O & M → Collecting Storage System Information → DeviceManager → System Logs → DHA Runtime Logs → HSSD Logs.

The required component is MDC.

OceanStor Pacific uses a distributed control architecture in which cluster-management and metadata/control services must remain highly available as nodes are added, removed, or experience failures. Huawei specifically identifies multi-MDC as a mechanism that improves system reliability. The training architecture also shows MDC participating in sub-health management together with storage-side processes such as OSD and EDS.

This distributed deployment is consistent with the architecture of OceanStor Pacific: storage services are spread across nodes, and control information must remain accessible regardless of the physical node role. The system therefore cannot depend on one isolated control instance.

Huawei also describes OceanStor Pacific as a three-layer scale-out architecture integrating block, file, object, and HDFS services, with cluster-status control, distributed data routing, redundancy management, rebuilding, and balancing forming core storage-engine functions. MDC supports the distributed coordination and control required by this architecture.

The supplied question set identifies MDC as the required abbreviation.

Study Guide Topics: Data Storage Technology Presentation → OceanStor Pacific → Scale-Out Architecture → MDC → Cluster Control → High Reliability.

All four listed capabilities are included in the DME data-management/O & M framework.

Huawei describes DME Storage as an intelligent storage management platform covering the complete storage lifecycle, including planning, deployment, O & M, and optimization. Its architecture includes intelligent diagnosis, intelligent optimization, resource optimization, planning simulation, operation visibility, insight analysis, and multidimensional analysis.

Planning enables administrators to model and organize resources before deployment. Analysis provides performance, capacity, topology, alarm, and workload insight. Optimization uses those analytics to recommend or execute improvements such as capacity balancing, migration, SLA adjustment, and QoS changes. Search is important for unstructured-data environments because files, objects, and other unstructured content must be located and analyzed according to metadata.

Huawei OceanStor Pacific also provides SmartIndexing for unstructured file, object, and HDFS storage. It can return search results from extremely large metadata sets within seconds and provides unified multi-protocol metadata indexing.

Consequently, DME ' s unstructured-data management workflow spans the complete chain of search, analysis, planning, and optimization.

Study Guide Topics: Data Storage Management and O & M → DME → Unstructured Data Management → Search → Analysis → Planning → Optimization.
