H12-811_V1.0 HCIA-Datacom V1.0 Exam Question and Answers

Comprehensive Explanation: On a network consisting of multiple broadcast domains (like Ethernet links), OSPF will elect one DR (Designated Router) and one BDR (Backup Designated Router) per broadcast segment. In this topology, two Ethernet segments are formed, so two DRs will be elected​

Command Overview:The Huawei Versatile Routing Platform (VRP) uses specific commands to manage file systems and view directory contents. While the dir command is used to list files in the current directory, the pwd command is not supported in VRP environments. Instead, the current working directory is displayed as part of the command prompt in VRP​​​.

Command Analysis:

dir Command:This command is supported and displays the list of files and subdirectories in the current directory. Example:

< Huawei > dir

Output includes filenames, sizes, and other metadata.

pwd Command:The pwd command is commonly used in UNIX/Linux systems to print the current working directory. However, this command is not available on VRP. VRP automatically shows the current directory in its prompt, making pwd unnecessary.

Correct Answer:Since only dir is valid, the statement is false. The correct answer is B (FALSE).

In STP, the root bridge is elected based on the lowest bridge priority. If there is a tie in bridge priority, the device with the lowest MAC address is selected as the root bridge. This process ensures a stable, predictable root bridge selection in the network​.

Comprehensive and Detailed In-Depth Explanation:

The correct command to change the name of a Huawei network device is:

sysname Huawei

This command is used in the system view mode to configure the system name.

Incorrect Options:

hostname huawei (Option A) is incorrect because Huawei uses sysname, not hostname (which is used in Cisco devices).

rename huawei (Option B) is invalid because the rename command is not used for system name modification.

do name huawei (Option D) is incorrect as there is no such command in Huawei CLI.

Detailed Explanation:OSPF (Open Shortest Path First) has several key advantages:

It can load balance traffic among equal-cost routes.

OSPF supports hierarchical area structures, allowing for network scalability and reduced routing table sizes.

OSPF supports strong security measures through packet authentication (MD5 or plain text).

It supports Classless Inter-Domain Routing (CIDR), allowing for more efficient IP address allocation and route aggregation.

Detailed Explanation:The default Router Dead Interval in OSPF is 40 seconds for broadcast and point-to-point networks. This interval defines the time period a router waits to receive hello packets before declaring a neighbor as down. (Reference: HCIA-Datacom Training Material, OSPF Hello and Dead Intervals)

Network Layers in Campus Design:

The three common layers in a campus network are:

Core Layer: Provides high-speed backbone connectivity.

Aggregation Layer: Consolidates traffic and applies policies.

Access Layer: Connects end devices like PCs and phones.

Why " Network Layer " Is Incorrect:

" Network layer " is not a term used to describe physical or logical architecture in campus networks. It refers to Layer 3 in the OSI model, which is about IP routing.

Why Other Options Are Correct:

Core, access, and aggregation layers are widely used in hierarchical network design.

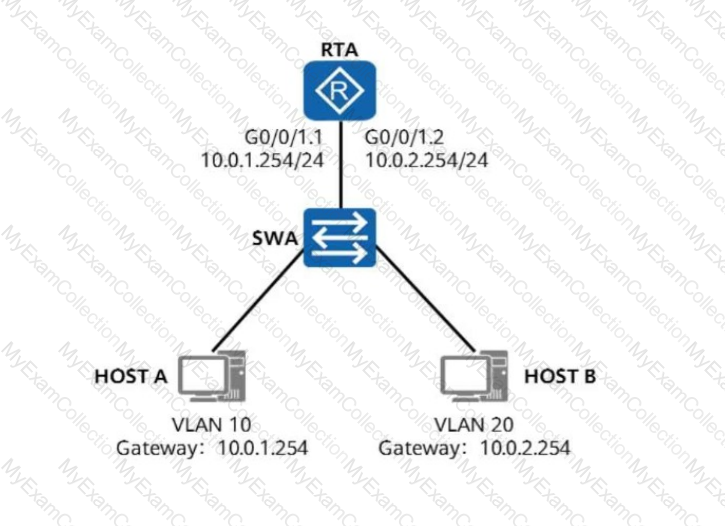

In one-arm routing (or router-on-a-stick) mode, a single physical link (with sub-interfaces) can carry traffic between multiple VLANs, reducing the number of physical links required. This approach minimizes cabling and port usage while still enabling inter-VLAN communication. However, it does not inherently reduce IP address usage, routing table entries, or the number of devices required​.

ICMP and NAPT:ICMP packets do not have port numbers, but NAPT (Network Address and Port Translation) can still manage ICMP traffic by matching identifiers in the ICMP header. This allows NAPT to handle ICMP messages properly​​.

Correct Answer:FALSE. ICMP packets can be handled by NAPT.

Comprehensive and Detailed In-Depth Explanation:

In Huawei switches:

" port hybrid tagged vlan X " → VLAN X traffic remains tagged when forwarded.

" port hybrid untagged vlan Y " → VLAN Y traffic is sent without a tag (untagged).

Correct Answer:

VLAN 4 and 6 will be untagged before leaving the port.

Incorrect Options:

VLANs 1, 5 are not mentioned in the configuration, so they are not untagged.

Device Interconnection Requirements:

Device interconnection (such as point-to-point links) requires only two IP addresses: one for each device.

A subnet mask of /30 (255.255.255.252) provides four total addresses (2 usable, 1 network, 1 broadcast).

Efficiency:

Using a /30 subnet avoids wasting IP addresses, making it ideal for point-to-point links.

Why Other Options Are Incorrect:

B (32): /32 is used for single-host IP addresses, not links.

C (24): /24 is excessive for point-to-point links, providing 254 usable addresses.

D (16): /16 provides 65,534 addresses, which is highly inefficient.

Detailed Explanation:RSTP (Rapid Spanning Tree Protocol) employs a synchronization mechanism with the proposal/agreement handshakes to prevent loops during topology changes. By synchronizing states between switches, RSTP avoids temporary loops while quickly transitioning ports to the forwarding state. (Reference: HCIA-Datacom Training Material, RSTP Mechanisms and Synchronization)

In OSPF, a router in the backbone area (Area 0) has a full LSDB (Link-State Database) for all routers within the OSPF domain. This comprehensive LSDB allows the backbone area to communicate effectively with other areas by providing routing information about all connected OSPF routers, facilitating inter-area routing​.

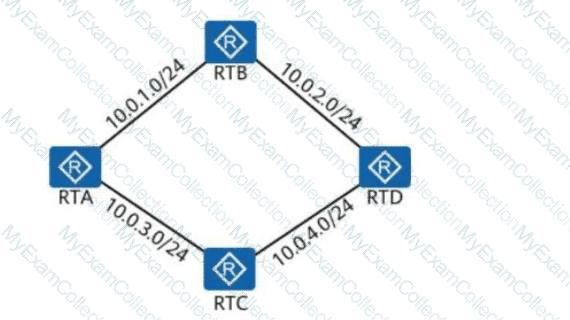

The wildcard mask 0.0.254.255 means:

The first and third octets are checked exactly.

The second and fourth octets can vary.

This results in a match for IPs in the range 10.0.2.0 - 10.0.2.255.

Only option D (10.0.2.1) falls within this range.

Thus, the correct answer is D (10.0.2.1).

In RSTP (Rapid Spanning Tree Protocol), the Backup port serves as a backup for the Designated port on the same bridge segment, not the root port. If the root port fails, the alternate port, not the backup port, takes over to maintain connectivity to the root bridge. The backup port does not have the capability to replace the root port​.

Comprehensive and Detailed In-Depth Explanation:

LACP selects active ports based on priority (lower is better).

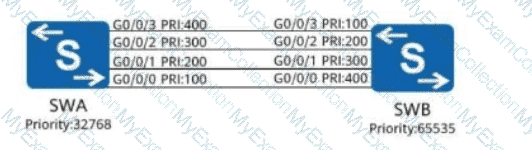

Switch A (SWA) has the following priorities:

G0/0/0 → Priority 100

G0/0/1 → Priority 200

G0/0/2 → Priority 300

G0/0/3 → Priority 400

Since only 3 ports can be active, the port with the highest priority number (400) is NOT active.

Thus, G0/0/3 is NOT selected as an active port.

Statement A (Correct): DR and BDR must form an adjacency relationship to maintain routing information exchange.

Statement B (Incorrect): The router with the higher priority is elected as DR, not the lower one.

Statement C (Incorrect): DR is elected by routers within a broadcast/multi-access network, not necessarily all routers in the same network segment.

Statement D (Correct): If two routers have the same priority, the one with the higher Router ID becomes the DR.

In RSTP, an edge port is intended to connect directly to end devices, not other switches. However, if the edge port receives a BPDU, it will lose its edge status and revert to a standard STP port. This feature prevents loops by reconfiguring the port based on network conditions​.

B (Correct) - HTTP: Uses TCP port 80 for web traffic.

C (Correct) - FTP: Uses TCP ports 20/21 for file transfer.

A (Incorrect) - TFTP: Uses UDP port 69, not TCP.

D (Incorrect) - Ping: Uses ICMP, which is neither TCP nor UDP.

Thus, the correct answers are B and C.

Router Functionality:Routers operate at the Network Layer (Layer 3) of the OSI model. They use IP addresses to forward packets between different networks and determine the best path for data transmission based on routing tables​​.

Analysis of Options:

Option A: " Network layer " is correct, as routers are Layer 3 devices.

Option B: " Transport layer " handles end-to-end communication and reliability (e.g., TCP/UDP), not routing.

Option C: " Data link layer " is for local node-to-node data transfer (e.g., MAC addresses), handled by switches.

Option D: " Application layer " is for user-facing software interactions (e.g., HTTP, FTP).

Correct Answer:Routers work at the A (Network layer).

An AP (Access Point) radio can support multiple SSIDs, allowing segmentation of different types of traffic on the same wireless network. Each SSID can have unique security and access policies, enabling flexible wireless network configurations for different user groups​.

The default port number for Telnet is 23. This standard port assignment allows Telnet clients to connect to Telnet servers, facilitating remote management and troubleshooting tasks on network devices. Ports are preassigned to services to streamline network communication and reduce conflicts​.

Understanding Trunk Ports:

Trunk ports carry traffic from multiple VLANs.

Native VLAN (PVID) frames are sent untagged on the trunk.

Breakdown of Configuration:

port link-type trunk → Interface operates as a trunk.

port trunk pvid vlan 10 → Sets VLAN 10 as the native VLAN.

port trunk allow-pass vlan 10 20 30 40 → Allows traffic from VLANs 10, 20, 30, and 40.

Conclusion:

Since VLAN 10 is the PVID (native VLAN), frames from this VLAN are sent untagged.

Correct answer is A (VLAN 10).

An ARP (Address Resolution Protocol) packet includes several fields essential for mapping IP addresses to MAC addresses. The fields include:

Source Protocol Address: Identifies the IP address of the requesting device.

Source Hardware Address: Contains the MAC address of the source.

Hardware Type: Indicates the hardware type, typically Ethernet.

Operation Code: Specifies the operation (request or reply). These fields collectively allow devices to resolve IP addresses to physical MAC addresses, enabling direct communication within the local network​.

In the ACL (Access Control List) configuration:

Rule 5: Permits traffic from 192.168.1.1.

Rule 10: Denies traffic from 192.168.1.1.

Since ACLs are processed in sequential order, the first matching rule is applied.

Option A (Incorrect): The first rule (permit) is matched before the deny rule.

Option B (Incorrect): 192.168.1.254 is not listed in the ACL, so it does not match any rule.

Option C (Correct): 192.168.1.1 matches the first permit rule (Rule 5), so it is allowed.

Option D (Incorrect): 192.168.1.254 is not mentioned in the ACL rules, so it does not match the permit rule.

Thus, the correct answer is C.

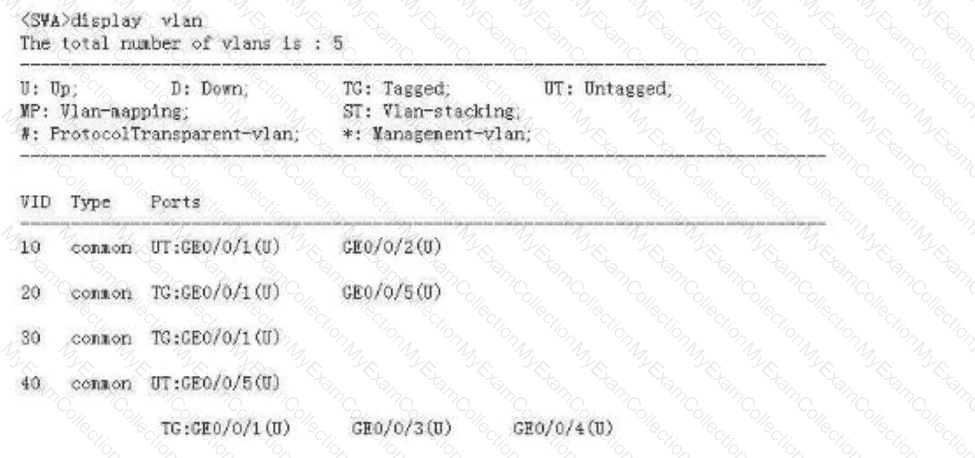

Comprehensive Explanation: The interface configuration shows that VLANs 2, 3, and 100 are tagged, meaning frames belonging to these VLANs are transmitted with VLAN tags. VLANs 4 and 6 are untagged, meaning frames for these VLANs are transmitted without tags. The command port hybrid tagged vlan 2 to 3 100 specifies that data frames for VLANs 2, 3, and 100 are transmitted with tags, while port hybrid untagged vlan 4 6 configures the interface to transmit untagged frames for VLANs 4 and 6.

Advanced ACLs (3000-3999) allow filtering based on:

Source and Destination IPs

Protocol Number (C - Correct)

Destination Port Number (B - Correct)

Time-range (D - Correct)

A (Incorrect): ACLs do not filter based on the source interface, but rather on IPs, ports, and protocols.

Thus, the correct answer is A (Source Interface).

On Huawei VRP (Versatile Routing Platform), the command history feature allows administrators to recall previously executed commands. The Upper cursor key (↑ arrow key) can be used to navigate through the command history and re-execute previously entered commands.

Ctrl+P is not a valid shortcut for recalling command history.

Ctrl+U is typically used to delete an entire line of input in command-line interfaces, not to recall history.

Left cursor key (←) is used for moving the cursor within a command line but does not invoke command history.

Thus, the correct answer is B. Upper cursor key (↑ arrow key).

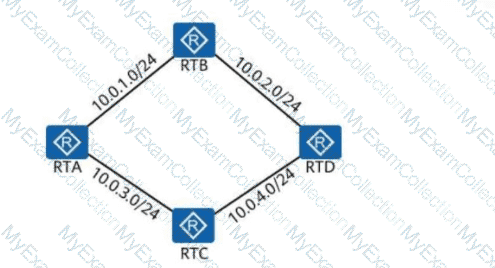

Routing Table and Equal-Cost Routes:When multiple routes to the same destination network have the same cost (e.g., metric or administrative distance), they are referred to as " equal-cost routes. " Routers use load balancing to distribute traffic across these routes​​.

Analysis of Options:

Option A: " Sub-optimal routes " are routes that are not preferred due to higher cost or less desirable metrics.

Option B: " Multipath routes " is a general term but does not specify equal cost, making it less precise.

Option C: " Equal-cost routes " is correct as the scenario specifies the same destination network with the same cost.

Option D: " Default routes " are used when no specific route matches the destination, which is unrelated to the given scenario​.

Correct Answer:The routes are C (Equal-cost routes).

Comprehensive and Detailed Explanation:

In OSPF, routers on a broadcast network elect a DR and BDR to reduce overhead.

The multicast address 224.0.0.6 is used exclusively by the DR and BDR to receive LSU packets.

Other routers send LSU packets to 224.0.0.6, and the DR forwards them to 224.0.0.5 (all OSPF routers).

✅ Reference: HCIA-Datacom Routing Guide – OSPF DR/BDR Operations

LACP Active Interface Election Overview:In LACP mode, active interfaces are elected based on interface priorities. If the interface priorities are identical, the system compares the interface numbers, and the one with the smaller number is preferred.

Analysis of Options:

Option A: Incorrect because interface priorities alone are insufficient when multiple interfaces share the same priority.

Option B: Device priorities are not used in this scenario for selecting active interfaces.

Option C: Correct. This process aligns with the behavior described for LACP, where interface priorities are compared first, and interface numbers are used as a tie-breaker.

Option D: Incorrect because interface numbers are only used as a secondary criterion.

Correct Answer:C. Interface priorities are compared first. If priorities of interfaces on the Actor are the same, interfaces with smaller interface numbers are elected as active interfaces​​.

Comprehensive Explanation: The command dot1q termination vid 100 in the configuration specifies that the sub-interface is configured to receive tagged data frames for VLAN 100. VLAN tagging ensures that frames are properly identified and routed through the correct VLAN, and the sub-interface is associated with a specific VLAN ID to handle the tagged traffic.

To form an EUI-64 address, the MAC address is split and FFFE is inserted in the middle, making the EUI-64 format 00E0-FCEF-FFFE-0FEC. Additionally, the 7th bit of the first byte is flipped to form the Modified EUI-64 address used in IPv6 for Stateless Address Autoconfiguration (SLAAC)​.

Router Initialization:

When a router boots up, it attempts to load its configuration file from the default save directory to initialize.

If the configuration file is missing, the router defaults to preconfigured parameters to ensure basic functionality.

Default Parameters:

These parameters include IP routing, interface defaults, and system-level settings. They allow network administrators to connect and manually configure the router.

Why Other Options Are Incorrect:

B: The " initial configuration file " refers to the manually created file, which may not exist.

C: The " current configuration file " is used during runtime but does not persist through reboots if unsaved.

D: A " new configuration file " must be manually created and does not exist by default.

Detailed Explanation:The Priority Code Point (PCP) field in an 802.1Q VLAN tag is 3 bits long, which gives it a value range of 0 to 7. This field is used to indicate the priority of the frame, with higher values indicating higher priority​​.

Detailed Explanation:The command forward-mode direct-forward is used to configure the AC to enable direct forwarding, meaning that the AP will forward user data packets directly to the network without tunneling them through the AC, improving efficiency by reducing the load on the AC​.

Detailed Explanation:Static MAC address entries are manually configured and stored in the switch ' s configuration file, making them persistent across reboots. These entries remain in the MAC address table after a restart, unlike dynamic entries, which are lost. (Reference: HCIA-Datacom Training Material, MAC Address Table Types)

To determine which types of traffic can be filtered by an advanced Access Control List (ACL) on a Huawei device, we need to understand the capabilities of advanced ACLs as defined in HCIA Datacom documentation and Huawei networking standards. Let’s analyze each option step by step:

Understanding Huawei ACL Types:

Huawei devices support different types of ACLs, including Basic ACLs, Advanced ACLs, and Layer 2 ACLs (MAC-based). Each type has specific filtering capabilities:

Basic ACLs (2000–2999): Filter traffic based on source IP addresses only.

Advanced ACLs (3000–3999): Provide more granular filtering, including source IP addresses, destination IP addresses, protocols, port numbers, and other Layer 3 and Layer 4 parameters. They are more flexible than Basic ACLs but do not filter based on Layer 2 information like MAC addresses.

Layer 2 ACLs (4000–4999): Filter traffic based on source and destination MAC addresses, VLAN IDs, and other Layer 2 parameters.

The question specifically asks about advanced ACLs, so we focus on their capabilities, which are limited to Layer 3 and Layer 4 traffic (IP-based and protocol-specific filtering).

Evaluating Each Option:

A. Network traffic based on a specific source IP address

Advanced ACLs on Huawei devices can filter traffic based on source IP addresses. This is a standard feature of advanced ACLs, which support matching rules for source IP addresses using wildcard masks or specific IP ranges.

This statement is true.

B. Network traffic based on a specific source MAC address

Advanced ACLs operate at Layer 3 and Layer 4 (IP and TCP/UDP) and do not have the capability to filter traffic based on Layer 2 information, such as MAC addresses. Filtering based on MAC addresses requires Layer 2 ACLs (e.g., ACLs in the 4000–4999 range), not advanced ACLs.

This statement is false.

C. Network traffic based on a specific user name

Advanced ACLs do not have the capability to filter traffic based on user names. User-based filtering typically requires authentication mechanisms (e.g., 802.1X, AAA, or RADIUS) combined with dynamic ACLs or policies, not standard advanced ACLs. Advanced ACLs are limited to IP addresses, protocols, and port numbers, not user-specific attributes.

This statement is false.

D. Network traffic based on a specific port number

Advanced ACLs can filter traffic based on transport layer port numbers (e.g., TCP/UDP ports), such as HTTP (port 80), FTP (port 21), etc. This is a key feature of advanced ACLs, allowing granular control over application-layer traffic.

This statement is true.

E. Network traffic based on a specific destination IP address

Advanced ACLs can filter traffic based on destination IP addresses, similar to source IP addresses. This is another standard capability, allowing matching rules for destination IP addresses using wildcard masks or specific IP ranges.

This statement is true.

Conclusion:

Advanced ACLs on Huawei devices can filter traffic based on:

Source IP addresses (Option A).

Destination IP addresses (Option E).

Port numbers (Option D).

They cannot filter traffic based on source MAC addresses (Option B) or user names (Option C), as these require Layer 2 ACLs or authentication-based policies, respectively.

Therefore, the correct answers are A, D, and E.

Comprehensive and Detailed Explanation:

Link Aggregation (LACP - IEEE 802.3ad):

Combines multiple physical links into a single logical link.

Provides load balancing and redundancy in case a link fails.

Stacking Technology:

Multiple switches are combined into a single logical unit, improving redundancy and simplifying management.

If one switch in the stack fails, others continue functioning without disrupting the network.

Both technologies significantly enhance network reliability, especially in campus networks, ensuring minimal downtime and higher availability.

✅ Reference: HCIA-Datacom Network Principles Guide – Chapter on Link Aggregation & Stacking

Detailed Explanation:When bridge priorities are identical, STP elects the switch with the lowest MAC address as the root. Here, Switch B has the lowest MAC address (00-e0-fc-00-00-10), making it the root switch. (Reference: HCIA-Datacom Training Material, STP Root Bridge Election)

Comprehensive and Detailed Explanation:

NAPT (Network Address Port Translation) maps multiple private IPs to one public IP by modifying the source port.

It differentiates users using:

Source IP

Source Port (TCP/UDP)

Incorrect Statement:

Protocol ID (TCP=6, UDP=17, ICMP=1) is NOT used for differentiation.

Port numbers are used instead.

✅ Reference: HCIA-Datacom NAT Guide – NAPT Functionality

Main Functions of Routers:Routers primarily operate at the Network Layer (Layer 3) of the OSI model, forwarding data packets based on destination IP addresses and maintaining routing tables for decision-making.

Analysis of Options:

Option A: " Routers forward data packets based on source IP addresses " is incorrect, as routers use the destination IP address in a packet to determine its forwarding path, not the source IP address​​.

Option B: " Routers enable devices on the same network segment to communicate with each other " is not a function of routers. Devices on the same segment communicate using switches or hubs, which operate at the Data Link Layer (Layer 2)​​.

Option C: " Routers forward data packets according to routing tables " is a correct function, as routers rely on routing tables to determine the best path for forwarding packets.

Option D: " Routers learn routes through multiple routing protocols and add them to the routing table " is a correct function of routers in dynamic routing scenarios​.

Correct Answer:The functions A and B are not main functions of routers.

Detailed Explanation:The default preference of static routes on Huawei routers is 0. This means that if a static route is present, it will always take precedence over routes with higher preferences, such as dynamically learned routes, unless a lower preference is manually assigned​​.

Understanding Switch Stacking:

Switch stacking allows multiple physical switches to operate as a single logical switch.

Huawei iStack technology supports stacking multiple switches.

Benefits of Stacking:

Simplified Management: Single configuration and management point.

Increased Redundancy: Failover and link aggregation improve reliability.

Scalability: More switches can be added as needed.

Conclusion:

More than two switches can be stacked, making the statement TRUE.

Comprehensive Explanation: In RSTP (Rapid Spanning Tree Protocol), the Alternate Port is the backup path to the root bridge. If the current root port fails, the Alternate Port immediately transitions to the forwarding state, providing a new path to the root bridge with minimal delay. This rapid transition is one of the key improvements of RSTP over the older STP protocol. Backup ports, on the other hand, provide redundancy on the same switch, and edge ports are used to connect directly to end devices.

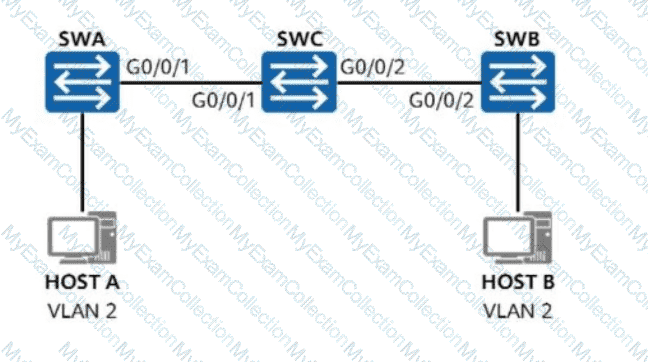

To ensure communication between Host A and Host B, we need to analyze the network topology, VLAN configuration, and the role of SWC as an intermediate switch. Let’s break it down step by step, based on VLAN and trunking principles as outlined in HCIA Datacom documentation:

Understanding the Current Network Configuration:

Host A and Host B: Both are connected to SWA and SWB, respectively, via access ports assigned to VLAN 2. Access ports carry untagged traffic for a single VLAN (in this case, VLAN 2), so Host A and Host B are part of VLAN 2.

SWA and SWB Trunk Interfaces: G0/0/1 on SWA and G0/0/2 on SWB are configured as trunk interfaces allowing all VLANs. Trunk ports carry tagged traffic for multiple VLANs (including VLAN 2 in this case) and are used to interconnect switches, enabling VLAN traffic to pass between them. Since these trunk ports allow all VLANs, VLAN 2 traffic can traverse between SWA and SWB.

SWC: SWC is the intermediate switch connecting SWA and SWB via its G0/0/1 (connected to SWA’s G0/0/1) and G0/0/2 (connected to SWB’s G0/0/2). However, the diagram and question do not specify SWC’s current VLAN or port configurations. By default, if no VLAN or trunk configuration exists on SWC, VLAN 2 traffic cannot pass through SWC, preventing communication between Host A and Host B.

Requirements for Communication Between Host A and Host B:

For Host A and Host B (both in VLAN 2) to communicate across the network, VLAN 2 traffic must be able to traverse SWC. This requires:

VLAN 2 to be created on SWC so that the switch recognizes and processes traffic for that VLAN.

The interfaces on SWC (G0/0/1 and G0/0/2) connecting to SWA and SWB must be configured as trunk ports to carry tagged VLAN 2 traffic, matching the trunk configuration on SWA’s G0/0/1 and SWB’s G0/0/2.

Trunk ports are necessary because they can carry traffic for multiple VLANs (tagged) and are typically used between switches to maintain VLAN consistency across the network.

Evaluating Each Option:

A. Create VLAN 2 on SWC.

Creating VLAN 2 on SWC is necessary, but it alone is insufficient. Without configuring the ports (G0/0/1 and G0/0/2) as trunk interfaces allowing VLAN 2, the VLAN traffic cannot pass through SWC. This option is incomplete and incorrect.

B. Configure G0/0/1 on SWC as a trunk interface that allows packets from VLAN 2 to pass through.

Configuring G0/0/1 as a trunk interface allowing VLAN 2 is part of the solution, but it only addresses the connection to SWA. G0/0/2 (connected to SWB) also needs to be configured as a trunk interface allowing VLAN 2 for bidirectional communication between Host A and Host B. This option is incomplete and incorrect.

C. Create VLAN 2 on SWC, and configure G0/0/1 and G0/0/2 as trunk interfaces that allow packets from VLAN 2 to pass through.

This option addresses all requirements:

Creating VLAN 2 on SWC ensures the switch recognizes VLAN 2 traffic.

Configuring both G0/0/1 and G0/0/2 as trunk interfaces allowing VLAN 2 ensures that tagged VLAN 2 traffic can pass between SWA and SWB through SWC, enabling communication between Host A and Host B.

This is the complete and correct solution, aligning with VLAN and trunking principles in HCIA Datacom.

D. On SWC, configure G0/0/1 as a trunk interface that allows packets from VLAN 2 to pass through, configure G0/0/2 as an access interface, and set the PVID to 2.

Configuring G0/0/1 as a trunk interface allowing VLAN 2 is correct for the connection to SWA. However, configuring G0/0/2 as an access interface with PVID 2 (Port VLAN ID) is incorrect for this scenario:

Access ports carry untagged traffic for a single VLAN and are typically used for end devices, not for interconnecting switches. Since SWB’s G0/0/2 is a trunk interface allowing all VLANs, G0/0/2 on SWC must also be a trunk interface to match and carry VLAN 2 traffic.

Using an access port on G0/0/2 would prevent VLAN 2 traffic from passing correctly, as it would expect untagged traffic only for VLAN 2, which conflicts with SWB’s trunk configuration.

This option is incorrect because it mixes access and trunk port types inappropriately for inter-switch links.

Conclusion:

To ensure communication between Host A and Host B (both in VLAN 2), SWC must:

Create VLAN 2.

Configure G0/0/1 and G0/0/2 as trunk interfaces allowing VLAN 2 traffic.

Option C fulfills these requirements, making it the correct answer.

Answer: C

References from HCIA Datacom Documents:

HCIA Datacom V3.0, Chapter 4: VLAN Technologies – Access and Trunk Port Configurations

HCIA Datacom V3.0, Chapter 4: VLAN Trunking and Inter-VLAN Routing – Configuring Trunk Ports for VLAN Traffic

Huawei VLAN Configuration Guide (HCIA Datacom Certification Material) – VLAN Creation and Port Link Types

In OSPF networks, a DR (Designated Router) is elected for each broadcast domain, such as each Ethernet segment. Given the topology where there are multiple Ethernet segments, a DR will be elected in each segment, resulting in three DRs based on the configuration and network design​.

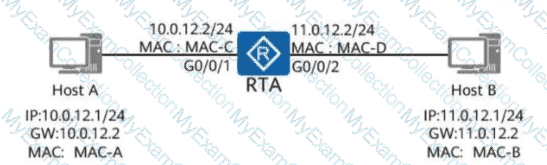

Comprehensive Explanation: When Router A forwards the packet to Router B, the destination IP address (11.0.12.1) remains unchanged as it is still meant for Host B. However, the destination MAC address changes to MAC-B, which belongs to Host B, since MAC addresses are only used for local network hops​

A (Correct) - Load Balancing: Link aggregation distributes traffic across multiple physical links, reducing congestion and improving performance.

B (Correct) - Improved Bandwidth: Multiple links act as a single logical link, increasing the total available bandwidth.

C (Correct) - Enhanced Reliability: If one link in an aggregated group fails, traffic is rerouted through the remaining links, improving network resilience.

D (Incorrect) - Improved Security: Link aggregation does not inherently improve security; it primarily enhances performance and fault tolerance.

Thus, the correct answers are A, B, and C.

Static IP addressing for servers in campus network planning is crucial for maintaining stable network access to server resources. Static IPs ensure that critical devices like servers have fixed addresses, allowing for predictable network access and reducing potential IP conflicts, which enhances network reliability. This practice is endorsed in Huawei ' s guidelines for effective campus network design and is considered a best practice for managing servers on a network​.

Command Output Overview:

The command display startup is used to check the configuration of the startup system software, configuration files, license files, and other related settings on Huawei routers. The output in this case provides details about:

The current system software (ar2220-v200r003c00spc200.cc).

The next startup system software (ar222b-v200r003c00spc200.cc).

Backup and saved configuration files, which are not defined (null).

Analysis of Options:

Option A: " The system file for next startup cannot be modified. " This statement is false because the system file for the next startup can be modified using the startup system-software command. The file path for the next startup system software (ar222b- v200r003c00spc200.cc) indicates that it has been configured and can be changed by the administrator. The command syntax is supported as per Huawei ' s documentation​​.

Option B: " The startup system software < startup-software-name > command can be used to modify the system software for next startup. " This is true and matches the functionality provided by Huawei ' s routers. The command allows administrators to specify the software package to be used at the next system reboot​​.

Option C: " The running configuration file is not saved. " This is true as the Startup saved-configuration file is listed as null, meaning that no configuration file has been saved for startup. Saving the running configuration is necessary to ensure settings persist after a reboot​​.

Option D: " The system file used for the current startup is ar2220-v200r003c00spc200.cc. " This is true as per the output under Startup system software, which confirms the system file used in the current boot process​​.

Correct Statement Selection:Based on the analysis, the statement " The system file for next startup cannot be modified " is false. This matches the system ' s behavior, where administrators are allowed to modify the next startup file using relevant commands.

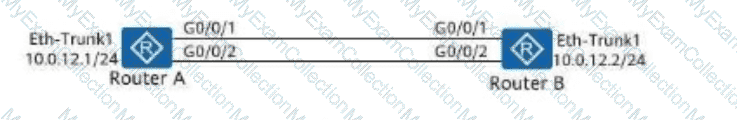

Eth-Trunk Functionality:An Eth-Trunk interface can operate as both a Layer 2 and Layer 3 interface depending on the configuration. For example:

As a Layer 2 interface, it can aggregate Ethernet links for switching.

As a Layer 3 interface, it can aggregate links for routing​.

Correct Answer:FALSE. Eth-Trunk interfaces can function as both Layer 2 and Layer 3 interfaces.

Detailed Explanation:Using DHCP provides several advantages:

It helps prevent IP address conflicts because the DHCP server dynamically assigns IP addresses, ensuring each device gets a unique one.

IP addresses can be reused by setting lease times, allowing the DHCP server to recycle addresses from devices that no longer need them.

Centralized configuration management is also possible. If network configuration details such as the DNS server change, the administrator can update these settings on the DHCP server, and all DHCP clients will automatically receive the new information​​.

The configuration provided is for a trunk port, which can carry multiple VLANs.

The command port trunk allow-pass vlan 10 20 30 40 allows tagged traffic from VLANs 10, 20, 30, and 40.

The command port trunk pvid vlan 10 sets the PVID (Port VLAN ID) to VLAN 10.

Any untagged frames received on this port will be assigned to VLAN 10, as per the PVID setting.

Option A (Correct): Since the PVID is VLAN 10, untagged frames are assigned to VLAN 10.

Options B, C, and D (Incorrect): VLANs 20, 30, and 40 are allowed, but untagged frames are not assigned to them.

Thus, the correct answer is A.

Detailed Explanation:In a tree topology, nodes are arranged hierarchically with root nodes at the top and leaf nodes at the base. This structure is often used in larger networks because it supports scalability and easy addition of nodes. However, if a higher-level node (e.g., root or intermediate node) fails, all dependent nodes in its subtree lose connectivity. Therefore, faults at higher layers have a more significant impact than faults at the leaves. (Reference: HCIA-Datacom Training Material, Network Topology Types)

In Huawei devices, advanced ACLs use a number range from 3000 to 3999. These ACLs allow more granular control over traffic by permitting conditions based on source and destination IP addresses, protocol types, and ports, making them suitable for complex filtering requirements​.

SNMP Port Numbers:

161: Used for SNMP managers to send requests to agents.

162: Used by SNMP agents to send trap or alarm messages to the Network Management System (NMS).

163 and 164: Not commonly used in SNMP operations.

Comprehensive Explanation: OSPF (Open Shortest Path First) is a link-state routing protocol. It builds a complete map of the network ' s topology using Link-State Advertisements (LSAs) and makes routing decisions based on this map. Protocols like Static and Direct are not dynamic routing protocols, while FTP is a file transfer protocol

Detailed Explanation:

Option A is valid; the destination is defined in CIDR format (129.1.0.0/16) with a specified outgoing interface.

Option B is valid; it uses a subnet mask format and specifies a next-hop IP.

Option D is also valid with the destination and mask defined and a next-hop IP.

Option C is incorrect; the syntax reverses the destination and next-hop values.

(Reference: HCIA-Datacom Training Material, Static Routing Configuration)

Detailed Explanation:All listed options are valid OSPF (Open Shortest Path First) packet types:

HELLO packets establish and maintain neighbor relationships.

LSR (Link State Request) packets are used to request missing link-state information.

LSU (Link State Update) packets contain link-state advertisements for OSPF routers.

LSA (Link State Advertisement) packets carry route information.(Reference: HCIA-Datacom Training Material, OSPF Packet Types)

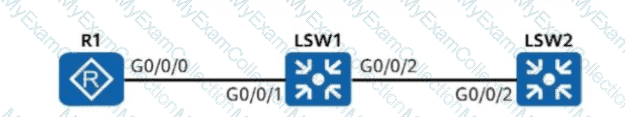

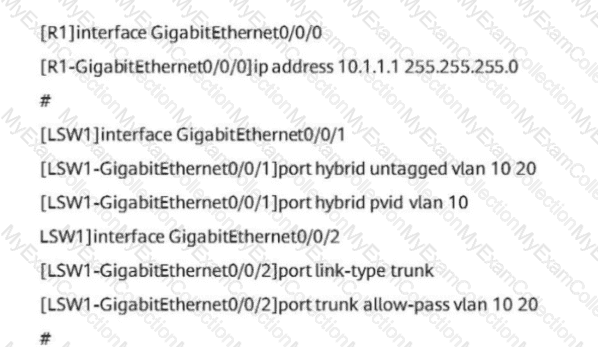

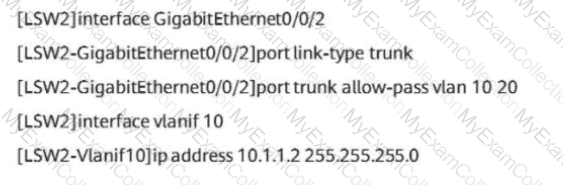

Comprehensive Explanation: In this configuration, LSW1 and LSW2 have trunk links that allow VLAN 10 to pass between them. When a ping is sent from R1, the frame is tagged with VLAN 10 on LSW2, and this tagged frame is forwarded to LSW1. Since the trunk allows VLAN 10, the tagged data frame is successfully received and processed by LSW1.

Detailed Explanation:

• Option A: Incorrect. UDP (User Datagram Protocol) does not use SYN or ACK flags, as it is a connectionless protocol and does not establish a connection before data transfer. SYN and ACK flags are features of TCP (Transmission Control Protocol), which establishes connections using a three-way handshake. (Reference: HCIA-Datacom Training Material, Transport Layer Protocols)

• Option B: Incorrect. UDP is suitable for delay-sensitive traffic (such as video or voice) because of its low overhead. However, UDP does not have a sequence number field or support reassembly, as it does not guarantee packet order or reliability. (Reference: HCIA-Datacom Training Material, UDP Characteristics)

• Option C: Correct. TCP requires a three-way handshake to establish a connection and a four-way handshake to terminate it, involving SYN, ACK, FIN flags for reliability. (Reference: HCIA-Datacom Training Material, TCP Connection Establishment and Termination)

• Option D: Correct. The well-known port number range is defined as 0 to 1023, and these are reserved for widely used protocols such as HTTP, FTP, and DNS. (Reference: HCIA-Datacom Training Material, Port Numbering)

Bridge Priority Overview:

Bridge Priority is a key parameter in Spanning Tree Protocol (STP) and is used to elect the root bridge.

The default bridge priority for Huawei switches is 32768, which is the default for many vendors.

How STP Uses Bridge Priority:

Lower bridge priority values are preferred during root bridge elections.

Administrators can modify this value for desired root bridge placement.

Detailed Explanation:

The subnet 200.200.200.200/30 allows two usable IP addresses, 200.200.200.201 and 200.200.200.202. These two addresses can communicate with each other directly, without the need for routing .

To determine which statement is incorrect, we need to analyze the ACL configuration on Router A and understand how it filters outbound traffic to the Internet. Let ' s break down the configuration step by step, referencing HCIA Datacom principles for ACL processing and traffic filtering.

1. Understanding the ACL Configuration

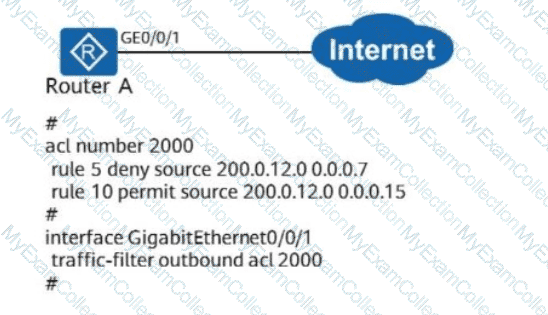

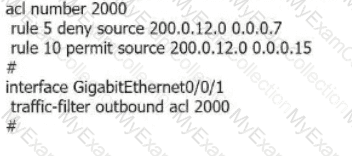

The configuration on Router A is as follows:

text

WrapCopy

acl number 2000

rule 5 deny source 200.0.12.0 0.0.0.7

rule 10 permit source 200.0.12.0 0.0.0.15

#

interface GigabitEthernet0/0/1

traffic-filter outbound acl 2000

#

ACL Number 2000: This is a basic ACL used to filter traffic based on source IP addresses.

Rule 5: deny source 200.0.12.0 0.0.0.7

The wildcard mask 0.0.0.7 translates to a subnet mask of /29 (255.255.255.248).

The IP range for 200.0.12.0 0.0.0.7 is calculated as:

Network address: 200.0.12.0

Broadcast address: 200.0.12.7

Usable host addresses: 200.0.12.1 to 200.0.12.6 (6 usable addresses in a /29 subnet).

Therefore, this rule denies traffic from any source IP in the range 200.0.12.1–200.0.12.6.

Rule 10: permit source 200.0.12.0 0.0.0.15

The wildcard mask 0.0.0.15 translates to a subnet mask of /28 (255.255.255.240).

The IP range for 200.0.12.0 0.0.0.15 is:

Network address: 200.0.12.0

Broadcast address: 200.0.12.15

Usable host addresses: 200.0.12.1 to 200.0.12.14 (14 usable addresses in a /28 subnet).

Therefore, this rule permits traffic from any source IP in the range 200.0.12.1–200.0.12.14.

Interface Configuration: The ACL 2000 is applied outbound on interface GigabitEthernet0/0/1, meaning it filters traffic leaving Router A toward the Internet.

2. ACL Processing Logic (HCIA Datacom Reference)

According to HCIA Datacom documentation (e.g., Huawei ACL fundamentals), ACLs are processed in sequential order, and the first matching rule determines the action (permit or deny). If no rule matches, the implicit deny rule at the end of the ACL blocks the traffic. In this case:

Rule 5 denies traffic from 200.0.12.1–200.0.12.6.

Rule 10 permits traffic from 200.0.12.1–200.0.12.14.

Since Rule 5 is processed before Rule 10, any IP in the overlap (i.e., 200.0.12.1–200.0.12.6) will be denied by Rule 5, even though Rule 10 would permit it.

IPs outside 200.0.12.1–200.0.12.6 but within 200.0.12.1–200.0.12.14 are permitted by Rule 10.

Any IP not matching Rule 5 or Rule 10 is implicitly denied (but no such IPs are listed in the options).

3. Evaluating Each Option

Now, let’s check each host IP address against the ACL rules to determine if they can access the Internet:

A. The host with the source IP address 200.0.12.6 cannot access the Internet.

200.0.12.6 falls within the range 200.0.12.1–200.0.12.6, which is denied by Rule 5.

Therefore, this statement is correct (the host cannot access the Internet).

B. The host with the source IP address 200.0.12.8 cannot access the Internet.

200.0.12.8 does not fall within the range 200.0.12.1–200.0.12.6 (denied by Rule 5).

It does fall within the range 200.0.12.1–200.0.12.14 (permitted by Rule 10).

Therefore, 200.0.12.8 is permitted to access the Internet, making this statement incorrect.

C. The host with the source IP address 200.0.12.2 cannot access the Internet.

200.0.12.2 falls within the range 200.0.12.1–200.0.12.6, which is denied by Rule 5.

Therefore, this statement is correct (the host cannot access the Internet).

D. The host with the source IP address 200.0.12.4 cannot access the Internet.

200.0.12.4 falls within the range 200.0.12.1–200.0.12.6, which is denied by Rule 5.

Therefore, this statement is correct (the host cannot access the Internet).

4. Conclusion

The only incorrect statement is B, as the host with the source IP address 200.0.12.8 can access the Internet because it is permitted by Rule 10 and not denied by Rule 5.

5. HCIA Datacom References

This analysis aligns with the HCIA Datacom curriculum, specifically:

ACL Fundamentals: Huawei’s documentation on basic ACLs (e.g., ACL 2000–2999 for IPv4) and their rule processing order (first match wins).

Traffic Filtering: Outbound ACL application on interfaces, as described in Huawei router configuration guides.

Wildcard Mask Calculation: Standard IP addressing and subnetting principles for determining IP ranges (e.g., /29 and /28 subnets).

These principles are detailed in the HCIA Datacom V1.0 training materials, particularly in the sections on ACL configuration, IP addressing, and interface-based traffic control.

IPv6 Address Types:

Unicast: Identifies a single interface.

Anycast: Identifies a set of interfaces, delivering to the nearest one.

Multicast: Delivers to multiple interfaces.

Broadcast: Does not exist in IPv6; replaced by multicast addressing​​.

CAPWAP (Control and Provisioning of Wireless Access Points) is a protocol that enables centralized control of Fit APs by an AC (Access Controller).

Option A (Incorrect): CAPWAP tunnels only control traffic, while data traffic can be sent via direct forwarding or tunneled forwarding.

Option B (Incorrect): A Fit AP can discover an AC via multiple methods, including broadcast, static configuration, or DHCP Option 43.

Option C (Correct): APs encapsulate user data into CAPWAP packets and send them to the AC for further processing.

Option D (Incorrect): CAPWAP is based on UDP, not TCP, for better efficiency and lower latency.

Thus, the correct answer is C.

Comprehensive Explanation: WEP (Wired Equivalent Privacy) is the only security policy in this list that supports open link authentication, which means no actual user credentials are required to associate with the network. WEP uses a shared key for encryption but offers minimal protection and is considered insecure. Other security methods like WPA, WPA2-PSK, and WPA2-802.1X use more secure forms of authentication, requiring credentials such as a password or centralized authentication server.

The tracert (Trace Route) command is a network diagnostic tool used to trace the path that packets take from the source device to the destination.

It works by sending ICMP Echo Requests (or UDP packets) with increasing TTL (Time-To-Live) values and recording responses from each hop along the way.

This helps network administrators identify routing issues, network delays, and connectivity problems in the forwarding path.

The command is commonly used in Huawei VRP to diagnose network latency or packet loss between different nodes.

Thus, the correct answer is A (TRUE).

The Forward Delay timer in STP helps prevent temporary loops by setting a delay for ports transitioning through Listening and Learning states before reaching the Forwarding state. This wait period ensures that all switches have updated topology information, reducing the risk of broadcast storms or loops​.

Comprehensive and Detailed Explanation:

Huawei ' s Versatile Routing Platform (VRP) supports various shortcut keys for efficient command-line navigation:

CTRL+Z → Moves the user back to User View from any configuration mode. ✅

Left Cursor Key (←) → Moves the cursor one character left. ✅

CTRL+C → Stops the execution of a command. ✅

Incorrect Option:

TAB → Does not display the latest command; instead, it auto-completes commands. ❌

✅ Reference: HCIA-Datacom Command Line Guide – CLI Keyboard Shortcuts

PPP (Point-to-Point Protocol) is versatile and allows IP addresses on each end of a link to belong to different subnets. This capability supports flexible WAN (Wide Area Network) connections where different subnet addressing schemes may be required. This flexibility is part of PPP ' s design, allowing it to function effectively over varied network architectures​.

The command defines a static route to the network 10.0.12.0 with a 255.255.255.0 subnet mask, using 192.168.1.1 as the next-hop address. Static routes are manually set routes with fixed paths, and by default, they have higher priority than dynamic routes, but the specific preference value depends on configuration. This setup enables targeted routing for traffic towards the specified destination​.

Comprehensive and Detailed Explanation:

In Spanning Tree Protocol (STP), the root bridge is selected based on:

Lowest priority (default = 32768, lower value preferred).

Lowest MAC address (if priorities are equal).

The given bridge priorities:

SWA: 4096 (Lowest priority → Automatically the root bridge).

SWB, SWC, SWD: 32768 (Default priority).

The stp root secondary command makes SWD the backup root (if SWA fails).

✅ Reference: HCIA-Datacom Switching Guide – STP Root Bridge Selection

To determine which switch will be selected as the root bridge after running the stp root secondary command on SWD, we need to analyze the Spanning Tree Protocol (STP) election process, as defined in IEEE 802.1D and aligned with HCIA Datacom documentation. Let’s break it down step by step:

Understanding STP and Root Bridge Election:

STP is used to prevent loops in Ethernet networks by electing a root bridge and creating a loop-free topology. The root bridge is the central point of the spanning tree, and all other switches calculate the shortest path to it based on path cost.

The root bridge is selected based on the Bridge ID (BID), which consists of two components:

Bridge Priority: A 16-bit value (default is 32768 for most switches, but it can be configured). Lower priority values are preferred.

MAC Address: If bridge priorities are equal, the switch with the lowest MAC address (the last part of the Bridge ID) becomes the root bridge.

The Bridge ID is typically written as Priority:MAC-Address. For example, a Bridge ID of 4096:0001-0203-04AA indicates a priority of 4096 and a MAC address of 0001-0203-04AA.

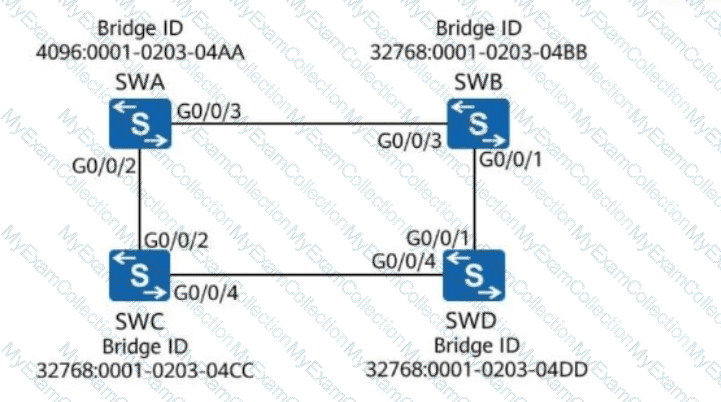

Analyzing the Given Bridge IDs:From the diagram, the Bridge IDs of the switches are:

SWA: Bridge ID = 4096:0001-0203-04AA (Priority = 4096, MAC = 0001-0203-04AA)

SWB: Bridge ID = 32768:0001-0203-04BB (Priority = 32768, MAC = 0001-0203-04BB)

SWC: Bridge ID = 32768:0001-0203-04CC (Priority = 32768, MAC = 0001-0203-04CC)

SWD: Bridge ID = 32768:0001-0203-04DD (Priority = 32768, MAC = 0001-0203-04DD)

Initially, the switch with the lowest Bridge ID (lowest priority, or lowest MAC if priorities are tied) is elected as the root bridge.

Comparing the priorities:

SWA has a priority of 4096, which is lower than the default priority of 32768 for SWB, SWC, and SWD.

Therefore, SWA is currently the root bridge because it has the lowest priority (4096) compared to the others (32768).

If priorities are equal, the MAC address is used as a tiebreaker, but here, SWA’s lower priority makes it the root bridge without needing to compare MAC addresses.

Effect of the stp root secondary Command on SWD:

The stp root secondary command (commonly used in Huawei switches, as per HCIA Datacom) is a configuration command that sets a switch as the secondary root bridge. This means the switch’s priority is automatically adjusted to a value lower than the default (32768) but higher than the primary root bridge’s priority, ensuring it becomes the root bridge if the primary root fails.

Specifically, in Huawei switches, running stp root secondary on SWD typically sets its priority to 28672 (which is lower than 32768 but higher than 4096, ensuring it does not override SWA unless SWA fails).

However, the question asks which switch will be selected as the root bridge after running this command on SWD, implying we need to determine the current root bridge and whether this command changes it immediately.

Importantly, the stp root secondary command does not immediately make SWD the root bridge if a switch with a lower priority (like SWA with 4096) already exists in the network. It only prepares SWD to become the root if the current root (SWA) fails or is removed.

Therefore, running stp root secondary on SWD adjusts its priority to 28672, but SWA remains the root bridge because its priority (4096) is still lower than SWD’s new priority (28672).

Determining the Root Bridge After the Command:

After running stp root secondary on SWD, its Bridge ID becomes 28672:0001-0203-04DD (Priority = 28672, MAC = 0001-0203-04DD).

We compare the Bridge IDs of all switches:

SWA: 4096:0001-0203-04AA (Priority = 4096)

SWB: 32768:0001-0203-04BB (Priority = 32768)

SWC: 32768:0001-0203-04CC (Priority = 32768)

SWD: 28672:0001-0203-04DD (Priority = 28672)

The switch with the lowest priority (and lowest MAC address if priorities are tied) is the root bridge.

SWA’s priority (4096) is the lowest, followed by SWD’s new priority (28672), and then SWB and SWC (32768).

Therefore, SWA remains the root bridge because its priority (4096) is lower than SWD’s new priority (28672) and all others.

Conclusion:

Initially, SWA is the root bridge due to its lowest priority (4096).

Running stp root secondary on SWD changes its priority to 28672, making it the secondary root (backup root) if SWA fails, but it does not immediately make SWD the root bridge.

Thus, SWA continues to be the root bridge after the command is run on SWD.

Answer: B (SWA)

References from HCIA Datacom Documents:

HCIA Datacom V3.0, Chapter 6: Spanning Tree Protocol – Root Bridge Election and Configuration Commands

Huawei STP Configuration Guide (HCIA Datacom Certification Material) – stp root primary and stp root secondary Commands

IEEE 802.1D Standard – Bridge ID and Root Bridge Selection Process

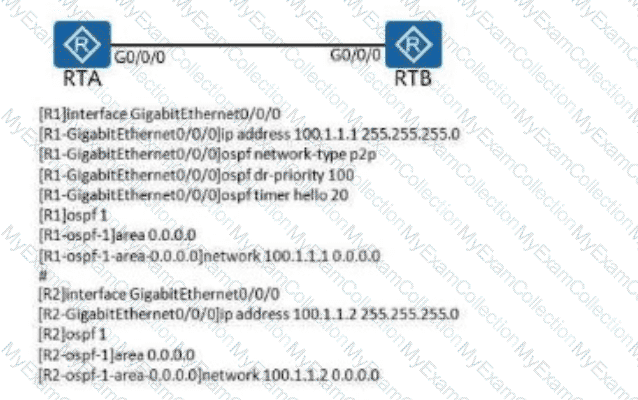

In OSPF, the " Full " state signifies that the neighbor relationship has been fully established, with both routers synchronized and their LSDBs updated. This state is achieved after exchanging and acknowledging Link State Advertisements (LSAs) between the neighbors, marking the completion of OSPF adjacency​.

Analysis of Possible Causes:

Option A: " The administrator account has been disabled " is a possible cause as a disabled account cannot access the system even if Telnet is enabled.

Option B: Incorrect because the Telnet service being disabled would affect all users, not just one administrator.

Option C: " The administrator account has been deleted " is a valid reason as a deleted account cannot log in.

Option D: " The user level of the administrator account has been changed to 0 " is correct. User level 0 typically has insufficient privileges for Telnet access​​.

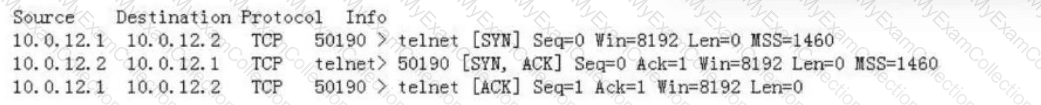

A (Correct): The client initiates the connection using a random source port (50190).

B (Correct): The packets show the TCP three-way handshake (SYN, SYN-ACK, ACK).

C (Incorrect): The client initiates the connection (10.0.12.1), and the server responds (10.0.12.2), so the roles are reversed in this statement.

D (Correct): The handshake packets contain no application-layer data, only TCP control flags.

Thus, the correct answer is C (False Statement).

OSPFv1 (B): Was an experimental version, not widely used.

OSPFv2 (C): Used for IPv4 networks, does not support IPv6.

OSPFv3 (D): Specifically designed for IPv6 networks and includes additional features like security and address scope handling.

OSPFv4 (A): This version does not exist.

Thus, the correct answer is D (OSPFv3).

Comprehensive Explanation: A routing table contains information necessary for the router to determine the best path to forward packets. This includes the destination network or subnet (Destination/Mask), the next-hop address (the IP address of the next device in the path), and the cost (metric) associated with the route. MAC addresses are used at the Data Link layer (Layer 2) for local network communication and are not part of the routing table, which operates at the Network layer (Layer 3).

For link aggregation (such as LACP) to function properly, the physical interface rates and duplex modes on each end of the aggregated link must match. This alignment ensures smooth data transfer across the aggregated link, as mismatched settings would lead to connectivity issues or performance degradation​.

Comprehensive and Detailed In-Depth Explanation:

In OSPF (Open Shortest Path First), the stable states of OSPF neighbor relationships are:

Full State: This is the highest state where routers have fully exchanged link-state information and formed an adjacency.

2-Way State: This indicates that two OSPF routers recognize each other as neighbors, but they may not necessarily exchange full routing information (especially if they are not designated routers).

Incorrect Options:

Down (B): This is an unstable state indicating no OSPF communication.

Attempt (C): This is only used in NBMA (Non-Broadcast Multi-Access) networks when a neighbor is manually configured but has not responded yet.

Configuration Analysis:

The router has two DHCP pools (pool1 and pool2).

Interface Gi/0/0 is assigned the IP address 10.10.10.1/24 and is configured to use global DHCP.

Reasoning:

The IP address 10.10.10.1 indicates that the interface belongs to the 10.10.10.0/24 network segment.

DHCP assigns IP addresses based on the network of the interface. Therefore, the host will receive an IP address from pool1 (10.10.10.0/24).

Comprehensive Explanation: In STP, the switch with the lowest Bridge ID is selected as the root bridge. The Bridge ID consists of the bridge priority and the MAC address. In this case, the switch with the bridge priority of 4096 has the lowest Bridge ID, making it the root bridge. If two switches have the same bridge priority, the MAC address is used to break the tie, with the lower MAC address winning.

An IPv4 packet consists of a header and a payload:

Total Length=Header Length+Payload Length\text{Total Length} = \text{Header Length} + \text{Payload Length}Total Length=Header Length+Payload Length

Given:

IPv4 header length = 20B

Total packet length = 1500B

Payload=1500B−20B=1480B\text{Payload} = 1500B - 20B = 1480BPayload=1500B−20B=1480B

Option A (Incorrect): 1520B is incorrect because it exceeds the total packet length.

Option B (Incorrect): 20B is just the header, not the payload.

Option C (Incorrect): 1500B includes the header, not just the payload.

Option D (Correct): 1480B is the correct payload size.

Thus, the correct answer is D (1480B).

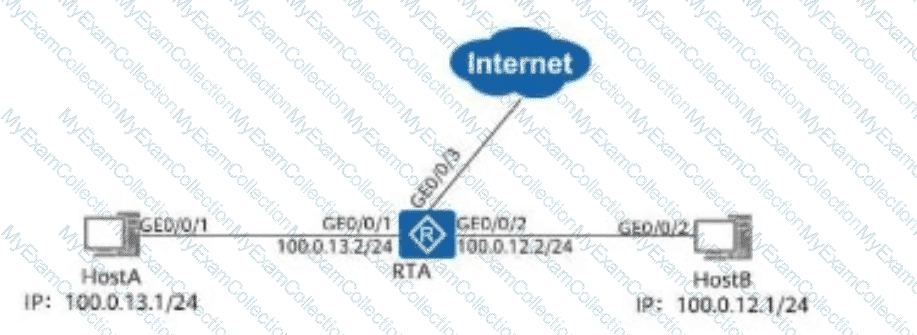

1. Understanding the ACL Rule

The rule:

rule 5 deny source 100.0.12.0 0.0.0.255

Blocks traffic originating from 100.0.12.0/24 (Host B’s network).

This means any packet sent from Host B to Host A will be blocked.

2. Applying the ACL to the Correct Interfaces

Option A: Applied inbound on GE0/0/1 → Blocks packets from Host B before reaching Host A. ✅

Option B: Applied inbound on GE0/0/2 → Blocks packets from Host A before reaching Host B. ✅

3. Why Other Options Are Incorrect

Option C (GigabitEthernet0/0/3):

Interface GE0/0/3 is not connected to Host A or Host B, so applying ACL here is meaningless.

Option D (Outbound on GE0/0/1):

Outbound filtering is less efficient than inbound filtering because it blocks traffic after routing.

4. Correct Approach to Prevent Communication

To completely block communication between Host A and Host B, we must:✅ Block inbound traffic on GE0/0/1 (Host A’s interface)✅ Block inbound traffic on GE0/0/2 (Host B’s interface)

Conclusion:

The correct choices are A and B because they block inbound traffic at the correct interfaces.

Options C and D are incorrect because they apply ACL rules to the wrong interfaces or use inefficient filtering.

Detailed Explanation:To manage a router in a remote branch office, Telnet is a suitable option as it allows remote access over a network. Unlike a console connection, which requires physical access, Telnet enables remote management as long as the administrator has network connectivity to the router. FTP is used for file transfer, and DHCP is used for dynamic IP address allocation, not for management​​.

In trunk mode, the interface can forward frames tagged with VLANs specified in the allow-pass list (here, VLAN 100) without removing tags. However, if an untagged frame is received, it is assigned to the PVID (here, VLAN 200). This configuration allows both tagged and untagged traffic, with the PVID determining the VLAN for untagged frames​.

To help Fit APs locate an AC (Access Controller), the DHCP server must provide the AC IP address using DHCP Option 43.

Option 55 (Incorrect): Used to request a list of DHCP options.

Option 82 (Incorrect): Used for Relay Agent Information, not AC discovery.

Option 10 (Incorrect): Not relevant for APs or CAPWAP.

Option 43 (Correct): This option delivers the AC IP address to Fit APs so they can establish a CAPWAP tunnel.

Thus, the correct answer is D.

Detailed Explanation:APs can be added to an AC using multiple methods. You can add them when they are online, offline, or allow the AC to automatically discover them. Additionally, unauthorized APs can be manually confirmed for security​.

Comprehensive Explanation: Hybrid interfaces are capable of carrying both tagged and untagged VLAN frames. They can remove VLAN tags from certain VLANs when sending data frames, depending on the configuration. The command port hybrid untagged vlan x allows a hybrid interface to transmit data frames for VLAN x without a tag, while still tagging other VLANs as required. Hybrid interfaces are flexible and can be used for trunking, but unlike pure trunk ports, they do not always require VLAN tags.
