FCP_FCT_AD-7.4 Fortinet NSE 6 - FortiClient EMS 7.4 Administrator Question and Answers

Observation of ZTNA Traffic Log:

The log message indicates that the remote user connection was denied due to failure to match a proxy policy.

Evaluating Log Message:

The message suggests that the connection does not match the existing ZTNA rule configuration, leading to the denial.

Conclusion:

The correct conclusion from the log message is that the remote user connection does not match the ZTNA rule configuration (B).

Simplifying Remote Access:

The administrator wants to simplify remote access without asking users to provide user credentials.

Evaluating Access Control Methods:

ZTNA full mode can provide seamless access by leveraging device identity and posture, eliminating the need for user credentials for each access request.

Other methods like SSL VPN and L2TP typically require user credentials.

Conclusion:

The correct access control method that provides this solution is ZTNA full mode.

When FortiClient is installed on a Windows Server, the default behavior for real-time protection control is:

Real-time protection is disabled:By default, FortiClient does not enable real-time protection on server installations to avoid potential performance impacts and because servers typically have different security requirements compared to client endpoints.

Thus, real-time protection is disabled by default on Windows Server installations.

References

FortiClient EMS 7.2 Study Guide, Real-time Protection Section

Fortinet Documentation on FortiClient Default Settings for Server Installations

Requirement Analysis:

The administrator needs to maintain a software vulnerability scan on endpoints without showing the feature on FortiClient.

Evaluating Options:

Disabling the feature in the deployment package or endpoint profile would remove the functionality entirely, which is not desired.

Using the default endpoint profile may not meet the specific requirement of hiding the feature.

Clicking the hide icon on the vulnerability scan profile assigned to the endpoint will keep the feature active but hidden from the user's view.

Conclusion:

The correct action is to click the hide icon on the vulnerability scan profile assigned to the endpoint (C).

Understanding the Automation Process:

In the Security Fabric, automation processes can include actions such as quarantining an endpoint after an IOC (Indicator of Compromise) detection.

Evaluating Responsibilities:

FortiClient EMS plays a crucial role in endpoint management and can send notifications to quarantine endpoints.

Conclusion:

The correct security fabric component that sends a notification to quarantine an endpoint after IOC detection is FortiClient EMS.

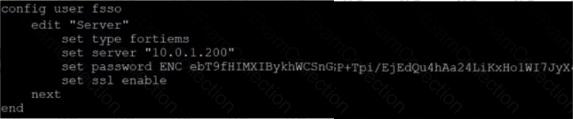

Based on the CLI output from FortiGate:

The configuration shows the use of "type fortiems," indicating that FortiGate is set up to interact with FortiClient EMS.

The "server" field points to an IP address (10.0.1.200), which is typically the address of the FortiClient EMS server.

The configuration includes an SSL-enabled connection, which is a common setup for secure communication between FortiGate and FortiClient EMS.

Thus, the configuration indicates that FortiGate is set up to pull user groups from FortiClient EMS.

References

FortiGate Security 7.2 Study Guide, FSSO Configuration Section

Fortinet Documentation on FortiGate and FortiClient EMS Integration

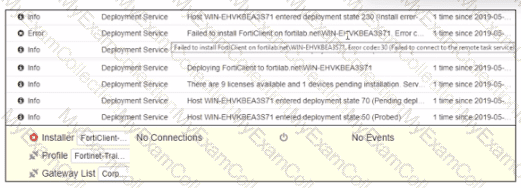

https://community.fortinet.com/t5/FortiClient/Technical-Note-FortiClient-fails-to-install-from-FortiClient-EMS/ta-p/193680

The deployment service error message may be caused by any of the following. Try eliminating them all, one at a time.

1. Wrong username or password in the EMS profile

2. Endpoint is unreachable over the network

3. Task Scheduler service is not running

4. Remote Registry service is not running

5. Windows firewall is blocking connection

According to theFortiClient EMS 7.4 Administration Guide, for an organization to integrate with an identity management infrastructure while enforcing administrative access with Multi-Factor Authentication (MFA), the primary supported methods for remote administrator authentication areRADIUSandSAML.

1. RADIUS (Answer B)

Identity Integration:FortiClient EMS allows administrators to addRADIUS serversas an authentication source under theAdministration > Authentication Serverssection.

MFA Support:RADIUS is a standard protocol for enforcing MFA. In this scenario, FortiClient EMS acts as a RADIUS client to an external MFA provider (such as FortiAuthenticator, RSA Authentication Manager, or Duo).

Workflow:When an administrator attempts to log in to the EMS console, EMS sends an Access-Request to the RADIUS server. If the provider requires MFA, it can challenge the user (via push notification or token code) before sending an Access-Accept back to EMS.

2. SAML (Answer D)

Modern Identity Management:SAML (Security Assertion Markup Language) is the preferred method for integrating with modern cloud and on-premises Identity Providers (IdPs) likeMicrosoft Entra ID (formerly Azure AD),Okta,AD FS, orFortiAuthenticator.

Native MFA Enforcement:By using SAML SSO, the authentication and MFA process are handled entirely by the IdP. The EMS server acts as the Service Provider (SP). When an admin logs in, they are redirected to the IdP, where the company's existing MFA policies (Conditional Access, etc.) are enforced before the user is granted access back to the EMS console.

EMS Configuration:The curriculum details specific SAML SSO configurations for various IdPs under theSAML SSOsection of the Administration Guide.

3. Why Other Options are Incorrect/Insufficient

A. LDAPS:While FortiClient EMS supports importing users fromActive Directory (ADDS)via LDAP/LDAPS for endpoint management and basic admin login, standard LDAPS does not natively support or enforce an MFA challenge-response workflow in the same integrated way that RADIUS or SAML does for administrative console access.

C. TACACS:TACACS+ is primarily used for device administration on networking equipment (like FortiGate) and is not a listed or standard method for administrative authentication within the FortiClient EMS software documentation.

According to theFortiClient EMS Administrator Study Guide (7.2/7.4 versions)and theFortinet Document LibraryregardingSSL/TLS Endpoint Communication Security, the primary attribute verified during the SSL connection negotiation to mitigate Man-in-the-Middle (MITM) attacks is theCommon Name (CN).

1. SSL Connection Negotiation & MITM Mitigation

Verification Process: When FortiClient attempts to establish aTelemetry connectionwith the FortiClient EMS server, an SSL handshake occurs. To ensure it is communicating with the legitimate server and not a malicious interceptor (MITM), FortiClient verifies the server's certificate.

Role of the Common Name (CN): TheCommon Name(or theSubject Alternative Name - SAN) in the certificate must match theFQDN (Fully Qualified Domain Name)or theIP addressthat the client intended to connect to.

Security Enforcement: If the CN/SAN does not match the server's expected address, FortiClient will detect a discrepancy. Depending on theInvalid Certificate Actionsetting in the profile (e.g., Warn or Block), it will prevent the establishment of a secure session to stop the MITM attacker from masquerading as the EMS server.

2. Why Other Options are Incorrect/Secondary

A. Serial Number (SN): While every certificate has a unique Serial Number, it is primarily used by the Certificate Authority (CA) for tracking and revocation purposes. While FortiOS 7.2.4+ can use SN for certain restricted VPN checks, the core SSL negotiation mechanism for identifying a specific host to prevent spoofing relies on theCN/SANfields.

C. Location (L) and D. Organization (O): These are descriptive fields within the certificate'sSubjectthat provide geographical and corporate information. They are not functionally used by the SSL/TLS protocol to verify the identity of the host during the connection negotiation or to mitigate MITM attacks.

3. Curriculum References

EMS Administration Guide (System Settings Profile): Details how the client verifies the EMS server certificate. It specifies that for a connection to be trusted, the server address must align with the certificate's identity fields (CN/SAN).

FortiGate/FortiOS 7.2.4 New Features: Highlights the specific enhancement where FortiClient EMS connectors now "trust EMS server certificate renewals based on theCN field" to ensure continuous secure communication.

Deployment Profiles Analysis:

Deployment-1 has the "First-Time-Installation" package and is assigned to "All Groups" with a priority of 1 but is not enabled.

Deployment-2 has the "To-Upgrade" package, is assigned to both "All Groups" and "trainingAD.training.lab," with a priority of 2 and is enabled.

Evaluating Deployment-2:

Deployment-2 will upgrade FortiClient on both "All Groups" and "trainingAD.training.lab" since it is enabled and assigned to these groups. This includes both AD (Active Directory) groups and workgroups.

Conclusion:

Since Deployment-2 is set to upgrade FortiClient on all the assigned groups and workgroups, the correct answer is A.

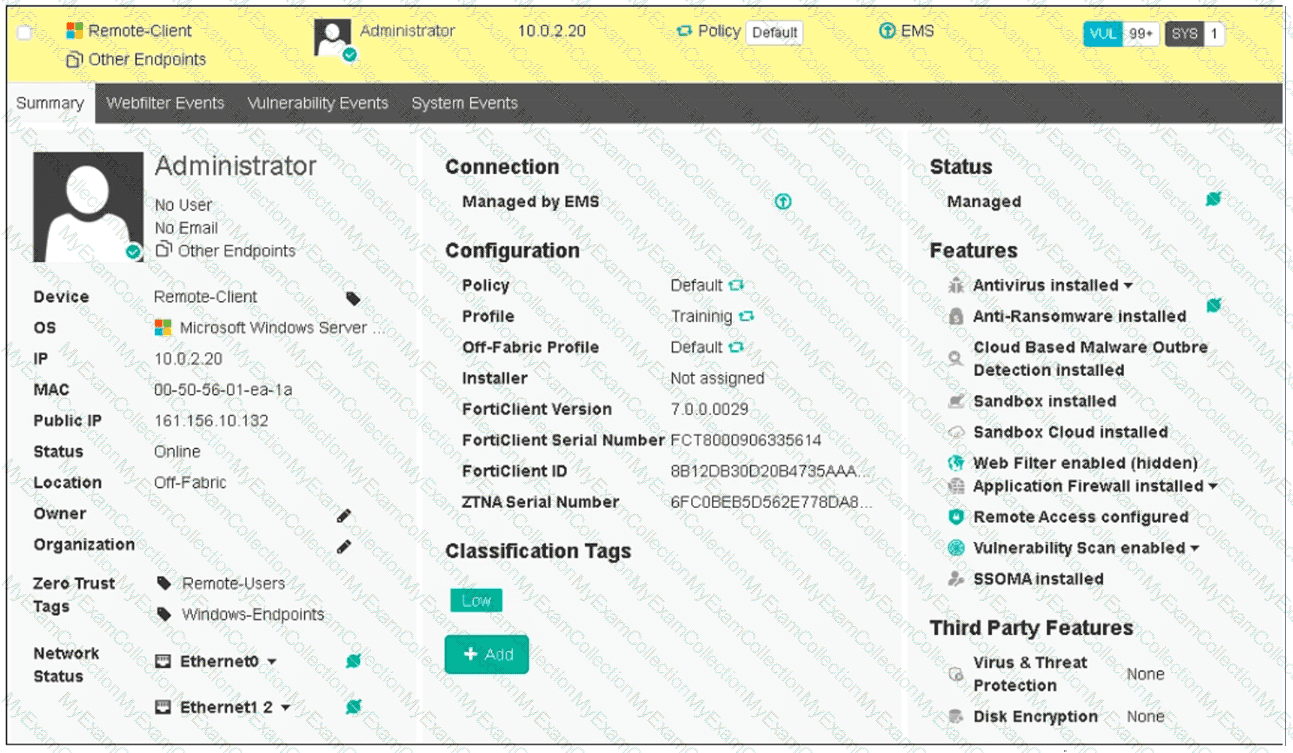

Based on the Remote-Client status shown in the exhibit:

Endpoint Policy:The "Policy" field shows "Default," indicating that the endpoint has been assigned the Default endpoint policy.

Connection Status:The "Location" field shows "Off-Fabric," meaning that the endpoint is currently off the corporate network (off-net).

Therefore, the two conclusions that can be made are:

The endpoint has been assigned the Default endpoint policy.

The endpoint is currently off-net.

References

FortiClient EMS 7.2 Study Guide, Endpoint Summary Information Section

Fortinet Documentation on Endpoint Policies and Status Indicators

According to theFortiClient EMS 7.2/7.4 Administration Guideand theZTNA Deployment Guide, the administrator can configureSecurity posture tags(also known asZero Trust Network Access (ZTNA) tagsin recent versions) to detect and group endpoints based on specific compliance criteria, including vulnerability severity levels.

1. How Security Posture Tags Work for Vulnerabilities:

Tagging Rules: Under theSecurity Posture Tags(orZero Trust Tags) section in EMS, an administrator creates a new rule set and adds a rule.

Rule Type: The administrator selects theVulnerable Devicesrule type.

Severity Levels: Within this rule, the administrator can specify theSeverity Level(such asCritical,High,Medium, orLow). EMS dynamically applies the tag to any endpoint where the vulnerability scan detects at least one vulnerability matching or exceeding that severity level.

Dynamic Grouping: These tags allow for dynamic grouping of endpoints, which can then be synchronized with a FortiGate to enforce access control based on the device's current security posture.

2. Why Other Options are Incorrect:

A. Outbreak alert tags: While FortiGuard Outbreak alerts can be used in tagging, they specifically target endpoints vulnerable to a particular "outbreak" or high-profile threat currently active in the wild, rather than providing a general mechanism for all vulnerability severity levels.

B. Classification tags: These tags are typically used for broader endpoint identification (like department or location) and sending information to FortiAnalyzer for reporting, rather than real-time security posture compliance based on vulnerability scans.

C. Fabric tags: "Fabric" usually refers to the integration between Fortinet devices (the Security Fabric). While tags are shared across the Fabric, the specific tags configuredwithinEMS for endpoint detection based on posture are categorized as Security Posture/Zero Trust tags.

3. Curriculum References:

FortiClient EMS Administration Guide (Zero Trust Tagging Rules section): Explicitly details the "Vulnerable Devices" rule type and its severity options.

EMS Study Guide (Compliance & Vulnerability): Describes using these tags to ensure endpoints meet minimum security standards before being granted access to the network.

Based on the FortiClient logs shown in the exhibit:

The first log entry shows the application "firefox.exe" trying to access a destination IP, with the threat identified as "Twitter."

The action taken by the application firewall is "blocked" with the event type "appfirewall."

This indicates that the application firewall has blocked access to Twitter.

References

FortiClient EMS 7.2 Study Guide, Application Firewall Logs Section

Fortinet Documentation on Interpreting FortiClient Logs

FortiClient offers several types of antivirus scans to ensure comprehensive protection:

Full scan:Scans the entire system for malware, including all files and directories.

Custom scan:Allows the user to specify particular files, directories, or drives to be scanned.

Quick scan:Scans the most commonly infected areas of the system, providing a faster scanning option.

These three types of scans provide flexibility and thoroughness in detecting and managing malware threats.

References

FortiClient EMS 7.2 Study Guide, Antivirus Scanning Options Section

Fortinet Documentation on Types of Antivirus Scans in FortiClient

Understanding Multi-Tenancy Mode:

Multi-tenancy mode allows multiple independent sites or tenants to be managed from a single FortiClient EMS instance.

Evaluating Benefits:

Licenses can be shared among sites, making it cost-effective (B).

It provides granular access and segmentation, allowing for detailed control and separation between tenants (D).

Eliminating Incorrect Options:

Separate host servers managing each site (A) is not a feature of multi-tenancy mode.

The fabric connector's use of an IP address (C) is unrelated to multi-tenancy benefits.
