F5CAB5 BIG-IP Administration Support and Troubleshooting (F5CAB5) exam Question and Answers

This log entry indicates that multiple monitors are assigned to the pool member, and the member is failing one of them.

Understanding Monitor Logic: By default, if multiple monitors are assigned to a pool or pool member without a "Minimum To Up" (Availability Requirement) setting, the system requires all monitors to pass for the member to be marked "Up".

Analyzing the Log: The log clearly states: [ /Common/http: up, /Common/http2: down; ... ]. This means the standard HTTP monitor is successful, indicating the member is serving HTTP traffic, but the http2 monitor has failed.

Conclusion: Since the http monitor is "up" but the member as a whole is "down," we can conclude the member is successfully responding to standard HTTP requests but not HTTP2 requests. Therefore, the member is currently only serving standard HTTP traffic.

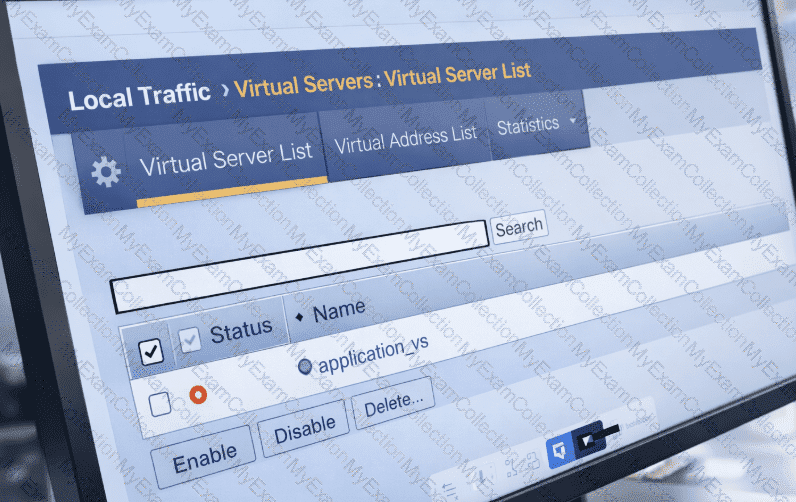

In the BIG-IP Configuration Utility, the status icon (shape and color) provides immediate feedback on why a virtual server is not working as expected81. A "Red Diamond" indicates that the object is "Offline" and unavailable to process traffic82. For a virtual server, this specific status typically means it has inherited an offline state from its mandatory backend resources8383. If all pool members associated with the virtual server have failed their health monitors, the virtual server will transition to a red diamond status because it has no healthy destination for incoming requests. This is distinct from a "Black Circle," which would indicate the virtual server has been manually "Disabled" by an administrator85858585. To troubleshoot a red diamond, the administrator must examine the associated pool and its members to determine why the health monitors are failing (e.g., server crashes, network path failures, or incorrect monitor strings). Resolving the health check failures on the pool members will return the virtual server to an "Available" (Green) status.

To collect application-layer details such asHTTP status codes(200, 404, 500, etc.) andHTTP methods(GET, POST, PUT, DELETE), the BIG-IP system must use a profile designed for traffic visibility and reporting rather than basic traffic handling. TheAnalytics profile (Option C)is the correct choice because it is specifically designed to collect, store, and present detailed statistics about HTTP and TCP traffic passing through a virtual server.

When an Analytics profile is attached to a virtual server, BIG-IP can record metrics such as HTTP response codes, request methods, URI paths, latency, throughput, and client-side/server-side performance data. These statistics are then accessible through the BIG-IP GUI underStatistics → Analytics, allowing administrators to validate application behavior and troubleshoot performance or functional issues.

TheHTTP profile (Option B)enables HTTP protocol awareness and features like header insertion and compression, but it does not provide historical or statistical reporting of HTTP methods and response codes.Request Adapt (Option A)is used for ICAP-based content adaptation, not visibility.Statistics (Option D)is not a standalone profile and does not provide HTTP-level insight.

Therefore, the Analytics profile is the only default profile that fulfills this requirement.

When a physical network link (like Interface 1.1) reaches its maximum capacity, it creates a bottleneck that negatively impacts network-level performance. To overcome the physical limits of a single interface, BIG-IP administrators use "Trunking," which is the F5 term for Link Aggregation (often implemented via LACP). A trunk object bundles multiple physical interfaces into a single logical link. By creating a trunk with two or more interfaces, the BIG-IP can spread the traffic load across all members of the trunk, effectively doubling or tripling the available bandwidth for the associated VLANs. Beyond performance, troubleshooting redundancy often leads to the use of trunks; if one cable in a trunk fails, the others continue to carry traffic, preventing a complete outage. This is a superior solution to simply increasing MTU (which requires end-to-end support) or manually setting media speeds. In a high-availability environment, configuring trunks is a foundational troubleshooting and optimization step to ensure that traffic spikes do not result in packet loss due to link saturation.

A gateway_icmp monitor checks basic network reachability by sending ICMP echo requests (pings) to the pool member or its gateway. If the pool is markedDOWNwhile the server is confirmed to be online, the most likely cause is thatICMP traffic is being blocked.

Ahost-based firewall active on the server (Option C)can block ICMP echo requests or replies, preventing BIG-IP from receiving a successful response to the health check. This results in the monitor failing and the pool member being marked down, even though the server and application are otherwise functioning normally. This explanation is consistent with the scenario where other servers in the same subnet work correctly, indicating that routing and BIG-IP configuration are not the issue.

The other options are unrelated to ICMP monitoring. Logged-in users (Option A), missing patches (Option B), and stopped HTTP services (Option D) do not affect a gateway_icmp monitor. BIG-IP troubleshooting best practices recommend verifying ICMP reachability and firewall policies when diagnosing ICMP-based monitor failures.

The failure to connect is caused by a restrictive Source Address filter configured on the Virtual Server.

Source Address Filtering: In the BIG-IP system, the Source Address field on a Virtual Server acts as an implicit Access Control List (ACL). Only traffic originating from a client IP address that matches the specified network range will be accepted and processed by the Virtual Server.

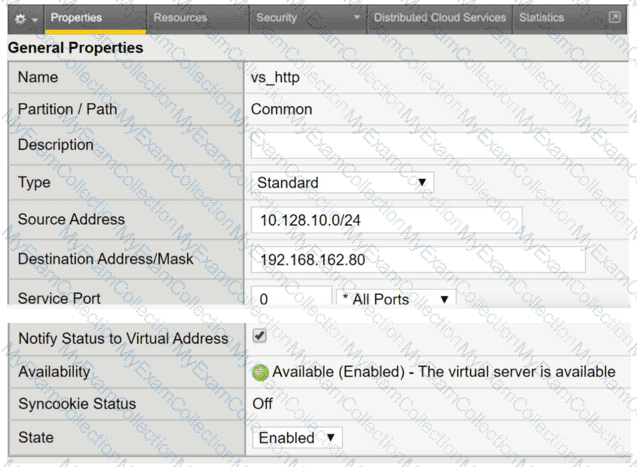

Analyzing the Exhibit: The provided configuration for vs_http shows the Source Address is set to 10.128.10.0/24. This means the Virtual Server will only accept connections from the subnet ranging from 10.128.10.1 to 10.128.10.254.

Identifying the Conflict: The user trying to connect has the IP address 192.168.162.70. Since 192.168.162.70 does not fall within the allowed 10.128.10.0/24 range, the BIG-IP system will not match this traffic to the Virtual Server, effectively blocking the connection attempt.

Evaluation of Other Options:

All Ports (Option A): Configuring a Virtual Server for "All Ports" (port 0) allows it to handle traffic for any destination port, which would not block a standard HTTP application.

Destination Address (Option B): The destination address 192.168.162.80 is the Virtual IP (VIP) users should be connecting to; this is a standard configuration and not the cause of the failure for a user reaching out to it.

Standard Type (Option C): A "Standard" Virtual Server is the most common type used for HTTP applications as it allows for Layer 7 profiles and full proxy capabilities.

On a BIG-IP system, hardware-related alerts, including those for power supply units (PSUs), fans, and chassis components, are primarily logged in the Local Traffic Manager (LTM) log file.

Log Location: The file path is /var/log/ltm.

PSU Alert Messages: When a power supply fails, experiences an outage, or is unplugged, the chmand (Chassis Manager) or system_check processes log specific error codes to this file. For example, you may see messages like 010d0006:0: Chassis power supply has experienced an issue or VINPUT=bad.

Troubleshooting: Administrators can use the command grep -i "power supply" /var/log/ltm to quickly filter for PSU-related events.

Other Logs: * /var/log/kern.log typically contains low-level kernel and driver messages.

/var/log/audit tracks administrative changes and commands executed by users.

/var/log/daemon.log contains messages from various system background services but is not the primary location for hardware sensor alerts.

When load balancing is not working as 23expected and connections appear skewed across physical hardware, the administrator must distinguish between "member"24 and "node" level balancing. A "member" refers to a specific IP and Port combination (e.g., 10.1.1.1:80), whereas a "node" refers to the underlying IP address (10.1.1.1) regardless of the port25. If a single server hosts multiple services (Web, FTP, API) across different pools, using "Least Connections (member)" would only balance connections within each individual pool26. This could lead to a scenario where one server is overwhelmed because it is winning the "least connections" count in three different pools simultaneously. By selecting "Least Connections (node)," the BIG-IP tracks the total number of concurrent connections to the physical IP address across all pools it belongs to27. This ensures that the administrator can maintain an equal distribution of work across the hardware, preventing performance degradation on backend servers that host multiple application services.

The Local Traffic Manager (LTM) log file is the primary repository for all events related to load balancing objects, including virtual servers, pools, and nodes.

Monitor Logging: When a health monitor marks a pool member as "UP" or "DOWN," the system generates a log entry in /var/log/ltm.

Diagnosing Flaps: To troubleshoot "flapping" (frequent state changes), an administrator would look for messages like 01010028:3: Pool /Common/http_pool member /Common/10.10.1.1:80 monitor status down followed quickly by an "up" status. This log provides the timestamp and the specific monitor that triggered the state change.

The pool member is markedDOWNbecause it is monitored bymultiple health monitors, specifically anHTTPmonitor and anHTTP/2monitor. The status message clearly shows that theHTTP monitor is UP, while theHTTP/2 monitor is DOWN. In BIG-IP, when multiple monitors are assigned to a pool member, the default behavior isAND logic, meaningall assigned monitors must succeedfor the pool member to be considered healthy.

In this scenario, the server is responding successfully to standard HTTP (likely HTTP/1.1) requests but does not support or respond correctly to HTTP/2 requests. As a result, the HTTP/2 monitor fails, which causes the overall monitor status to beDOWN, even though HTTP traffic itself is working.

This behavior is expected and documented in BIG-IP monitoring logic. Unless the monitor rule is explicitly changed to“at least one of”, a single failing monitor will mark the pool member down. Therefore, the correct conclusion is that the pool member isonly serving HTTP traffic, not HTTP/2.

The resolution would be to either remove the HTTP/2 monitor, correct the application to support HTTP/2, or adjust the monitor rule to match the intended health-check logic.

Comprehensive and Detailed Explanation From BIG-IP A41dministration Support and Troubleshooting documents:To confirm functionality across a complex environment, the "Network Map" is the most efficient troubleshooting tool in the Configuration Utility43. It provides a hierarchical, visual representation of the traffic management objects44. A single glance allows the administrator to see the status of a Virtual Server (Green/Red/Yellow), the status of its associated pool, the health of individual pool members, and which iRules are currently attached45. This view is superior to the standard "Virtual Server List" for troubleshooting because it maps the dependencies between objects46. For example, if a Virtual Server is "Red," the Network Map will show if that status is inherited from a failed pool or a specific monitor failing on a pool member. Reviewing these basic stats in the Network Map helps the administrator quickly isolate whether a failure is at the service level (Virtual Server), the logic level (iRule), or the hardware level (Pool Member).

When a virtual server is not working as expected despite the pool members being marked "UP" (Green), the issue is frequently a return-path routing failure. If the BIG-IP forwards a request with the original client's source IP address, the backend server will try to respond directly to that client. If the server does not have its default gateway pointed back to the BIG-IP, the response packet will be routed elsewhere (or dropped), resulting in a connection timeout for the user. To resolve this, the administrator must configure "Source Address Translation" (SNAT). By setting SNAT to "Automap" or a specific SNAT address, the BIG-IP replaces the client's IP with its own internal self-IP. The backend server then sees the BIG-IP as the source and sends the response back to it locally. This troubleshooting step ensures a functional, symmetric tr18affic flow. Identifying the need for SNAT is one of the most common troubleshooting tasks for new virtual server deployments where the BIG-IP is not the default gateway for the backend servers.

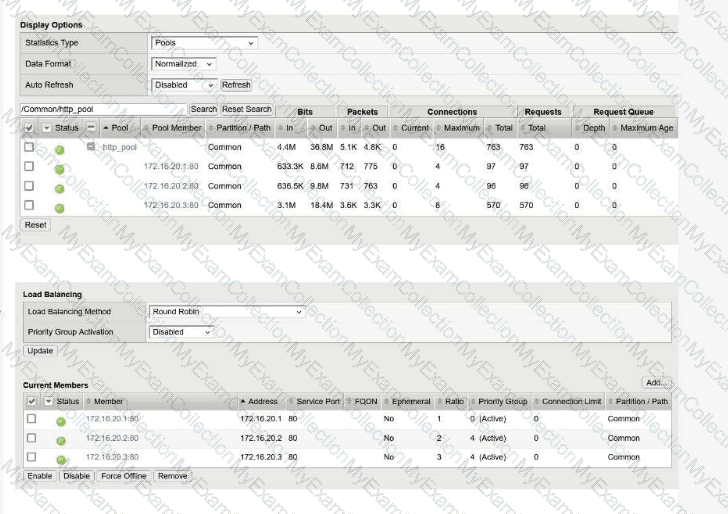

The primary reason for the uneven traffic distribution is the presence of a Persistence Profile in the virtual server configuration.

Load Balancing vs. Persistence: While the Round Robin method is designed to distribute new connections sequentially among pool members, Persistence overrides this logic for existing clients.

Source Address Persistence: The configuration shows source_addr persistence is enabled. This ensures that once a client (identified by their source IP) is mapped to a pool member, all subsequent connections from that same IP will be sent to the same member for the duration of the persistence record.

Uneven Distribution Logic: If one source IP address generates significantly more connections or longer-lived sessions than others—or if many clients appear behind a single NAT/Proxy IP—that specific pool member (in this case, 172.16.20.3) will receive a disproportionate amount of traffic compared to the others.

Evaluating Other Options:

Automap (Option A): SNAT Automap changes the source IP between the BIG-IP and the pool member. It does not impact the BIG-IP's ability to load balance incoming client requests.

Ratio Settings (Option B): In the provided exhibit, the pool members have a Ratio of 1, 2, and 3 respectively. While a higher ratio does direct more traffic to a member, the question asks for the "most likely cause" in the context of the provided ltm virtual configuration, which explicitly highlights the persistence override.

HTTP Profile (Option C): Round Robin is a Layer 4 load balancing algorithm and does not require a Layer 7 HTTP profile to function.

The issue is caused by the Source Address restriction configured on the virtual server.

Source Filter: The configuration contains the line source 192.168.0.0/16. This acts as an implicit Access Control List (ACL). The virtual server will only accept and process TCP connections if the client's source IP address falls within the 192.168.x.x range.

Why Ping Works: ICMP (Ping) is handled by the Virtual Address object, not the Virtual Server object. Unless ICMP is specifically disabled on the Virtual Address, it will respond to pings from any subnet, even if the Virtual Server itself is restricted by a source filter or is even disabled.

Evaluation of Other Options:

Disabled (Option A): If the VS were disabled, the configuration would typically show disabled or state down, and the symptoms would be similar, but the source filter is a more specific "misconfiguration" in this context.

Port 80 (Option C): The configuration destination 10.99.20.50:http explicitly confirms it is listening on port 80.

Unallowed Subnet: If a client from a different network (e.g., 10.10.1.5) tries to connect, the BIG-IP will silently drop the connection or send a reset because it does not match the defined source criteria.

This virtual server is intended to function as aforwarding (IP-forwarding) virtual server, which is commonly used for routing or firewall-style deployments where BIG-IP forwards traffic transparently without load balancing or address translation. For a forwarding virtual server to match and passall traffic, the destination must be configured as 0.0.0.0:anywith a mask of 0.0.0.0, not 255.255.255.255.

The configured mask 255.255.255.255 represents a/32 host mask, which restricts the virtual server to matching traffic destined only for the exact IP address 0.0.0.0. Since 0.0.0.0 is not a valid routable destination for normal traffic, no packets will ever match the virtual server, causing it to pass no traffic at all.

This is a well-documented BIG-IP behavior:

destination 0.0.0.0:any

mask 0.0.0.0

together define acatch-all forwarding virtual server.

The destination itself (Option A) is correct for a forwarding VS, and disabling address translation (Option C) is expected and required for IP-forwarding mode. Therefore, the incorrect subnet mask is the sole reason the virtual server is not functioning as expected.

BIG-IP status icons provide immediate visual feedback regarding the state of an object based on its availability and enabled/disabled status.

Color (Black): The color black indicates that an object has been manually Disabled by an administrator.

Shape (Circle): The circular shape indicates that the object is Available (i.e., its health monitors are passing).

Scenario Result: Since the virtual server is manually disabled (Black) but its associated pool has a working health monitor that is currently passing (Circle), the resulting icon is a Black Circle.
