F5CAB4 BIG-IP Administration Control Plane Administration (F5CAB4) exam Question and Answers

In F5 TMOS, administrative roles and user permissions are partition-specific. The User Manager role allows an account to manage other user accounts, but this authority is restricted to the administrative partitions to which the User Manager has been granted access.

Partition Awareness: If User1 (the User Manager) attempts to modify User2 and fails, while the full Administrator succeeds, it indicates that User2 resides in a partition where User1 does not have management rights.

Principle of Least Privilege: This principle dictates that a user should be given only the minimum level of access necessary to perform their job functions.

Procedural Solution: Granting " Administrator " privileges (Option B) would violate least privilege by giving User1 full control over all system settings and all partitions. Moving users between partitions (Options A and C) might disrupt the organizational security structure. The correct and most secure administrative action is to modify the partition access for User1 to include the partition where User2 is located. This enables User1 to manage User2’s properties while maintaining their restricted role as a User Manager.

When restoring a User Configuration Set (UCS) file, BIG-IP allows administrators to selectively exclude the license during the restore process. From the CLI , this is accomplished using the no-license option with the tmsh load /sys ucs command.

The command:

tmsh load /sys ucs < ucs filename > no-license

restores:

System configuration

Certificates and keys

Device and traffic objects

while explicitly excluding the license file , which is required when:

Migrating configurations between devices

Restoring to hardware with a different license

Avoiding license conflicts or overwrites

Why the other options are incorrect:

A does not provide the option to exclude the license.

B restores the UCS including the license , which does not meet the requirement.

D is incorrect because the BIG-IP GUI does not provide a checkbox to exclude the license during UCS restore.

Therefore, the correct and supported method is C .

===========

The BIG-IP Control Plane monitors the " Commit ID " of the configuration on all group members. When a change is made on the Standby unit, it becomes the member with the most recent configuration. The " Recommended Action " in the HA status dashboard will be to synchronize that specific device ' s configuration to the rest of the group to ensure consistency

For an issue involving an HTTP virtual server, the first log file to check is /var/log/ltm . A BIG-IP virtual server is an LTM traffic-management object, and runtime events related to virtual servers, pools, pool members, monitors, availability changes, and traffic-management behavior are normally written to the LTM log. /var/log/httpd/httpd_errors is not the correct first choice because it relates to the BIG-IP Configuration Utility web service, not to an HTTP application virtual server processing client traffic. /var/log/audit records administrative configuration changes, such as who modified an object and when. /var/log/messages contains broader system-level messages but is not the primary LTM troubleshooting log. Therefore, when the problem statement specifically says an HTTP virtual server is having an issue, the control-plane troubleshooting path starts with /var/log/ltm .

=========

On BIG-IP systems, Local Traffic Manager (LTM) is responsible for:

Pool and pool member management

Health monitor execution

Marking pool members UP or DOWN based on monitor results

Events related to health monitor status changes , including when pool members transition between UP and DOWN , are logged in /var/log/ltm .

Why the other options are incorrect:

/var/log/audit records administrative configuration changes, not runtime health status.

/var/log/secure logs authentication and authorization events.

/var/log/monitors is not a standard BIG-IP log file.

Therefore, the correct log file for pool member health monitor status events is /var/log/ltm .

===========

Connectivity management requires a proper logical-to-physical mapping within the BIG-IP Control Plane.

VLAN Association : In TMOS, a Self IP address is not assigned directly to a physical interface. Instead, it is assigned to a VLAN (Virtual Local Area Network) object.

Procedural Troubleshooting : If a Self IP is unreachable, the primary failure point is often that the IP was associated with the wrong VLAN, or the VLAN itself is not correctly associated with the intended physical interface or trunk.

Layer 2 Mapping : The Control Plane requires the VLAN to be " up " and " untagged " or " tagged " on a valid interface for traffic to flow. If the administrator selects the incorrect VLAN, the Self IP will exist in the configuration but will be logically isolated from the physical network wire.

Maintaining an accurate and synchronized clock across all members of a device group is a fundamental requir5ement for the BIG-IP Control P6lane to establis7h and maintain device tru8st9.

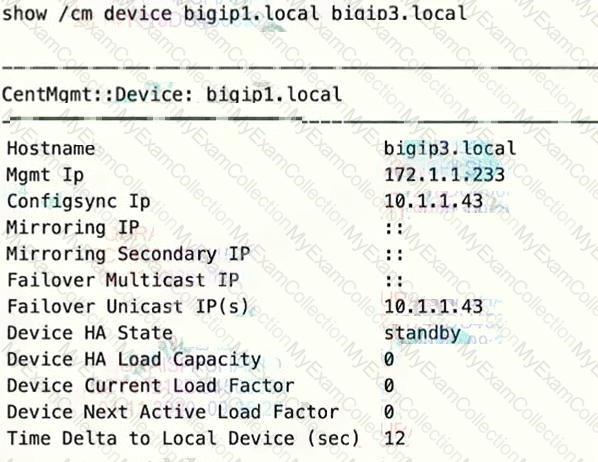

Time Delta Impact : As shown in the exhibit, the " Time Delta to Local Device (sec) " is 12 .

Trust Mechanism : Device trust relies on secure certificate-based communication (SSL/TLS) . If the time difference between devices is too large (typically more than a few seconds), the Control Plane cannot validate the certificates, leading to a failure in the trust relationship .

ConfigSync Failure : When device trust is broken due to time drift, the systems cannot verify the identity of the peer, which directly prevents the ConfigSync process from executing on the affected device, such as bigip3.local in this scenario.

Resolution : Administrators must ensure that all devices in a high availability pair are configured to use the same reliable NTP servers to keep their system clocks aligned.

The correct command for restoring an encrypted UCS archive via the command line is D. load /sys ucs < filepath > passphrase < password > .

When restoring a UCS file to replacement hardware (RMA device) , the license from the original device is not valid on the new system. If the UCS restore attempts to load the old license, BIG-IP reports license errors such as “License is not operational” , which can prevent traffic objects (including pools and virtual servers) from loading correctly.

To avoid this issue, F5 documentation recommends restoring the UCS without the license , using the following command:

tmsh load /sys ucs < ucs filename > no-license

This approach:

Restores all configuration objects (LTM, networking, certificates, keys, etc.)

Excludes the invalid license tied to the old hardware

Allows the administrator to activate a new license separately on the replacement device

Why the other options are incorrect:

A. Remove the license information from the UCS archive Not supported or recommended; UCS files should not be manually modified.

B. Revoke the license prior to restoring License revocation does not prevent the UCS from attempting to load license data.

D. Reactivate the license on the new device using the manual activation method This must be done after restoring the UCS and does not prevent the restore failure itself.

Therefore, the correct and supported method to avoid this error is C .

===========

Identifying the current device status includes knowing which software modules (such as LTM, ASM, or APM) are active and how much hardware resource (CPU/Memory) is allocated to them 40404040 . The System > Resource Provisioning screen displays the licensing status and allows the administrator to set the provisioning level (Nominal, Dedicated, or Minimum) for each module.

Comprehensive and Detailed Explanation From BIG-IP Administration20 Control Plane Administration documents: Connectivity management involves ensuring that the physical layer matches the networking environment. Interface properties, including media speed, duplex settings, and MTU, are managed at the Control Plane level under the Network menu. To resolve a mismatch with an upstream switch, the administrator must navigate to Network > Interfaces to manually override auto-negotiation settings.

Although /var/log/ltm is primarily associated with Local Traffic Manager events, it is also the primary destination for system-level alerts generated by the Control Plane ' s chmand (Chassis Manager Daemon). Hardware status changes, including power supply failures, fan speeds, and temperature warnings, are logged as " notice " or " critical " events within the LTM log file.

Comprehensive and Detailed Explanation From BIG-IP Administration Control Plane Administration do38cuments: While HA state is managed under " Device Management, " the specific failover behavior of a traffic object is linked to its configuration. A Virtual Address must be associated with a " Traffic Group " (usually traffic-group-1) to fail over. This association and the resulting floating status can be verified by viewing the Virtual Server or Virtual Address list under Local Traffic > Virtual Servers.

On a BIG-IP system, NTP (Network Time Protocol) configuration is part of the system-level configuration settings . In the Configuration Utility, NTP servers are configured under the System configuration hierarchy .

The correct navigation path is:

System > Configuration > Device > NTP

This location allows the administrator to:

Add, modify, or remove NTP servers

Ensure accurate system time synchronization

Maintain proper time alignment required for features such as ConfigSync , HA failover , logging, and certificate validation

Why the other options are incorrect:

A. System > Platform is used for hardware-related settings.

B. System > Preferences manages UI and user preferences.

C. System > Services controls system daemons and services, not time configuration.

Therefore, the correct answer is D. System > Configuration .

===========

A QKView is a comprehensive snapshot of the device ' s Control Plane state, configuration, and logs used for troubleshooting. By default, the qkview utility stores its generated output file in the /var/tmp/ directory. Administrators must know this path to retrieve the file for upload to F5 iHealth or Support.

Managing the license is a primary Control Plane task required to activate software modules and features on a BIG-IP device.

License Management Utility : All actions related to the device license, including initial activation, renewal, and adding add-on keys, are performed under the System > License section of the Configuration Utility.

Procedural Requirements : Licensing often requires the generation of a " dossier, " which is a unique encrypted string used by the F5 License Server to generate the final license file.

Impact on Services : Updating or re-activating a license generally requires a restart of system services (such as the tmm daemon), which will temporarily disrupt traffic processing unless performed on a standby unit in a high availability pair.

Add-on Licenses : If an administrator needs to increase the capacity of a specific module (like increasing the SSL TPS limit or adding a new module like ASM), the new registration keys are entered through this same interface using the " Re-activate " button.

In a BIG-IP Device Service Cluster (DSC) , manual configuration synchronization is performed using the ConfigSync framework. The supported and documented command to manually push the local configuration to a specific device group is:

tmsh run cm config-sync to-group < device_group >

This command:

Initiates a one-time manual ConfigSync

Pushes the local device’s configuration to all members of the specified device group

Is commonly used when auto-sync is disabled or when the administrator wants explicit control over synchronization timing

Why the other options are incorrect:

A is not a valid TMSH command for ConfigSync.

B enables auto-sync but does not perform an immediate synchronization.

D is not a valid or supported TMSH command for device group configuration synchronization.

Therefore, the correct command to manually synchronize configuration to a device group is C .

===========

Comprehensive and Detailed Explanation From BIG-IP Administration Control Plane Admi 13 nistration documents:

To accurately report the current status of specific web applications hosted on the same server (node), the Control Plane must use a monitor that operates at the application layer.

Application-Specific Monitoring : While a node (the IP address) might be up and responding to ICMP (ping) or TCP handshakes, a specific web service or path on that server could be failing.

Custom Send Strings : An HTTP monitor allows the administrator to define a " Send String " to request a specific page or URI related to the application in that pool .

Receive Strings : The " Receive String " identifies a unique value that the application must return to be considered " Available " .

Granular Status Reporting : By deploying these monitors at the pool level, the Control Plane can mark a pool member " Offline " for one application pool if the receive string is missing, while keeping it " Available " in another pool where the service is still healthy.

The audit log (/var/log/audit) records configuration changes made on the BIG-IP system, including:

Who made the change (user account)

What was changed (for example, a virtual server modification)

When the change occurred

How it was performed (GUI, TMSH, or API)

Why the other options are incorrect:

/var/log/secure logs authentication events such as login successes and failures, not configuration changes.

/var/log/ltm logs traffic-management and runtime LTM events, not administrative configuration modifications.

Therefore, the correct log file for tracking who changed a virtual server is /var/log/audit .
