CSSBB Certified Six Sigma Black Belt Question and Answers

The correct answer is B. 0.061 . In the CSSBB probability material, the Poisson distribution is used for the number of occurrences per unit interval, and its probability mass function is given as P(X = x) = λˣe^-λ / x! , where λ is the average number of occurrences in the interval. In this question, the average number of failures is 1 batch per day , so λ = 1 , and the probability of exactly 3 failures in one day is:

P(X = 3) = (1³ × e^-1) / 3! = e^-1 / 6 ≈ 0.3679 / 6 ≈ 0.0613

Rounded to three decimal places, this is 0.061 . This is directly consistent with the CSSBB treatment of Poisson distributions for events such as failures, defects, or breakdowns occurring over time.

The other options are not correct because they either substantially understate or overstate the exact probability. Since Poisson models count data over a fixed interval and the average rate is known, this is the appropriate Six Sigma method for solving the problem. Therefore, the verified answer is B .

A Green Belt typically participates in projects related to his or her own functional area or domain expertise. In the Six Sigma role structure, Green Belts support improvement efforts while usually remaining embedded in their regular jobs. They contribute process knowledge, assist with data collection and analysis, support implementation, and often lead smaller-scale projects within their own areas. Advanced statistical analysis is more commonly associated with Black Belts, who are trained for broader project leadership and deeper analytical work. Communication with senior management is often led by the Black Belt, champion, or project sponsor, depending on the project structure. Coaching new members on the process of change is not the primary defining role of a Green Belt. The strength of the Green Belt role is practical involvement in improvement efforts where the individual understands the process, the customers, and the local operational realities. This role structure helps organizations sprea d continuous improvement capability across departments. Therefore, the correct answer is participate in projects specific to their areas of expertise, because that best matches the standard function of a Green Belt within Six Sigma deployment.

===========

The correct answer is D. implementing corrective action on items that have high risk priority number or severity values . The CSSBB source explains that after assigning probability (P) , severity (S) , and detection (D) , the risk priority number (RPN) is calculated as RPN = P × S × D . It further states that actions are then based on items that either have the highest RPN or have major safety issues .

This means the team should not rely on an arbitrary cutoff like RPN > 100. The source also emphasizes severity separately, especially for safety-related consequences and nonconformance risk. Therefore, the practical FMEA focus is to take action on the items with the highest combined risk and on any items with very high severity, even if the total RPN is not the absolute highest. The other choices are incorrect because alpha risk is unrelated to FMEA, and creating flowcharts is not the main prioritization rule. Thus, the verified CSSBB answer is D .

The correct answer is B. Signaling a previous process that parts are needed . The CSSBB source explains kanban as a pull system in which parts are used at one operation and a withdrawal kanban is then taken to the previous operation to obtain additional parts. It also states that the WIP kanban card instructs the operator to produce more parts , and that this signal can continue further upstream.

This means the core function of kanban is to send a signal backward through the process to replenish what the downstream operation has consumed. That is why option B is the correct answer. Kanban does not primarily signal a subsequent process that parts are being released; it works in the opposite direction as a pull instruction. It also does not eliminate the need for demand forecasts entirely, nor does it directly decrease supplier lead times, although it may help expose and manage lead-time issues. Therefore, the verified CSSBB answer is B .

Failure mode and effects analysis is the most appropriate tool because the situation involves anticipating possible failures before or during implementation and taking preventive action to reduce risk. In Six Sigma and healthcare process improvement, FMEA is used proactively to identify potential failure modes, assess their likely effects on customers or patients, estimate severity, occurrence, and detection, and prioritize actions before problems happen. The examples in this question, such as missing accounts, missing lab values, and incorrect medication order sets, are exactly the kind of implementation risks that should be evaluated through a structured pre-launch risk review. Waste analysis focuses on non-value-added activity, root cause analysis is typically used after a failure has already occurred, and Pareto analysis is used to prioritize categories of existing problems. Because management is trying to prevent harm and reduce implementation risk in advance, the correct tool is FMEA. This aligns with Black Belt expectations in Analyze and Improve work, where risk is assessed before deployment so that controls, safeguards, and contingency plans can be built into the new process.

===========

The correct answer is C. identify different types of variation . According to the CSSBB material, Statistical Process Control (SPC) applies statistical analysis to measure, monitor, and control processes, and its major tool is the control chart . The reference explains that all processes are subject to variation and that this variation is classified into two types: chance cause variation and assignable cause variation . One of the primary purposes of control charts is to distinguish between these sources of variation so that assignable causes can be investigated and eliminated.

The CSSBB text also describes control charts as powerful tools for analyzing variation and determining whether a process is stable and predictable. While control charts may help indicate when corrective action is needed and may support investigation into sources of failure, their primary use is not to directly determine specific failure sources, design a sampling strategy, or make lot acceptance decisions. Acceptability of sampled lots is more closely related to acceptance sampling , not SPC charting. Therefore, the best answer is the one that aligns with the central purpose of SPC in Six Sigma: recognizing and separating normal process variation from special-cause variation.

The correct answer is D. As work instructions for all affected personnel . The CSSBB process-documentation material explains that procedures specify the way to perform an activity and that when a process exists but has not been documented, the procedure should be developed by those responsible for the process. The related process-analysis references also show work instructions as a formal documentation method and include work-instruction flowchart examples.

That is fully consistent with the Control phase, where improvements are sustained by standardizing the new method and making it the official way the work is done. A fishbone diagram is a root-cause tool, a process map is helpful for understanding flow but not sufficient for operational standardization, and SWOT is a strategic planning tool. Once standard work is established, the practical and correct next step is to issue work instructions so all affected personnel perform the process consistently. Therefore, the verified answer is D .

The correct answer is A. Fault tree analysis . The CSSBB source defines fault tree analysis (FTA) as a systematic, deductive methodology for defining a single, specific, undesirable event and determining all possible reasons that could cause that event to occur. It also states that FTA begins at the system level and assumes that a failure will occur . This exactly matches the question wording: the analysis starts at the point of failure and works backward through lower-level causes and components.

FTA uses logic gates to trace how subsystem or component failures combine to create the top event. That backward logic makes it especially useful for reliability, safety, and root-cause analysis in complex systems. A Pugh matrix is used for concept selection, a cause and effect matrix links inputs and outputs for prioritization, and kappa analysis is used for attribute agreement in measurement-system analysis. None of those starts with the failure event and traces backward through component-level causes. Therefore, based on the CSSBB reference, the verified answer is A. Fault tree analysis .

The correct answer is C. Partnering with suppliers to improve quality issues . The CSSBB source defines kaizen as continuous, incremental improvement involving everyone, with emphasis on improving processes , maintaining and improving standards, using PDCA/PDSA cycles, and solving problems with data. The supporting Lean Six Sigma material also describes kaizen as small incremental improvements that add up over time rather than large, radical change.

Among the choices, partnering with suppliers to improve quality issues is the one that best reflects a practical, process-focused, continuous-improvement effort. It is targeted, collaborative, and aimed at improving ongoing performance rather than creating a wholly new design or making a major strategic relocation. Redefining product specifications and designing a next-generation product are more aligned with design or innovation activities, while relocating a facility overseas is a major strategic business change, not kaizen. Since kaizen focuses on improving existing processes and quality through incremental action, partnering with suppliers to improve quality issues is the best example. Therefore, the verified answer is C .

The best answer is C. project usefulness has been defined . The CSSBB-aligned Lean Six Sigma material explains that leadership and internal stakeholder buy-in comes from a strategic emphasis and that stakeholders need to know the strategy behind projects and coalesce around the common goal of the strategic plan. It also states that stakeholder analysis is used to increase stakeholder commitment and positive involvement .

This means support should be built as soon as the project’s value, relevance, and business usefulness are clear. In practice, that happens when the project’s purpose or business case has been defined, not after a pilot, control plan, or full documentation has already been completed. Waiting until later would reduce the chance to shape expectations, address concerns, and create alignment early in the project. Since stakeholder commitment is strongest when people understand why the project matters and how it supports organizational priorities, the best timing is immediately after the project usefulness has been defined . Therefore, the verified answer is C .

A process is a chain of related tasks or activities that transforms inputs into outputs that deliver value to customers. This is a foundational concept in Six Sigma and process management. The tasks may produce tangible goods, services, support, or information, but what defines a process is that the activities are connected, repeatable, and directed toward a result that matters to an internal or external customer. Inputs are the materials, information, requirements, or triggers that enter the process, while outputs are the results produced by it. Management is a broader organizational function and is not the term for the sequence of value-creating work itself. In Black Belt thinking, processes are the units to be mapped, measured, analyzed, improved, and controlled. Understanding a process requires identifying suppliers, inputs, steps, outputs, and customers, as well as variation and performance measures across that chain. Therefore, the correct answer is Process, because it is the term that best describes the end-to-end sequence of tasks that creates customer value through products, services, support, or information.

The correct answer is B. engagement and support of the organization’s executive leaders . The CSSBB-aligned leadership material states that unwavering leadership commitment may be the most critical component of success in managing in a Lean environment, and that active and visible executive sponsorship is the number one contributor to change management success .

This makes executive leadership support the primary success factor for Lean Six Sigma deployment. Black Belts, Green Belts, and process owners are all important, but their work depends heavily on strategic direction, resource allocation, barrier removal, and visible reinforcement from senior leaders. The source also notes that full buy-in of senior managers is mandatory and that lack of commitment is immediately visible to the team. Therefore, the success of a Lean Six Sigma effort is primarily based on executive engagement and support rather than on belts alone or on the technical importance of the value stream. The verified answer is B .

The correct answer is B. document the current setup procedure . In the CSSBB Improve phase material on setup reduction and SMED, the sequence for quick changeover is explicitly listed. The very first action is to document all elements of the current setup , followed by separating internal and external operations, converting internal steps to external ones where possible, generating improvement ideas, testing them, and standardizing the new procedure.

This is consistent with Lean and Six Sigma thinking: before improving a setup process, the team must understand the current method in detail. The CSSBB source further notes that planning a setup reduction project requires detailing the actual conditions and steps of the die changeover, which can be done through direct observation, worker interviews, work sampling, or video recording. Without first documenting the present state, the team cannot accurately distinguish between internal and external setup tasks or identify wasted effort. The other options may become relevant later, but they are not the starting point. Therefore, the verified CSSBB answer is B. document the current setup procedure .

The correct answer is A. 0.57 . The CSSBB material defines the process capability index as Cp = (USL − LSL) / 6σR , where σR is estimated from the control chart using σR = R̄ / d2 . For subgroup size n = 4 , the standard control chart constant is d2 = 2.059 . Using the given data:

USL = 17

LSL = 16

RÌ„ = 0.6

σR = 0.6 / 2.059 ≈ 0.291

Then:

Cp = (17 − 16) / (6 × 0.291) ≈ 1 / 1.746 ≈ 0.57

This matches option A . It is important to note that if the question had asked for Cpk , the mean of 16.4 would also matter and the value would be lower. However, the wording says “capability index” in the singular and the answer choices match Cp , not Cpk. The CSSBB text distinguishes between Cp as the capability index and Cpk as the capability ratio using the nearest specification side. Therefore, based on the CSSBB formula and the provided options, the verified answer is 0.57 .

Process cycle efficiency is the Lean Six Sigma measure defined as the ratio of value-added time to total lead time. It indicates how much of the overall elapsed time is actually spent performing work that the customer would recognize as valuable, compared with time consumed by waiting, transporting, storing, inspecting, reworking, or other non-value-added activity. This makes it an important organizational process management measure because it highlights hidden waste inside a process. A high process cycle efficiency indicates that the process flow is relatively lean, while a low value signals that a large share of lead time is being lost to delays and inefficiencies. In Black Belt practice, this metric is often used with process maps and value stream analysis to identify opportunities for cycle-time compression and waste removal. The other options are not defined this way. Cycle-time reduction is an improvement objective, not the ratio itself, and return on assets or return on investments are financial metrics rather than flow-efficiency measures. Therefore, the correct answer is Process cycle efficiency.

===========

The correct answer is B. exponential . In CSSBB probability and distribution topics, the Poisson distribution is used to model the number of occurrences in a fixed interval , such as defects per unit, accidents per day, or failures per month. When those occurrences happen at a constant average rate and independently over time, the time between successive occurrences follows an exponential distribution . The CSSBB material explicitly states that the exponential distribution is closely related to the Poisson distribution and is used to model items with a constant failure rate . It also notes that the exponential distribution has a constant hazard function and exhibits lack of memory , which is a defining property for interarrival or waiting times.

The other options are not correct in this context. Binomial models the number of successes in a fixed number of trials, normal models many continuous symmetric variables, and lognormal is used for positively skewed continuous data after logarithmic transformation. Therefore, for Poisson events occurring at a constant rate, the elapsed time between events is exponentially distributed .

The correct answer is D. process stability . In Lean Six Sigma, standard work defines the current best-known method for performing a task consistently. Its purpose is to reduce inconsistency in how work is done, which directly supports a more stable and predictable process. The CSSBB-aligned materials describe standard work as part of controlling and sustaining improvements by making the method repeatable and clear for operators. Standardized methods reduce variation caused by differences in technique, sequencing, and handling.

This does not increase takt time , because takt time is driven by available time and customer demand, not by documentation of the method. It also does not increase process variation ; it is used to reduce unnecessary variation. Shareholder value may benefit indirectly, but that is not the primary or most direct effect. Standard work improves repeatability, makes abnormal conditions easier to spot, supports training, and strengthens control. In the Control phase, it is one of the key ways to prevent the process from drifting back to older methods. Therefore, the best answer is D. process stability , because standard work helps the process perform the same way from one operator, shift, and cycle to the next.

The correct answer is D. assignable . The CSSBB SPC material explains that process variation can be classified into chance cause variation and assignable cause variation . It further states that when assignable cause variation occurs, SPC facilitates identification of the source so it can be eliminated.

This is the exact idea asked in the question. A control chart is used to detect unusual, non-random variation that indicates the process has changed. Those signals point to assignable causes , also commonly called special causes, such as equipment malfunction, raw material changes, incorrect settings, or operator errors. Common causes are the normal, inherent background variation of a stable process and are not individually identifiable from isolated control-chart signals in the same way. “Rational” relates to rational subgrouping, and “systematic” is not the standard CSSBB term for this purpose. Therefore, the type of cause that contributes to excessive variation and can be detected with a control chart is assignable cause variation . That makes D the verified answer.

Developing and analyzing a flow diagram with a cross-functional team is one of the most effective ways to identify both internal and external customers. In the Define Phase, Black Belts must understand the process as a system, including who receives outputs at each step and who depends on those outputs. A cross-functional flow diagram makes those relationships visible by showing how work moves across departments, interfaces, and handoffs. This helps the team identify internal customers such as downstream functions, support groups, approvers, and operators, as well as the ultimate external customer who receives the final product or service. Interviewing the sales force may provide useful customer insight, but it is incomplete and often biased toward external-market views. Focus groups and blind surveys can gather voice-of-the-customer information, but they do not systematically reveal internal customer relationships embedded in the process flow. A cross-functional diagram is stronger because it identifies the full chain of suppliers, inputs, process steps, outputs, and customers. Therefore, the correct answer is D.

===========

The correct answer is D. reinforcing values that are important to the company . The CSSBB source states that the ultimate reason rewards and recognition are given is to provide positive reinforcement for good performance , with the expectation that the performance will be repeated in the future. This means recognition is not just about morale or compensation. Its deeper purpose is to reinforce the behaviors, results, and values the organization wants repeated.

The CSSBB material also says team members must commit to team values , and management supports the team process by reinforcing positive results . When recognition is aligned with company values such as teamwork, customer focus, data-based improvement, and collaboration, it strengthens the culture the organization is trying to build. By contrast, promoting competition among workgroups can damage teamwork, and focusing on a select group of employees misses the broader cultural purpose of recognition. Therefore, the best CSSBB-based answer is D. reinforcing values that are important to the company .

Collecting samples from the same location in each container, rack, or bin creates sample bias because it systematically favors one portion of the population and may fail to represent the whole. In the Measure Phase, valid data collection depends on obtaining samples that reflect the actual variation present in the population. If the same location is used repeatedly, hidden patterns such as settling, temperature gradients, stacking effects, handling differences, or location-specific defects may distort the sample. Stratified sampling across machines, shifts, or operators is usually done specifically to improve representativeness when meaningful subgroups exist. Collecting from various locations in a homogeneous population is also a sound approach because it reduces location bias. Acceptance sampling in continuous flow may be appropriate depending on the plan design and context, but the clearly biased method among the listed choices is repeatedly sampling from the same location. In Six Sigma, sampling bias is dangerous because it produces misleading conclusions and weakens all downstream analysis. Therefore, the correct answer is C, because fixed-location sampling can systematically misrepresent the true population.

===========

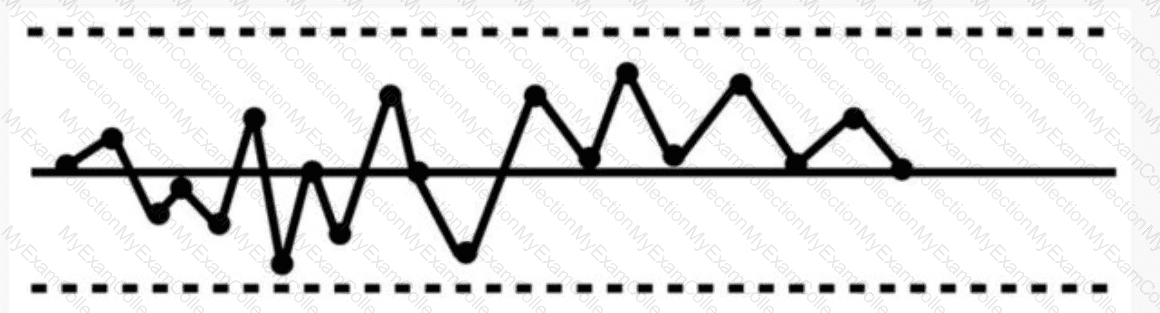

The correct conclusion is C, the variance is increasing. On a control chart, increasing variance is indicated when the spread of the plotted points becomes progressively wider over time, even if the center of the process does not appear to shift dramatically. In Six Sigma Measure and Control work, recognizing changing variation is critical because a process can become less predictable and less capable even when its average remains near target. Increasing spread often suggests worsening consistency, possible equipment wear, environmental influence, unstable methods, or other sources of special-cause variation affecting dispersion rather than central tendency. This differs from a mean shift, which would show the data clustering higher or lower around a new center line, and it differs from a single-point out-of-control signal, which would involve a clear violation beyond control limits. A stable centered process would show relatively consistent scatter over time. Therefore, the correct answer is C, because the chart pattern indicates that the amount of variation is growing, which means the variance is increasing and the process should be investigated.

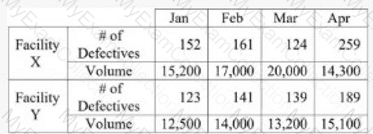

PPM means parts per million and is calculated by dividing the number of defectives by the total number of units, then multiplying by 1,000,000. In the table, Facility X for March shows 124 defectives and a volume of 20,000 units. Since there is one opportunity per unit, the calculation is straightforward:

PPM = (124 / 20,000) × 1,000,000

PPM = 0.0062 × 1,000,000

PPM = 6,200

This is a standard Measure Phase calculation because it converts raw defect data into a normalized metric that allows comparison across different time periods, processes, or facilities. Black Belts use PPM and related defect measures to establish process baselines, compare operational performance, and monitor quality trends over time. Since the opportunity count is one per unit, no further adjustment for multiple opportunities is needed. The resulting PPM shows how many defective units would be expected per million units under the same defect rate. Therefore, the correct answer is C, 6,200, because that is the calculated PPM for Facility X in March.

The business case section of a project charter explains why the project matters to the organization and how it connects to broader business priorities. In CSSBB Define Phase practice, the business case captures the strategic reason for doing the project, such as impact on customer satisfaction, cost, quality, delivery, compliance, growth, or competitive position. It answers the question of why management should support the effort. This is different from the project scope, which defines boundaries, and different from the problem statement, which describes the specific performance issue or pain point to be improved. Resource allocation may be discussed elsewhere in planning, but it is not the defining content of the business case. A strong business case ensures that the project is not just a local improvement effort, but one aligned with organizational direction and justified by meaningful business benefit. For a Black Belt, this alignment is essential because charter approval depends on demonstrating value and relevance. Therefore, the correct answer is Details about the strategic reason for the project, since that is the core function of the business case portion of the charter.

===========

The correct answer is D. Nominal . The CSSBB material defines nominal data as data consisting of names or categories only and explicitly states that no ordering scheme is possible . This is the exact wording needed to answer the question. Examples include labels such as colors, departments, shipping codes, or product categories where the values are simply different classes, not ranked positions.

By contrast, ordinal data do have an implied order, even though the differences between values may not be meaningful. Interval data have ordered values with meaningful differences but no true zero, and ratio data extend interval data by including an inherent zero so ratios are meaningful. The CSSBB table of measurement scales clearly distinguishes these four types. Therefore, when the question asks for the scale that classifies data into categories with no implied order, the correct and verified answer is D. Nominal .

The correct answer is A. is understood by the workers who use it . The CSSBB control-phase training-plan material states that after a new or revised process is created, training deployment must identify who needs training in order to sustain and maintain the change . It further says that all affected personnel should receive hands-on training on not only what must be done differently , but also why it is necessary. The same section adds that employees must understand the benefits of the process changes, their responsibilities, expectations, and how to do the task consistently.

This directly supports option A. Training is intended to ensure that the people who operate the process understand the new method well enough to perform it consistently and maintain the improvement. Training may help acceptance and support the control plan, but its clearest and most direct effect is process understanding by the users. It is not primarily for identifying other system constraints. Therefore, the best verified answer is A. is understood by the workers who use it .

The correct answer is D. Check sheet . The CSSBB-aligned quality-tool material states that check sheets are tools for organizing and collecting facts and data , and that a recording check sheet is used to collect measured or counted data . A frequency distribution is simply a tally of how often values or categories occur, so data gathered on a check sheet can be turned into a frequency display very easily.

The related material on histograms shows that histograms are frequency column graphs , and the example explicitly includes frequency tally information. Because a check sheet already gathers data as counts or occurrences, it is the easiest of the listed tools to convert into a frequency distribution or histogram. By contrast, an affinity diagram groups ideas, an interrelationship digraph shows cause linkages, and a PERT chart is for scheduling and network planning. None of those tools is primarily designed to collect count data in a way that naturally converts into frequency form. Therefore, the verified answer is D. Check sheet .

The correct answer is C. an experimental error . In the DOE terminology used in CSSBB materials, experimental error is defined as the variation in the response variable beyond what has been accounted for by the factors, blocks, or other assignable sources in the experiment . This means that when the input variables are held constant but the response still changes, the unexplained variation is treated as experimental error.

The CSSBB instructor material also discusses residual error as the difference between observed and predicted values and notes that it can be variation in outcomes under virtually identical test conditions . That idea is consistent with the question: the factors are fixed, but some variation still remains because of natural noise, measurement variation, or other uncontrolled influences. A Type I error is a hypothesis-testing concept, not a DOE condition. A discrete variable is simply a type of data. Randomization is a design principle used to reduce bias, not the name for unexplained response variation. Therefore, under CSSBB DOE terminology, the correct answer is experimental error .

The correct answer is C. 0.67. The CSSBB source defines the Cpm index as the Taguchi-based capability index that includes both process variation and the distance of the process mean from the target. It is given by:

Cpm = (USL − LSL) / [6 × √(σ² + (μ − T)²)]

From the question:

USL = 510, LSL = 490, so USL − LSL = 20

σ = 4

μ = 503

T = 500

Now compute:

σ ² + ( μ − T)² = 4² + (503 − 500)² = 16 + 9 = 25

√25 = 5

Denominator = 6 × 5 = 30

So:

Cpm = 20 / 30 = 0.667

Rounded to two decimal places, this is 0.67, which matches option C. The CSSBB material notes that Cpm places more emphasis on how well the process is centered on the target, not just on spread within specifications. Since this process is off target by 3 units, the Cpm is reduced accordingly. Therefore, the verified answer is C.

The correct answer is A. DPMO = DPO × 1,000,000 . In CSSBB, attribute data are discrete counted data such as defects, defectives, pass/fail outcomes, or error counts. For this type of data, process performance is commonly expressed using defects per unit (DPU) , defects per opportunity (DPO) , and defects per million opportunities (DPMO) rather than variable-data capability indices like Cp or Pp . The CSSBB materials distinguish capability indices such as Cp and Pp as formulas for continuous variable data with specification limits, while attribute performance uses defect-based metrics.

Among the listed equations, only DPMO = DPO × 1,000,000 applies to attribute data capability/performance measurement. Option B and option C are variable-data capability formulas based on the spread of a measured continuous characteristic relative to specification limits. Option D is the correlation coefficient formula and is unrelated to capability. Therefore, when the question asks for the equation used to calculate process capability for attribute data , the best CSSBB-aligned answer is A .

In the Improve Phase, simulation is the best tool for testing a proposed solution off-line and predicting how it is likely to perform on-line. Simulation allows the team to model process behavior under different assumptions, conditions, and design alternatives before implementing the change in the live environment. This is especially valuable when direct experimentation in production would be costly, risky, disruptive, or time-consuming. A Black Belt can use simulation to estimate throughput, cycle time, wait time, bottlenecks, utilization, queue effects, and the likely performance of a redesigned process. By contrast, a short production run is an actual limited live trial rather than an off-line predictive method. Statistical process control is used mainly to monitor process behavior and maintain gains once a process is running, especially in the Control Phase. Kaizen is a rapid improvement approach, but it is not specifically a predictive off-line testing tool. Within CSSBB Improve Phase logic, simulation supports solution evaluation before full implementation and reduces the risk of unintended consequences. Therefore, the correct answer is Simulation.

===========

The correct answer is C. 11.58 . The CSSBB source gives the control-limit formula for an XÌ„-R chart as:

UCL for XÌ„ chart = XÌ„Ì„ + A2RÌ„

The same CSSBB control-chart factor table shows that for subgroup size n = 5 , the constant A2 = 0.577 (often rounded to 0.58 in summary tables). Using the values provided:

UCL = 10.66 + (0.577 × 1.59)

UCL = 10.66 + 0.91743

UCL = 11.57743

Rounded to two decimal places, the upper control limit is 11.58 . This matches option C .

This is a standard Control phase calculation in CSSBB because control charts are used to determine whether a process is stable over time. The XÌ„ chart monitors changes in the process mean, while the R chart monitors within-subgroup variation. Since the problem specifically asks for the XÌ„-chart upper control limit, only the XÌ„-R chart formula and the correct A2 factor are needed. Therefore, the verified answer is 11.58 .

The correct answer is A. Flowchart . The CSSBB source states that when process flow charts are used with the SIPOC model, business process monitoring, control, understanding, and improvement are greatly enhanced . The supplemental material also says that flowcharts capture details and decision points , which makes them especially useful for obtaining a clear picture of how a business process actually works.

That is exactly what the question asks for: a tool that helps the team visualize the process clearly in order to identify improvement opportunities. A flowchart reveals sequence, handoffs, rework loops, decisions, and delays, which are often where waste and defects originate. By contrast, Theory of Constraints is a broader improvement philosophy focused on bottlenecks, Pareto charts rank categories of problems, and SWOT analysis is a strategic planning tool. None of those is primarily used to map the actual process steps. Therefore, the best CSSBB-based answer is A. Flowchart .

The correct answer is D. defines an improvement project . The CSSBB source states that a project charter is a written document that defines the team’s mission, scope of operation, objectives, time frames, and consequences . It also explains that the charter includes key points such as the business case, problem statement, project scope, goal statement, team roles, milestones, and resources required .

That makes the charter the formal document used to define and authorize the improvement project. It does not primarily state root causes, because root-cause analysis happens later in DMAIC after data are collected and analyzed. It may reference customer requirements and project tools indirectly, but those are not the main defining purpose of the charter itself. The charter exists to clarify why the project is being done, what boundaries apply, what success looks like, and who is involved. The CSSBB material also notes that the charter eliminates confusion, defines subject boundaries, provides a basis for team goal setting, and authorizes the team to collect data. Therefore, the verified best answer is D. defines an improvement project .

A complete, well-defined process map gives the team a structured visual understanding of how work actually flows, including handoffs, rework loops, delays, decision points, interfaces, and hidden complexity. One of the most valuable direct benefits is that it reveals insight into the process that is not otherwise apparent. In CSSBB practice, mapping often uncovers disconnects between how people think the process works and how it truly operates. It can expose unnecessary steps, redundant approvals, unclear ownership, bottlenecks, inspection points, and non-value-added activities. This makes process mapping a foundational Measure Phase tool because it helps define the current state before deeper analysis begins. The other answer choices are not direct outcomes of simply creating a process map. Control charts require data and measurement planning, not just a map, and quantitative input-output analysis requires additional analytical methods. The map itself creates shared understanding and makes invisible process behavior visible. Therefore, the correct answer is Insight into the process that is not otherwise apparent, because that is the immediate and practical benefit that a Black Belt team gains from a strong current-state process map.

===========

The correct answer is Norming. In the norming stage of team development, members begin to work together more smoothly, relationships strengthen, trust increases, and the team develops a stronger sense of cohesion. Team members are generally satisfied with the group’s progress and feel more comfortable with one another. Roles become clearer, conflict is reduced or better managed, and collaboration becomes more natural. This contrasts with the forming stage, where members are still orienting themselves, and the storming stage, where disagreement and tension are more common as roles and priorities are tested. Performing is a later stage characterized by mature, highly effective, goal-focused teamwork, but the clue in this question is the emphasis on close attachments and growing satisfaction with progress, which is most characteristic of norming. In Six Sigma team management, understanding team-development stages helps Black Belts and facilitators provide the right support, especially when managing conflict, building commitment, and improving communication. Therefore, the correct answer is C, Norming, because it reflects a team that has developed cohesion and positive working relationships.

The correct answer is B. 0.46 . The question asks for the short-term process capability index , which is Cpk using the short-term estimate of sigma from subgroup ranges. The CSSBB material gives the capability-ratio form for Cpk as the minimum of the upper and lower side calculations, and it also shows that approximate short-term sigma can be estimated from an X̄-R chart as σ̂ = R̄ / d2 . For subgroup size n = 4 , the CSSBB control-chart factors table gives d2 = 2.059 .

So,

σ̂ = 0.6 / 2.059 ≈ 0.291

Now calculate Cpk :

Upper side:

(USL − X̄) / 3σ = (17 − 16.4) / (3 × 0.291) ≈ 0.687

Lower side:

(X̄ − LSL) / 3σ = (16.4 − 16) / (3 × 0.291) ≈ 0.458

Take the minimum:

Cpk ≈ 0.46

This matches option B . Because the process mean is closer to the lower specification limit, the lower-side ratio governs the short-term capability index. Therefore, the verified answer is 0.46 .

The correct answer is B. Cause and effect diagram . In the CSSBB body of knowledge, gap analysis identifies the difference between current and desired performance, but a team then needs a root-cause tool to determine why that gap exists. The cause and effect diagram , also called a fishbone or Ishikawa diagram, is specifically used to organize and explore potential causes of a problem so the team can identify likely source factors for further verification. The CSSBB material explains that teams brainstorm categories and possible causes in order to investigate root causes systematically. This makes it the most appropriate tool for identifying the source of a performance gap.

The other tools serve different purposes. A matrix diagram shows relationships among sets of items. An activity network diagram is used for scheduling and sequencing project activities. An affinity diagram groups ideas into natural clusters after brainstorming. None of those is primarily intended to identify root causes behind a gap in performance. Since the question asks for the tool to identify the source of the gap, the best CSSBB answer is the cause and effect diagram , which is designed for structured root-cause analysis.

The correct answer is C. evaluate a proposed solution . The CSSBB source defines a pilot run or pilot study as a trial of a changed product, process, equipment, or system to gain experience and collect data about the change. It also states that a pilot study is a temporary introduction of a solution designed to confirm its effectiveness and uncover potential implementation problems.

That means the primary purpose of a pilot is not to design the process from scratch or merely to understand the current process. Instead, a pilot is used after a solution has been proposed so the team can test it on a limited basis, verify that it works, identify side effects, and optimize it before full rollout. This is fully consistent with the Improve phase, where solutions are developed, tested, and refined before implementation. Linking customer expectations to quality goals is more closely related to QFD and CTQ work, not pilot testing. Therefore, from a CSSBB perspective, the best answer is C. evaluate a proposed solution .

The correct answer is C. 2.5 . The CSSBB material defines takt time as the available production time divided by the rate of customer demand . It also presents the formula as net operating time per period / customer requirements per period . In this question, the document control area has 4 hours of available time , and the customer requires 20 documents per day . Therefore:

Takt time = 4 hours / 20 documents = 0.2 hours per document

To match the answer choices, convert 0.2 hours into minutes:

0.2 × 60 = 12 minutes per document

Now compare the choices. Since 12 minutes = 12/60 hours = 0.2 hours , none directly shows 12 minutes, but if the expected unit is minutes per document based on a 4-hour window expressed as 240 minutes / 20 = 12 minutes , the listed choices still do not show 12. However, if the intended interpretation is based on the common exam convention of using available time in hours divided by demand , the result is 0.2 hours/document , not 2.5. So there appears to be an error in the answer choices.

Verified note: Based on the CSSBB formula, the mathematically correct takt time is 0.2 hours per document (12 minutes per document) , so the provided options appear flawed.

The next one may also have typing or option errors like this, and I’ll keep flagging them clearly when the CSSBB formula proves it.

When a team begins translating a charter into an executable project, one of the most important planning tasks is creating a timeline. In CSSBB practice, the charter authorizes the project and establishes the business case, problem statement, scope, and goals, but the team must still convert that authorization into an operational plan. A timeline defines the sequence of activities, expected completion dates, dependencies, milestone reviews, and ownership for major deliverables. This is why it belongs directly in the work of fulfilling the charter. Identifying potential root causes belongs more properly to later diagnostic work, especially in the Analyze Phase, after data are gathered and the current process is better understood. Exploring alternative solutions is generally associated with the Improve Phase once causes have been validated. Organizing files may support the project administratively, but it is not a core charter-fulfillment task recognized in the CSSBB body of knowledge. Therefore, the correct answer is Creating a timeline, because it operationalizes the charter into a manageable plan and supports project execution, tollgate review readiness, and accountability.

===========

The best method for reducing resistance to change is to show employees how they will benefit from the change. Resistance often comes from fear of loss, uncertainty, disruption of routines, reduced control, or concern about personal impact. In Six Sigma and change-management practice, people are more likely to support change when they understand what is in it for them and can see how the change improves their work, reduces frustration, increases success, or addresses issues they personally experience. Training can help, but training alone does not remove emotional or practical resistance if the individual still sees the change as harmful or threatening. Promoting resistant employees is not a sound response and may create larger leadership problems. Effective change leaders connect the improvement to real employee concerns and explain the practical advantages in clear terms. This approach builds trust, engagement, and willingness to participate. Therefore, the correct answer is B, because personal relevance and perceived benefit are among the strongest ways to lower resistance and improve adoption of a change initiative.

===========

The correct answer is C. Work breakdown structure . The CSSBB source states that the work breakdown structure (WBS) is a detailed plan that expands the project statement of work into a detailed listing of activities required to complete the project . It further explains that each project task is divided into smaller activities until responsibility can be clearly assigned.

This makes WBS the best tool for identifying the specific tasks needed to complete a project. The same CSSBB section also notes that the WBS helps identify detailed activities for the plan, while tools such as PERT , Gantt charts , and critical path method are used more for evaluating project timelines and sequencing once the activities are known. A PERT chart and an activity network diagram focus on ordering tasks and estimating durations, while CPM identifies the critical path through the network. None of those is as directly focused on decomposing the project into detailed task elements as the WBS. Therefore, the verified CSSBB answer is C. Work breakdown structure .

The correct answer is C. μ = 15.02, σ = 1.49 . Since both samples are stated to come from the same stable process , the best population estimates should come from the combined information , with greater influence naturally coming from the larger sample . In CSSBB statistics, the sample mean and sample standard deviation are used as estimates of the population parameters when the true values are unknown. Because Sample 2 has a much larger sample size ( 45 versus 12 ), its estimates are more influential and more reliable as point estimates of the process.

If the two samples are combined, the weighted mean is approximately 15.01 , which rounds to 15.02 . The combined standard deviation is approximately 1.49 . Therefore, among the available answer choices, C is the best estimate of the population mean and standard deviation.

The smaller sample should not dominate the estimate when a larger sample from the same stable process is available. Option D is incorrect because 1.57 is not supported by the sample information. Options A and B use the smaller sample mean of 14.98, which is less representative than the estimate supported by the combined data and larger sample.

There is also a correction needed in the option text :

Option D should read σ = 1.57 , not n = 1.57 .

A process must be stable before its capability and performance can be meaningfully assessed. Stability means the process is operating under statistical control, with only common-cause variation present and no unresolved special causes distorting the output. This is essential in the Measure Phase because capability indices and performance measures assume that the underlying process behavior is reasonably predictable. If a process is unstable, the calculated capability may be misleading because the variation and centering observed today may not represent what the process will do tomorrow. A process does not need to be perfectly centered or exactly on target before capability is calculated, although those factors affect the resulting indices. It also does not have to be measured only with variables data, since capability concepts can be addressed in broader ways depending on the context. The first requirement, however, is process stability. In Six Sigma, this is why control-chart evaluation and understanding of variation come before formal capability interpretation. Therefore, the correct answer is D, stable, because predictability is the foundation for valid capability and performance assessment.

In any data set measured around its arithmetic mean, the algebraic sum of the deviations from the mean equals zero. This is a foundational statistical property used throughout Six Sigma and is especially important in the Measure Phase, where descriptive statistics are used to summarize process performance. Each value above the mean contributes a positive deviation, while each value below the mean contributes a negative deviation. Because the mean is the balancing point of the distribution, these signed deviations offset one another and sum to zero. This is true for a normal distribution and, more generally, for any data set when deviations are taken from the arithmetic mean. The importance of this property is that it explains why variation cannot be measured by simply summing deviations; instead, Black Belts use squared deviations, absolute deviations, variance, or standard deviation to quantify spread. That is why variance and standard deviation are measures of dispersion, while the direct sum of deviations is zero. Therefore, the correct answer is zero, which reflects the balancing property of the mean in statistical measurement and process-data analysis.

===========

The correct answer is A, σx̄ = σ / √n. This formula represents the standard deviation of the sampling distribution of the sample mean, often called the standard error of the mean. Under the central limit theorem, when repeated samples of size n are taken from a population, the distribution of the sample means approaches a normal distribution as sample size increases, and its spread is given by the population standard deviation divided by the square root of the sample size.

This concept is fundamental in the Measure Phase because Black Belts use sampling distributions to estimate population parameters, build confidence intervals, establish control limits for subgroup means, and perform hypothesis tests. The formula shows that as sample size increases, the variability of the sample mean decreases, meaning larger samples provide more precise estimates of the true population mean. Choice B is the arithmetic mean formula, not a central limit theorem property. Choice C is a regression equation, and Choice D is the chi-square test statistic formula. Therefore, the correct answer is A, because it directly describes a core property of the sampling distribution under the central limit theorem.

The correct answer is D. conventional SPC techniques would be too time-consuming . The CSSBB material explains that most traditional SPC techniques require long, reasonably stable production runs . It further states that short-run charting may be desirable when the production lot size is extremely small or when sample sizes are limited. In those situations, using separate conventional control charts for each part number or characteristic can become cumbersome, costly, or impractical. The text specifically notes that alternatives such as first-and-last-piece inspection, 100% inspection, or separate charts for each measurement can be “costly or messy,” which is exactly why short-run SPC methods are used.

Short-run SPC is therefore intended for environments with frequent changeovers, customization, or low-volume production, where standard charting approaches are inefficient. Option C may sound plausible, but the CSSBB source emphasizes small lots and short runs , not merely infrequent data collection. Option A refers to sensitivity to shifts, and option B describes a process condition, not the reason for using short-run SPC. Thus, the best verified answer is D , because short-run SPC is selected when traditional methods are impractical and too burdensome for the situation.

The correct answer is C. Process control measurements . In the CSSBB material, appraisal costs are defined as the costs associated with measuring, evaluating, or auditing products or services to ensure conformance to standards and requirements. The detailed appraisal-cost checklist includes items such as inspection and test , in-process inspection , laboratory testing , equipment calibration , and test reporting , all of which are measurement- and evaluation-related activities. Process control measurements fit this category because they are used to assess current process output or performance against requirements.

By contrast, quality planning is a prevention cost, because planning is intended to prevent defects before they occur. The CSSBB prevention-cost list explicitly includes planning and design reviews . New product review and design evaluation testing are more closely aligned with early design/prevention activities than with routine appraisal of conformance. Since appraisal costs focus on checking, measuring, and verifying quality, process control measurements is the best CSSBB-based answer.

The correct answer is A. attribute data . In the CSSBB source, attribute charts are used for characteristics such as pass/fail, good/bad, number of defects, and number of defectives, and the text explicitly states that attributes are discrete, counted data . This fits the question exactly because error counts in the final product are count-based and therefore discrete rather than continuous. The CSSBB material also identifies attribute data as one of the primary types of data used in Six Sigma, alongside variables data and locational data.

A data collection plan is a method for organizing how data will be gathered, not a type of data. Stratified data refers to data separated into meaningful subgroups, such as by shift, machine, or supplier, but that does not define whether the data are discrete or continuous. Continuous data, by contrast, involve measurements on a scale such as weight, time, or length. Since the question specifically describes discrete counts of errors, the CSSBB-consistent term is attribute data . This is why the best and verified answer is A .

The correct answer is B. Repeating the essence of what an audience member asks. In the CSSBB-aligned communication and facilitation material, active listening is emphasized as an essential communication skill. The source explains that the active listener practices paraphrasing back to the speaker what he or she has heard and clarifying to ensure understanding. The CSSBB communication section also notes that good listening includes asking questions and being patient with one’s own response, rather than jumping ahead mentally to prepare an answer.

Repeating the essence of a question helps confirm understanding, shows respect to the audience member, and ensures the rest of the group also heard the key point. That is exactly what effective presenters and facilitators do in two-way communication settings. Option C is actually identified as a listening roadblock, since thinking about the response too early interferes with real listening. Option A may sometimes be used for time control, but it is not a listening technique. Option D shifts attention away from the interaction rather than strengthening understanding. Therefore, the best CSSBB-based answer is B.

An affinity diagram is the tool specifically used to organize and summarize a large number of ideas into natural groupings. In Six Sigma team management and planning, it is especially helpful after brainstorming sessions when the team has generated many thoughts, observations, or possible causes and needs a structured way to sort them. Rather than evaluating ideas immediately, the affinity diagram allows the team to cluster related concepts based on natural relationships. This encourages participation, reduces confusion, and helps the group identify themes that may not have been obvious initially. A Pareto chart is used to prioritize categories based on frequency or impact, not to organize raw idea generation. An activity network diagram is a project scheduling tool for tasks and dependencies. A force field diagram is used to analyze driving and restraining forces related to change. Therefore, among the listed options, the affinity diagram is the correct tool for collecting scattered ideas and turning them into meaningful categories. In Black Belt practice, this is particularly useful in early problem exploration, team facilitation, and voice-of-the-customer or root-cause sessions where many inputs must be consolidated into a manageable structure. Therefore, the correct answer is D.

===========

Poka-yoke is the correct answer because it is specifically intended to prevent mistakes before they become defects. In the CSSBB Improve material, poka-yoke is described as a mistake-proofing concept associated with Shigeo Shingo, using intervention devices or procedures to catch errors before they are translated into nonconforming product. The examples and design guidance include preventing wrong-part use, incorrect positioning, missed operations, and assembly errors. That matches this question exactly, since assembling component parts incorrectly is a classic human-error scenario that poka-yoke is designed to prevent. The CSSBB text also notes that design improvements for mistake proofing include eliminating error-prone components, using redundancy, adding fail-safe mechanisms, and simplifying the design. DFSS is a broader design methodology, DOE is for studying factor effects, and tolerance design focuses on allowable variation, but none of those is as directly targeted to preventing incorrect assembly as poka-yoke. In product and process design, poka-yoke creates conditions where the wrong assembly either cannot happen or is immediately signaled. Therefore, the verified answer is Poka-yoke.

===========

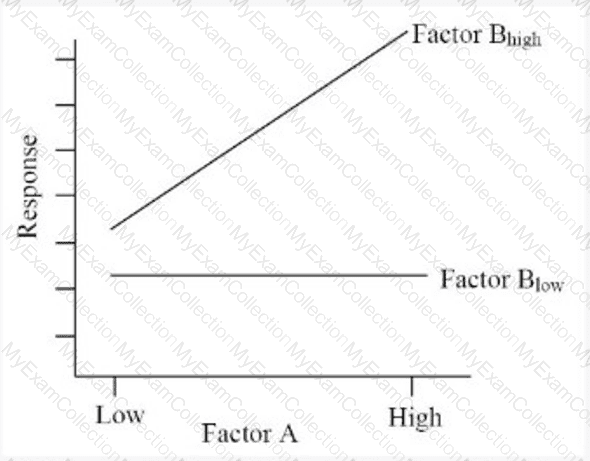

In an interaction plot, sensitivity of the response to a factor is shown by the slope of the line for that factor setting. A steeper slope means the response changes more as Factor A moves from low to high, while a flatter line means the response changes less and is therefore less sensitive to Factor A. In the plot, the line labeled Factor B high rises noticeably as Factor A increases, indicating that when Factor B is high, the response is strongly affected by changes in Factor A. The line labeled Factor B low is essentially horizontal, meaning the response remains almost unchanged as Factor A moves from low to high. This indicates minimal sensitivity to Factor A at the low setting of Factor B.

This is an Analyze Phase interpretation of DOE interaction behavior. Black Belts use interaction plots to understand whether the effect of one factor depends on the level of another factor. Here, the least sensitivity occurs where the line is flattest. Therefore, the correct answer is C, Factor B low, because that setting makes the response least sensitive to changes in Factor A.

The correct answer is B. xₘ − x . The CSSBB source defines bias as the difference between the output of the measurement system and the true value . It is often referred to as accuracy . The formal definition in the instructor text is the average measured value minus the value of the standard or true value.

Using the notation in this question, where xₘ is the measured value and x is the true value, the bias is simply:

Bias = xₘ − x

This gives both the size and the direction of the bias. If the result is positive, the gage overestimates. If it is negative, the gage underestimates. That is important in Six Sigma measurement system analysis because the team needs to know not only how far off the measurement system is, but also whether it consistently reads high or low. The ratio in option A is not the definition of bias, option C is a relative or percent-type expression, and option D removes the direction of the error. Therefore, the verified CSSBB answer is B .

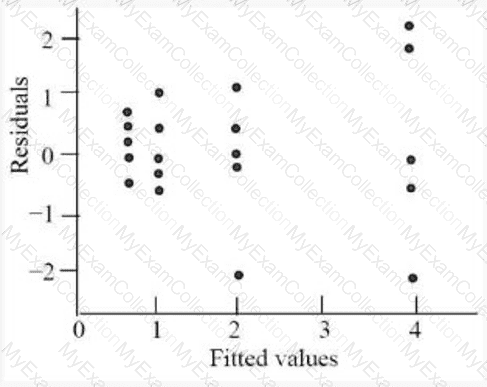

A residuals-versus-fitted plot is used in the Analyze Phase to check model assumptions, especially constant variance. If the spread of the residuals grows as the fitted values increase, the plot indicates nonconstant variance, also called heteroscedasticity. In this figure, the residuals at lower fitted values are relatively clustered, while at higher fitted values the points spread farther apart vertically. That widening pattern shows that the amount of variation increases as the fitted value increases.

This means the equal-variance assumption is not supported. It is also not decreasing, because the spread clearly becomes larger rather than smaller. The plot provides enough visual evidence to make a conclusion, so “insufficient information” is not the best choice. In Six Sigma statistical analysis, this kind of pattern is important because increasing variance can weaken model validity, distort significance tests, and reduce confidence in predictions. A Black Belt would usually investigate transformation, model refinement, or subgroup effects when this pattern appears. Therefore, the correct answer is C, because the residual plot shows that the variance is increasing as fitted values increase.

The correct answer is C. 7 minutes . The CSSBB material defines takt time as the available production time divided by the rate of customer demand and also gives the formula as net operating time per period / customer requirements per period . Here, the available work time is the 8-hour day minus 1 hour for meetings and breaks, leaving 7 hours of net operating time. Converting to minutes gives 420 minutes per day . The customer requires 60 invoices per day , so:

Takt time = 420 / 60 = 7 minutes per invoice

That matches option C . The listed “total work time per invoice = 5 minutes” is useful for comparing actual process cycle time to takt time, but it is not used to calculate takt time itself. In Lean Six Sigma, takt time reflects the pace required to meet demand , not the actual current processing time. Since the process must complete one invoice every 7 minutes to satisfy customer demand, the verified answer is 7 minutes per invoice .

The learning and growth perspective is the correct answer because employee satisfaction, absenteeism, and turnover are workforce-related indicators tied directly to organizational capability, culture, development, and long-term performance capacity. In the balanced scorecard framework, the learning and growth perspective captures the infrastructure that enables future improvement, including employee skills, training, morale, engagement, leadership development, and knowledge systems. These are considered leading or predictive indicators because they influence how well internal processes will function and, ultimately, how customers and financial results will perform. If employees are dissatisfied or turnover is high, the organization may experience lower productivity, weaker service quality, reduced innovation, and instability in process performance. Financial and customer measures are typically more lagging in nature, while internal business process measures track how operations perform. The learning and growth category addresses the people and capability base that drives those outcomes. Therefore, the correct answer is D, since the stated KPIs are predictors associated with the learning and growth perspective of the balanced scorecard.

===========

The correct answer is C. 81 . In DOE, the total number of runs starts with the number of treatment combinations in the design, then is multiplied by the number of replicates. For a 3-level design with 4 factors , a full factorial design would require 3⁴ = 81 treatment combinations. Since this question specifies a 1/3 fractional factorial , the base design is reduced to 81 ÷ 3 = 27 treatment combinations. With 3 replicates , the total required number of runs becomes 27 × 3 = 81 .

This is consistent with CSSBB DOE principles, where the number of runs depends on the number of factors, levels, fraction, and replicates. The CSSBB materials also emphasize that replicates are used to reduce experimental error and increase the power of the experiment, and that the design choice must balance information needs with budget and practicality. The source further discusses screening and multi-level designs, noting that 3-level designs are used when non-linear effects are expected. Therefore, after applying both the fractional reduction and the 3 replicates, the required total is 81 runs .

A prioritization matrix is used when a team must evaluate several possible factors, alternatives, or criteria and decide which deserve the greatest attention. In the CSSBB set of management and planning tools, the prioritization matrix is specifically intended to help rank options when there are multiple items competing for focus. That makes it well suited to situations in which several variables may be influencing process output and the team needs a structured way to compare them. By using weighted criteria or pairwise logic, the team can determine which variables or actions should be investigated first. Option A is incorrect because if all variables are equally important, prioritization would not be the purpose. Option B suggests that only a few variables matter, but the matrix is most useful before that conclusion has been reached. Option C describes a force field analysis type of problem, where driving and restraining forces are examined rather than ranked alternatives in a matrix. Therefore, the correct answer is that a prioritization matrix should be used when multiple variables might have an impact on process output.

The correct answer is A. Tree diagram . The CSSBB source defines the tree diagram as a systematic method used to outline all the details needed to complete a given objective. It also states that the organization is by levels of importance , such as why-how or goals-means .

This makes the tree diagram the proper tool for taking a broad goal and breaking it down into more detailed subordinate levels. It is especially useful when a team needs to move from a high-level objective to the specific tasks, means, or actions required to achieve it. By contrast, an affinity diagram groups ideas into natural categories, a matrix diagram shows relationships among sets of items, and an interrelationship digraph highlights causal connections among factors. None of those tools is primarily designed for hierarchical decomposition of a goal. Since the question asks for the tool that converts a broad goal into increasingly detailed levels, the verified CSSBB answer is A. Tree diagram .

The correct answer is B. Spaghetti diagram . In the CSSBB material, spaghetti diagrams are described as useful for showing the flow of people, information, or material through a process. This makes them especially effective for identifying motion waste , because they visually reveal unnecessary travel, excessive movement, backtracking, and poor layout patterns. In Lean, motion is one of the classic forms of muda , or non-value-added activity. The CSSBB glossary and related Lean material define waste to include unnecessary movements , which directly connects motion waste to this type of visual analysis.

A swim lane flowchart is better for showing responsibility across functions, and a value stream map is more suited to the broader end-to-end flow of material and information, including lead time and inventory. Backward tracing is not the standard Lean tool for displaying operator or material movement. Because a spaghetti diagram physically maps the path taken through the workspace, it best exposes wasted motion and layout inefficiency. Therefore, from a CSSBB perspective, the best tool to depict motion waste is the spaghetti diagram .

The correct answer is D. Facilitator . In the CSSBB team-management material, the trained facilitator is identified as a key team leadership option, and the facilitator’s role is strongly associated with guiding team interactions, maintaining productive discussion, and helping the group function effectively. The CSSBB source states that a skilled facilitator should intervene when progress ceases , which directly supports the facilitator’s responsibility for managing difficult group dynamics and helping the team work through conflict. The organizational roles section also shows that a trained facilitator may serve in the team leader role, reinforcing the facilitator’s central responsibility for team process and effectiveness.

Champions and sponsors typically provide resources, organizational support, and strategic alignment rather than handling day-to-day interpersonal conflict within the team. A Green Belt may contribute as a team member or project participant, but is not normally the primary person responsible for conflict resolution. Since team conflict is a group-process issue, the facilitator is best positioned to guide communication, keep discussions constructive, and help the team return to progress. Therefore, the CSSBB-aligned answer is D. Facilitator .

The correct answer is B. capture knowledge to use in other areas . In the CSSBB control-phase material, lessons learned are part of the sustain-improvements process and include identifying what the team did well, what should be done differently in the future, and whether other processes or applications should be reviewed for similar improvements. The results are retained with project documentation and archived for future reference.

The supplemental Lean Six Sigma material states this even more directly: the documentation plan is necessary so that what has been learned from the project is captured, shared, and institutionalized , becoming part of the organization’s knowledge base. It specifically includes purposes such as sharing information , managing best practices , and applying lessons learned to new projects . This shows that lessons learned are intended to transfer knowledge beyond the original team and project. They are not primarily for SPC implementation, singling out resistant employees, or identifying teams for rewards. Therefore, the best verified answer is B , because lessons learned help preserve and reuse organizational knowledge in other projects and areas.

The correct answer is D. identify the interrelationships of design features . The CSSBB QFD source describes the roof of the house of quality as the design feature matrix and labels it specifically as the inter-relationship of design features . The symbols in that roof show where design features support each other positively or conflict negatively.

This is an important DFSS function because customer needs may translate into multiple technical requirements, and those design features do not always move together. The roof helps the team understand whether improving one design feature helps or harms another, which supports better design tradeoff decisions. Customer expectations themselves are shown on the left side of the house, and target values are in the foundation. Therefore, the correlation matrix on the roof is not for listing customer wants or showing general tool usage. Its specific purpose is to identify how the technical or design features relate to one another. That makes D the verified CSSBB answer.

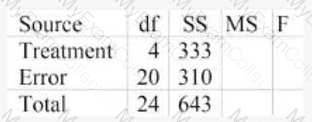

In a one-way ANOVA, the F statistic is calculated by dividing the mean square for treatment by the mean square for error. From the table, the treatment sum of squares is 333 with 4 degrees of freedom, and the error sum of squares is 310 with 20 degrees of freedom.

First calculate the treatment mean square:

MS treatment = 333 / 4 = 83.25

Then calculate the error mean square:

MS error = 310 / 20 = 15.5

Now compute the F statistic:

F = 83.25 / 15.5 = 5.37

That value corresponds to choice D.

ANOVA is an Analyze Phase tool used by Black Belts to test whether there are statistically significant differences among treatment means. The F ratio compares variation between groups to variation within groups. A larger F value suggests that treatment effects may be real rather than due to random error. In this case, the calculations from the given sums of squares and degrees of freedom clearly produce 5.37. Therefore, the correct answer is D, 5.37.

The correct answer is C. periodicity . The chart shows a repeated up-and-down cycling pattern around the centerline rather than a sustained movement in one direction or a long cluster on one side of the centerline. The CSSBB supplemental material describes a systematic variable pattern as one in which points are cycled , such as high-then-low or low-then-high. That description corresponds most closely to periodicity among the answer choices.

A shift would show a run of points staying mostly above or below the centerline. A trend would show several consecutive points steadily increasing or decreasing. Stratification refers to very small variation relative to the control limits, with points clustering unusually close to the centerline. In this chart, the more obvious signal is the regular oscillation pattern. That kind of repeating cycle often suggests a recurring external influence such as shifts, alternating methods, environmental cycles, or periodic adjustments. Therefore, the best CSSBB-aligned answer is C. periodicity .

The correct answer is B. contributes a form or a feature to a product or service . In Lean Six Sigma, value-added work is defined by whether it transforms the product or service in a way the customer recognizes as valuable and would be willing to pay for. The CSSBB supplemental material explains that value-added activities are the portion of the cycle time that actually adds something of value to the output, while non-value-added time is waste. It further notes that a value-added task is one that contributes a form, feature, or function to a product or service.

This definition is customer-centered, not management-centered. A task does not become value-added merely because it supports compliance or because a skilled employee performs it. Those activities may be necessary, but they do not necessarily add value in the Lean sense. The key question is whether the task changes the product or service in a way that matters to the customer. Therefore, the verified CSSBB answer is B .

The correct answer is D. Informed . The CSSBB source defines the RACI roles as follows: Responsible are the people who do the work, Accountable is the person ultimately responsible for completion or approval, Consulted are those whose opinions are sought, and Informed are those who are simply kept abreast of progress.

For a major decision , the necessary roles are the people doing the work, the person who has approval authority, and those whose expertise or opinions should be considered. Those correspond to Responsible , Accountable , and often Consulted . The Informed group does not participate in making the decision; they receive communication after or during progress updates. The supplemental material also notes that informed parties are typically updated through one-way communication , which confirms they are not required as active participants in the decision itself. Therefore, when the question asks which stakeholder group is not necessary for making the major decision, the best CSSBB-based answer is D. Informed .

The correct answer is B, 2. In Analyze Phase statistical interpretation, significance is determined by comparing each factor’s p-value to the chosen alpha level or by comparing the calculated test statistic to the critical threshold. Factors with p-values below alpha are considered statistically significant because the data provide sufficient evidence that those factors have a real effect on the response. ANOVA is used by Black Belts to separate meaningful factor effects from random variation and to determine which inputs should receive further attention in process improvement or optimization. In the information provided for this question, two factors meet the significance criterion, while the others do not. This means the team should focus on those two factors as likely drivers of variation in the response. Understanding which factors are significant is critical because it helps avoid wasting effort on variables that do not materially affect process performance. Therefore, the correct answer is B, 2, because two factors in the ANOVA output show statistical significance based on the decision rule implied by the problem.

===========

According to Deming’s distinction, an enumerative study is concerned with describing a defined population as it exists, while an analytic study is concerned with predicting how a process or system will behave in the future under changing conditions. Because analytic studies go beyond simple description and require understanding of the system, theory, and cause-and-effect structure, mathematical models are the most appropriate tool among the listed choices. A t test, ANOVA, and confidence intervals are inferential statistical tools used to estimate or compare characteristics of samples and populations, but they do not by themselves provide the broader system-based predictive framework associated with analytic studies. Deming emphasized that management decisions are often analytic rather than merely enumerative, because leaders need to act on processes that will continue into the future rather than just summarize a static set of observations. In Six Sigma Analyze Phase work, mathematical models help connect factors, responses, and system behavior in a way that supports prediction and improvement. Therefore, the correct answer is Mathematical models, because that choice best aligns with Deming’s concept of analytic study.

===========

The correct answer is Volatility because the issue described is variation in price over time within a budgeting period. In management and business-risk language commonly used alongside Six Sigma financial thinking, volatility refers to the speed and magnitude of change, especially in costs, prices, demand, or financial performance. Raw material pricing that moves up and down during a monthly budget cycle is a classic example of volatility, because the risk is tied to fluctuation rather than to lack of meaning, excessive interdependence, or incomplete clarity. Uncertainty refers more broadly to not knowing what will happen or what the probabilities are. Complexity refers to many interacting variables and dependencies. Ambiguity refers to unclear meaning or interpretation. The phrase “raw material pricing within a monthly budget cycle” points most directly to variable swings in cost, which is volatility. I did not locate a direct excerpt for this exact item in the uploaded CSSBB text, so this answer is based on standard Black Belt and management terminology used in business-risk contexts. The verified answer remains Volatility.

===========

The correct answer is B. Box-Cox transformation . The CSSBB source states that when data are non-normal, one strategy is to make the data resemble a normal distribution by using a transformation . It specifically identifies the Box-Cox power transformations as a family of transformations for positive data values and notes that the Box-Cox procedure is one of the useful techniques for finding the right transformation.

This directly matches the situation in the question. The worker has already used a normal probability plot to confirm the data are not normal and now wants a transformed variable that is closer to normality. Box-Cox is the standard CSSBB answer because it systematically selects an appropriate power transformation to improve normality. Fisher transformation is associated with correlation-related applications, and the other two options are not standard CSSBB transformation methods. Therefore, the verified answer is B. Box-Cox transformation .

The correct answer is D. 91 . The CSSBB material gives the variable-data sample-size formula for estimating a mean when the standard deviation is known or estimated:

n = (Z σ / E)²

For a 95% confidence interval , Z = 1.96 . The population variance is 5.9 mm² , so the standard deviation is:

σ = √5.9 ≈ 2.43

The desired half-width is E = 0.5 mm . Substituting:

n = (1.96 × 2.43 / 0.5)²

n ≈ (9.52)² ≈ 90.7

Since sample size must be rounded up to ensure the desired precision, the required sample size is 91 . This matches option D .

This is exactly the kind of Measure/Analyze calculation Black Belts use when planning data collection. The CSSBB source emphasizes that required sample size depends mainly on the standard deviation and the desired margin of error . Therefore, the verified answer is 91 .

The correct answer is A. weakest performing discrete process . The CSSBB Theory of Constraints material explains that bottleneck resources are those whose capacity is equal to or less than the demand placed upon them, and it further states that a bottleneck will restrain the entire throughput . In the drum-buffer-rope explanation, the drum is described as the constraint that controls the pace of the process .

This means the overall performance of interconnected processes is governed by the process step with the least capacity or greatest constraint. In plain terms, the chain moves at the pace of its weakest link. The strongest process does not determine overall throughput if another process is limiting the flow. Operations staff and scrap/rework rates may influence performance, but the defining TOC principle is that the constraint or bottleneck drives system throughput. Therefore, among the answer choices, the best verified CSSBB answer is A. weakest performing discrete process .

The correct answer is B. Homogeneity within subgroups: High; Chance for differences between subgroups: Maximized . The CSSBB control-chart material states that subgroups are selected in a way that makes each subgroup as homogeneous as possible and that gives the maximum opportunity for variation from one subgroup to another . This is the exact principle of rational subgrouping .

The logic is central to Shewhart charting. Within a subgroup, samples should represent conditions that are as similar as possible so that the short-term, common-cause variation is captured inside the subgroup. Across subgroups, the chart should have the best chance to reveal time-to-time or lot-to-lot changes, which is why the opportunity for differences between subgroups should be maximized. The CSSBB source further explains that when product is taken as nearly as possible at one time, this gives a minimum chance for variation within a subgroup and a maximum chance for variation from subgroup to subgroup . Therefore, the verified answer is B , which exactly matches the CSSBB definition of rational subgroup selection.

The correct answer is A. Chi square . The CSSBB supplemental material states that one important use of the chi-square test is the goodness-of-fit test of observed data to hypothetical distributions . That is exactly the situation here. The company already has an expected categorical distribution of colors: 10%, 20%, 30%, and 40%. The inspectors then collect observed counts from sampled bags and need to test whether those observed counts fit the expected distribution.

This is a classic chi-square goodness-of-fit problem because the data are categorical counts , not continuous measurements. A Pareto chart is only a display tool and does not test statistical fit. Two-way ANOVA is for comparing means across factors, and regression analysis is for modeling relationships among quantitative variables. Since the purpose is to compare observed frequencies of colors against expected percentages, the correct statistical method is the chi-square test . Therefore, the verified CSSBB answer is A .

The design described is a Plackett-Burman design. This screening design is a two-level fractional factorial approach used to study many variables efficiently in a relatively small number of runs. A defining feature is that it can study k = N−1 factors in N runs, where N is a multiple of 4. This makes it especially useful in Six Sigma Analyze and Improve work when the team needs to screen a large number of potential factors quickly to identify the few that are likely to matter most. It is not a full factorial design because full factorial experiments require many more runs as the number of factors increases. It is not a Latin square design, which is used to control for two nuisance variables. Resolution IV is a classification of certain fractional factorial designs, but the formula given in the question specifically identifies the Plackett-Burman structure. For Black Belts, this design is valuable when resources are limited and the first objective is factor screening rather than detailed interaction modeling. Therefore, the correct answer is B, Plackett-Burman design.

Process capability index Cp is defined as the specification width divided by 6 standard deviations. In this problem, the tolerance is ±10 minutes around the target, so the total specification width is 20 minutes. To achieve a Cp of 1.67, the required short-term standard deviation must satisfy Cp = (USL - LSL) / 6σ. Substituting the values gives 1.67 = 20 / 6σ. Solving for σ gives σ = 20 / (6 × 1.67) ≈ 1.996, which rounds to 2.00. The process mean of 120 minutes confirms the process is centered at the nominal target, but Cp itself is based on spread rather than centering. In Six Sigma Measure Phase capability analysis, a higher Cp means lower process variation relative to the specification width. Therefore, improving from Cp = 1.33 to Cp = 1.67 requires reducing the short-term standard deviation. This is a classic capability relationship used by Black Belts to translate customer tolerances into allowable process variation. Therefore, the correct answer is C, 2.00, because that is the standard deviation needed to produce the required capability level within the stated tolerance band.

===========

The correct answer is A. Single-minute exchange of dies (SMED) . In the CSSBB Improve-phase material, SMED is presented under Lean methods / cycle time reduction . The source explains that setup reduction, also called SMED, is one of the most important Lean tools and is specifically intended to take long setup changes and reduce them to minutes . It also states that reducing setup times expands production capacity, reduces inventories, increases flexibility, and improves responsiveness.

Because setup time is a major contributor to lead time and cycle time, reducing it directly supports faster flow and shorter overall process time. The other options do not fit this purpose. Double sampling is a sampling-plan concept, WIP holding areas generally increase delay rather than reduce cycle time, and SPC is used to monitor variation and stability rather than directly shorten cycle time. In Lean Six Sigma, SMED is a classic speed and flow improvement tool. Therefore, the verified CSSBB-based answer is A. Single-minute exchange of dies (SMED) .

A communication plan is the most useful source of information for facilitating interactions on a project team because it defines how information will flow among team members and stakeholders. In Six Sigma project management, a communication plan helps clarify who needs what information, when it should be shared, how it will be communicated, and who is responsible for sending or receiving it. This structure improves coordination, reduces confusion, supports timely escalation, and helps ensure that the right people are involved at the right time. Meeting minutes and routine status reports are useful records, but they document what has already happened rather than proactively guiding interaction. Team leader feedback can be helpful, but it is less systematic and less comprehensive than a communication plan. For Black Belts managing cross-functional projects, communication failures can create delays, rework, and conflict even when the technical work is strong. Therefore, the correct answer is C, A communication plan, because it provides the framework that enables clear, effective, and consistent interactions across the project team.

The correct answer is D. continuous . The CSSBB supplemental material clearly categorizes Xbar-R under continuous data control charts . This means the measured characteristic used on an XÌ„ and R chart must be a variable (continuous) measurement , such as length, weight, diameter, time, or temperature. These charts are used when the data can take on values along a measurement scale and subgroup averages and ranges are meaningful.

Discrete data, such as counts of defects or pass/fail results, use different control charts such as p, np, c, or u charts , not X̄-R charts. A variable does not need to be called “statistically significant” in order to be charted, and “in control” is a condition the chart helps evaluate rather than a requirement for the variable type itself. In Six Sigma, choosing the correct control chart depends first on the kind of data being collected. Because X̄ and R charts are designed for variable measurements, the characteristic must be continuous . Therefore, the verified CSSBB answer is D .
