CSQE Certified Software Quality Engineer Exam Question and Answers

Platform configuration testing ensures that the software works correctly across different hardware and software environments.

Objective: The primary goal is to verify that the software can handle all the required hardware and software configurations it is expected to run on.

Comprehensive Testing: This type of coverage involves testing the software on various combinations of operating systems, browsers, hardware devices, and other configurations to ensure compatibility and performance.

Identification of Issues: It helps in identifying issues that may arise due to differences in the environments, which can be crucial for software that needs to run on multiple platforms.

A Kiviat chart, also known as a radar or spider chart, is well-suited for presenting a summary view of a set of metrics that include an ideal value because:

Multi-Dimensional Data Representation : It allows for the visualization of multiple metrics simultaneously, each represented as an axis starting from the same point.

Comparison with Ideal Values : Ideal values can be plotted on the same chart, providing a clear visual comparison between actual performance and target goals.

Holistic View : This type of chart provides a comprehensive overview of performance across different metrics in a single, easily interpretable visual.

The phrase " 80% coverage " in testing typically refers to the percentage of statements in the program that have been executed at least once during testing. This is known as statement coverage or code coverage. It is a measure of how much of the code has been exercised by the test suite and is used to assess the thoroughness of the testing efforts. It does not necessarily mean that 80% of the software is error-free, that 80% of planned test cases have been completed, or that 80% of predicted errors have been uncovered, although higher coverage often correlates with better defect detection.

Ambiguous requirements create one of the highest risks in software quality engineering because different stakeholders may interpret the same requirement in different ways. If analysts, developers, testers, and customers do not share a common understanding, the team may design and build software that does not satisfy the real business need. Extra reviews or longer review time are possible consequences, but they are not the highest risk. ISO 9001 compliance is also not the central issue unless the requirement process violates defined quality management controls. The most serious outcome is that the software product may be built incorrectly, leading to rework, customer dissatisfaction, failed validation, schedule delays, and increased cost. Clear, testable, complete, and unambiguous requirements are essential.

================

ï‚· Defining Information Flow : More related to system integration and interface requirements.

ï‚· Problem Definition : Related to initial project scoping and requirements analysis.

ï‚· Stakeholder Perspectives : Important for gathering requirements but not specific to globalization.

ï‚· Globalization Requirements : Involves ensuring the software can be adapted for different languages, regions, and cultural contexts. This includes localization (customizing software for specific markets) and internationalization (designing software so it can be easily adapted).

ï‚· Conclusion : Developing adaptable and customizable software for different target markets is central to globalization requirements. This ensures the product meets the needs of users in various regions, aligning with best practices in global software development.

In a Scrum project, the responsibility for determining time estimates falls on the project team as a whole. This process occurs during the sprint planning meetings where the team collaboratively estimates the effort required for each task or user story. The Scrum Master facilitates this process, but the actual estimation is performed by the team members who will be doing the work. This collective approach ensures that estimates are realistic and based on the team ' s understanding and agreement.

The chart compares projected defect discovery patterns with actual defect discovery patterns for unit testing and integration testing. The actual integration test defects, shown by the plus markers, closely follow the projected integration test defect curve. This indicates that integration testing is finding approximately the number of defects expected over time. The unit test actuals do not provide as strong a match to the projected unit test curve, so concluding that unit testing is isolating exactly as predicted is less supported. The chart also does not prove poor unit test planning or unusually high integration test effectiveness; it simply compares actual results to predictions. Therefore, the supported conclusion is that integration testing is isolating as many defects as predicted.

================

When a software change order is reviewed by the Change Control Board (CCB), it undergoes a formal assessment to determine the impact and feasibility of the change. The CCB typically assigns one of the following statuses:

Approved : The change is accepted and will be implemented.

Disapproved : The change is rejected and will not be implemented.

Deferred : The decision on the change is postponed, often pending further information or consideration.

These classifications help in managing changes systematically, ensuring only feasible and beneficial changes are made to the software system.

During the maintenance phase, support staff must prioritize fixes according to customer impact, operational risk, severity, and business need. To reduce inconvenience for customers, the team should focus first on defects that impact essential operations. These defects interfere with critical business functions, safety, availability, transactions, or required user tasks. Fixing all known defects may be unrealistic and can delay urgent corrections. Focusing only on minor defects would not address serious customer disruption. Concentrating only on the “vital few” customers may ignore defects that broadly affect essential operations across the user base. Software quality engineering emphasizes severity-based prioritization, risk management, and service continuity. Therefore, defects affecting essential operations should receive the highest maintenance attention.

================

Branched development allows different versions of a module to be changed independently, often to support parallel releases, emergency fixes, experiments, or customer-specific versions. While branching is useful, it increases configuration management complexity. Each branch may require separate testing, merging, reviews, defect correction, and documentation. If changes are made in one branch, the team must decide whether and how to propagate them to other branches. This can create merge conflicts, inconsistent behavior, and duplicated maintenance effort. Branching does not necessarily reduce the delta or size of the code base, and it does not require a unique interface. The main software quality concern is increased maintenance cost and control complexity.

================

ï‚· Graph Analysis : In the provided graphs, each graph represents the status of defects over time, divided into categories: Open, Fixed, and Tested and Closed.

ï‚· Option A : Shows a large number of open and fixed defects with fewer tested and closed defects.

ï‚· Option B : Indicates an increasing trend in tested and closed defects but still has a substantial number of open defects.

ï‚· Option C : Shows a significant decrease in open defects and a substantial increase in tested and closed defects, indicating progress.

ï‚· Option D : Depicts the fewest number of open defects, with the majority of defects tested and closed, indicating that most defects have been addressed and verified.

ï‚· Conclusion : The graph in Option D, with the majority of defects tested and closed and the fewest number of open defects, suggests the product is most ready for formal release to the customer. This aligns with software quality assurance principles where minimal unresolved defects indicate readiness for release.

ï‚· Error Analysis: Module U has the highest total number of errors per KLOC, with significant issues in header comments (H), commented out code (C), and data initialization errors (D).

ï‚· Quality Concern: The high error rate indicates potential underlying quality issues in Module U that need to be addressed to improve overall software quality.

ï‚· Prioritization: According to defect prioritization guidelines, modules with the highest error rates should be investigated and corrected first to mitigate risks and improve reliability.

An effective facilitator supports the team process without controlling the content or forcing a decision. In software quality engineering activities such as reviews, audits, process improvement meetings, root cause analysis, and requirements sessions, the facilitator must remain neutral so that all participants can contribute fairly. Neutrality helps prevent bias, encourages balanced discussion, and keeps the group focused on objectives, ground rules, and problem-solving methods. Decision-making ability may be useful for a team leader, but a facilitator’s role is usually to guide the process rather than decide the outcome. Technical expertise can help, but it can also bias the discussion if overused. Competitiveness is not appropriate because facilitation requires collaboration, trust, and balanced participation.

================

For secure data handling due to export control regulations, running on the client ' s virtual machines without connecting through an enterprise VPN, the combination of a private cloud and infrastructure as a service (IaaS) is suitable. This setup allows the client to have dedicated infrastructure and control over their data environment, ensuring compliance with security and regulatory requirements.

Robustness is the software quality attribute that describes a program’s ability to handle invalid, unexpected, missing, extreme, or malformed inputs without failing in an uncontrolled way. Robust software detects bad input, rejects it safely, provides useful error messages, and continues operating where appropriate. This is important in software quality engineering because real users, external systems, networks, and data sources often provide imperfect inputs. Fail safe means the system moves to a safe condition after failure, which is related but not the same as handling bad input. Accuracy means producing correct results. Fault forecasting involves predicting possible faults or failures. Since the question focuses on tolerating bad inputs, robustness is the correct term.

Formal technical reviews usually provide the highest return on investment because they find defects early, before the defects become more expensive to correct. Requirements, design, code, test plans, and documentation can all be reviewed before later lifecycle activities depend on them. Early defect removal reduces rework, retesting, schedule delays, customer support costs, and post-release failures. System testing is valuable, but defects found late are usually more costly to diagnose and fix. Unit testing is also important, but it mainly detects implementation-level issues after code exists. Configuration audits verify configuration integrity, but they are not primarily defect-removal activities. Formal technical reviews are cost-effective because they prevent defect propagation and improve quality before build and test execution.

================

A software quality audit plan should outline the scope, objectives, and resources needed for the audit. This includes identifying the personnel, time, and tools required to conduct the audit effectively. While opening meeting minutes, corrective action reports, and completed checklists are essential parts of the audit process, they are not typically included in the initial audit plan. References: IEEE Std 1028-2008 - IEEE Standard for Software Reviews and Audits.

Software configuration management (SCM) tools are essential in managing the complexities associated with large projects involving multiple modifications and frequent change requests. SCM tools help in version control, tracking changes, and ensuring that all team members are working with the correct versions of files. They also facilitate coordination among team members and maintain the integrity and traceability of the configuration items throughout the project lifecycle.

In contrast, simple projects with few files and little complexity may not require such extensive tools, and projects without security requirements or specified control may not justify the overhead of SCM tools.

Outsourcing is a business practice where a company hires an external organization to perform tasks, handle operations, or provide services. One key advantage of outsourcing is that it allows the primary company to focus its resources on its core competencies. By delegating non-core activities to external specialists, the company can concentrate on what it does best, thereby enhancing efficiency, innovation, and competitive advantage in its primary market.

Under ISO 9001 principles, top management is accountable for the effectiveness of the quality management system. Executive management must establish quality policy, align quality objectives with organizational direction, provide resources, promote process thinking, support risk-based thinking, and ensure that the quality management system achieves intended results. A quality director may manage quality activities, audits, procedures, and reporting, but responsibility cannot be fully delegated away from executive leadership. A project manager is responsible for project execution, not the entire organizational quality management system. Software quality engineering supports compliance, measurement, verification, and improvement, but does not own ultimate accountability. Therefore, executive management is responsible for ensuring the quality management system is effective.

================

In Agile software development, the product backlog contains the known user stories, features, defects, enhancements, and technical work items that are prioritized for future development. At the beginning of an iteration, the team selects work from this prioritized backlog to plan the iteration. Although the sprint or iteration backlog contains the committed work for that specific iteration, the option provided that represents the prioritized list of known stories is the product backlog. A release baseline generally identifies items planned or approved for a release. An allocated baseline is associated with requirements allocated to system elements. A developmental baseline relates to evolving development work products. Therefore, the product backlog is the best answer among the options.

================

The efficiency rate of error detection for a phase measures how effectively that phase detects defects that originated in the same phase before they escape to later phases. N represents defects both originated and found in phase X. S represents defects that originated in phase X but escaped and were found in later phases. Therefore, the total number of defects originating in phase X is N + S. The detection efficiency for phase X is the portion found within the phase, which is N divided by N + S. Option A reverses the relationship and can produce a value greater than one. Option C is not a rate. Option D is not a valid defect containment formula. The correct formula is N / (N + S).

================

The product baseline marks the transition of a software product from development to maintenance. This baseline includes the final product release that is delivered to the customer. It signifies the completion of development and the beginning of the maintenance phase, where the focus shifts to fixing defects, making minor improvements, and ensuring the software remains operational and effective in the production environment.

Allocated, functional, and developmental baselines are typically established during earlier phases of the software development lifecycle to manage different aspects of the development process.

Managing test data effectively is crucial for maintaining consistency, accuracy, and ease of access across multiple testing scenarios.

Central Repository :

Centralization : Ensures all test data is stored in a single location, making it easier to manage and maintain.

Consistency : Reduces redundancy and ensures that all tests use the same data sets, avoiding discrepancies.

Accessibility : Facilitates easier access and updating of test data by all team members.

Best Practices : Creating a central repository aligns with best practices for data management and ensures that test data is consistent, accurate, and readily available for all testing activities.

A file comparison tool is the best choice when regression testing an application that generates many reports. Regression testing verifies that existing functionality still works correctly after changes. For report-producing applications, expected report files can be compared with newly generated output files to identify differences in content, layout, values, totals, headers, formatting, or missing data. A file format conversion tool changes one format into another, but it does not verify correctness. A string finding tool may locate specific text, but it cannot efficiently validate complete report output. A keyboard capture and replay tool automates user input, but it does not directly confirm that generated reports match expected results. Therefore, file comparison provides the strongest regression assurance.

================

A successful internal audit depends significantly on obtaining management ' s cooperation and support. This ensures that the audit findings and recommendations are taken seriously and that there is a commitment to implementing necessary changes. Reporting deficiencies, completing checklist items, and recommending corrective actions are important, but without management support, these actions may not lead to effective improvements. References: " The Internal Auditing Handbook " by K.H. Spencer Pickett.

The lead auditor is responsible for managing the audit so that it is performed objectively, consistently, and within the approved audit scope. Keeping the audit team focused on the audit scope prevents unnecessary investigation, scope creep, unsupported findings, and misuse of audit time. The lead auditor coordinates team activities, resolves audit process issues, confirms that objective evidence supports findings, and ensures the closing meeting and report are handled appropriately. The audit scope is usually agreed during audit planning with the client or audit program authority, not decided unilaterally during the audit. Collecting data may be done by all auditors. Checklists may be prepared before the audit, but the primary responsibility during the audit is maintaining focus on scope.

================

In agile development, changes to requirements are a common and expected part of the process. The product backlog, which is a prioritized list of tasks and requirements for the project, is the main tool for managing these changes.

Requirement Identification: New requirements or changes are identified during various stages of the development process, often during interactions with stakeholders or as the team gains a deeper understanding of the project.

Product Backlog: These new requirements are then added to the product backlog. The product backlog is managed by the product owner, who is responsible for maintaining its order of priority based on the project ' s goals and stakeholder feedback.

Prioritization: The product owner prioritizes the backlog items to ensure that the most valuable and important features are addressed first. This prioritization helps in managing scope and delivering value incrementally.

Sprint Planning: During sprint planning, the team selects items from the top of the product backlog to include in the next sprint, based on their capacity and the priority set by the product owner.

When specifying a software requirement, it is essential to consider how the requirement might be validated. Validation ensures that the software meets the needs and requirements of the stakeholders and functions as intended in the real-world environment. Without proper validation criteria, it would be challenging to confirm whether the software fulfills its intended purpose.

Defense in depth is a recognized secure software design principle. It means using multiple protective controls so that failure of one control does not fully expose the application or its data. In software quality engineering, this may include input validation, authentication, authorization, secure configuration, encryption, logging, monitoring, error handling, and secure coding practices. Depending on obscurity is not a sound security principle because hidden design details should not be the main protection for sensitive information. Complex security mechanisms can increase error risk and should usually be avoided unless justified. Intrusion detection may be useful, but the broad OWASP principle represented in the options is layered defense. Therefore, using defense in depth is correct.

================

Formal methods involve the use of rigorous mathematical proofs to analyze and verify the correctness of algorithms within a software component. This approach provides a high level of assurance in the reliability and correctness of the software by mathematically proving properties of the algorithm or system. Unlike boundary value analysis, functional decomposition, or dynamic analysis, formal methods use mathematical models to verify system behaviors and correctness without executing the system.

Software hazard analysis is performed to identify potential hazards and evaluate the level of risk associated with software behavior, failures, interfaces, timing, incorrect outputs, or unsafe states. It is especially important for safety-critical systems where software may contribute to injury, equipment damage, environmental harm, or mission failure. The analysis considers severity, likelihood, detectability, controls, and mitigation strategies. It does not primarily predict the exact time a hazard will occur, because hazards often depend on conditions and combinations of events. Calculating correction cost may be part of project planning, not the main purpose of hazard analysis. Regulatory compliance may require hazard analysis, but the engineering purpose is to identify and evaluate risk.

================

Internal failure costs are costs associated with defects found before the product reaches the customer. These costs include:

Investigation of defects : Identifying and analyzing defects within the development process.

Rework : Fixing defects found during internal testing or audits.

Scrap : Discarding defective parts or products.

Downtime : Halting production or development to address defects.

Among the given options, investigating the cause of build defects is an internal failure cost because it pertains to finding and analyzing issues within the software before it is released to customers.

When documenting a test failure, the tester should complete the " Steps to reproduce the failure " section of a problem report. This section is crucial as it provides a detailed account of the actions taken leading up to the failure, allowing developers to replicate the issue consistently. This replication is essential for diagnosing and fixing the problem effectively. Documenting the steps accurately ensures that all relevant information is conveyed, facilitating quicker resolution and better communication within the team.

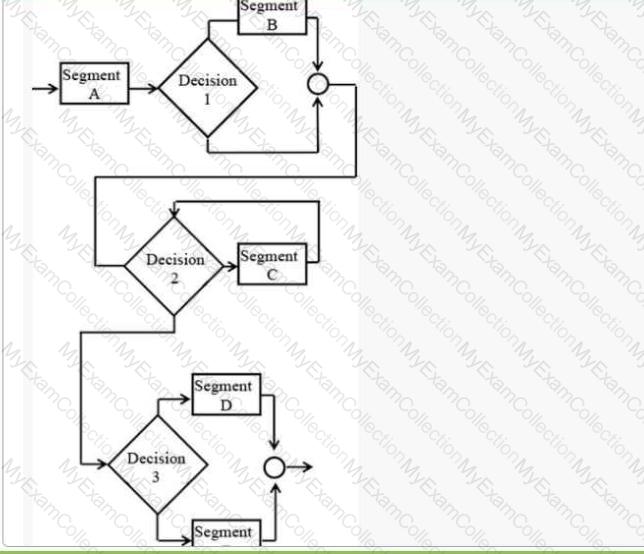

Branch coverage, also known as decision coverage, ensures that every possible branch (i.e., true and false conditions) in the code is executed at least once. To determine the number of tests necessary for branch coverage in the given control flow diagram, we must count the distinct branches resulting from each decision point.

Decision 1 : 2 branches (true and false)

Decision 2 : 2 branches (true and false)

Decision 3 : 2 branches (true and false)

Since each decision has two branches and they are independent of each other, the number of distinct paths that need to be tested is: 2(Decision1)+2(Decision2)+2(Decision3)=6 branches2 (Decision 1) + 2 (Decision 2) + 2 (Decision 3) = 6 \text{ branches}2(Decision1)+2(Decision2)+2(Decision3)=6 branches

However, the number of tests needed to cover all branches is the maximum number of branches any path could take, considering that a single test might cover multiple branches. For the given control diagram, 4 tests will suffice to cover all branches:

Path: A - > Decision 1 (true) - > B

Path: A - > Decision 1 (false) - > Decision 2 (true) - > C

Path: A - > Decision 1 (false) - > Decision 2 (false) - > Decision 3 (true) - > D

Path: A - > Decision 1 (false) - > Decision 2 (false) - > Decision 3 (false)

These four tests ensure all branches are covered at least once.

Software metrics should be used to improve products, processes, planning, and decision-making, not to punish individuals. A major risk in metrics programs is that people may change behavior to protect themselves rather than improve quality. If defect counts, productivity rates, or review findings are used to judge individuals unfairly, teams may hide defects, avoid reporting issues, or manipulate measurements. Software quality engineering emphasizes objective measurement, clear operational definitions, and a culture of process improvement. Debating definitions endlessly delays improvement, removing outliers without cause can distort analysis, and software measurements are rarely absolute. The best way to reduce negative impact is to ensure metrics are used constructively for process and product improvement.

================

Disaster recovery is primarily concerned with ensuring that information systems can continue to operate or be quickly restored to operation after a disaster.

Objective: The main objective of disaster recovery is to ensure that the system remains available, or can be quickly made available, after an interruption or disaster.

Key Elements: This involves having backups, redundant systems, and recovery plans that can be quickly executed to restore system functionality.

Focus on Availability: While integrity and confidentiality are also important, the immediate concern of disaster recovery is to ensure that systems are available to users to maintain business continuity.

To analyze the impact of new software quality objectives on existing process metrics, the organization should compare historical and current data. This allows the software quality engineer to identify trends, shifts, improvements, degradation, or unintended effects after the new objectives were introduced. For example, metrics such as defect density, review effectiveness, cycle time, rework effort, escaped defects, and test pass rates can be compared before and after the change. Reviewing change logs may provide context but does not measure quality impact. User satisfaction surveys are useful for customer feedback but may not evaluate process metrics directly. Updating documentation records the new standards but does not analyze results. Trend comparison provides objective evidence of impact.

================

The software configuration management plan (SCMP) is implemented from the requirements phase through the maintenance phase of the software lifecycle. This comprehensive approach ensures that all changes to software artifacts are systematically controlled and tracked throughout the lifecycle, from initial requirements gathering, through development and testing, and into maintenance and updates after deployment. Effective configuration management helps maintain consistency, traceability, and control over software changes, which is crucial for maintaining software quality and compliance.

When the requirements group does not control changes to software specifications, a basic requirement is to assign explicit responsibility for software configuration management (SCM) for each project. Here ' s why:

Clear Accountability : Assigning explicit responsibility ensures that someone is accountable for managing and controlling changes.

Consistency in Process : This ensures consistent application of SCM practices across different projects.

Improved Control : Clear responsibility helps in better monitoring and controlling changes, reducing the risk of unauthorized or untracked changes.

Policy Enforcement : Facilitates the enforcement of SCM policies and procedures, ensuring compliance and integrity of the project.

Formal meetings, while useful, can have several disadvantages:

They can degrade into time wasters if not well-managed.

Some people might feel uncomfortable offering opinions in a public setting, leading to a lack of valuable input.

It can be challenging for remote team members to participate effectively, especially if the meeting relies heavily on in-person dynamics.

ï‚· Functional Testing : Focuses on verifying that the software functions according to the specified requirements.

ï‚· Requirements : Serve as the primary basis for functional testing, outlining what the system should do.

ï‚· Design : Used in subsequent stages to ensure the system is built according to requirements.

ï‚· Source Code : Tested during implementation and unit testing phases.

ï‚· Architecture : Provides the high-level structure of the system but not the detailed functional behaviors.

ï‚· Conclusion : The primary input to functional testing is the requirements, as these documents specify the expected functionality and behavior of the system, guiding the creation of test cases and scenarios. This aligns with standard software testing methodologies where requirements drive the development of functional test cases.

The problem occurred because the vendor validated the XML output only in its own environment, not on Company Q’s actual parser and platform. In supplier quality management, acceptance criteria should define the required operating environment, validation method, interfaces, data formats, tools, and compatibility expectations. Requiring vendors to validate their products using Company Q’s platform directly addresses the failure mode by ensuring the delivered XML is tested under the same conditions in which it will be used. Pre-certification may assess general vendor capability, but it does not guarantee compatibility. Design review involvement may help, but it does not replace validation. Prototype approval may reduce risk, but the strongest contractual requirement is platform-specific validation.

================

Path coverage is strongly related to the number of independent paths through a module. Cyclomatic complexity measures the number of linearly independent paths in the control structure of software. A higher cyclomatic complexity generally means more decision logic, more independent paths, and more test cases needed to achieve path coverage. Lines of code may indicate module size, but LOC alone does not determine the number of paths. For example, a large module with simple sequential logic may require fewer path tests than a smaller module with many decisions. Among the listed options, the module with cyclomatic complexity 20 has the greatest number of independent paths. Therefore, it will require the most test cases for path coverage, making D correct.

================

Maintenance activities in software engineering are primarily categorized as corrective. This means that the maintenance is focused on identifying and fixing defects in the software after it has been deployed. Corrective maintenance involves:

Bug Fixing: Addressing issues reported by users or identified through testing.

Error Correction: Rectifying faults in the software that cause incorrect or unexpected behavior.

Corrective maintenance ensures that the software remains functional and performs as expected over time.

The functional baseline is typically established after the completion and approval of system requirements. This baseline includes the functional requirements and specifications that describe what the system is supposed to do. It serves as a reference point for further development and testing, ensuring that all subsequent work aligns with the agreed-upon functional requirements.

Corrective action procedures must include an analysis of what caused the nonconformities. This element is crucial because identifying the root cause of the issue is the first step in preventing recurrence. Once the cause is understood, appropriate actions can be taken to eliminate the issue and improve the process. While it is also beneficial to understand who was involved and to analyze trends, the primary focus should be on what caused the problem to ensure effective corrective actions.

After source code has been written, the next development-cycle activity is normally unit testing. Unit testing verifies that individual modules, functions, procedures, or classes operate correctly before they are combined with other software components. It checks logic, boundary values, data handling, error handling, decision paths, and module-level behavior. Detailed design should already have occurred before coding because it guides implementation. Integration testing comes after unit-tested modules are ready to be combined and tested for interface behavior. Product release occurs much later, after integration, system testing, validation, defect correction, and approval. Therefore, once the developers state that coding is complete, the software quality engineer should expect unit testing to be the next appropriate activity.

================

A good software quality objective should be specific, measurable, achievable, relevant, and time-bound. “Reduce cost of rework by 15% by the end of the fourth quarter” meets these characteristics because it identifies a clear improvement target, provides a measurable percentage, and includes a deadline. Rework cost is also directly related to software quality because it reflects defects, process inefficiency, and correction effort. Lines of code per staff member measures productivity, not necessarily quality, and may encourage poor behavior. Increasing profit margins is too broad and not directly a software quality objective. Increasing inspections to meet standards is vague and does not state a measurable product quality result. Therefore, option B is the best quality objective.

================

Regression testing is crucial when releasing patches as it ensures that the new changes have not adversely affected the existing functionality of the software. It involves re-running previous tests on the modified software to confirm that the old functionalities still work as expected and that the new patches do not introduce new defects.

Partial releases, software rebuilds, and configuration management are important aspects of software maintenance, but regression testing directly addresses the risk of introducing new issues with patches.

A validatable requirement must be clear, measurable, testable, and objective. The statement that the system shall be available at least 99.98% of the time provides a specific measurable threshold. Testers and quality engineers can verify it using availability measurements, operational logs, downtime records, or reliability monitoring over a defined period. Option A is weak because “some signals” is vague and does not define which signals must cause which response. Option B is not independently testable because “according to user requirements” refers to another undefined set. Option C says response time is operator defined, but it does not specify an acceptable value or condition. Since option D includes a measurable acceptance criterion, it is the best validated requirement.

================

Each software development process should have a clearly defined set of inputs, activities, outputs, and entry exit criteria. These criteria specify what conditions must be met to enter a particular phase of the development process and what conditions must be met to exit that phase. This ensures that each phase is properly completed before moving on to the next, thereby maintaining the quality and integrity of the development process.

An extranet is a private network that uses Internet protocols and public telecommunication systems to securely share part of a business ' s information or operations with suppliers, vendors, partners, customers, or other businesses. It provides real-time access to information and fosters collaboration between organizations. References: Turban, E., Volonino, L., & Wood, G. " Information Technology for Management " .

Functional testing is a type of software testing that evaluates the functionality of a software application by testing it against the specified requirements.  The primary goal of functional testing is to ensure that the software works as per the desired specifications and performs its intended functions correctly 1 2 3 .

Is sufficiently free of operational problems (Option A): One of the main objectives of functional testing is to demonstrate that the software operates correctly and is free of issues that could affect its operation.  This includes testing the software to ensure that it is performing its required functions without errors or problems 1 2 .

Is understood by the user (Option B): While user understanding is important, it is not the primary objective of functional testing. User understanding is more related to usability testing, which assesses how easily users can learn and use the product.

Interacts appropriately at the unit level (Option C): Interaction at the unit level is typically tested during unit testing, which is a subset of functional testing but not its overarching objective.  Functional testing looks at the application as a whole rather than individual units 2 .

Processes the data in a structured manner (Option D): Although processing data correctly is part of functional testing, the focus is on whether the software performs its intended functions and not specifically on the structure of data processing.

Portability refers to the ease with which software can be transferred from one environment to another. It is a critical factor in a software product ' s adaptability as it determines how well the software can function across different platforms, operating systems, or hardware configurations. High portability ensures that the software can be easily adapted to new environments without significant modification, thereby extending its usability and market reach.

When a project experiences significant deviations from baselined budgets, schedules, or quality levels, the first corrective action should be to realign project actuals and continue with the plan. This involves:

Assessing the Deviation : Understanding the root cause and impact of the deviation on the project.

Adjusting the Plan : Making necessary adjustments to realign the project with its original goals.

Updating Stakeholders : Keeping stakeholders informed about the changes and the new plan.

Monitoring Progress : Continuously monitoring the project ' s progress to ensure it remains on track after the adjustments.

This approach allows the project to stay aligned with its original objectives while addressing the issues causing the deviations.

Failure severity is based on the consequence or impact of the failure, especially its effect on customers, users, safety, mission performance, business operations, or regulatory compliance. In software quality engineering, severity is different from priority. Severity describes how serious the failure is; priority describes how quickly it should be fixed. A defect affecting safety, security, financial transactions, or critical operations is severe even if only one customer reports it. The cost to find and fix the fault may influence project planning, but it does not define severity. The number of reports may indicate frequency or visibility. Time without failure relates to reliability. Therefore, customer impact determines severity.

================

Causal analysis is a process used to identify the root causes of defects so that these causes can be addressed to prevent future defects.

Identification of Root Causes: Causal analysis involves techniques like root cause analysis (RCA) to systematically identify the underlying reasons for defects.

Preventive Actions: Once the root causes are identified, preventive actions can be designed and implemented to mitigate these causes, thereby reducing the likelihood of similar defects occurring in the future.

Continuous Improvement: Conducting regular causal analysis sessions contributes to continuous improvement in the development process, helping the team learn from past mistakes and enhance their practices.

Negative testing, also known as failure testing, aims to ensure that a system can handle invalid input or unexpected user behavior gracefully. The testing design used to evaluate this includes:

Fault Insertion: This involves deliberately inserting faults into the system to check how it behaves under erroneous conditions. The goal is to verify that the system can detect, handle, and recover from faults effectively.

When staffing constraints make a complete system build unrealistic by the deadline, the project leader should manage scope and delivery risk rather than compromise quality. An incremental implementation strategy allows the team to deliver the system in smaller, prioritized parts. This supports earlier integration, earlier feedback, better risk control, and more realistic scheduling. Running validation testing in parallel with incomplete development may create invalid results if the product is not ready. Reducing testing time increases the risk of releasing defects and weakens quality assurance. Assuming a best-case scenario is poor project management because it ignores known constraints. Incremental delivery is the most practical approach because it adapts the plan while preserving quality and stakeholder value.

================

When a product release is archived, it is crucial to include the build environment and compilers used. This ensures that the exact environment in which the product was built can be recreated if needed. This information is vital for maintaining the ability to reproduce the build for future debugging, maintenance, or regulatory compliance purposes.

When developing a new air traffic control system, the functional tests should be based on the needs and requirements of the end-users who interact with the system on a daily basis. Current air traffic controllers are the most critical stakeholders for eliciting criteria for functional tests due to the following reasons:

User Experience : Air traffic controllers have firsthand experience with the operational aspects and practical challenges of the system, providing valuable insights into functional requirements.

Operational Knowledge : They understand the necessary functionalities, safety features, and usability aspects that the new system must support.

Critical Feedback : Their feedback is crucial for identifying essential functionalities, ensuring the system meets real-world requirements and safety standards.

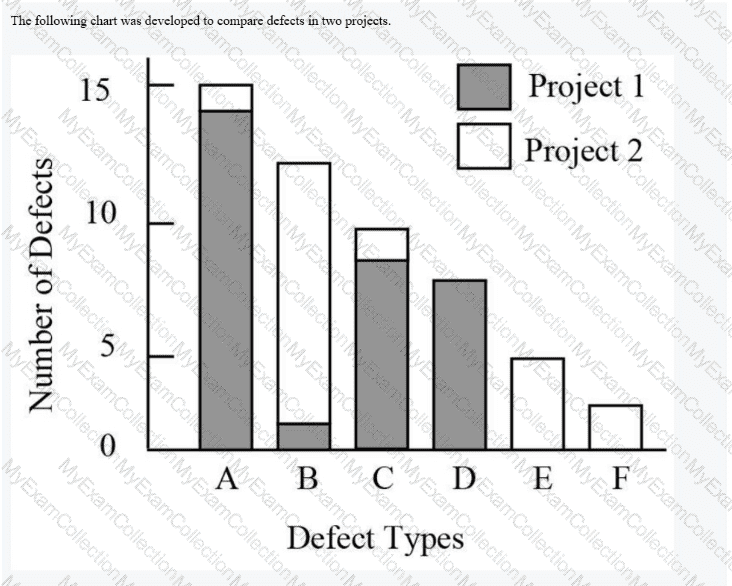

The chart compares the number of defects in two projects across defect types, so the valid conclusion is about the pattern or distribution of defects. A defect profile shows how defects are distributed by category, such as type, source, severity, component, or cause. The chart supports the conclusion that the two projects have different defect profiles because the defect counts differ across the defect-type categories. It does not prove that the projects have the same defect rates, because a defect rate requires a denominator such as size, effort, time, or function points. It also does not provide phase-by-phase defect-removal data. Therefore, no conclusion can be drawn about which project removed more defects per phase. The correct answer is B.

================

Compliance audits are specifically designed to provide assurance that activities have been performed as documented. These audits verify that the organization is adhering to regulatory guidelines, internal policies, and established procedures. The goal is to ensure that processes are being followed as they are written, which helps in maintaining consistency and quality. Compliance audits can identify areas where documentation and actual practices diverge, which is crucial for continuous improvement and regulatory compliance.

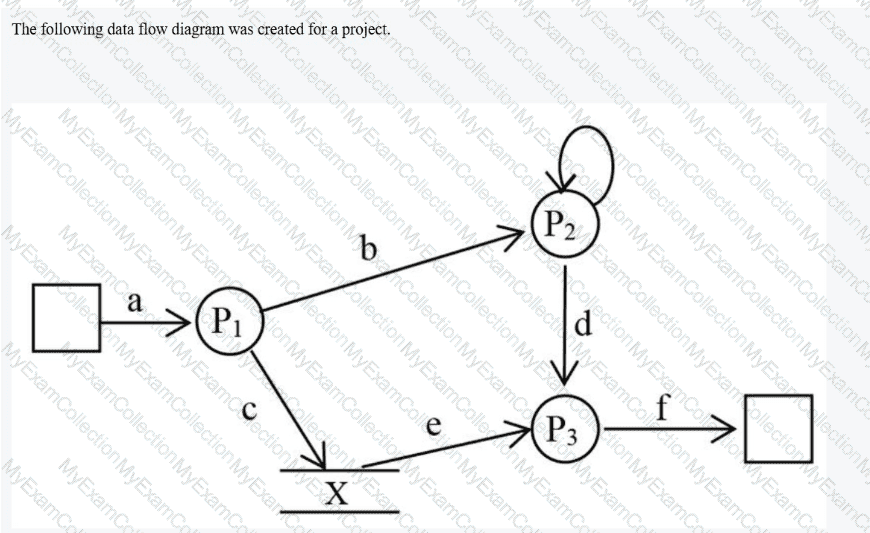

In a data flow diagram, a data store represents a place where data is held for later use. It may be shown as an open-ended rectangle or parallel-line symbol, depending on the notation used. A data store can represent a file, table, database, repository, queue, or other storage location. Processes read data from it or write data to it through labeled data flows. A timing delay is not normally represented by the standard data-store symbol. An I/O interrupt is a control or hardware event rather than a data repository. A sub-process of P1 would normally be modeled as another process or through decomposition. Since X is represented as the storage element in the diagram, the correct answer is B.

================

Software configuration status accounting involves the recording and reporting of information necessary for managing a software configuration. This includes tracking changes to configuration items, maintaining the integrity and traceability of the configuration throughout the software lifecycle, and ensuring that changes are documented and communicated. It is a crucial aspect of Configuration Management. References: IEEE Std 828-2012 - IEEE Standard for Configuration Management in Systems and Software Engineering.

A strong customer feedback management process primarily helps an organization improve existing products. By systematically collecting, analyzing, and responding to customer feedback, organizations can:

Enhance Product Quality: Identifying and fixing issues reported by customers.

Adapt to Customer Needs: Incorporating customer suggestions and requirements into product updates.

Complete coverage requires exercising all relevant combinations of the decision conditions in the code. The decision contains two conditions: whether X is less than Y and whether Z equals 3. The four test cases represent the possible true and false combinations of those conditions: true/true, true/false, false/true, and false/false. Line coverage would require only that executable statements be run at least once, so fewer tests would be needed. Branch coverage would require the decision to evaluate both true and false, also requiring fewer tests. Basic condition coverage only requires each condition to be true and false at least once. Since all four combinations must be executed, the coverage type is complete coverage.

The ASQ Code of Ethics includes responsibilities related to the public, clients, employers, and professional peers. The statement about building a professional reputation on the merit of services and competing fairly with others is directly tied to ethical relations with peers. It emphasizes fairness, professional respect, honest competition, and avoiding actions that damage another professional’s reputation unfairly. Option B relates primarily to public safety, health, and welfare. Option C relates to duties toward clients and employers, especially loyalty and conflict-of-interest avoidance. Option D supports professional development, but the option most clearly focused on peer relationships is fair competition and merit-based professional reputation. Therefore, the correct answer is A.

================

A traceability matrix can be used to assess the impact of a proposed software change. This tool maps requirements to their corresponding test cases, ensuring that all requirements are covered and helping to identify the effects of changes on existing functionality. By providing a clear link between requirements, development, and testing, a traceability matrix facilitates impact analysis and helps in maintaining the integrity of the system during changes.

ï‚· Pareto Charts : Used for prioritizing defect types but not for detecting defects.

ï‚· Output Capture Utilities : Tools designed to capture and record the output of software, making them effective in detecting discrepancies and defects in the system.

ï‚· File Format Converters : These tools convert data between different formats and are not used for defect detection.

ï‚· Defect Control Charts : Used for monitoring and controlling defect data over time but not for initial detection.

ï‚· Conclusion : Output capture utilities are directly involved in detecting defects by capturing output and comparing it to expected results. This aligns with software testing practices where tools that directly capture and log output are essential for defect detection.

A program review is used to examine overall project or program performance, including cost, schedule, scope, risks, dependencies, issues, resources, and progress against commitments. In software quality engineering and project management, this type of review gives management visibility into whether the project remains controlled and aligned with business objectives. A phase gate review determines whether a project should proceed from one lifecycle phase to another, but the question’s wording focuses on ongoing examination of management performance areas. A retrospective focuses on lessons learned after an iteration, phase, or project. An architectural design review evaluates technical structure and design quality. Therefore, the review most directly associated with cost, schedule, scope, and risk is the program review.

================

A software configuration management plan should define how configuration items are identified, controlled, status-accounted, audited, and changed. One important detail is the configuration control board’s level of authority. The plan should specify who can approve changes, what types of changes require board review, decision criteria, escalation paths, responsibilities, and change-control workflow. Potential changes to items are not usually listed as plan details because changes are handled through requests as they arise. The programming language may appear in development documentation but is not a core SCM plan control element. Integration test baselines may be managed under configuration control, but the authority and process for controlling baselines is more fundamental. Therefore, CCB authority belongs in the SCM plan.

================

An affinity diagram is used in software quality engineering to organize many ideas, issues, requirements, or causes into meaningful groups. The first step is to collect raw input through an interview, focus group, or brainstorming session. After the ideas are collected, the team groups similar statements together based on natural relationships. Once groups are formed, the team identifies themes or headings that describe each group. The final step is to draw or document the affinity diagram so the organized information can be reviewed, communicated, and used for analysis. Drawing the diagram before collecting or grouping ideas would be incorrect. Identifying themes before grouping statements is also premature because themes should emerge from the grouped data. Therefore, the correct sequence is 1, 3, 4, 2.

Software metrics are monitored to provide objective information about product quality, process performance, project progress, defect trends, productivity, reliability, maintainability, and customer satisfaction. The main organizational objective is not simply to collect data, but to use measurement results to improve both software products and development processes. Metrics help identify weak process areas, recurring defect sources, unstable requirements, ineffective reviews, and testing gaps. Ensuring programs work properly is mainly a testing objective. Limiting deviations may be one result of process control, but it is not the broad purpose of metrics. Measuring development effort is only one possible metric category. The strongest organizational objective achieved through software metrics monitoring is continual improvement of processes and products.

================

Software security is designed to protect systems and data from various types of communication threats. These threats can be categorized as:

Intentional Attacks : These are deliberate actions taken by malicious individuals or groups aiming to exploit software vulnerabilities for gain, disruption, or espionage. Examples include hacking, phishing, and malware attacks.

Unintentional Attacks : These are accidental events that can cause security breaches, such as user errors or software bugs.

Physical Attacks : These involve physical actions against hardware that can affect software, like theft or damage.

Natural Disasters : Events such as earthquakes or floods that can physically damage systems and cause software failures.

Among these, software security primarily addresses intentional attacks. The focus is on preventing unauthorized access, data breaches, and other forms of cyber attacks.

Taking notes can interfere with an interviewer’s ability to read nonverbal signals because it may cause the interviewer to look down, lose eye contact, miss facial expressions, overlook posture changes, and fail to notice hesitation or discomfort. In software quality engineering, interviews are often used for requirements elicitation, audits, root cause analysis, customer feedback, and process assessment. Nonverbal cues can help reveal uncertainty, disagreement, risk, or missing information. Ignoring distractions generally helps the interviewer focus. Reading between the lines may help interpret implied meaning, although it must be used carefully. Asking questions is essential to clarify information. Note-taking is useful for accuracy, but excessive note-taking can reduce awareness of nonverbal communication.

================

The analyst is responsible for working through business scenarios to determine whether the defined requirements are complete, consistent, understandable, and aligned with stakeholder needs. In requirements engineering, analysts elicit, document, analyze, and validate requirements by examining user workflows, business rules, use cases, scenarios, and expected outcomes. Walking through scenarios helps reveal missing requirements, unclear assumptions, exception paths, interface needs, and conflicting stakeholder expectations. Testers may later use scenarios to design validation tests, and quality representatives may help verify requirement quality. Product developers may review feasibility and design implications. However, the primary responsibility for confirming requirement completeness through business scenario analysis belongs to the analyst because that role owns requirements analysis and stakeholder interpretation.

================

When a defect is discovered during the test phase, the earliest phase in the software lifecycle that could need rework to resolve the defect is often the requirements phase because:

Root Cause Analysis : Many defects originate from misunderstandings or errors in the initial requirements. If the requirements are incorrect or incomplete, it will affect all subsequent phases.

Impact on Design and Implementation : Incorrect requirements lead to flawed design and implementation, necessitating rework in these phases as well.

Cost of Fixing Defects : The cost and effort to fix defects increase exponentially the later they are found in the development lifecycle. Addressing issues at the requirements stage is more cost-effective.

Situational leadership recommends matching the leadership style to the employee’s readiness, competence, and confidence. When employees lack both knowledge and confidence, they need clear structure, close guidance, and specific instructions. The directing style is appropriate because the leader defines tasks, explains expectations, sets priorities, gives step-by-step direction, and monitors progress closely. Delegating is suitable for employees who are competent and confident enough to work independently. Participating is more useful when employees have some competence but need support and involvement. Selling involves explaining and persuading while still providing direction, but it fits employees who need motivation more than basic instruction. Since the employees in the question lack knowledge and confidence, directing is the best answer.

================

In software configuration management, any item that affects the reproducibility, integrity, or correctness of a software build should be controlled. The compiler is a critical configuration item because different compiler versions, options, patches, or platforms can produce different executable behavior from the same source code. To reproduce a build accurately, the project must know and control the compiler and related build environment. The staging area is only a temporary location and is not usually a controlled configuration item. Object code listings and compiler diagnostics may be useful records, but they are outputs or reports from the build process. The compiler directly influences the generated software product, making it the best answer.

================
