CNX-001 CompTIA CloudNetX Exam Question and Answers

Comprehensive and Detailed Explanation From Exact Extract:

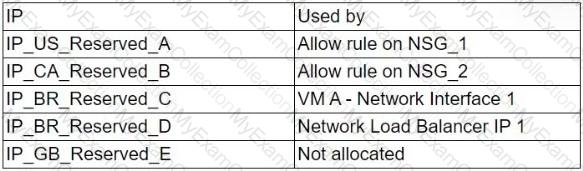

Replacing reserved IPs with dynamic ones can lead to IP reuse issues. Dynamic public IPs can be reallocated to other customers once released. If DNS entries or firewall rules still refer to the original IP, this can lead to data leakage or incorrect routing. Also, some services (e.g., NSGs, load balancers) may require persistent IPs.

Relevant Extract from CompTIA CloudNetX CNX-001 Study Guide — under “Public IP Management in Cloud Environments”:

“Dynamic public IPs are subject to reuse after release. Services that rely on IP persistence, such as security groups or load balancers, may encounter unexpected behavior or security risks if replaced with dynamically assigned IPs.”

Other options:

A. Asymmetric routing involves traffic leaving and returning via different paths.

B. IP spoofing is a malicious attack, not related to address reassignment.

C. IP exhaustion relates to resource limits, not dynamic reuse.

 

Comprehensive and Detailed Explanation From Exact Extract:

When an application is moved from local deployment to a centralized cloud deployment, remote users must connect over the WAN. If the application is sensitive to delays, latency becomes a significant issue, especially across geographically distributed regions. This is a common performance concern for centralized applications serving remote offices.

Relevant Extract from CompTIA CloudNetX CNX-001 Study Guide — under “Cloud Performance and WAN Connectivity”:

“Cloud-hosted applications accessed by remote users may suffer from latency-related performance issues. Optimization strategies may include CDN, caching, or edge deployment.”

Other options:

A. Throttling usually refers to bandwidth or rate-limiting, not general slowness.

B. Overutilization is possible, but infrastructure was said to be centralized and new.

C. Packet loss would likely cause disconnects or failures, not just slowness.

================================================

Comprehensive and Detailed Explanation From Exact Extract:

NetFlow provides flow-level metadata about IP traffic without requiring inline deployment. It summarizes who is talking to whom, for how long, and how much data was exchanged. It’s ideal for behavior monitoring and threat detection when sent to a SIEM for correlation and analysis.

Relevant Extract from CompTIA CloudNetX CNX-001 Study Guide — under “NetFlow and Network Telemetry”:

“NetFlow provides visibility into traffic patterns, which can be used for anomaly detection and security analysis when integrated with SIEM platforms.”

Other options:

A. Syslog shows event-level data, but not network behavior.

B. SNMP traps monitor device status, not traffic behavior.

C. SSL decryption is complex and requires inline positioning.

================================================

Comprehensive and Detailed Explanation From Exact Extract:

According to the structured troubleshooting methodology outlined in the CNX-001 objectives, once a potential root cause is identified (in this case, a suspected firmware bug), the next step is to test the theory to confirm the cause before taking action. This helps prevent misdiagnosis and unnecessary configuration changes.

Relevant Extract from CompTIA CloudNetX CNX-001 Study Guide — under “Structured Troubleshooting Methodology”:

“After identifying symptoms and forming a theory of probable cause, the next step is to test the theory to verify it is the actual cause of the problem.”

Other options:

A. Establishing a plan of action comes after confirming the cause.

C. Documenting lessons learned is the final step.

D. Implementing the solution should only occur after the issue is confirmed.

================================================

Comprehensive and Detailed Explanation From Exact Extract:

According to the standard CompTIA troubleshooting methodology, once the issue has been identified and a solution has been implemented (e.g., failing over traffic to the backup link), the next logical step is to verify full system functionality. This ensures that the backup path is working as intended and that services have resumed properly for the users.

Relevant Extract from CompTIA CloudNetX CNX-001 Study Guide — under “Troubleshooting Process”:

“After implementing the solution, it is critical to verify full system functionality to ensure the resolution has addressed the problem without causing unintended consequences.”

Other options:

A. Documenting lessons learned is the final step.

B. The plan of action should have been created before the failover.

C. Identifying the problem already occurred earlier in the scenario.

================================================

Comprehensive and Detailed Explanation From Exact Extract:

Using an active-active deployment across two regions with at least two Availability Zones (AZs) each provides the highest level of fault tolerance and geographic redundancy. This ensures continuity even if an entire region or multiple zones become unavailable. In regulated sectors such as healthcare, this meets strict availability and disaster recovery requirements.

Relevant Extract from CompTIA CloudNetX CNX-001 Study Guide — under “High Availability and Multi-Region Design”:

“Active-active configurations across multiple regions and availability zones maximize uptime and ensure failover in the event of localized or regional failures.”

Other options:

B. Active-passive introduces delays in failover.

C. Active-active in one region offers no geographic redundancy.

D. Active-passive in two regions is slower and less efficient during failover.

Comprehensive and Detailed Explanation From Exact Extract:

A mesh topology provides multiple redundant paths between nodes. It offers the highest availability and fault tolerance by allowing communication to continue even if one or more links or nodes fail. This is especially important in rural healthcare systems where reliability and access to critical services are paramount.

Relevant Extract from CompTIA CloudNetX CNX-001 Study Guide — under “Network Topologies and Redundancy Models”:

“Mesh topologies provide optimal fault tolerance and support consistent data transmission through redundant links, ideal for mission-critical systems.”

Other options:

A. Collapsed core is cost-efficient but not fully redundant.

B. Hub-and-spoke introduces a single point of failure at the hub.

D. Star also relies on a central node and is not fault tolerant.

================================================

Comprehensive and Detailed Explanation From Exact Extract:

Runbooks and knowledge base articles provide step-by-step instructions for resolving common issues, helping new employees quickly become productive with minimal supervision. These documents can be updated as new issues arise and serve as a foundational training and operational resource.

Relevant Extract from CompTIA CloudNetX CNX-001 Study Guide — under “Operational Documentation and Knowledge Transfer”:

“Runbooks contain standardized procedures for handling recurring operational tasks. Knowledge base articles enable consistent troubleshooting and resolution with minimal oversight.”

Other options:

A. A Statement of Work (SOW) is used for defining project deliverables, not training.

C. Network diagrams are useful for understanding architecture, but not for operational procedures.

D. A mentor program can help, but it doesn’t scale or provide immediate troubleshooting steps.

================================================

Comprehensive and Detailed Explanation From Exact Extract:

When building infrastructure for business units that process financial transactions (such as in the retail or banking sector), the architect must first understand all relevant compliance and regulatory requirements. These may include PCI DSS, SOX, or GDPR, depending on the nature of the data and jurisdiction. These regulations influence design decisions regarding encryption, segmentation, data retention, and logging.

Relevant Extract from CompTIA CloudNetX CNX-001 Study Guide — under “Compliance and Regulatory Considerations”:

“Regulatory requirements such as PCI DSS, HIPAA, and others dictate the security controls, logging, data protection, and architectural design of infrastructure handling sensitive or financial data.”

Other options:

B. Statement of Work defines project scope, but doesn't include legal/compliance mandates.

C. Business case studies illustrate value or ROI, not security or compliance needs.

D. Internal reference architectures may help with standards but are based on already defined requirements.

================================================

Comprehensive and Detailed Explanation From Exact Extract:

A private service endpoint allows the API to be exposed securely to a customer’s Virtual Private Cloud (VPC) without making it publicly accessible over the internet. This enables secure, private communication over the cloud provider’s backbone network while maintaining isolation and control over API access.

Relevant Extract from CompTIA CloudNetX CNX-001 Study Guide — under “Cloud Networking and Connectivity”:

“Private service endpoints allow secure communication between cloud resources and customer environments without traversing the public internet, reducing exposure and enhancing compliance.”

This method is essential for SaaS providers aiming to securely integrate services with customer environments.

Other options:

A. Transit gateways provide large-scale connectivity but are more suited for multi-VPC or hybrid cloud environments.

B. Firewall rules alone do not restrict access to private-only networks.

C. VPC peering can work, but private endpoints are designed specifically for service-to-service communication.

================================================

Comprehensive and Detailed Explanation From Exact Extract:

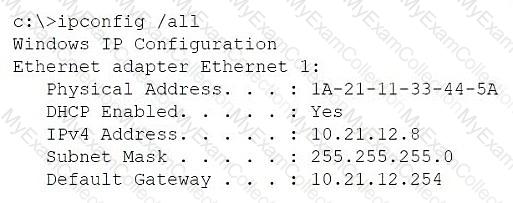

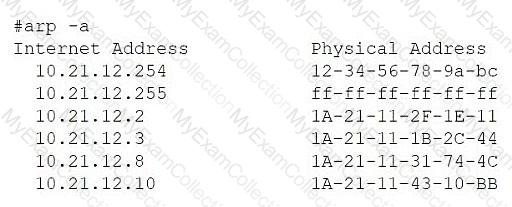

The local machine has the IP address 10.21.12.8 and the physical address 1A-21-11-33-44-5A.However, the ARP table shows that 10.21.12.8 is mapped to a different MAC address (1A-21-11-31-74-4C), meaning another device on the network is responding to ARP requests for the same IP. This is a clear sign of an IP address conflict, which would prevent the workstation from functioning properly on the network.

Relevant Extract from CompTIA CloudNetX CNX-001 Study Guide — under “Troubleshooting IP Addressing Issues”:

“An IP conflict occurs when two devices on the same network are assigned the same IP address. Symptoms include connectivity loss, duplicate ARP entries, and inconsistent routing behavior.”

Other options:

A. Asynchronous routing refers to packets taking different return paths, which is unrelated to ARP inconsistencies.

C. DHCP server issues would affect IP assignment but are not indicated here — the workstation has an IP address assigned.

Comprehensive and Detailed Explanation From Exact Extract:

Since payments are working and orders are being recorded in the cloud, the issue likely lies in the local wireless network between the tablets and the kitchen printers. If the issue only occurs during high usage periods, it’s likely a congestion or signal quality issue. Adding a dedicated access point for the kitchen can isolate printer traffic and improve reliability.

Relevant Extract from CompTIA CloudNetX CNX-001 Study Guide — under “Wireless Performance and Interference Management”:

“Segmenting traffic or deploying dedicated APs for mission-critical devices can reduce contention and ensure reliability in congested wireless environments.”

Other options:

A. App updates won’t fix wireless interference.

C. Dongle upgrades may help but don’t isolate the traffic.

D. Static IPs help with addressing, not with wireless reliability.

Comprehensive and Detailed Explanation From Exact Extract:

Quality of Service (QoS) ensures that latency-sensitive traffic like videoconferencing is prioritized over bandwidth-heavy but delay-tolerant tasks like report generation. Implementing QoS on network switches allows the network to differentiate traffic types and ensure sufficient bandwidth for critical applications during congestion.

Relevant Extract from CompTIA CloudNetX CNX-001 Study Guide — under “Traffic Prioritization and QoS”:

“QoS enables classification and prioritization of network traffic to ensure performance of mission-critical or real-time applications such as voice and video.”

Other options:

A. Scheduling tasks outside business hours is not scalable or reliable.

B. Load balancing applies to servers, not prioritization of LAN traffic.

D. Buying higher-end switches is costly and may not resolve contention under load.

================================================

Comprehensive and Detailed Explanation From Exact Extract:

Geofencing is a network access control method that enforces restrictions based on location data. In this scenario, the organization requires access to be permitted only when users are on premises (i.e., within a specific physical location). Geofencing can be implemented using source IP ranges or GPS-based location data to define boundaries (fences). This allows access to certain applications or services only when the user is inside a designated network or area.

MFA (Option A) provides identity assurance but does not enforce physical location-based restrictions.

UEBA (Option C) provides behavioral analytics but is not used for real-time access control.

PKI (Option D) provides identity validation through certificates but is not location-aware.

Relevant Extract from CompTIA CloudNetX CNX-001 Official Study Guide:

“Geofencing allows organizations to define physical or logical boundaries that restrict or allow access based on user location. Policies can be configured to allow access only when users are on a trusted campus or corporate network, denying requests originating from outside the geofenced area.”

Covered under the topic: “Access Control Technologies and Identity Enforcement Mechanisms.”

Comprehensive and Detailed Explanation From Exact Extract:

Since the subnet and IPs were changed recently, and users are accessing the database through a web application, the likely issue is that DNS records have not been updated to reflect the new IP addresses. If DNS is pointing to old IPs, users will fail to reach the services even if they are up and reachable on the new subnet.

Relevant Extract from CompTIA CloudNetX CNX-001 Study Guide — under “DNS and Network Configuration Troubleshooting”:

“DNS misconfiguration is a common issue following IP address changes. If DNS entries are not updated accordingly, clients will attempt to reach services at outdated IPs.”

Other options:

A. No indication of web server misconfiguration is provided.

B. Firewall issues would affect all users, not just one.

D. The web server has a valid IP in the subnet range; no misconfiguration is indicated.

================================================

Comprehensive and Detailed Explanation From Exact Extract:

Geofencing allows enforcement of access policies based on the geographic location of the user's IP address. To comply with GDPR and control access based on user region, geofencing should be implemented to restrict or permit access to resources hosted in specific regions like Europe.

Relevant Extract from CompTIA CloudNetX CNX-001 Study Guide — under “Data Sovereignty and Regional Access Control”:

“Geofencing enables organizations to restrict access to data or services based on geographic IP address, aiding in GDPR and other compliance frameworks.”

Other options:

A. SASE is a broader framework, not a direct access control mechanism.

B. NSGs operate at subnet/NIC level and do not interpret geolocation.

C. CDNs cache data globally but don’t control access by region directly.

================================================

Comprehensive and Detailed Explanation From Exact Extract:

Layer 2 client isolation ensures that devices connected to the same wireless network (such as a guest SSID) cannot communicate with each other or other VLANs. This prevents guest users from scanning or attacking internal devices. It’s a fundamental security control for guest Wi-Fi access.

Relevant Extract from CompTIA CloudNetX CNX-001 Study Guide — under “Wireless Network Segmentation and Security”:

“Client isolation prevents peer-to-peer attacks over Wi-Fi by ensuring wireless clients cannot communicate with one another, a necessary control on shared guest networks.”

Other options:

B. MAC filtering is easy to spoof and hard to manage at scale.

C. Strong passwords improve access control but don’t isolate guest traffic.

D. Captive portals add a registration layer but don’t address VLAN or broadcast isolation.

Comprehensive and Detailed Explanation From Exact Extract:

D includes all the key elements of Zero Trust:

MFA (Multi-Factor Authentication) supports secondary passkey-based authentication.

Geolocation settings enforce geo-restrictions.

SSO federation allows use of an existing SAML identity provider.

Continuous access policies support dynamic reauthentication based on changes in posture.

Trusted endpoint policies ensure only corporate-owned, compliant devices are allowed to connect.

Relevant Extract from CompTIA CloudNetX CNX-001 Study Guide — under “Zero Trust Architecture and Identity Management”:

“ZTA enforces continuous access policies that monitor session state, posture, and user behavior.”

“Federated identity with SSO and posture-based trust evaluation are core ZTA components.”

“Geo-restrictions and trusted endpoint policies limit exposure and enforce device compliance.”

Other options:

A uses static session tokens and disables timely expiration, violating Zero Trust principles.

B allows BYOD and disables auditing, which conflicts with compliance and monitoring.

Comprehensive and Detailed Explanation From Exact Extract:

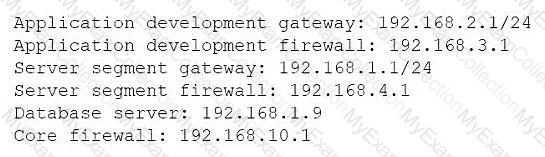

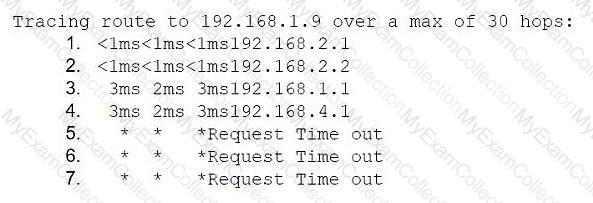

The traceroute shows that the traffic successfully passes through the application development network (192.168.2.1), to the server segment gateway (192.168.1.1), and reaches the serversegment firewall (192.168.4.1). However, it times out immediately after hitting 192.168.4.1, indicating that the traffic is being dropped or filtered at that firewall.

Because other users (outside of the application development segment) are able to SSH into the database server (192.168.1.9), the issue is not with the database server itself or the core network. This points to the server segment firewall blocking traffic originating from the application development subnet (192.168.2.0/24), which is a common practice in segmented network designs unless proper access rules are defined.

Relevant Extract from CompTIA CloudNetX CNX-001 Study Guide — under “Network Segmentation and Firewall Rules”:

“Firewalls between network segments may enforce security policies that restrict access based on source/destination IP and port. Lack of proper allow rules can result in blocked traffic even if routing is successful.”

Other options:

A. The core firewall is not in the traceroute path; it is irrelevant to this specific flow.

B. NSGs (Network Security Groups) apply to cloud workloads, but the behavior and hop-by-hop flow suggest it is a firewall-level issue, not NSG misconfiguration.

D. Bandwidth issues would typically show packet loss or high latency, not consistent timeouts at a specific hop.

Comprehensive and Detailed Explanation From Exact Extract:

Failing to log out of a privileged session on a shared device leaves that session accessible to the next user, potentially granting unauthorized access to administrative functions. This scenario aligns with privilege escalation, where an individual gains access to higher-level permissions than they are authorized to have.

Relevant Extract from CompTIA CloudNetX CNX-001 Study Guide — under “Access Control and Security Threats”:

“Privilege escalation occurs when a user gains elevated access rights, often due to misconfigurations or negligence, such as unattended administrative sessions.”

Other options:

A. IP spoofing involves falsifying source IP addresses.

B. Zero-day refers to unknown software vulnerabilities.

C. On-path attacks involve intercepting traffic, not session misuse on local devices.

================================================

Comprehensive and Detailed Explanation From Exact Extract:

API throttling limits the number of requests a user or system can make in a given time frame. This ensures that no single customer overwhelms the service, maintaining fair access and stability for all users during peak usage periods. It is cost-effective as it avoids unnecessary resource scaling.

Relevant Extract from CompTIA CloudNetX CNX-001 Study Guide — under “API Management and Traffic Control”:

“Throttling allows for controlled usage of APIs, preventing service degradation and ensuring equitable access during high traffic periods.”

Other options:

A. Allow lists control access, not traffic volume.

B. Increasing VMs increases cost and may not scale linearly.

D. MTU settings affect packet size but not API-level fairness or traffic spikes.

================================================

Comprehensive and Detailed Explanation From Exact Extract:

2.4GHz has longer range and better wall penetration than higher frequencies like 5GHz or 6GHz.A patch antenna (a type of directional antenna) focuses the signal in one direction, greatly improving range and reliability over long distances between buildings.

Relevant Extract from CompTIA CloudNetX CNX-001 Study Guide — under “Wireless Deployment and Antenna Selection”:

“2.4GHz offers extended range over 5GHz. Directional antennas such as patch antennas concentrate signals toward a target, improving distance communication.”

Other options:

B & C. Higher frequencies provide faster speeds but shorter range.

D. Omnidirectional antennas spread signal in all directions, not ideal for point-to-point.

F. Built-in antennas are generally low gain and insufficient for building-to-building links.
