API-SIEE Source Inspector Electrical Equipment Question and Answers

The correct answer isB. For equipment intended for hazardous locations,NFPA 70requires marking that identifies the hazardous environment for which the equipment has been evaluated. Those markings must communicate the essential classification information needed for safe application in the field. This includes theClassof hazardous location, theDivisionwhere applicable, thematerial classification group, theequipment temperatureor temperature code, and theambient temperature rangewhen relevant. These markings allow the user, inspector, and installer to confirm that the equipment is suitable for the specific flammable gas, vapor, dust, or fiber hazard present at the site.

From an API source inspection perspective, this is a critical verification item during final inspection because hazardous-area suitability depends not only on construction, but also on propernameplate and marking compliance. The inspector must confirm that the marked classification agrees with the purchase specification, area classification documents, and certification data. Options A, C, and D are incorrect becausevoltage,current, andmaterial of constructionare not the specific hazardous-location marking elements asked for here. The required hazardous-environment marking set is most accurately described inB.

The correct answer isC. Source Inspector. In API source inspection practice, once a non-conformance report NCR has been issued and a disposition such as repair, rework, use-as-is, or reject has been approved, the responsibility forverifying that the approved disposition has actually been implemented on the productbelongs to theSource Inspector. This is consistent with the inspector’s core role in source inspection: to witness, verify, document, and report whether manufacturing and quality activities comply with the approved specifications, drawings, procedures, and disposition requirements.

TheVendor’s Quality Managermanages the supplier’s internal quality system and coordinates corrective actions, but is not the independent verifier for the purchaser’s inspection function. TheInspection Coordinatoradministers scheduling, communication, and inspection planning, yet does not normally perform the physical verification at the equipment level. TheManufacturing Engineermay define or support the technical correction, but implementation verification remains an inspection responsibility. Therefore, after NCR disposition is approved, theSource Inspectormust confirm through examination, records review, and where necessary witness of reinspection or retest that the disposition was properly carried out and closed.

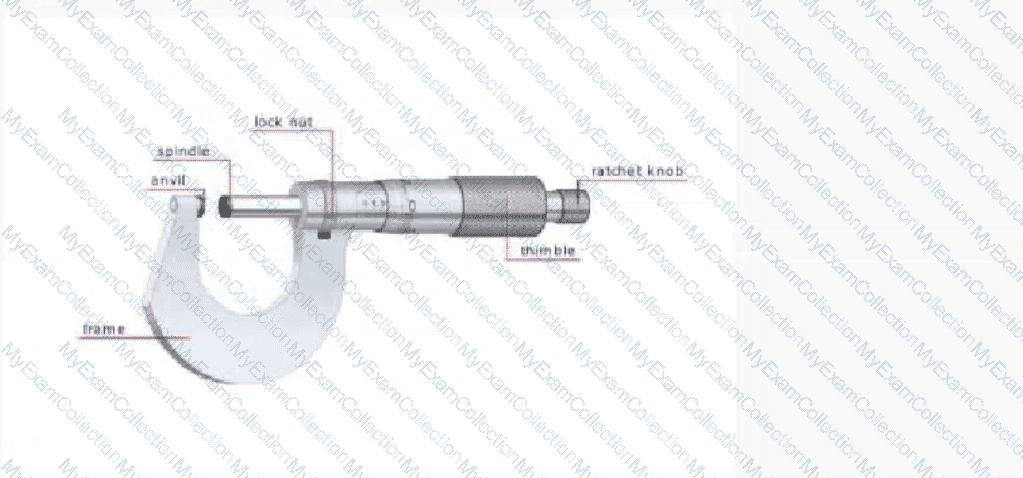

The correct answer isAbecause the illustrated device is anoutside micrometer. Its labeled parts clearly identify it:frame, anvil, spindle, lock nut, thimble, and ratchet knob. These are the standard components of a micrometer used for highly accurate dimensional measurement of outside diameters, thicknesses, and small gaps. In source inspection and quality surveillance, this type of instrument is commonly used when verifying critical dimensions of machined parts, shaft diameters, plate thicknesses, and other precision features that must comply with drawings and manufacturing tolerances.

The other options do not match the image. Adigital caliperhas sliding jaws and an electronic display. Avernier caliperalso uses sliding jaws with a vernier scale, not a rotating thimble and spindle arrangement. Anengineer’s scaleis a straight rule used for scaled drawing measurements, not for precision mechanical inspection. In API-aligned source inspection practice, understanding inspection tools is essential because inspectors must use the correct measuring instrument for the required tolerance and ensure that the device is properly controlled and calibrated. Therefore, the pictured instrument is correctly identified as amicrometer, makingoption Athe verified answer.

The correct answer isC. Aninsulation resistance testis performed by applying aDC test voltageto the insulation system and then measuring the resulting resistance value, typically inohms or megohms. In practical terms, it is often described as aspot testbecause the instrument, usually amegohmmeter, applies a selected DC voltage and checks the insulation’s resistance to leakage current at that point in time. This makes it a widely used diagnostic test for cables, motors, switchgear, control panels, and other electrical equipment.

OptionAis more closely related to insulation adequacy against transient overvoltage conditions, which is not the main definition of an insulation resistance test. OptionBdescribes issues that may influence insulation condition, but not the definition of the test itself. OptionDis closer to adielectric withstand or hi-pot concept, where the concern is the voltage insulation can tolerate, not the resistance value measured during the test. Therefore, the best and correct definition isa spot overvoltage test using applied DC voltage to measure insulation resistance, which makesoption Ccorrect.

The correct answer isA, basic impulse level. On medium voltage equipment, thebasic impulse level BILis the highest voltage-related rating normally associated with the insulation system. BIL represents the ability of the equipment insulation to withstand a specified high-voltage impulse, such as a lightning surge or switching surge, without failure. It is therefore a dielectric withstand rating that is higher than the equipment’s normal operating or system voltage and is used to define insulation coordination for the equipment.

The other choices are not the best answer.Nominal voltageidentifies the intended system operating voltage class, but it is not the highest voltage-related rating.AC high potentialandDC high potentialare test voltages used during dielectric testing, not the principal nameplate rating that defines the equipment’s insulation impulse withstand capability. In source inspection of switchgear and other medium voltage assemblies, the inspector verifies that the equipment ratings, including voltage class, insulation level, and test records, agree with the purchase specification and applicable standards.

Because BIL expresses the highest recognized insulation withstand rating among the listed options,Ais the verified answer.

The correct answer isA. UnderAPI 541, after manufacture and testing are complete, the vendor is required torevise and resubmit previously supplied purchase datato reflect the final delivered motor configuration and verified test results. This normally includes items such as theoperating manual, theas-built data sheet, and theshop test data, because these documents are part of the final turnover package needed by the purchaser for installation, operation, maintenance, and records of compliance.

Arotor-balance reportmay certainly exist as part of manufacturing quality records or internal test documentation, and it can be important for vibration and mechanical integrity. However, it isnot typically identified as part of the revised and resubmitted purchase data setin the same way as the operating manual, as-built data sheet, and shop test data. In source inspection practice, this distinction matters because not every internal manufacturing record becomes part of the formal purchaser data resubmittal package. Therefore, among the listed options, the item that is the exception is therotor-balance report, makingoption Athe verified answer.

The correct answer isC. Stator cores in electric motors are built fromthin laminated steel sheetsrather than one solid mass of metal in order to reducecore losses, especiallyeddy current losses. When alternating magnetic flux passes through a solid iron core, circulating currents are induced within the metal. These currents create unwanted heating and waste energy. By dividing the core into insulated laminations, the path available for these circulating currents is broken up and their magnitude is greatly reduced. This improves motor efficiency, lowers temperature rise, and helps preserve insulation life.

From an API source inspection standpoint, this matters because core construction directly affects the performance and reliability of large motors. Excessive core losses can lead to overheating, degraded efficiency, and premature insulation damage. During manufacturing and inspection, the source inspector may review core fabrication quality, lamination integrity, and test results that indicate proper magnetic and thermal performance. The purpose of laminations is not to reduceAC voltage,frequency, orDC voltage. Their function is to minimizeenergy lossin the magnetic core, makingCthe verified best answer.

The correct answer isDbecause aPoint-to-Point testis anelectrical continuity and functional verification test, not a visual inspection activity. In API source inspection and quality surveillance of electrical equipment, a visual inspection is concerned with what can be directly observed and compared against approved documentation, specifications, and fabrication requirements. This includes verifying that the equipment arrangement matches applicable drawings, checkingnameplate datafor correctness, confirming thatgrounding provisionsare present and properly installed, and ensuring the physical build appears consistent with design requirements.

APoint-to-Point test, by contrast, is performed to verify that wiring connections are electrically correct from one termination point to another. It is typically part of checkout, continuity verification, or functional testing rather than a simple visual examination. That is why options A, B, and C all fall within the scope of visual inspection, while D does not.

From a source inspector’s standpoint, the distinction matters because visual checks confirm physical conformance, whereas point-to-point testing confirms circuit correctness and wiring integrity through an active test process.

The correct answer isB. UnderANSI/NETA/ATSpractices, adielectric withstand teston eachbus sectionis typically performed by applying the specified test voltage forone minute. This one-minute duration is the standard acceptance interval used to demonstrate that the bus insulation system can safely withstand the prescribed overvoltage without breakdown, flashover, or unacceptable leakage. It provides enough time to reveal insulation weakness while remaining within the intended non-routine high-potential test method for acceptance testing.

From a source inspection perspective, this matters because switchgear bus insulation integrity is a critical verification point during factory testing and final quality surveillance. The inspector is expected to confirm that the correct test method, voltage level, duration, and acceptance criteria are used and properly recorded in the manufacturer’s test documentation. The API Guide for Source Inspection and Quality Surveillance of Electrical Equipment includesswitchgearsamong the major covered equipment categories and emphasizes verification of tests, records, and compliance with applicable standards during source inspection and surveillance. Therefore, for a dielectric withstand test on each bus section, the specified voltage is applied forone minute, makingoption Bthe verified answer.

The correct answer isD. Formedium-voltage circuit breakers over 1000 Vthat use astored-energy operating mechanism, a key safety and functional requirement is that the mechanism mustnot release the stored energy until it has been fully charged. This prevents incomplete closing or tripping operations, avoids unreliable breaker performance, and reduces the risk of mechanical damage or unsafe operating conditions. In other words, the breaker mechanism must include an interlock or control feature that blocks release of the spring or stored-energy system unless the charging cycle has been properly completed.

The other options do not express the required stored-energy mechanism function. Indicating control power availability may be useful, but it is not the defining requirement of the stored-energy mechanism itself. Detecting fault current is the job of protective relays and sensing devices, not the charging mechanism. Locating the position of the charging mechanism is not a required protective function. In API-aligned source inspection ofswitchgear, the inspector verifies mechanism operation, interlocks, test records, and compliance with the applicable standards and project specifications. Therefore, the required function is toprevent release of stored energy unless the mechanism is fully charged, makingoption Dthe verified answer.

The correct answer isD. API RP 14FZ. This document is specifically intended for thedesign and installation of electrical systems on fixed and floating offshore petroleum facilitieswhere equipment may be located inunclassified areas and hazardous classified areas identified as Class I, Zone 0, Zone 1, and Zone 2. The key clue in the question is the use of theZoneclassification system. In API and offshore electrical practice,API RP 14FZaddresses the offshore application of the zone-based hazardous area approach.

By contrast,API RP 14Fis associated with offshore electrical system guidance using the olderdivision-basedclassification approach rather than the zone terminology.NFPA 70is the National Electrical Code and is broader in scope; it is not the specific offshore petroleum recommended practice asked here.IEEE 841relates to severe-duty squirrel-cage induction motors and does not cover complete offshore electrical system design and installation requirements.

For source inspectors, recognizing the correct governing document is important because inspection and surveillance activities must verify compliance against the applicable design basis, hazardous-area classification method, and purchaser specification.

The correct answer isB. The inspection coordinator. In the API source inspection framework, the inspector’s role is to independently observe, verify, document, and communicate quality-related concerns through the established inspection reporting chain. When schedule pressure appears likely to compromise product quality, the issue must be escalated to theinspection coordinator, because that person manages inspection execution, communication flow, and coordination between the purchaser, supplier, and inspection function. This keeps the inspector independent and ensures the concern is addressed formally rather than informally.

The other options are less appropriate. TheMaster Scheduleris responsible for planning and timing, not for controlling inspection escalation. Theshop QA Managerbelongs to the supplier’s organization, so reporting directly there could weaken the inspector’s independent reporting path. TheProject Managermay ultimately need awareness, but the normal and correct first notification route in source inspection administration is through the inspection coordinator. This approach aligns with API source inspection practice, where quality threats, deviations, and risks are communicated through designated inspection channels so that corrective action, hold points, and surveillance priorities can be managed properly.

The correct answer isA. Thesource inspection project planis the document that defines how inspection and surveillance will be carried out for a particular purchase order, package, or item of equipment so that the requiredquality expectations, contractual requirements, specifications, and critical inspection pointsare properly addressed. In practical API source inspection work, the plan establishes the scope of surveillance, identifies what documents will be reviewed, what hold or witness points will be observed, what tests will be witnessed, and how findings will be reported. Its purpose is therefore to giveproject-specific directionon how inspection activities will assure conformance to the purchaser’s requirements.

Option B is not the best answer because risk assessment may help determine the plan, but it is not the plan’s primary purpose. Option C is incorrect because inspector qualifications may be maintained elsewhere in personnel records and are not the core function of the project plan. Option D is also incorrect because safety and conduct expectations are general organizational requirements, not the main objective of the source inspection project plan. The plan is fundamentally abouthow inspection will be executed to verify quality.

The correct answer isB. In large motor inspection practice underAPI 541, asoft footcheck is performed to confirm that all motor mounting feet sit properly on the base and that tightening or loosening the hold-down bolts does not distort the motor frame. The accepted method is to first have the mounting bolts tightened, then place adial indicator verticallyat the foot,zero the indicator, and observe the movement when the bolt torque isrelieved or loosened. If the foot lifts or the frame shifts beyond the permitted tolerance, the condition indicates soft foot and must be corrected before the mechanical running test.

This matters because soft foot can introduce frame strain, misalignment, elevated vibration, bearing loading, and unreliable mechanical test results. In source inspection, the purpose is not merely to verify bolt tightness or visible fit-up, but to confirm that the machine is mounted without distortion under actual installed clamping conditions. Option A may reveal a gap but does not fully assess frame movement under bolt load. Option C reverses the usual verification sequence. Option D is inadequate because torque and visual appearance alone do not confirm absence of soft foot.

The correct answer isD. UnderNFPA 70E, aqualified personis not defined by job title, academic degree, union equivalency, or simply being appointed by an authority. Instead, the person must havedemonstrated skills and knowledge related to the construction and operation of electrical equipment and installations, and must also have receivedsafety training to identify and avoid the hazards involved. This definition is especially important in source inspection and quality surveillance because inspectors may observe energized testing, equipment verification, or manufacturing activities where electrical hazards are present. In such cases, qualification is based oncompetence plus hazard-recognition training, not on position alone.

Options A, B, and C are incorrect because they describe credentials, titles, or formal recognition that may support a person’s background, but they do not satisfy the full NFPA 70E definition by themselves. A source inspector working around electrical equipment must understand that only personnel who can bothperform the task competentlyandrecognize the associated electrical risksare considered qualified. That is why optionDis the best and verified answer.

The correct answer isC. Acircuit breakeris a switching and protective device used tomake, carry, and interrupt currentin an electrical circuit. In normal service, it can be used to energize and de-energize a circuit, and under abnormal conditions it is designed to open automatically to interrupt fault or overload current. In source inspection and quality surveillance of switchgear and related electrical equipment, the inspector verifies that the circuit breaker type, ratings, interrupting capacity, trip features, mechanical condition, and test documentation conform to the approved specification and equipment data.

OptionAdescribes afuse, which is a one-time overcurrent device that opens when its element melts. OptionBis too vague and better describes surge-protective or voltage-limiting devices rather than a circuit breaker. OptionDrefers more closely to the construction of switchgear or motor control assemblies, not the breaker itself.

Although the formal standard definition of a circuit breaker includes its fault-interrupting function, the best available answer among the listed options isC, because it most closely identifies the breaker as the device used to switch a circuit on and off.

The correct answer isC. In hazardous or classified locations, positive pressurization and purging protect electrical equipment by preventing the surrounding flammable atmosphere from entering the enclosure. The operating principle is that the enclosure, cabinet, or room is supplied withclean air or an inert gasat a pressure and flow rate high enough to keep hazardous gas or vapor out before and during equipment operation. This allows equipment that might otherwise not be suitable for direct exposure to a classified atmosphere to operate safely when the purge and pressure conditions are maintained.

From an API source-inspection perspective, this aligns with the guide’s emphasis on verifying compliance with thespecified protection method, nameplate data, project drawings, and applicable hazardous-area requirements during inspection and surveillance. The inspector’s concern is not simply whether the enclosure exists, but whether the correct protective concept has been applied and supported by proper fabrication, testing, and documentation. Options A and B describe the hazardous atmosphere itself, not the protection principle. Option D is incorrect because normal arcing devices still require a suitable protection method; pressurization does not rely on relays arcing normally.

The correct answer isB. Formedium-voltage motor terminal boxes, IEEE 841 requires an added safety provision because these enclosures contain higher-energy terminations and present a more serious shock and arc-flash hazard than standard low-voltage terminal boxes. Apermanent locking mechanismis therefore required for terminal boxes used on motors above1000 V, and also for certain large frame motors at1000 V, to prevent unauthorized or accidental access while the motor is energized. This requirement supports safe operation, maintenance control, and electrical isolation practices.

From an API source-inspection perspective, this falls under verification ofelectrical safety features, enclosure construction, and compliance with the applicable motor standardduring shop inspection and surveillance. The API guide includeselectric motors over 500 HPamong the covered equipment categories and emphasizes checking conformance to applicable codes, referenced standards, drawings, and purchase specifications during manufacture and inspection. A drain fitting may be required on some terminal boxes for moisture control, and grounding provisions are also important, but those are not the specific IEEE 841 requirement identified in this question. The distinctive requirement here is thepermanent locking mechanism.

The correct answer isA. In the API source inspection process, planned dates for events such as thepre-inspection meeting,key inspection points, witness or hold activities, and theanticipated shipping datemust be identified early so that everyone involved in the supply and inspection chain can coordinate their responsibilities. This includes the purchaser, supplier or vendor, source inspector, expediting personnel, quality representatives, and sometimes third-party test witnesses. Advance identification of these dates helps ensure that the right people, documents, and inspection resources are available at the right time and that critical manufacturing or testing stages are not missed.

OptionBsounds reasonable, but identifying dates in advance does not by itself guarantee that schedule and quality requirements will be met. OptionCis only part of the benefit, not the main reason. OptionDmay be a practical staffing advantage, but it is narrower than the overall project coordination purpose.

From an API guide perspective, source inspection is aplanned and coordinated activity, not a last-minute visit. Therefore, the main purpose of identifying these dates early is toallow coordination with all project members involved in the activity.

The correct answer isB. Forliquid-immersed transformers, the four-letter cooling code is used to describe both thecooling mediaand themethod of circulationfor the internal and external cooling systems. In this code structure, thefirst letteridentifies theinternal cooling mediumthat is in contact with the windings, while thesecond letteridentifieshow that internal cooling medium circulates. This may be by natural circulation or by forced circulation, depending on the transformer design. Thethird letterthen identifies theexternal cooling medium, and thefourth letterindicates thecirculation method of that external medium.

This coding is important in source inspection because the cooling class affects transformer rating, heat dissipation capability, accessories, and verification of nameplate data. During inspection and surveillance, the source inspector checks that the specified cooling class on the nameplate, drawings, and test documentation matches the purchase requirements and transformer design. Misidentifying the cooling code can lead to misunderstanding of the transformer’s thermal performance and service suitability. Therefore, thesecond letterspecifically represents thecirculation mechanism for the internal cooling medium.

The correct answer isC, NFPA 70. NFPA 70 is theNational Electrical Codeand it is the primary installation standard used for electrical wiring systems, includingsignaling and communications conductors, associated equipment, and raceways. In source inspection and quality surveillance, the inspector must verify that electrical equipment and its installation-related features are consistent with the applicable code requirements identified in the purchase documents and project specifications. For signaling and communications circuits, NFPA 70 provides the governing installation rules for conductor methods, separation, protection, routing, and raceway usage.

The other options do not fit this question.NEMA 250covers enclosure types and environmental protection ratings for electrical equipment enclosures, not installation rules for communications and signaling systems.IEEE C37.20.2applies to metal-clad switchgear, so it is equipment-specific and not the general installation code for communications conductors.IEC 20047is not the recognized answer in this context.

From an API source inspection perspective, this distinction matters because inspectors must know whether they are checkingequipment construction standardsorfield installation code requirements. For signaling and communications installations, the correct governing standard isNFPA 70.
