API-580 API 580 - Risk Based Inspection Question and Answers

API 580 provides the following standard definition under Section 3.1.62:

“Risk: The combination of the probability of an event and its consequence.”

This is the classic risk formula used throughout the RBI methodology: Risk = PoF × CoF. The other options overcomplicate or misrepresent this core principle.

Per Section 11.7 of API 580:

“Thresholds that divide the risk plot matrix or table into acceptable and unacceptable regions of risk can be developed. Corporate safety and financial policies and constraints or risk criteria influence the placement of the thresholds.”

This confirms that risk thresholds define boundaries between acceptable and unacceptable regions, not simply levels of consequence or probability.

API 580, Section 5.6.4 outlines situations where “inspection may not be sufficient to manage risks,” stating:

“Examples where inspection may not be sufficient… are: a) equipment nearing end of service life.”

In such scenarios, additional mitigation such as equipment replacement or redesign is often necessary to reduce risk to acceptable levels.

API 580, Section 12.4 states:

“Depending on factors such as the remaining life of the equipment and type of damage mechanism, risk management through inspection may have little or no effect.”

Examples include:

Instantaneous failures

Equipment at end of life

Damage mechanisms not detectable through inspection

API 580 Section 14.3.2 clearly states:

“Users should set default maximum time periods for reassessments. The governing inspection codes (such as API 510, API 570, and API 653) and jurisdictional regulations, if any, shall be reviewed in this context.”

This means the codes and regulations are explicitly consulted to determine maximum allowable intervals between RBI reassessments. This ensures compliance with inspection frequency expectations across different jurisdictions and standards.

As stated in Section 13.1 of API 580:

“Inspection is often an effective method of risk management. However, inspection may not always provide sufficient risk mitigation or may not be the most cost-effective method.”

This clarifies that inspection is categorized under risk mitigation activities. Similarly, decommissioning is used as a risk mitigation strategy when the risk from continued operation becomes unacceptable.

Risk mitigation activities described in API 580 may:

reduce the magnitude of consequence,

reduce the probability of failure,

enhance survivability, or

mitigate the source of the consequence.

Thus, both inspection and decommissioning clearly fall under the broad category of risk mitigation.

API 580 clearly states under Section 13.6:

“Emergency depressurizing and/or de-inventory should be achieved within a few minutes to reduce the risk from an explosion/fire. This method reduces the amount and rate of release.”

While other methods (such as substitution or containment) reduce hazard or consequence, emergency depressuring directly targets the rate and quantity of material released.

According to API 580, a complete and effective RBI program should include several essential elements to ensure it is systematic, repeatable, and technically sound. Section 5.2 of API 580 outlines the key components:

“A management system for personnel qualifications” — Personnel involved in RBI must be competent and qualified for their roles.

“A documented and validated methodology for assessing PoF and CoF” — A formal process is required to ensure the reliability of the analysis.

“A management system for documentation and update of RBI assessments” — Records must be controlled, updated regularly, and traceable.

These three components are explicitly defined in API 580 as essential elements.

On the other hand:

“Process hazard analysis to verify the adequacy of process safety” is important in the broader context of process safety management but is not listed as a required element of an RBI program in API 580. It is typically part of PSM frameworks under OSHA or similar, not RBI-specific.

API 580 highlights that while cost reduction is a potential benefit of RBI, the true focus is risk management and equipment integrity. From Section 12.5:

“Inspection costs can be more effectively managed through the use of RBI… The user should recognize that while there is a potential for the reduction of inspection costs through the utilization of RBI, increased equipment integrity and inspection cost optimization should remain the focus.”

This confirms that the main driver for RBI is not cost elimination, but rather the intelligent allocation of inspection resources to preserve equipment integrity.

Option B is incorrect because RBI does not guarantee elimination of internal inspections — only that some may be deferred or replaced with alternative methods.

Option C generalizes effectiveness without case-by-case evaluation.

Option D is false; RBI is designed to optimize, not increase costs.

According to Section 6.6 of API 580 (2016), titled “Estimating Resources and Time Required,” it is clearly stated:

“The resources and time required to implement an RBI assessment will vary widely between organizations depending on a number of factors including the following:

a) implementation strategy/plans.

b) knowledge and training of implementers.

c) availability and quality of necessary data and information.

d) availability and cost of resources needed for implementation.

e) amount of equipment included in each level of RBI analysis.

f) degree of complexity of RBI analysis selected.

g) degree of precision required.”

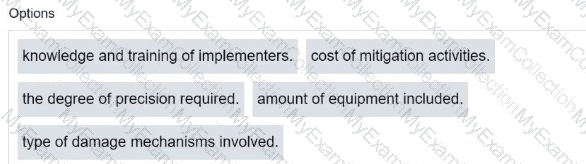

This confirms the following are among the officially listed influencing factors:

A. Knowledge and training of implementers✔

C. The degree of precision required✔

D. Amount of equipment included✔

However:

B. Cost of mitigation activities —✘Not listed in Section 6.6 as a driver for time/resources during implementation.

E. Type of damage mechanisms involved —✘Relevant to PoF modeling, but not a direct listed factor for estimating time/resources needed to implement the RBI.

API 580 Section 15.3.1 and 15.3.2 confirm:

“Contractors... should have a program of training and be able to document that their personnel are suitably qualified.”

While API 580 certification is beneficial, it is not required. Therefore, “Documented training and suitably qualified personnel” is the minimum expectation.

Section 5.3.6 of API 580 states:

“Use of expert opinion will typically be included in most risk assessments regardless of type or level.”

This confirms that expert judgment is a fundamental component across all levels of RBI, whether qualitative, semi-quantitative, or quantitative.

According to API 580 Section 10.3.3:

“Cost is commonly used as an indicator of potential consequences. Consequence may be expressed in relative monetary units (e.g. dollars)… This will permit adding the different consequences of a single event and facilitate comparisons of risk from one process unit to another.”

Cost can represent multiple consequence dimensions, including production loss, emergency response, equipment damage, fines, and more. This method enables direct comparison of diverse consequence types on a unified basis, making it the most commonly applied indicator in practice.

API 580 outlines the required contents of an inspection plan in Section 12.3 and also in the "Output" section:

“The RBI inspection plan should include:

b) inspection methods that should be used;

c) extent of inspection (percent of total area to be examined or specific locations);

d) inspection interval or next inspection date (timing).”​

Therefore, "examination methods to be used" is a fundamental part of the inspection plan, as explicitly stated. Probability and consequence of failure are inputs to the risk analysis but not part of the inspection plan structure itself.

Section 15.1 of API 580 explicitly states:

“Generally one individual does not have the background or skills to single-handedly conduct the entire study effectively. Usually a team of people with the requisite skills and background is needed to conduct an effective RBI assessment.”

While options B and C are also true, D captures the primary reason for requiring a multidisciplinary team.

Section 1.3 of API 580 explicitly states:

“The RBI process is focused on maintaining the mechanical integrity of pressure equipment items and minimizing the risk of loss of containment due to deterioration.”​

This confirms that reducing the risk associated with loss of containment is a fundamental goal and essential element of an RBI program. The other options:

A is a broad safety goal, not an RBI-specific essential element.

B is a component of methodology, not the goal itself.

C is incorrect—only credible, not all possible, damage mechanisms are required.

API 580, Section 6.3.5 states:

“It is often advantageous to group equipment within a process unit into systems, loops, or circuits where common environmental operating conditions exist… By dividing a process unit into systems, the equipment can be screened together, saving time compared to treating each piece of equipment separately.”

Grouping allows for more efficient screening and risk prioritization without needing to analyze each item in isolation, provided the conditions are similar.

As defined in API 580, Section 3.1.59:

“Risk evaluation: The process used to compare the estimated risk against given risk criteria to determine the significance of the risk.”

This follows from the broader risk assessment process where risk identification and analysis occur first, followed by risk evaluation.

According to Section 9.1 of API 580:

“The POF analysis shall address all credible damage mechanisms to which the equipment being reviewed is or can be susceptible. Further, it shall address the situation where equipment is or can be susceptible to multiple damage mechanisms (e.g. thinning and creep).”

Thus, C is the most accurate and complete choice. Option D is incorrect because the analysis is focused on equipment-specific mechanisms, not the entire site.

API 580, Section 9.3.3 provides clear guidance:

“In the case [of] insufficient failure data… general industry, company, or manufacturer failure data is used. This failure data should be adjusted and made specific to the equipment being analyzed… Qualified persons should make these modifications on a case-by-case basis.”​

Therefore, the standard mandates expert-driven adjustments to general data for it to be useful and accurate for the specific context.

According to API 580, Section 13.4, equipment modification is used to mitigate the probability of failure (PoF):

“Modification and redesign of equipment… can provide mitigation of POF. Examples include: … c) removal of deadlegs…”

The purpose of removing deadlegs is to reduce locations where stagnant flow can cause localized corrosion or fouling — in turn lowering the likelihood of failure.

As stated in Section 6.4.1:

“Operating within the boundaries is fundamental to the validity of the RBI study as well as good operating practice.”

Boundaries (both physical and operational) define the scope and assumptions of the RBI analysis. Without adherence to them, the analysis becomes invalid.

API 580, Section 15.2.4:

“A qualified corrosion specialist shall be responsible for assessing the types of damage mechanisms and their applicability and severity to the equipment considering the process conditions, environment, metallurgy, age, and other relevant data.”

Other roles may assist but the designated responsibility lies with the corrosion specialist.

API 580, Section 13.1 states:

“Inspection may not always provide sufficient risk mitigation or may not be the most cost-effective method. The purpose of this section is to describe other methods of risk mitigation.”

And further clarifies:

“RBI offers the added advantage of identifying gaps or shortcomings in the effectiveness of commercially available inspection technologies… In cases where technology cannot adequately and/or cost-effectively mitigate risk, other risk mitigation approaches can be implemented.”​
