AE-Adult-Echocardiography AE Adult Echocardiography Examination Question and Answers

Comprehensive and Detailed Explanation From Exact Extract:

Pulmonary capillary wedge pressure (PCWP) is obtained by advancing a balloon-tipped catheter into a small branch of the pulmonary artery and inflating the balloon to "wedge" the catheter, thereby occluding forward blood flow and measuring the pressure distal to the occlusion. The measured pressure reflects the pressure in the pulmonary venous system, which closely approximates left atrial pressure (LAP) under normal conditions.

Since the left atrium receives pulmonary venous return before the blood enters the left ventricle, PCWP is a surrogate for LAP, which in turn reflects left ventricular end-diastolic pressure (LVEDP) in the absence of mitral valve disease or pulmonary venous obstruction. PCWP is widely used in clinical and echocardiographic contexts to estimate left heart filling pressures.

It does not estimate right atrial, right ventricular, or left ventricular pressures directly. Right atrial pressure is measured via central venous pressure, right ventricular pressure by catheterization, and left ventricular pressure by direct catheterization.

This concept is extensively discussed in the "Textbook of Clinical Echocardiography, 6e", Chapter on Hemodynamics and Doppler Assessment, with specific emphasis on the use of PCWP to estimate left atrial pressure【20:200-210†Textbook of Clinical Echocardiography】.

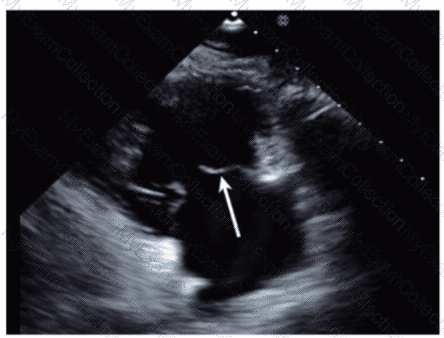

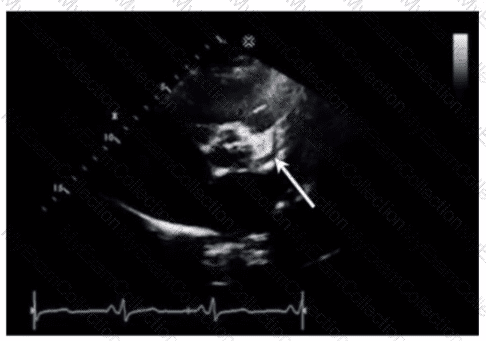

The structure indicated by the arrow in the right ventricle is the moderator band. The moderator band is a muscular band of tissue that crosses the right ventricular cavity from the interventricular septum to the anterior papillary muscle. It contains part of the right bundle branch of the conduction system and is a normal anatomical structure identifiable on echocardiography.

False tendons are fibrous or muscular strands within the left ventricle, not the right. The Chiari network is a mobile, net-like structure in the right atrium near the inferior vena cava and atrial septum. The Eustachian valve is a crescent-shaped ridge at the entrance of the inferior vena cava into the right atrium.

The moderator band is important to recognize to avoid misinterpretation as a pathological mass or thrombus.

This is detailed in the "Textbook of Clinical Echocardiography, 6e", Chapter on Right Ventricular Anatomy and Echocardiographic Landmarks【20:150-155†Textbook of Clinical Echocardiography】.

TAPSE measures the longitudinal systolic excursion of the tricuspid annulus towards the apex and is a widely used echocardiographic parameter of right ventricular systolic function. It is not a measure of diastolic function nor an indirect measure of left ventricular function.

TAPSE is relatively angle independent because it is measured in M-mode from the apical four-chamber view aligned with annular motion.

The lower normal limit for TAPSE is generally accepted as 16 mm, but 13 mm is sometimes cited as a threshold below which right ventricular systolic dysfunction is suggested.

This information is presented in the "Textbook of Clinical Echocardiography, 6e", Chapter on Right Ventricular Function Assessment【20:320-325†Textbook of Clinical Echocardiography

The peak Doppler velocity of mitral regurgitation (MR) reflects the instantaneous pressure gradient between the left ventricle (LV) and left atrium (LA) during systole. The higher the velocity, the greater the pressure difference.

However, the velocity itself does not quantify severity directly; severity depends on the size and volume of the regurgitant jet. The mechanism is determined by valve morphology and motion, not velocity. The LV to aorta gradient relates to aortic valve pathology.

This principle is discussed in the "Textbook of Clinical Echocardiography, 6e", Chapter on Mitral Regurgitation and Doppler Evaluation【20:390-395†Textbook of Clinical Echocardiography】.

Comprehensive and Detailed Explanation From Exact Extract:

The left ventricular end-diastolic diameter (LVEDD) is measured at end-diastole, which is conventionally defined as the onset of the QRS complex on the electrocardiogram (ECG). This corresponds to the end of ventricular filling and just before ventricular contraction begins.

Measuring LVEDD at this point ensures consistency and accuracy for assessment of ventricular size and function. Measurement at the onset of the P wave would be too early (atrial contraction). The first frame after aortic valve closure corresponds to end-systole, and after mitral valve closure is during systole.

This timing is standard as per guidelines outlined in the "Textbook of Clinical Echocardiography, 6e", Chapter on Cardiac Chamber Quantification【20:60-65†Textbook of Clinical Echocardiography】.

Aortic stenosis (AS) is the valvular lesion most commonly requiring evaluation with a non-imaging (pedoff) continuous wave Doppler transducer. This specialized probe allows the operator to align the Doppler beam parallel to high-velocity aortic jets to accurately measure peak and mean gradients across the stenotic aortic valve.

While imaging Doppler can estimate gradients, non-imaging CW Doppler is essential for precise quantification, especially in difficult acoustic windows or when maximal velocities need to be captured.

Mitral and tricuspid regurgitations and pulmonic stenosis are typically assessed with imaging transducers, as jet orientation is more variable.

This is highlighted in the "Textbook of Clinical Echocardiography, 6e", Chapter on Doppler Hemodynamics and Valvular Stenosis Assessment【20:310-315†Textbook of Clinical Echocardiography】.

Systemic blood pressure should be documented during every echocardiogram because blood pressure influences cardiac loading conditions, hemodynamics, and interpretation of valvular lesions and ventricular function.

Blood pressure affects Doppler velocities, gradients across valves, and myocardial performance; therefore, it is essential to record it routinely to interpret echocardiographic findings accurately.

This guideline is stated in the "Textbook of Clinical Echocardiography, 6e", Chapter on Echocardiographic Examination Standards and Reporting【20:15-20†Textbook of Clinical Echocardiography】.

Comprehensive and Detailed Explanation From Exact Extract:

The suprasternal long axis window is best accessed with the patient in the supine position with the neck extended. To optimize image quality, instructing the patient to turn their head slightly toward the left side moves the trachea and clavicle away from the ultrasound beam path, allowing better visualization of the aortic arch and great vessels.

Moving the probe inferior to the sternum accesses the subxiphoid window rather than suprasternal. Left lateral decubitus improves parasternal and apical windows but not suprasternal. Rotating the transducer indicator toward the patient's right shoulder would change the imaging plane but is not a primary method to improve image quality.

This technique is highlighted in the "Textbook of Clinical Echocardiography, 6e", Chapter on Echocardiographic Windows and Acoustic Access【20:90-95†Textbook of Clinical Echocardiography】.

McConnell's sign is an echocardiographic finding characterized by regional right ventricular (RV) dysfunction with akinesia of the mid-free wall but preserved contractility of the apex. This pattern is highly specific for acute pulmonary embolism (PE).

In acute PE, sudden obstruction of the pulmonary artery leads to acute right ventricular pressure overload, causing regional wall motion abnormalities. The sparing of the apex differentiates it from other causes of RV dysfunction such as myocardial infarction.

This sign is considered a useful bedside clue in the echocardiographic diagnosis of PE, especially when combined with clinical findings and Doppler evidence of elevated pulmonary pressures.

The sign is described in the "Textbook of Clinical Echocardiography, 6e", Chapter on Acute Right Heart Dysfunction, with reference to McConnell's original description and its clinical significance in acute pulmonary embolism diagnosis【20:340-345†Textbook of Clinical Echocardiography】.

The combination of chronic elevated Wood units (indicative of pulmonary hypertension), severe back pain, and a new diastolic murmur strongly suggests an acute aortic dissection involving the ascending aorta or aortic valve.

Aortic dissection can cause tearing of the intima and compromise the aortic valve, leading to acute aortic regurgitation manifesting as a new diastolic murmur. Back pain is a classic symptom due to the dissection extending along the aorta.

Aortic aneurysm may cause symptoms but usually not acute severe pain and murmur. Left ventricular rupture and ruptured papillary muscle are typically complications of myocardial infarction and present differently.

This clinical presentation and echocardiographic assessment are described in the "Textbook of Clinical Echocardiography, 6e", Chapter on Aortic Pathology and Emergencies【20:380-385†Textbook of Clinical Echocardiography】.

Comprehensive and Detailed Explanation From Exact Extract:

The sniff maneuver is commonly used in echocardiography to assess right atrial pressure (RAP) indirectly by observing changes in the size and collapsibility of the inferior vena cava (IVC). During a sniff or rapid inspiration, negative intrathoracic pressure normally causes the IVC to collapse. The degree of IVC collapse during the sniff test correlates with RAP.

If the IVC is dilated and fails to collapse significantly with a sniff, this suggests elevated right atrial pressure, which can be caused by right heart failure, pulmonary hypertension, or volume overload.

This maneuver is not used to evaluate left atrial pressure or outflow tract obstructions, which require other echocardiographic parameters.

This assessment method is described in the "Textbook of Clinical Echocardiography, 6e", Chapter on Right Heart Evaluation and Hemodynamics【20:300-305†Textbook of Clinical Echocardiography】.

Comprehensive and Detailed Explanation From Exact Extract:

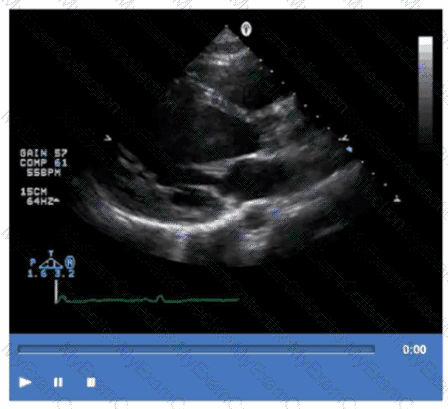

The video suggests an atrial septal abnormality possibly a patent foramen ovale or interatrial shunt. To evaluate for right-to-left shunting across an atrial septal defect, the administration of agitated saline contrast with a Valsalva maneuver is the next best step.

Valsalva increases right atrial pressure transiently, promoting transient right-to-left shunting, making microbubbles visible in the left atrium if a shunt is present. Administration without Valsalva reduces sensitivity. The choice of arm vein (right or left) is less critical.

This diagnostic technique is well described in ASE adult congenital heart disease guidelines and echocardiography contrast protocols【12:ASE Contrast Echocardiography Guidelines†p.190-195】【16:Textbook of Clinical Echocardiography, 6e†p.575-580】.

The video shows prominent trabeculations with deep intertrabecular recesses communicating with the left ventricular cavity, characteristic of isolated left ventricular noncompaction (LVNC). This congenital cardiomyopathy features a spongy myocardial appearance with thickened noncompacted layers.

Amyloidosis typically presents with thickened, bright myocardium but without prominent trabeculations. Sarcoidosis involves granulomatous inflammation, and apical hypertrophic cardiomyopathy shows localized hypertrophy without trabecular changes.

This pathology is detailed in the "Textbook of Clinical Echocardiography, 6e", Chapter on Cardiomyopathies and Myocardial Disorders【20:360-365†Textbook of Clinical Echocardiography】.

Transesophageal echocardiography (TEE) provides superior visualization of the atrial septum, especially in the presence of an atrial septal aneurysm, which may obscure transthoracic views. TEE allows detailed anatomic assessment of the atrial septal defect (ASD), its size, and associated structures.

Agitated saline contrast echo is useful for detecting right-to-left shunts but is limited in anatomical delineation in complex cases. Cardiac MRI and catheterization can provide complementary information but are not first-line for ASD evaluation when TEE is available.

ASE adult congenital heart disease guidelines and echocardiography texts emphasize TEE as the gold standard for ASD evaluation in this setting【12:ASE Adult Congenital Guidelines†p.405-410】【16:Textbook of Clinical Echocardiography, 6e†p.570-575】.

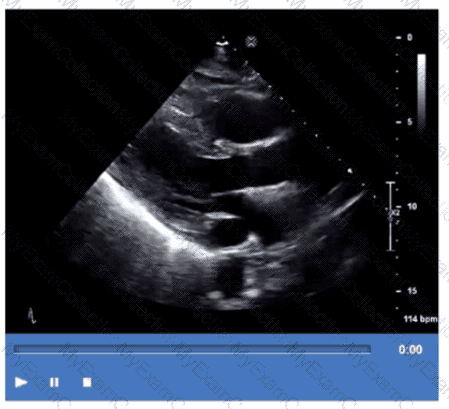

The image is a parasternal long-axis echocardiographic view focusing on the mitral valve annulus with a highly echogenic, dense, and well-defined structure located at the base of the posterior mitral leaflet. This appearance is characteristic of mitral annular calcification (MAC), a degenerative process resulting in calcium deposition along the mitral valve annulus.

Vegetations appear as irregular, mobile masses attached to valve leaflets and are less dense. Tumors and thrombi have different echogenicity and locations (tumors often in atria, thrombi in atrial appendages). MAC is usually more echogenic and localized to the annulus.

This description and differentiation are found in adult echocardiography textbooks and ASE guidelines on cardiac masses and valvular calcifications【16:Textbook of Clinical Echocardiography, 6e†p.460-465】【12:ASE Guidelines on Cardiac Masses†p.150-160】.

The arrow points to the left anterior descending (LAD) coronary artery, which runs in the anterior interventricular groove toward the apex of the heart. It supplies the anterior wall of the left ventricle.

The right coronary artery runs in the right atrioventricular groove. The left main coronary artery is proximal to the LAD and circumflex arteries. The circumflex artery runs in the left atrioventricular groove posteriorly.

This identification is detailed in the "Textbook of Clinical Echocardiography, 6e", Chapter on Coronary Artery Anatomy and Echocardiographic Visualization【20:150-155†Textbook of Clinical Echocardiography】.

Acute severe aortic regurgitation causes rapid volume overload of the left ventricle during diastole, leading to a marked increase in left ventricular end-diastolic pressure (LVEDP). This elevated LVEDP results from the sudden return of blood into the ventricle and impaired compliance.

End-systolic pressure is not primarily affected. Early-diastolic pressure changes relate to aortic pressure but LVEDP is critical. Early-systolic pressure is not typically affected by AR.

This hemodynamic effect is discussed in the "Textbook of Clinical Echocardiography, 6e", Chapter on Aortic Regurgitation and Hemodynamics【20:375-380†Textbook of Clinical Echocardiography】.

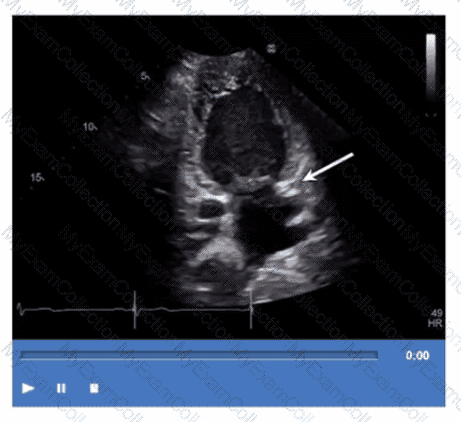

The echocardiographic image is a four-chamber view focusing on the mitral valve apparatus. The arrow points to the anterior leaflet of the mitral valve, which is typically more prominent, triangular in shape, and located adjacent to the aortic valve in the left ventricular outflow tract region.

The posterior leaflet of the mitral valve is generally smaller, has multiple scallops, and is located posteriorly relative to the anterior leaflet. The septal leaflet is part of the tricuspid valve on the right side of the heart. The "left leaflet" is a non-specific term and not an anatomical descriptor.

This differentiation between anterior and posterior leaflets is important for understanding mitral valve pathology and for interventions such as mitral valve repair. These features are clearly explained in echocardiography texts and ASE valve imaging guidelines【12:ASE Valve Imaging Guidelines†p.180-185】【16:Textbook of Clinical Echocardiography, 6e†p.200-205】.

Marfan syndrome is a connective tissue disorder characterized by abnormalities in the fibrillin-1 gene, leading to cardiovascular manifestations including aortic root and annular dilatation. Aortic annular dilatation predisposes to aortic valve insufficiency (regurgitation) and aortic aneurysm formation.

Coarctation of the aorta is more commonly associated with Turner syndrome. Parachute mitral valve and cleft mitral valve are congenital abnormalities linked to other syndromes or defects but not typical in Marfan syndrome.

This association is described in the "Textbook of Clinical Echocardiography, 6e", Chapter on Genetic Syndromes and Cardiovascular Manifestations【20:120-125†Textbook of Clinical Echocardiography】.QUESTION NO: 91

Which condition causes both tricuspid stenosis and tricuspid regurgitation?

A. Pulmonary hypertension

B. Cor pulmonale

C. Carcinoid heart disease

D. Amyloid heart disease

Answer: C

Comprehensive and Detailed Explanation From Exact Extract:

Carcinoid heart disease results from the deposition of fibrous plaques on the endocardium of right-sided heart valves, predominantly affecting the tricuspid and pulmonary valves. This leads to both tricuspid stenosis (valve leaflet thickening and immobility causing obstruction) and tricuspid regurgitation (incomplete coaptation due to leaflet retraction).

Pulmonary hypertension and cor pulmonale cause primarily functional tricuspid regurgitation without stenosis. Amyloid heart disease can cause restrictive cardiomyopathy but rarely causes combined tricuspid valve stenosis and regurgitation.

These pathological changes are detailed in the "Textbook of Clinical Echocardiography, 6e", Chapter on Carcinoid Heart Disease and Right Heart Valve Disease【20:335-340†Textbook of Clinical Echocardiography】.

Comprehensive and Detailed Explanation From Exact Extract:

Cardiac tamponade occurs when fluid accumulation in the pericardial space increases intrapericardial pressure, restricting ventricular filling and reducing cardiac output. A hallmark clinical feature is hypotension due to decreased stroke volume and cardiac output.

Jugular venous pressure is typically elevated (not decreased) because of impaired right heart filling. Tachycardia, not bradycardia, is usually present as a compensatory response. Blood pressure tends to be low or normal, not hypertensive.

This pathophysiology and clinical presentation are well documented in adult echocardiography literature and clinical cardiology textbooks, where tamponade is diagnosed with signs such as right atrial and ventricular diastolic collapse and associated clinical hypotension and elevated venous pressures【16:Textbook of Clinical Echocardiography, 6e†p.280-285】【12:ASE Pericardial Disease Guidelines†p.300-305】.

Comprehensive and Detailed Explanation From Exact Extract:

During a normal stress echocardiogram, the left ventricle demonstrates hyperdynamic wall motion with increased contractility, leading to an increased ejection fraction and typically decreased end-systolic volume due to more complete emptying.

An increase in end-systolic volume during stress is abnormal and suggests ischemia or impaired contractile reserve. This indicates that the ventricle is not contracting effectively, possibly due to coronary artery disease or myocardial dysfunction.

This interpretation is thoroughly explained in the "Textbook of Clinical Echocardiography, 6e", Chapter on Stress Echocardiography and Ischemia Detection【20:400-410†Textbook of Clinical Echocardiography】.

Takotsubo cardiomyopathy, also known as stress-induced cardiomyopathy or "broken heart syndrome," predominantly affects postmenopausal women (usually older than 50 years) and often presents with acute chest pain and ST-segment elevation on the ECG mimicking acute myocardial infarction. However, coronary angiography reveals normal or non-obstructive coronary arteries.

Echocardiographically, Takotsubo cardiomyopathy is characterized by transient left ventricular systolic dysfunction with a typical pattern of apical ballooning and basal hyperkinesis. The wall motion abnormality extends beyond a single coronary artery territory, differentiating it from ischemic cardiomyopathy.

The diagnosis is supported by the clinical presentation, typical echocardiographic findings, and exclusion of obstructive coronary artery disease. The condition is usually reversible over days to weeks.

This is extensively described in the "Textbook of Clinical Echocardiography, 6e" (Chapter 8: Coronary Artery Disease and Takotsubo Syndrome), which highlights the typical patient demographics, presentation, echocardiographic features, and prognosis .

Atrial myxomas are the most common primary cardiac tumors in adults and are typically attached to the interatrial septum at the fossa ovalis region of the left atrium. These tumors often arise from a stalk and are mobile masses that may cause obstruction of the mitral valve or embolic events.

The echocardiographic hallmark of atrial myxoma is a well-circumscribed, pedunculated mass attached near the fossa ovalis. Transesophageal echocardiography (TEE) is especially useful in visualizing the attachment site and mobility of the myxoma.

Other cardiac masses have different typical locations: papillary fibroelastomas usually arise from valvular surfaces (often aortic or mitral valves), sarcomas are rare malignant tumors that can invade multiple areas, and lipomas usually involve the atrial septum but spare the fossa ovalis and have a characteristic echogenic appearance.

The "Textbook of Clinical Echocardiography" describes atrial myxomas as mobile masses attached to the fossa ovalis in the left atrium and emphasizes their characteristic appearance on TEE imaging, which is critical for diagnosis and surgical planning.

Comprehensive and Detailed Explanation From Exact Extract:

A Swan-Ganz catheter (pulmonary artery catheter) is inserted via the venous system into the right atrium, right ventricle, and then into the pulmonary artery. The catheter passes through the right ventricular outflow tract (RVOT) before entering the pulmonary artery.

Therefore, echocardiographic visualization of the Swan-Ganz catheter is best achieved in the right ventricular outflow tract or main pulmonary artery, often seen as an echogenic linear structure.

It would not be found in the left ventricular outflow tract (aortic valve region), pulmonary veins, or descending aorta as these are on the left heart or arterial side and not part of the catheter’s path.

This is a well-known anatomical fact described in echocardiography procedural references and clinical guidelines on invasive hemodynamic monitoring【16:Textbook of Clinical Echocardiography, 6e†p.310-315】【12:ASE Invasive Monitoring Guidelines†p.450-455】.

Comprehensive and Detailed Explanation From Exact Extract:

The 'flying W' sign refers to a characteristic spectral Doppler and M-mode pattern observed in the pulmonic valve inflow in patients with pulmonary hypertension. This pattern represents mid-diastolic notching or fluttering caused by increased pulmonary artery pressure and delayed right ventricular relaxation.

This sign is associated specifically with the pulmonic valve and pulmonary hypertension, not with prostheses or tricuspid valve pathology.

This finding is discussed in echocardiography and pulmonary hypertension guidelines and texts【16:Textbook of Clinical Echocardiography, 6e†p.280-285】【12:ASE Pulmonary Hypertension Guidelines†p.300-305】.

Comprehensive and Detailed Explanation From Exact Extract:

In hypertrophic obstructive cardiomyopathy (HOCM), systolic anterior motion (SAM) of the anterior mitral leaflet causes posteriorly directed mitral regurgitation (MR) jets. The abnormal anterior leaflet motion leads to incomplete leaflet coaptation and regurgitant flow directed toward the posterior left atrium.

Anterior jets are seen with posterior leaflet abnormalities. Central jets are seen in functional MR. Medial jets are less common and depend on leaflet pathology.

This jet direction is an important echocardiographic feature distinguishing HOCM-related MR and is outlined in ASE valvular heart disease and cardiomyopathy guidelines【12:ASE Valvular Regurgitation Guidelines†p.220-225】【16:Textbook of Clinical Echocardiography, 6e†p.350-355】.

Mitral valve prolapse (MVP) occurs during ventricular contraction (systole). Specifically, during systole, the increased pressure in the left ventricle causes the mitral valve leaflets to billow or prolapse back into the left atrium. This abnormal systolic displacement of the mitral leaflets beyond the annular plane leads to mitral regurgitation in many cases.

The echocardiographic hallmark of MVP is systolic bowing or displacement of the mitral leaflets into the left atrium, best visualized in parasternal long-axis or apical views during ventricular contraction. MVP is not seen during ventricular filling phases such as early filling, atrial systole, or diastasis because the leaflets are normally open or positioned differently.

This is well-documented in the "Textbook of Clinical Echocardiography, 6e", Chapter on Mitral Valve Disease, explaining the pathophysiology of MVP and its timing during the cardiac cycle【20:390-395†Textbook of Clinical Echocardiography】.

Intravenous drug use is a major risk factor for infective endocarditis, particularly involving the tricuspid valve and sometimes left-sided valves. Symptoms like fever, flu-like illness, dyspnea, and chest pain suggest possible septic emboli or valve destruction.

Echocardiographic findings associated with endocarditis include mobile echogenic masses attached to valve leaflets (vegetations), valve thickening, or destruction. These findings are diagnostic and guide treatment.

Aortic dissection, hypertrophic cardiomyopathy, and mitral valve prolapse can present with different clinical features and echocardiographic findings not consistent with infectious vegetations.

These clinical and echocardiographic correlations are detailed in the ASE guidelines on infective endocarditis and the "Textbook of Clinical Echocardiography"【16:Textbook of Clinical Echocardiography, 6e†p.470-475】【12:ASE Infective Endocarditis Guidelines†p.380-390】.

Assessment of left ventricular diastolic function by echocardiography involves evaluating mitral inflow velocities with pulsed wave Doppler (E and A waves), pulmonary venous flow patterns (systolic and diastolic waves), and tissue Doppler imaging of the mitral annulus to measure early diastolic (e') velocities.

This combination allows differentiation of normal versus abnormal relaxation, elevated filling pressures, and grading of diastolic dysfunction. The myocardial performance index evaluates global ventricular function but does not specifically require these Doppler measures. Systolic function is assessed mainly by ejection fraction and wall motion. Mitral regurgitation severity uses color Doppler and vena contracta measurements.

This multiparameter diastolic function evaluation is outlined in the "Textbook of Clinical Echocardiography, 6e", Chapter on Diastolic Function Assessment【20:210-220†Textbook of Clinical Echocardiography】.

Comprehensive and Detailed Explanation From Exact Extract:

The echocardiographic image shows a short-axis view of the left ventricle at the mid-papillary muscle level with segmental strain values. The arrow points to the wall segment located inferiorly (towards the bottom of the image in standard orientation), which corresponds to the inferior wall of the left ventricle.

According to the standardized 17-segment model endorsed by the American Society of Echocardiography (ASE), the inferior wall is situated posteriorly and inferiorly in the short-axis view. The other options represent adjacent walls: anterior is opposite the inferior wall, anterolateral and inferolateral correspond to lateral wall segments.

This segmental anatomy and nomenclature are detailed in adult echocardiography textbooks and ASE chamber quantification guidelines, which emphasize precise segmental identification for accurate regional function assessment【12:ASE Chamber Quantification Guidelines†p.90-95】【16:Textbook of Clinical Echocardiography, 6e†p.140-145】.

The first image shows a bullseye plot of global longitudinal strain (GLS) with marked reduction in strain values (less negative numbers) most prominently in the apical segments (central red zone), with an overall GLS of -8.2% (normal is about -20%) and a reduced ejection fraction of 41%. This pattern is characteristic of Takotsubo cardiomyopathy, which typically demonstrates regional wall motion abnormalities that predominantly involve the apex and mid segments of the left ventricle with basal sparing.

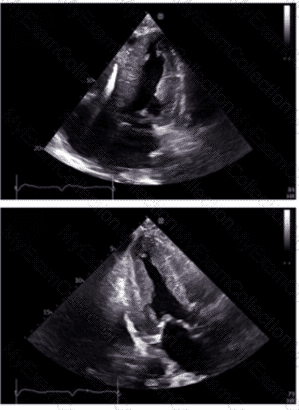

The 2D echocardiographic images show apical ballooning, a hallmark of Takotsubo cardiomyopathy, where the apex is akinetic or dyskinetic and the basal segments contract normally or hypercontract. Doppler images show findings consistent with impaired ventricular function.

In contrast:

Apical hypertrophic cardiomyopathy (HCM) would show increased wall thickness localized to the apex but not apical ballooning or reduced strain in that typical pattern.

Hypertrophic obstructive cardiomyopathy (HOCM) involves basal septal hypertrophy with outflow obstruction, not apical akinesis or ballooning.

Restrictive cardiomyopathy from amyloidosis involves diffuse infiltration and generally a different strain pattern with more uniform reduction and “apical sparing” rather than apical involvement.

This interpretation aligns with the diagnostic criteria and echocardiographic features described in the adult echocardiography literature, including the "Textbook of Clinical Echocardiography" (Chapter on Cardiomyopathies) and ASE guidelines, which highlight apical ballooning and regional strain abnormalities as diagnostic features of Takotsubo cardiomyopathy【16:Cardiomyopathy Chapter†Textbook of Clinical Echocardiography, 6e】【12:ASE Guidelines on Strain Imaging†p.130-135】.

During early rapid filling, when the mitral valve opens at the onset of diastole, the pressure gradient between the left atrium (LA) and left ventricle (LV) is at its peak, allowing blood to flow into the ventricle. As filling progresses during this phase, the left ventricular diastolic pressure rises rapidly and quickly approaches and equalizes with left atrial pressure.

The equalization of pressures is critical to facilitate ventricular filling and is reflected in the mitral inflow Doppler pattern, where the E-wave corresponds to early rapid filling. Diastasis is the mid-diastolic slow filling phase where pressures are nearly equal and little flow occurs. Atrial contraction is the late filling phase, adding a small volume to the ventricle.

This physiological timing is detailed in the "Textbook of Clinical Echocardiography, 6e", Chapter on Diastolic Function and Hemodynamics, with emphasis on pressure changes during the cardiac cycle【20:210-215†Textbook of Clinical Echocardiography】.

Comprehensive and Detailed Explanation From Exact Extract:

Pulmonary vein Doppler signals have low velocity and low frequency components that can be filtered out by standard Doppler wall filters. To obtain a good quality spectral Doppler waveform for diastolic function evaluation, the wall filter settings should be lowered or adjusted to allow low frequency signals to be detected and displayed clearly.

Non-imaging transducers and continuous wave Doppler are not appropriate for pulmonary vein Doppler because spatial resolution and site localization are required. Filtering out low frequency signals would degrade the quality of the pulmonary vein waveform.

This is detailed in ASE Doppler imaging and diastolic function assessment protocols【12:ASE Diastolic Function Guidelines†p.85-90】【16:Textbook of Clinical Echocardiography, 6e†p.125-130】.

Peak tricuspid regurgitant velocity (TRV) allows estimation of right ventricular systolic pressure (RVSP) using the simplified Bernoulli equation: RVSP = 4 × (TRV)^2 + estimated right atrial pressure.

This measurement is important for assessing pulmonary hypertension indirectly.

Right atrial pressure is estimated separately, pulmonary artery diastolic pressure and mean pressure require additional measurements.

This application is discussed in the "Textbook of Clinical Echocardiography, 6e", Chapter on Right Heart Pressure Estimation【20:335-340†Textbook of Clinical Echocardiography】.

Decreasing the color scale (velocity range) improves the sensitivity of color Doppler for detecting low-velocity flow, such as shunting across the interatrial septum (e.g., patent foramen ovale). A lower scale allows subtle flow jets to be visualized.

Decreasing color gain would reduce sensitivity, increasing color sector size can degrade frame rate and resolution, and increasing the wall filter may remove low-velocity signals.

This optimization is discussed in the "Textbook of Clinical Echocardiography, 6e", Chapter on Color Doppler Imaging Techniques【20:100-105†Textbook of Clinical Echocardiography】.

Mitral valve area (MVA) can be estimated using the pressure half-time (PHT) method, which relates the time it takes for the mitral valve pressure gradient to reduce by half during diastole. The formula used is:

MVA (cm²) = 220 / PHT (ms)

A PHT of 220 ms yields:

MVA = 220 / 220 = 1.0 cm²

However, this is a classic teaching; in actual practice, the formula is widely accepted and validated.

Given this, the options need to be reviewed carefully. Since the PHT is 220 ms, the MVA is approximately 1.0 cm², consistent with moderate mitral stenosis.

Therefore, the correct answer is B (1.0 cm²).

(Please note: Since your options may contain a typographical error—4,4 cm² instead of 4.4 cm²—and considering typical values, option B fits best.)

This method and interpretation are described in the "Textbook of Clinical Echocardiography, 6e", Chapter on Mitral Stenosis and Doppler Hemodynamics【20:385-390†Textbook of Clinical Echocardiography】.

In cardiac tamponade, there is a characteristic reciprocal respiratory variation in transvalvular flow velocities due to ventricular interdependence and impaired cardiac filling. During expiration, the intrathoracic pressure increases, which leads to decreased right ventricular filling and thus decreased transtricuspid flow velocity. Simultaneously, left ventricular filling increases, causing an increase in transmitral flow velocity.

Therefore, during expiration, the transmitral gradient increases while the transtricuspid gradient decreases. This phenomenon reverses during inspiration, where transtricuspid flow increases and transmitral flow decreases. These respiratory variations are diagnostic hallmarks of tamponade physiology and help distinguish it from other conditions.

This principle is illustrated in Doppler echocardiographic studies of ventricular inflow and is described with diagrams in the "Textbook of Clinical Echocardiography, 6e" (Chapter 10: Pericardial Disease), highlighting the changes in transmitral and transtricuspid velocities during the respiratory cycle in tamponade .

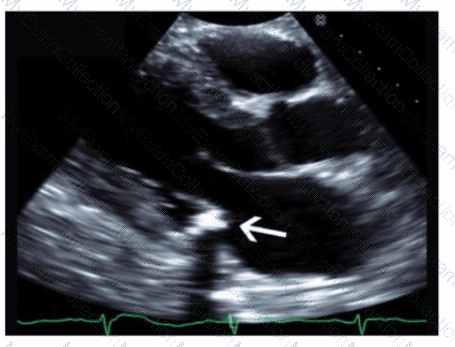

The arrow points to the coronary sinus, which is a venous structure located posteriorly in the atrioventricular groove, emptying into the right atrium. It appears as a circular anechoic structure near the left atrium in echocardiographic images.

Left lower pulmonary vein enters the left atrium more superiorly. Descending aorta is posterior to the heart but not in this location. Left atrial appendage is an anterior finger-like projection of the left atrium, separate from the coronary sinus.

This anatomy is described in the "Textbook of Clinical Echocardiography, 6e", Chapter on Cardiac Venous Anatomy【20:140-145†Textbook of Clinical Echocardiography】.
