ACD101 Appian Associate Developer Question and Answers

When an error occurs on an unattended node in a running process instance:

The process is not paused, allowing other parallel paths to continue.

An alert is typically sent to appropriate recipients, such as administrators, to notify them of the issue.

These nodes are not counted in the num_problem_tasks process metric, which is used in process reports to track problematic tasks.

This behavior ensures that the rest of the process can continue as intended while alerting administrators to intervene and address the error.

References

Appian Documentation: Error Handling in Processes

The intended answer for the Appian version represented in the question is A because troubleshooting should begin by reviewing the available error information rather than attempting speculative code changes. Error details normally identify the affected object, evaluation, function, or expression line and provide the best starting point for isolating the cause. The a!finderror() function shown in option C is not an Appian function, and an interface error is not guaranteed to appear as a large banner. In current Appian documentation, the equivalent recommended workflow emphasizes the Design Error Log, evaluation identifiers, object information, and performance details available through monitoring tools. Therefore, although the older question refers to a Performance tab, its underlying principle—review recorded error details first—remains valid.

When testing the validity of an email address in Appian, you should consider various scenarios to ensure robust validation. This includes checking for the presence of the @-character, which is essential for a valid email format (A), testing how the expression handles null values (B), and verifying that a correctly formatted email address is validated as such (C). The availability of the mail server (D) is not relevant to the format validation of an email address within an expression.

The Production environment in Appian is used for allowing business users to use the final version of the application. This environment is where fully developed, tested, and approved applications are deployed for end-user interaction. It is the live environment that supports actual business operations, ensuring that users have access to stable and reliable application functionalities for their day-to-day tasks.

References

Appian Documentation: Application Environments

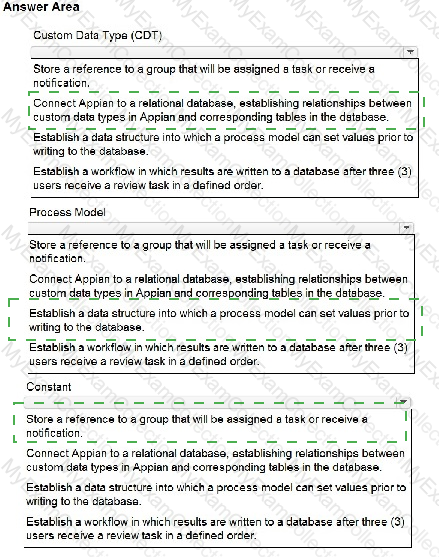

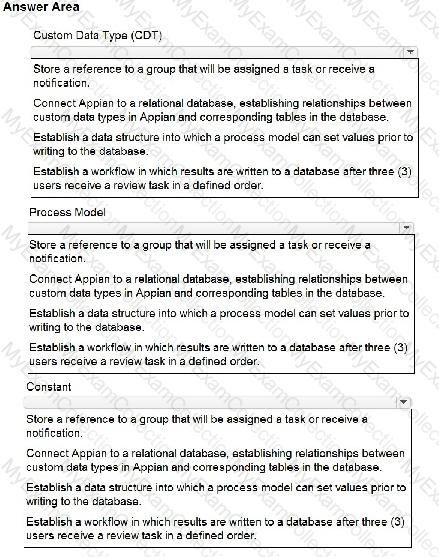

Custom Data Type (CDT): Connect Appian to a relational database, establishing relationships between custom data types in Appian and corresponding tables in the database.

Process Model: Establish a data structure into which a process model can set values prior to writing to the database.

Constant: Store a reference to a group that will be assigned a task or receive a notification.

Custom Data Types (CDTs) define the structure of data within Appian and can be mapped to existing database tables to leverage relational database functionalities. They establish how data is structured and stored in the Appian application.

Process Models depict the workflow and logic of a business process. They can include user and automated tasks, and they can manipulate and store data before, during, and after the execution of the process.

Constants are reusable static values that can be referenced within Appian. They can store values like group references, which can then be used for task assignment or notification purposes in process models or other expressions.

References

Appian Documentation: Data Types, Process Models, Constants

In Appian, when dealing with a record type that has data sync enabled and is backed by a database table, changes to the structure of the underlying data model, such as removing a field, should be carefully managed. The correct approach involves deleting the unused field from the Custom Data Type (CDT) that defines the structure of the data for the record type. Following this change, a full resynchronization of the record type is necessary to ensure that the changes in the CDT are reflected in the record type and its associated data in Appian. This process ensures data integrity and consistency across the application and the database.

For a pizza ordering form where you do not want the radio button selection labels to be truncated, the Stacked layout is the most appropriate. This layout will list the options vertically, giving each one adequate space and preventing truncation, which is particularly useful when the labels include longer text, such as a list of toppings.

The error message indicates that the choiceValues array is not the same length as the choiceLabels array. In this scenario, there are more labels than values, which means the choiceValues array needs additional values to match the number of labels.

References

Appian Documentation: Dropdown Field

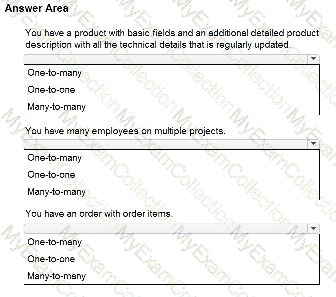

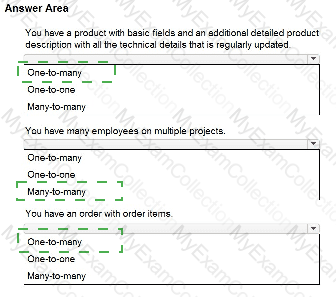

" You have a product with basic fields and an additional detailed product description with all the technical details that is regularly updated. " - One-to-many

" You have many employees on multiple projects. " - Many-to-many

" You have an order with order items. " - One-to-many

A one-to-many relationship is used when a single record from one table (product) is associated with multiple records in another table (product descriptions).

A many-to-many relationship exists when multiple records from one table (employees) are associated with multiple records from another table (projects).

An order with order items also represents a one-to-many relationship where one order can have multiple order items.

References

Appian Documentation: Data Modeling in Appian

Process Model Properties within Appian are referred to using the pm! domain prefix in process model expressions. This includes metadata such as the creator, name, or description of the process model.

References

Appian Documentation: Process Model Properties

When creating a new application in Appian and opting to generate groups and folders for organization and security, Appian automatically creates specific groups to facilitate application development and management. The default groups include " Administrators " and " Designers " with the application prefix, in this case, ACM. The ACM Administrators group is intended for users who will have full control over the application, including configuration and deployment aspects. The ACM Designers group is designated for users primarily involved in the design and development of the application, granting them necessary permissions to create and modify application components without full administrative privileges.

The union() function in Appian combines the elements of two or more arrays into a single array, removing any duplicate values. Given that the rule inputs ri!fruit and ri!vegetables are configured as text arrays, the expected output of union(ri!fruit, ri!vegetables) would be an array containing all unique items from both ri!fruit and ri!vegetables , with any duplicates removed. This function is useful for combining lists without repetition, ensuring a clean, unique set of elements.

To prevent users from accessing Tempo, you should remove them from the Tempo Users system group. This group controls access to the Tempo interface in Appian. By removing users from this group, they will no longer have the necessary permissions to access Tempo features and content.

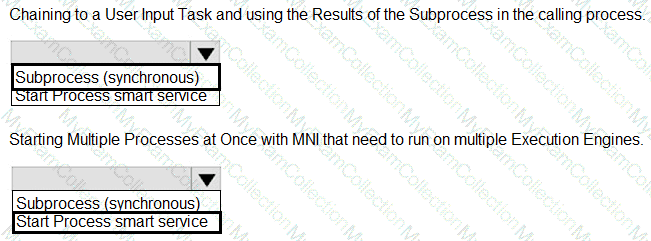

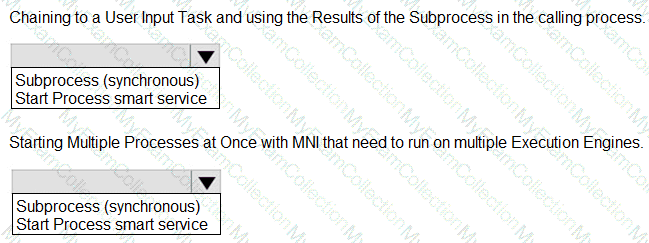

When a process model depends on the value of a variable being set by another process, a synchronous subprocess should be used. This ensures that the calling process (VIM Update Vehicle) will wait for the subprocess (VIM Get Service Date) to complete and set the necessary pv!serviceDate value before continuing. The subprocess node should be configured with input and output variables to pass the pv!vehicleId and receive the pv!serviceDate.

References

Appian Documentation: Subprocess Node

Appian Community discussions provide a platform for Appian Developers to connect with, share expertise, and learn from each other. The community is a vibrant space where developers can ask questions, share solutions, and discuss best practices related to Appian development. While Appian Learning Paths via Appian Academy and Appian Knowledge Base are valuable resources for learning and troubleshooting, the Community discussions specifically facilitate peer-to-peer interaction and knowledge sharing among developers.

In Appian, when an interface references an expression rule, the interface is considered a dependent because it depends on the expression rule to function correctly. Conversely, the expression rule is a precedent because the interface relies on it.

References

Appian Documentation: Managing Application Contents

In Appian, the data type of a local variable is inferred from the value it is set to. Unlike some other programming languages where the data type must be explicitly declared, Appian determines the data type automatically based on the initial value assigned to the local variable. Local variables in Appian are quite flexible and can store various types of data, including complex data types, not just primitive ones.

An Appian best practice for calling interface rules within your interfaces is to always use a consistent ordering of rule parameters. This practice enhances the readability and maintainability of your interfaces, ensuring that other developers can understand and modify the interface more easily.

References

Appian Documentation: Designing Interfaces

Data sync enables additional features for record types in Appian. With data sync enabled, you can define relationships between different record types, add fields to a record type that do not appear in the source database (hidden fields), and configure record-level security to control access to individual records based on user roles or other criteria. These features are part of the enhanced functionality provided by data sync to ensure efficient data management and security within Appian applications.
