AB-620 Designing and Building Integrated AI Agent Solutions in Copilot Studio Question and Answers

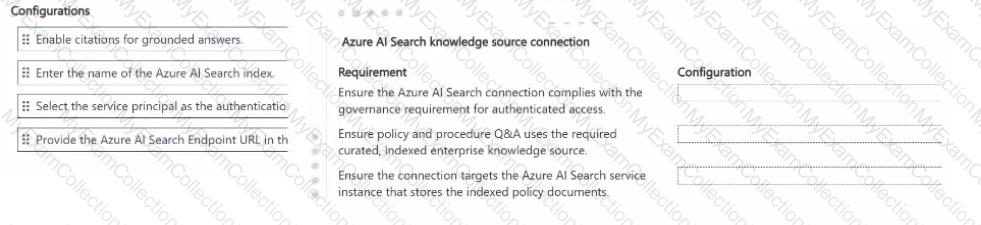

Authenticated governed access → Select service-principal authentication; Required curated vector index → Enter the Azure AI Search index name; Correct Azure AI Search service instance → Provide the Azure AI Search endpoint URL.

Comprehensive and Detailed Explanation From Microsoft AB-620 Study Guide: An Azure AI Search connection needs three distinct pieces of configuration. The endpoint identifies the search-service instance that hosts Fabrikam ' s indexed documents. The index name then selects the specific vector index containing the curated policies and procedures. Authentication determines how Copilot Studio is authorized to query that service. Because the scenario requires governed application access rather than a maker ' s personal identity, the service-principal option is the appropriate selection from the choices provided. Enabling citations is useful after retrieval is configured, but it does not establish the service connection or select an index. Microsoft recommends creating Azure AI Search through the supported data-source connection experience rather than manually assembling an unsupported endpoint/key combination. Administrators should grant the service principal only the permissions needed for query operations, protect its credentials, and maintain separate configuration per environment. Testing should confirm that the intended index—not another index in the same service—is queried, that unauthorized content is excluded, and that policy responses cite material that actually supports the generated guidance. Study Guide alignment: Integrate and extend agents in Copilot Studio > Connect to enterprise knowledge sources > Connect to Azure AI Search.

===============

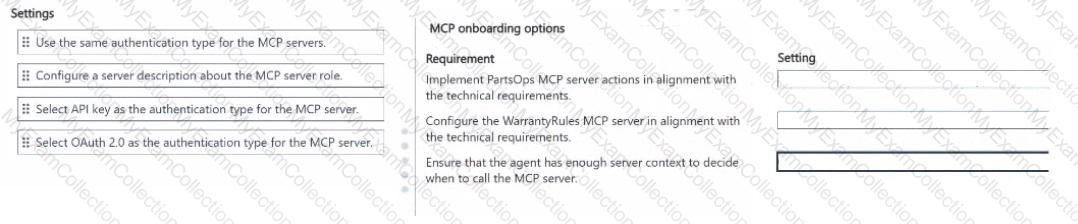

PartsOps per-user authentication → OAuth 2.0; WarrantyRules shared team credential → API key; Tool-selection context → Configure a server description that explains the MCP server ' s role.

Comprehensive and Detailed Explanation From Microsoft AB-620 Study Guide: The authentication choices must follow the identity requirements of each server. PartsOps performs attributable actions, including parts-request creation, so OAuth 2.0 is the appropriate mechanism for individual users to authorize access without sharing their credentials with the agent. That preserves user context and supports accountability for each transaction. WarrantyRules is explicitly read-only and uses a key shared by the agent team; it should therefore be configured with API-key authentication using the required header or query parameter. Applying the same authentication method to both servers would contradict the stated server designs. Authentication alone does not tell the orchestrator when a server is relevant. A concise, discriminating server description should identify PartsOps as the source for availability checks and parts-request creation and WarrantyRules as the source for warranty validation. Copilot Studio uses the names and descriptions of agents, topics, tools, and knowledge sources during generative orchestration. Accurate metadata reduces accidental calls, prevents the wrong server from handling a request, and makes the multi-agent plan more predictable during testing. Study Guide alignment: Integrate and extend agents in Copilot Studio > Add tools to agents > Configure MCP tools.

===============

Comprehensive and Detailed Explanation From Microsoft AB-620 Study Guide: A Fabric Data Agent is the capability designed for questions that must be answered from governed analytical data. Fabrikam ' s backlog, SLA-risk, parts-shortage, and dispatch-delay measures already reside behind a Fabric semantic model, so delegating these requests to the data agent preserves the business definitions, relationships, and security applied in Fabric. The result can be returned in a structured form suitable for weekly operational review rather than being estimated from general model knowledge. A Foundry agent is already assigned to summarization and classification of long-form text; it is not the authoritative source for operational KPIs. An MCP server is appropriate when the user must perform a transaction, such as creating a parts request, but the question asks for performance information rather than an update. Azure AI Search supports document retrieval for policies and procedures, not calculation over the Fabric semantic model. The primary agent ' s description for the Fabric specialist should explicitly mention the supported metrics so generative orchestration consistently delegates those requests instead of attempting an unsupported generative answer. Study Guide alignment: Integrate and extend agents in Copilot Studio > Configure multi-agent collaboration from Copilot Studio > Integrate a Fabric data agent.

===============

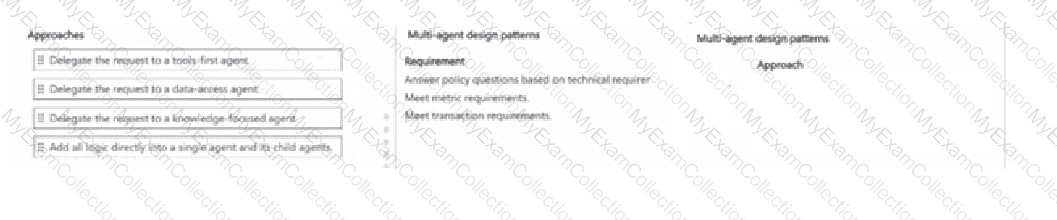

Policy questions → Delegate to a knowledge-focused agent; Metric requirements → Delegate to a data-access agent; Transaction requirements → Delegate to a tools-first agent.

Comprehensive and Detailed Explanation From Microsoft AB-620 Study Guide: The architecture should separate responsibilities according to the kind of work each specialist performs. Policy and procedure questions depend on retrieval from curated, indexed content and therefore belong with a knowledge-focused agent. Operational measures such as backlog, SLA exposure, and parts shortages require governed, current business data; a data-access specialist, represented in this case by the Fabric Data Agent, is the correct destination. Creating a parts request or changing a service-case status is different from answering a question: it is an authenticated transaction and should be delegated to a tools-first agent that can invoke approved MCP operations. Putting all three responsibilities into one agent would increase the number of competing tools and knowledge sources, weaken routing precision, and duplicate logic already owned by specialist teams. The selected pattern also matches Fabrikam ' s requirement that capabilities evolve independently. Clear names, descriptions, inputs, and outputs remain essential because generative orchestration uses that metadata to decide which connected agent to invoke. This division gives the primary agent a coordination role while each specialist retains its own knowledge, privileges, release lifecycle, and audit boundary. Study Guide alignment: Integrate and extend agents in Copilot Studio > Configure multi-agent collaboration from Copilot Studio > Design multi-agent solutions in Copilot Studio.

===============

B. Configure prompt instructions that include disclaimer text. Centralized prompt instructions apply the required disclaimer and behavioral controls consistently to generative responses. This avoids maintaining duplicate text in individual topics and reduces the risk of inconsistent compliance language. Microsoft confirms that prompt modifications can control response content, format, personality, and what the agent should or should not answer. Microsoft Learn: Prompt modification

C. Use Markdown syntax within response content. The scenario explicitly requires Markdown for formatting and states that HTML is unsupported. Markdown can provide headings, bold text, lists, and other structured presentation while remaining compatible with the target channels.

Options A and E duplicate disclaimer content across topics, creating unnecessary maintenance and inconsistent responses when the disclaimer changes. Option D violates the stated platform requirement because HTML must not be used.

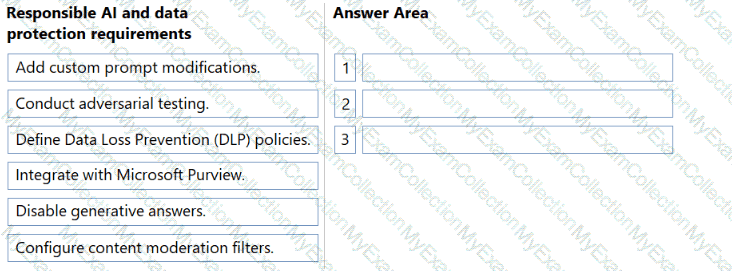

A. Configure prompt modifications at the system level. Centralized instructions enforce the required tone, disclaimers, response boundaries, and refusal behavior consistently across generative responses. Microsoft documents that prompt modification can define an agent’s personality, response format, permitted subjects, and behavior when an answer is unavailable. This avoids inconsistent manual changes across individual topics. Microsoft: Prompt modification

D. Configure Power Platform DLP policies. DLP policies govern which connectors, knowledge sources, HTTP endpoints, and channels the agent may use. They should be configured and validated before publication because a policy violation can prevent the agent from being published. DLP also protects against unauthorized data movement between business and non-business connectors. Microsoft: Data policies for agents

Why the others are incorrect: B creates duplicated, inconsistent disclaimers. C incorrectly treats moderation as a web-channel setting; moderation is configured for generative behavior rather than enforced only by embedding settings. E applies safeguards after publication and assumes filters must be configured separately for every channel, which would not provide the required centralized governance.

A. Use a Microsoft Graph connector to index the partner’s travel advisory content. Microsoft 365 Copilot connectors—formerly called Microsoft Graph connectors—index non-Microsoft enterprise content into Microsoft Graph, making it available for semantic knowledge grounding and citations. Microsoft Learn: Copilot connectors

D. Add the internal policy documents as a knowledge source. The SharePoint PDFs and policy documents should be connected as agent knowledge so generative answers can retrieve and summarize the relevant content. This is scalable and avoids manually maintaining document-specific topics. Microsoft Learn: SharePoint knowledge sources

B violates the requirement to avoid manually authored Q & A topics. C could produce ungrounded responses from unapproved public sources and would not satisfy the airline’s accuracy, security, or compliance requirements.

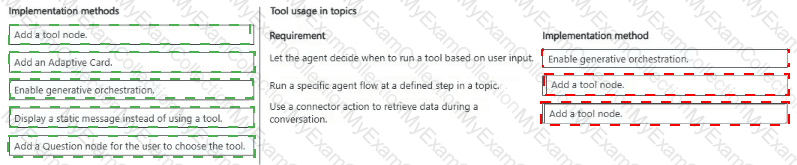

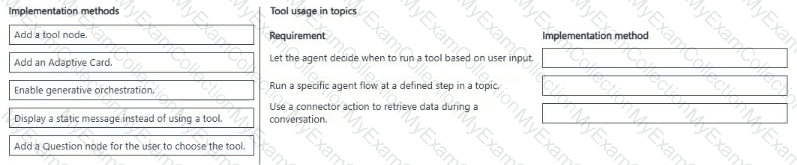

Requirement

Implementation method

Let the agent decide when to run a tool based on user input.

Enable generative orchestration.

Run a specific agent flow at a defined step in a topic.

Add a tool node.

Use a connector action to retrieve data during a conversation.

Add a tool node.

Comprehensive and Detailed Explanation From [Microsoft AB-620 Study Guide]

Generative orchestration is appropriate when the agent must independently determine whether a tool is relevant to the user’s request. Copilot Studio evaluates the user’s message, conversation context, and the tool’s name, description, inputs, and outputs before deciding whether to invoke it. Microsoft documentation confirms that generative orchestration allows an agent to choose tools based on their descriptions and the current user query.

When an operation must occur at a predetermined point in an authored topic, the operation should instead be inserted explicitly by using an Add a tool node. Selecting an agent flow from that node ensures that the flow executes at that exact position in the topic rather than being selected autonomously by the orchestrator.

The same node type is used when calling a connector action. From the topic canvas, the author selects Add a tool , chooses Connector , and then selects and configures the required connector operation. Adaptive Cards present interactive information, while Question nodes collect user input; neither directly invokes flows or connectors.

Relevant study-guide area: Plan and configure agent solutions → Configure topics → Add agent flows to a topic and Add tools to a topic . See Orchestrate agent behavior with generative AI , Add tools to custom agents , and Use connectors in Copilot Studio agents .

Comprehensive and Detailed Explanation From Microsoft AB-620 Study Guide: The approved solution preserves the reusable prompt template and changes the model configuration that actually executes it. Applying the established template retains the required tone, structure, and repeatable instruction set. Selecting an approved model in the prompt configuration ensures that prompt-driven responses are produced by a model permitted under the organization ' s governance policy. An instruction that tells the model to use an approved model cannot control the underlying runtime; model selection is a platform configuration, not a behavior the model can enforce on itself. Citations address provenance, not model approval. Azure AI Search supplies grounding data but also does not choose the foundation model. Publishing is necessary to expose completed changes to users, yet it does not automatically substitute a compliant model. The team should also test the prompt against representative inputs after changing models, because output quality, formatting adherence, latency, and token behavior can vary across models even when the prompt remains identical. Governance records should capture the selected model, prompt version, owner, and validation evidence. Study Guide alignment: Integrate and extend agents in Copilot Studio > Integrate agents with Azure > Configure custom prompts to use the Foundry model catalog.

===============

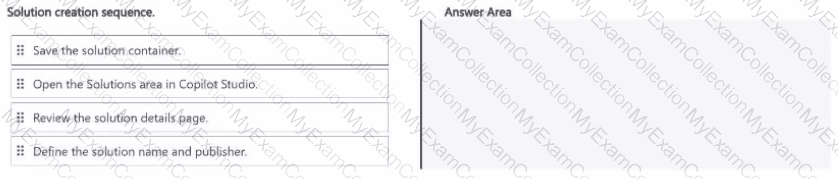

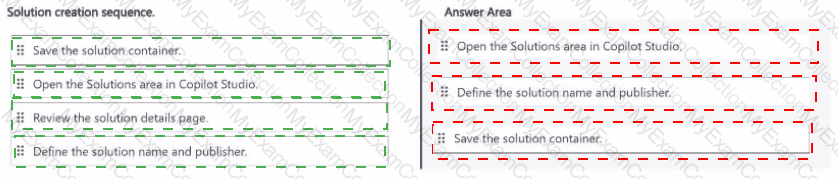

1. Open the Solutions area in Copilot Studio; 2. Define the solution name and publisher; 3. Save the solution container.

Comprehensive and Detailed Explanation From Microsoft AB-620 Study Guide: Solution creation begins in the Solutions area because that is the Copilot Studio entry point to the Power Platform solution explorer. The maker then supplies the solution name and publisher. The publisher is not cosmetic: it determines the customization prefix and forms part of the ownership and naming strategy for components that will move through ALM. Saving creates the solution container, after which agents, flows, connection references, environment-variable definitions, prompts, and other dependent assets can be added. Reviewing the solution details page can follow creation but is not one of the required creation steps in this three-action sequence. A custom solution is preferable to relying on the default solution for controlled export, source management, and pipeline deployment. Before export, the team should use dependency checks to ensure all assets required by the agent are included and should avoid including unrelated components. Downstream releases normally import a managed build of the solution, while development remains unmanaged so authorized makers can continue editing. Study Guide alignment: Test and manage agents > Implement application lifecycle management for agents in Copilot Studio > Create a solution.

===============

Comprehensive and Detailed Explanation From Microsoft AB-620 Study Guide: Retrying the failing action without an error-handling branch does not meet either stated requirement. The flow can still exhaust its retries and terminate without notifying anyone, and repeated calls may be dangerous if the external operation is not idempotent. A controlled design configures run-after conditions so a notification or handling scope executes on failure and timeout, captures an appropriate error message or correlation identifier, and then terminates or continues intentionally. Retry policy is a separate resilience choice. It can help with transient failures when the operation is safe to repeat, but it is not a substitute for handling the final failure. The number, interval, and backoff should be bounded, and non-idempotent requests should use a deduplication mechanism or disable retries. Administrators need enough diagnostic context to locate the failed run without receiving secrets or sensitive payloads. Because the proposed solution only retries, the correct assessment is No. Study Guide alignment: Plan and configure agent solutions > Create and monitor agent flows in Copilot Studio > Implement error handling in agent flows.

===============

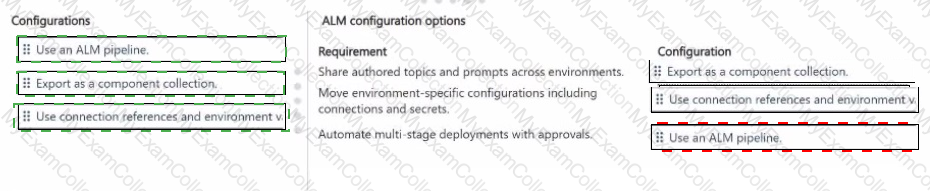

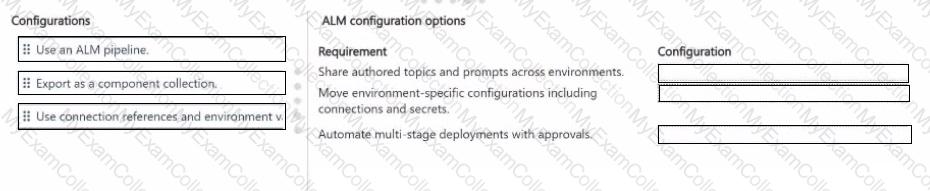

Reusable governed components → Export or package them as a component collection; Environment-specific connections and secrets → Use connection references and environment variables; Automated staged approvals → Use an ALM pipeline.

Comprehensive and Detailed Explanation From Microsoft AB-620 Study Guide: Reusable authored assets should be packaged in a governed component collection so the same topics and prompts can be promoted and consumed without uncontrolled copying. Values that differ by environment must remain outside those authored assets: connection references bind connectors in the target environment, while environment variables supply endpoints, IDs, and other configuration; secret values should use the appropriate secret mechanism. A Power Platform pipeline then moves the solution through defined stages and can impose approvals and validation before production. Hard-coding configuration would make every promotion a source edit, and copying components between agents would create divergent versions. The collection and the solution still need explicit ownership and dependency management, because a shared component update can affect multiple agents. Before each stage, validate current variable values, connections, component versions, and target permissions. After deployment, publish and run the same evaluation set in the target environment so the team verifies not only package transport but also runtime behavior under target data and identity controls. Study Guide alignment: Test and manage agents > Implement application lifecycle management for agents in Copilot Studio > Add existing agents to a solution; Create and use environment variables; Implement Power Platform Pipelines.

===============

Comprehensive and Detailed Explanation From Microsoft AB-620 Study Guide: A separate custom prompt tool that merely requests an executive-summary structure does not, by itself, guarantee that the existing generative answers node and its configured knowledge sources remain in the response path. Prompt tools have their own inputs, knowledge configuration, model settings, and completion behavior. If the tool is invoked independently, it can generate correctly formatted text without using the sources selected for the topic ' s generative answer, which violates a stated requirement. The safer design is to keep the generative answers node and apply topic-specific custom instructions or prompt modification to that node, or explicitly pass its grounded output into a downstream formatting prompt with a controlled contract. Connector security remains enforced by the underlying connections and data policies; wording in a prompt cannot override those controls. Therefore, the proposed solution is incomplete and does not meet the goal as written. Testing should confirm not only the output format but also the sources used and the identity under which any connector retrieval occurred. Study Guide alignment: Plan and configure agent solutions > Configure topics > Configure advanced agent responses with custom prompts and custom knowledge sources.

===============

Comprehensive and Detailed Explanation From [Microsoft AB-620 Study Guide]

First, create a custom solution in the development environment and add the existing agent by selecting Add existing → Agent → Agent . The solution acts as the application lifecycle management package that contains the agent and its dependent components. Required objects such as agent flows, environment variables, connection references, and custom connectors should also be included when applicable.

After the agent and its dependencies are included, export the solution from the development environment. Microsoft’s documented procedure starts from the list of unmanaged solutions and exports the solution containing the agent. During the export process, the maker can select the appropriate package type. Production deployments commonly use a managed export, but the source development solution remains unmanaged; it does not need to be converted before export.

Removing topics directly from the solution is specifically discouraged because changing or removing agent components outside the standard Copilot Studio authoring interface can cause export or import failures. Publishing the agent to a channel is also unrelated to creating a solution package. After the solution is imported into production, the imported agent must be configured, tested, and published in that environment.

Relevant study-guide area: Test and manage agents → Implement application lifecycle management for agents in Copilot Studio → Create a solution and add existing agents to a solution . See Export and import agents using solutions .

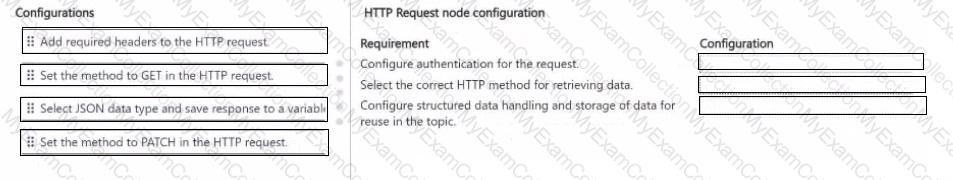

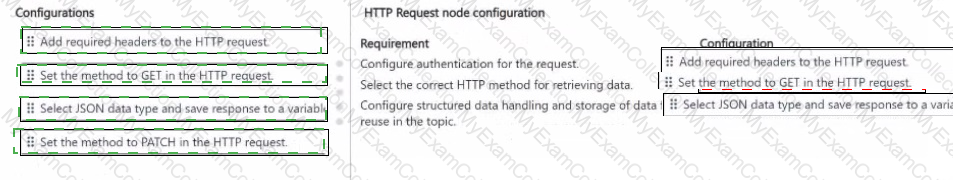

Authentication → Add the required authentication headers; Retrieve data → Set the HTTP method to GET; Structured reusable response → Select a JSON/Record response type, define the schema, and save the response to a topic variable.

Comprehensive and Detailed Explanation From Microsoft AB-620 Study Guide: The Send HTTP request node must express the API contract directly. If the service expects a token or key in a header, the required header is added using a protected variable or connection-derived value rather than hard-coded secret text. GET is the correct method for retrieving status without changing the external resource; PATCH would imply a partial update. Selecting a structured JSON or Record response type and defining its schema allows Copilot Studio to type the returned fields. Saving that response to a topic variable makes values available for conditions, formatting, adaptive cards, or later tool calls. The schema must reflect optional fields, arrays, and nested records accurately; otherwise valid responses can be rejected or fields can appear empty. The topic also needs branches for non-success status codes, timeouts, invalid JSON, and authentication failure. Where a reusable connector or REST tool already exists, that managed abstraction may be preferable to embedding HTTP details in multiple topics, but the node configuration shown is correct for the stated direct-request requirement. Study Guide alignment: Plan and configure agent solutions > Configure topics > Configure advanced agent responses with API and Send HTTP requests.

===============

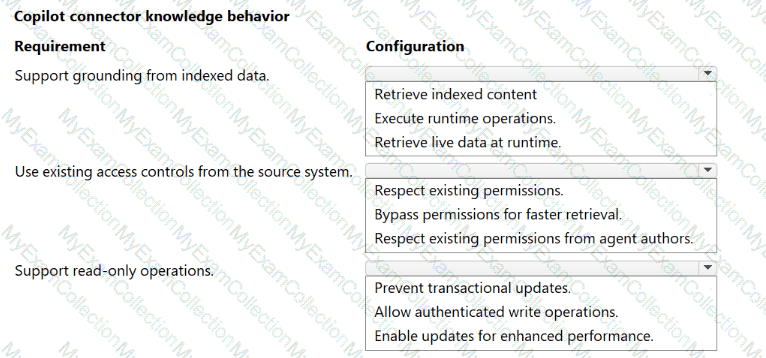

Support grounding from indexed data → Retrieve indexed content

Use existing access controls from the source system → Respect existing permissions

Support read-only operations → Prevent transactional updates

Microsoft 365 Copilot connectors index non-Microsoft enterprise content into Microsoft Graph for semantic grounding. They preserve source-level access controls so users receive only content they are authorized to access. Because the connector is configured as a knowledge source, its purpose is retrieval—not executing transactional updates. Microsoft Learn: Copilot connectors as knowledge sources
