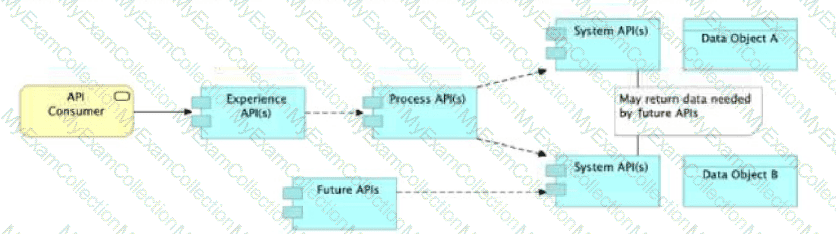

Understanding API-led Connectivity Layers:

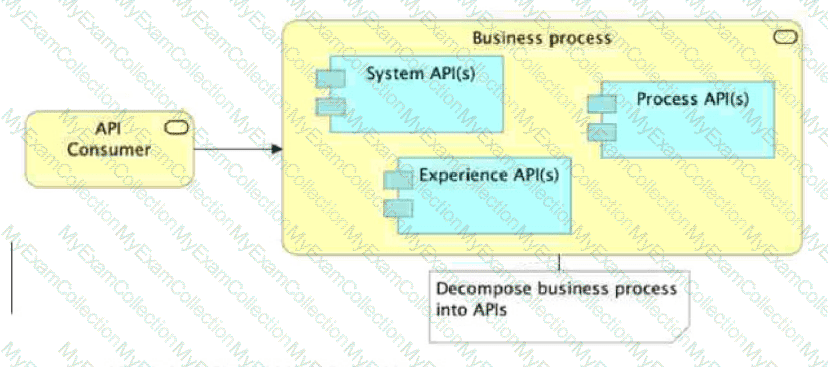

In MuleSoft’s API-led connectivity approach, APIs are categorized into three layers:

Experience Layer: This layer is responsible for providing data to the end-user applications and is often customized to meet the needs of different user interfaces.

Process Layer: This layer is used to orchestrate and combine data from multiple System APIs. It acts as a mediator and business logic layer without directly interacting with the backend systems.

System Layer: This layer provides direct access to the backend systems (e.g., databases, ERPs) and is usually focused on exposing atomic data operations.

Evaluating the Architectural Constraints:

Option A: Always using a strict tiered approach by creating exactly one API per layer is not necessarily an architectural constraint of API-led connectivity. While a layered approach is recommended, it is common to have multiple APIs in each layer as needed for different functionalities.

Option B (Correct Answer): In API-led connectivity, Process APIs are generally responsible for orchestrating calls to System APIs and should not call other Process APIs. This maintains a clear separation of concerns, ensuring that Process APIs aggregate data from System APIs only and provide it to Experience APIs.

Option C: System APIs are generally designed to provide only the necessary data to meet current business requirements. Allowing them to return extra data that is not needed by Process or Experience APIs is not a best practice, as it can lead to inefficiencies.

Option D: Customizations specific to end-user applications are typically handled at the Experience Layer rather than the Process Layer, as the Experience Layer is intended to tailor the data to fit the needs of each specific client or front-end application.

Conclusion:

Option B is the correct answer as it aligns with the API-led connectivity principles. In this architectural style, Process APIs should orchestrate System APIs but should avoid interacting with other Process APIs to keep a clear separation of responsibilities across the layers.

For additional details, refer to MuleSoft documentation on API-led connectivity best practices, particularly around the roles of each layer in API orchestration and data handling.

Understanding the API Flow and Timeout Requirement:

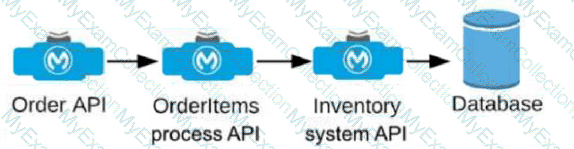

The Order API initiates a call to the OrderItems process API, which in turn calls the Inventory system API to fetch details from the inventory database.

The requirement specifies that the Order API should not wait more than two seconds for a response from the OrderItems process API, even if there are delays further down the chain (between Inventory system API and the database).

Choosing the Appropriate Timeout Location:

Setting the timeout at the OrderItems process API level ensures that if the Inventory system API takes longer than two seconds to respond, the OrderItems process API will terminate the request and send a timeout response back to the Order API. This prevents the Order API from waiting indefinitely due to the unreliable connection to the database.

If the timeout were set in the Inventory system API or database, it would not help the Order API directly, as the OrderItems process API would still be waiting for a response.

Detailed Analysis of Each Option:

Option A (Correct Answer): Setting the timeout in the OrderItems process API allows it to control how long it waits for a response from the Inventory system API. If the Inventory system API does not respond within two seconds, the OrderItems process API can terminate the call and return a timeout response to the Order API, meeting the requirement.

Option B: Setting the timeout in the Order API would not limit the wait time at the OrderItems process API level, meaning the OrderItems process API could still wait indefinitely for the Inventory system API, leading to a longer delay.

Option C: Setting the timeout in the Inventory system API only affects the connection to the database and does not influence how long the OrderItems process API waits for the Inventory system API's response.

Option D: Setting a timeout in the database is not feasible in this context since database timeouts are typically configured for database operations and would not directly control the API response times in the overall API chain.

Conclusion:

Option A is the best choice, as it ensures that the OrderItems process API does not hold the Order API longer than the required two seconds, even if the downstream connection to the database hangs. This configuration aligns with MuleSoft best practices for setting timeouts in API orchestration to manage dependencies and prevent delays across a chain of API calls.

For additional information on timeout settings, refer to MuleSoft documentation on handling timeouts and API orchestration best practices.

Explanation

Correct Answer: At the API proxy

*****************************************

>> API Policies can be enforced at two places in Mule platform.

>> One - As an Embedded Policy enforcement in the same Mule Runtime where API implementation is running.

>> Two - On an API Proxy sitting in front of the Mule Runtime where API implementation is running.

>> As the deployment scenario in the question has API Proxy involved, the policies will be enforced at the API Proxy.
