3V0-22.25 Advanced VMware Cloud Foundation 9.0 Operations Question and Answers

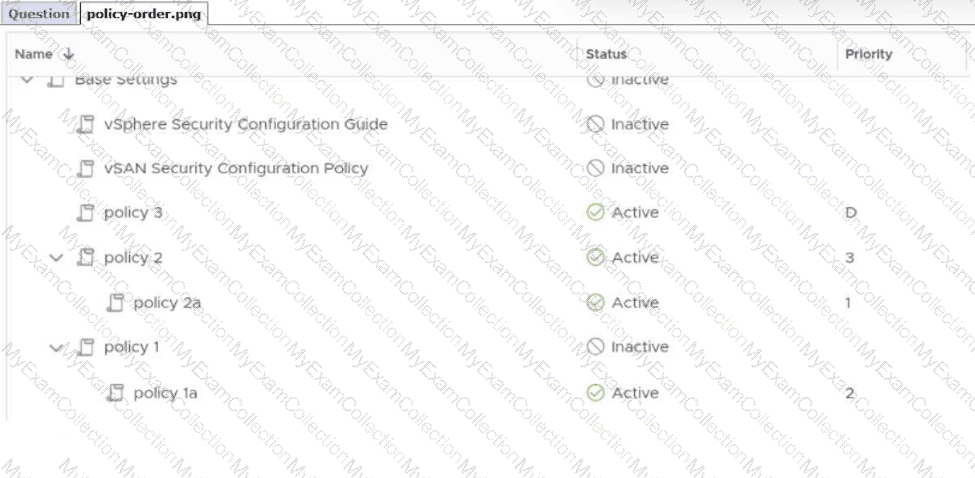

The applied policy is policy 2a because VCF Operations resolves multiple policy assignments by using active policy priority , not by custom group name, policy inheritance tree location, or alphabetical order. The exhibit shows policy 2a as active with priority 1 , policy 1a as active with priority 2 , and policy 2 as active with priority 3 . policy 1 is inactive, so it is not eligible to become the effective policy for the workload. VCF Operations documentation states that policies are applied in priority order as shown on the Active Policies tab, and that priority 1 is the highest priority. It further states that when an object is a member of multiple object groups and each group has a different policy assigned, VCF Operations associates the highest ranking policy with that object . Therefore, even though Workload-01 belongs to all four custom groups, the effective policy is the active policy with the highest rank: policy 2a . Reference topic: Objective 4.5 – Managing VCF Operations with VCF Policy / Policy Hierarchy / Policy Assignment / Active Policy Priority .

The correct administrative action is to clone the predefined dashboard and then modify the cloned copy. “Live! Heavy Hitters” is a predefined dashboard used to analyze shared infrastructure misuse and identify virtual machines with high activity against shared resources. Because it is delivered as predefined content, the supported customization pattern is not to directly edit the original dashboard, but to clone it and make changes to the copy. Broadcom’s dashboard documentation states that administrators can clone and edit predefined dashboards or create new dashboards from scratch. This preserves vendor-provided content while allowing operational teams to add site-specific widgets or metrics such as Cost | VM Cost Trend . Option A is not the best answer because changing ownership is used for ownership/sharing administration, not the preferred method for altering predefined dashboard content. Options B and C imply direct editing of the original dashboard, which is not the expected process for built-in dashboards. Option D is incorrect because exporting is used for portability or backup, not live customization. Reference topic: Objective 4.10 – Creating Custom Dashboards, Views and Reports in VCF Operations / predefined dashboards / clone and customize dashboard workflow .

The required plug-in type is Webhook Notification Plugin . Workload Placement Action-based notifications are a specific notification type used for WLP virtual machine movement tasks , not standard alert notifications. The VCF Operations documentation states that administrators can create and manage Workload Placement action-based notifications and configure actions for which notifications are sent when a WLP action succeeds, fails, or times out. It further specifies that notifications are sent after the WLP VM movement task completes, regardless of final status . Before such notification rules can be created, the administrator must configure the Webhook Notification Plugin . In the WLP Action notification workflow, the outbound method supported by default is the Webhook Notification Plugin, and the administrator selects or creates a Webhook plug-in instance before selecting the payload template . This is reinforced in the payload-template workflow, where Action appears only when Webhook Notification Plugin is selected as the outbound method; WLP Action notification payloads are configurable only for Webhook . Network Share does not support notification rules, and SNMP or Standard Email are used for alert-style notifications, not WLP Action notifications. Reference topic: Objective 4.9 – Notifications / Outbound Plugins / WLP Action-Based Notifications .

The administrator should use Edit for Specific Datacenter mode and edit the Facilities cost driver. VCF Operations cost drivers calculate private cloud cost from inventory details such as ESX hosts, datastores, VMs, configuration, and utilization, and administrators can modify data-center expenses when the default reference values do not reflect actual costs . Because the only stated variation across DC1–DC4 is power and cooling , the relevant cost category is Facilities , which covers real estate, data center buildings, power, cooling, racks, and facility management labor . The Facilities workflow specifically allows the administrator to modify power and cooling cost per kilowatt-hour or total monthly facilities cost . Since the four datacenters do not share identical power and cooling values, the administrator must select Edit for Specific Datacenter , which allows different cost-driver values for different datacenters instead of applying a single value globally . Server Hardware: Hyper-Converged is relevant for vSAN/vxRail hardware costing, but the scenario states that all monthly costs are the same except power and cooling. Reference topic: Objective 4.4 – Cost Management / Cost Drivers / Facilities Cost Driver / Specific Datacenter Edit Mode .

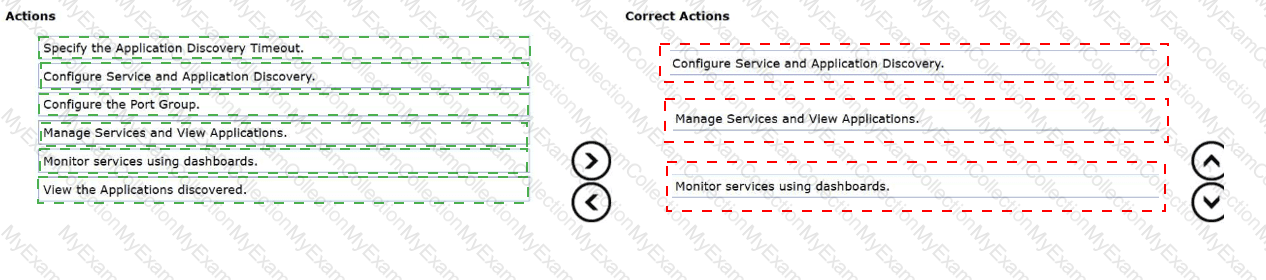

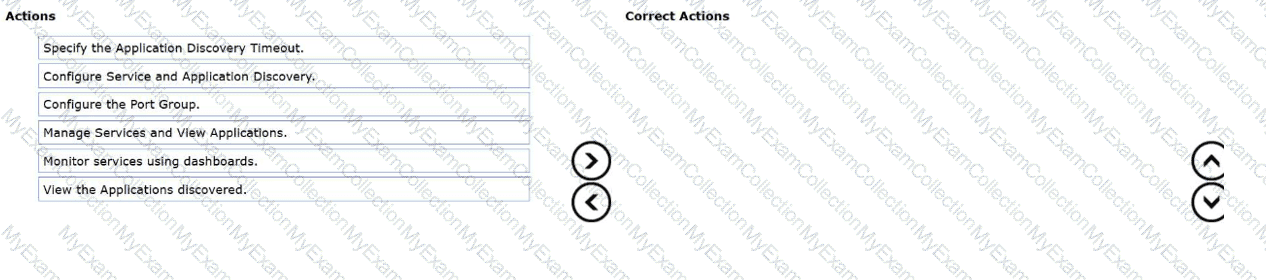

Configure Service and Application Discovery

Manage Services and View Applications

Monitor services using dashboards

The three correct actions are Configure Service and Application Discovery , Manage Services and View Applications , and Monitor services using dashboards . VCF Operations uses the Service Discovery adapter to discover services running inside virtual machines and to build service relationships or dependencies between services running on different VMs. The official workflow states that, to discover and monitor services and add and view applications, administrators should configure Service and Application Discovery, manage services and view applications, monitor services using dashboards, and view discovered services . Configuration starts from Infrastructure Operations > Configurations > Service Discovery , where the administrator enables Service Discovery and Application Discovery on the vCenter integration . Service monitoring is then managed from Workload Operations > Applications > Manage SDMP Services , where administrators can provide credentials, activate service monitoring, and view service discovery status . Applications are viewed from Workload Operations > Applications , where VCF Operations shows application resources, connected VMs, service relationships, graphs, lists, and links . Application Discovery Timeout and Port Group configuration are not required actions in this workflow. Reference topic: Objective 4.7 – Monitor Applications with VCF Operations / Service Discovery / Manage Services / View Applications / Service Discovery Dashboards .

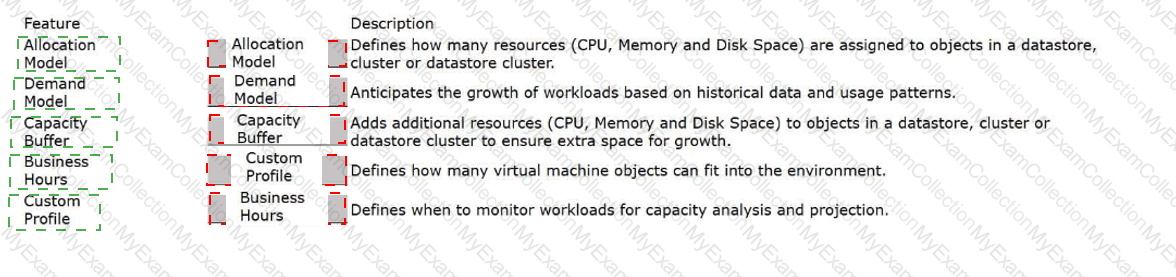

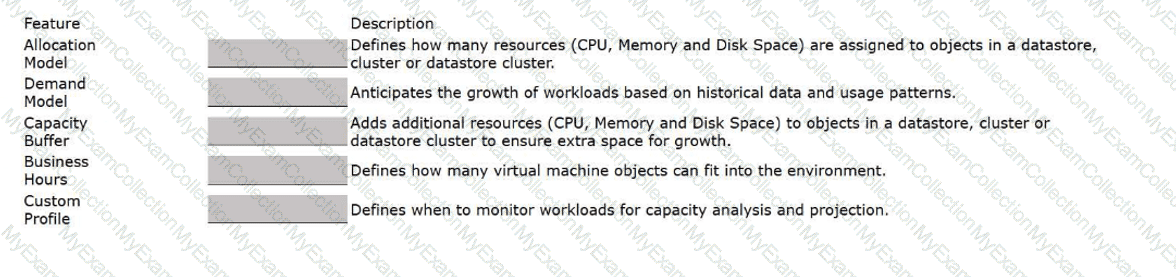

The correct mapping reflects the capacity policy elements used by VCF Operations. The Allocation Model defines how much CPU, memory, or disk space is allocated to objects such as datastores, clusters, or datastore clusters; it is activated through policy and uses overcommit ratios for capacity calculations . The Demand Model predicts future resource requirements from historical data, usage patterns, trends, and workload behavior, allowing administrators to forecast when additional CPU, memory, storage, or network capacity will be needed . The Capacity Buffer element adds extra headroom for capacity and cost calculations, reducing usable capacity by the specified buffer so the environment retains space for growth . Business Hours define the time window used for capacity analysis and projections; after business hours are configured, capacity forecasting is based on those hours rather than a full 24-hour period . A Custom Profile defines a hypothetical VM configuration and calculates how many instances of that VM can fit in the environment based on remaining capacity and parent-object configuration . Reference topic: Objective 4.2 – Manage VCF Capacity / Capacity Models, Buffers, Business Hours, and Custom Profiles .

The administrator should first locate the relevant VM compliance alert by filtering the VM’s alert list using Alert Subtype = Compliance . Compliance benchmark violations are implemented as alert definitions and symptoms, so filtering by compliance subtype narrows the alert list to the correct class of benchmark findings. After opening the alert, the administrator should inspect the alert evidence and specifically expand Alert Basis . Broadcom documents that Alert Basis shows the active symptoms or conditions that were met for the alert when Active Only is enabled, which directly identifies the symptom or symptoms that triggered the compliance violation ( TechDocs ). The Potential Evidence view is also part of the alert investigation workflow and exposes supporting evidence around the alert, including the basis used to explain why the alert fired ( TechDocs ). Related Alerts is not the correct place to identify the triggering symptom; it shows other correlated alerts. Object Type = Compliance is invalid because compliance is an alert subtype, not a VM object type. Go to Alert Definition shows the configured definition, but not necessarily which symptoms were active on that VM at trigger time. Reference topic: Objective 4.16 – Compliance Benchmarks / CIS Security Standards / Alert Basis and Triggered Symptoms .

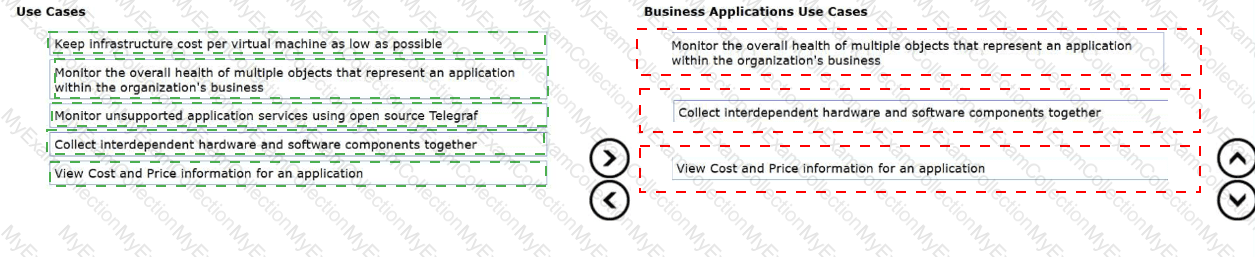

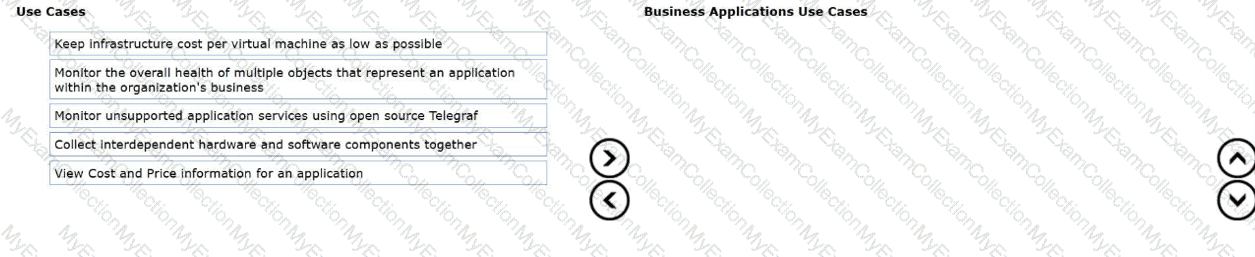

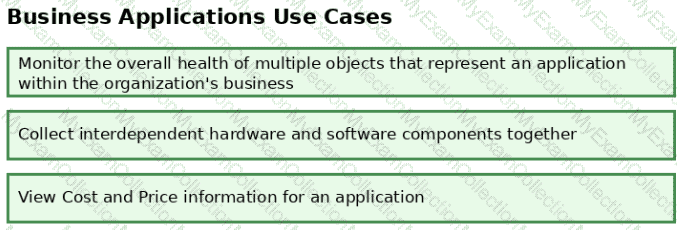

Business Applications in VCF Operations are application-centric container objects used to model and monitor the services that support the business. The documentation defines a Business Application as a set of interconnected applications, services, and hosts configured to offer a service to the organization, and also as a collection of interdependent hardware and software components that deliver a specific business capability . Therefore, monitoring the overall health of multiple objects that represent an application and collecting interdependent components together are direct use cases. The Business Applications page displays health in a sortable table, with the application health determined by the aggregated health of underlying objects . VCF Operations also states that after adding a Business Application, administrators can track object health and optimize capacity, cost, and run What-If Analysis on Business Applications . Cost and price analysis also supports container objects such as Business Apps and Custom Groups . Keeping VM cost as low as possible is a general FinOps goal, and unsupported service monitoring with open source Telegraf is an application-monitoring function, not a Business Application use case. Reference topic: Objective 4.7 – Monitor Applications with VCF Operations / Business Applications / Application Health, Cost, and Capacity .

The minimum requirements are to register VCF Operations in Connected Mode with the VCF Business Services console and activate Log Assist on a Unified Cloud Proxy . Log Assist is designed to generate support bundles, link them to Broadcom support cases, and attach diagnostic findings for troubleshooting. The official VCF 9.0 guidance states that before using Log Assist, the environment must be in Connected Mode , Log Assist must be activated on a unified collector, and inventory objects must be assigned to Log Assist . The setup workflow specifically instructs the administrator to go to License Management > Registration and register licenses in Connected Mode, then go to Administration > Control Panel > Cloud Proxies , select the collector, and choose Activate Log Assist . Log Assist uses the unified collector to collect and upload support bundles to the Broadcom Support Portal; legacy or Classic collectors do not support this capability . Disconnected mode cannot satisfy automatic support upload. Enabling vCenter log collection is a separate logging function and is not the minimum requirement for Log Assist. Reference topic: Objective 4.9 – Log Assist / Unified Collector / Connected Licensing / Support Case Uploads .

The required action is to perform an inventory sync . In VCF Operations Fleet Management, vertical scale-up depends on current inventory data from the managed component. The scale workflow first validates that the Fleet Management appliance has an accurate view of the VCF Operations cluster, including node inventory and placement information. The documented vertical scale-up workflow states that after selecting Fleet Management > Lifecycle > Components , choosing the component, and selecting Vertical Scale Up , the administrator must acknowledge the downtime warning and click Trigger Inventory Sync to synchronize the VCF Operations Fleet Management appliance with the latest data from the cluster. After the inventory sync completes successfully, the administrator can click Proceed and continue selecting nodes and target scale-up sizing . Mandatory snapshots are not the corrective action for stale inventory. Taking the cluster offline is not the manual remediation for the “Needs Attention” inventory condition, although nodes are restarted during the scale operation. Scaling Cloud Proxies is unrelated to vertically increasing VCF Operations management-node resources. Reference topic: Objective 4.14 – Complete Fleet Management activities in VCF Operations / scaling VCF Fleet Management Lifecycle / vertical scale up for VCF Operations .

The correct troubleshooting sources are the Request Log , the Management Pack Builder Adapter log , and the Integration Designer Controller log . Management Pack Builder troubleshooting is centered on validating the API requests, collection execution, adapter behavior, and server-side design processing. The VCF 9.0 documentation states that every test request or test collection in Management Pack Builder exposes request tabs showing the body, headers, and logs; these are used to diagnose response-code errors and request/response issues . For collection problems after installation, the administrator should review Management Pack Builder Adapter logs , located under $VCOPS_BASE/user/log/adapters/MPBAdapter on the selected node or cloud proxy, because these logs show adapter-side warnings and errors during collection . If the issue appears to be with Management Pack Builder itself, the official guidance identifies /usr/lib/vmware-vcops/user/log/integration-designer-controller.log as the server-side log to review . The Design Screen is used to build and verify definitions, but it is not one of the listed troubleshooting data sources. Observability Workbench is for infrastructure troubleshooting, not Management Pack Builder design diagnostics. Reference topic: Objective 4.8 – Management Pack Builder / Troubleshooting a Design .

CL-01 is using both Demand and Allocation capacity models. The Demand model is shown by GHz and physical memory capacity remaining, while the Allocation model is shown by allocated capacity values such as vCPUs and expanded memory capacity. VCF Operations states that the Allocation model is enabled in policy by setting overcommit ratios for Cluster Compute Resource CPU, memory, and disk space, and that the Capacity tab displays Demand by default and Allocation values when configured . CL-01 has 60 physical cores. It reports 300 vCPUs as the allocation basis, so the CPU allocation ratio is 300 ÷ 60 = 5:1 , not 4:1. This aligns with the documented allocation calculation where the vCPU count is derived from physical cores multiplied by the overcommit ratio . CL-01’s most constrained resource is CPU Allocation because only 30% of vCPU capacity remains, compared with 80% GHz remaining and 80% memory remaining. CL-02 shows only GHz and physical memory values, with no vCPU or allocation-expanded memory values, so the Allocation model is not enabled for CL-02. Reference topic: Objective 4.2 – Capacity Models / Allocation vs Demand / Overcommit Ratios / Capacity Remaining .

The correct recovery method is to log in to the VCF Operations primary/master node console as root and reset the local administrator password using the CLI reset utility. Broadcom documents a dedicated procedure titled Reset the VCF Operations Administrator Password from CLI , and the guidance applies when the admin account password is lost. ( TechDocs ) The VMware Aria Operations administrator password reset workflow also identifies the vcopsSetAdminPassword.py --reset command as the reset mechanism when performed from the appliance command line as root. ( TechDocs ) This is different from a normal password rotation workflow. Fleet Management password management is used for managed component credentials, but it does not replace the break-glass local admin reset procedure when the administrator password is unknown. AD administrator access also does not reset the built-in local VCF Operations admin account unless that account is already accessible through supported administration workflows. Reference topic: Objective 4.14 – Fleet Management / Password Management / Reset VCF Operations Administrator Password from CLI .

The administrator must configure a Webhook Notification plug-in. Action-based notifications in VCF Operations are tied to Workload Placement actions, where the notification is sent when a workload-placement action succeeds, fails, or times out. Broadcom’s documentation for creating notification rules for notification type Action identifies this workflow as Workload Placement action-based notification. ( TechDocs ) For outbound delivery, the required plug-in type is the Webhook Notification plug-in, which is the supported outbound mechanism for sending action notification payloads to an external endpoint. Broadcom’s outbound plug-in documentation describes adding a Webhook Notification plug-in instance so alert or event data can be sent outside the operations platform. ( TechDocs ) A Log File plug-in is not used for action-based notification delivery. “SMTP Trap” is not the correct VCF Operations outbound plug-in type; email uses Standard Email, and trap delivery would be SNMP-oriented. Standard Email is valid for alert-style notification workflows, but WLP action-based notification requires Webhook. Reference topic: Objective 4.9 – Notifications / Outbound Plugins / WLP Action-Based Notifications / Webhook Notification Plugin .

The next required step is to download and run the helper script from the cloud proxy, then restart Telegraf . Installing Telegraf and defining OS or application input plug-ins is only part of the configuration. To send data to VCF Operations, Telegraf must also be configured with the correct output plug-in that targets the VCF Operations cloud proxy. The documentation states that after installing open source Telegraf, the administrator must run the helper script to configure Telegraf to send data to the cloud proxy. Running the helper script creates the cloudproxy-http.conf file and adds the output plug-in properties required for sending data; it also updates input plug-ins for OS metrics . The same workflow then requires the Telegraf service to be started or restarted so the new configuration is loaded . Direct communication to the VCF Operations load balancer is not the collection path; Telegraf sends to the cloud proxy or collector group. Operator rights do not control the Telegraf service runtime, and rebooting cloud proxies is unnecessary. Reference topic: Objective 4.7 – Managed/Open Source Telegraf / OS and Application Monitoring / Cloud Proxy Output Configuration .
