3V0-21.23 VMware vSphere 8.x Advanced Design Question and Answers

For NIC Teaming, all NICs in the same port group must be in the same layer 2 broadcast domain.

This is a key consideration for NIC teaming. All NICs in a team must be in the same Layer 2 broadcast domain to ensure that traffic is properly routed and that the NIC team can work as expected within the vSphere environment. This is necessary for network redundancy and communication consistency.

To increase availability, the NICs within a NIC team should be from different physical NIC Cards.

To eliminate single points of failure, NICs within the same NIC team should be sourced from different physical NIC cards. This way, if one physical NIC card fails, the other NICs in the team will still be able to handle network traffic, ensuring availability.

NIC Teaming requires a minimum of two physical network connections.

NIC Teaming relies on having at least two physical NICs for redundancy and load balancing. This is a basic requirement to prevent single points of failure in network connectivity. With only one NIC, there would be no fault tolerance.

Separate clusters in DC1 and DC2 provide logical isolation between the two data centers. This means that an accidental change or misconfiguration in one cluster (e.g., DC1) will not affect the other cluster (e.g., DC2). This isolation meets the customer's requirement to limit the impact radius of accidental changes by administrators. By having separate clusters, the risk of cross-site or cross-cluster disruptions is minimized, ensuring better fault tolerance and administrative control.

Based on VMware vSphere 8.x Advanced documentation and the customer requirements, the architect is designing a greenfield vSphere-based solution for a highly transactional web application hosted across multiple workloads in a vSphere cluster. The workloads must be distributed evenly across hosts to maximize performance and availability, and the solution will use vSphere Distributed Switches (vDS) for virtual networking. The architect must select a network load balancing method for the physical design that aligns with these requirements.

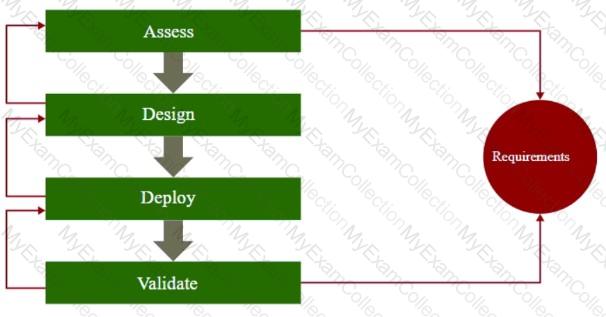

Requirements Analysis:

Highly transactional web application: The application requires high network performance and low latency, as transactional workloads are sensitive to network bottlenecks.

Workloads spread across multiple workloads in a vSphere cluster: The application runs on multiple VMs, implying a need for balanced resource utilization across hosts.

Workloads distributed evenly across hosts: This suggests the use of vSphere features like Distributed Resource Scheduler (DRS) for compute load balancing and a network load balancing method to ensure even distribution of network traffic across NICs.

Maximize performance and availability: The network design must avoid bottlenecks, ensure redundancy, and dynamically adapt to traffic demands to maintain application performance and uptime.

vSphere Distributed Switches: vDS provides advanced networking features like Network I/O Control (NIOC), Link Aggregation Control Protocol (LACP), and dynamic load balancing, which are critical for meeting performance and availability goals.

Evaluation of Network Load Balancing Methods:

The load balancing method determines how traffic from VMs is distributed across the physical NICs (uplinks) in a vDS. The options are:

A. Route Based on IP Hash:

Description: Distributes traffic based on a hash of the source and destination IP addresses, requiring Link Aggregation Control Protocol (LACP) or EtherChannel configuration on the physical switch.

Why incorrect: While IP Hash can distribute traffic across NICs, it requires complex switch configuration and is less effective for dynamic load balancing in a highly transactional environment. It does not adapt to real-time NIC load, which could lead to uneven traffic distribution and potential bottlenecks, failing to maximize performance. It also increases complexity without clear benefits for this use case.

B. Route Based on Physical NIC Load:

Description: Also known as Load-Based Teaming (LBT), this method dynamically balances traffic across uplinks based on the actual load of each physical NIC, reassigning VM traffic if a NIC becomes congested (e.g., exceeds 75% utilization over a 30-second window).

Why correct: LBT is ideal for a highly transactional web application, as it ensures even distribution of network traffic across NICs, maximizing performance by preventing any single NIC from becoming a bottleneck. It supports availability by leveraging multiple NICs for redundancy and dynamically adapting to traffic patterns, aligning with the requirement to distribute workloads evenly. LBT works seamlessly with vDS and does not require complex switch configurations, making it suitable for a greenfield design. Combined with features like NIOC, it ensures optimal network resource utilization for the application.

VMware vSphere 8 networking documentation recommends Route Based on Physical NIC Load for dynamic load balancing in performance-sensitive environments.

C. Route Based on Originating Virtual Port:

Description: Assigns each VM’s traffic to a physical NIC based on the VM’s virtual port ID on the vDS, distributing traffic statically across uplinks.

Why incorrect: This method is simple and requires no switch configuration, but it does not account for actual NIC load, potentially leading to uneven traffic distribution if some VMs (e.g., transactional workloads) generate more traffic than others. It fails to maximize performance for a highly transactional application, as it cannot dynamically adapt to traffic spikes or ensure even NIC utilization.

D. Route Based on Source MAC Hash:

Description: Distributes traffic based on a hash of the VM’s source MAC address, statically assigning traffic to uplinks.

Why incorrect: Similar to Originating Virtual Port, this method is static and does not consider real-time NIC load, risking uneven traffic distribution and potential bottlenecks. It is less effective for a highly transactional application where dynamic load balancing is needed to ensure performance and availability.

Why B is the Best Choice:

Performance optimization: Route Based on Physical NIC Load dynamically balances traffic based on NIC utilization, ensuring no single NIC is overwhelmed, which is critical for a highly transactional web application with variable traffic patterns.

Even distribution: By monitoring and redistributing traffic, LBT aligns with the requirement to distribute workloads evenly across hosts, complementing DRS for compute resources with balanced network utilization.

Availability: LBT leverages multiple NICs for redundancy, ensuring traffic failover if a NIC fails, supporting the high availability needs of the application.

vDS compatibility: LBT is fully supported on vDS and integrates with features like NIOC to prioritize application traffic, enhancing performance and resilience.

Simplicity: Unlike IP Hash, LBT requires no complex switch configuration, making it ideal for a greenfield design.

Example Configuration:

vDS Setup: Configure a vDS with multiple uplink port groups for management, vMotion, and workload traffic (web application VMs).

Load Balancing: Set Route Based on Physical NIC Load for the workload port group to dynamically balance the application’s transactional traffic across available NICs (e.g., 2–4 x 10 GbE NICs per host).

NIOC: Use Network I/O Control to prioritize web application traffic over other traffic types (e.g., vMotion) during contention.

Redundancy: Ensure at least two NICs per port group for failover, aligning with availability requirements.

This is a business requirement because it aligns with corporate sustainability goals, focusing on reducing environmental impact. It is a high-level goal that can drive design decisions but is not directly related to the technical function or features of the system.

Use an active-active array for Fibre Channel storage-based VMFS datastores

An active-active array provides redundancy and load balancing by allowing multiple paths to be active at the same time, ensuring better performance and fault tolerance. This supports the requirement for redundancy and no single point of failure by ensuring that storage traffic can be distributed across multiple paths to different storage controllers.

Configure a minimum of two paths to every LUN or datastore

Having multiple paths to every LUN or datastore is essential for ensuring redundancy in the storage path. In case one path fails, the system can continue to function by using the other path, meeting the requirement for tolerance to at least one failure.

Configure a minimum of four paths to every LUN or datastore

Configuring four paths further increases redundancy, ensuring that the storage system can tolerate multiple path failures while still maintaining access to the LUN or datastore. This improves load balancing and provides greater fault tolerance.

The solution will deploy VMware vSphere Enterprise Plus on all hosts within the cluster.

VMware vSphere Enterprise Plus offers advanced networking and storage features that will support the required high availability, performance, and management capabilities. Features such as Distributed Switches and Network I/O Control (NIOC) are critical to meeting the business-critical application and performance requirements for the latency-sensitive stock trading application.

The solution will deploy a single vSphere Distributed Switch with each host connected to it.

A vSphere Distributed Switch (VDS) is ideal for managing network configurations centrally across multiple hosts, which meets the requirement for centralized vSphere operational management. It also ensures consistent network configurations and simplifies network management at scale.

The solution will configure Network I/O control to ensure that system-level bandwidth does not impact workload network traffic.

Network I/O Control (NIOC) is essential for prioritizing network traffic, ensuring that latency-sensitive workloads are not impacted by other system-level or less critical traffic. This is crucial for the performance requirements of the stock trading application.

Six 10TB VMFS datastores will be configured on each site for all production workloads.

This choice is based on the need to distribute production workloads across multiple datastores while ensuring that each datastore is large enough to accommodate the space required by the workloads. Given the average sizes of the virtual machines and the growth and snapshot overhead, six 10TB VMFSdatastores would be appropriate for production workloads, ensuring scalability while minimizing the number of LUNs.

Each 10TB LUN will be configured as a VMFS datastore.

VMFS (Virtual Machine File System) is the standard choice for vSphere environments when using Fibre Channel LUNs. It provides the necessary features, such as concurrency and high-performance access, for production workloads. This option is appropriate given that the storage array uses Fibre Channel for connection and VMFS is the standard file system for such configurations.

Two 10TB VMFS datastores will be configured on each site for all DMZ workloads.

The DMZ workloads are smaller in number and storage requirements compared to the production workloads, so configuring two 10TB VMFS datastores for DMZ workloads will provide enough capacity while maintaining logical isolation. This approach also minimizes the number of LUNs required to meet the storage growth needs.

The database must be backed up every day during the maintenance window of 1:00AM and 3:00AM.

This is a logical design requirement because it specifies the timing for the backup operations. It's important to define backup schedules to align with the maintenance window, ensuring minimal disruption to production workloads.

The database will be backed up using an API-based backup solution.

This is a logical design decision that specifies the method of backup. Using an API-based backup solution is a modern, efficient way to ensure consistent and application-aware backups of databases.

The customer is requesting that the solution meet security requirements, specifically around handling sensitive information (such as credit card data). The need to mask or hash stored information for compliance with industry standards (e.g., PCI-DSS) is a security-focused design requirement. This ensures that sensitive data is protected and compliant with regulations, making security the primary design quality being requested.

Given that VMware Tools 11 or higher is installed on all virtual machines and VMware PowerCLI is available in the environment, the architect can leverage PowerCLI to interact with VMware Tools and collect information about active services running inside the virtual machines.

VMware PowerCLI allows you to query virtual machines for information about their services by accessing the guest operating system, provided VMware Tools is installed and running. You can use PowerCLI cmdlets to retrieve service data, such as which services are running on the VM, their statuses, and other details necessary for planning the migration.

This option is cost-effective since there is no budget available for additional discovery tooling, and it aligns well with the existing tools and infrastructure already in place.

A business outcome refers to a result or impact that directly contributes to the strategic goals of the organization, typically focusing on long-term objectives or future benefits. In this case, building a strong foundation for future projects, including cloud infrastructures, aligns with the business goal of positioning the organization for future success and scalability. This outcome is about preparing the organization for the future, which is a key business-driven result.

Strict Lockdown Mode is the correct choice because it restricts all access to the ESXi host directly, ensuring that configuration can only be performed through VMware vCenter. This is in line with the requirement that configuration can only be done via vCenter.

Strict Lockdown Mode disables the Direct Console User Interface (DCUI) and SSH services, which aligns with the customer's requirement to have these services disabled for security purposes.

To physically separate the NSX host overlay network traffic from other management network flows, the architect should use multiple physical adapters. This approach allows for the segmentation of different types of network traffic by assigning them to separate physical adapters, ensuring that the overlay network traffic used by NSX does not interfere with management traffic. This helps in maintaining optimal performance and security by isolating these network types at the physical level.

Enable vSphere with Tanzu on a cluster deployed at a remote location.

VMware Cloud Foundation remote clusters can be deployed to extend the functionality of vSphere with Tanzu to remote locations. This allows for containerized workloads to be managed and orchestrated using the same tools as the primary environment, providing consistent management of Tanzu clusters across multiple sites.

Provide resources for virtual machines at an edge location.

Remote clusters can be deployed at edge locations to provide computing resources for workloads that need to run close to the data source. This use case is particularly useful for applications that require low latency or need to process data locally before sending it to the central cloud infrastructure.

To support the business goal of automated, centralized, and efficient management of the data center, joining all vCenter instances to a single vCenter Single Sign-On (SSO) domain helps in streamlining management and improving security. By centralizing authentication and enabling single sign-on, the organization can achieve a more efficient and consistent management experience across the entire data center. This eliminates the need to manage multiple authentication systems, allowing for better integration, automation, and centralized control over all vCenter instances.

Performance refers to the system’s ability to meet the required service levels under various conditions, including handling spikes in memory demand. In this case, the architect is ensuring that the cluster can handle memory spikes of up to 20% without contention, which is a key performance requirement to ensure that the workloads run optimally during peak business hours.

The ability to accommodate these memory demands without impacting performance directly aligns with ensuring that the system performs as expected under peak load conditions.

VMware Cloud Foundation is an integrated solution that provides a standardized, repeatable, and consistent architecture for deploying and managing a vSphere-based environment. It is designed to run on heterogeneous hardware across on-premises, edge, and hybrid cloud environments. VMware Cloud Foundation integrates compute, storage, and networking in a single solution, making it ideal for environments that span multiple locations, including edge and hybrid cloud ecosystems.

VMware Cloud Foundation includes intrinsic and intelligent security features across the entire stack - from the hypervisor to storage, networking, and management layers, which aligns with the customer's security requirements.

The solution will ensure that all VMware ESXi hosts within a site have access to the local VMFS datastore containing the shared VMware Tools repository.

This decision ensures that each site has local access to the VMware Tools repository, which minimizes traffic across the low-bandwidth, high-latency inter-site link. By keeping the repository within each site, the local ESXi hosts can access the repository without needing to traverse the inter-site link frequently.

The solution will set the UserVars.ProductLockerLocation advanced system setting on each VMware ESXi host to point to the local site shared repository.

This ensures that each ESXi host points to the local site repository for VMware Tools. This approach minimizes inter-site traffic by ensuring that all updates and patches are performed using local resources, avoiding the need to transfer VMware Tools files over the low-bandwidth, high-latency connection.

The solution will create a shared repository on a VMFS datastore within each site that contains all approved versions of VMware Tools.

This decision ensures that both sites have a local copy of the approved VMware Tools versions, in line with REQ001, which mandates that only IT Security Team-approved versions of VMware Tools should be installed. Additionally, it minimizes inter-site traffic, as both sites will use their local repositories.
