220-1201 CompTIA A+ Core 1 Exam (2026) Question and Answers

When both charging and dock-connected peripherals fail at the same time, the problem is most likely with the dock itself or its internal controller circuitry rather than the laptop’s operating system or a single peripheral device. The technician has already verified key prerequisites: the dock has power, the laptop ports show no physical damage, and system firmware (BIOS/UEFI) is current. Those checks reduce the likelihood of a simple firmware incompatibility or a damaged laptop connector.

In CompTIA A+ troubleshooting methodology, the next step is to substitute with a known-good component to isolate the fault quickly. Replacing (or testing with) another dock confirms whether the original docking station has failed. If the replacement dock restores charging and peripherals immediately, the root cause is confirmed without unnecessary invasive actions.

Switching the power supply could be a valid step if power was questionable, but the prompt states the dock already has power and still provides no function—pointing to dock failure. Reinstalling the OS is excessive and unlikely because charging through a dock is not primarily OS-dependent. Rolling back BIOS updates is also not indicated because the issue persists despite current firmware and there is no evidence the BIOS update caused it.

The technician will configure the MX record on a DNS server. An MX, or Mail Exchange, record is a DNS resource record that identifies the mail server responsible for accepting email for a particular domain. It can also include a priority value so that sending systems know which mail server to contact first when multiple servers are available. Although the record points to a mail server, it is created and maintained within the domain’s DNS zone rather than directly on the mail server. A proxy server intermediates network requests and is unrelated to DNS email-routing records. A print server manages printers and print queues and has no role in email delivery. Therefore, the DNS management interface or authoritative DNS server for the domain is where the technician must create or modify the MX record.

If a desktopfails to power on entirely, the most probable cause is afaulty Power Supply Unit (PSU). If there are no lights, fans, or POST beeps, the PSU may have failed, cutting off all power to the motherboard and components.

Option B (GPU):Could prevent video output, but the system would still power on and beep.

Option C (RAM):Missing or faulty RAM would cause POST errors but not prevent startup entirely.

Option D (CPU):A bad CPU may cause POST failure, but the system would usually at least power on.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.5: Given a scenario, troubleshoot problems related to motherboards, RAM, CPU, and power.

===========

Cellular networks offer broad coverage in rural or less populated areas where laying fiber, cable, or DSL lines may not be feasible or cost-effective. Cellular broadband (4G LTE/5G) provides fast speeds using existing mobile network infrastructure.

From CompTIA A+ 220-1101 Official Study Guide, Objective 2.7 – Compare and contrast Internet connection types:

" Cellular connections offer high speed and extensive coverage, especially in areas where other wired infrastructure may not exist or be practical. "

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 2: Internet Connections

CompTIA Exam Objectives 220-1101, Domain 2.7

============

Single-mode fiber (as well as multi-mode fiber) transmits data using beams of light, allowing for high-speed data transfer over flexible fiber-optic cables.

From CompTIA A+ 220-1101 Official Study Guide, Objective 2.1 – Networking media:

“Fiber optic cables transmit data using light. Single-mode fiber is used for long-distance, high-speed communication.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 2: Networking Media

CompTIA Exam Objectives 220-1101, Domain 2.1

============

The correct answer is WAN (Wide Area Network). According to CompTIA Core 1 (220-1201) networking fundamentals, a WAN is used to connect devices or networks over large geographic areas, typically through an Internet Service Provider (ISP). A WISP (Wireless Internet Service Provider) delivers internet connectivity wirelessly over long distances, which clearly falls under WAN technology.

In this scenario, the technician connects a WISP modem to a portable router to provide Ethernet connectivity to a laptop. The WISP modem represents the WAN link, as it connects the local device to an external network (the internet) managed by the service provider. The portable router then distributes that WAN connection locally via Ethernet.

A SAN (Storage Area Network) is used for high-speed storage communication between servers and storage devices and is unrelated to internet connectivity. A PAN (Personal Area Network) is limited to very short-range connections, such as Bluetooth between personal devices. A MAN (Metropolitan Area Network) covers a city or campus-scale area and is not applicable to a single modem-to-router setup.

CompTIA emphasizes identifying network types based on scope and provider involvement. Since a WISP connection extends beyond the local environment and connects to an ISP, it is classified as a WAN.

Comprehensive and Detailed Explanation

CompTIA troubleshooting procedures emphasize confirming input source settings on the external display device.

Even if the HDMI cable is connected properly:

The projector must be set to the correct input source (HDMI 1, HDMI 2, etc.).

If the source is incorrect, the laptop will not display, even though the laptop output is functioning normally.

Since the projector is powered on, and the laptop is already set to “Duplicate,” and cables are good, the most likely cause is:

✔ The projector is set to the wrong input source.

This is a common real-world issue covered under " video and projector troubleshooting. "

Why the other answers are incorrect

A. Projector may support HDMI; this is not the “most likely.”

B. “Extend” is not required — “Duplicate” works for projectors.

C. A failed HDMI port is possible but not the most likely scenario.

Final Answer: D

A Lightning cable provides the best connectivity performance when you want strong, stable connectivity while keeping required accessories to a minimum. In a mobile troubleshooting and connectivity context, this refers to USB tethering from an iPhone to another device (such as a laptop). Wired tethering typically offers higher throughput, lower latency, and better stability than wireless tethering methods because it avoids Wi-Fi interference, signal loss, and radio congestion. It also reduces configuration variables—once the cable is connected and tethering is enabled, the connection is generally consistent and less prone to dropouts than wireless options.

A hotspot can provide good performance, but it relies on Wi-Fi and is more susceptible to interference and distance, and it also increases battery drain. Bluetooth tethering works with minimal setup but is usually the slowest option and is best suited for low-bandwidth needs. NFC is used for short-range pairing or tap-to-connect actions and does not provide an internet data connection by itself. Therefore, the best option for performance with limited accessories is using a Lightning cable.

2.4GHz Wi-Fi signals have better penetration through walls and other obstacles compared to 5GHz and 6GHz. Lower frequency waves (like 2.4GHz) travel farther and are less absorbed by physical barriers.

From the CompTIA A+ 220-1101 Official Study Guide, Objective 2.5 – Compare and contrast wireless networking protocols:

“The 2.4GHz frequency band offers greater range and better penetration through walls and obstacles than higher frequencies like 5GHz and 6GHz. Higher frequencies provide faster speeds but are more easily absorbed by walls.”

NFC (Near Field Communication) is not a Wi-Fi technology and works only over very short distances (a few centimeters).

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 2: Wireless Networking

CompTIA Exam Objectives 220-1101, Domain 2.5

============

Printers in SOHO environments must maintain a consistent IP address so devices can regularly locate them for scanning and printing tasks. CompTIA A+ emphasizes assigning static IPs to network printers to prevent address changes that occur with DHCP.

Laptops can remain DHCP clients because their address consistency is less critical. APIPA cannot communicate across networks and therefore should not be used. Assigning public IPs is incorrect and unsafe.

By giving the printer a static IP within the same subnet, all laptops can reliably access it, and the network remains organized and functional exactly as the A+ objectives recommend.

NFC (Near-Field Communication) is a subset of RFID technology designed for very short-range wireless communication, typically within a few centimeters. It is primarily used for contactless transactions, like mobile payments, and can also support peer-to-peer data exchanges. NFC operates at 13.56 MHz and enables devices to communicate when placed near each other.

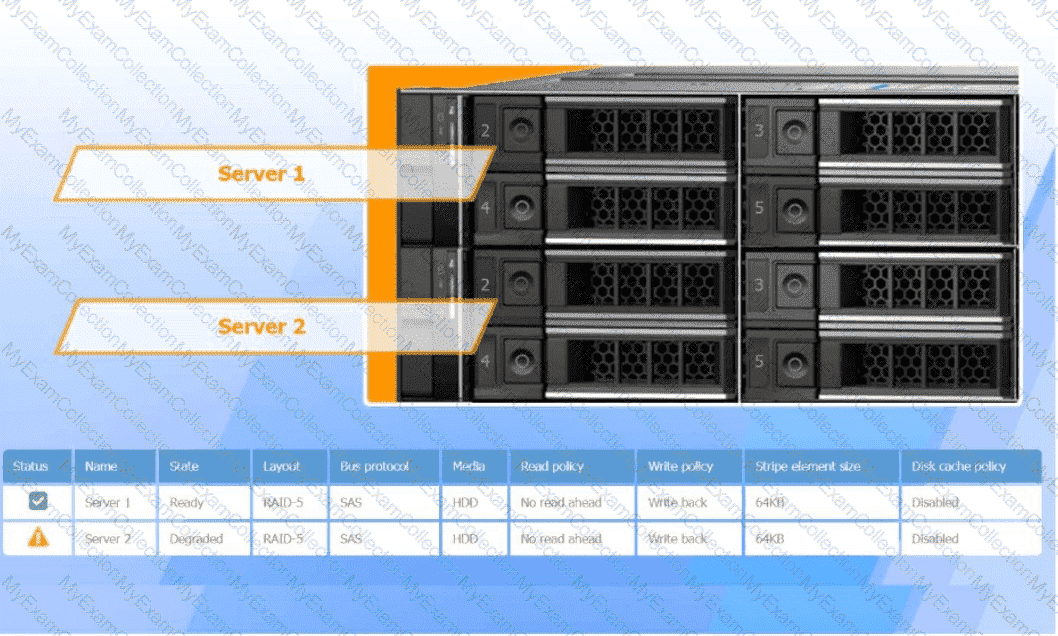

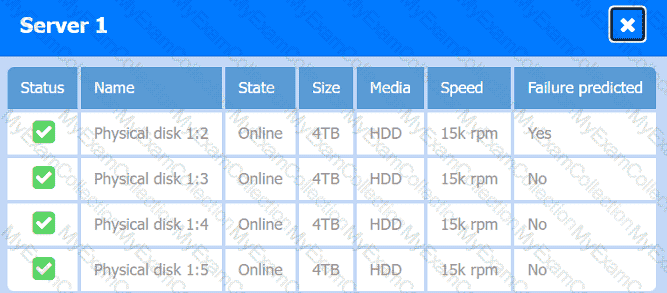

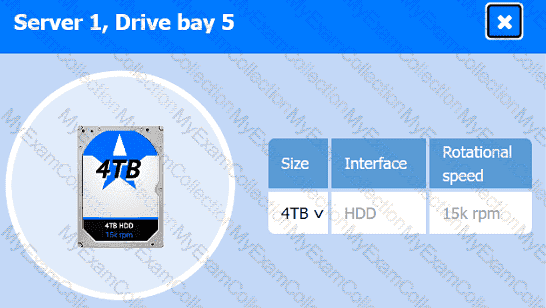

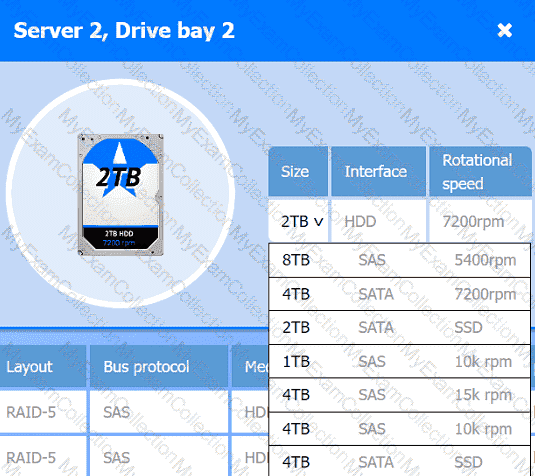

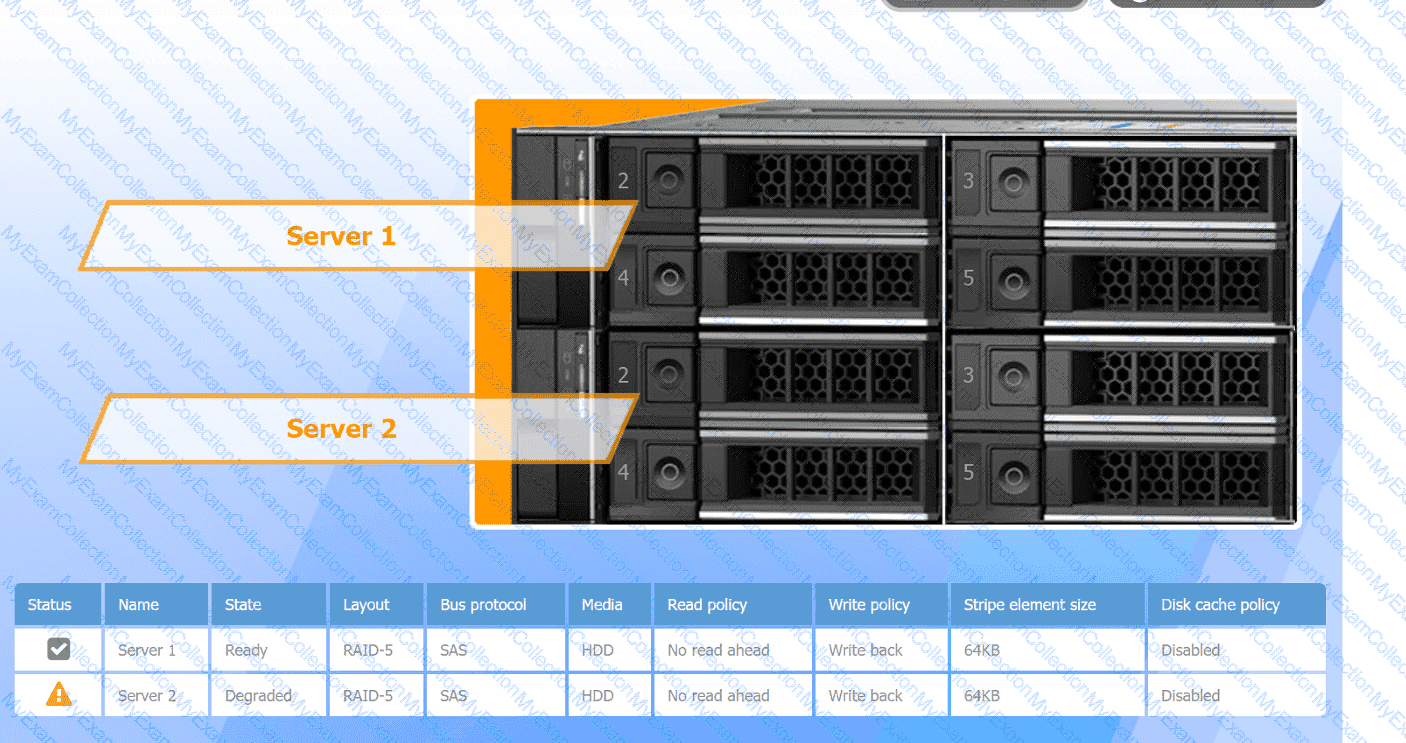

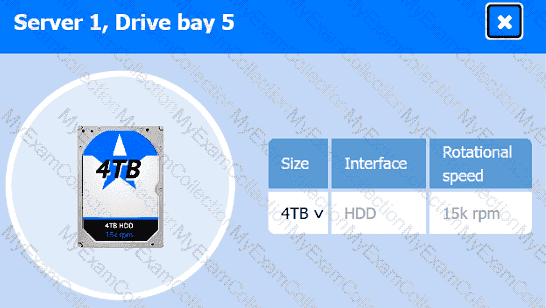

RAID 5 provides fault tolerance by distributing parity information across all drives, allowing the array to continue operating if one drive fails. In a three-drive RAID 5 set, a single disk failure puts the array into a degraded state where it can still function, but it is at higher risk because losing a second drive before recovery would cause data loss. Since the system reports Drive 3 has failed after a power outage, the best next step to minimize risk is to replace the failed drive immediately and start the rebuild. Rebuilding regenerates the missing data blocks onto the new drive using parity, returning the array to a protected state.

Option B leaves the array degraded and increases exposure to a second failure. Option C (firmware upgrade) is not a first response in an active failure scenario and can introduce additional risk or downtime. Option D (restore from backup) is typically used when the array is unrecoverable or multiple drives fail; it is more disruptive and unnecessary when RAID 5 can recover from a single-disk failure. Therefore, replacing the defective drive and triggering an array rebuild is the correct next step.

Atoner probe(also known as a tone generator and probe) is the best tool fortracing and identifying cablesin a patch panel or wall jack. The tone generator sends a signal through the wire, and the probe helps locate the cable by detecting the tone.

Option A (Crimper):Used to attach connectors (e.g., RJ-45), not for tracing cables.

Option B (Punchdown tool):Used to terminate cables into patch panels or keystone jacks.

Option C (Cable stripper):Used to remove insulation, not to trace cables.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 5.1: Identify basic cable types, their connectors, and their features.

NFC (Near-Field Communication)operates atvery short ranges usually less than 4cm, and is ideal for quick, secure transactions like contactless payments.Bluetoothsupportslonger ranges (up to 10 meters or 32 feet)and is suited for ongoing connections like wireless headsets or file transfers.

Option A:Bluetooth is faster for large file transfers.

Option B:NFC usesless power, not more.

Option C:NFC doesnotrequire pairing Bluetooth does.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 1.5: Given a scenario, connect and configure accessories and ports of mobile devices.

===========

To locate or identify an unlabeled network connection, the tool most suited for tracing cables through walls, ceilings, or patch panels is a toner probe (also called a tone generator and probe kit). CompTIA A+ describes this tool as essential for cable identification: the technician attaches the tone generator to one end of the network cable, and the probe detects the signal on the other end, even across long distances or through bundled wiring.

This makes the toner probe ideal for environments where cables are unlabeled, routed through structured cabling systems, or mixed with other wires. It allows the technician to listen for the distinctive tone, confirming the cable’s termination point.

A cable tester (C) verifies wiring integrity and pinouts but cannot trace a cable through physical pathways. It is used after identification, not during it. A loopback plug (B) is used for port testing and NIC diagnostics, not cable tracing. A network tap (A) is used for traffic monitoring, security analysis, and packet capture; it does not help locate cables.

Therefore, the toner probe is the correct tool for identifying and tracing an unlabeled network cable, aligning with CompTIA’s recommended cable management and troubleshooting procedures.

A hypervisor is the best choice because it is the technology specifically used to create, run, and manage virtual machines. On a laptop, this is typically a Type 2 hypervisor (hosted hypervisor) that runs on top of the existing operating system and allows the programmer to install a separate guest OS in a VM for testing. This provides strong isolation, supports snapshots/checkpoints in many platforms, and lets the tester replicate different OS environments, configurations, and software dependencies without altering the host system. That matches the scenario exactly: the user needs an actual VM environment on their local machine.

Containerization is useful for packaging and running applications in isolated user spaces, but containers share the host OS kernel and are not full virtual machines. If the test requires a different OS or kernel-level behavior, containers won’t meet the requirement. VDI delivers desktops hosted on remote servers, not a local VM running on the laptop. Emulation imitates different hardware/architectures and is typically slower and used when running software built for incompatible hardware, which is unnecessary for standard VM testing. Therefore, a hypervisor is the best answer.

A network switch operates at Layer 2 (Data Link Layer) of the OSI model and forwards traffic using MAC addresses. CompTIA A+ teaches that switches maintain a MAC address table, learning which devices reside on each port. When a frame arrives, the switch checks the destination MAC address and forwards it only to the appropriate port, reducing unnecessary traffic and improving performance.

Routers, on the other hand, operate at Layer 3 and forward traffic based on IP addresses, not MAC addresses. Firewalls inspect traffic for security policies and operate across multiple OSI layers but do not perform MAC-based forwarding. A gateway is a broad term that generally refers to a device connecting different networks or protocols, typically involving routing, not MAC-based switching.

Thus, the device specifically responsible for forwarding frames based on MAC address lookup is the switch.

Shielded Twisted Pair (STP) cabling is specifically designed to protect data transmissions from electromagnetic interference (EMI) and radio frequency interference (RFI). According to CompTIA Core 1 (220-1201) networking cabling objectives, STP cables include an additional shielding layer—either around individual wire pairs or the entire cable—that reduces the impact of external electrical noise.

In environments where network cables are installed near heavy machinery, fluorescent lighting, power cables, or radio transmitters, EMI can cause data corruption, retransmissions, and reduced network performance. STP helps maintain signal integrity in these high-interference environments.

Unshielded Twisted Pair (UTP) relies only on wire twisting to reduce interference and is more susceptible to EMI compared to STP. Thunderbolt and USB are peripheral interface standards, not structured network cabling solutions, and they are not intended for long-distance network installations.

CompTIA emphasizes selecting the appropriate cabling type based on environmental factors, particularly when interference is a concern. For locations with potential EMI, STP is the recommended choice.

Security groups are used to manage access permissions to network resources, ensuring only authorized HR department members can access the shared materials.

Why Not B (Audit logs): Audit logs monitor activity but do not restrict access.

Why Not C (Time-of-day access): Time-of-day access limits when users can access resources but doesn’t specify user permissions.

Why Not D (Print server): A print server manages print jobs but does not control file access.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 2.5, access control and permissions​.

Unmanaged switches require no configuration they simply need to be plugged in and start working immediately, making them ideal for simple network setups.

Managed switches provide advanced features such as VLANs, SNMP monitoring, port security, and traffic management, but require configuration.

From CompTIA A+ 220-1101 Official Study Guide, Objective 2.2 – Compare and contrast common networking hardware:

“Unmanaged switches operate out of the box with no configuration and are designed for simple connectivity. Managed switches allow for configuration, monitoring, and management of network traffic and security.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 2: Networking Hardware

CompTIA Exam Objectives 220-1101, Domain 2.2

============

A power-redundant server typically has two power supplies so the system can continue operating if one power supply or one power feed fails. To gain the full benefit of redundancy, each PSU should be connected to independent power sources—commonly separate PDUs that are backed by different UPS units (and ideally separate circuits). This design removes a single point of failure: if one UPS

Comprehensive and Detailed 150 to 250 words of Explanation From CompTIA Core 1 Knowledge trips, fails, or is taken offline for maintenance, the other UPS still provides power and the server stays online.

Option C is best because it explicitly describes distributing the connections across different UPSs, which is the correct redundancy practice in a rack environment. Option A defeats redundancy because a single outlet/UPS failure would still bring the server down. Option B also wastes redundancy and can cause immediate downtime if the connected PSU fails, since the second PSU isn’t actively providing standby power. Option D still leaves a single UPS as the single point of failure. Therefore, splitting the two PSU power cords across separate UPS-backed outlets is the best approach.

When installing copper network cable in spaces that serve as air-handling plenums, safety regulations require the use of plenum-rated cable. Suspended ceilings used for ventilation fall into this category. CompTIA A+ emphasizes that plenum spaces require cable with low-smoke, fire-resistant insulation made from specialized materials that limit toxic emissions during combustion.

Plenum-rated cabling (CMP) is designed to meet strict fire codes such as NFPA 70 (National Electrical Code). It prevents smoke-filled ventilation pathways, which could rapidly spread fire or toxic fumes throughout a building. Standard PVC-jacketed twisted pair cables are not permitted in plenum spaces because they produce thick, toxic smoke when burned.

Multimode cable refers to fiber optics, not copper cabling. Coaxial cable is used for broadband and certain RF applications but does not inherently meet plenum safety requirements unless specifically plenum-rated. Twisted pair describes the cable’s internal structure (Cat5e, Cat6, etc.), but it does not indicate the type of jacket. Only plenum-rated twisted pair is acceptable.

Therefore, the correct answer is Plenum, as it ensures compliance with safety standards and building codes, prevents hazardous conditions, and aligns with CompTIA best practices for structured cabling installations.

A tablet’s display is made of two key parts that work together: the LCD (or OLED) that shows the image, and the digitizer that detects touch input. If the screen image looks normal but the device does not respond to taps, swipes, or gestures, the most likely failed component is the digitizer (or the digitizer layer/cable). The digitizer is a transparent sensor grid that converts touch into signals the system can interpret. When it fails, the tablet may still power on and show a clear picture, but touch will not register at all or will behave erratically.

Because the device shows no physical damage and a system reset does not fix the issue, this points away from a software glitch and toward a hardware input failure. Replacing the LCD screen is typically indicated when you see display problems such as no image, distorted colors, flickering, dead pixels, or backlight issues—not purely touch failure. A battery problem would affect power/charging, not touch responsiveness. A motherboard replacement is far more invasive and not the most likely first hardware fix for a touch-only failure. Therefore, the correct component to replace is the digitizer.

If newly installed RAM is not fully recognized, the most likely cause is incorrect installation or incompatible slots. Reseating or reinstalling the RAM modules in the correct slots can quickly resolve the issue without extra cost.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.2 – Install and configure PC components:

" If memory is not detected, check installation and reseat modules. Ensure they are placed in the correct, matched slots for dual-channel operation. "

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Memory Installation

CompTIA Exam Objectives 220-1101, Domain 3.2

============

The best answer is E. Subnet mask. With the current subnet mask of 255.255.255.0, the user’s IP address 192.168.1.10 is on the 192.168.1.0/24 network, while the default gateway 192.168.2.1 is on the 192.168.2.0/24 network. A host normally needs its default gateway to be reachable on the same local network. The Mike Meyers material explains that the subnet mask identifies the network ID and host ID, and every computer on a single LAN must have the same network ID. With 255.255.255.0, the first three octets define the network, so 192.168.1.x and 192.168.2.x are different networks. The NOC verified that the gateway value itself is correct, so changing the gateway would conflict with the verified next hop. DNS settings would affect name resolution, not access to all local and remote resources. Lease time and firewall rules are not indicated by the IP information. The subnet mask must be changed so the client and gateway are in the same local IP network.

Comprehensive and Detailed Explanation From Exact Extract (Aligned With CompTIA A+ 220-1201 Study Guide)

CompTIA networking fundamentals describe VLANs (Virtual Local Area Networks) as a method to segment network traffic logically, even while using the same physical switch hardware.

A VLAN allows a company to:

Separate traffic by department

Improve security

Reduce broadcast domains

Control inter-department access

To separate accounting and customer service networks, VLANs are the industry-standard and the CompTIA-approved method.

Why the other options are incorrect

A. VPN – Used for secure remote connections, not internal LAN segmentation.

B. DNS – Resolves hostnames to IPs, not used for network separation.

D. DHCP – Assigns IP addresses; does not isolate network groups.

Final Answer: C

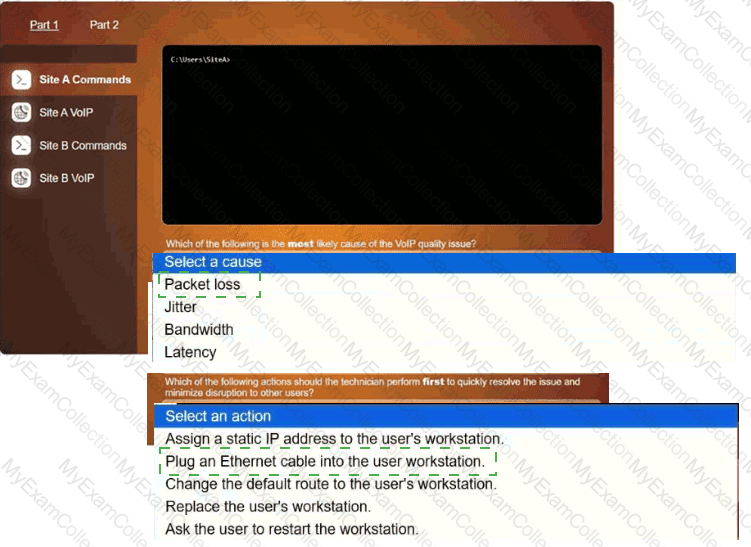

Voice over IP (VoIP) traffic is highly sensitive to latency, jitter, and packet loss, especially in large environments such as a 200-person call center. Although the technician confirms that VoIP prioritization (QoS) is configured correctly and speed tests show 50 Mbps upload and download speeds, overall available bandwidth can still be insufficient during peak usage.

Speed tests measure raw throughput at a point in time and do not reflect real-world congestion caused by hundreds of simultaneous calls, application usage, and data transfers. On busy days, the cumulative bandwidth demand likely exceeds the available capacity, leading to degraded call quality despite correct VLAN and QoS settings.

If QoS were misconfigured or the VLAN did not allow voice traffic, call issues would be consistent at all times, not only during peak periods. Flapping switchports would cause intermittent connectivity drops rather than predictable performance degradation correlated with high usage.

CompTIA highlights that bandwidth limitations are a common root cause of VoIP performance problems in high-density environments, even when prioritization is properly implemented.

Comprehensive and Detailed Explanation

To enable file sharing across different operating systems, CompTIA A+ emphasizes the use of:

✔ SMB (Server Message Block)

The primary file-sharing protocol used by Windows.

Also supported on macOS and Linux (via Samba).

Allows shared folders, printers, and network browsing.

✔ FTP (File Transfer Protocol)

A cross-platform file transfer service supported by all major OSs.

Commonly used to upload/download files between systems of different types.

These two protocols are explicitly listed in CompTIA objectives under network protocols and file services.

Why the other options are incorrect

A. NTP – Time synchronization, not file sharing.

C. IMAP – Email protocol, not related to file sharing.

E. ROP – Not a file-sharing protocol (Return-Oriented Programming = security exploit).

F. LDAP – Directory service for authentication, not file sharing.

Final Answer: B, D

A bulge under the trackpad on a laptop is a strong and well-known indicator of a swollen lithium-ion battery. According to CompTIA Core 1 (220-1201) mobile device hardware and troubleshooting objectives, laptop batteries are often located directly beneath the palm rest or trackpad area. When a lithium-ion battery begins to fail, it can swell due to internal chemical reactions, causing physical deformation of nearby components.

This swelling can interfere with the normal operation of the trackpad, leading to cursor control issues, clicking problems, or unresponsive behavior. More importantly, a swollen battery presents a serious safety risk, including the potential for overheating, leakage, or fire. For this reason, CompTIA emphasizes that battery replacement should be the first corrective action when physical swelling is observed.

Replacing the trackpad would not resolve the underlying pressure caused by the expanding battery. The motherboard and heat sink are unrelated to the physical bulge and cursor control symptoms described. Proper troubleshooting requires identifying and addressing the root cause, not the secondary symptom.

CompTIA best practices also stress safe handling and immediate replacement of damaged or swollen batteries to prevent further hardware damage or personal injury.

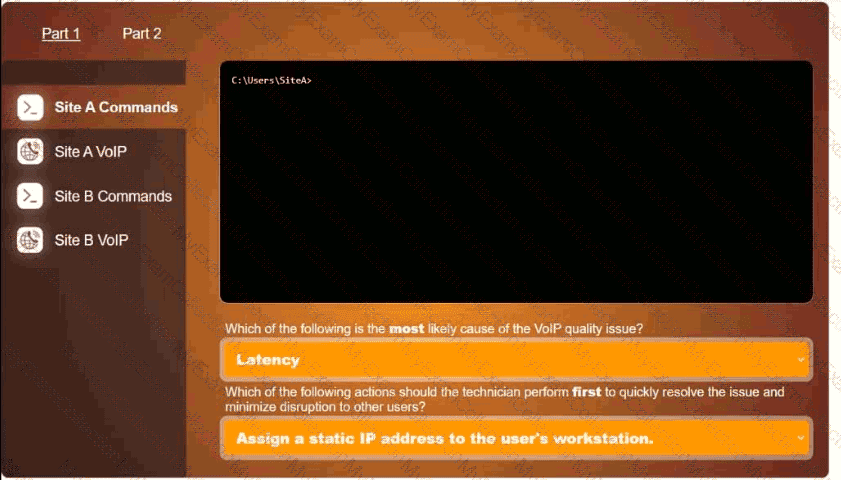

Intermittent VoIP call quality issues that occur during peak hours are a classic symptom of network congestion caused by voice and data traffic competing for the same network resources. According to CompTIA Core 1 (220-1201) networking and VoIP objectives, one of the most effective solutions is to configure VLANs to separate voice and data traffic.

By placing VoIP devices on a dedicated voice VLAN, the network can apply Quality of Service (QoS) policies that prioritize voice packets over standard data traffic. This reduces latency, jitter, and packet loss, which are the primary causes of poor call quality. VLAN separation ensures that even during heavy data usage, voice traffic remains clear and reliable.

Routing calls through a gigabit port does not address traffic prioritization and is unlikely to resolve congestion during peak usage. Installing shielded network cables only helps in environments with excessive electromagnetic interference, which would affect performance consistently—not intermittently. Increasing the VoIP bit rate would actually worsen congestion by consuming more bandwidth.

CompTIA emphasizes VLAN implementation and QoS as best practices for VoIP deployments, especially when call quality degrades under high network utilization.

A toner probe is used to trace and identify a specific cable among many cables in a network closet, patch panel, or wall installation. A tone generator is connected to one end of the cable and sends an electrical signal through the conductors. The technician then uses the probe to detect the signal at the other end, allowing the correct cable to be located without disconnecting or testing every cable individually. A loopback plug verifies whether a network port or interface can transmit and receive data. A crimper attaches modular connectors, such as RJ45 connectors, to twisted-pair cables. A network tap copies network traffic so it can be monitored or analysed. None of these alternatives is intended for physically tracing an unidentified cable. Therefore, a toner probe is the correct tool for finding the cable’s location.

Display flickering is most commonly caused by an incorrect or unstable refresh rate setting. The refresh rate is the number of times per second (measured in Hz) that a monitor redraws the image. CompTIA A+ teaches that LCD, LED, and especially older CRT displays can exhibit flickering if the refresh rate is set too low or to a value unsupported by the monitor.

For modern displays, typical refresh rates are 60 Hz, 75 Hz, 120 Hz, 144 Hz, and higher. If the refresh rate is mismatched—such as manually set above the monitor’s rated capability—the screen may flicker, blank intermittently, or show instability. Similarly, if the refresh rate is set too low, the user may perceive visible flicker, eye strain, or shimmering on the display.

Checking and adjusting the refresh rate through the operating system’s display settings (or GPU control panel) is the first and most direct troubleshooting step for flickering issues.

The LCD type (A) has no bearing on flickering once installed. Screen resolution (C) affects clarity and scaling but does not cause flicker by itself. Pixel density (D) is a hardware characteristic and cannot cause flickering.

Thus, the correct component to check when diagnosing display flicker is the refresh rate.

If the system reports“Bootable device not found”, and the BIOS is configured correctly, the next step is torun diagnostics on the hard driveto check for physical or logical failure. It could be a sign of afailing drive or corrupt boot sector.

Option A:Reformatting the drive would erase data not a diagnostic step.

Option C:RAM does not affect whether a drive is bootable.

Option D:Replacing the drive should only be doneafter diagnostics confirm failure.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.5: Given a scenario, troubleshoot problems related to storage devices.

The correct DNS record used to map a device to an IPv6 address is the AAAA record. According to CompTIA Core 1 (220-1201) networking fundamentals, DNS uses different record types to associate domain names with specific resources, and each record type serves a distinct purpose.

An AAAA (Quad-A) record maps a fully qualified domain name (FQDN) to an IPv6 address, which is a 128-bit address written in hexadecimal format. As IPv6 adoption increases to address IPv4 exhaustion, CompTIA expects technicians to understand how DNS supports both addressing schemes.

An A record maps a hostname to an IPv4 address only and cannot be used for IPv6. A CNAME record creates an alias that points one domain name to another domain name, not directly to an IP address. An MX record is used for mail server routing and email delivery, not for host address resolution.

CompTIA emphasizes knowing DNS record types and their specific use cases, especially distinguishing between A vs. AAAA records when working with IPv4 and IPv6 networks. When the requirement is explicitly to map a device to an IPv6 address, the AAAA record is the correct and only valid choice.

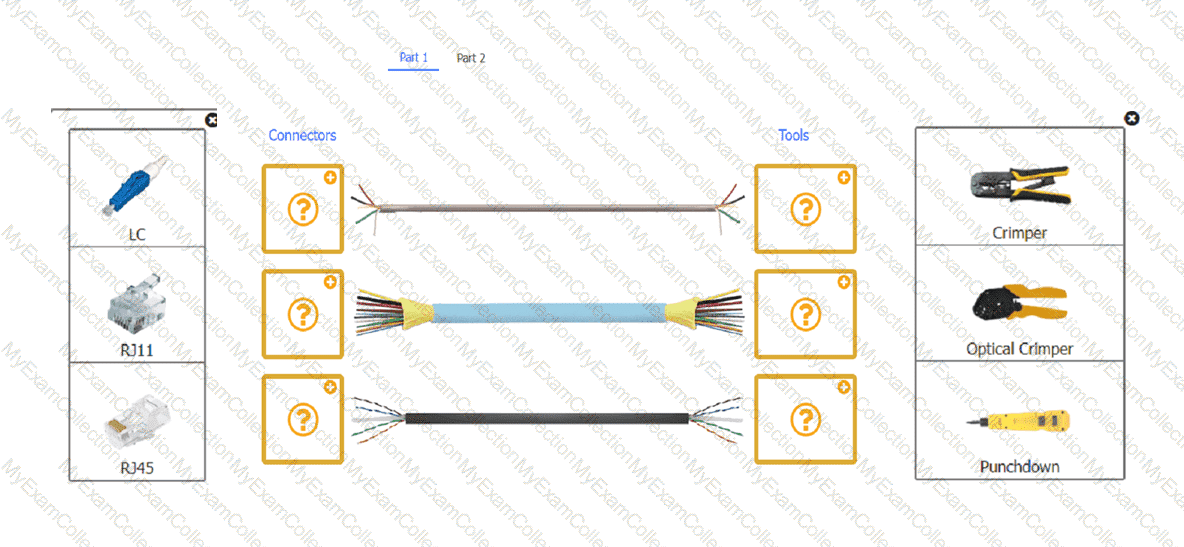

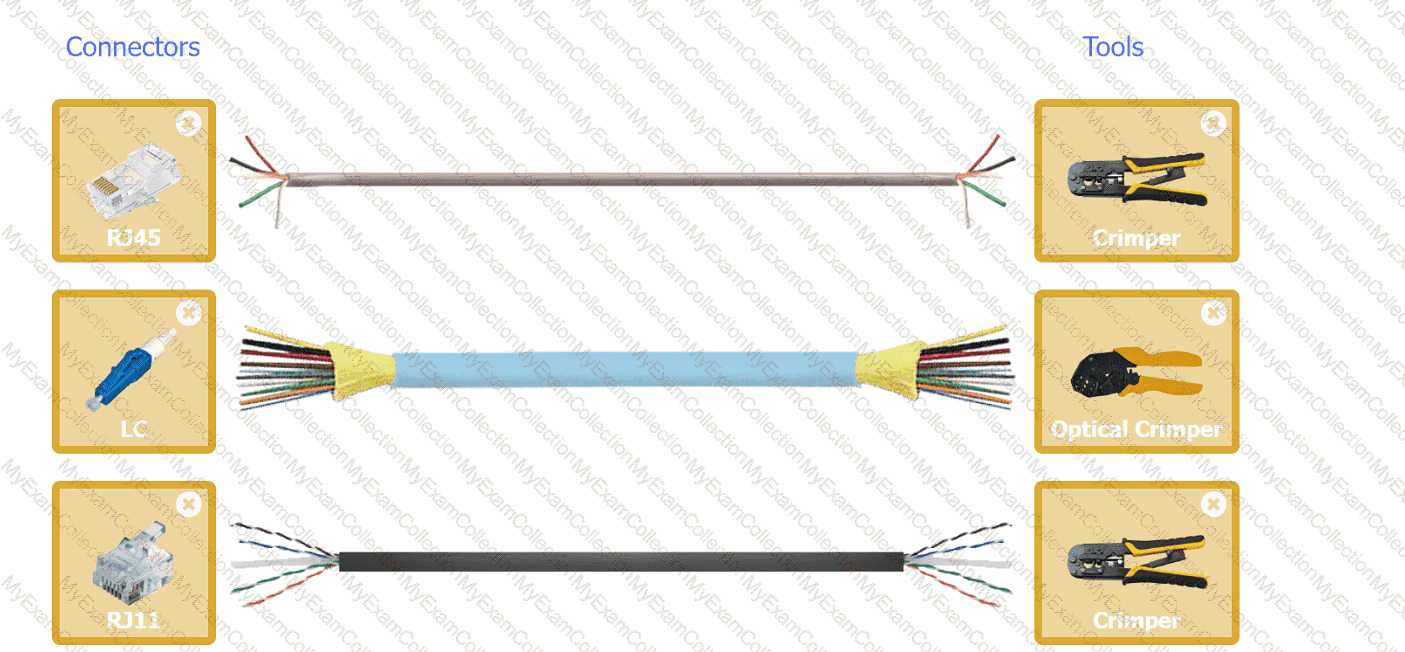

A crimper is specifically used to attach RJ45 connectors to the ends of network cables. It pressesthe connector pins into the cable ' s wires, establishing a secure electrical connection. A punchdown tool is used for wiring patch panels or keystone jacks, not for attaching connectors.

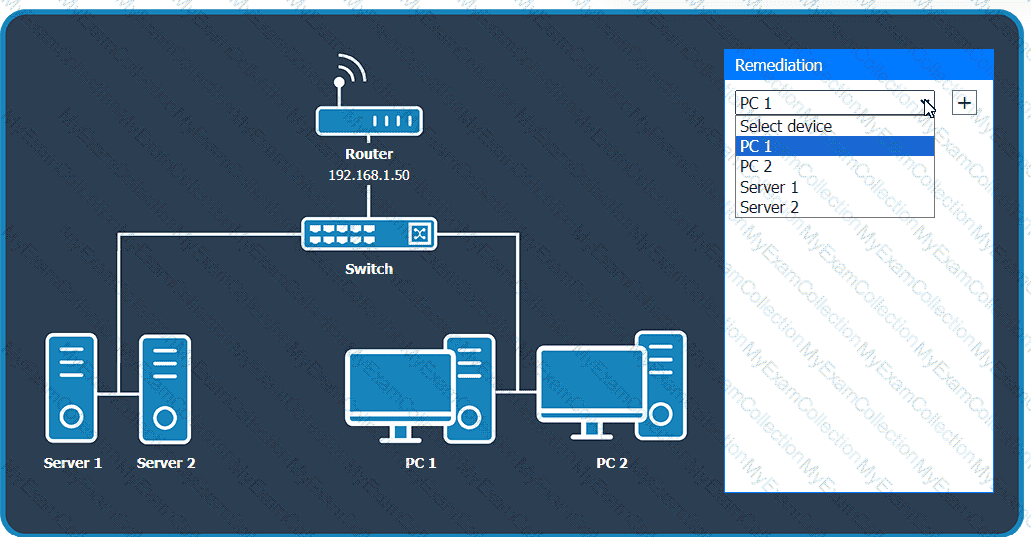

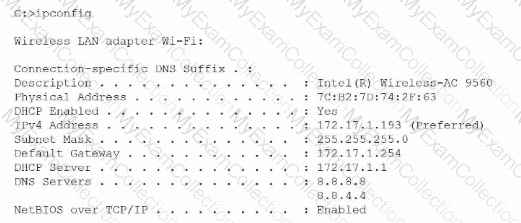

The key detail in the ipconfig output is that the system is receiving an IP address, subnet mask, default gateway, and DHCP server information via DHCP, but the DNS servers shown are 8.8.8.8 and 8.8.4.4, which are Google’s public DNS servers. In most corporate networks, DNS is provided internally by the DHCP server—usually the same device assigning the IP address. When DNS values are different from DHCP-provided defaults, it indicates manual DNS configuration.

CompTIA A+ emphasizes that mismatched DNS settings can cause browsing issues, name-resolution delays, or an inability to access internal resources. DNS is critical because it translates domain names into IP addresses; if manually configured, the device bypasses the organization’s DNS server and may not resolve internal hostnames.

The subnet mask is correct for a Class B private network subdivided using /24 (255.255.255.0). NetBIOS being enabled is common and not a cause of connectivity issues here. DHCP being enabled is normal and functioning correctly, as shown by the proper IP lease obtained.

Thus, the anomalous and most likely problematic configuration is manually configured DNS, making Option D correct.

Port flapping refers to a network port continuously going up and down, which can prevent the access point from fully coming online.

From CompTIA A+ 220-1101 Official Study Guide, Objective 2.4 – Wired and wireless troubleshooting:

“Repeated loss and restoration of network link is called port flapping and may result in network devices, such as access points, not coming online.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 2: Network Troubleshooting

CompTIA Exam Objectives 220-1101, Domain 2.4

============

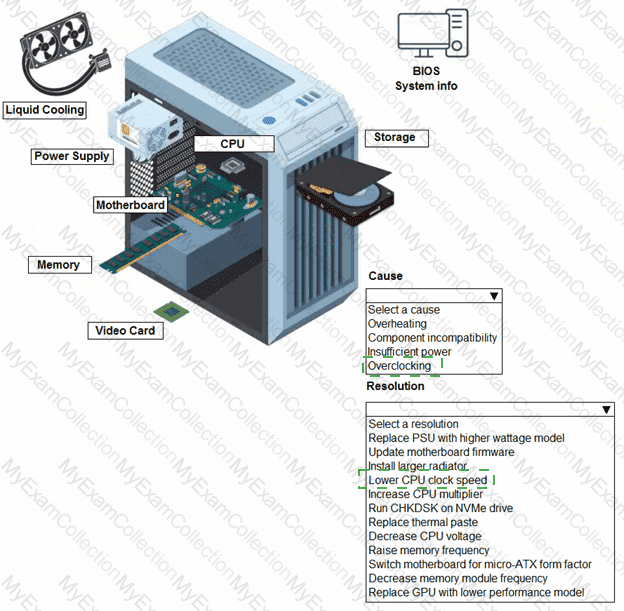

Unexpected system shutdowns that occur after a few minutes of activity—especially during resource-intensive tasks such as virtual meetings—are a strong indicator of overheating. According to CompTIA Core 1 (220-1201) laptop and hardware troubleshooting objectives, thermal issues commonly cause systems to power off automatically to prevent hardware damage.

Virtual meeting applications place sustained load on the CPU and GPU, increasing heat output. If the cooling system is malfunctioning (dust buildup, failed fan, dried thermal paste), the CPU temperature can rise rapidly and trigger a thermal shutdown. Checking the CPU temperature in the BIOS or UEFI is an appropriate first step to confirm whether overheating is occurring.

Running the application in safe mode or switching applications does not address the root hardware issue. Verifying the battery charge is unlikely to resolve repeated shutdowns that occur only after several minutes of operation.

CompTIA emphasizes identifying environmental and thermal causes early in the troubleshooting process, especially when symptoms are repeatable and load-dependent.

A sandbox in virtualization allows testing an application in an isolated environment to observe its behavior without affecting the host system.

Why Not A (Run an application on multiple workstations): This describes application virtualization, not sandboxing.

Why Not C (Migrate a legacy application): This is about virtualization for legacy support, not testing.

Why Not D (Create a firewall): A firewall does not act as a sandbox for application testing.

CompTIA A+ Exam Reference: Core 1 (220-1201), Section 4.2, virtualization and sandboxing​.

Running multiple operating systems at the same time on a single physical server is accomplished through virtualization. In this scenario, host-based virtualization means a host operating system is installed on the physical server first, and then virtualization software runs on top of that OS to create and manage multiple virtual machines. Each virtual machine can run its own guest operating system independently, while sharing the server’s CPU, RAM, storage, and network resources. This improves hardware utilization because one physical server can replace multiple separate machines, and resources can be allocated to VMs based on workload needs.

The other options do not directly describe the concept of running multiple OS instances on the same physical hardware. Public cloud services describe a delivery model where resources are provided by a third-party provider, but the underlying concept enabling multiple OS instances is still virtualization. High-availability clustering focuses on redundancy and failover across multiple servers. Software as a service provides a completed application to users, not multiple OS instances. Load balancing distributes traffic across systems and does not create separate operating systems. Therefore, the correct choice is host-based virtualization.

In Wi-Fi, the 2.4GHz band contains 14 total channels (depending on region), but only channels 1, 6, and 11 are considered non-overlapping in most countries. CompTIA A+ highlights the importance of selecting these channels to minimize interference, especially in environments with multiple wireless networks or access points.

The 2.4GHz band is narrower than 5GHz, causing adjacent channels to overlap significantly. Using channels 1, 6, and 11 prevents overlap and reduces signal interference, improving performance and stability.

5GHz (B) has many non-overlapping channels and does not use the 1/6/11 scheme. The 6GHz band (C) is part of Wi-Fi 6E and uses entirely different channel planning. The 60GHz band (D) supports short-range high-speed connections like WiGig, not traditional Wi-Fi channels.

Therefore, the 2.4GHz band is the correct answer.

Near-field communication can trigger a compatible application without requiring the phone to be paired with another device. NFC operates across a very short distance, normally only a few centimetres. When a phone is brought close to an NFC tag, payment terminal, access reader, or other NFC-enabled object, the tag can provide information that causes the operating system to open a browser, payment application, configuration screen, or another registered application. Unlike Bluetooth, NFC does not require a conventional discovery and pairing process before exchanging the small amount of information needed to initiate the action. Wi-Fi connects the phone to a wireless local area network but does not inherently trigger an application through proximity. A hotspot allows the phone to share its cellular connection with other devices. Bluetooth generally requires pairing or an established device relationship for persistent peripheral communication.

When a laptop screen is replaced, the technician typically removes the display bezel and may disconnect cables routed through the hinge area. The Wi-Fi antennas in most laptops are mounted inside the display assembly (often along the top edges of the screen) and their thin coax antenna leads run through the hinges to the wireless adapter connection points on the system board or directly onto the Wi-Fi card (MAIN/AUX terminals). If one or both antenna leads are left unplugged, pinched, or poorly seated during reassembly, the laptop will still detect the Wi-Fi adapter, but wireless performance will be severely degraded—weak signal strength, intermittent connections, inability to see networks reliably, or frequent dropouts.

This symptom appearing immediately after a screen replacement strongly indicates a physical antenna connection issue rather than a driver or software problem. Reinstalling drivers or resetting services would be more appropriate after OS changes or configuration corruption, not after display hardware work. Compatibility of wireless technologies is unrelated to swapping a screen. Therefore, the best CompTIA A+ troubleshooting step is to open the unit and reconnect/secure the Wi-Fi antenna leads to the system board/wireless card.

The described behavior indicates that the customer is likely exceeding their mobile data allowance each month. Multiple cloud backup services continuously synchronizing gigabytes of data consume large amounts of cellular bandwidth, which can trigger data throttling by the mobile carrier near the end of the billing cycle. This results in noticeably slower browsing speeds.

Since data availability is important, disabling backup services entirely is not the best option. Installing an SD card increases local storage but does not reduce cellular data usage. Expanding cache storage does not address network bandwidth consumption or carrier throttling.

Configuring data synchronization to occur only over Wi-Fi ensures that backups continue uninterrupted when the device is connected to a wireless network, while preventing excessive cellular data usage. This preserves data availability and eliminates unnecessary mobile data consumption, restoring consistent browsing performance throughout the month.

CompTIA Core 1 (220-1201) mobile device troubleshooting objectives emphasize managing background services, synchronization settings, and data usage to resolve performance and connectivity issues on smartphones.

Mobile Device Management (MDM) allows IT departments to enforce compliance controls, such as restricting the installation of unapproved software, on laptops and mobile devices.

Why Not A (EDR): Endpoint Detection and Response focuses on detecting and mitigating security threats, not compliance controls.

Why Not B (VPN): Virtual Private Networks provide secure connections but do not enforce software installation policies.

Why Not D (SaaS): Software as a Service refers to software delivery models and does not enforce compliance controls.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 2.7, device management and security​.

ECC (Error-Correcting Code) RAM is commonly used in servers to provide error detection and correction, improving reliability in critical systems. It is designed to detect and correct single-bit errors, ensuring data integrity in environments where stability is paramount.

Option A (SODIMM): Incorrect. SODIMM is typically used in laptops, not servers.

Option B (Rambus): Incorrect. Rambus is an outdated RAM type and not commonly used today.

Option C (DDR3): Incorrect. While DDR3 is a type of RAM, it is not specific to servers and does not provide error correction.

Comprehensive and Detailed Explanation (100–150+ Words):

CompTIA A+ stresses that printers must use static IP addresses to remain consistently reachable on a LAN. When using DHCP, the printer ' s IP address may change, causing laptops to lose access. By assigning a static IP within the same subnet, the printer becomes a stable, discoverable network resource for all laptops.

Using dynamic IPs for the laptops is perfectly acceptable in SOHO environments, because clients don’t require permanent IPs. Assigning public IPs (Option B) is incorrect and unsafe. APIPA (169.254.x.x) does not route and cannot reach the internet or a standard printer. Using dynamic ISP-assigned IPs for all devices (Option D) is also incorrect because ISP routers typically give only one public IP, not multiple internal ones.

Therefore, to ensure the printer is always reachable, the correct configuration is: DHCP for laptops, static IP for printer a best practice detailed in CompTIA’s networking and SOHO setup guidelines.

If a printer is set to use a special tray (for cards/invitations) but a different type of print job is attempted (like a letter), a paper tray setting mismatch can cause errors. Changing the tray setting to match the print media resolves the issue.

From CompTIA A+ 220-1101 Official Study Guide, Objective 4.3 – Troubleshooting printers:

“If print jobs fail when media type changes, verify and adjust the paper tray settings to match the required output.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 4: Printer Troubleshooting

CompTIA Exam Objectives 220-1101, Domain 4.3

============

A screenshot of a computer AI-generated content may be incorrect.

The correct answer is B. NVMe SSD.

According to CompTIA A+ Core 1 220-1201 objectives under Hardware and Storage:

NVMe (Non-Volatile Memory Express) SSDs provide the fastest data access and retrieval speeds compared to other storage types, especially on laptops. NVMe SSDs use the PCIe interface, which allows significantly higher throughput and lower latency than SATA-based storage.

This improves boot times, application load times, and overall system responsiveness.

Why the other options are incorrect:

A. SATA M.2: While faster than traditional 2.5” SSDs and HDDs, SATA M.2 is limited by the SATA III interface (~600 MB/s), which is slower than NVMe SSDs (~3,000–7,000 MB/s).

C. Optical disk: Optical media (CD/DVD/Blu-ray) is extremely slow and not suitable for quick access or retrieval.

D. 7,200rpm HDD: Mechanical hard drives have the slowest access times and throughput compared to SSDs.

Network jitter is variation in the amount of time packets take to reach their destination. Real-time video and audio applications require packets to arrive at relatively consistent intervals.

When jitter becomes excessive, video packets may arrive late or out of sequence. The videoconferencing application may temporarily run out of usable video data, causing the displayed image to freeze. When sufficient packets arrive again, the video resumes.

High bandwidth generally improves the ability to carry video traffic.

Port flapping means a network switch port repeatedly transitions between up and down states. It can cause intermittent connectivity, but a temporary freeze followed by recovery is more directly associated with jitter.

Low latency is desirable because it means packets are delivered with little delay.

CompTIA objective 5.5 explicitly identifies jitter as a common network troubleshooting symptom. Cisco also states that network impairments such as jitter, delay, and packet loss can negatively affect videoconferencing quality.

==========

The combination of an unusual mechanical noise and random shutdowns strongly indicates a problem with the computer’s cooling system . A cooling fan with worn bearings, accumulated debris, or physical obstruction can produce a grinding sound.

When the CPU fan cannot rotate properly, airflow decreases and the CPU temperature rises. The computer may then shut down automatically to protect the processor and motherboard from thermal damage. Therefore, among the available answers, CPU overheating is the most likely cause of the shutdowns.

The other answers are less appropriate:

An SSD contains no moving mechanical components and would not normally produce a grinding noise.

An improperly installed graphics card is more likely to produce a blank screen, display artifacts, crashes, or failure to complete POST.

Damaged RAM commonly causes application crashes, POST errors, blue screens, freezes, or data corruption, but not a grinding sound.

CompTIA objective 5.1 associates overheating, random shutdowns, and unusual noises with motherboard, CPU, power, and RAM troubleshooting. Dell identifies fan problems as causes of noise and overheating, while SSD documentation confirms that SSDs have no moving mechanical parts.

==========

Most meeting or conferencing applications default to the built-in laptop camera unless manually changed. When an external camera is connected, the software may continue to use the default device, resulting in a blank preview, especially if the internal camera is disabled, covered, or malfunctioning. CompTIA A+ stresses verifying correct device selection when peripherals are installed.

Selecting the correct camera source is a quick, non-invasive test that resolves the issue in the majority of cases. The technician should open the application’s video settings and choose the external webcam from the camera dropdown menu.

Replacing the camera (B) is premature without confirming configuration. Updating software (C) is beneficial but will not resolve a simple input-selection error. Checking the cable (D) is a valid step if the preview still fails after selecting the device.

Thus, the correct next step is to select the proper camera source.

Virtual Desktop Infrastructure (VDI) hosts user desktops on centralized servers rather than physical PCs. Users access a virtual desktop session remotely through thin clients, laptops, or web browsers. The CompTIA A+ cloud-computing domain explains that VDI improves manageability, security, and resource efficiency by allowing IT to centralize OS images, apps, and updates.

SaaS provides applications not desktops. RMM is for monitoring and managing devices. Containers virtualize applications, not full desktops.

VDI enables organizations to avoid purchasing physical desktops while still delivering full computing environments to users, which aligns with the A+ virtualization objectives and remote-access concepts.

System overheating is the most likely cause of repeated shutdowns when the battery still has sufficient charge. Modern laptops monitor CPU, GPU, and internal system temperatures. If temperatures exceed safe limits, the system may first reduce processor performance through thermal throttling and then shut down automatically to prevent permanent component damage. Common causes include blocked ventilation openings, accumulated dust, a failed cooling fan, dried thermal compound, or using the laptop on a surface that obstructs airflow. Malware, corrupted RAM, and outdated drivers can cause instability, crashes, or performance problems, but they are less directly associated with protective power shutdowns. The technician should inspect airflow, verify fan operation, check internal temperatures, and clean the cooling system before replacing other hardware. Repeated shutdowns during demanding workloads provide especially strong evidence of a thermal problem.

The requirements describe an environment transitioning gradually from on-site hardware to scalable cloud services. The business wishes to continue using its existing local equipment until end of life, while also expanding computing resources beyond what the on-premises infrastructure can handle. Additionally, the cloud environment must be able to share data with the internal data center.

This aligns perfectly with a hybrid cloud model, which CompTIA A+ defines as a combination of private (on-premises) and public cloud resources operating together. Hybrid cloud enables secure data sharing, workload distribution, and scaling without eliminating existing hardware investments. It allows organizations to offload high-demand processes to the cloud while maintaining sensitive data or critical services on-site.

A private cloud (D) would not allow scaling into a public provider efficiently. A public cloud (A) replaces internal resources instead of complementing them. A community cloud (B) is shared among organizations with similar compliance requirements—not applicable here. SaaS (E) refers to hosted applications, not infrastructure scalability.

Thus, a Hybrid cloud model fulfills all stated requirements: seamless data sharing, scalable computing, and continued use of on-site equipment.

A DHCP reservation binds a specific MAC address to an IP address so the device always receives the same IP from the DHCP server. This ensures network devices like printers maintain consistent connectivity and availability even when the IP pool is low.

Pixel density explains why the image appears smaller at 4K resolution when the physical monitor size and magnification level remain unchanged. A 4K display contains substantially more pixels within the same physical screen area than an HD display. As a result, each individual pixel is physically smaller, and an image displayed at its native pixel dimensions occupies less physical space on the higher-resolution screen. Pixel density is commonly measured in pixels per inch. Refresh rate determines how many times the screen updates each second and affects motion smoothness rather than image size. Backlight zones control brightness and contrast in displays that use local dimming. Panel type, such as IPS, VA, or OLED, influences colour reproduction, response time, viewing angles, and contrast. None of these characteristics explains the difference in physical image size. The higher pixel density of the 4K display is therefore the correct reason.

Port 137 is used by the NetBIOS Name Service. NetBIOS over TCP/IP traditionally uses three ports: UDP port 137 for name registration and name resolution, UDP port 138 for datagram services, and TCP port 139 for session services. Among the provided options, port 137 is therefore the correct NetBIOS port. Port 110 is used by POP3 for retrieving email from a mail server. Port 143 is used by IMAP for accessing and synchronizing email while generally retaining messages on the server. Port 445 is used by modern SMB implementations operating directly over TCP/IP without requiring the older NetBIOS session layer. Although SMB and NetBIOS are historically related in Windows networking, port 445 is classified as direct-hosted SMB rather than a NetBIOS port. Therefore, option B correctly identifies the requested service port.

A firewall monitors and filters incoming and outgoing network traffic based on security rules, protecting the network from unauthorized access and threats.

Why Not A (Switch): A switch connects devices within a network but does not monitor or filter traffic.

Why Not B (Access point): An access point provides Wi-Fi connectivity but does not filter traffic.

Why Not D (Hub): A hub simply broadcasts data to all connected devices without filtering traffic.

CompTIA A+ Exam Reference: Core 1 (220-1201), Section 2.2, network security concepts​.

Port 22 is used by SSH (Secure Shell), which is the standard protocol for secure remote administration of network devices such as switches, routers, firewalls, and Linux-based systems. CompTIA A+ Core 1 emphasizes knowing common ports and selecting secure management methods. SSH provides encrypted communication for both authentication and the session data, protecting usernames, passwords, and command output from being intercepted by packet sniffers. This makes it the preferred choice over older remote access methods.

In contrast, port 23 is Telnet, which is also used for remote terminal access but sends traffic in cleartext, making it insecure and generally discouraged in modern environments. Port 21 is FTP control traffic, used for file transfers and typically not secure unless paired with FTPS or replaced by SFTP (which actually runs over SSH on port 22). Port 25 is SMTP, used for sending email between mail servers and is unrelated to remote device management. Therefore, for secure remote access to a network device, SSH on port 22 is the correct answer.

Older motherboards use 20-pin connectors, while newer power supplies use 24-pin connectors. An adapter resolves the compatibility issue cost-effectively.

Why Not A (Adjust the input voltage): Input voltage adjustment is unrelated to connector compatibility.

Why Not B (Install a modular power supply): While modular supplies are versatile, this doesn’t address the connector issue directly.

Why Not C (Rebuild the failed power supply): Rebuilding is costly and complex compared to using an adapter.

CompTIA A+ Exam Reference: Core 1 (220-1201), Section 3.4, power supply compatibility​.

An eSIM (embedded SIM) allows users to change carriers and provision new cellular service without installing any physical hardware. It is managed via software and is ideal for international travelers who need to switch providers quickly.

From the CompTIA A+ 220-1101 Official Study Guide, Objective 3.3 – Install and configure mobile device network connectivity:

" eSIMs provide carrier flexibility by enabling remote provisioning and profile switching, making it possible to connect to different networks without a physical SIM card. "

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Mobile Devices

CompTIA Exam Objectives 220-1101, Domain 3.3

A smart card provides an additional factor of authentication by storing secure credentials, such as certificates, that cannot be guessed or replicated. It complements user accounts and is " something you have " .

Why Not A (Fingerprint reader): This is " something you are " , but the scenario specifically requires a physical token.

Why Not C (Secure token): Secure tokens are also valid but may not integrate as seamlessly into multi-factor authentication for physical and system access.

Why Not D (NFC scanner): An NFC scanner is a device and not a token itself; it reads cards or other credentials.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 2.5, access controls​.

When a technician encounters a burning smell, it is a critical safety issue. The first response must be to immediately power down and disconnect the device from all power sources to prevent electric shock, fire, or further hardware damage.

From the CompTIA A+ 220-1101 Official Study Guide, Objective 4.1 – Troubleshoot common hardware problems:

" Signs of electrical issues such as burning smells, smoke, or sparks require an immediate shutdown of the system and disconnection from any power source. "

After ensuring safety, the technician should inspect the hardware for visible signs of damage:

From the same Objective (4.1):

" Inspect for foreign objects, liquid damage, or burnt components. These can cause short circuits or thermal events that may damage the motherboard or other internal components. "

These steps are standard practice in the industry to ensure safe and accurate diagnosis of faulty devices. Trying a different adapter (Option F) may make the problem worse, and contacting vendors (Option D) comes after initial safety and inspection.

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 4: Troubleshooting Hardware Problems

CompTIA Exam Objectives 220-1101, Domain 4.0 – Hardware and Network Troubleshooting

When an application fails to install on a smartphone despite being supported by the OS and device type, CompTIA A+ stresses that the most common cause is insufficient storage. Mobile devices require not only space for the app itself but also additional temporary space for the installation process, cached data, and updates. If internal storage is nearly full, the app store will display installation errors—even if the OS and hardware meet requirements.

Battery health has no impact on app installation. A SIM card is unrelated to installing local applications—it only affects cellular connectivity. Processor architecture issues would have been caught during compatibility checking, but the technician already verified the device supports the application.

Therefore, after confirming compatibility, the next logical step is to check available storage space. If storage is low, deleting unused apps, clearing cached data, or transferring media to cloud storage or an SD card typically resolves the installation issue.

Thus, Option A: Storage is the correct answer.

A loopback plug is a diagnostic tool used to test whether a physical port such as an Ethernet NIC port or serial port is capable of sending and receiving its own signal. When inserted, it “loops” outgoing signals back into the device, confirming the port ' s transmit/receive functionality.

CompTIA A+ emphasizes loopback plugs as essential tools during hardware and network troubleshooting, especially when isolating physical port or NIC failures.

Network taps passively monitor traffic, crimpers attach RJ45 connectors to cables, and patch panels organize cabling none of these verify port-level functionality. Therefore, only a loopback plug can confirm that a port is working correctly by testing signal integrity and hardware responsiveness.

The most likely cause is a swollen battery, which occurs when the battery ' s internal components break down, causing a buildup of gas. This results in:

Physical Symptoms: The battery bulges, pushing the screen away.

Operational Symptoms: The device may still power on when connected to a charger but fails to hold a charge due to battery degradation.

Option A (Malfunctioning power supply): Incorrect. Power supply issues affect charging but do not cause physical bulging.

Option B (Damaged charge port): Incorrect. A damaged port can prevent charging but does not explain the bulge.

Option D (Broken screen): Incorrect. A damaged screen does not cause the device to bulge; it is likely a secondary effect of the swollen battery.

Safety Note: A swollen battery poses a risk of fire or explosion and should be replaced immediately following proper disposal procedures.

The correct answer is D. Injector.

Power over Ethernet (PoE) allows network cables to carry electrical power to devices such as wireless access points, IP cameras, and VoIP phones, eliminating the need for separate power supplies. According to the CompTIA A+ Core 1 220-1201 objectives under Networking, PoE can be implemented in the following ways:

PoE-enabled switches: Switches that can supply power directly over the Ethernet ports.

PoE injectors: Devices that add power to an existing Ethernet connection when the switch or router does not provide PoE.

Why the other options are incorrect:

A. Modem: A modem connects a network to the Internet but does not provide PoE functionality.

B. Range extender: Extends the range of a wireless network; does not supply power over Ethernet.

C. Media converter: Converts one type of network media to another (e.g., fiber to copper) but does not implement PoE.

Therefore, when a switch does not natively provide PoE, a PoE injector is the standard solution to add power to the Ethernet line.

solution as

A screenshot of a network settings AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

The correct answer is A. Clean the feed rollers.

According to CompTIA A+ Core 1 220-1201 objectives under Printers:

Frequent paper jams, particularly in high-use shared printers, are commonly caused by dirty or worn feed rollers.

Cleaning the feed rollers removes dust, paper debris, and toner residue that can prevent smooth paper feeding, especially when printing double-sided documents.

This is a standard preventive maintenance procedure that improves reliability and extends the printer’s operational life.

Why the other options are incorrect:

B. Use a different paper weight: A4 standard paper is appropriate; changing paper weight is unnecessary unless the paper is damaged or incompatible.

C. Replace the fuser unit: Fuser problems generally cause smudging or incomplete fusing, not frequent paper jams.

D. Change the toner cartridge: Toner issues affect print quality (light or streaky prints), not paper feeding or jamming.

The correct answer is C. ECC (Error-Correcting Code).

In the CompTIA A+ Core 1 (220-1201) hardware objectives, RAM types and features include technologies designed to improve reliability and data integrity.

ECC memory is specifically designed to detect and correct data errors (faults) in memory automatically. It uses additional bits to store error-checking information, allowing the system to:

Detect single-bit and some multi-bit errors

Automatically correct errors without system interruption

Improve system stability, especially in servers and critical systems

This makes ECC the best choice for recovering from data faults.

Why the other options are incorrect:

A. Capacity

Capacity refers to how much data the RAM can hold (e.g., 8GB, 16GB). It has nothing to do with error detection or correction.

B. Speed

Speed (measured in MHz or MT/s) affects performance but does not provide any fault recovery capability.

D. DDR

DDR (Double Data Rate) refers to the generation/type of RAM (e.g., DDR3, DDR4, DDR5). It improves performance but does not handle errors.

E. Parity

Parity memory can detect errors but cannot correct them. Since the question specifically asks for recovery from faults, ECC is the correct answer because it both detects and corrects errors.

Final Answer: C. ECC

For the highest possible stability, the best power-supply choice is a redundant power supply. In CompTIA A+ Core 1 (220-1201) hardware concepts, redundant PSUs are used in systems where uptime and reliability are critical. A redundant PSU configuration typically includes two power supply units operating together (often in a hot-swappable bay). If one PSU fails, the other continues supplying power, allowing the workstation to remain operational and preventing unexpected shutdowns that could interrupt CAD work or corrupt data. This directly matches the requirement for maximum stability.

A UPS improves resilience to power loss and brownouts by providing battery backup and line conditioning, but it is not a power supply type and doesn’t protect against the PSU itself failing. A surge protector helps guard against voltage spikes, but it also does not ensure system operation if the PSU fails. A modular PSU mainly improves cable management and airflow by allowing detachable cables; it can be convenient and neat, but it does not inherently increase stability compared with redundancy. Therefore, the most stability-focused PSU option is Redundant.

The most likely cause is system overheating . Laptops have limited internal space and depend on properly functioning fans, heat sinks, vents, and thermal controls. Dust accumulation, blocked vents, a malfunctioning fan, dried thermal compound, or sustained high processing load can cause the internal temperature to increase.

When the CPU or another component reaches a critical temperature, the laptop may shut down automatically to prevent permanent hardware damage. These shutdowns may appear unpredictable because they depend on temperature and workload rather than the displayed battery percentage.

Malware can increase processor usage and indirectly contribute to heat, but it is not the most direct answer.

RAM corruption generally produces crashes, freezes, memory errors, or operating-system stop errors.

Outdated drivers can cause instability but are less closely associated with repeated thermal shutdown behavior.

CompTIA objective 5.4 specifically lists overheating as a common mobile-device issue. Dell also identifies random shutdowns and reboots as symptoms of an overheating laptop.

==========

The best answer provided is A, although it is important to note that the question is somewhat misleading because it asks about motherboard selection but provides mostly incorrect or irrelevant motherboard-related options.

For high-performance workloads such as video editing and virtual reality (VR) using an Intel Core i9 processor and multiple graphics cards (multi-GPU setup), system design considerations include high power consumption and significant heat output. In the CompTIA A+ Core 1 220-1201 objectives under hardware planning and troubleshooting, high-performance CPUs and multiple GPUs require adequate thermal management solutions, including advanced cooling systems (air or liquid cooling) to ensure system stability and prevent thermal throttling.

Why A is the best answer:

High-end CPUs like Intel Core i9 and multiple GPUs generate substantial heat.

Proper cooling is essential for maintaining performance under sustained load (video rendering, VR workloads).

While not strictly a motherboard feature, cooling is a critical system requirement for such a build.

Why the other options are incorrect:

B. Use DDR3 RAM for increased compatibility

Incorrect because modern Intel Core i9 platforms use DDR4 or DDR5, not DDR3, which is obsolete and incompatible with current high-performance motherboards.

C. Verify there are two PCIe x1 slots for additional devices

Incorrect because PCIe x1 slots are used for low-bandwidth devices (sound cards, network cards), not graphics cards.

Multiple GPUs require PCIe x16 slots, not x1.

D. Select a motherboard with integrated graphics to support video output

Incorrect because high-performance systems with discrete GPUs rely on those GPUs for rendering. Integrated graphics are unnecessary and sometimes disabled when a dedicated GPU is installed.

Exam Insight (CompTIA A+ perspective):

In real-world A+ Core 1 scenarios, the correct motherboard selection for this requirement would focus on:

Multiple PCIe x16 slots (for multi-GPU support)

Compatible socket for Intel Core i9

Support for modern RAM (DDR4/DDR5)

Adequate chipset and power delivery (VRM design)

Proper cooling solution for thermal management

However, since those correct motherboard specifications are not provided in the options, A is the only viable system-level requirement relevant to stability under high-performance load.

For a main database server with high read/write activity, the best RAID choice must deliver strong performance while still providing fault tolerance. Per CompTIA A+ Core 1 (220-1201) storage/RAID objectives, RAID 10 (1+0) combines disk mirroring (RAID 1) and disk striping (RAID 0). Striping improves performance by distributing read/write operations across multiple disks, which is ideal for databases that perform frequent transactions. Mirroring provides redundancy by keeping an identical copy of data on a paired drive, allowing the system to tolerate drive failures (typically one drive per mirrored pair) without data loss.

RAID 0 is fast but offers no redundancy, making it inappropriate for critical servers. RAID 5 and RAID 6 use parity, which provides redundancy but introduces a write penalty because parity must be calculated and written during updates—often a poor fit for workloads with heavy random writes like databases. RAID 6 is even more write-intensive

A device that connects directly to a laptop and provides a one-to-one duplication of the laptop’s existing ports is known as a port replicator. According to CompTIA Core 1 (220-1201) mobile device and laptop accessories objectives, a port replicator extends the available connections by mirroring the laptop’s built-in ports, such as USB, HDMI, Ethernet, and audio. This allows users to quickly connect peripherals like monitors, keyboards, mice, and network cables without plugging each device in individually.

Port replicators are typically passive devices and do not add new functionality beyond duplicating existing ports. They are commonly used in office environments where users frequently dock and undock laptops.

A docking station, by contrast, often provides additional or enhanced functionality, such as extra video outputs, higher-power charging, expansion slots, or proprietary connectors. A USB hub only expands USB connectivity and does not replicate all peripheral connections. A KVM switch is used to control multiple computers with a single keyboard, video display, and mouse, which is unrelated to laptop port expansion.

CompTIA distinguishes port replicators as simple port-duplication devices, making them the correct answer in this scenario.

Comprehensive and Detailed Step-by-Step Explanation:

S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology):

S.M.A.R.T. is a monitoring system integrated into modern HDDs and SSDs that detects and reports on various indicators of drive health and reliability.

A S.M.A.R.T. error indicates that the drive is showing signs of impending failure, even if the PC continues to boot and work normally for the time being.

Next Steps:

The appropriate action is to replace the hard drive (HDD) because a S.M.A.R.T. error is an early warning of possible hardware failure. Ignoring the warning could result in data loss if the drive fails completely.

The technician should also back up the user ' s data immediately to avoid losing critical information.

Incorrect Options:

B. Update the PC ' s BIOS: While keeping the BIOS updated is a good practice, it does not address the S.M.A.R.T. error, which is specific to the HDD.

C. Close the ticket: Closing the ticket without resolving the issue would be improper, as the S.M.A.R.T. error is a hardware problem that needs to be addressed to prevent future data loss or downtime.

D. Change the NIC: The NIC (Network Interface Card) is unrelated to the storage system and would not resolve a S.M.A.R.T. error.

Key Takeaway:

A S.M.A.R.T. error is a critical indicator of HDD health issues, and the drive should be replaced as soon as possible. Backing up data is also essential.

Comprehensive and Detailed Step-by-Step Explanation:

When delivering 10Gbps speeds over long distances, fiber optic cables are the best choice. Here’s the breakdown:

A. Multimode Fiber (Correct Answer):

Multimode fiber is designed for relatively short to medium distances (up to 1,312 feet or 400 meters) while supporting high-speed data transfer (10Gbps and above).

It uses LED light sources and is cost-effective for environments like data centers or within buildings.

For the specified distance of over 328ft but under 1,312ft, multimode fiber is the most suitable option.

Incorrect Options:

B. Single-mode Fiber: While single-mode fiber supports much greater distances (up to several miles or kilometers) and higher speeds, it is more expensive and unnecessary for the specified range. Single-mode fiber is generally used for long-haul networking or telecommunications.

C. Cat 6a: Cat 6a is capable of 10Gbps speeds but only up to 328ft (100 meters). It cannot reliably handle the specified distance of over 328ft.

D. Cat 6: Cat 6 is also limited to 10Gbps speeds at distances up to 328ft (100 meters). Beyond this range, it is unsuitable.

Key Takeaway:

For delivering 10Gbps speeds over distances longer than 328ft (100m) but under 1,312ft (400m), Multimode Fiber is the best choice due to its ability to support high-speed data over medium distances at a reasonable cost.

Choppy or unintelligible audio is typically caused by issues with the microphone, such as poor quality, hardware defects, or misconfiguration.

Why Not A (Webcam): The webcam handles video, not audio.

Why Not B (Digitizer): A digitizer relates to touchscreens, not audio.

Why Not C (Inverter): Inverters manage power for displays, not audio.

CompTIA A+ Exam Reference: Core 1 (220-1201), Section 3.6, audio troubleshooting​.

CompTIA A+ teaches that S.M.A.R.T. warnings indicate imminent drive failure. Even if the RAID controller reports the array as “healthy,” a S.M.A.R.T. alert means the drive should be replaced immediately.

RAID 5 provides redundancy for one drive failure, but technicians should replace the degrading drive before it fails fully, ensuring the rebuild happens proactively.

Running chkdsk affects file systems, not drive health. Disabling write caching is unrelated. Rebuilding the array should only occur after replacing the faulty drive.

Replacing the drive prevents a catastrophic dual-drive failure scenario, which RAID 5 cannot survive.

This approach aligns with CompTIA troubleshooting guidelines for RAID maintenance and S.M.A.R.T. diagnostics.

A VLAN (Virtual Local Area Network) is a network technology used to logically segment a physical network into multiple distinct broadcast domains, even if they share the same hardware.

From the CompTIA A+ 220-1101 Official Study Guide, Objective 2.2 – Compare and contrast common networking hardware:

“VLANs allow network administrators to segment a network logically, isolating broadcast traffic and improving security and management, regardless of the physical network layout.”

Other options explained:

MAC (Media Access Control) is a hardware address, not a segmentation method.

NIC (Network Interface Card) is network hardware, not for logical segmentation.

DSL (Digital Subscriber Line) is an internet connection type.

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 2: Networking Concepts

CompTIA Exam Objectives 220-1101, Domain 2.2

Channel configuration(e.g.,dual-channel,quad-channel) determines how memory modules communicate with the memory controller. Usingmatched pairs in dual- or quad-channel setupscan significantlyincrease memory bandwidth, improving performance especially for gaming and video-intensive tasks.

Option A (Error correction):ECC RAM is used in servers for reliability, not performance or gaming.

Option B (RAM voltage):Affects compatibility and overclocking but not bandwidth.

Option D (Physical size):Refers to module form factor (e.g., DIMM, SO-DIMM) and does not impact bandwidth.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.2: Given a scenario, install RAM types.

The correct answer is C. Virtualization.

According to CompTIA A+ Core 1 220-1201 objectives under Networking and Cloud/Virtualization Concepts:

Virtualization allows a single physical server to host multiple virtual machines (VMs), each running its own operating system and applications.

This reduces hardware costs because fewer physical servers are required to run multiple workloads, and it improves resource utilization, scalability, and management.

Why the other options are incorrect:

A. Containerization: Optimizes application deployment by packaging applications and dependencies, but containers share the host OS kernel and are not full OS instances.

B. Cloud computing: Refers to delivering computing services over the internet; it can use virtualization but is broader and not specifically focused on reducing physical hardware.

D. Remote desktop services: Provides remote access to desktops or applications; it does not reduce hardware requirements for hosting multiple OS environments.

The correct answer is A. Adjust the SMTP server configurations for email.

Scan-to-email functionality on a multifunction printer relies on proper configuration of an SMTP (Simple Mail Transfer Protocol) server. The printer must know how to send outgoing email, which requires settings such as:

SMTP server address

Port number (commonly 25, 465, or 587)

Authentication credentials (username/password)

Encryption method (SSL/TLS if required)

If scan-to-email is not working, the most common cause is incorrect or missing SMTP configuration. Without this setup, the printer cannot send scanned documents via email.

Why the other options are incorrect:

B. Check the printer ' s IP address configuration

This ensures network connectivity, but since the printer is already in use and the issue is specific to email functionality, IP configuration is unlikely the root cause.

C. Install the printer ' s driver software on all computers

Drivers are needed for printing from computers, but scan-to-email is handled directly by the printer and does not depend on client-side drivers.

D. Configure user authentication settings for email access

While authentication may be required in some setups, it is part of the broader SMTP configuration. The primary and most direct fix is ensuring SMTP settings are correct.

Exam Tip (Core 1 220-1201):

Scan-to-email issues → Check SMTP settings first

Multifunction printers rely on network services (email protocols), not just drivers

Final Answer: A. Adjust the SMTP server configurations for email

The correct answer is B. USB.

In the CompTIA A+ Core 1 (220-1201) objectives under mobile devices and connectivity methods, tethering refers to sharing a mobile device’s internet connection with another device such as a laptop. There are several tethering methods, including USB tethering, Bluetooth tethering, and Wi-Fi hotspot.

USB tethering is considered the most stable and reliable (tethered) connection because:

It uses a physical cable connection, eliminating wireless interference.

It provides consistent bandwidth and low latency.

It also charges the phone while connected, which is an added benefit.

It is less prone to disconnections compared to wireless methods.

Why the other options are incorrect:

A. Bluetooth

Bluetooth tethering is slower and less stable due to limited bandwidth and susceptibility to interference. It is not ideal for high-performance or stable connections.

C. Hotspot

A mobile hotspot uses Wi-Fi, which is wireless, not tethered. While convenient, it is less stable than a wired USB connection and can be affected by interference and signal range.

D. NFC

NFC (Near Field Communication) is used for very short-range communication like payments or quick pairing. It is not used for maintaining a continuous network connection.

Final Answer: B. USB

To ensure seamless connectivity during (and after) migrating an application server, the best DNS approach in CompTIA A+ Core 1 (220-1201) terms is to use a CNAME (Canonical Name) record, which creates an alias from one hostname to another. Instead of users connecting directly to a server’s changing hostname, they connect to a consistent service name (for example, app.company.com). That name can be configured as a CNAME pointing to the current host (such as server1.company.com). When the application is moved to a new server, the technician updates what the alias ultimately resolves to (or updates the target host’s A/AAAA record), and clients continue using the same familiar application URL/name—minimizing disruption and avoiding the need to reconfigure endpoints across devices.

The other record types are not designed for this purpose. TXT records store text-based information (often verification or policy data). SPF and DKIM are email authentication-related mechanisms (typically implemented via TXT records) used to validate authorized mail senders and message integrity—not application server migration. Because the goal is maintaining a stable name for a service while the underlying host changes, CNAME is the correct record type.

The correct answer is A. Better compatibility.

According to CompTIA A+ Core 1 220-1201 objectives under Software Troubleshooting and Virtualization:

Application virtualization allows applications to run in an isolated environment on a client device without being installed directly on the operating system.

This improves compatibility, as applications can operate regardless of OS differences, avoiding conflicts with other installed applications or system configurations.

Why the other options are incorrect:

B. Reduced network latency: Application virtualization does not inherently reduce network latency; network performance depends on connectivity.

C. Secure telnet access: Telnet is unrelated to application virtualization.

D. Metered utilization: Metering refers to cloud service usage or billing, not a benefit of application virtualization itself.

The correct answer is B. Elasticity.

According to CompTIA A+ Core 1 220-1201 objectives under Networking and Cloud Concepts:

Elasticity refers to the cloud computing capability to automatically allocate and deallocate resources based on current demand. This ensures that applications have the necessary compute, storage, and network capacity during peak loads, and resources can be scaled down when demand decreases, optimizing efficiency and cost.

Why the other options are incorrect:

A. Hybrid deployment: Refers to using a combination of public and private clouds; it does not describe dynamic resource allocation.

C. Multitenancy: Describes the architecture where multiple users share the same infrastructure securely.

D. Metered utilization: Refers to charging based on resource consumption; it is a billing mechanism, not a dynamic allocation feature.

The correct answer is B. Reconnect the wireless antennas.

According to CompTIA A+ Core 1 220-1201 objectives under Hardware and Laptop Maintenance:

Many laptop wireless antennas are routed through the display assembly to provide optimal Wi-Fi and Bluetooth signal strength.

When replacing a laptop display, it is essential to disconnect and then reconnect the wireless antennas to ensure proper connectivity.

Failing to reconnect these antennas can result in weak or no wireless signal.

Why the other options are incorrect:

A. Reattach the heat sinks: Heat sinks are part of the CPU/GPU cooling assembly and are unrelated to replacing the display.

C. Install a new CPU fan: CPU fans are part of the cooling system, not the display assembly.

D. Reset the BIOS to default settings: Not required for physically replacing the display; the BIOS retains settings independently of display hardware.

According to the CompTIA A+ Core 1 (220-1201) virtualization objectives, a Type 1 hypervisor is known as a bare-metal hypervisor because it installs directly onto the physical hardware of a system rather than running on top of a traditional operating system. This architecture allows the hypervisor to manage hardware resources—such as CPU, memory, storage, and networking—without the overhead of a host operating system. Because of this direct interaction with the hardware, Type 1 hypervisors typically provide higher performance, better scalability, and improved stability compared to Type 2 hypervisors.

Examples of Type 1 hypervisors include VMware ESXi, Microsoft Hyper-V (bare-metal deployment), and Citrix XenServer. These hypervisors are commonly used in enterprise data centers, cloud infrastructure, and large virtualization environments where multiple virtual machines must run efficiently on a single physical server. 🖥 ️

Option A (Host OS required) describes a Type 2 hypervisor, such as VMware Workstation or Oracle VirtualBox, which runs on top of an existing operating system. Option C (Lightweight OS) may describe some hypervisor environments but is not the defining characteristic. Option D (Local configuration options) is also not specific to Type 1 hypervisors.

Therefore, the key characteristic that defines a Type 1 hypervisor is that it performs a bare-metal server installation directly on the hardware

The technician is creating a DHCP reservation . A DHCP reservation associates a specific IP address with a particular network interface. The network interface is normally identified by its MAC address , also called its physical address or hardware address.

When the printer requests an address from DHCP, the DHCP service recognizes the printer’s MAC address and repeatedly assigns the reserved IP address. This allows computers and print servers to reach the printer consistently without requiring the printer to be manually configured with a static address.

The printer driver version affects how the operating system communicates with the printer, not DHCP addressing.

A spool target relates to print-job processing.

A serial number identifies the physical product but is not normally used by DHCP.

CompTIA objective 2.4 includes DHCP reservations, while objective 2.5 identifies the MAC address as the physical address of a network interface card. Microsoft confirms that DHCP reservations assign an address to a particular client NIC based on its MAC address.

==========

The technician should first open Disk Management and determine whether the disk or volume is still recognized by Windows.

Disk Management can reveal whether the volume:

Is present but does not have a drive letter.

Has been assigned a different drive letter.

Is offline.

Is unallocated or not initialized.

Has a partition or file-system problem.

Is no longer detected by the operating system.

This follows proper troubleshooting practice: inspect the existing configuration before making destructive or unnecessary changes.

There is no evidence that hardware was stolen, so escalation for theft is premature.

Creating a new partition could alter the existing disk layout and does not locate the missing F: volume.

Installing a new hard drive is unnecessary before determining what happened to the existing volume.

CompTIA objective 5.2 includes “missing drives in OS” as a drive-troubleshooting symptom. Microsoft identifies Disk Management as the Windows utility for viewing volumes and assigning or changing drive letters.

==========

In CompTIA A+ Core 1 (220-1201) networking and troubleshooting, a common cause of “can’t reach internal resources” while docked is that the laptop is still using the wireless interface (or has a higher interface priority for Wi-Fi) instead of the docking station’s wired Ethernet connection. If the Wi-Fi network is a guest/isolated VLAN, uses different routing, or has stricter access controls, the user may be blocked from reaching department file servers even though an Ethernet cable is physically connected to the dock. Disabling Wi-Fi is a fast, low-risk step that forces the system to use the wired NIC path through the docking station, which typically provides the correct corporate network access, DHCP scope, and routing to internal servers.

Restarting the computer might help in some cases, but it’s less targeted and not the “best next step” when the likely issue is interface selection. Replacing the Ethernet cable is appropriate if link lights are off or the wired connection is clearly down, but the scenario highlights that the dock has a hardwired connection—suggesting the physical layer may be fine. Dock firmware updates are not a first-line fix for basic connectivity/access symptoms.

The correct answer is C. Synchronized system clocks.

According to CompTIA A+ Core 1 220-1201 objectives under Networking and Server Services, NTP (Network Time Protocol) is used to synchronize the clocks of computers across a network to a common time source. This is critical for:

Ensuring accurate timestamps for logs and events.

Coordinating scheduled tasks across multiple systems.

Preventing authentication issues in environments that rely on time-based credentials (e.g., Kerberos).

Why the other options are incorrect:

A. Defined network transport protocols: NTP itself is a protocol that uses UDP, but its primary purpose is not defining transport protocols.

B. Enabled print services on the server: NTP does not relate to printing.

D. Defined server options in DHCP: NTP may be referenced by DHCP options, but the act of adding NTP to a server is focused on time synchronization, not DHCP configuration.

The correct answer is B. Secure Boot.

According to CompTIA A+ Core 1 220-1201 objectives under Security:

Secure Boot is a UEFI firmware feature that ensures a computer boots only with software that is trusted and digitally signed by the manufacturer.

This prevents malicious or unauthorized bootloaders and operating systems from loading, protecting the system from rootkits and other boot-time attacks.

Secure Boot does not require disabling USB devices; it simply checks that any bootable device contains a signed operating system.

Why the other options are incorrect:

A. BIOS password: Protects access to BIOS/UEFI settings but does not verify trusted software during boot.

C. USB settings: Can control USB access but cannot enforce boot validation for signed OS or prevent unauthorized boot devices.

D. Single sign-on: Provides authentication convenience for users, unrelated to boot security.

The correct answer is A. The internal antenna has been damaged.

According to the CompTIA A+ Core 1 220-1201 objectives under Mobile Devices and Networking:

Many laptop Wi-Fi antennas are embedded in the display panel and connected via small cables to the wireless card on the motherboard.

If the display panel is replaced and the Wi-Fi antenna is disconnected, damaged, or improperly routed, the laptop will experience weak or intermittent Wi-Fi connectivity.

Why the other options are incorrect:

B. Airplane mode is enabled: Would completely disable wireless radios; the question specifies difficulty staying connected, not a total lack of connectivity.

C. The inverter is not connected: The inverter powers the backlight of the display, unrelated to wireless connectivity.

D. The wireless drivers have not been updated: While outdated drivers can cause connectivity issues, a sudden problem after a display replacement strongly points to physical antenna damage.

In the CompTIA A+ Core 1 (220-1201) exam objectives, cloud deployment models describe how and where computing resources are hosted and who has access to them. A private cloud is defined as a cloud environment that is dedicated to a single organization and may be hosted on-premises within the company’s own data center or in a dedicated external facility. Since the question states that the directory services server is located on premises, it indicates that the organization is hosting and managing its own infrastructure internally. This aligns directly with the definition of a private cloud deployment model.

Directory services—such as Microsoft Active Directory or LDAP-based services—are commonly deployed internally to manage user authentication, authorization, group policies, and resource access within an organization. When these services run on company-owned hardware inside the organization’s network, the infrastructure remains under the organization’s full administrative control, security policies, and management.

The other options do not match this scenario. A public cloud is hosted by third-party providers and shared among multiple customers ☁. A hybrid cloud combines on-premises infrastructure with public cloud services. A community cloud is shared by multiple organizations with similar requirements. Because the system is hosted internally for a single organization, the correct classification is Private Cloud .

A VLAN (Virtual Local Area Network) is the correct solution because it logically separates devices into different broadcast domains on the same physical switching infrastructure. In CompTIA A+ Core 1 (220-1201), VLANs are described as a way to segment a network for security, performance, and management—for example, isolating departments like Accounting and Customer Service so their traffic is separated. Devices assigned to different VLANs cannot communicate directly at Layer 2; communication between VLANs requires a Layer 3 device (such as a router or a Layer 3 switch) using inter-VLAN routing and appropriate access control. This effectively prevents unnecessary broadcast traffic from crossing department boundaries and helps enforce separation policies.

A VPN is used to create an encrypted tunnel over an untrusted network (commonly for remote access or site-to-site connectivity), not for internal departmental segmentation. DNS resolves hostnames to IP addresses and does not isolate networks. DHCP automatically assigns IP configuration (IP address, gateway, DNS servers), but it does not provide segmentation by itself. Therefore, implementing VLANs is the best way to separate the two departments’ networks.

The correct answer is D. Data is being throttled.

Data throttling refers to the intentional slowing down of internet speeds by a mobile carrier after a user reaches a certain data usage limit or during network congestion. In this scenario, the employee can still successfully upload files, but the speed has decreased compared to before—this is a classic symptom of throttling.

Why the other options are incorrect:

A. Wireless is turned off

If wireless were turned off, the employee would not be able to upload anything at all. The question clearly states that uploads are still successful.

B. 5G is disabled

Disabling 5G could reduce speeds slightly if the device falls back to 4G/LTE, but it would not typically cause a significant or noticeable degradation unless compared under ideal conditions. It is not the most likely cause.

C. Roaming is turned on

Roaming allows connectivity outside the home network. While it may incur additional charges, it does not inherently cause significant speed reduction in most modern networks. It is less likely than throttling.

Exam Tip (Core 1 220-1201):

Slow but working connection → Think throttling or congestion

No connection → Think disabled wireless or network issues

Final Answer: D. Data is being throttled

The correct answer is D. SMTP (Simple Mail Transfer Protocol).

According to CompTIA A+ Core 1 220-1201 objectives under Networking:

SMTP is the standard protocol used to send emails from a client to a mail server or between servers.

POP3 (Post Office Protocol 3) and IMAP (Internet Message Access Protocol) are used for receiving emails, not sending them.

LDAP (Lightweight Directory Access Protocol) is used for accessing and managing directory services, such as authentication and organizational information, not for email transport.

In the CompTIA A+ Core 1 (220-1201) networking concepts, satellite internet is commonly associated with higher (increased) latency compared with terrestrial options like cable, fiber, or DSL. Latency is the delay between sending data and receiving a response. With satellite, signals must travel from the user’s dish up to a satellite and then back down to a ground station (and return again for responses). That long travel distance adds noticeable delay, which can affect real-time activities such as VoIP, video conferencing, and online gaming. Even though newer low-earth-orbit (LEO) systems can reduce latency compared with older geostationary systems, satellite service is still generally discussed in A+ as having higher latency characteristics to consider.

The other options do not best fit satellite internet. Proximity to urban infrastructure (A) is more relevant to cable/fiber availability. An eSIM requirement (B) relates to cellular/mobile service, not satellite broadband. Line of sight to a nearby tower (C) describes cellular or fixed wireless services that depend on tower connectivity; satellite instead needs a clear view of the sky toward the satellite (not a nearby tower). Therefore, increased latency is the best characteristic to consider.

In CompTIA A+ Core 1 (220-1201) cloud concepts, the key differentiator between cloud deployment models is where the service is hosted and who owns/uses the underlying infrastructure. If a company’s directory services server (for example, a domain controller providing authentication/authorization and centralized identity management) is located on premises, that points to infrastructure that is owned and operated by the organization for its own internal use. This aligns best with a private cloud model, which is defined as cloud resources dedicated to a single organization and can be implemented on-premises (internally hosted) or in a dedicated off-site environment.

It is not a public cloud because public cloud services are hosted by a third-party provider and shared across multiple customers. It is not hybrid cloud because hybrid requires a mix of on-prem resources and public cloud resources working together (the question only specifies on-prem). It is not community cloud because that involves shared infrastructure among multiple organizations with common needs.

The degraded status on Server 2 indicates a RAID-5 issue, typically due to a failed or failing drive. In RAID-5 configurations, when one drive fails, the system can still operate but with reduced performance as parity data is used to rebuild missing data on-the-fly.

Recommended Replacement Drive:

To minimize performance degradation, the replacement drive should be:

SAS HDD with the same specifications (64KB stripe size, no read-ahead, and write-back policy).

Matching the configuration exactly ensures seamless integration and optimizes recovery speed in the RAID-5 array.

In RAID-5, degraded performance is expected when one drive fails, as parity data needs to rebuild missing information during each read/write process. Replacing the failed drive restores the RAID array to optimal status, reducing the load on existing drives and returning the system to normal read/write performance. The write-back policy and disabled disk cache settings are designed to reduce latency and increase efficiency, essential for handling real-time applications.

A user reports poor performance on the

application server.

INSTRUCTIONS

Click on Server 1 and Server 2 and review

the information presented in each chart to

determine which drives need to be replaced.

Select the appropriate replacement drive

that should be used, for the least

performance degradation to the server.

A computer server with many black and silver parts AI-generated content may be incorrect.A computer server with many black boxes Description automatically generated with medium confidence

A screen shot of a computer AI-generated content may be incorrect.A screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A screenshot of a computer AI-generated content may be incorrect.A screenshot of a computer Description automatically generated

A screenshot of a computer AI-generated content may be incorrect.A screenshot of a computer Description automatically generated

The correct answer is B. Moving to a supported system under a Type 2 hypervisor.

In the CompTIA A+ Core 1 (220-1201) objectives, virtualization is a key concept for maintaining compatibility with legacy systems. A Type 2 hypervisor (hosted hypervisor) runs on top of an existing operating system and allows users to run a virtual machine (VM) with an older OS.

This solution is ideal because:

It allows the legacy application to run in its required OS environment.

It avoids replacing the application (which could cause data loss or compatibility issues).

It is cost-effective, as it uses existing hardware.

It minimizes user disruption, since users can continue using the application within a VM.

Why the other options are incorrect:

A. Setting up a bare-metal hypervisor

A Type 1 (bare-metal) hypervisor is more complex, costly, and disruptive. It typically requires dedicating hardware and is not ideal for a single department use case.

C. Upgrading to an alternative product and importing the data

Although this may be a long-term solution, it involves higher cost, potential data loss, retraining, and disruption.

D. Uploading the database to a private cloud

This does not solve the compatibility issue of the legacy application with the new OS.

Final Answer: B. Moving to a supported system under a Type 2 hypervisor

The correct answer is A. Virtual LAN (VLAN).

According to CompTIA A+ Core 1 220-1201 objectives under Networking:

VLANs are used to segment a physical network into multiple logical networks. By assigning the accounting department to a separate VLAN, users on other VLANs cannot access its network traffic without routing, thereby isolating sensitive departments while using the same physical switch.

VLANs improve security, reduce broadcast traffic, and allow network administrators to enforce access controls at the layer 2 level.

Why the other options are incorrect:

B. DHCP reservations: Ensure that specific devices always receive the same IP address, but do not restrict network access.

C. Content filtering: Controls web or application traffic based on content, not segmenting network access between departments.

D. Port security: Limits which devices can connect to a port but does not provide full network segmentation for an entire department.

The correct answer is A. Containers.

According to CompTIA A+ Core 1 220-1201 objectives under Networking and Cloud/Virtualization Concepts:

Containers provide lightweight, portable environments that package applications and their dependencies, allowing them to run consistently across multiple environments.

Containers are ideal for development teams because they require minimal underlying infrastructure, can be quickly deployed or destroyed, and isolate applications from the host system, making it easier to manage multiple applications simultaneously.

Why the other options are incorrect:

B. IaaS (Infrastructure as a Service): Provides virtualized hardware over the cloud but is more general-purpose; it includes virtual machines, storage, and networking, not minimal isolated application environments.

C. SaaS (Software as a Service): Provides fully managed software to end-users; not intended for deploying custom web applications by a development team.

D. Desktop virtualization: Provides virtual desktop environments to users; it does not provide a minimal, disposable platform for web application development.

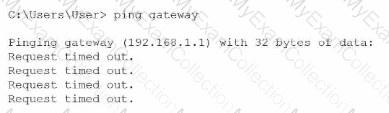

Looking at the network configurations and outputs from both PCs and servers, here are the possible issues and solutions:

1. PC 1

Issue: The IP address for PC1 is 192.168.1.1, which conflicts with Server 1 (which also uses 192.168.1.1).

Solution: Change the IP address on PC1 to a unique one within the range, like 192.168.1.3.

2. PC 2

Issue: PC 2 is configured with 192.168.1.2, which conflicts with Server 2 that has the same IP address.

Solution: Update the IP address on PC 2 to something unique, like 192.168.1.4.

3. Server 1

Issue: The IP address for Server 1 is 192.168.1.1, which conflicts with PC1.

Solution: Since Server 1 and PC1 are using the same IP address, change one of them. For Server 1, you could change the IP address to 192.168.1.5.

4. Server 2

Issue: Server 2 is using the IP address 192.168.1.2, which conflicts with PC2.

Solution: Update Server 2 to use a different IP address, such as 192.168.1.6.

General Remediation:

The primary problem here is overlapping IP addresses, leading to connectivity issues. Each device on the network must have a unique IP address. After making these changes, ensure that all devices can communicate properly by testing the connection between devices and verifying they can access shared resources.

correct answer is " Overclocking " and " Reduce CPU Clock speed " CPU is at 4.5 Ghz when normal is 3.2 Ghz. Overclocking too much can cause freezes, and this is a gaming computer sothe user probably took it too far. http://blog.logicalincrements.com/2018/12/4-troubleshooting-tips-overclocking-pc/

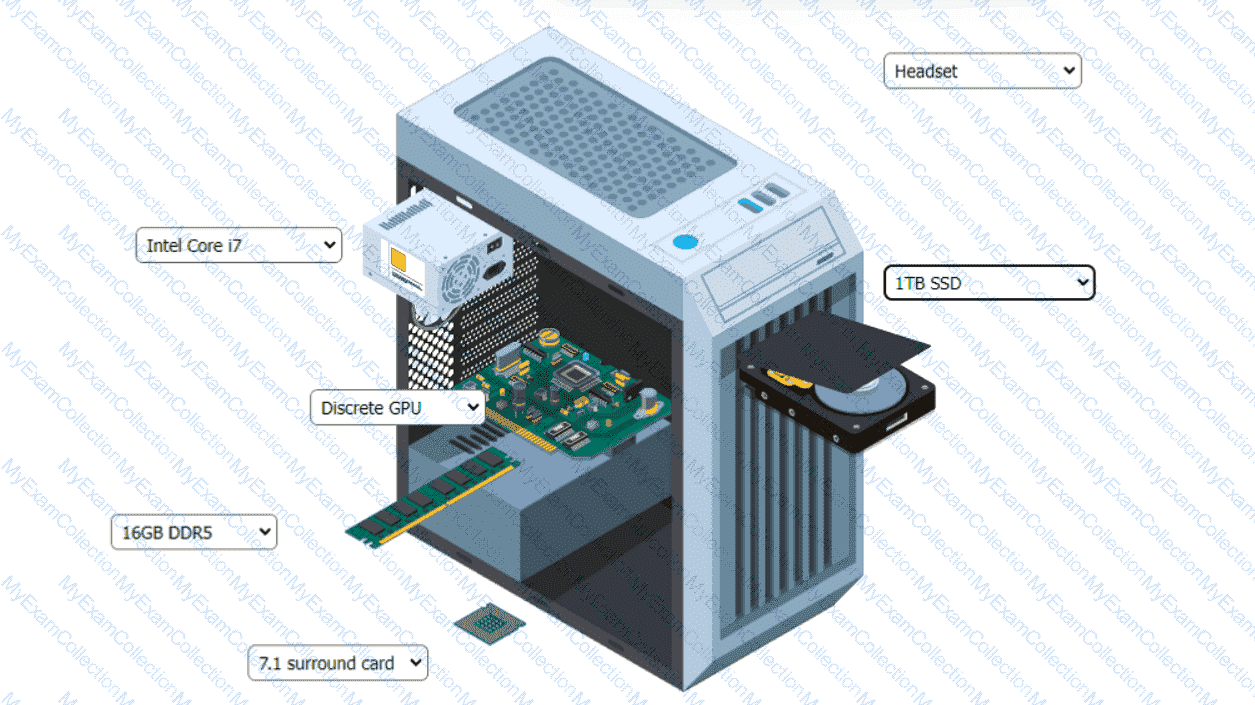

A computer tower with a hard drive and a hard drive AI-generated content may be incorrect.

A computer tower with a computer and a hard drive AI-generated content may be incorrect.

A router is a network device that forwards data between different networks by examining packet headers, specifically the IP address information contained in Layer 3 (Network Layer) of the OSI model. According to the CompTIA A+ Core 1 (220-1201) networking objectives, routers use routing tables and packet header analysis to determine the best path for data to travel from a source network to a destination network. When a packet arrives at a router interface, the router reads the destination IP address in the packet header, compares it against its routing table, and then forwards the packet to the appropriate next hop or network interface. This function allows routers to connect multiple networks such as LANs, WANs, and the internet.

The other options do not perform this function. A hub operates at Layer 1 (Physical Layer) and simply broadcasts incoming signals to all connected ports without inspecting any packet information. A repeater also operates at the physical layer and is used only to regenerate or amplify signals to extend network distance. An unmanaged switch operates mainly at Layer 2 (Data Link Layer) and forwards frames based on MAC addresses, not IP packet headers. Because only routers analyze packet headers and forward traffic between different networks, Router is the correct answer.

The correct answer is B. Near-field communication (NFC).

According to the CompTIA A+ Core 1 220-1201 objectives under Mobile Devices and Security:

NFC is commonly used for secure access control. Many organizations implement NFC-enabled ID badges or mobile devices to unlock doors, gates, or secure areas.

The mobile device communicates over a very short range (a few centimeters) with a reader to authenticate the user.

Why the other options are incorrect:

A. Hotspot: Provides internet access, not physical building access.

C. Infrared scanner: While used in some legacy devices, it is not commonly implemented for secure mobile access.

D. Geolocation: Can provide location awareness but does not grant direct access to secure physical spaces.

A firewall examines network traffic and permits or blocks it according to configured security rules. Rules can be based on characteristics such as:

Source or destination IP address.

Network protocol.

Source or destination port.

Connection state.

Application or service.

Direction of communication.

This makes a firewall the device that most directly blocks unauthorized or unwanted network traffic.

An access point provides wireless network connectivity.

A switch forwards Ethernet frames between devices on a local network.

A router directs packets between different IP networks. Some routers contain integrated firewall functionality, but routing itself is not the primary security control described by the question.

CompTIA objective 2.5 includes firewalls among common network hardware devices. Microsoft describes a firewall as a technology that filters network traffic and blocks unauthorized access.

==========

The correct answer is B. Inspect and replace the printer rollers.

According to CompTIA A+ Core 1 220-1201 objectives under Printers:

Frequent paper jams with no visible obstruction are often caused by worn or dirty feed rollers, which fail to grip and feed paper properly.

Inspecting and replacing the rollers ensures smooth paper feeding and prevents repeated jams, particularly in high-use network printers.

Why the other options are incorrect:

A. Check for firmware updates: Firmware updates address software or functionality issues, not mechanical paper feeding problems.

C. Reseat the fuser assembly: Fuser issues typically cause smudging or incomplete toner adhesion, not paper jams.

D. Clean the corona wire: The corona wire affects toner adhesion and print quality, not paper feeding.

The correct answer is D. WLAN (Wireless Local Area Network).

According to CompTIA A+ Core 1 220-1201 objectives under Networking:

A WLAN is a wireless network that covers a limited area such as an office, building, or campus.

Using a heat map helps administrators determine optimal placement of access points, identify areas of weak signal, and plan coverage for employees’ devices.

Why the other options are incorrect:

A. SAN (Storage Area Network): Connects storage devices over a network; not used for wireless coverage.

B. PAN (Personal Area Network): Covers a very small area, such as a single person’s devices (Bluetooth, USB, etc.), not a whole office.

C. MAN (Metropolitan Area Network): Covers a city or large geographic area; too large for a floor plan.

The correct answer is B. Switches connect devices within a network; routers connect networks.

According to the CompTIA A+ Core 1 220-1201 networking objectives:

Switches operate at the Data Link layer (Layer 2) and sometimes Layer 3, connecting multiple devices within the same local area network (LAN). They manage data traffic between devices by using MAC addresses to forward frames only to the intended recipient.

Routers operate at the Network layer (Layer 3) and connect different networks together, such as connecting a LAN to the internet. They use IP addresses to determine the best path for forwarding packets between networks.

Why the other options are incorrect:

A. Routers are programmable; switches are not programmable: Both devices can have programmable configurations in enterprise environments, so this is not a defining difference.

C. Switches are programmable; routers are not programmable: Same reasoning as above; not accurate.

D. Routers connect devices within a network; switches connect networks: This reverses the actual roles and is incorrect.

The correct answer is D. DVI (Digital Visual Interface).

According to CompTIA A+ Core 1 220-1201 objectives under Hardware and Display Technologies:

DVI is primarily a video-only interface that transmits digital or analog video signals from a source (like a computer) to a display.

Unlike HDMI or USB-C, DVI does not carry audio signals, making it strictly for video.

Why the other options are incorrect:

A. DisplayPort: Supports video and audio as well as other features such as daisy-chaining multiple monitors.

B. HDMI: Transmits both video and audio signals over a single cable.

C. USB-C: Can carry data, power, and video/audio signals depending on the device and protocol (e.g., DisplayPort Alt Mode).

The correct answer is D. Verify the audio output assignment.

According to CompTIA A+ Core 1 220-1201 objectives under Hardware and Troubleshooting:

HDMI carries both video and audio signals. If video displays correctly but audio is not heard, it is often because the computer is still outputting sound to its internal speakers rather than the HDMI-connected device.

The user should check the audio output settings in the operating system and ensure the HDMI device (TV or projector) is selected as the audio output device.

Why the other options are incorrect:

A. Adjust the volume settings: Volumes are already at 50%, so adjusting them will not solve the problem if the audio output is assigned incorrectly.

B. Swap the HDMI cable: The video is working fine, so the cable is likely functional.

C. Reinsert the HDMI cable: Unlikely to resolve audio assignment issues if the connection is already working for video.

The correct answer is D. Check for loose connections on the display.

According to CompTIA A+ Core 1 220-1201 objectives under Hardware and Display Troubleshooting:

Flickering or strange colored lines on a monitor are often caused by loose or damaged video cable connections (internal or external).

Before considering costly or time-consuming solutions like replacement, the technician should verify that the display cable, internal ribbon cables, or connectors are properly seated.

Why the other options are incorrect:

A. Suggest a secondary monitor: Provides a temporary workaround but does not resolve the underlying hardware issue.

B. Conduct a factory reset: Resets software settings but will not correct physical connection problems that cause flickering or colored lines.

C. Install a screen protector: Does not affect video signal or display functionality; irrelevant for flickering issues.

The correct answers are E. NFC and F. Location services.

According to CompTIA A+ Core 1 220-1201 objectives under Mobile Devices and Security:

NFC (Near-Field Communication): Enables the device to communicate with contactless payment terminals, which is essential for detecting nearby stores that accept contactless payments.

Location services: Allows the application to determine the user’s geographic location so it can provide notifications only when the user is near a participating store.

Why the other options are incorrect:

A. MDM (Mobile Device Management): Manages device policies but does not enable location-based notifications or contactless payments.

B. Contact syncing: Synchronizes contacts; unrelated to payment notifications.

C. Bluetooth: Can be used for some proximity services, but NFC is required for contactless payment detection.

D. Hotspot: Provides internet access; not required for proximity detection in this context.

The correct answer is B. Change the fuser temperature.

According to CompTIA A+ Core 1 220-1201 objectives under Printers:

A laser printer fuses toner onto paper using heat and pressure. Thicker paper often requires a higher fuser temperature to properly adhere the toner.

If the output smudges on thick paper but prints fine on standard paper, adjusting the fuser temperature is the first step before performing more invasive maintenance or replacing parts.

Why the other options are incorrect:

A. Install a maintenance kit: Typically includes rollers, belts, and other parts; this is not the first action if the issue is temperature-related.

C. Clean the transfer roller: Cleaning may improve print quality, but smudging on thick paper usually relates to insufficient fusing heat.

D. Install an OEM toner cartridge: The issue is unlikely to be caused by non-OEM toner if standard paper prints correctly.

The correct answer is A. Duplex.

In the CompTIA A+ Core 1 (220-1201) exam objectives under printer settings and configuration, duplex printing refers to printing on both sides of the paper automatically.

Using duplex printing is the best way to reduce resource consumption because:

It cuts paper usage in half, which is the primary resource being conserved.

It is ideal for multi-page documents and multiple copies.

It reduces physical storage and handling requirements.

Why the other options are incorrect:

B. Orientation

Orientation (portrait or landscape) changes the layout of the document but does not reduce resource usage.

C. Tray settings

Tray settings determine which paper tray is used (e.g., plain paper, letterhead), but they do not impact resource consumption.

D. Quality

Print quality (draft, normal, high) may affect ink/toner usage, but it does not reduce paper consumption as effectively as duplex printing, which is the main resource concern in this scenario.

Final Answer: A. Duplex

Answer of both steps below.

A group of wires with different colors AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

The correct answer is A. Loopback plug.

According to CompTIA A+ Core 1 220-1201 objectives under Networking:

A loopback plug is used to test a network interface card (NIC) port by sending a signal out of the port and back into the same port, verifying that the NIC can send and receive data properly.

This is a common diagnostic tool when troubleshooting network connectivity issues on individual devices.

Why the other options are incorrect:

B. Toner probe: Used for tracing and locating cables, not for testing NIC ports.

C. Cable tester: Checks the integrity of network cables but does not verify NIC send/receive functionality.

D. Network tap: Passively monitors network traffic but does not test the NIC port itself.

The correct answer is B. VGA.

VGA (Video Graphics Array) is an analog video interface. It transmits video signals as continuous electrical waves, which means the signal can degrade over distance or due to interference. VGA uses a 15-pin connector and is considered legacy hardware in modern systems, but it is still important for CompTIA A+ because you may encounter it in older equipment.

Why the other options are incorrect:

A. DVI

DVI can support both digital and analog signals, but in most modern contexts and exam questions, it is primarily treated as a digital interface (especially DVI-D). Since the question asks for a clearly analog cable, VGA is the best answer.

C. USB-C

USB-C is a digital interface that can carry video signals using protocols like DisplayPort Alternate Mode. It does not transmit analog video.

D. HDMI

HDMI is a fully digital interface used for high-definition video and audio transmission. It does not support analog signals.

Exam Tip (Core 1 220-1201):

Analog video = VGA

Digital video = HDMI, DisplayPort, USB-C, most DVI types

Final Answer: B. VGA

The correct answer is A. RJ11.

According to CompTIA A+ Core 1 220-1201 objectives under Networking:

RJ11 connectors are commonly used for telephone lines and data cables that use two pairs of wires (four wires total).

This connector is standard for analog telephone connections and DSL connections.

Why the other options are incorrect:

B. F-type: Used for coaxial cables, commonly in cable TV or broadband internet, not for two-pair data cables.

C. ST: A type of fiber optic connector, not used for copper two-pair wiring.

D. Molex: Primarily used for power connections in computer hardware, not for network or phone cabling.

CompTIA A+ Core 1 (220-1201) display technology objectives emphasize that contrast ratio is strongly influenced by how well a screen can produce true black. OLED (Organic Light-Emitting Diode) panels are known for the highest contrast ratios because each pixel is self-emissive—meaning it generates its own light. When an image requires black, OLED can turn individual pixels completely off, producing near-perfect black levels and extremely high (often “infinite”) contrast in practical terms.

By comparison, LCD panels require a backlight, so black areas still allow some light leakage through the liquid crystal layer, reducing contrast. LED in this context is typically an LED-backlit LCD, not a fundamentally different pixel technology; it improves brightness and efficiency but still relies on backlighting, so contrast is limited by backlight bleed and panel design. QLED is also a type of LCD technology that uses a quantum dot layer to enhance color and brightness, but it still uses a backlight, so it cannot match OLED’s per-pixel shutoff for black levels. Therefore, OLED is the best choice for the highest contrast ratios.

A printer with text boxes AI-generated content may be incorrect.

A spam gateway is an email-security system positioned in the mail-delivery path. It examines incoming messages and attempts to identify spam, phishing messages, malicious attachments, suspicious links, spoofed senders, and other unwanted content.

Depending on its configuration, a spam gateway can:

Reject the message.

Quarantine it for review.

Mark it as spam.

Deliver it to a junk-mail folder.

Remove or block malicious content.

Because the question specifically asks about preventing unwanted email from reaching an inbox, a spam gateway is the most precise answer.

A proxy server commonly intermediates web or application requests.

An intrusion detection system monitors activity and generates alerts but does not primarily filter email.

A firewall filters network connections and ports but normally does not perform detailed email-content classification.

CompTIA objective 2.3 explicitly identifies spam gateways as network-based internet appliances. Microsoft’s anti-spam documentation explains that spam filtering identifies and separates unwanted email from legitimate messages

When a printout is being cut off, CompTIA A+ Core 1 (220-1201) troubleshooting emphasizes checking the simplest, most likely configuration mismatch first—the printer’s paper size/source settings. Even if the user physically loaded the correct paper, the print job can still be formatted incorrectly if the printer driver, application, or printer itself is set to use a different paper size or a different tray. If the printer thinks it is using a smaller paper size (or a tray configured for smaller paper), it may clip the printable area and truncate the image at the edges.

Changing tray settings (paper size and paper source) aligns the printer’s configuration with the actual media installed, which is a standard first-step for issues related to formatting, clipping, and page boundaries. Image quality (DPI) affects sharpness, not cropping. File type rarely causes consistent edge cutoff compared with page setup mismatches. Adjusting image size could work as a workaround, but CompTIA best practice is to correct the paper/tray and page setup settings first so all prints format properly without editing the document each time.

The correct answer is D. Replace the drive with a cold-swappable drive.

According to CompTIA A+ Core 1 220-1201 objectives under Storage and RAID:

RAID 5 provides both data striping and parity for fault tolerance, but if the RAID controller does not support hot swapping, replacing a failed drive while the system is running is not possible.

Cold-swappable drives are designed to be safely removed and replaced when the system is powered down, which allows maintenance without damaging the array or system.

Why the other options are incorrect:

A. Update the RAID controller firmware to support hot swapping: Firmware updates may add hot swap functionality, but this is not guaranteed and may require a system reboot.

B. Implement a software-based RAID solution: Software RAID requires a system reconfiguration and downtime; it does not immediately resolve the degraded RAID 5 array.

C. Change the drive during off-peak hours: While feasible, this is essentially the same as using a cold-swappable drive but is less precise; using cold-swappable drives ensures safe replacement without downtime considerations.

Because the smudges are not in the original document, CompTIA A+ troubleshooting logic indicates the problem is occurring inside the print process, not in the application or file. For laser printers, smudging commonly points to an issue with the imaging components—especially the drum/photoconductor unit (and sometimes the fuser). A+ Core 1 (220-1201) printer troubleshooting emphasizes starting with the most likely, easiest-to-verify causes before replacing parts. Inspecting the drum is a diagnostic step that can reveal visible defects such as scratches, toner buildup, contamination, or worn surfaces that cause toner to transfer incorrectly, leading to streaks or smears on output.

Replacing the toner (D) is a corrective action and may be unnecessary if the drum is damaged. Changing paper type (A) can help with some issues (like poor fusing or humidity-related problems), but it’s less directly tied to consistent smudges caused by the imaging process. Firmware updates (C) are rarely the first step for print-quality defects; they’re more relevant to compatibility, bugs, or feature issues—not physical smearing. Therefore, inspecting the printer drum first best matches A+ methodology and common laser printer failure points.

The correct answer is B. Header pinouts.

According to CompTIA A+ Core 1 220-1201 objectives under Hardware:

Header pinouts on a motherboard are designated connectors for internal components such as USB ports, audio connectors, and front panel buttons/LEDs.

When adding additional internal USB ports, a technician typically connects them to the motherboard’s USB header pinouts. These headers provide the necessary data and power connections to enable USB functionality for front-panel or expansion USB ports.

Why the other options are incorrect:

A. TPM (Trusted Platform Module): Used for hardware-based security functions like encryption, not USB connectivity.

C. M.2 connector: Used primarily for SSDs and other small-form-factor expansion devices, not standard USB ports.

D. Expansion slots: Typically PCIe or PCI slots are used for expansion cards such as GPUs, network cards, or USB controller cards, but not for connecting internal USB headers directly.

The correct answer is D. Router.

According to the CompTIA A+ Core 1 (220-1201) objectives for Networking, routers are devices that operate at Layer 3 (Network layer) and are primarily used to connect multiple networks, including LANs, WANs, and the Internet. Routers use IP addressing to determine the best path for forwarding packets between networks.

Why the other options are incorrect:

A. Controller: Generally refers to a device that manages a network or hardware component but does not inherently connect different networks.

B. Bridge: Connects two segments of the same network, not different networks, and operates at Layer 2 (Data Link layer).

C. Hub: Connects devices within the same network segment, simply repeating signals, and does not perform routing between networks.

The correct answer is D. Channel width.

According to CompTIA A+ Core 1 220-1201 objectives under Networking and Wireless:

Channel width refers to the size of the frequency band used for Wi-Fi communication.

Increasing channel width (e.g., from 20 MHz to 40 MHz, 80 MHz, or 160 MHz) allows more data to be transmitted at once, effectively increasing wireless throughput speed.

Why the other options are incorrect:

A. Licensed bands: Licensed spectrum is used for certain types of communication and does not directly increase Wi-Fi throughput.

B. Maximum transmission unit (MTU): MTU defines the largest packet size transmitted over a network but is not the primary factor for increasing Wi-Fi throughput.

C. Transmit power: Adjusting transmit power affects signal range and coverage but does not significantly increase throughput; it may improve connectivity but not data rates.

Packet loss

Plug an Ethernet cable into the workstation

A screenshot of a computer AI-generated content may be incorrect.

The correct answer is D. RAID 10 (also called RAID 1+0).

According to CompTIA A+ Core 1 220-1201 objectives under Storage:

RAID 10 combines the mirroring of RAID 1 with the striping of RAID 0. This provides both high data availability (because each drive has a mirror) and improved performance (because data is striped across multiple disks).

RAID 10 requires a minimum of four drives and is suitable for servers that handle high I/O workloads while maintaining redundancy.

Why the other options are incorrect:

A. RAID 1: Provides mirroring for redundancy but does not improve performance as effectively as RAID 10.

B. RAID 0: Provides striping for performance but has no redundancy; a single drive failure results in data loss.

C. RAID 5: Provides parity and can tolerate one drive failure with decent read performance, but write performance is lower than RAID 10 and rebuilds can impact system performance under heavy load.

An MX, or Mail Exchanger, record is a type of DNS resource record. It identifies the mail server responsible for accepting email for a particular domain. Consequently, an MX record is created or modified in the domain’s DNS zone , which is hosted on a DNS server.

Although the MX record points to a mail server, the record itself is configured through DNS. The mail server is the destination identified by the record, not the service in which the DNS record is stored.

A proxy server intermediates network requests, commonly for filtering, caching, or privacy.

A mail server sends, receives, and stores email, but DNS tells other systems how to locate it.

A print server manages printers and print jobs.

CompTIA objective 2.4 specifically includes DNS record types such as A, AAAA, CNAME, MX, and TXT. Microsoft also defines an MX record as a DNS resource record that identifies a domain’s mail server.

==========

Wall Outlet

(empty — nothing goes directly to the wall)

Surge Protector (Power Source: Wall Outlet)

Printer

Scanner

UPS (Power Source: Surge Protector)

Computer

Monitor

Cable Modem

Wi-Fi Router

Check the exhibit diagram for both parts.

A close-up of several cables AI-generated content may be incorrect.

Part 2

A group of different colored rectangular objects AI-generated content may be incorrect.

The correct answer is D. Replace the failed drive.

RAID 6 is a redundant array of independent disks that can tolerate up to two drive failures while still maintaining data integrity. According to CompTIA A+ Core 1 (220-1201) objectives, a red LED on a drive in a RAID array indicates that the drive has failed or is in a critical state.

Next Step: In RAID 6, a single failed drive should be replaced immediately to prevent additional failures and maintain redundancy. The array can continue to operate in a degraded state, but performance may be slow during rebuilds. Replacing the failed drive allows the RAID controller to rebuild data onto the new drive, restoring full redundancy.

Why the other options are incorrect:

A. Reconfigure the RAID array: This would erase existing data; unnecessary if only one drive failed.

B. Run a S.M.A.R.T. test: While useful for diagnosing drive health, the red LED already indicates failure, so immediate replacement is required.

C. Reinstall the controller drivers: This does not address a physically failed drive and would not fix the degraded RAID array.

The correct answer is D. Restart the device.

According to CompTIA A+ Core 1 220-1201 objectives under Mobile Devices and Security:

Warning messages like this can be caused by malicious pop-ups or temporary software glitches. Restarting the device is the safest and quickest first step to clear temporary processes, refresh the system, and remove transient malware or pop-up overlays.

This approach addresses the issue without risking data loss or unnecessary downtime.

Why the other options are incorrect:

A. Force close all running applications: May help if a specific app is causing the pop-up, but restarting achieves this more reliably and fully resets background processes.

B. Replace the tablet with a newer device: Unnecessary and costly for a potentially temporary software issue.

C. Reset the device to default settings: This is a last-resort action, as it erases personal data and settings; it is not the first step.

The correct answer is A. NFC (Near Field Communication).

According to the CompTIA A+ Core 1 220-1201 objectives under Mobile Devices, NFC is commonly used for short-range wireless communication between devices. In the context of mobile printing:

NFC-enabled printers allow a user to tap a mobile device (phone or tablet) to the printer to initiate a print job instantly without needing to configure Wi-Fi credentials or use cables.

This is particularly common in mobile-friendly environments like offices or public kiosks.

Why the other options are incorrect:

B. Hotspot: Provides an Internet connection, not a direct mobile-to-printer interface.

C. Infrared: Legacy technology largely replaced by NFC and Wi-Fi; rarely used in modern printers.

D. USB: Requires a wired connection, not suitable for sending a print job wirelessly from a mobile device.

The correct answer is A. 2.4GHz.

In the CompTIA A+ Core 1 220-1201 networking objectives, wireless networking technologies include frequency bands such as 2.4GHz, 5GHz, and 6GHz, along with related concepts like channels, regulations, channel selection, Bluetooth, 802.11 standards, NFC, and RFID.

The 2.4GHz band supports the most devices because it is the oldest and most widely adopted Wi-Fi frequency listed. Many legacy devices, including older laptops, printers, IoT devices, smart home devices, and wireless peripherals, still rely on 2.4GHz. It also has better range and wall penetration than higher-frequency bands, although it is usually more crowded and slower.

Why the other options are incorrect:

B. 5GHz

5GHz is newer than 2.4GHz and generally provides faster speeds with less interference, but it does not support as many older legacy devices.

C. 6GHz

6GHz is the newest Wi-Fi frequency option used with newer Wi-Fi standards, so it has the least legacy device support among the Wi-Fi frequency choices.

D. NFC

NFC is a short-range communication technology, not a Wi-Fi frequency band. It is used for close-proximity functions such as tap-to-pay, pairing, and access cards, so it is not the best answer.

Final Answer: A. 2.4GHz

The correct answer is C. DHCP (Dynamic Host Configuration Protocol).

According to CompTIA A+ Core 1 220-1201 objectives under Networking:

DHCP is used to automatically assign IP addresses and related network configuration (such as subnet mask, default gateway, and DNS servers) to devices on a network.

This eliminates the need for manually configuring IP addresses on each PC and helps prevent conflicts.

Why the other options are incorrect:

A. VLAN (Virtual Local Area Network): VLANs segment a network into logical subnets but do not assign IP addresses.

B. DNS (Domain Name System): DNS translates domain names to IP addresses; it does not assign IP addresses to devices.

D. TCP (Transmission Control Protocol): TCP is a transport layer protocol used for reliable communication between devices, not for IP assignment.

The correct answer is D. Dual channel.

In the CompTIA A+ Core 1 (220-1201) hardware objectives, memory bandwidth refers to the amount of data that can be transferred between RAM and the CPU in a given amount of time.

Dual channel memory architecture increases bandwidth by:

Allowing the memory controller to access two memory modules simultaneously

Effectively doubling the data transfer rate compared to single-channel configurations

Improving overall system performance, especially in memory-intensive tasks

Why the other options are incorrect:

A. CAS latency

CAS latency measures the delay before data is available after a request. Lower latency improves response time, but it does not significantly increase total bandwidth.

B. ECC

ECC (Error-Correcting Code) improves reliability by detecting and correcting errors, but it does not increase data transfer bandwidth.

C. High clock speed

Higher clock speed does increase bandwidth, but not as significantly as enabling dual channel, which allows parallel data transfer paths and provides a greater overall increase.

Final Answer: D. Dual channel
