1Y0-440 Architecting a Citrix Networking Solution Question and Answers

Which encoding type can a Citrix Architect use to encode the StyleBook content, when importing the StyleBook configuration under source attribute?

Which session parameter does the default authorization setting control when authentication, authorization, and auditing profiles are configured?

Scenario: A Citrix Architect needs to design a NetScaler deployment in Microsoft Azure. An Active-Passive NetScaler VPX pair will provide load balancing for three distinct web applications. The architect has identified the following requirements:

• Minimize deployment costs where possible.
• Provide dedicated bandwidth for each web application.
• Provide a different public IP address for each web application.

For this deployment, the architect should configure each NetScaler VPX machine to have ______ network interface(s) and configure IP address by using ________. (Choose the correct option to complete the sentence).

Scenario: A Citrix Architect has implemented two high availability pairs of MPX 5500 and MPX 11500 devices respectively with 12.0.53.13 nc version. The NetScaler devices are set up to handle NetScaler Gateway, Load Balancing, Application Firewall, and Content Switching. The Workspacelab infrastructure is set up to be monitored with NMAS version 12.0.53.13 nc by the Workspacelab administrators. The Workspacelab team wants to implement one more pair of NetScaler MPX 7500 devices with version 12.0.53.13 nc.

The Citrix consulting team has assigned the task to implement these NetScaler devices in the infrastructure and set them up to be monitored and managed by NMAS.

The following are the requirements that were discussed during the project initiation call:

• NMAS should be configured to get the infrastructure information under sections such as HDX Insight, WEB Insight, and Security Insight.
• Configuration on the new MPX devices should be identical to MPX 11500 devices.
• Configuration changes after the deployment and initial setup should be optimized using NMAS.
• NMAS should be utilized to configure templates that can be utilized by the Workspacelab team in future deployment.
• As per the requirement from the Workspacelab team, NMAS should be store the audited data for only 15 days.

Which process should the architect utilize to ensure that the deployment of MPX 11500 devices are optimized and that it is correct, before deploying the devices in production?

Scenario: A Citrix Architect and a team of Workspacelab members have met for a design discussion about the NetScaler Design Project. They captured the following requirements:

• Two pairs of NetScaler MPX appliances will be deployed in the DMZ network and the internal network.
• High availability will be accessible between the pair of NetScaler MPX appliances in the DMZ network.
• Multi-factor authentication must be configured for the NetScaler Gateway virtual server.
• The NetScaler Gateway virtual server is integrated with XenApp/XenDesktop environment.
• Load balancing must be deployed for the users from the workspacelab.com and vendorlab.com domains.
• The logon page must show the workspacelab logo.
• Certificate verification must be performed to identify and extract the username.
• The client certificate must have UserPrincipalName as a subject.
• All the managed workstations for the workspace users must have a client identifications certificate installed on it.
• The workspacelab users connecting from a managed workstation with a client certificate on it should be authenticated using LDAP.
• The workspacelab users connecting from a workstation without a client certificate should be authenticated using LDAP and RADIUS.
• The vendorlab users should be authenticated using Active Directory Federation Service.
• The user credentials must NOT be shared between workspacelab and vendorlab.
• Single Sign-on must be performed between StoreFront and NetScaler Gateway.
• A domain drop down list must be provided if the user connects to the NetScaler Gateway virtual server externally.
• The domain of the user connecting externally must be identified using the domain selected from the domain drop down list.

On performing the deployment, the architect observes that users are always prompted with two-factor authentication when trying to assess externally from an unmanaged workstation.

Click the exhibit button to view the configuration.

What should the architect do to correct this configuration?

Scenario: A Citrix Architect holds a design discussion with a team of Workspacelab members, and they capture the following requirements for the NetScaler design project.

• A pair of NetScaler MPX appliances will be deployed in the DMZ network and another pair in the internal network.
• High availability will be accessible between the pair of NetScaler MPX appliances in the DMZ network.
• Multi-factor authentication must be configured for the NetScaler Gateway virtual server.
• The NetScaler Gateway virtual server is integrated with the StoreFront server.
• Load balancing must be deployed for users from the workspacelab.com domain.
• The workspacelab users should be authenticated using Cert Policy and LDAP.
• All the client certificates must be SHA 256-signed, 2048 bits, and have UserPrincipalName as the subject.
• Single Sign-on must be performed between StoreFront and NetScaler Gateway.

After deployment, the architect observes that LDAP authentication is failing.

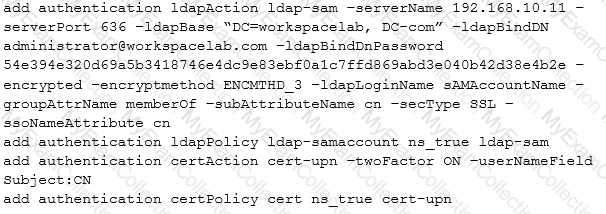

Click the Exhibit button to review the output of aaad debug and the configuration of the authentication policy.

Exhibit 1

Exhibit 2

What is causing this issue?

Scenario: A Citrix Architect needs to deploy Single Sign-on form-based authentication through Citrix ADC for Outlook Web Access (OWA) 2013 for the users of the domain workspacelab com The Single Sign-on (SSO) must be performed based on sAMAccountName.

Which SSO action can the architect use to meet this requirement?

Scenario: A Citrix Architect has deployed two MPX devices, 12.0.53.13 nc and MPX 11500 models, in high availability (HA) pair for the Workspace labs team. The deployment method is two-arm and the devices are installed behind a CISCO ASA 5585 Firewall. The architect enabled the following features on the NetScaler devices. Content Switching, SSL Offloading, Load Balancing, NetScaler Gateway, Application Firewall in hybrid security and Appflow. All are enabled to send monitoring information to NMAS 12.0.53.13 nc build. The architect is preparing to configure load balancing for Microsoft Exchange 2016 server.

The following requirements were discussed during the implementation:

• All traffic needs to be segregated based on applications, and the fewest number of IP addresses should be utilized during the configuration
• All traffic should be secured and any traffic coming into HTTP should be redirected to HTTPS.
• Single Sign-on should be created for Microsoft Outlook web access (OWA).
• NetScaler should recognize Uniform Resource Identifier (URl) and close the session to NetScaler when users hit the Logoff button in Microsoft Outlook web access.
• Users should be able to authenticate using either user principal name (UPN) or sAMAccountName.
• The Layer 7 monitor should be configured to monitor the Microsoft Outlook web access servers and the monitor probes must be sent on SSL

Which monitor will meet these requirements?

Scenario: A Citrix Architect has met with a team of Workspacelab members for a design discussion They have captured the following requirements for the Citrix ADC design project:

The authentication must be deployed for the users from the workspacelab com and vendorlab com domains.

• The workspacelab users connecting from the internal (workspacelab) network should be authenticated using LDAP
• The workspacelab users connecting from the external network should be authenticated using LDAP and RADIUS.
• The vendorlab users should be authenticated using Active Directory Federation Service
• The user credentials must NOT be shared between workspacelab and vendorlab
• Single Sign-on must be performed between StoreFront and Citrix Gateway
• A domain drop down list must be provided if the user connects to the Citrix Gateway virtual server externally

Which method must the architect utilize for user management between the two domains?

Scenario: A Citrix Architect has configured two MPX devices in high availability mode with version 12.0.53.13 nc. After a discussion with the security team, the architect enabled the Application Firewall feature for additional protection.

In the initial deployment phase, the following security features were enabled:

• IP address reputation
• HTML SQL injection check
• Start URL
• HTML Cross-site scripting
• Form-field consistency
• After deployment in pre-production, the team identifies the following additional security features and changes as further requirements:
• Application Firewall should retain the response of form field in its memory. When a client submits the form in the request, Application Firewall should check for inconsistencies in the request before sending it to the web server.
• All the requests dropped by Application Firewall should get a pre-configured HTML error page with appropriate information.
• The Application Firewall profile should be able to handle the data from the RSS feed and an ATOM-based site. Click the Exhibit button to view an excerpt of the existing configuration.

What should the architect do to meet these requirements?

Scenario: A Citrix Architect needs to design a new Citrix ADC Gateway deployment to provide secure RDP access to backend Windows machines.

Click the Exhibit button to view additional requirements collected by the architect during the design discussions.

To meet the customer requirements, the architect should deploy the RDP proxy through _______, using a _________ solution. (Choose the correct option to complete the sentence.)

Which response is returned by the Citrix ADC, if a negative response is present in the local cache?

Scenario: A Citrix Architect and a team of Workspacelab members met to discuss requirements during the design discussion for a Citrix ADC design project. Specifically, the existing Citrix ADC Configuration must be modified to meet the following authentication conditions:

• Provide users with domain drop-down page

• If the users select workspacelab.com. perform single factor authentication using LDAP

• It the users select AAATM.COM, perform two factor authentication using LDAP and RADIUS

• If the users select NSI-TEST. COM. perform SAML authentication using ADFS

What should the architect use to bind the AAA virtual server to the Citrix Gateway virtual server?

Scenario: A Citrix Architect needs to design a new Citrix Gateway deployment for a customer. During the design discussions, the architect documents the key

requirements for the Citrix Gateway.

Click the Exhibit button to view the key requirements.

The architect should configure Citrix Gateway for __________________in order to meet the stated requirements. (Choose the correct option to complete the

sentence.)

Which two features are supported on LbaaSV1? (Choose two.)

Scenario: A Citrix Architect needs to configure a full VPN session profile to meet the following requirements:

• Users should be able to send the traffic only for the allowed networks through the VPN tunnel.
• Only the DNS requests ending with the configured DNS suffix workspacelab.com must be sent to NetScaler Gateway.
• If the DNS query does NOT contain a domain name, then DNS requests must be sent to NetScaler gateway.

Which settings will meet these requirements?

Scenario: A Citrix Architect needs to design a hybrid Citrix Virtual App and Citrix Virtual Desktop environment which will include as well as resource locations in an on-premises datacenter and Microsoft Azure.

Organizational details and requirements are as follows:

• Active Citrix Virtual App and Citrix Virtual Desktop Service subscription
• No existing Citrix deployment
• Minimization of additional costs
• All users should use same access point, regardless of network location
• No multi-factor authentication is required

Click the Exhibit button to view the conceptual environment architecture.

The architect should use___________ in Location A, and should use _______________ in Location B. (Choose the correct option to complete the sentence.)

Scenario: A Citrix Architect has met with a team of Workspacelab members for a design discussion. They have captured the following requirements for the Citrix ADC design project:

• Multi-factor authentication must be configured for the Citrix Gateway virtual server.
• The Citrix Gateway virtual server is integrated with the Citrix Virtual Apps and Desktops environment.
• Load balancing must be configured for the StoreFront server.
• Authentication must be deployed for the users from the workspacelab.com and vendorlab.com domains.
• The logon page must have the workspacelab logo on it.
• Certificate verification must be performed to identify and extract the username.
• The client certificate must have UserPrincipalName as a subject.
• All the managed workstations for the workspacelab users must have the client identification certificate installed on them.
• The workspacelab users connecting from the internal network should be authenticated using LDAP.
• The workspacelab users connecting from the external network should be authenticated using LDAP and RADIUS.
• The vendorlab users should be authenticated using Active Directory Federation Service.
• The user credentials must NOT be shared between workspacelab and vendorlab.
• Single Sign-on must be performed between StoreFront and Citrix Gateway.
• A domain drop down list must be provided if the user connects to the Citrix Gateway virtual server externally.
• The domain of the user connecting externally must be identified using the domain selected from the domain drop down list.

Which authentication policy must the architect execute first to meet the design requirements?

A Citrix Architect can execute a configuration job using a DeployMasterConfiguration template on a Citrix ADC _________deployed_________. (Choose the correct option to complete sentence.)

Scenario: A junior Citrix Architect would like to use nFactor to perform authentication based on the domain. The junior architect has reached out to a supervisor for assistance and has been provided with the following step-by-step configuration guide:

• Create Authentication policy for LDAP. RADIUS.
• Create logon schema for Domain drop down. LDAP. LDAP+RADIUS, and noschema.
• Create Authentication policy label for OnlyLDAR LDAP+RADIUS, and RADIUS.
• Bind DOMAIN drop down as default logon schema policy
• Create Authentication profile to bind the AAA virtual server.
• Bind Authentication profile to Traffic management virtual server or Citrix Gateway virtual server.

What must the junior architect bind In order for the authentication to work correctly?

Which parameter indicates the number of current users logged on to the Citrix gateway?

A Citrix Architect has deployed NetScaler Management and Analytics System (NMAS) to monitor a high availability pair of NetScaler VPX devices.

The architect needs to deploy automated configuration backup to meet the following requirements:

• The configuration backup file must be protected using a password.
• The configuration backup must be performed each day at 8:00 AM GMT.
• The configuration backup must also be performed if any changes are made in the ns.conf file.
• Once the transfer is successful, auto-delete the configuration file from the NMAS.

Which SNMP trap will trigger the configuration file backup?

Scenario: A Citrix Architect has deployed Citrix Gateway integration with the StoreFront server. The Vasco server is used to perform WebAUTH to authenticate users The configuration snippet is as follows:

Which parameter is utilized to calculate the content-length insert in the request sent to the server?

A Citrix Architect can execute a configuration job using a DeployMasterConfiguration template on a Citrix ADC____deployed________. (Choose the correct option to complete sentence:

Scenario: A Citrix Architect needs to design a new NetScaler Gateway deployment to provide secure RDP access to backend Windows machines.

Click the Exhibit button to view additional requirements collected by the architect during the design discussions.

To meet the customer requirements, the architect should deploy the RDP proxy through ______ using a________ solution. (Choose the correct option to complete the sentence.)

Scenario: The Workspacelab team has configured their Citrix ADC Management and Analytics (Citrix Application Delivery Management) environment. A Citrix Architect needs to log on to the Citrix Application Delivery Management to check the settings.

Which two authentication methods are supported to meet this requirement? (Choose two.)

A Citrix Architect needs to make sure that maximum concurrent AAA user sessions are limited to 4000 as a security restriction.

Which authentication setting can the architect utilize to view the current configuration?

What can help a Citrix Architect prepare to discuss time scales and resource requirements?

Scenario: A Citrix Architect and a team of Workspacelab members met to discuss a NetScaler design project. They captured the following requirements from this design discussion:

• A pair of NetScaler MPX appliances will be deployed in the DMZ network.
• High Availability will be accessible in the NetScaler MPX in the DMZ Network.
• Load balancing should be performed for the internal network services like Microsoft Exchange Client Access Services and Microsoft App-V.
• The load balancing should be performed for StoreFront.
• The NetScaler Gateway virtual server will be utilizing the StoreFront load-balancing virtual server.
• The NetScaler Gateway virtual server and StoreFront.
• The NetScaler Gateway virtual service and StoreFront and load-balancing services are publicly accessible.
• The traffic for internal and external services must be isolated.

Click the Exhibit button to review the logical network diagram.

Which two design decisions are incorrect based on these requirements? (Choose two.)

Which NetScaler Management and Analytics System (NMAS) utility can a Citrix Architect utilize to verify the configuration template created by the NMAS StyleBook, before actually executing it on the NetScaler?

Scenario: A Citrix Architect has deployed load balancing for SharePoint 2010 on a Citrix ADC instance. While editing the document, the architect observed the error displayed below:

Sorry, we couldn't open 'https://sharepointcs.emea.in/Shared Documents/Citrix Enhancement Request Form.doc'

After troubleshooting, the architect discovers the issue. When a user opens a document, it opens in the browser, but while editing the document, thd session is transferred from the browser to the Word application During this time, the cookies should be transferred from the browser to the Word application.

Which two configurations should the architect modify to ensure that the cookies are shared between the browser and non-browser applications? (Choose two.)

Which four load-balancing methods support Citrix ADC Virtual Server-Level Slow Start? (Choose four.)

Scenario: A Citrix Architect needs to conduct a capabilities assessment for an organization that wants to create a new Citrix ADC deployment. One of the

organization's core business drivers is to ensure that key applications are always available to users.

Which capabilities must the architect verify to assess if the requirement is feasible with the current infrastructure?

Under which two circumstances will a service be taken out of the slow start phase with automated slow start? (Choose Two)

_________ content type supports sending NITRO commands to NetScaler. (Choose the correct option to complete sentence.)

Scenario: A Citrix Architect needs to assess an existing NetScaler multi-site deployment. The deployment is using Global Server Load Balancing (GSLB) configured in a parent-child configuration.

Click the Exhibit button to view the diagram of the current GSLB configuration and parent-child relationships, as well as the status of the sites and the connectivity between them.

Based on the displayed configuration and status, Child_site1_______ a connection from _______. (Choose the correct option to complete the sentence.)

Scenario: A Citrix Architect has set up Citrix ADC MPX devices in high availability mode with version 12.0.53.13 nc. These are placed behind a Cisco ASA 5505 firewall. The Cisco ASA firewall is configured to block traffic using access control lists. The network address translation (NAT) is also performed on the firewall.

The following requirements were captured by the architect during the discussion held as part of the Citrix ADC security implementation project with the customers security team:

The Citrix ADC MPX device:

• should monitor the rate of traffic either on a specific virtual entity or on the device It should be able to mitigate the attacks from a hostile client sending a flood of requests. The Citrix ADC device should be able to stop the HTTP TCP. and DNS based requests
• needs to protect backend servers from overloading
• needs to queue all the incoming requests on the virtual server level instead of the service level
• should provide access to resources on the basis of priority
• should provide protection against well-known Windows exploits virus-infected personal computers, centrally managed automated botnets, compromised webservers, known spammers/hackers, and phishing proxies
• should provide flexibility to enforce the desired level of security check inspections for the requests originating from a specific geolocation database.
• should block the traffic based on a pre-determined header length. URL length and cookie length. The device should ensure that characters such as a single straight quote ('): backslash (\); and semicolon (;) are either blocked, transformed, or dropped while being sent to the backend server.

Which security feature should the architect configure to meet these requirements?

Which two settings must a Citrix Architect enable to deploy a shared VLAN on Citrix ADC VPX instance on an ESX platform? (Choose two.)

Scenario: A Citrix Architect needs to assess a Citrix Gateway deployment that was recently completed by a customer and is currently in pre-production testing The Citrix Gateway needs to use ICA proxy to provide access to a Citrix Virtual Apps and Citrix Virtual Desktops environment. During the assessment, the customer informs the architect that users are NOT able to launch published resources using the Gateway virtual server.

Click the Exhibit button to view the troubleshooting details collected by the customer.

Which two reasons could cause this issue? (Choose two)

Scenario: Based on a discussion between a Citrix Architect and a team of Workspacelab members, the MPX Logical layout for Workspacelab has been created across three (3) sites.

They captured the following requirements during the design discussion held for a Citrix ADC design project:

• All three (3) Workspacelab sites (DC, NDR, and DR) will have similar Citrix ADC configurations and design.
• Both external and internal Citrix ADC MPX appliances will have Global Server Load Balancing (GSLB) configured and deployed in Active/Passive mode.
• GSLB should resolve both A and AAA DNS queries.
• In the GSLB deployment, the NDR site will act as backup for the DC site, whereas the DR site will act as backup for the NDR site.
• When the external Citrix ADC replies to DNS traffic coming in through Cisco Firepower IPS, the replies should be sent back through the same path.
• On the internal Citrix ADC, both the front-end VIP and backend SNIP will be part of the same subnet.
• The external Citrix ADC will act as default gateway for the backend servers.
• All three (3) sites, DC, NDR, and DR, will have two (2) links to the Internet from different service providers configured in Active/Standby mode.

Which design decision must the architect make the design requirements above?

For which three reasons should a Citrix Architect perform a capabilities assessment when designing and deploying a new NetScaler in an existing environment? (Choose three.)

Which three methods can a Citrix Architect use to assess the capabilities of a network infrastructure? (Choose three.)
